Model Electrolux 253.60137990 Top-Mount Refrigerator (Kenmore 25360137990) – Common Parts & Diagrams
CABINET
DOOR

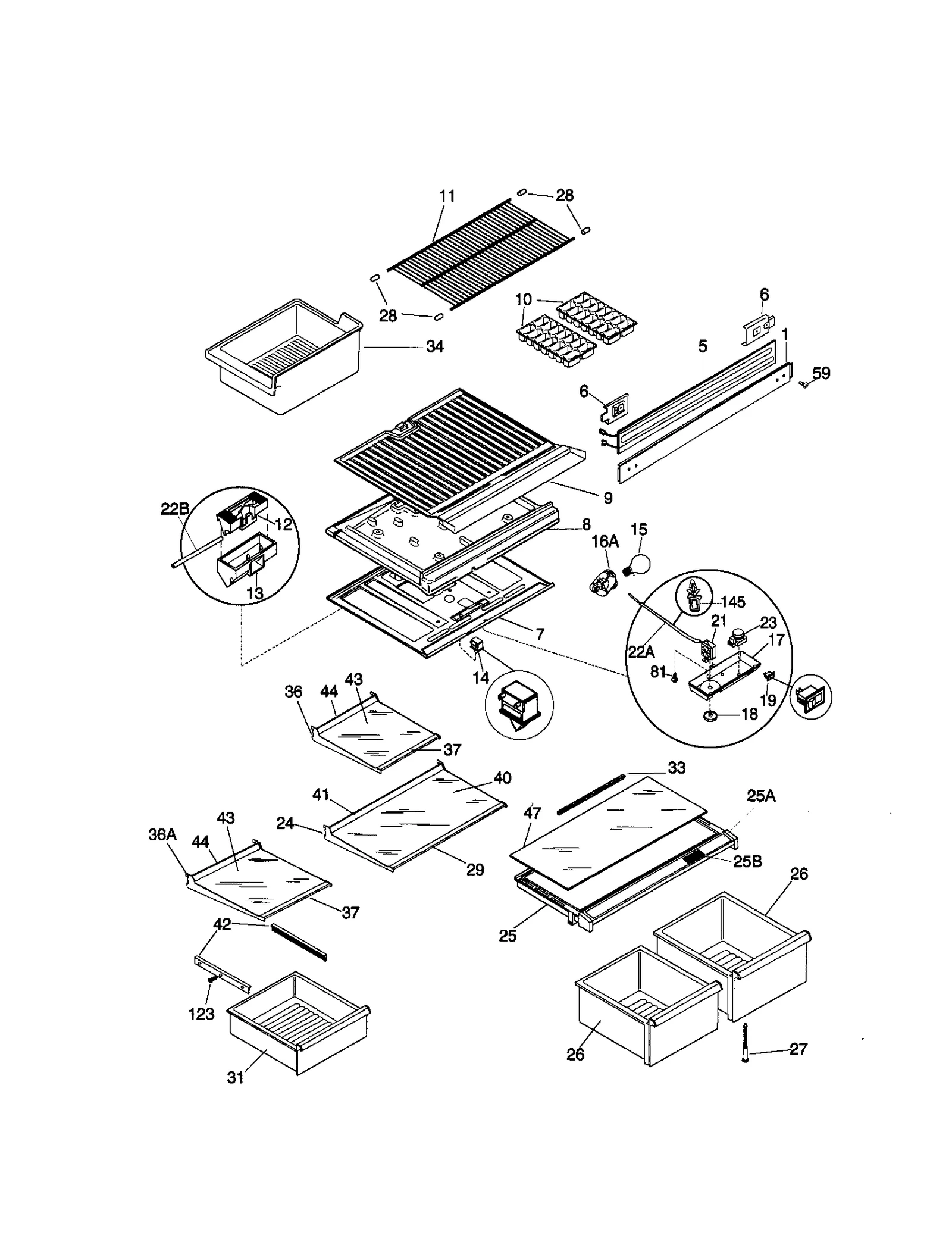

SHELVES
All Parts

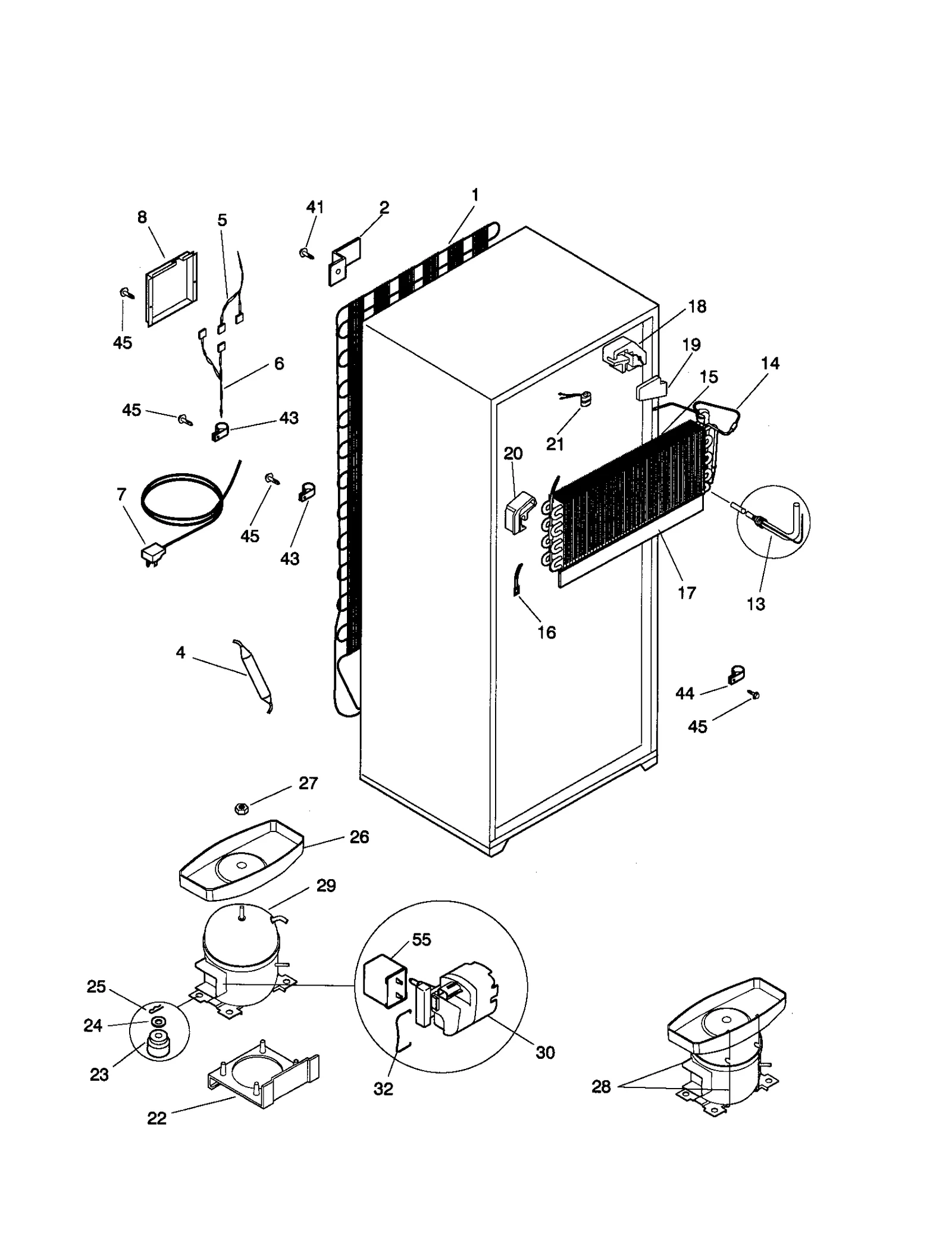

SYSTEM
Common parts from model Electrolux 253.60137990 Top-Mount Refrigerator (Kenmore 25360137990)
1
Refrigerator Mullion WCI 218651900 Contact Us For Availability
1
External Condenser Coil WCI 218657100 Contact Us For Availability
1A
Refrigerator Mullion WCI 218651901 Contact Us For Availability
1A
Spacer Condenser WCI 5304406721 Contact Us For Availability
1B
Refrigerator Spacer Tube WCI 5304406722 Contact Us For Availability
2
Kelvinator Refrigerator Door Gasket (White) WCI 218730609 Contact Us For Availability
2
Refrigerator Bracket WCI 5308000296 Contact Us For Availability
5
Heater Mullion WCI 218781002 Contact Us For Availability
5
Refrigerator Electronic Harness WCI 218878600 Contact Us For Availability
6
Tapping Plate WCI 218845602 Contact Us For Availability
6
Refrigerator Wiring Harness WCI 215257001 Contact Us For Availability
7
Refrigerator Top Panel WCI 218866101 Contact Us For Availability
7
Refrigerator Cord WCI 5316254901 Contact Us For Availability
7A
Refrigerator Screw WCI 5303001380 Contact Us For Availability
8
Refrigerator Divider WCI 218909706 Contact Us For Availability
8
Refrigerator Cover WCI 5303001197 Contact Us For Availability
8A
Wiring Screw WCI 218754500 Contact Us For Availability
9
Refrigerator Freezer Bottom Panel WCI 218865900 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10A
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303288243 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 215076405 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
15
Refrigerator Evaporator WCI 218765400 Contact Us For Availability
15A
Out Door Panel WCI 5303918000 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Control Box WCI 5303321455 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18
Kelvinator Refrigerator Insulation Block, Rig WCI 218773700 Contact Us For Availability
18A
Refrigerator Freezer Handle WCI 218779804 Contact Us For Availability
18AB
Refrigerator Handle WCI 218779805 Contact Us For Availability
18D
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Plug WCI 5303007287 Contact Us For Availability
20
Refrigerator Block WCI 5308017227 Contact Us For Availability
21
THERMOSTAT-DEFROST WCI 531629001 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Plate WCI 5308013663 Contact Us For Availability
22A
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Frame-full S WCI 215919117 Contact Us For Availability
24
Refrigerator Washer WCI 5308003633 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 5303206538 Contact Us For Availability
25
Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability
25A
Refrigerator Crisper Trim WCI 5304413858 Contact Us For Availability
25B
Refrigerator Humidity Control WCI 5303301490 Contact Us For Availability
26
R Crisper Pn WCI 218884502 Contact Us For Availability
26
Defrost Drai WCI 215372500 Contact Us For Availability
26A
Refrigerator Crisper Drawer, Left WCI 218884611 Contact Us For Availability
27
Refrigerator Crisper Drawer Cover Support Pos WCI 5303205987 Contact Us For Availability
27
Refrigerator Level Screw WCI 5303212922 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Trim-refr Sh WCI 215919405 Contact Us For Availability
29B
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
30
Kelvinator Refrigerator Compressor Overload a WCI 218721101 Contact Us For Availability
31
Meat Pan WCI 21884402 Contact Us For Availability
33
Crisper Gasket WCI 5303200329 Contact Us For Availability
36
Frame-half S WCI 215919115 Contact Us For Availability
36A
FRAME-MEAT KPR SHLF, CANTILEVER WCI 21591967 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37
Refrigerator Shelf Trim WCI 215919411 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37AB
Lo Trim Hand WCI 218771202 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40
Refrigerator Glass Shelf WCI 218498144 Contact Us For Availability
41
Trim-full Sh WCI 215919805 Contact Us For Availability
43
Refrigerator Glass Shelf WCI 218498168 Contact Us For Availability
44
Trim-half Sh WCI 215919811 Contact Us For Availability
47
Refrigerator Glass WCI 218498187 Contact Us For Availability
48
Refrigerator Shelf Channel WCI 5303292395 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
73
Refrigerator Mounting Clip WCI 218896704 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
98A
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Sound Cover WCI 218905701 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218957400 Contact Us For Availability
NI
Hot Tube WCI 5300189383 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Refrigerator Parts Catalog WCI 5995327805 Contact Us For Availability
× ![]()
