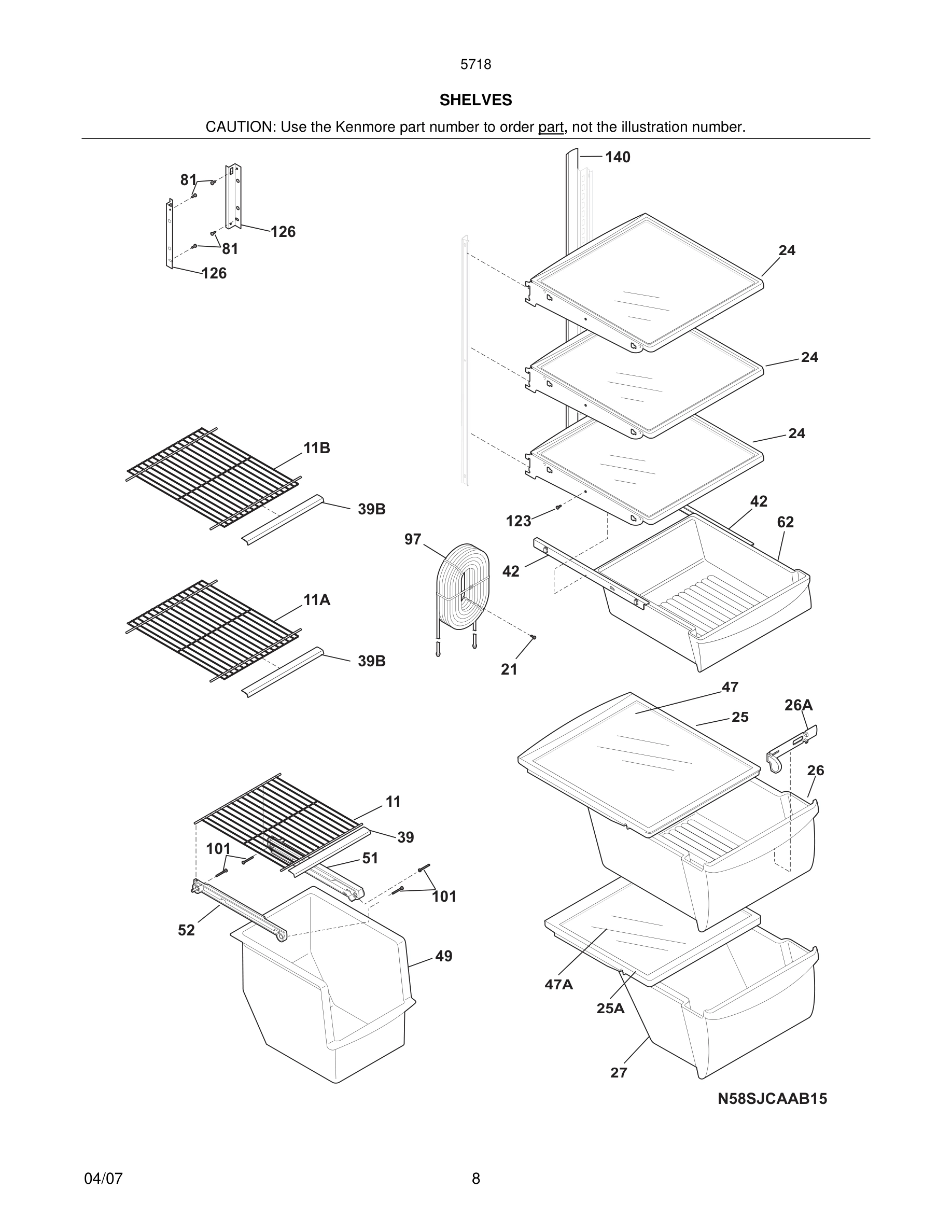

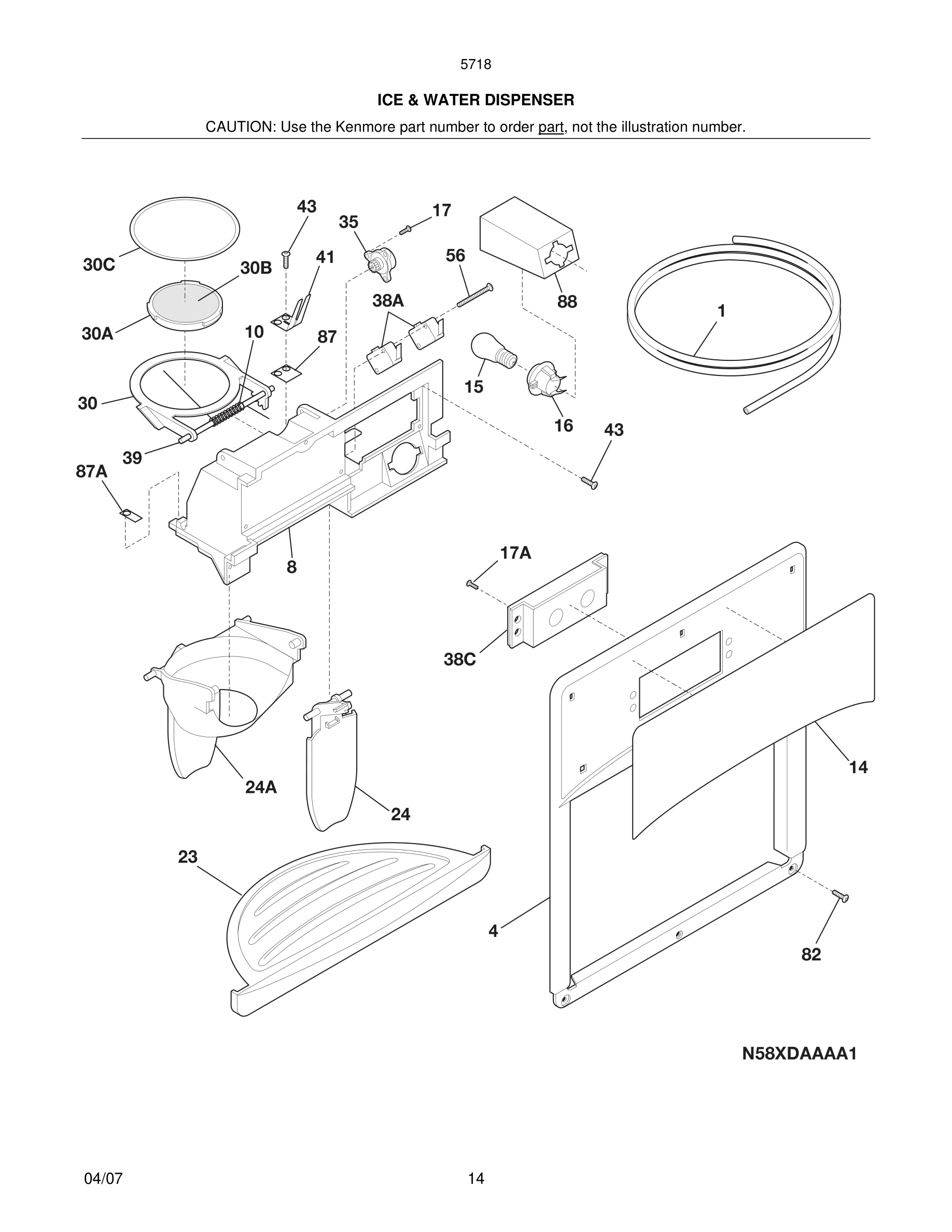

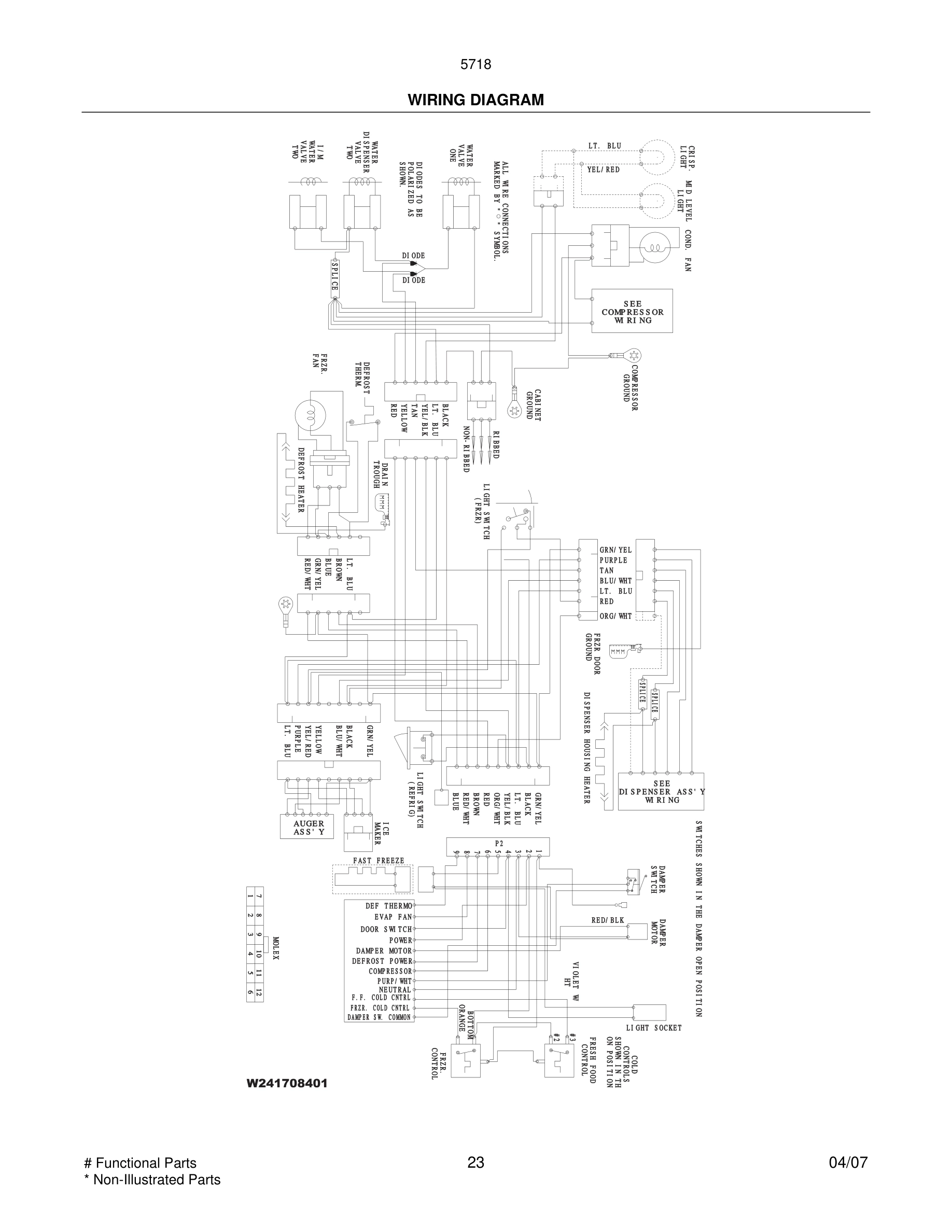

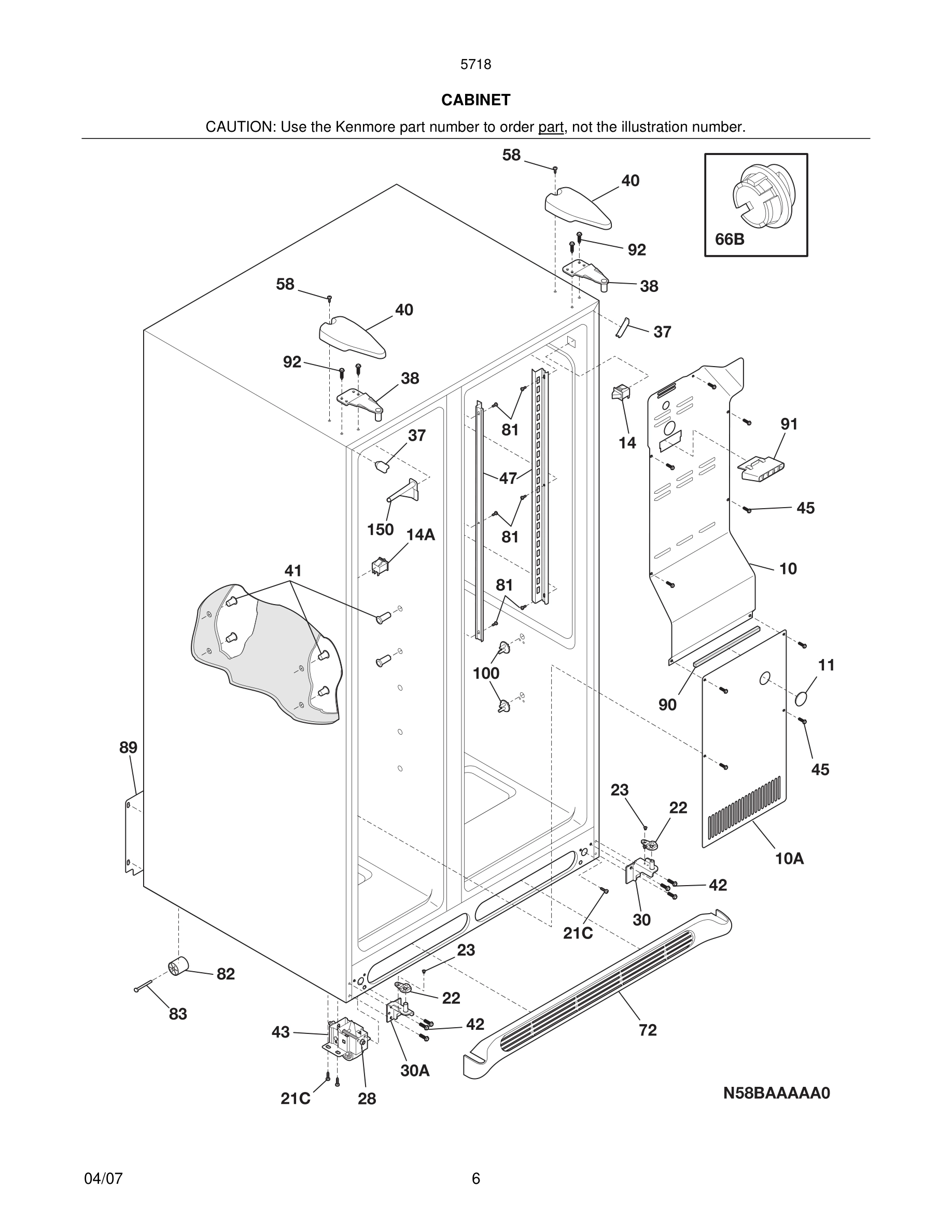

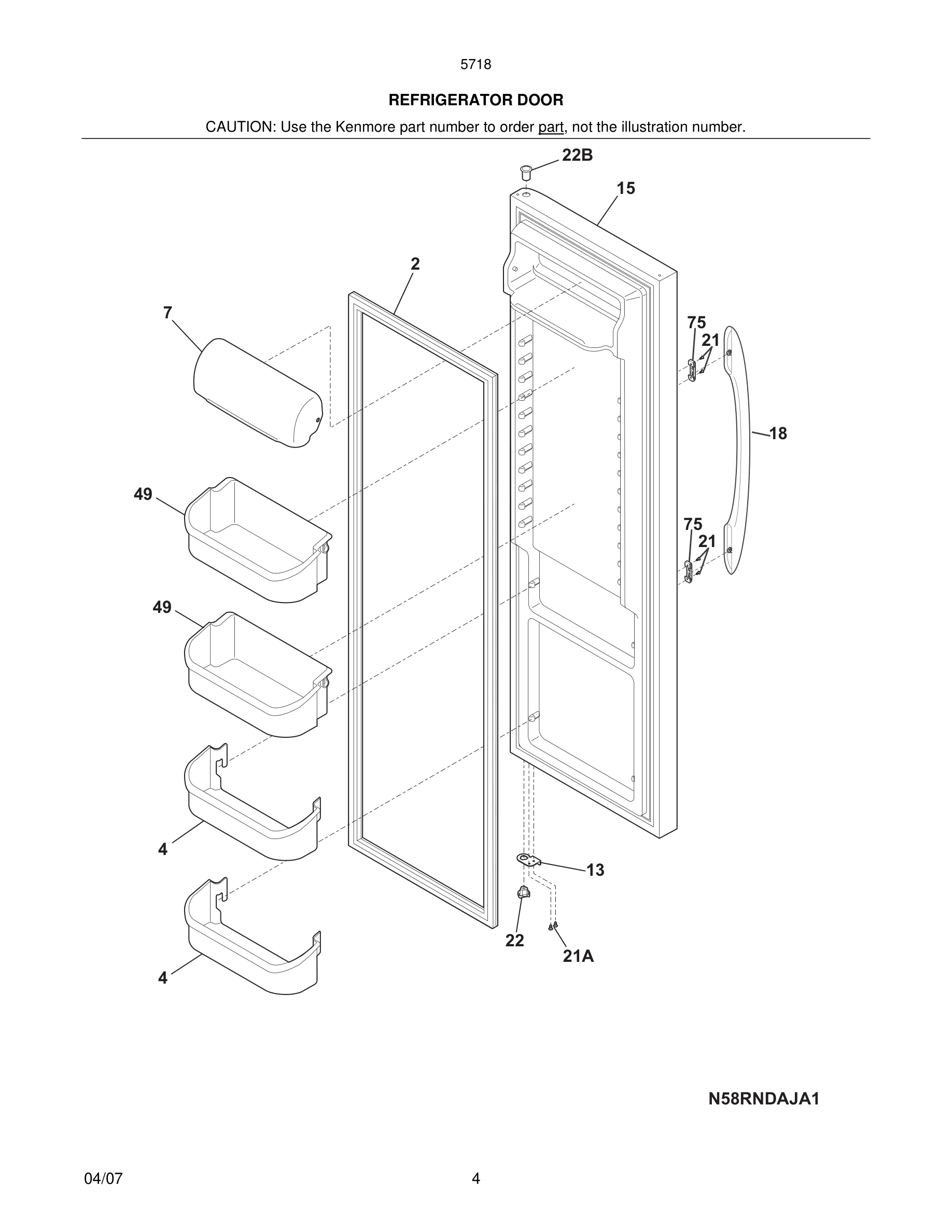

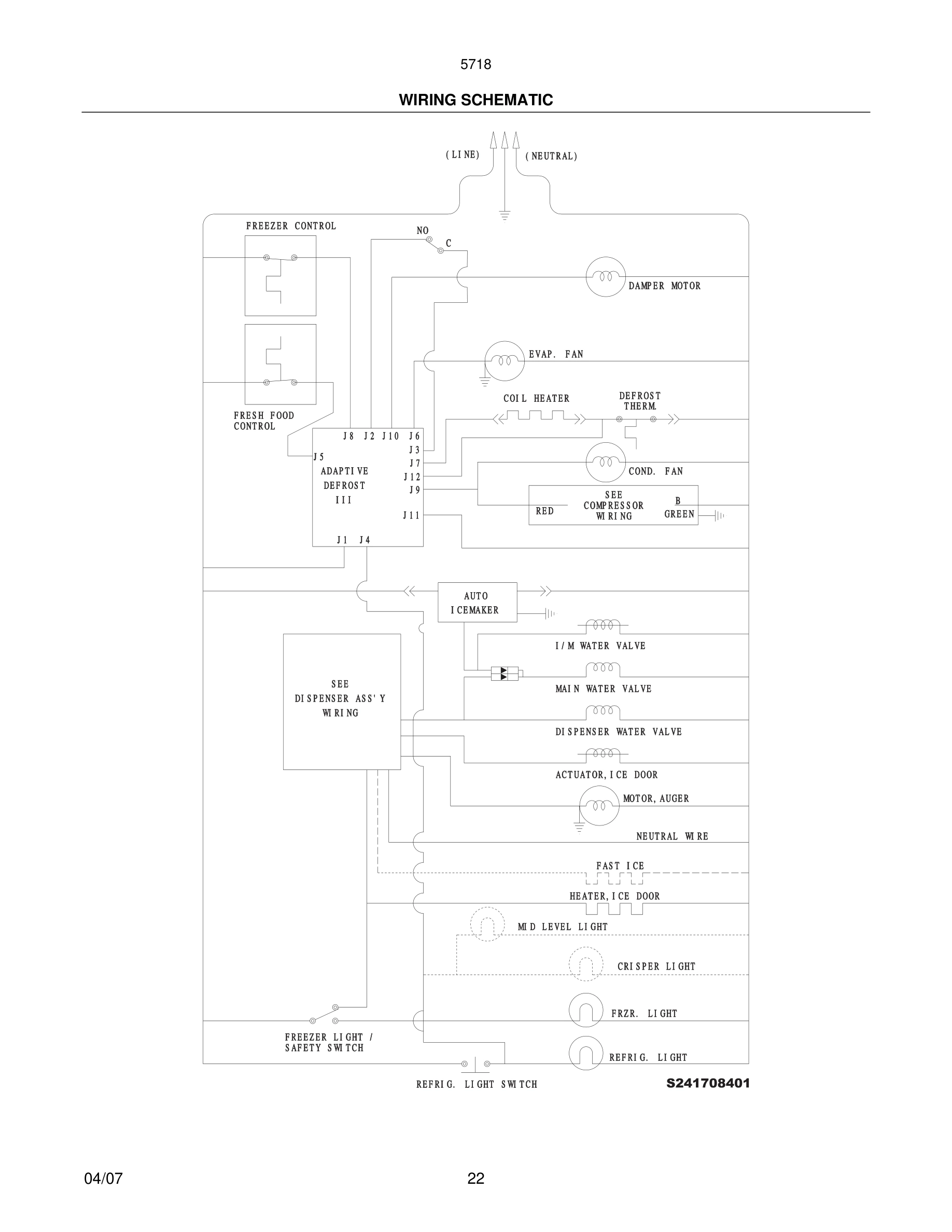

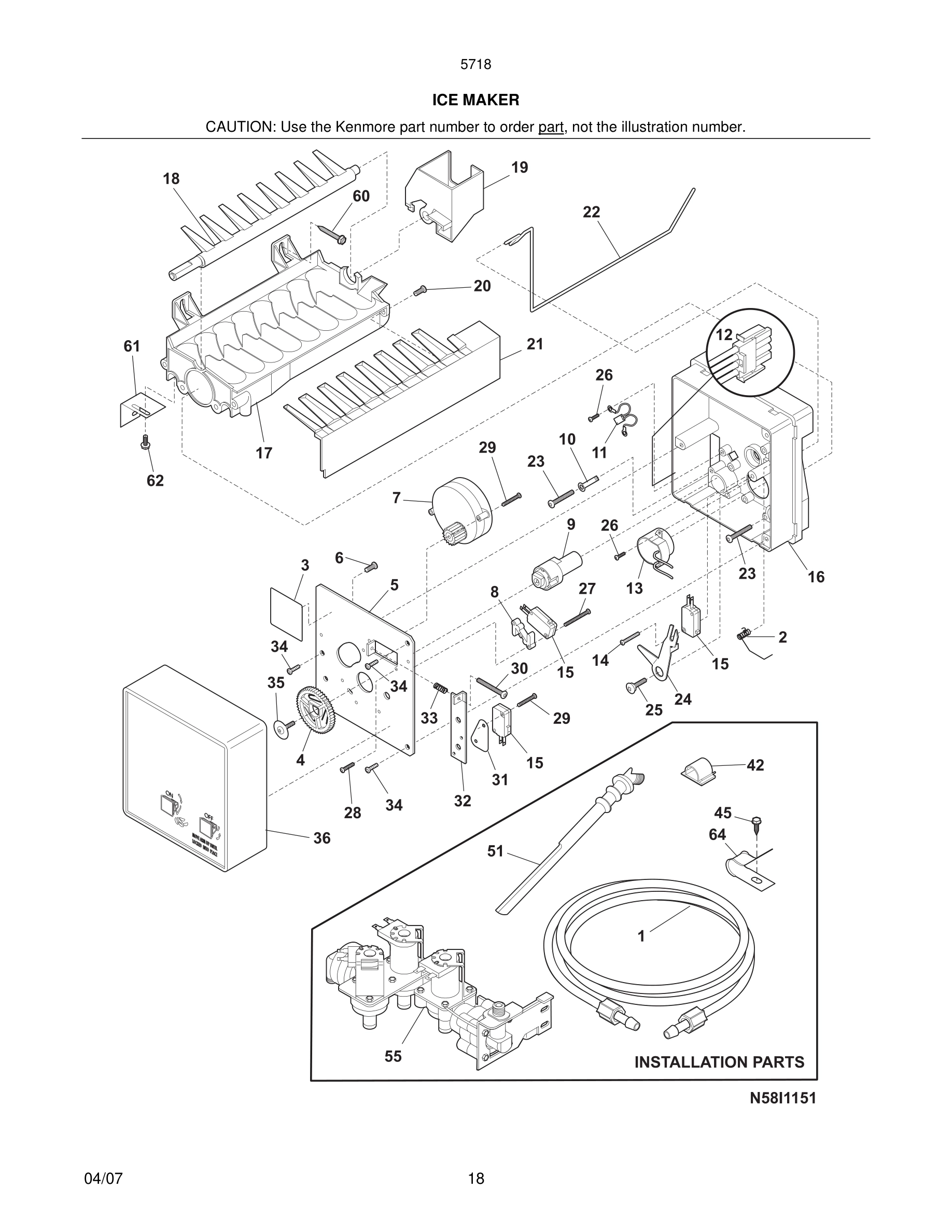

Model Kenmore 253.57189603 REFRIGERATOR – Common Parts &amp; Diagrams

*

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $39.43

*

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $63.51

*

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

*

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $50.64

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $38.09

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $69.91

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

Tube-water inlet, valve to door WCI 218976907 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $36.15

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $27.18

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $27.00

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6#

Harness-wiring, machine compt WCI 241586801 Contact Us For Availability

6*#

Harness-wiring WCI 241651601 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Module-dispenser WCI 241680507 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

10

240435911 Frigidaire Refrigerator Cover Backorder WCI 240435911 $63.45

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

11

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $50.26

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11A

5304532465 Frigidaire Refrigerator Shelf and Backorder WCI 5304532465 $32.28

11B

5304532464 Frigidaire Refrigerator Shelf and Backorder WCI 5304532464 $32.80

12

5304456664 Frigidaire Refrigerator Wiring Har Backorder WCI 5304456664 $79.31

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $38.11

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14

240570237 Frigidaire Refrigerator Front Dispe In Stock WCI 240570237 $18.27

14#

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $15.92

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $185.71

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

16

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18

Knob, temp control WCI 240360801 Contact Us For Availability

20

241734802 Frigidaire Refrigerator Cover Backorder WCI 241734802 $90.32

21#

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

22

218660704 Frigidaire Refrigerator Insulator T Backorder WCI 218660704 $9.52

22

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $13.57

22

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

23

241659103 Frigidaire Refrigerator Drip Tray Backorder WCI 241659103 $41.68

23

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

23

Screw-#10-32 x 1/4 flat hd WCI 240402702 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24A

5304493024 Frigidaire Refrigerator Lighted Bl In Stock WCI 5304493024 $157.91

25

240354502 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354502 $56.18

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

25A

240354602 Frigidaire Lower Crisper Cover Fram In Stock WCI 240354602 $53.20

26

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $28.07

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30#

241707701 Frigidaire Refrigerator Starter In Stock WCI 241707701 $49.29

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

35

Damper-rotary WCI 241689301 No Longer Available

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

37

Trim-cabinet corner, black, (2) WCI 240337610 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

Bracket-upper hinge WCI 240327206 Contact Us For Availability

38A#

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38A*

241679201 Frigidaire Refrigerator Wiring Harn Backorder WCI 241679201 $51.99

38C#

5304525097 Frigidaire Refrigerator 4 Button S Backorder WCI 5304525097 $61.40

38C*

5304521693 Frigidaire Refrigerator Facade Har Backorder WCI 5304521693 $20.38

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

39

Trim-shelf, front WCI 240430705 Contact Us For Availability

39B

Trim-shelf, front WCI 240430701 Contact Us For Availability

40

240327007 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327007 $34.43

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $36.77

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

44

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $28.07

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $9.06

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $83.71

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

240324501 Frigidaire Bin Door Shelf In Stock WCI 240324501 $47.27

49

240564301 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564301 $81.20

49

241734401 Frigidaire Refrigerator Rail Assemb Backorder WCI 241734401 $124.20

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $38.55

51

Rotation Stop WCI 241676301 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger Backorder WCI 240343102 $41.24

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $46.30

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

Screw-micro switch, pan head WCI 241689201 Contact Us For Availability

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

66B

Diffuser-air WCI 240374301 Contact Us For Availability

66B*

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $10.41

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

75

Clip-handle, (2) WCI 241696101 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

Shield-light WCI 241686101 Contact Us For Availability

89

Cover-access, w/label WCI 241733901 Contact Us For Availability

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

97

240545302 Frigidaire Water Reservoir Assembly Backorder WCI 240545302 $167.84

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.16

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

137

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $33.29

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $2.94

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $8.27

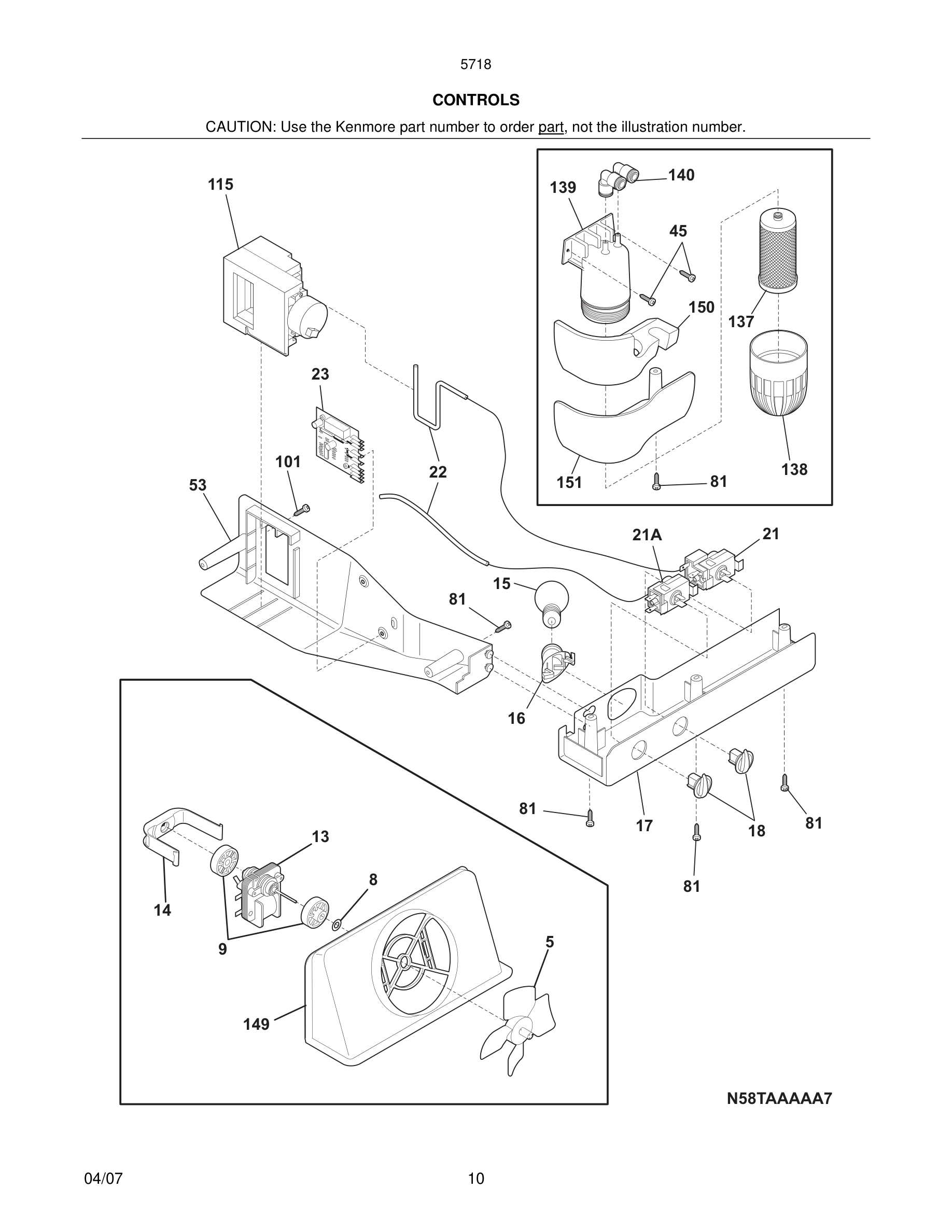

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $47.04

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $43.45

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
