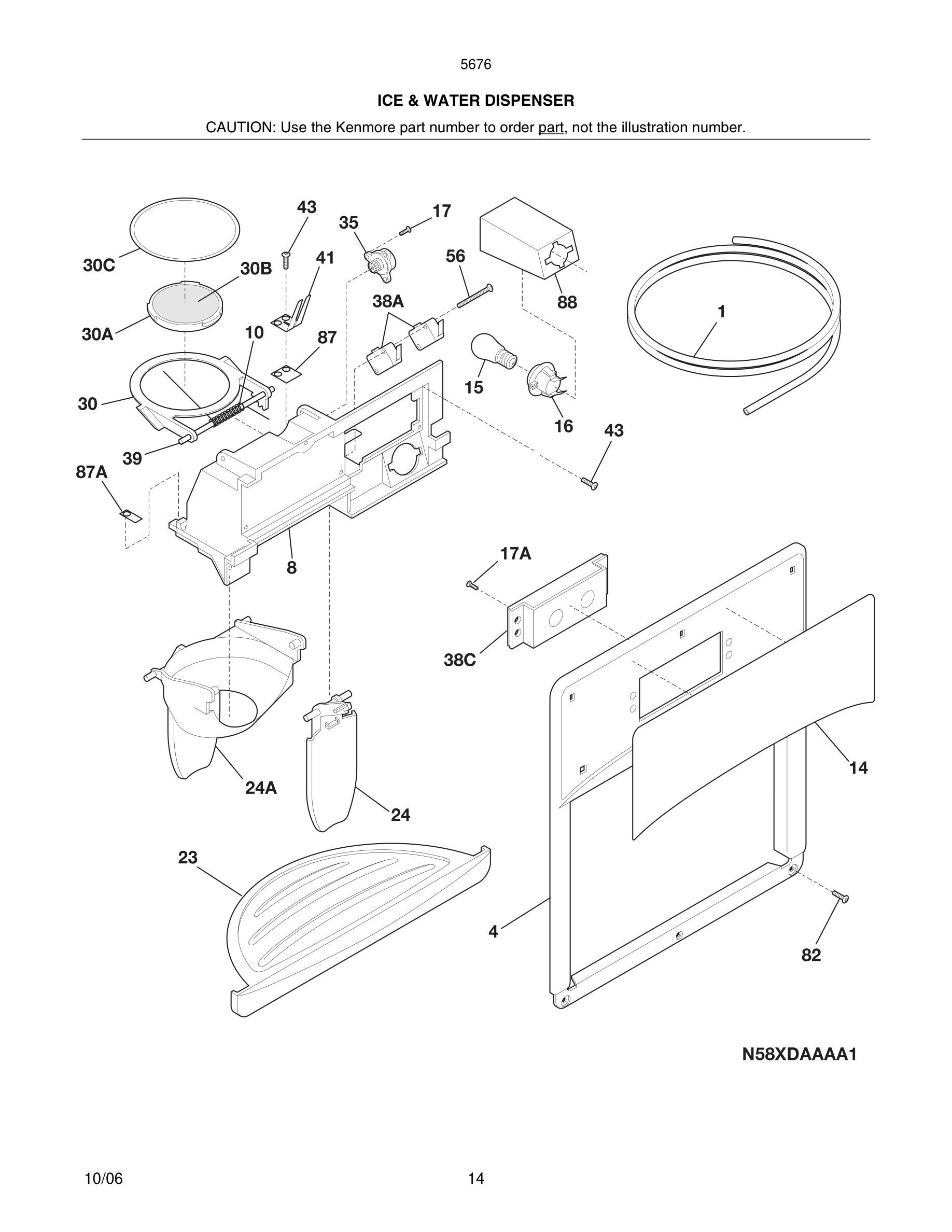

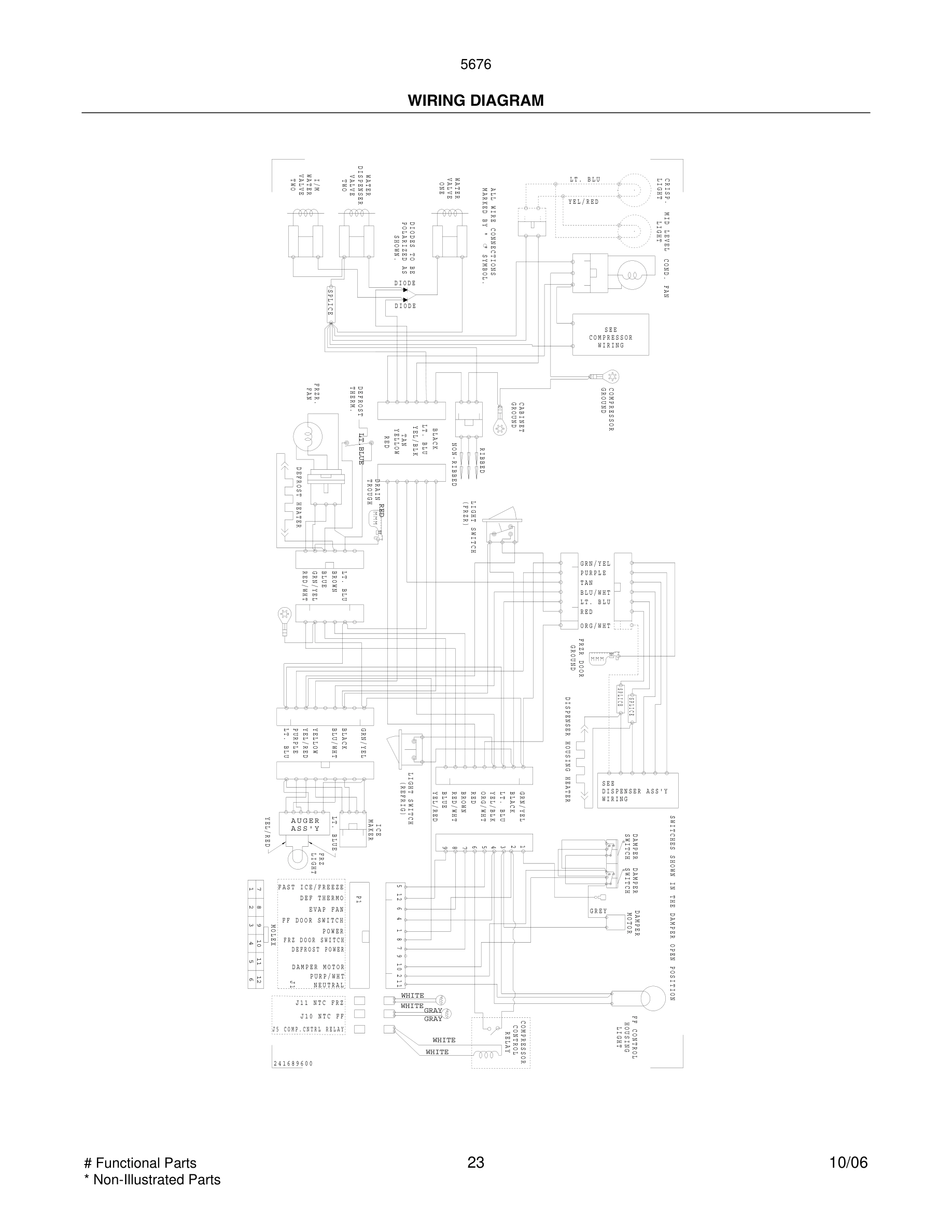

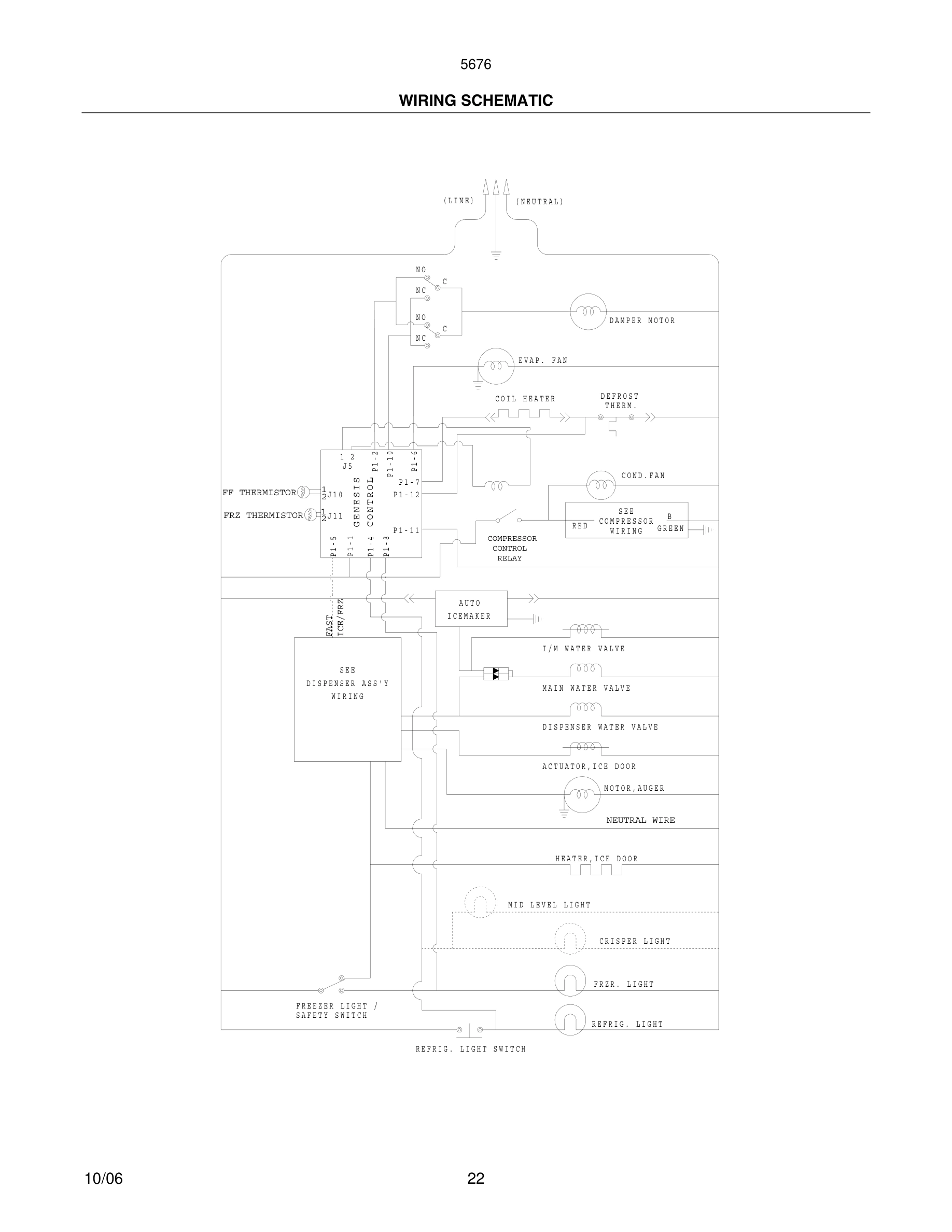

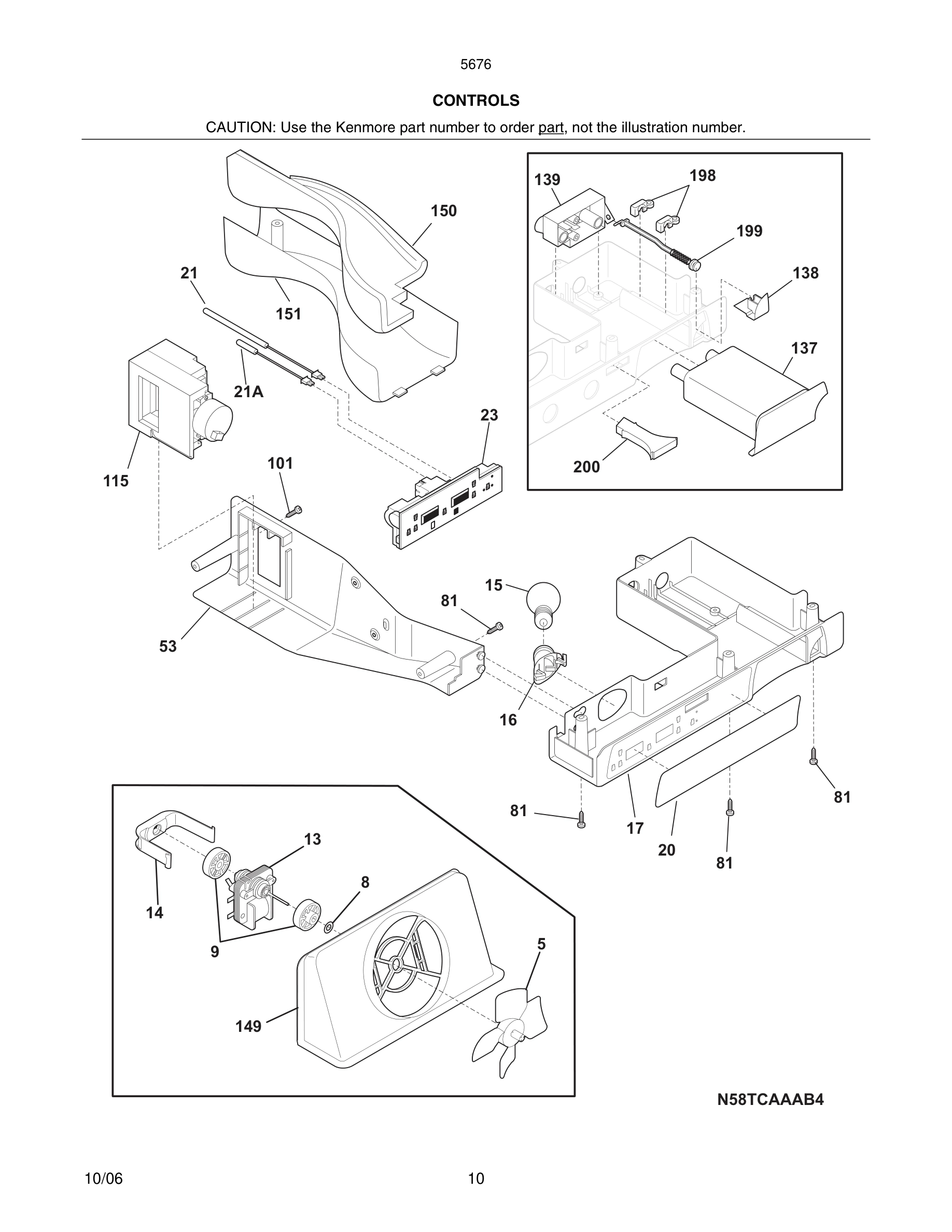

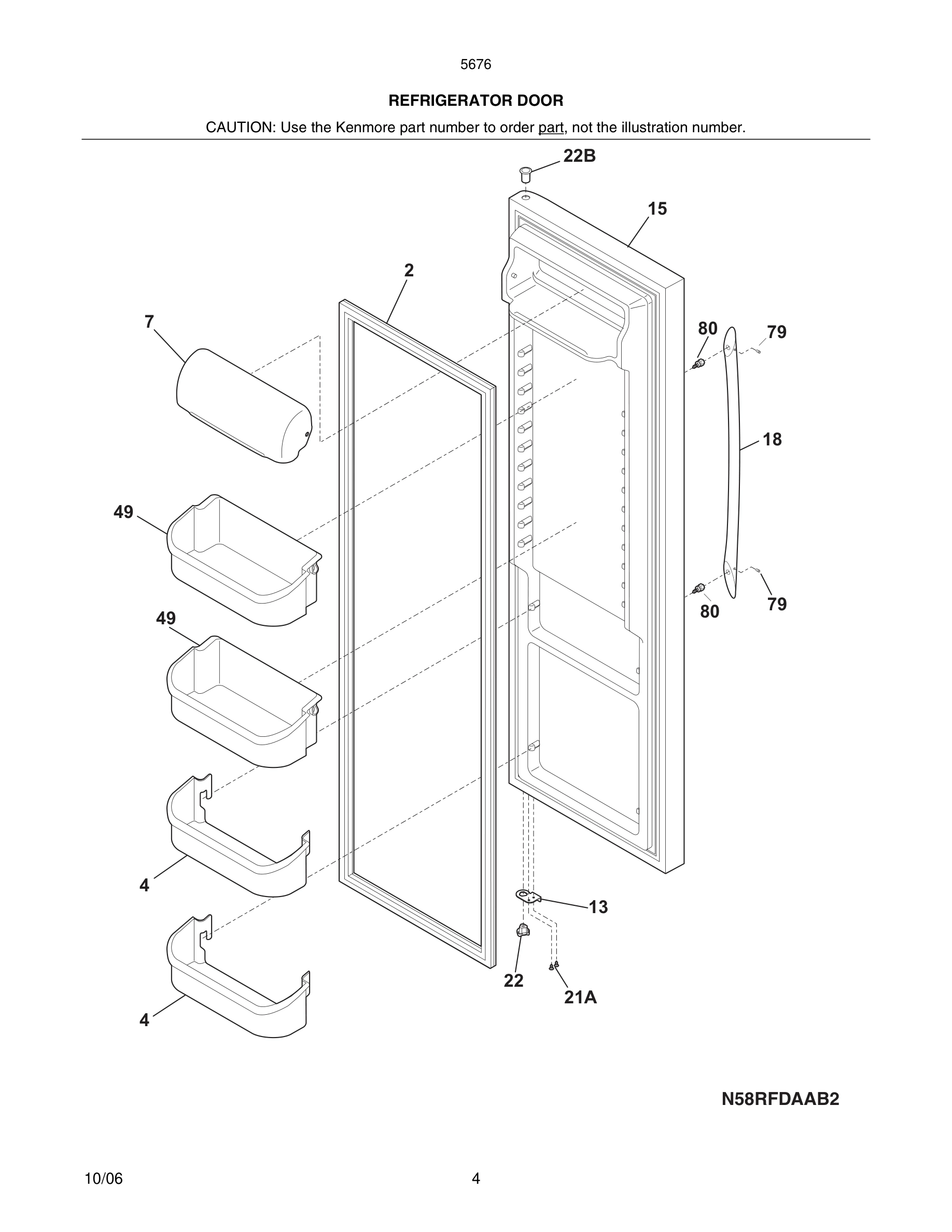

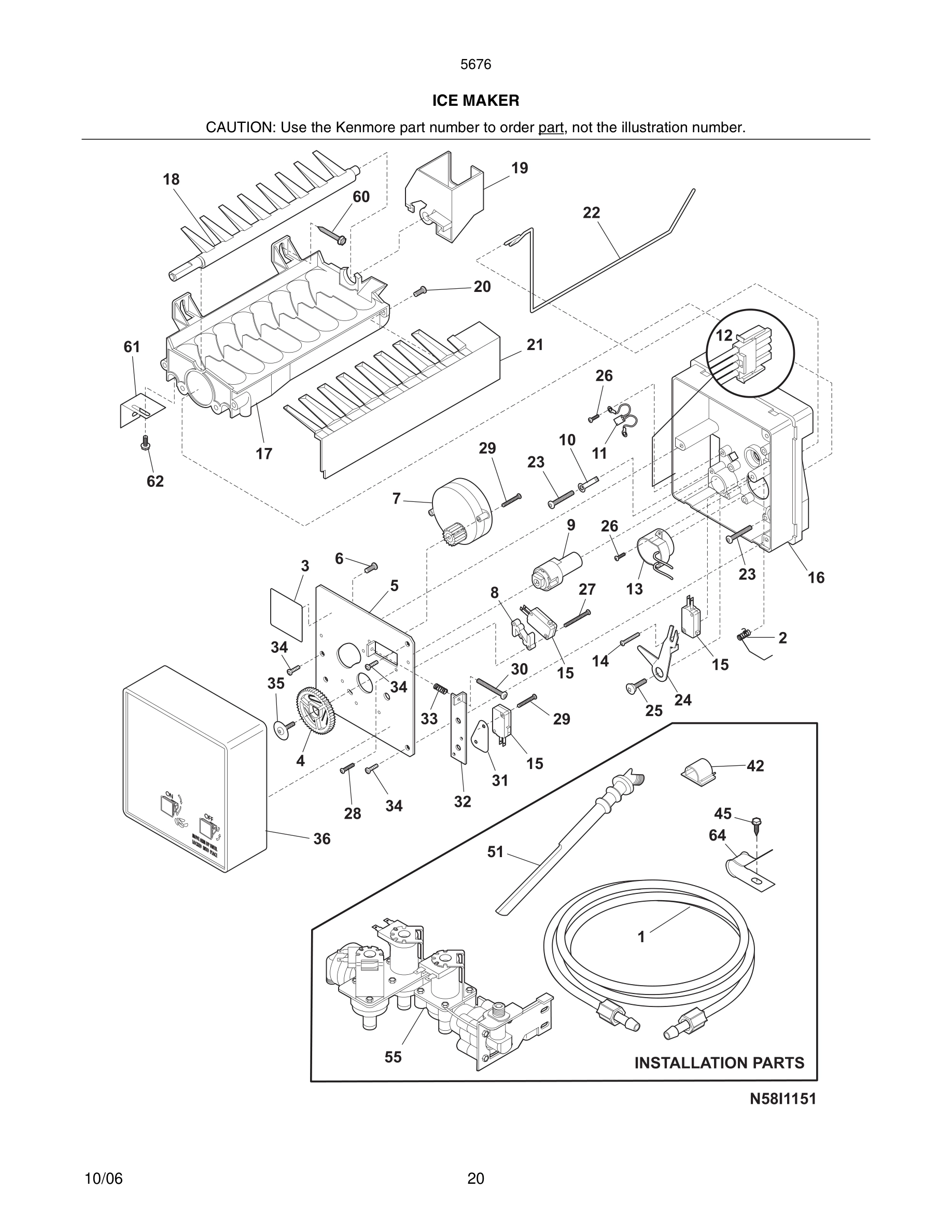

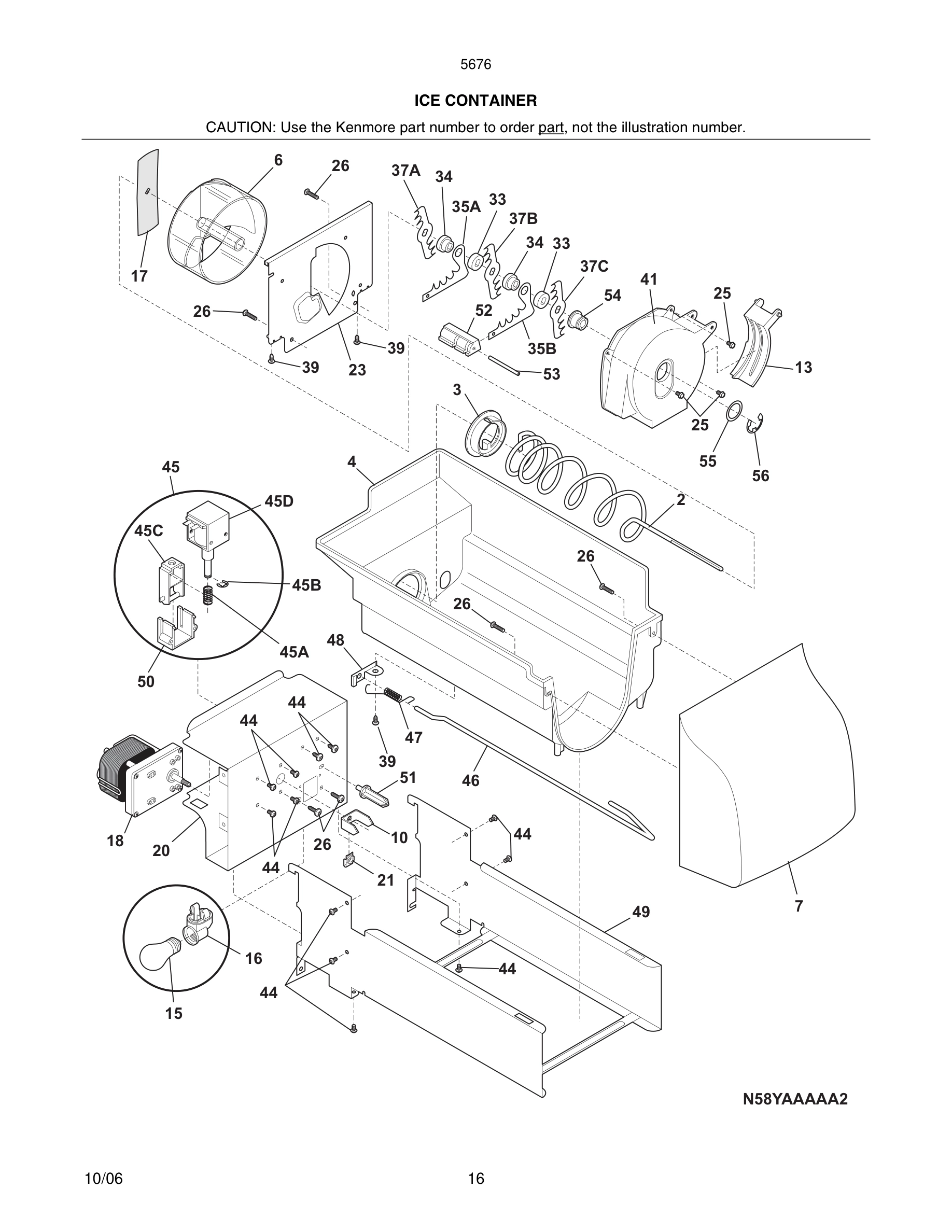

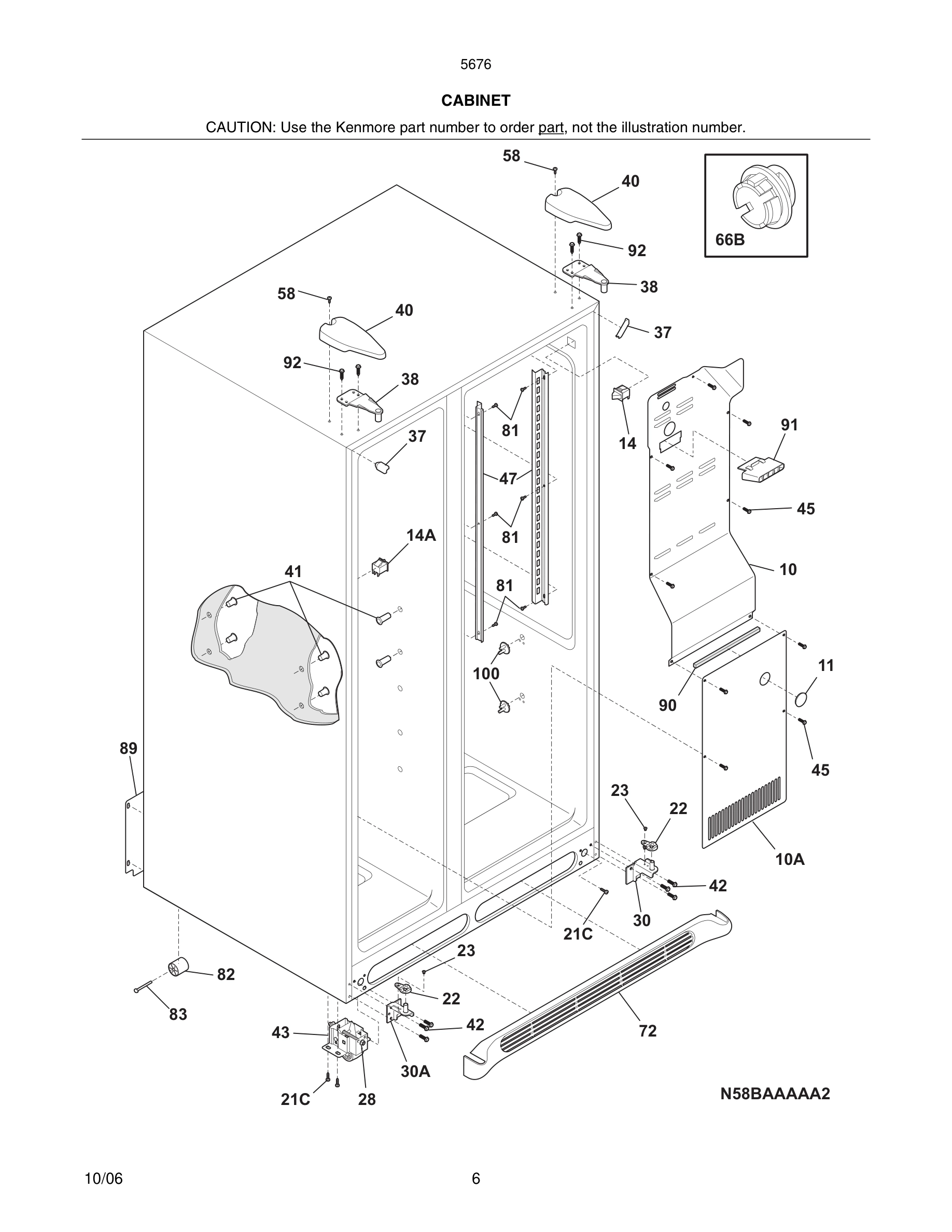

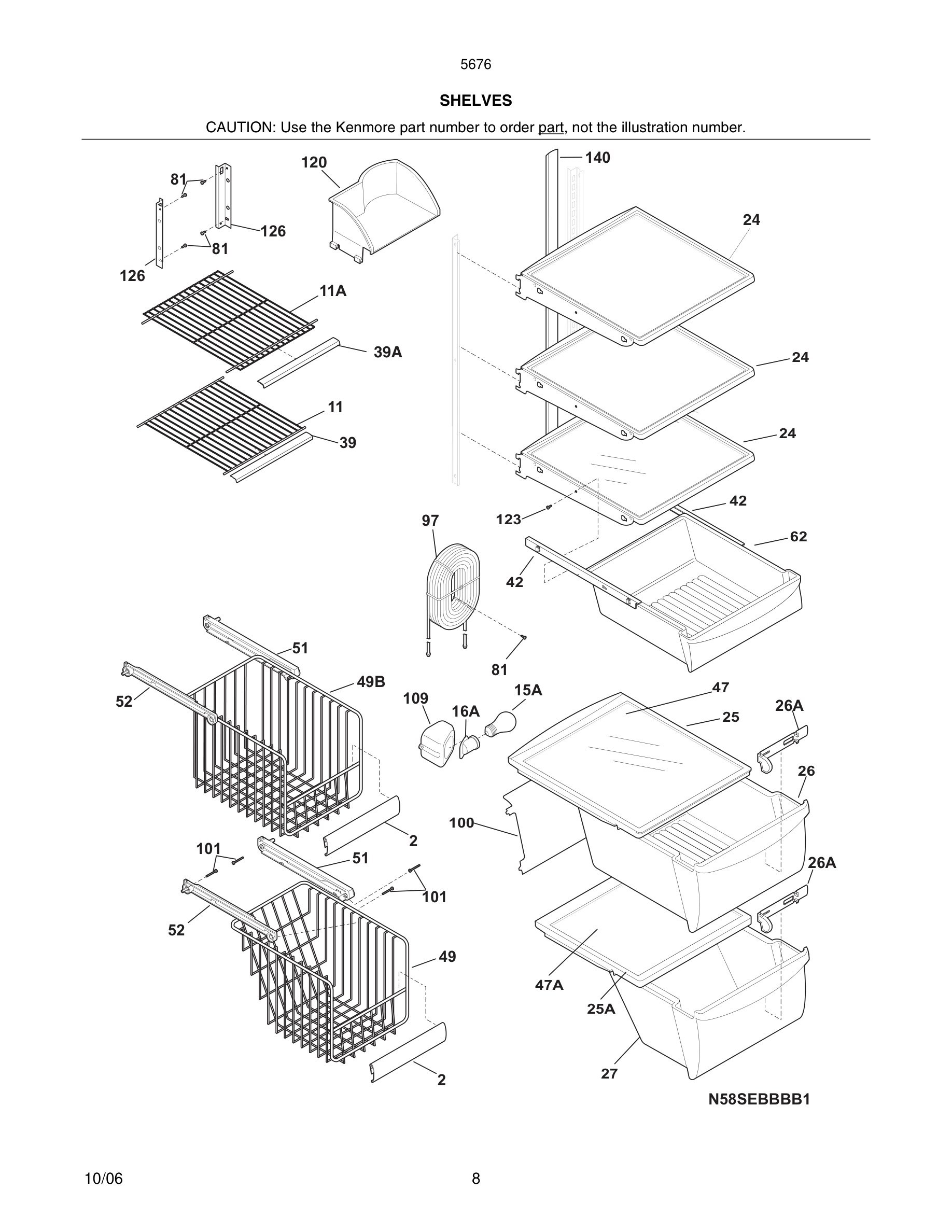

Model Kenmore 253.56763602 REFRIGERATOR – Common Parts &amp; Diagrams

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*

Paint, touch-up, black WCI 5303321321 Contact Us For Availability

*

Dispenser heater kit WCI 5303918256 Contact Us For Availability

*#

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

1

Tube-water-DOOR WCI 218976409 Contact Us For Availability

Tube, water inlet, valve to IM WCI 218976901 Contact Us For Availability

Tube-water inlet, inlet valve, to filter WCI 218976903 Contact Us For Availability

Seal-water inlet, inlet valve, to ice maker WCI 240561701 Contact Us For Availability

Tube-water inlet, valve to door WCI 218976907 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

3

241685201 Frigidaire Refrigerator Drive Cam In Stock WCI 241685201 $26.72

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $66.78

4

Bin-door, 2-liter WCI 240363702 Contact Us For Availability

4A

Bin-door, frzr-upper WCI 240367301 Contact Us For Availability

4B

Bin-door WCI 240359001 Contact Us For Availability

5#

Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

Harness-wiring, machine compt WCI 241586801 Contact Us For Availability

6*#

Harness-wiring WCI 241651601 Contact Us For Availability

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

Module-dispenser WCI 241680507 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

10

240435911 Frigidaire Refrigerator Cover Backorder WCI 240435911 $63.45

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

11

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $50.26

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

12

5304456664 Frigidaire Refrigerator Wiring Har Backorder WCI 5304456664 $79.31

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $38.11

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14#

Switch, light/lamp WCI 240505801 Contact Us For Availability

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15#

Evaporator Kit WCI 5303918286 Contact Us For Availability

16

Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability

16

Socket-light WCI 240548901 Contact Us For Availability

16#

241559801 Frigidaire Light Socket Refrigerato In Stock WCI 241559801 $45.94

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17*#

Harness-wiring, control box WCI 241737801 Contact Us For Availability

20

241734802 Frigidaire Refrigerator Cover Backorder WCI 241734802 $90.32

21#

241608401 Frigidaire Refrigerator Thermistor In Stock WCI 241608401 $49.29

21#

Thermostat-defrost, kit WCI 5303918214 Contact Us For Availability

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.26

22

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $13.57

22*

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

22B

Bearing-hinge, black, upper WCI 240328404 Contact Us For Availability

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241659103 Frigidaire Refrigerator Drip Tray Backorder WCI 241659103 $41.68

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Screw-#10-32 x 1/4 flat hd WCI 240402702 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

25

240354502 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354502 $56.18

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25*

Clip-slide, cover-crisper WCI 240362101 Contact Us For Availability

25A

240354602 Frigidaire Lower Crisper Cover Fram In Stock WCI 240354602 $53.20

26

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

26*

Clip-slide, pan-crisper WCI 240349801 Contact Us For Availability

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $28.07

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

32

Clamp, elec cont mtg, compressor WCI 218973501 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

35

Damper-rotary WCI 241689301 Contact Us For Availability

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $4.97

38

Bracket-upper hinge WCI 240327206 Contact Us For Availability

38A*

241679201 Frigidaire Refrigerator Wiring Harn Backorder WCI 241679201 $51.99

39

241688801 Frigidaire Refrigerator Hinge Pin In Stock WCI 241688801 $27.62

39

Trim-shelf, front WCI 240430705 Contact Us For Availability

39A

Trim-shelf, front WCI 240430701 Contact Us For Availability

40

Cover-upper hinge, black WCI 240327007 Contact Us For Availability

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

41

Screw-#8-32 X 3/8 WCI 240555002 Contact Us For Availability

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

Track, meat pan hanger, RH WCI 240356501 Contact Us For Availability

Track, meat pan hanger, LH WCI 240365401 Contact Us For Availability

44

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $28.07

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $9.06

47A

Insert-pan cover, glass WCI 240350614 Contact Us For Availability

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

240564301 Frigidaire Refrigerator Sliding Bas Backorder WCI 240564301 $81.20

49

241734401 Frigidaire Refrigerator Rail Assemb Backorder WCI 241734401 $124.20

49

Bin-door, gallon WCI 240324502 Contact Us For Availability

49B

Basket-sliding, upper, full WCI 240530503 No Longer Available

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

Hanger-basket, RH WCI 240343002 Contact Us For Availability

51

Rotation Stop WCI 241676301 Contact Us For Availability

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52

Hanger-basket, LH WCI 240343102 Contact Us For Availability

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241689201 Frigidaire Refrigerator Micro Switc Backorder WCI 241689201 $8.58

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

59*

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

59*

Screw-fan shroud, (2) WCI 240359403 Contact Us For Availability

60

5304455852 Frigidaire Refrigerator Screw In Stock WCI 5304455852 $8.14

66B

Diffuser-air WCI 240374301 Contact Us For Availability

66B*

240518802 Frigidaire Refrigerator Push Pin In Stock WCI 240518802 $10.41

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $48.59

79

Screw-set, 10-32 x 0.375 WCI 218755402 Contact Us For Availability

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

82

Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

Shield-light WCI 241686101 Contact Us For Availability

89

Cover-access, w/label WCI 241733901 Contact Us For Availability

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.16

120

240342901 Frigidaire Refrigerator Ice Cream S Backorder WCI 240342901 $33.32

123

215005101 Frigidaire Refrigerator Screw In Stock WCI 215005101 $9.50

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

138

Button-filter release WCI 240397301 Contact Us For Availability

139

240396002 Frigidaire Refrigerator Primary Bas In Stock WCI 240396002 $81.14

140

Channel, wtr tube cover WCI 240430501 Contact Us For Availability

198

Retainer WCI 240397401 Contact Us For Availability

199

Rod WCI 240397501 Contact Us For Availability

199*

Spring-filter release rod WCI 240398401 Contact Us For Availability
