Model Electrolux 253.52339202 Side-By-Side Refrigerator (Kenmore 25352339202) – Common Parts & Diagrams

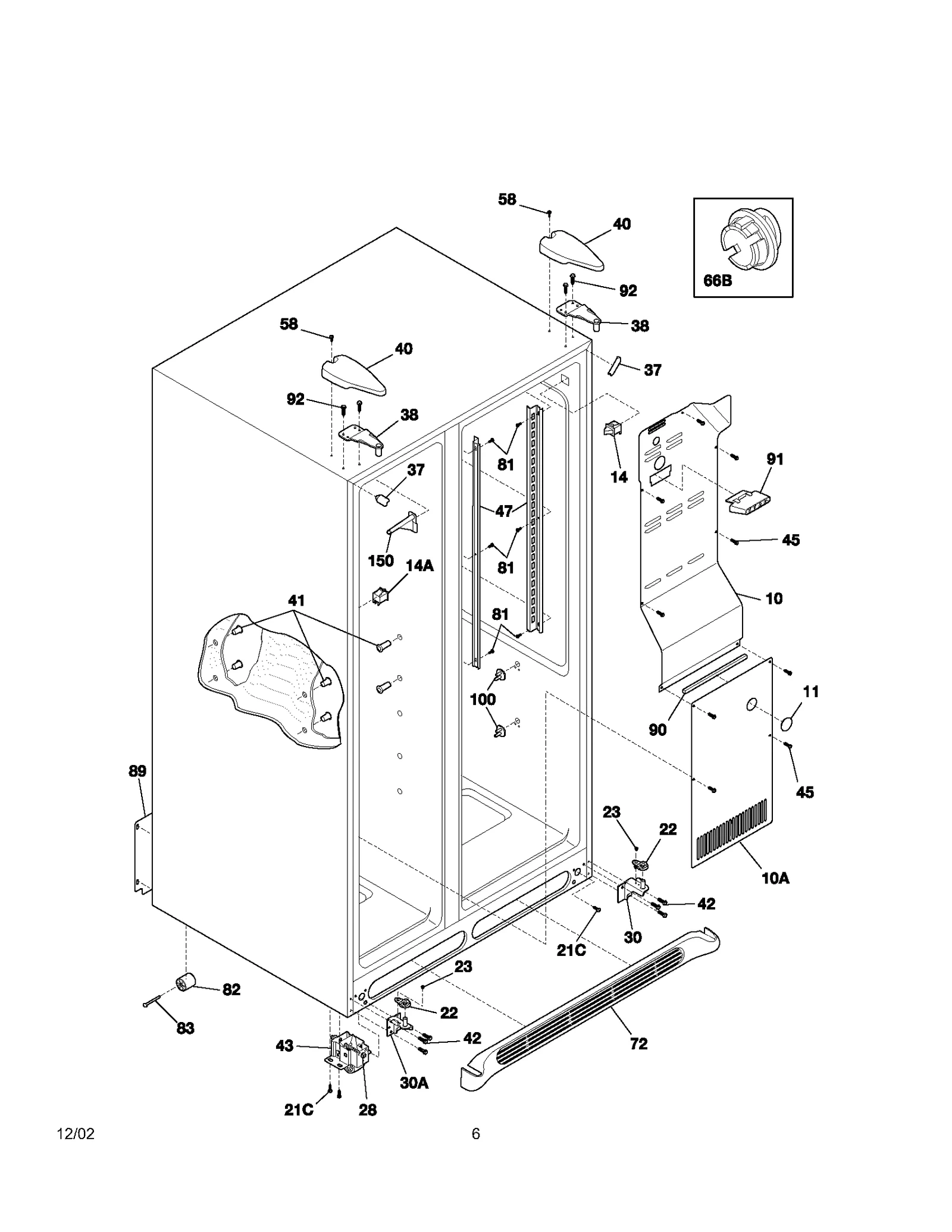

CABINET
01 - COVER

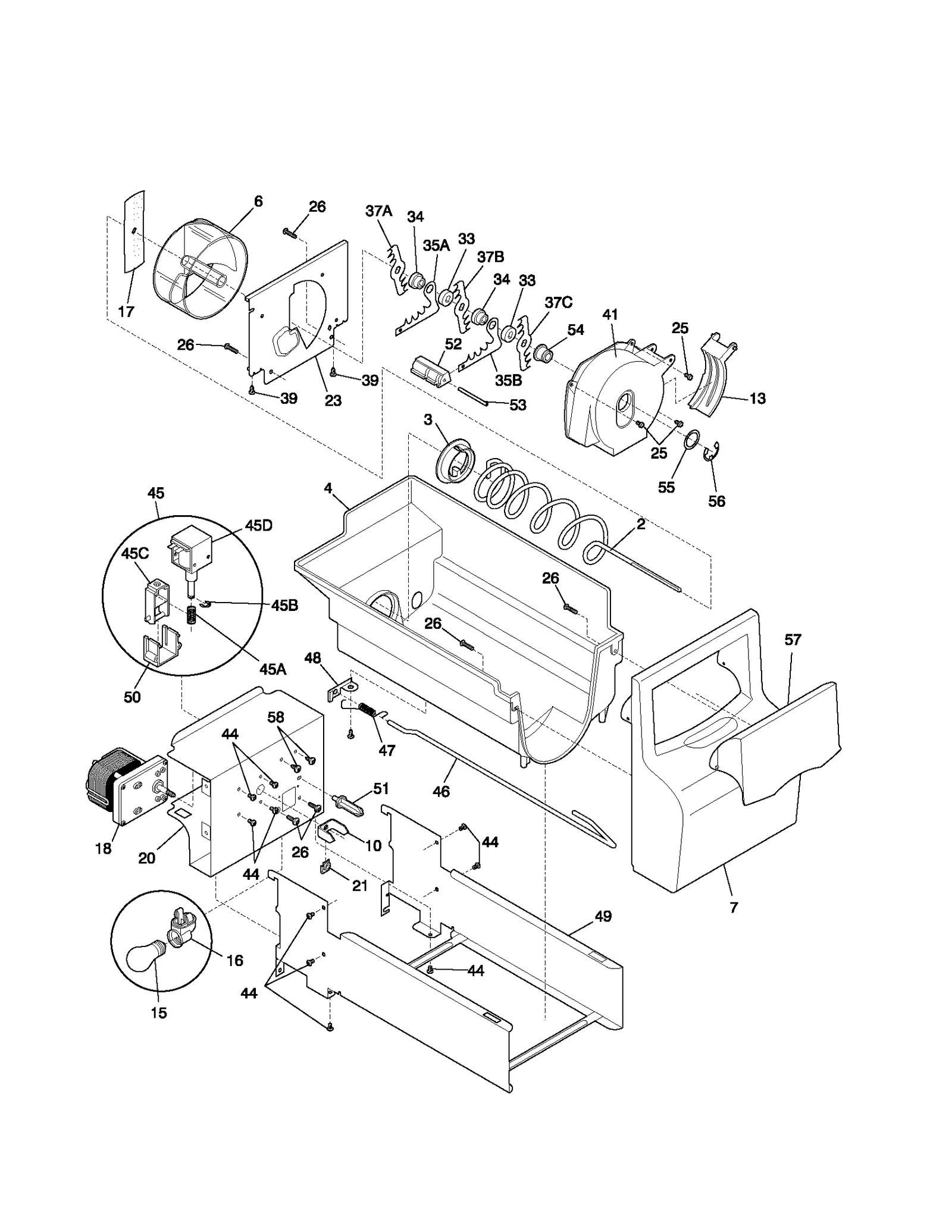

ICE CONTAINER
03 - FREEZER DOOR
05 - REFRIGERATOR DOOR

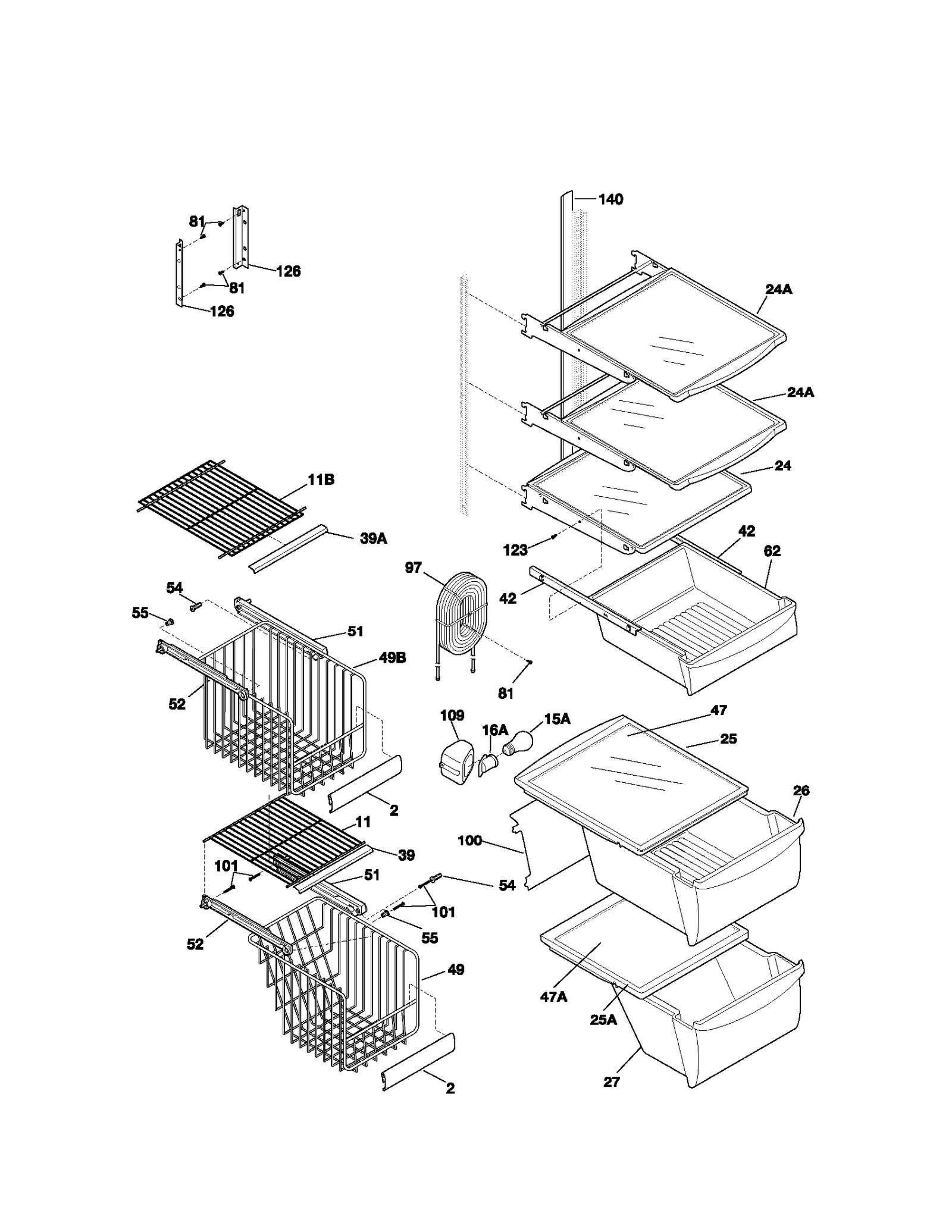

SHELVES

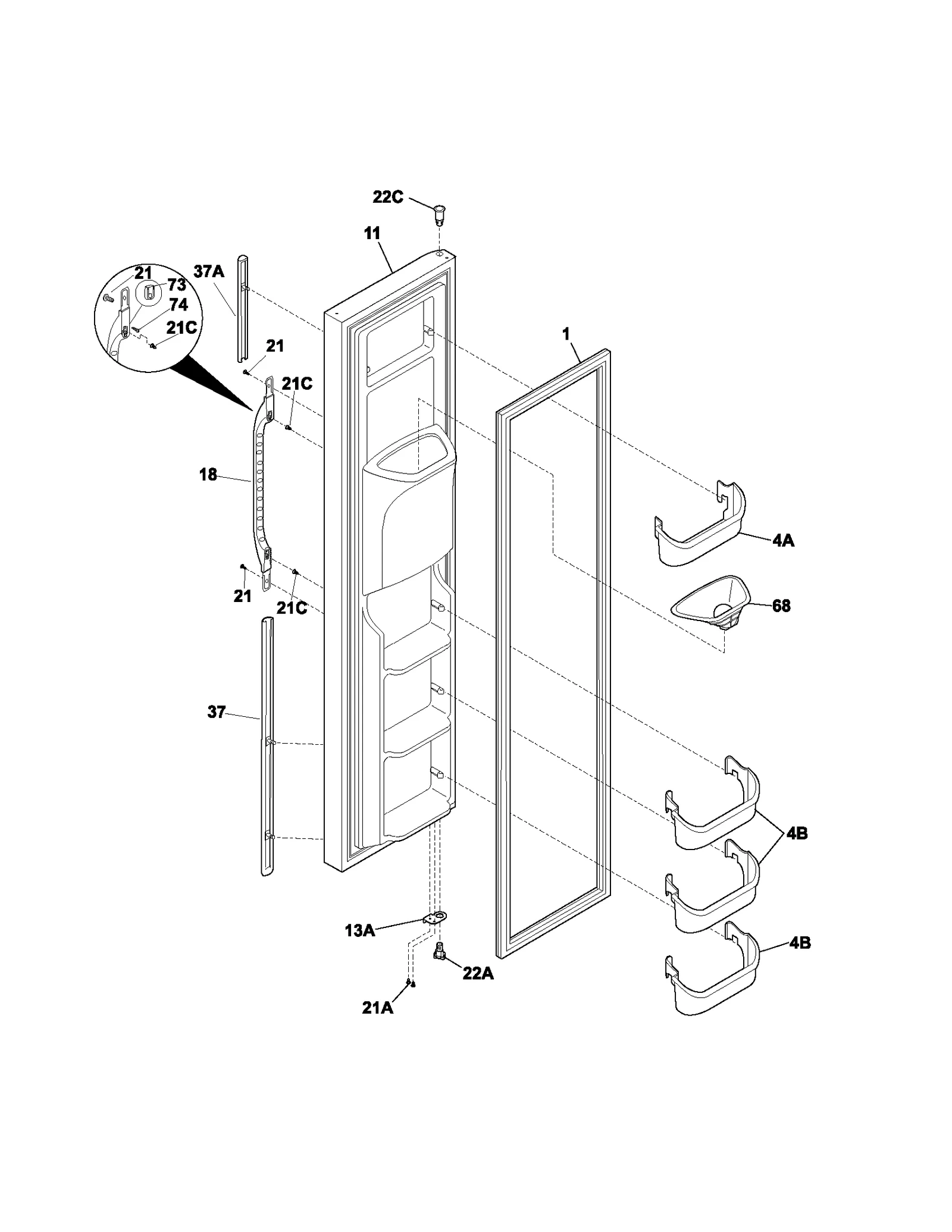

FREEZER DOOR
07 - CABINET
09 - SHELVES
All Parts

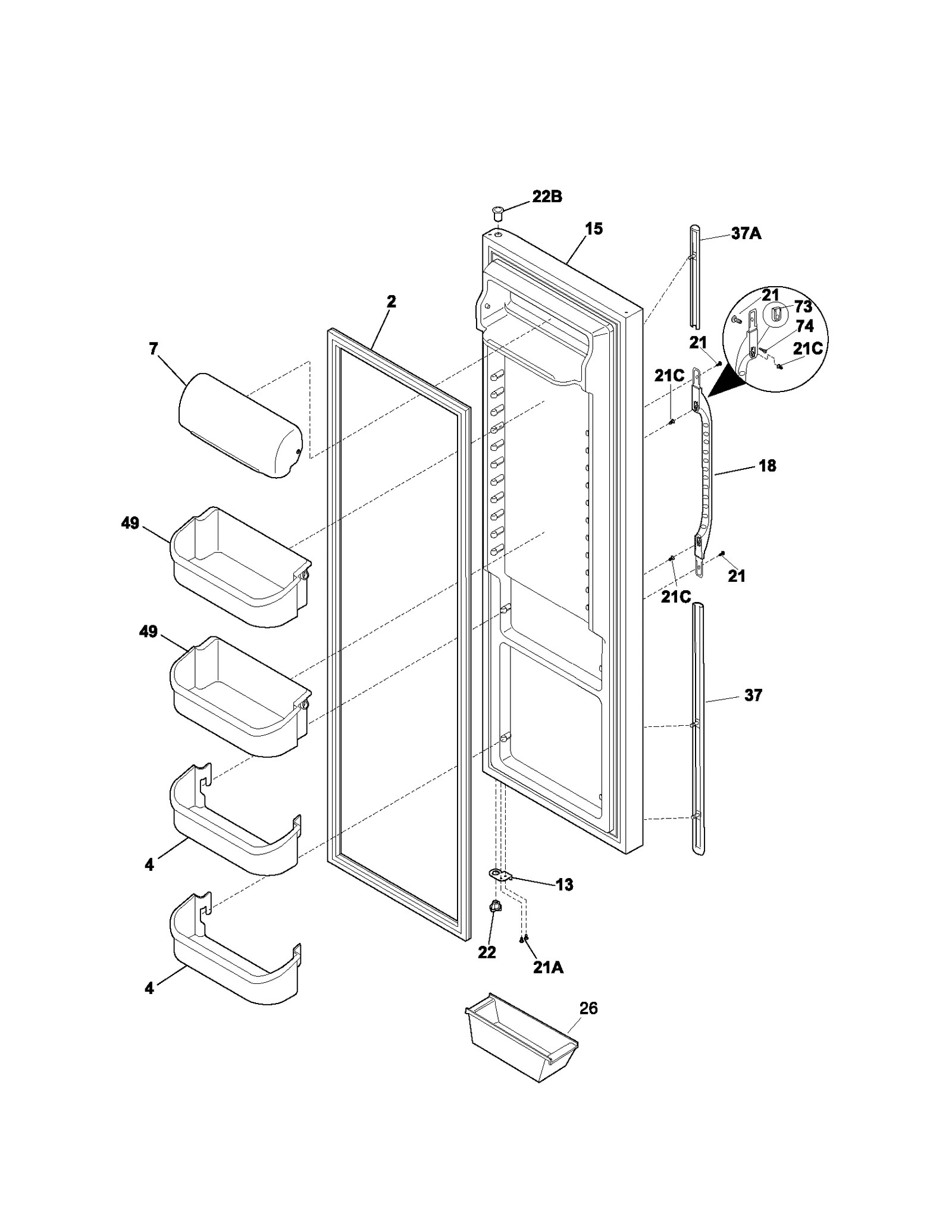

REFRIGERATOR DOOR
11 - CONTROLS

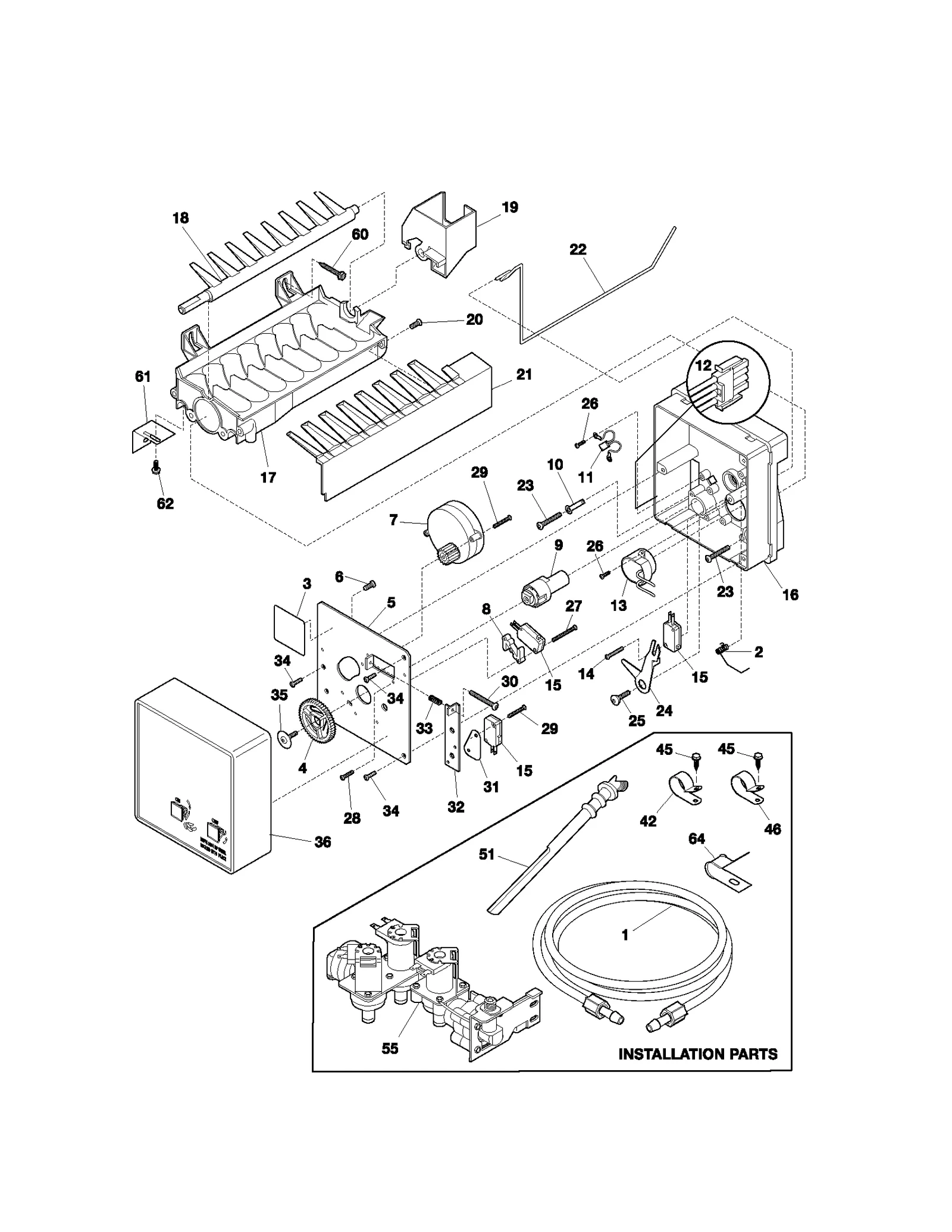

ICE MAKER
13 - SYSTEM

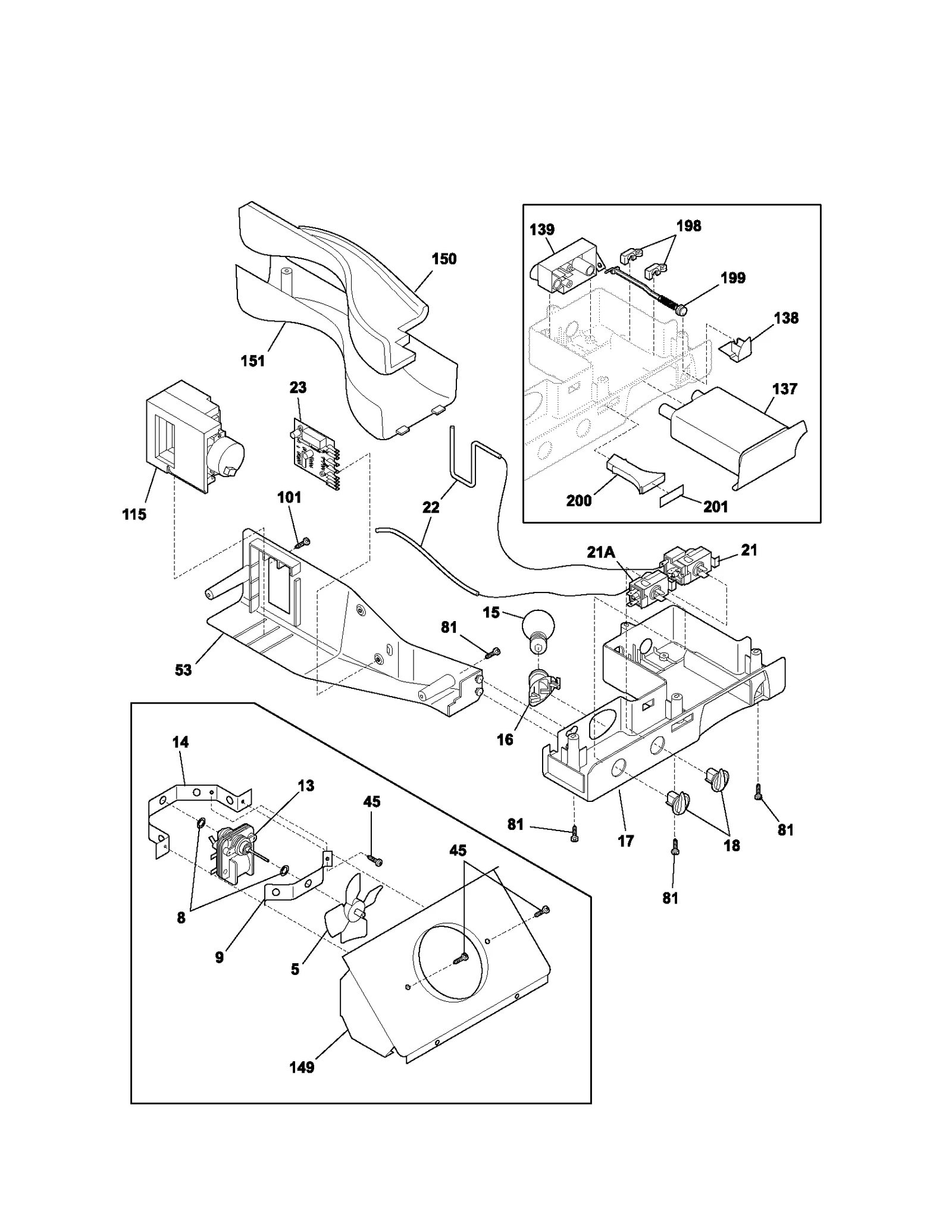

CONTROLS

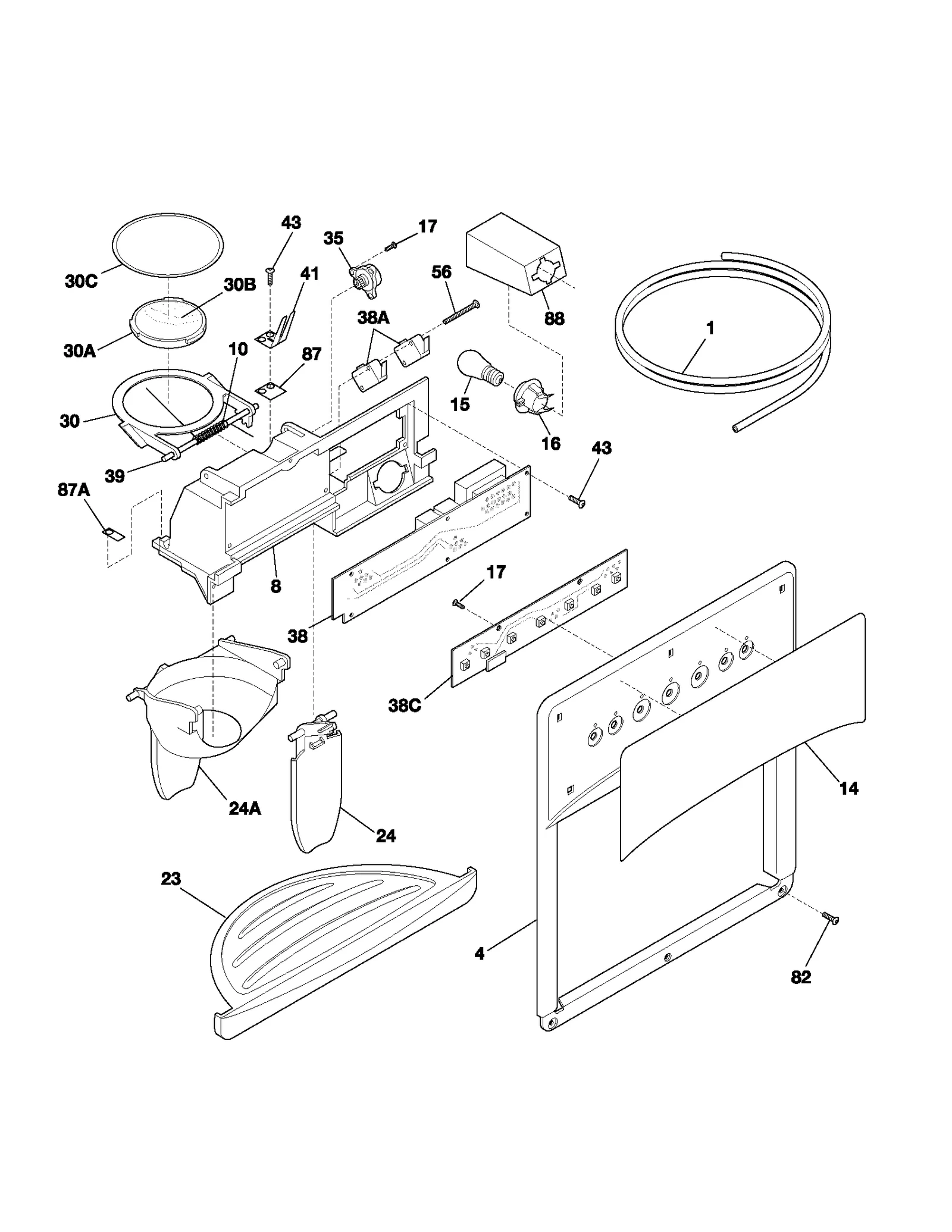

15 - DISPENSER

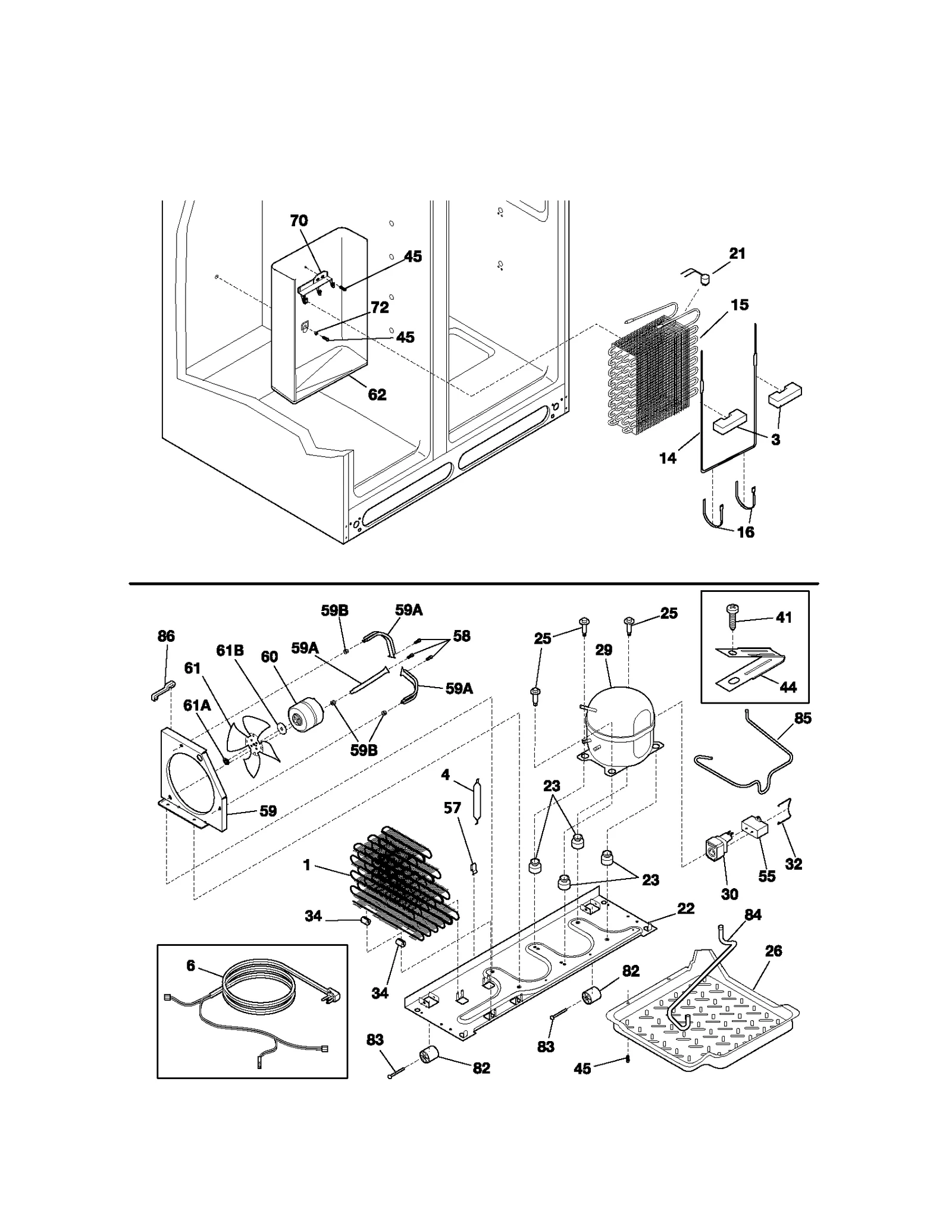

SYSTEM
17 - ICE CONTAINER
DISPENSER
19 - ICE MAKER
20 - WIRING SCHEMATIC
21 - WIRING DIAGRAM
Common parts from model Electrolux 253.52339202 Side-By-Side Refrigerator (Kenmore 25352339202)
(NI)
Harness Ring WCI 5304430811 Contact Us For Availability
1
Refrigerator Condenser WCI 240333602 Contact Us For Availability
2
Spring,shut-off arm WCI 5304420650 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
Refrigerator Dispenser Cover (Black) WCI 5304421643 Contact Us For Availability
4
Refrigerator Module Cover WCI 5304421641 Contact Us For Availability
4
Refrigerator Module Cover WCI 5304421642 Contact Us For Availability
5
Plate-mounting WCI 3206303 Contact Us For Availability
6
Refrigerator Wire Harness WCI 240346402 No Longer Available
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8
Spacer-hold switch WCI 3206312 Contact Us For Availability
8
Refrigerator Dispenser Module WCI 5304422013 Contact Us For Availability
8
Dispenser Module WCI 5304421849 Contact Us For Availability
8
Dispenser Module WCI 5304422030 Contact Us For Availability
9
Refrigerator Evaporator Fan Motor Bracket, Fr WCI 5303292396 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
11
Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability
12#
Wiring Harness, ice maker, internal, with plu WCI 240352601 Contact Us For Availability
13
Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability
14
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
14
Refrigerator Label WCI 240418316 Contact Us For Availability
14
Label Cover WCI 240418314 Contact Us For Availability
14
Refrigerator Label WCI 240418315 Contact Us For Availability
15
Refrigerator Light Bulb WCI 5304421616 Contact Us For Availability
15
Refrigerator Door Assembly (White) WCI 240451914 Contact Us For Availability
15
Refrigerator Door WCI 240451918 Contact Us For Availability
15
Door-refr,bl WCI 240451948 Contact Us For Availability
16
Support, phenolic WCI 5304420653 Contact Us For Availability
17
Refrigerator Control Box WCI 240374904 Contact Us For Availability
18
Refrigerator Temperature Control Knob WCI 240360801 Contact Us For Availability
18
Refrigerator Door Handle (Gray) WCI 218803903 Contact Us For Availability
18
Handle Ff &f WCI 218803904 Contact Us For Availability
18
Ejector-ice WCI 3206328 Contact Us For Availability
18#
Motor-auger WCI 240326901 Contact Us For Availability
18*
Wiring Harness, auger motor WCI 5304407107 Contact Us For Availability
19
Bearing & Inlet WCI 3206330 Contact Us For Availability
20
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
20
Cover-motor WCI 5304407106 Contact Us For Availability
21
Refrigerator Temperature Control WCI 240448303 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
21C
Refrigerator Freezer Door Handle Screw WCI 240521302 Contact Us For Availability
22
Shut-off Arm WCI 3206333 Contact Us For Availability
22
Complete Plate WCI 240330002 Contact Us For Availability
22B
Refrigerator Door Hinge Bushing WCI 240328403 Contact Us For Availability
22B
Refrigerator Door Hinge Bushing, Upper WCI 240328401 Contact Us For Availability
23
Refrigerator Screw, #10-32 x 1/4-in WCI 240402701 Contact Us For Availability
23
Refrigerator Defrost Control WCI 240554501 Contact Us For Availability
23
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
23
Refrigerator Drip Tray WCI 240411701 Contact Us For Availability
23
Refrigerator Drip Tray WCI 240411702 Contact Us For Availability
24
Refrigerator Actuator WCI 5304421636 Contact Us For Availability
24
Refrigerator Actuator WCI 5304422032 Contact Us For Availability
24A
Refrigerator Actuator WCI 5304421634 Contact Us For Availability
24A
Refrigerator Actuator WCI 5304422031 Contact Us For Availability
25
Compressor Screw WCI 240491501 Contact Us For Availability
26
Container-eg WCI 5303288969 Contact Us For Availability
26
Screw-thermo/sprt,4-24 x 0.375 ,(4) WCI 5304420654 Contact Us For Availability
27
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
28
Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability
30
Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Plate-valve switch WCI 3206343 Contact Us For Availability
33
Spring-timing adj WCI 5304408583 Contact Us For Availability
34
Screw,plazscrew ,8-10 ,(3) WCI 5304420655 Contact Us For Availability
35
Screw WCI 5304408585 Contact Us For Availability
35
Damper-rot WCI 5304421620 Contact Us For Availability
36
Cover-ice maker WCI 3206347 Contact Us For Availability
37
Refrigerator Door Handle Trim, Lower (Black) WCI 218779320 Contact Us For Availability
37
Freezer Door Handle Trim, Lower WCI 218779318 Contact Us For Availability
37
Refrigerator Corner Trim (Black) WCI 240337603 Contact Us For Availability
37
Refrigerator Freezer Door Handle Trim, Lower WCI 218779321 Contact Us For Availability
37A
Refrigerator Hand Trim WCI 218779309 Contact Us For Availability
37A
Refrigerator Door Handle Trim, Upper (White) WCI 218779307 Contact Us For Availability
37A
Tri Snap WCI 218776600 Contact Us For Availability
37A
Refrigerator Handle Trim WCI 218779315 Contact Us For Availability
38
Refrigerator Power Board WCI 5304430812 Contact Us For Availability
38C
Refrigerator Control Board WCI 5304430991 Contact Us For Availability
39
Refrigerator Shelf Trim WCI 240430705 Contact Us For Availability
39A
Refrigerator Shelf Trim, Front WCI 240430701 Contact Us For Availability
40
Cover-uppe WCI 240327006 Contact Us For Availability
41
Refrigerator Screw WCI 218897001 Contact Us For Availability
42*
Clip,(2) ,tube mtg. WCI 218515402 Contact Us For Availability
43
Refrigerator Screw WCI 215296300 Contact Us For Availability
44
Screw,pan head ,8-32 x 0.250 WCI 218359200 Contact Us For Availability
46
Control Rod WCI 5304404341 Contact Us For Availability
47
Spring-control rod WCI 5304404342 Contact Us For Availability
48*
Screw-bracket WCI 5304404364 Contact Us For Availability
49
Rail Assy WCI 5304404329 Contact Us For Availability
49B
Refrigerator Freezer Basket, Upper WCI 240530503 Contact Us For Availability
51
Rotation Stop WCI 5304404336 Contact Us For Availability
56
Refrigerator Dispenser Micro-Switch Screw WCI 5304421830 Contact Us For Availability
58
Screw-solenoid WCI 5304404331 Contact Us For Availability
59
Shroud Control WCI 240315501 Contact Us For Availability
59A
Refrigerator Condenser Fan Motor Bracket WCI 240346501 Contact Us For Availability
59B
Grommet Bracket WCI 240346601 Contact Us For Availability
61
Refrigerator Condenser Fan Blade WCI 240315401 Contact Us For Availability
61A
Refrigerator Nut WCI 215004700 Contact Us For Availability
61B
Grommet WCI 215004800 Contact Us For Availability
62
Trough-dra WCI 240429401 Contact Us For Availability
66B
Refrigerator Air Duct Diffuser WCI 240374301 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
85
Tube-conne WCI 240346201 Contact Us For Availability
88
Light Shield WCI 5304421615 Contact Us For Availability
115
Refrigerator Damper WCI 240521103 Contact Us For Availability
138
Refrigerator Water Filter Release Button WCI 240397301 Contact Us For Availability
149
Evaporator Fan Shroud WCI 240331601 Contact Us For Availability
150
Refrigerator Insulation WCI 240394203 Contact Us For Availability
151
Refrigerator Water Cover WCI 240373805 Contact Us For Availability
199
Refrigerator Water Filter Bypass Valve WCI 240397501 Contact Us For Availability
200
Refrigerator Light Pipe WCI 240397601 Contact Us For Availability
201
Refrigerator Label WCI 240398504 Contact Us For Availability
NI
Refrigerator Hot Tube Repair Kit WCI 5303918222 Contact Us For Availability
NI
Appliance Touch-Up Paint, 0.6-oz (Bisque) WCI 5304414035 Contact Us For Availability
NI
Refrigerator Water Tubing WCI 218976907 Contact Us For Availability
NI
Refrigerator Wire Harness WCI 240449601 Contact Us For Availability
NI
Refrigerator Wiring Harness WCI 240439902 Contact Us For Availability
NI
Refrigerator Ice and Water Dispenser Cover Cl WCI 240411501 Contact Us For Availability
× ![]()
