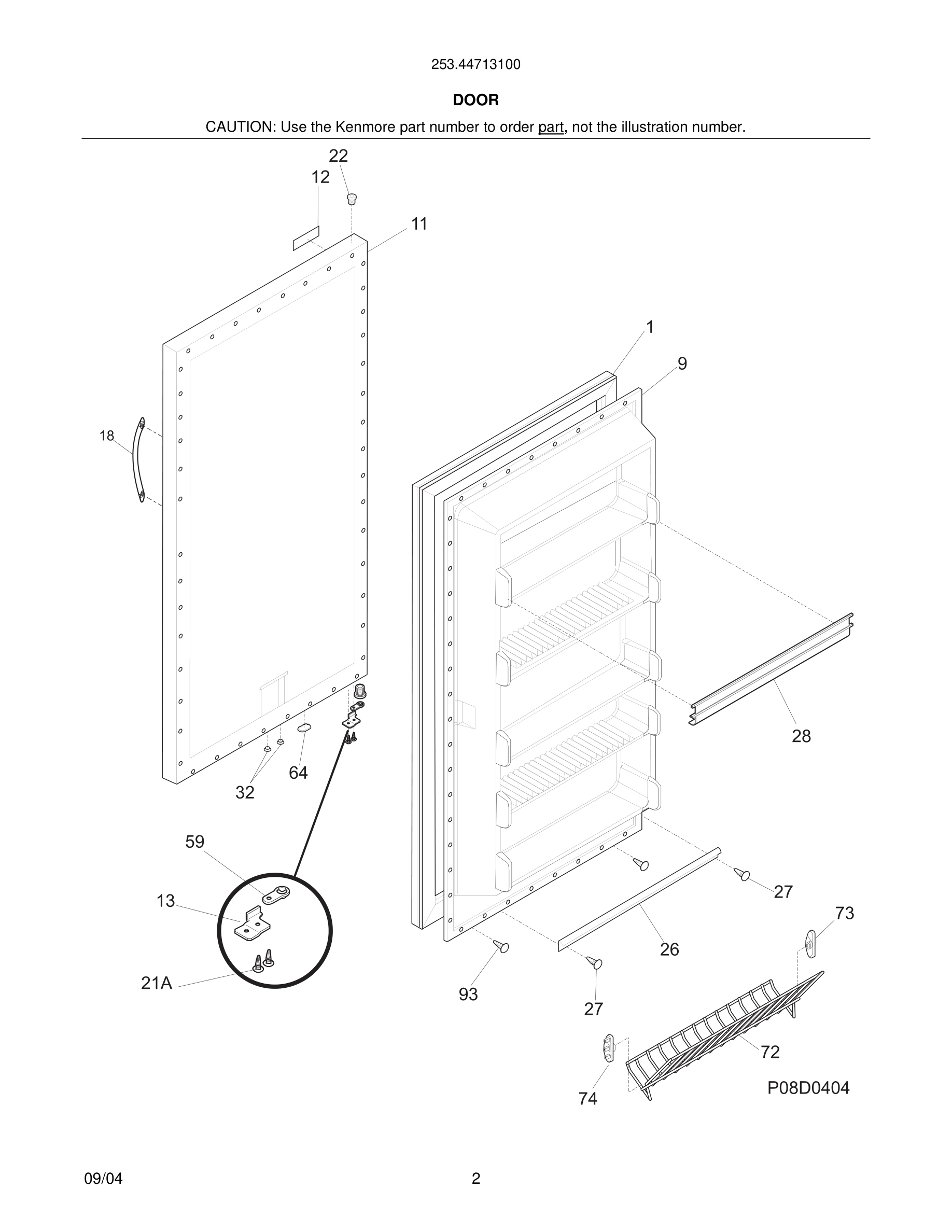

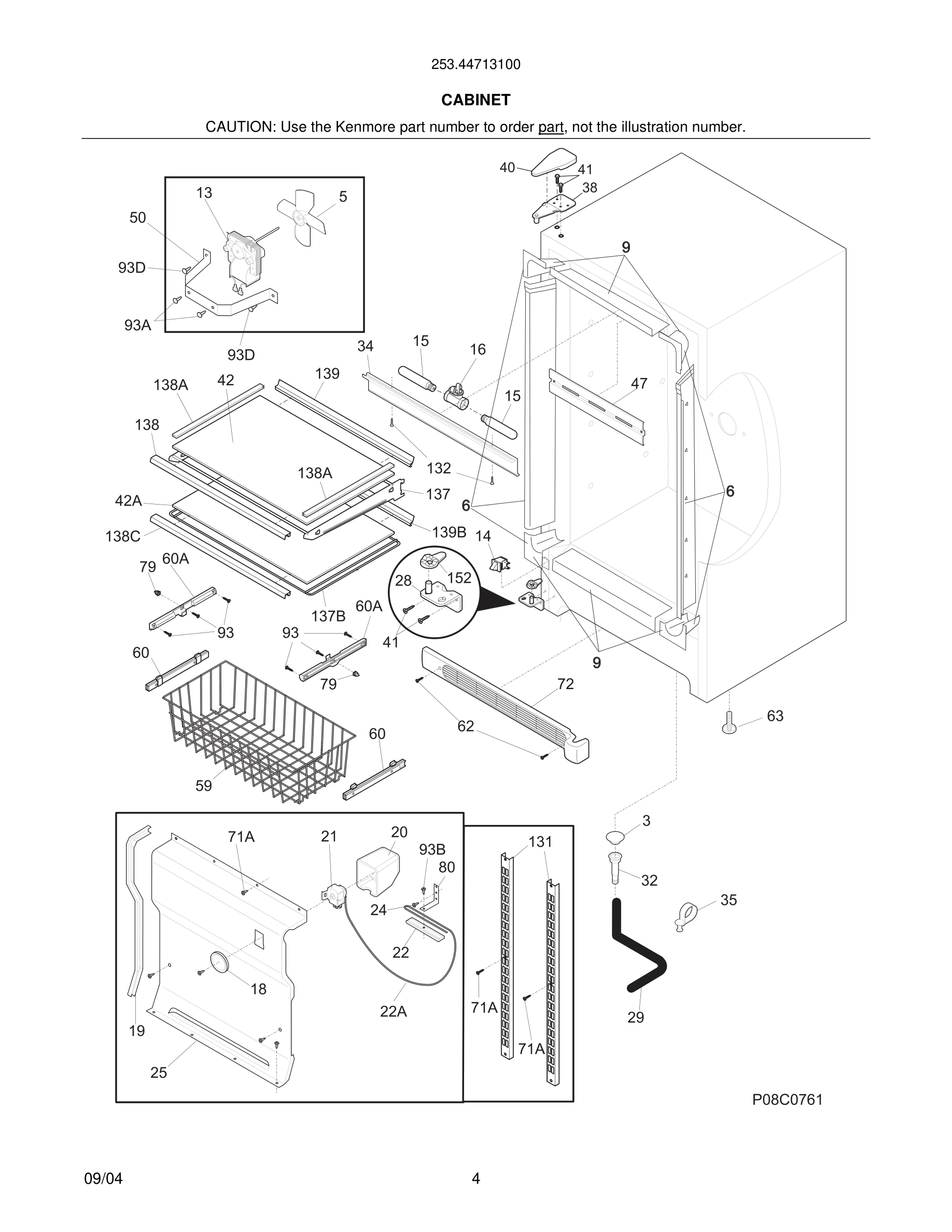

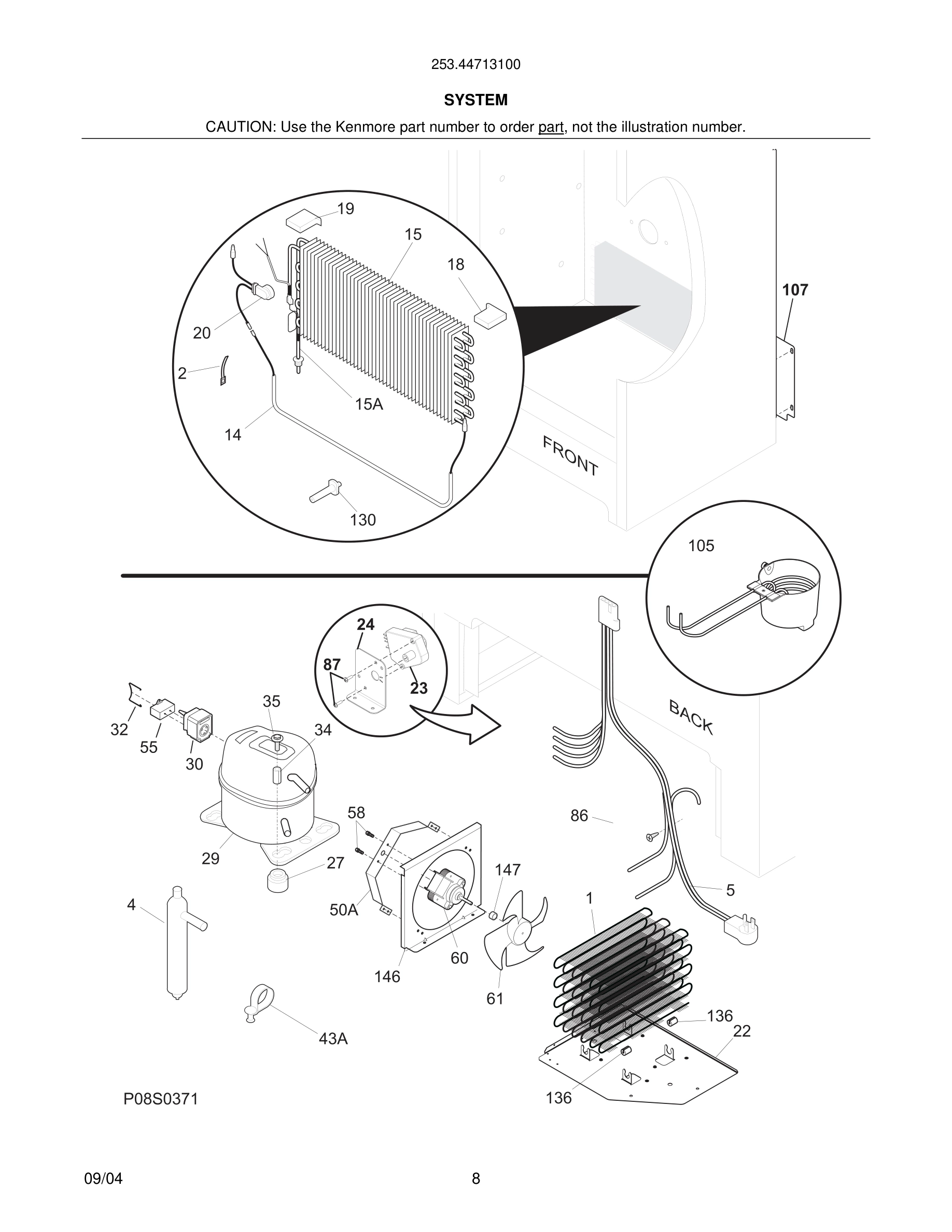

Model Kenmore 253.44713100 FREEZER – Common Parts &amp; Diagrams

*

5304458371 Frigidaire Refrigerator Ice Maker In Stock WCI 5304458371 $101.39

*

Insulation, drain tube WCI 09948773 Contact Us For Availability

*

Adapter-water supply, nut & sleeve, compressi WCI 218888001 Contact Us For Availability

*

Sleeve, suction line WCI 216502500 Contact Us For Availability

*

Owners Manual WCI 216960200 Contact Us For Availability

*

Energy Guide WCI 216795400 Contact Us For Availability

*

Service Data Sheet WCI 297005600 Contact Us For Availability

*

Repair Parts List WCI 5995417275 Contact Us For Availability

*

Spacer-tube, 0.237" ID WCI 5303298960 Contact Us For Availability

1

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $51.52

1

5304507206 Frigidaire Refrigerator Black Door In Stock WCI 5304507206 $109.35

1

Condenser, dynamic, freezer WCI 297015400 Contact Us For Availability

1*

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

2

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

2

Spring, shut-off arm WCI 5304420650 Contact Us For Availability

3

216503100 Frigidaire Refrigerator Drain Scree Backorder WCI 216503100 $38.53

3

Label, ID plate WCI 3206299 Contact Us For Availability

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

Harness-main WCI 216993600 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

7#

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

216527813 Frigidaire Refrigerator Inside Door Backorder WCI 216527813 $161.91

9

Cam WCI 3206313 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

12#

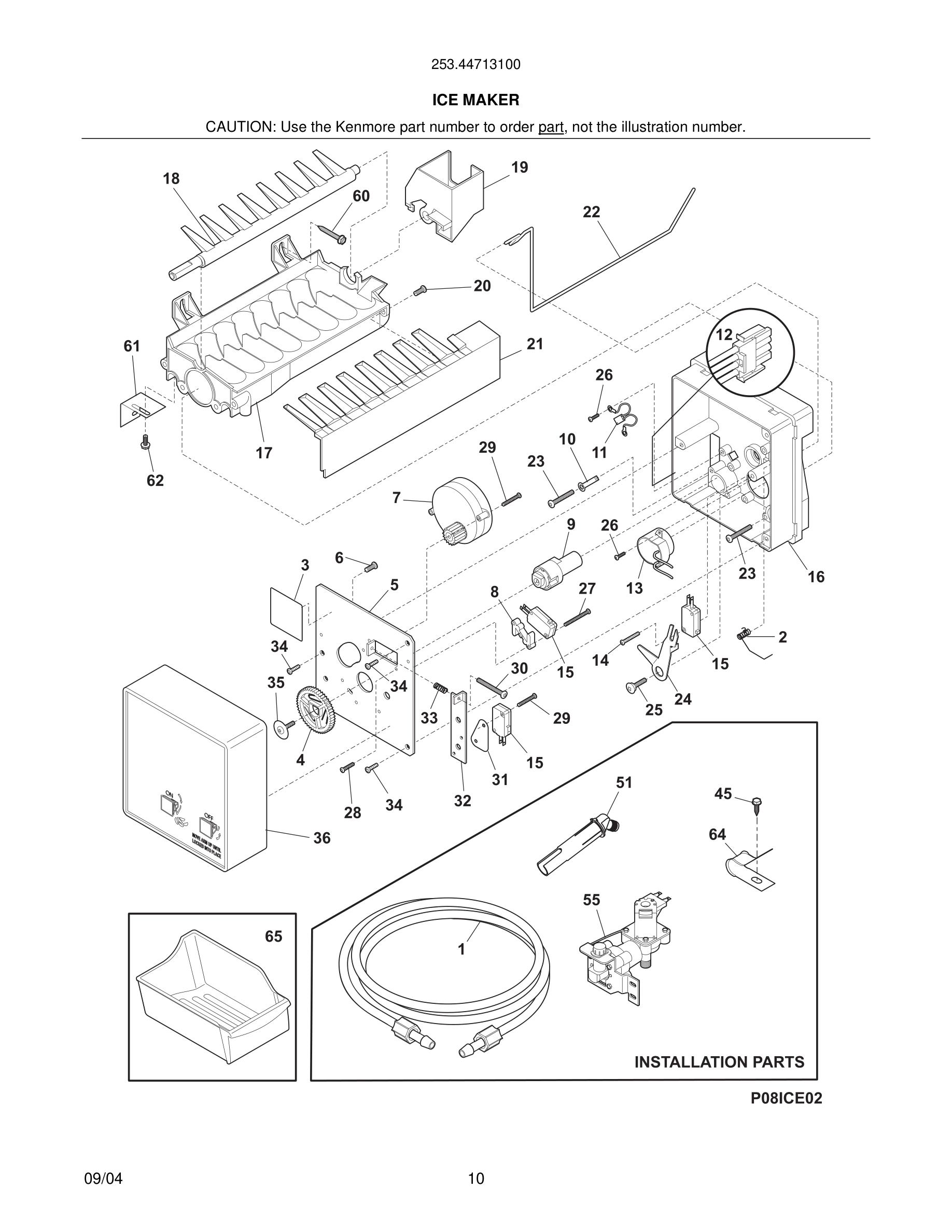

Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability

13

Door Stop WCI 216974400 Contact Us For Availability

13#

Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability

14

216730700 Frigidaire Refrigerator Defrost Hea In Stock WCI 216730700 $79.93

14

216822900 Frigidaire Refrigerator Switch In Stock WCI 216822900 $44.37

14

Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability

15#

297414901 Frigidaire Refrigerator Evaporator In Stock WCI 297414901 $97.49

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15A#

216783200 Frigidaire Freezer Heat Exchanger P Backorder WCI 216783200 $56.46

16

241622802 Frigidaire Refrigerator Light Socke Backorder WCI 241622802 $37.63

16

Support, phenolic WCI 5304420653 Contact Us For Availability

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $63.51

18

216707200 Frigidaire Refrigerator Cold Contro Backorder WCI 216707200 $27.62

18

Insulator-evap, styrofoam WCI 216727600 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

19

216204902 Frigidaire Refrigerator Evaporator Backorder WCI 216204902 $21.74

19

Insulator-evap, styrofoam WCI 216727700 Contact Us For Availability

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

297216600 Frigidaire Refrigerator Defrost The In Stock WCI 297216600 $13.53

20

Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

216970802 Frigidaire Refrigerator/Freezer Top In Stock WCI 216970802 $6.79

Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability

Base, condenser WCI 216970300 Contact Us For Availability

Shut-off Arm WCI 3206333 Contact Us For Availability

22A

5303916855 Frigidaire Refrigerator Tube Backorder WCI 5303916855 $38.55

23

5304518034 Frigidaire Refrigerator Defrost Ti In Stock WCI 5304518034 $27.14

23

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

Bracket-timer WCI 216968500 Contact Us For Availability

25

Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability

26

Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability

27

216498900 Frigidaire Refrigerator Grommet Backorder WCI 216498900 $8.15

27

5303212828 Frigidaire Refrigerator Primary Cl In Stock WCI 5303212828 $10.41

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Rack-door, contour, (3) WCI 216806100 Contact Us For Availability

28

Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

5304512272 Frigidaire Hose Drain In Stock WCI 5304512272 $9.49

29

Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability

29#

5304478809 Frigidaire Refrigerator Compressor In Stock WCI 5304478809 $352.82

30

216954202 Frigidaire Freezer Controller Backorder WCI 216954202 $47.05

30

Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

5304511843 Frigidaire Refrigerator Sleeve In Stock WCI 5304511843 $8.62

Valve, breather, door base WCI 5309950074 Contact Us For Availability

Clamp, elec cont mtg, compressor WCI 216649100 Contact Us For Availability

Plate-valve switch WCI 3206343 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

Sleeve-compressor, (3) WCI 5306594529 Contact Us For Availability

34

Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability

35

Screw, Ind hex sems, 1/4-28 unfx, compressor, WCI 5303272328 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

36

Cover-ice maker WCI 3206347 Contact Us For Availability

38

Hinge-upper WCI 216939100 Contact Us For Availability

40

Cover-upper hinge, black WCI 216809001 Contact Us For Availability

43A

5303212614 Frigidaire Refrigerator Clip Backorder WCI 5303212614 $1.87

45

216858001 Frigidaire Refrigerator Screw In Stock WCI 216858001 $6.80

47

297192903 Frigidaire Refrigerator Baffle Backorder WCI 297192903 $15.85

50A

Bracket, fan motor mount WCI 240524001 Contact Us For Availability

51

Tube, water, ICE MAKER WCI 216887500 Contact Us For Availability

55

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $14.74

55#

242252603 Frigidaire Refrigerator Water Inlet In Stock WCI 242252603 $31.75

59

Bearing, door closer WCI 216974500 Contact Us For Availability

60

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

60#

5303918774 Frigidaire Fan Motor Kit Condenser In Stock WCI 5303918774 $111.27

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61#

240524102 Frigidaire Refrigerator Condenser F In Stock WCI 240524102 $15.86

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.92

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

64

Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability

65

240385201 Frigidaire Refrigerator Ice Contain In Stock WCI 240385201 $67.44

72

Shelf, tilt out, wire WCI 216514100 Contact Us For Availability

73

216513900 Frigidaire Refrigerator End Cap Backorder WCI 216513900 $31.21

74

216514000 Frigidaire Refrigerator End Cap Backorder WCI 216514000 $30.71

86

216036601 Frigidaire Refrigerator Screw Backorder WCI 216036601 $8.14

87

Screw, ph truss head, 6-32(T) x 0.500, thread WCI 08037849 Contact Us For Availability

105

216999900 Frigidaire Freezer Drain Cup Backorder WCI 216999900 $104.22

107

Shield, compressor, Compartment WCI 297001900 Contact Us For Availability

130

297244700 Frigidaire Refrigerator Support Backorder WCI 297244700 $2.72

136

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

137B

Frame-shelf, sliding WCI 297007600 Contact Us For Availability

139B

Trim-shelf, rear WCI 297007900 Contact Us For Availability

146

Shroud-fan orfice WCI 216970200 Contact Us For Availability

152

Bearing, hinge closer WCI 216974600 Contact Us For Availability
