Model Electrolux 253.38642896 Refrigerator (Kenmore 25338642896) – Common Parts & Diagrams
SYSTEM
DOOR
All Parts

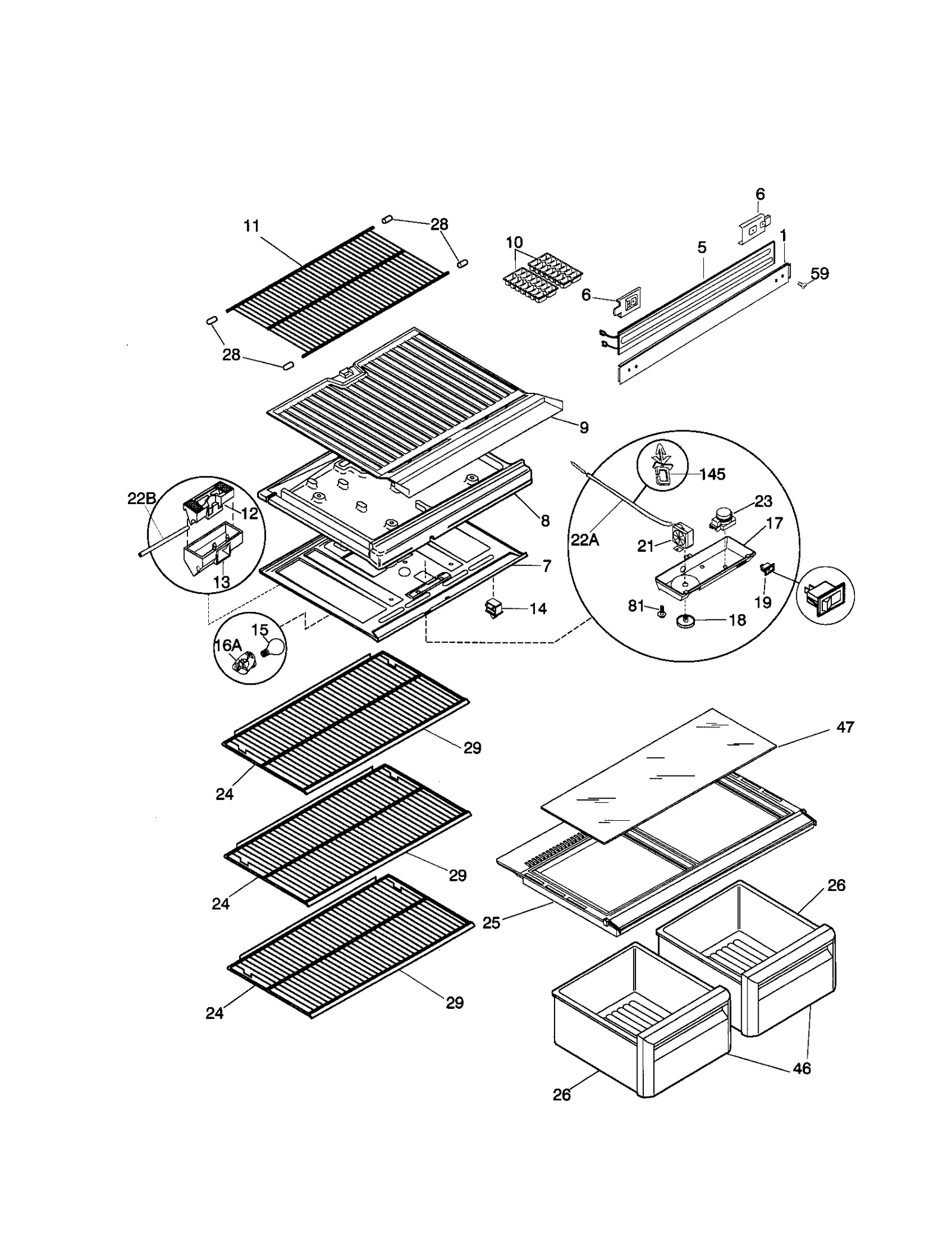

SHELVES

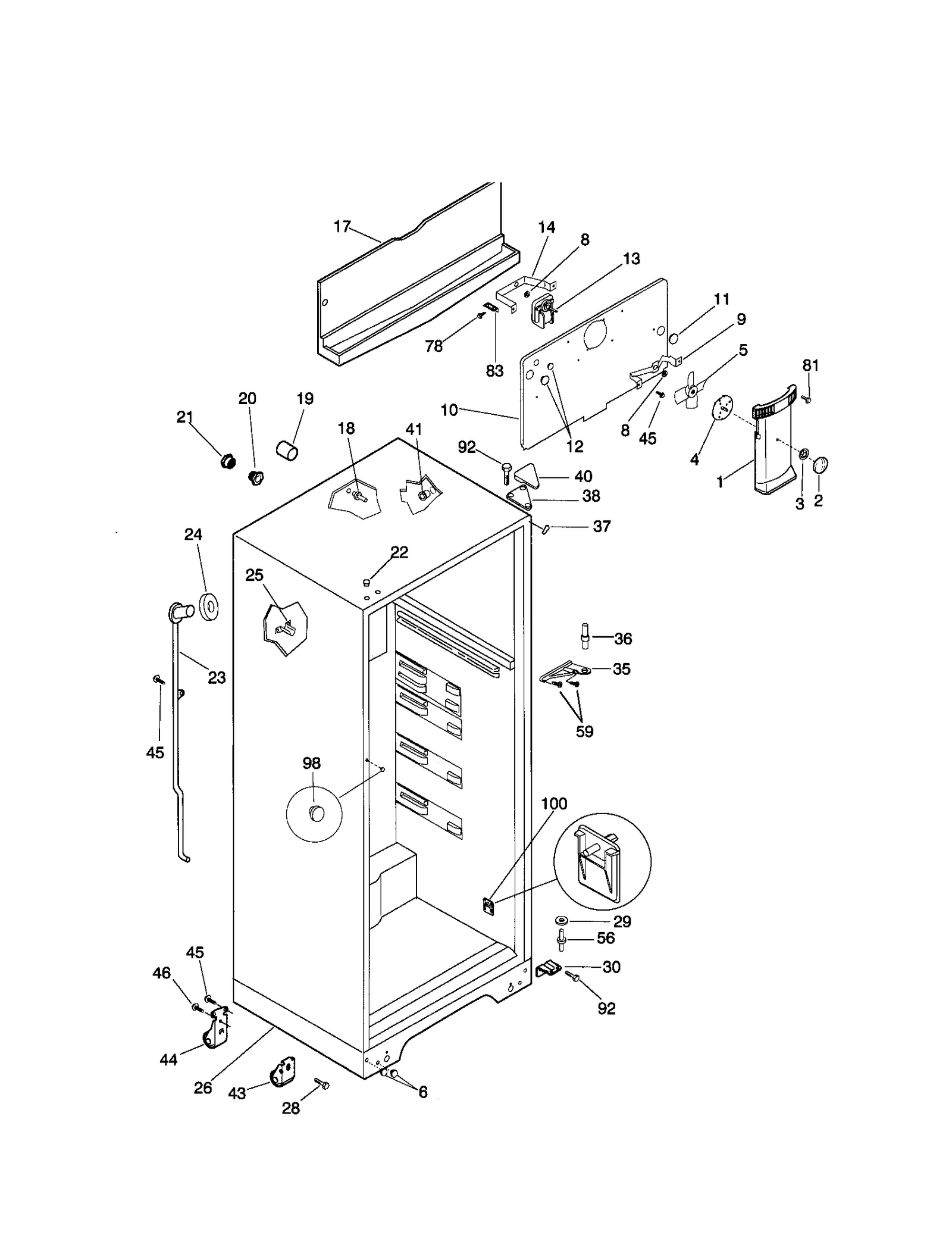

CABINET
Common parts from model Electrolux 253.38642896 Refrigerator (Kenmore 25338642896)
1
Refrigerator Freezer Door Gasket (White) WCI 5308007123 Contact Us For Availability
1
Refrigerator Mullion WCI 218651801 Contact Us For Availability
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
1A
Refrigerator Mullion WCI 218651800 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Heater Mullion WCI 218781004 Contact Us For Availability
6
Refrigerator Button WCI 5303001389 Contact Us For Availability
6
Tapping Plate WCI 218845602 Contact Us For Availability
6A
Refrigerator Button (White) WCI 5303001388 Contact Us For Availability
7
Ff Top Panel WCI 218865801 Contact Us For Availability
7A
Refrigerator Screw WCI 5303001380 Contact Us For Availability
8
Divider Styl WCI 218909705 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8A
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
9
Refrigerator Panel WCI 218865600 Contact Us For Availability
9
Refrigerator Evaporator Fan Motor Bracket, Fr WCI 5304414684 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218829701 Contact Us For Availability
10A
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Refrigerator Freezer Wire Shelf WCI 5303283107 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13AA
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5308009754 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
15
Refrigerator Evaporator WCI 218818701 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Control Box WCI 5304414816 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725602 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18AA
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Shelf WCI 218272501 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 218314110 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
25A
Cover Trim WCI 5304403087 Contact Us For Availability
26
Refrigerator Crisper Drawer WCI 3206180 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605002 Contact Us For Availability
26A
Refrigerator Cabinet Base WCI 218605001 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Refrigerator Shelf Trim WCI 218366101 Contact Us For Availability
29
Refrigerator Door Hinge Pin Washer WCI 218875801 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220203 Contact Us For Availability
30B
Tapping Plate WCI 218605200 Contact Us For Availability
30C
Tapping Plate WCI 218605300 Contact Us For Availability
35
Refrigerator Bracket WCI 218220102 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220101 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37A
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37AA
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
40
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
40A
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
45
Wiring Screw WCI 218754500 Contact Us For Availability
46
Refrigerator Crisper Drawer WCI 5303307450 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
47
Refrigerator Glass WCI 218498143 Contact Us For Availability
49
Refrigerator Door Bucket WCI 5304401374 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
98A
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Sound Cover WCI 218905701 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995331815 Contact Us For Availability
× ![]()
