Model Kenmore 253.26722104 FREEZER – Common Parts & Diagrams
01 - COVER
03 - DOOR

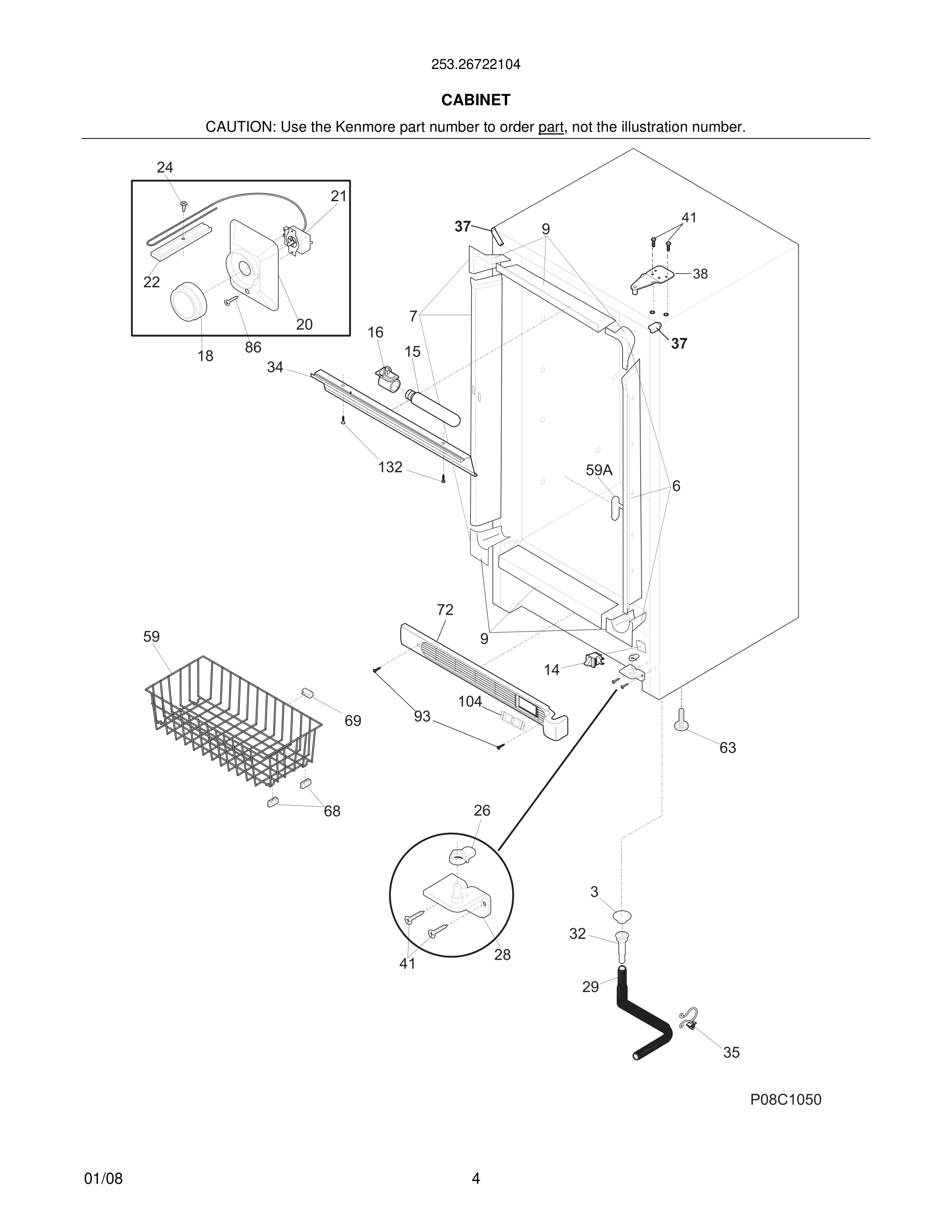

05 - CABINET

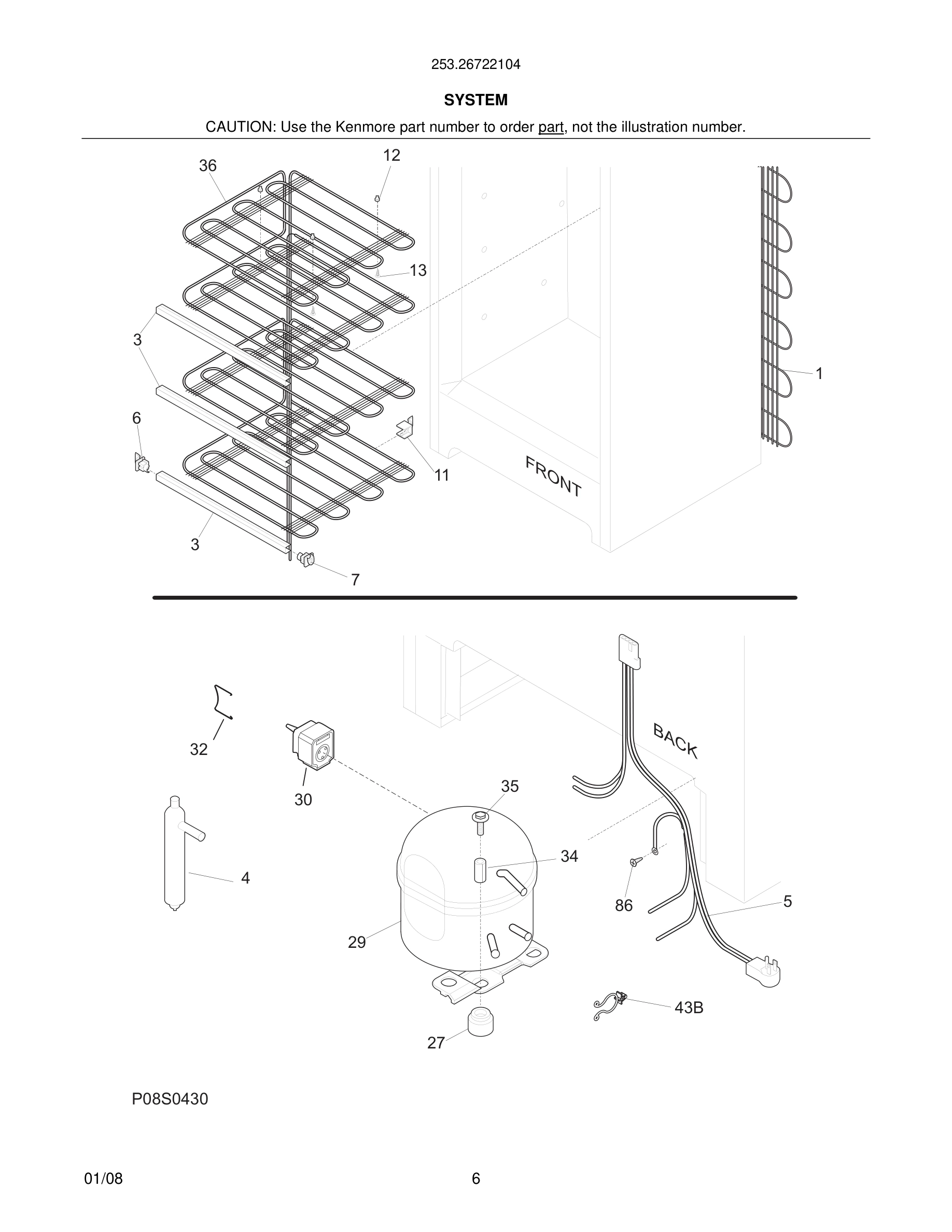

07 - SYSTEM
Common parts from model Kenmore 253.26722104 FREEZER
*
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
*
Adapter, drain hose WCI 216269500 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
*
Spacer-tube WCI 297102800 Contact Us For Availability
3
Plug, drain, interior WCI 216502600 Contact Us For Availability
9
Panel-inner door, frzr WCI 216527816 Contact Us For Availability
11
Support-rear shelf WCI 216474600 Contact Us For Availability
12
Grommet-spacer WCI 216225700 Contact Us For Availability
13
Door Stop WCI 08016354 Contact Us For Availability
20
Cover-control housing WCI 297013800 Contact Us For Availability
22
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
26
Ramp, door closer WCI 216503300 Contact Us For Availability
32
Valve, breather WCI 5309950074 Contact Us For Availability
32
Clamp, elec cont mtg, compressor WCI 297051100 Contact Us For Availability
34
Shield-light WCI 216816200 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
37A
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
59A
Stop-basket, (2) WCI 216486500 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
72
Grille/Kickplate, 32", white WCI 297036902 Contact Us For Availability
104
Light, signal, assy w/bracket WCI 216948401 Contact Us For Availability
172
Button-handle mtg, dovetail WCI 218397000 No Longer Available
× ![]()
