Model Kenmore 253.26428100 FREEZER – Common Parts & Diagrams

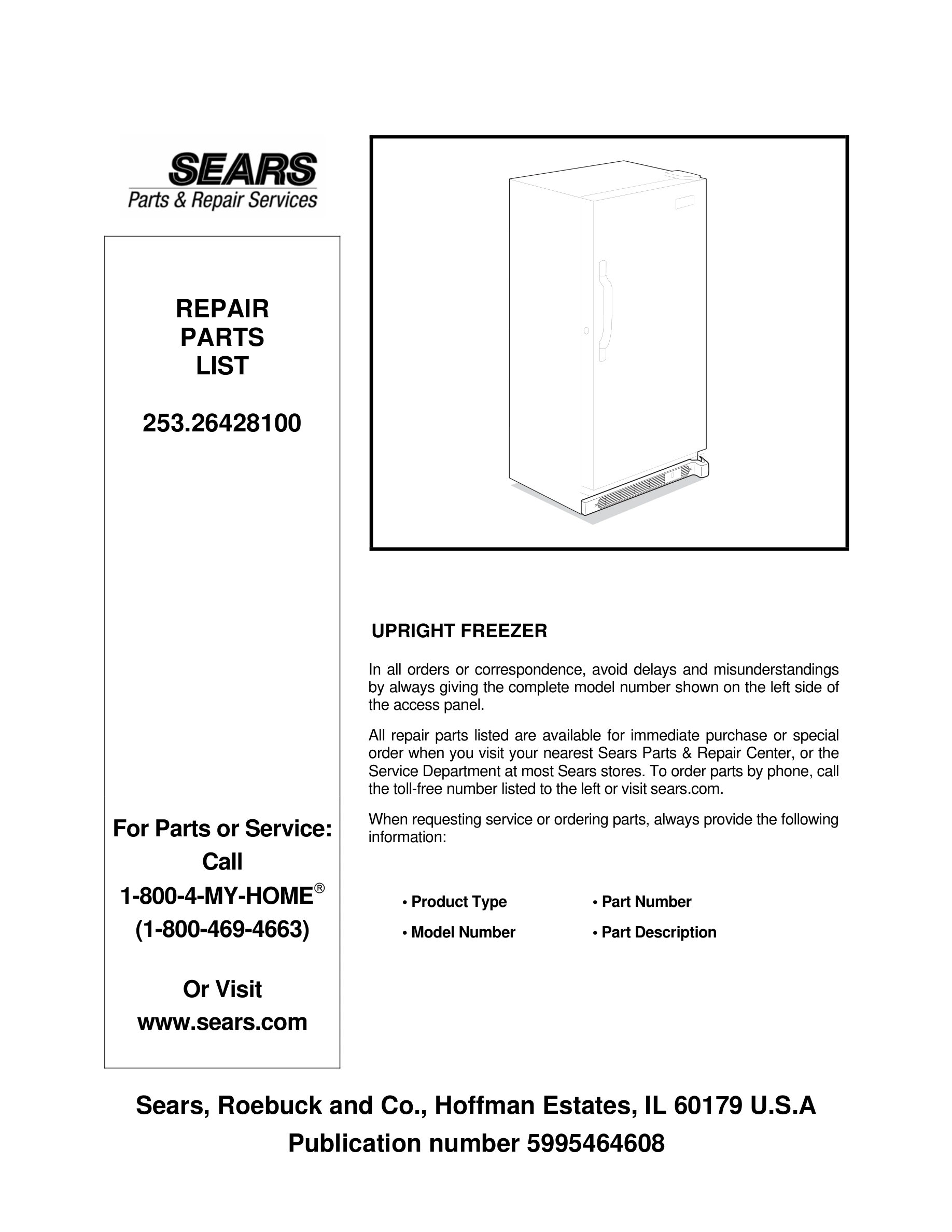

01 - COVER

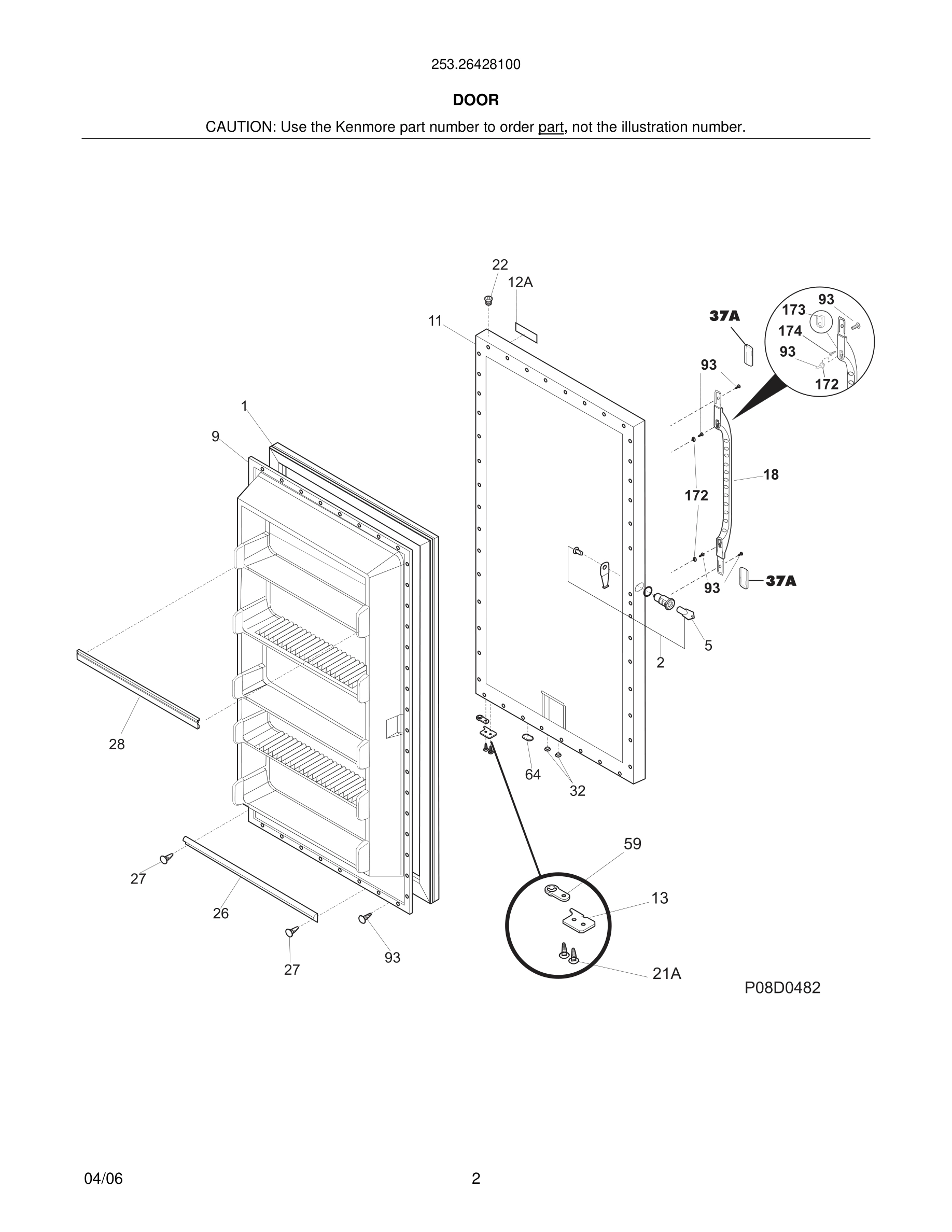

03 - DOOR

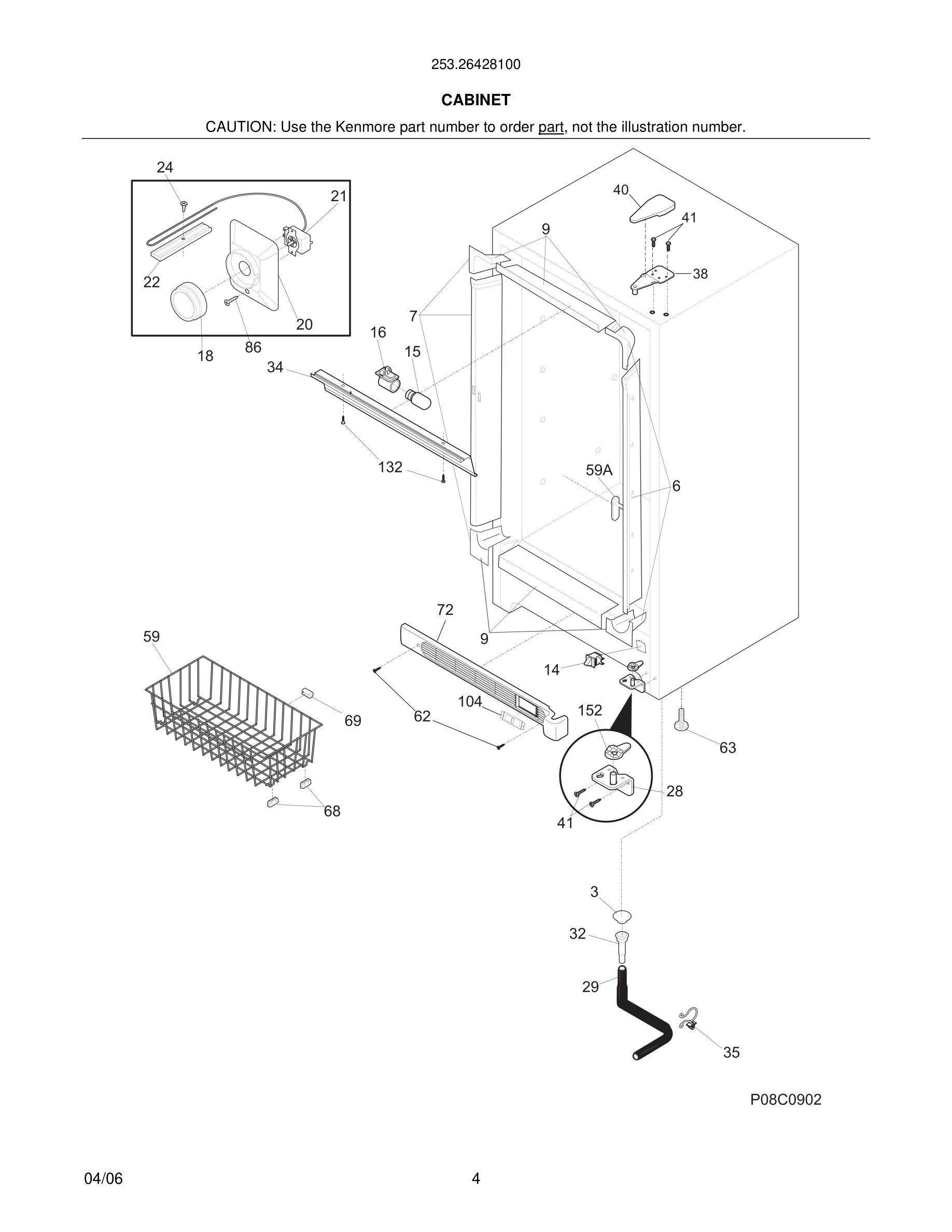

05 - CABINET

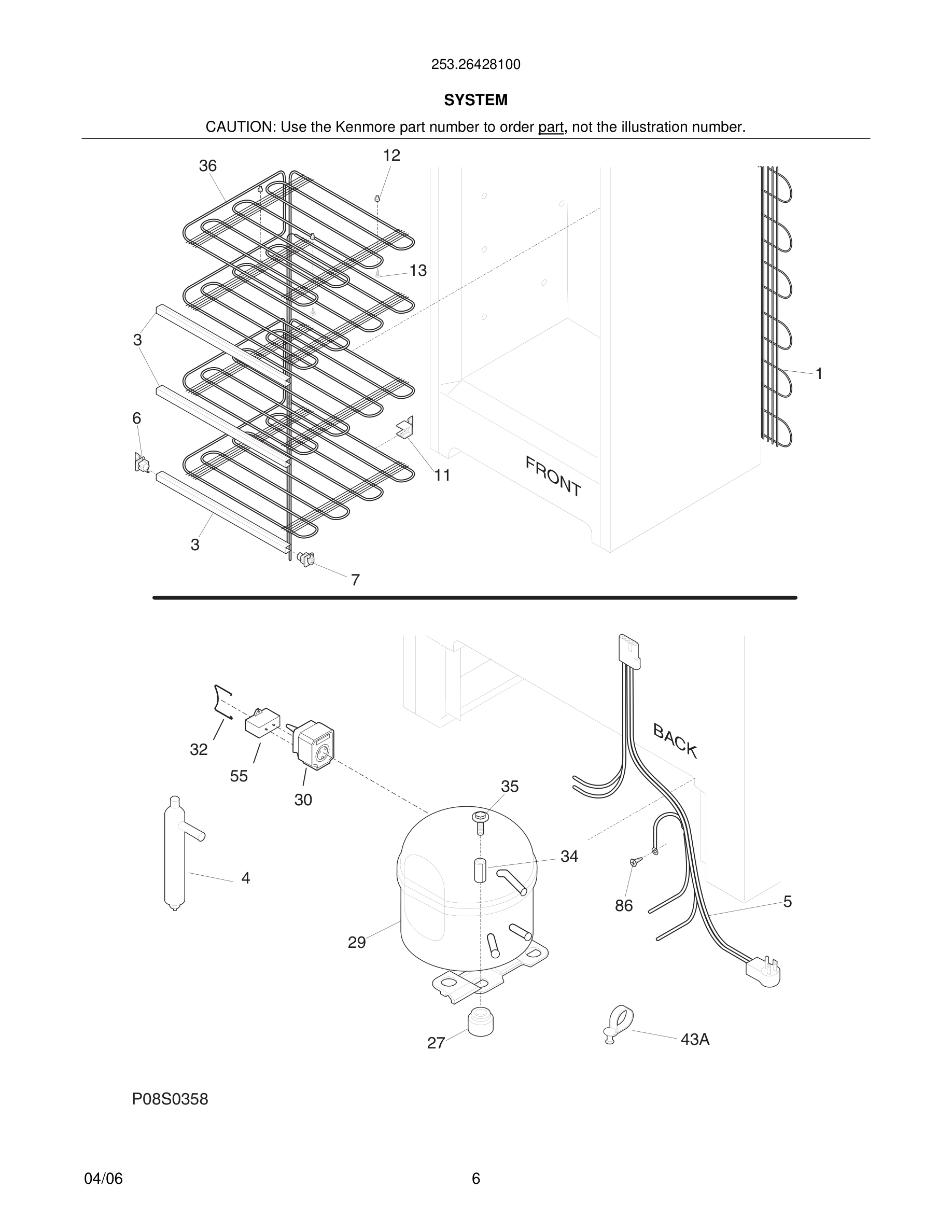

07 - SYSTEM
Common parts from model Kenmore 253.26428100 FREEZER
*
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
*
Sleeve, suction line WCI 216502500 Contact Us For Availability
3
Plug, drain, interior WCI 216502600 Contact Us For Availability
5#
Harness-main, w/light WCI 216989200 Contact Us For Availability
11
Support-rear shelf, (6) WCI 216474600 Contact Us For Availability
12
Grommet-spacer WCI 216225700 Contact Us For Availability
13
Door Stop WCI 5303271076 Contact Us For Availability
20
Cover-control housing WCI 297013800 Contact Us For Availability
22
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
28
Hinge, bracket, lower, RH WCI 216978200 Contact Us For Availability
30
Controller WCI 216954210 No Longer Available
32
Valve, breather WCI 5309950074 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
35
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
37A
Trim-handle, 1.34", gray WCI 218771203 Contact Us For Availability
38
Hinge-upper WCI 216939100 Contact Us For Availability
40
Cover-upper hinge, black WCI 216809001 Contact Us For Availability
59
Bearing, door closer WCI 216974500 Contact Us For Availability
59A
Stop-basket, (2) WCI 216486500 Contact Us For Availability
64
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
152
Bearing, hinge closer WCI 216974600 Contact Us For Availability
172
Button-handle mtg, dovetail WCI 218397000 No Longer Available
× ![]()
