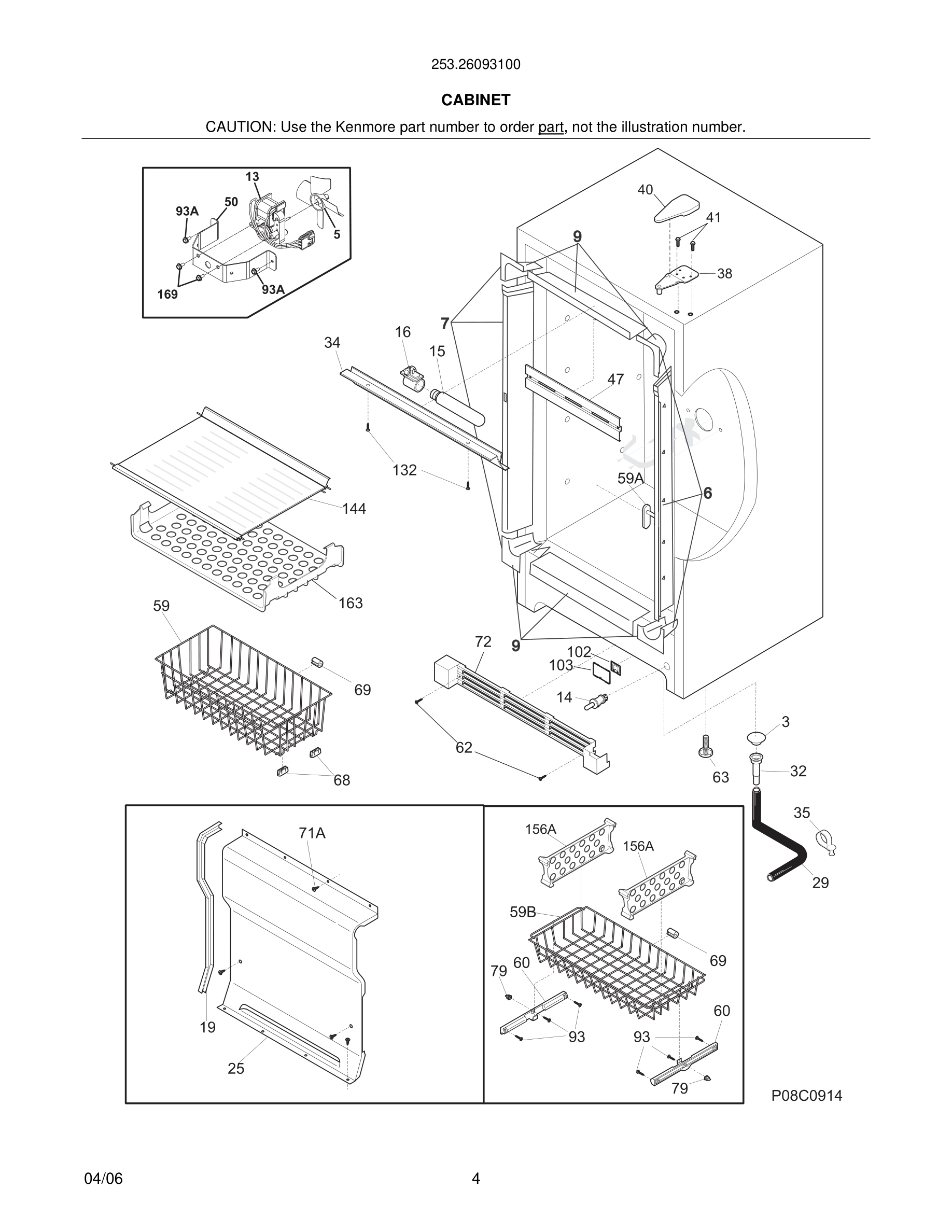

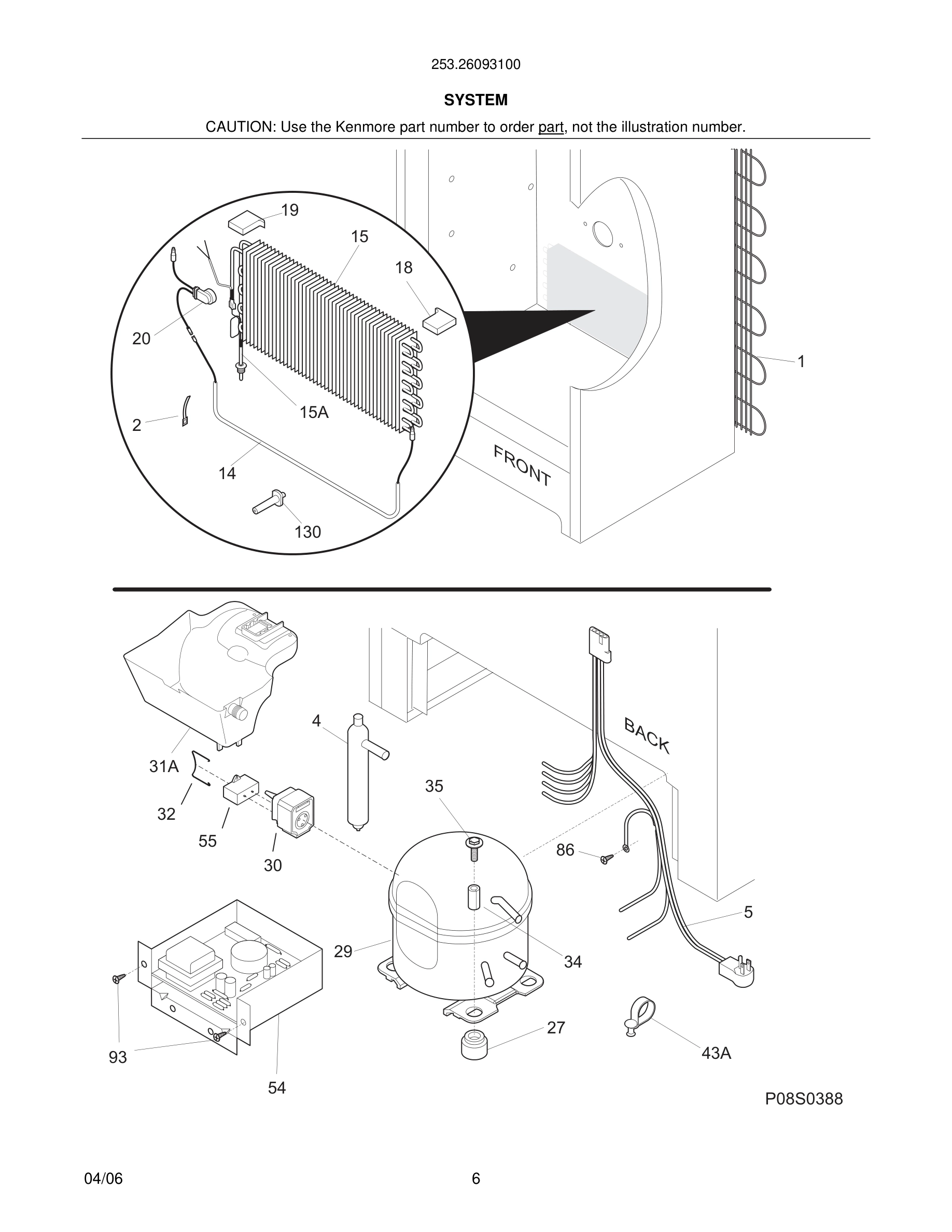

Model Kenmore 253.26093100 FREEZER – Common Parts & Diagrams

*
Insulation, 24", drain tube
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
View on Model
*
Adapter-water supply, nut & sleeve, compressi
Adapter-water supply, nut & sleeve, compressi WCI 218888001 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
1

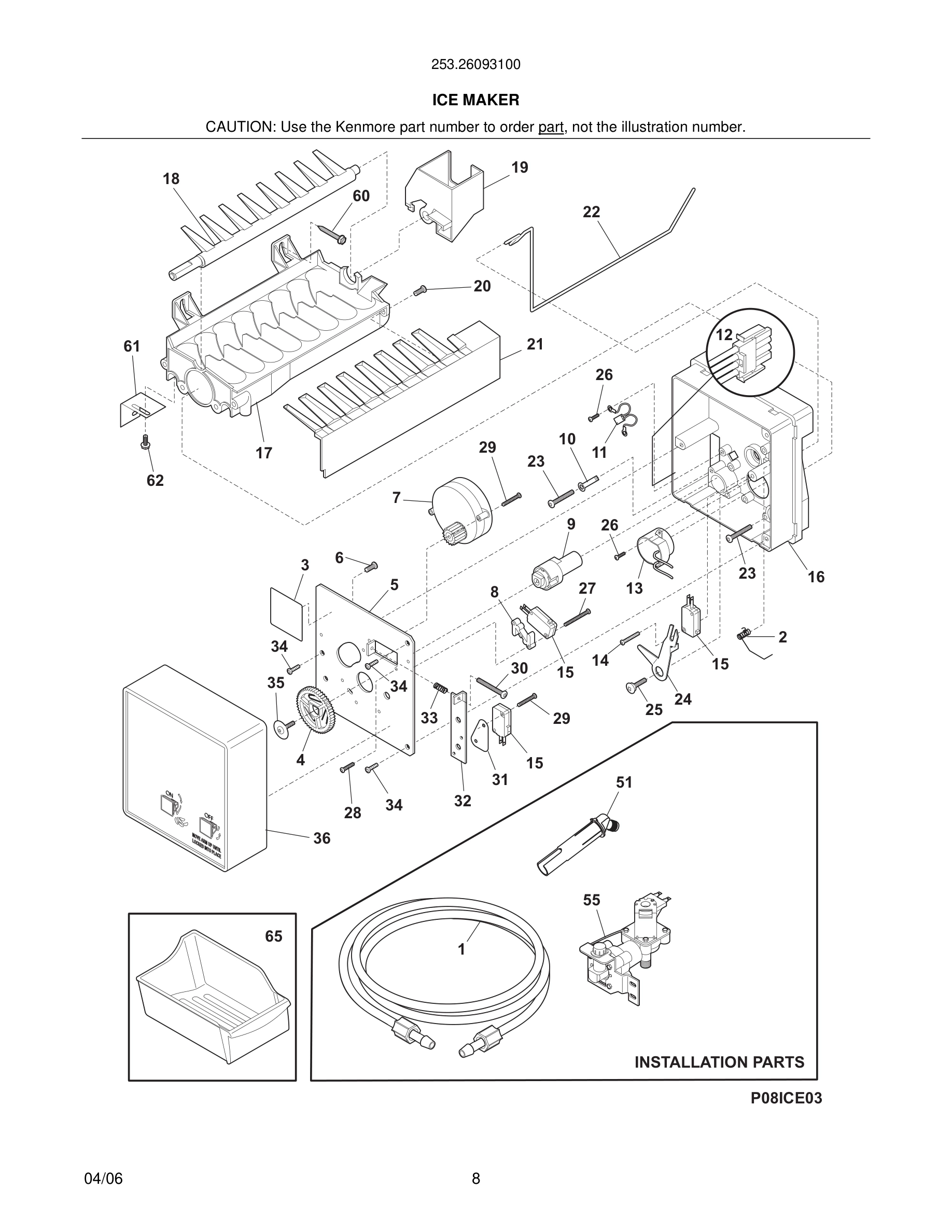

Tube-water inlet, inlet valve, to ice maker
Tube-water inlet, inlet valve, to ice maker WCI 297044900 Contact Us For Availability
View on Model
2
Spring, shut-off arm
Spring, shut-off arm WCI 5304420650 Contact Us For Availability
View on Model
3
Label, ID plate
Label, ID plate WCI 3206299 Contact Us For Availability
View on Model
5
Plate-mounting
Plate-mounting WCI 3206303 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 297083200 Contact Us For Availability
View on Model
8
Spacer-hold switch
Spacer-hold switch WCI 3206312 Contact Us For Availability
View on Model
9
Cam
Cam WCI 3206313 Contact Us For Availability
View on Model
10
Clamp
Clamp WCI 3206315 Contact Us For Availability
View on Model
12#
Wiring Harness, ICE MAKER, internal, with plu
Wiring Harness, ICE MAKER, internal, with plu WCI 5304420651 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 5303271076 Contact Us For Availability
View on Model
13#
Thermostat Assy, ICE MAKER
Thermostat Assy, ICE MAKER WCI 3206322 Contact Us For Availability
View on Model
14
Screw, 4 x 0.750, switch mtg.
Screw, 4 x 0.750, switch mtg. WCI 5304420652 Contact Us For Availability
View on Model
16
Support, phenolic
Support, phenolic WCI 5304420653 Contact Us For Availability
View on Model
18
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727600 Contact Us For Availability
View on Model
18
Ejector-ice
Ejector-ice WCI 3206328 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727700 Contact Us For Availability
View on Model
19
Bearing & Inlet
Bearing & Inlet WCI 3206330 Contact Us For Availability
View on Model
20
Screw, 8-32 x 0.375
Screw, 8-32 x 0.375 WCI 5304408581 Contact Us For Availability
View on Model
21
Ice Stripper
Ice Stripper WCI 3206332 Contact Us For Availability
View on Model
22
Shut-off Arm
Shut-off Arm WCI 3206333 Contact Us For Availability
View on Model
23
Screw, 8-32 x 0.875, mold-to-support, (3)
Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability
View on Model
25
Screw, 8-18 x 0.562, lever arm/sprt
Screw, 8-18 x 0.562, lever arm/sprt WCI 3206336 Contact Us For Availability
View on Model
26
Screw-thermo/sprt, 4-24 x 0.375, (4)
Screw-thermo/sprt, 4-24 x 0.375, (4) WCI 5304420654 Contact Us For Availability
View on Model
27
Screw, 4-40 x 1.000, hold switch mtg, (2)
Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability
View on Model
28
Rack-door, contour
Rack-door, contour WCI 216806100 Contact Us For Availability
View on Model
28
Screw-timing stop, 4-40 x 0.375
Screw-timing stop, 4-40 x 0.375 WCI 3206339 Contact Us For Availability
View on Model
29
Screw, 4-24 x 0.750, (6)
Screw, 4-24 x 0.750, (6) WCI 3206323 Contact Us For Availability
View on Model
30
Screw-timing adj, 8-32 x 1.000
Screw-timing adj, 8-32 x 1.000 WCI 3206341 Contact Us For Availability
View on Model
31
Insulator
Insulator WCI 3206342 Contact Us For Availability
View on Model
32
Valve, breather
Valve, breather WCI 5309950074 Contact Us For Availability
View on Model
32
Plate-valve switch
Plate-valve switch WCI 3206343 Contact Us For Availability
View on Model
33
Spring-timing adj
Spring-timing adj WCI 5304408583 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
34
Screw, plazscrew, 8-10, (3)
Screw, plazscrew, 8-10, (3) WCI 5304420655 Contact Us For Availability
View on Model
35
Screw, Ind hex sems, 1/4-28 unfx, compressor
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
View on Model
35
Screw
Screw WCI 5304408585 Contact Us For Availability
View on Model
36
Cover-ice maker
Cover-ice maker WCI 3206347 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 216939100 Contact Us For Availability
View on Model
40
Cover-upper hinge, black
Cover-upper hinge, black WCI 216809001 Contact Us For Availability
View on Model
51
Tube, water, ICE MAKER
Tube, water, ICE MAKER WCI 216887500 Contact Us For Availability
View on Model
59
Bearing, door closer
Bearing, door closer WCI 216974500 Contact Us For Availability
View on Model
59A
Stop-basket, (2)
Stop-basket, (2) WCI 216486500 Contact Us For Availability
View on Model
59B
Basket
Basket WCI 216880100 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
72
Shelf, tilt out, wire, (2)
Shelf, tilt out, wire, (2) WCI 216514100 Contact Us For Availability
View on Model
103
Cover, battery back-up
Cover, battery back-up WCI 216952600 Contact Us For Availability
View on Model
