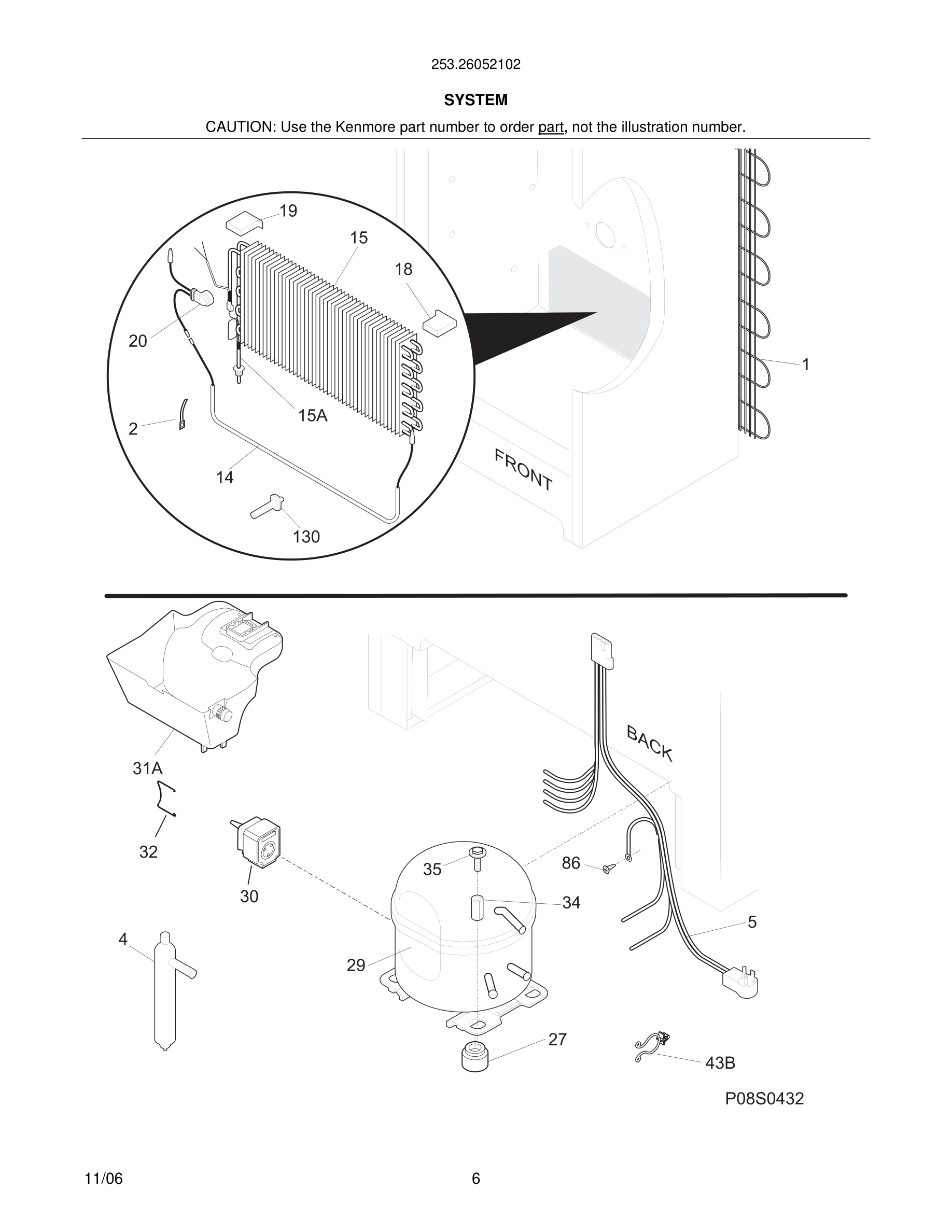

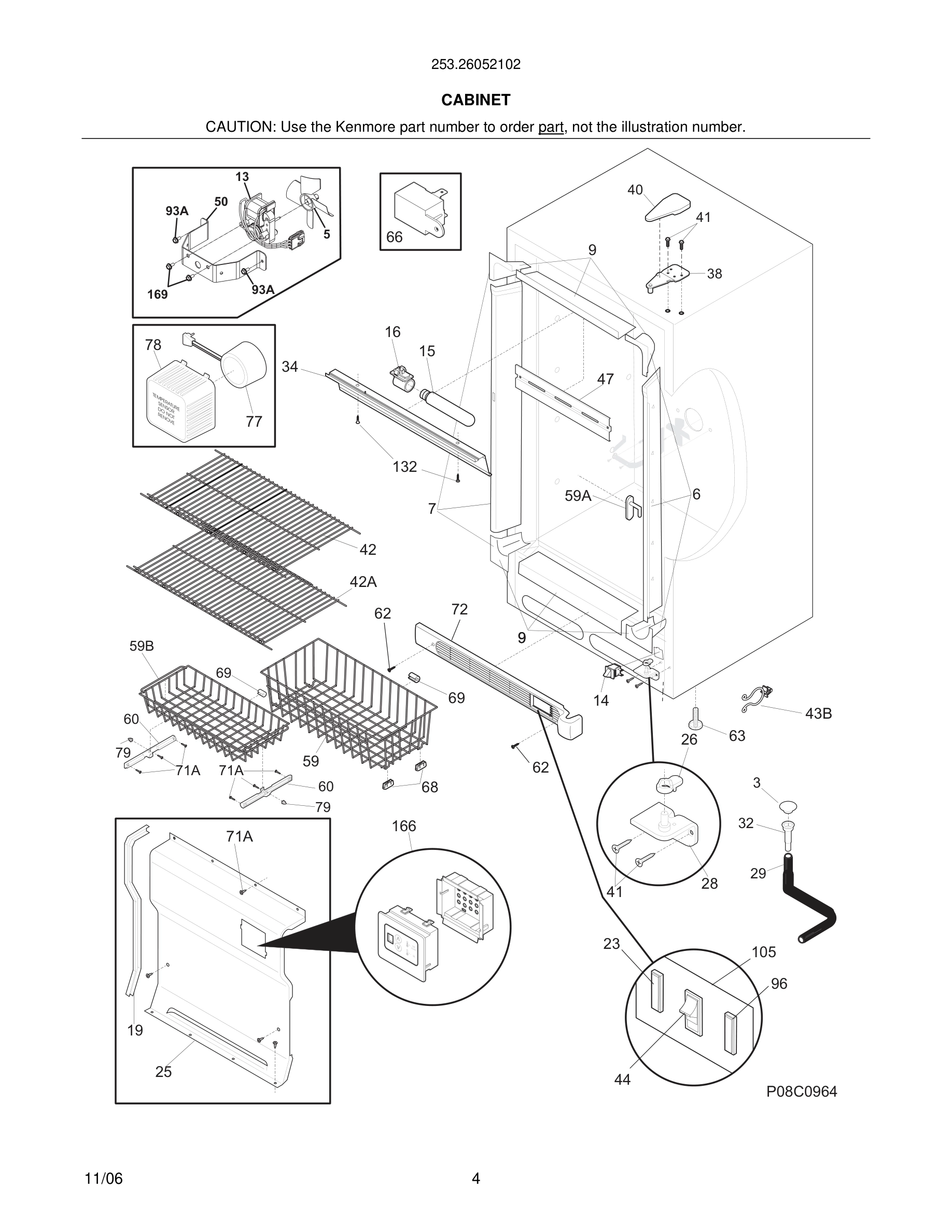

Model Kenmore 253.26052102 FREEZER – Common Parts & Diagrams

*
Insulation, 24", drain tube
Insulation, 24", drain tube WCI 297001704 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
*
Spacer-tube
Spacer-tube WCI 297102800 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 08016354 Contact Us For Availability
View on Model
18
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 297078700 Contact Us For Availability
View on Model
19
Gasket-cover evap
Gasket-cover evap WCI 216204901 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 297078800 Contact Us For Availability
View on Model
26
Ramp, door closer
Ramp, door closer WCI 216503300 Contact Us For Availability
View on Model
30
Controller, compressor
Controller, compressor WCI 297051000 Contact Us For Availability
View on Model
32
Valve, breather
Valve, breather WCI 5309950074 Contact Us For Availability
View on Model
32
Clamp, elec cont mtg, compressor
Clamp, elec cont mtg, compressor WCI 297051100 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw, Ind hex sems, 1/4-28 unfx, compressor
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
View on Model
37A
Trim-handle, 1.34", white
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 216939100 Contact Us For Availability
View on Model
44
Switch, rocker
Switch, rocker WCI 216823300 Contact Us For Availability
View on Model
59A
Stop-basket, (2)
Stop-basket, (2) WCI 216486500 Contact Us For Availability
View on Model
59B
Basket
Basket WCI 216880100 Contact Us For Availability
View on Model
63
Screw, leveling foot, plastic, adjustable
Screw, leveling foot, plastic, adjustable WCI 216396900 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
66#
Buzzer, alarm
Buzzer, alarm WCI 216713700 Contact Us For Availability
View on Model
72
Grille/Kickplate, 32", white
Grille/Kickplate, 32", white WCI 297036902 Contact Us For Availability
View on Model
72
Shelf, tilt out, wire, (3)
Shelf, tilt out, wire, (3) WCI 216514100 Contact Us For Availability
View on Model
77#
Sensor Assy
Sensor Assy WCI 5308037992 Contact Us For Availability
View on Model
172
Button-handle mtg, dovetail
Button-handle mtg, dovetail WCI 218397000 No Longer Available
View on Model
