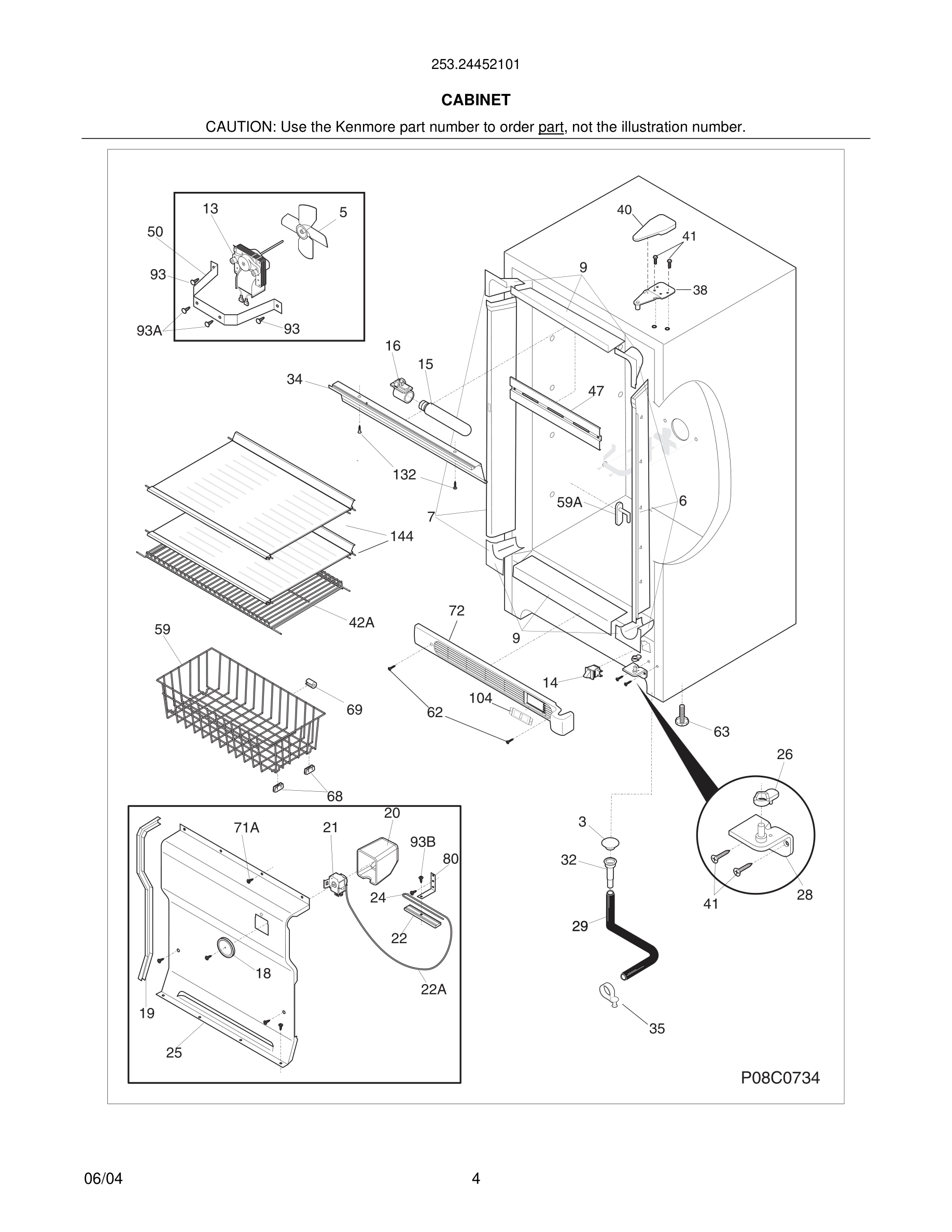

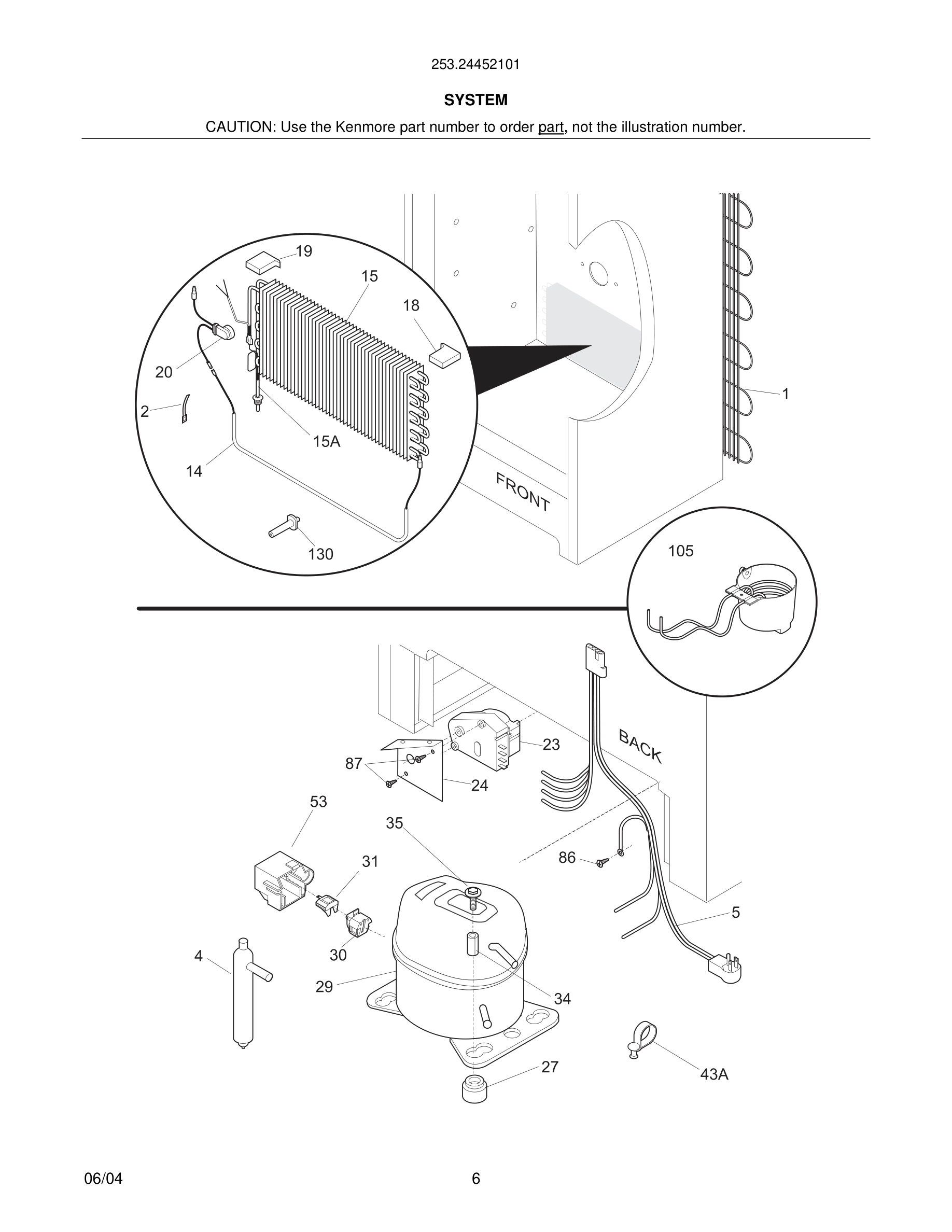

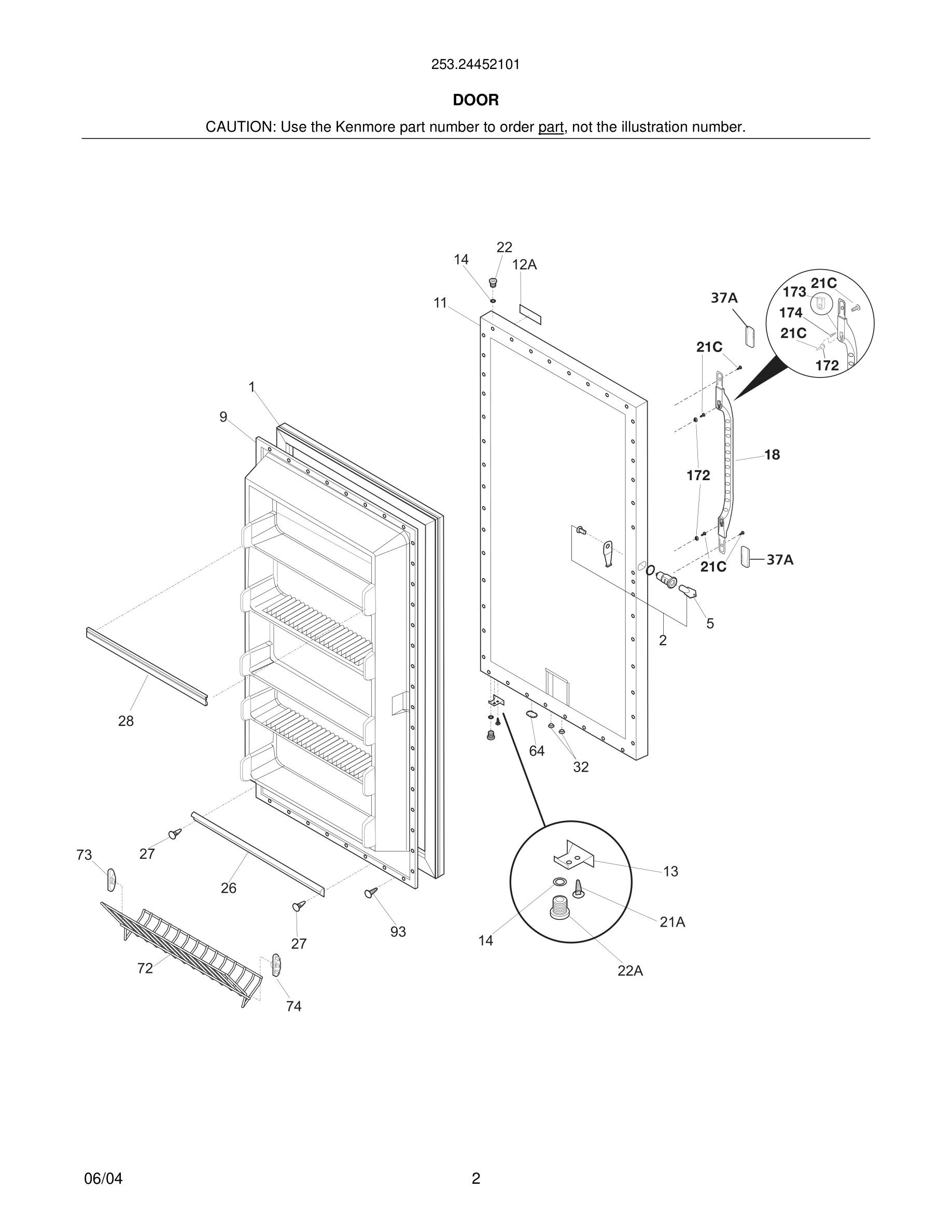

Model Kenmore 253.24452101 FREEZER – Common Parts & Diagrams

*
Insulation, drain tube
Insulation, drain tube WCI 09948773 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
5
Harness-main
Harness-main WCI 216971900 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 08016354 Contact Us For Availability
View on Model
18
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727600 Contact Us For Availability
View on Model
19
Gasket, evap cover
Gasket, evap cover WCI 216204900 Contact Us For Availability
View on Model
19
Insulator-evap, styrofoam
Insulator-evap, styrofoam WCI 216727700 Contact Us For Availability
View on Model
21#
Control, temperature
Control, temperature WCI 216788000 No Longer Available
View on Model
22
Clamp, cap tube, cold control
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
View on Model
24
Bracket
Bracket WCI 08016580 Contact Us For Availability
View on Model
26
Ramp, door closer
Ramp, door closer WCI 216503300 Contact Us For Availability
View on Model
32
Valve, breather, door base
Valve, breather, door base WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve-compressor, (3)
Sleeve-compressor, (3) WCI 5306594529 Contact Us For Availability
View on Model
35
Screw, Ind hex sems, 1/4-28 unfx, compressor,
Screw, Ind hex sems, 1/4-28 unfx, compressor, WCI 5303272328 Contact Us For Availability
View on Model
37A
Trim-handle, 1.34", white
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 216939100 Contact Us For Availability
View on Model
53
Cover terminal, cover-comp term
Cover terminal, cover-comp term WCI 216347800 Contact Us For Availability
View on Model
59A
Stop-basket
Stop-basket WCI 216486500 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
72
Grille/Kickplate, 28"
Grille/Kickplate, 28" WCI 216947000 Contact Us For Availability
View on Model
80
Bracket, control
Bracket, control WCI 06594601 Contact Us For Availability
View on Model
87
Screw, ph truss head, 6-32(T) x 0.500, thread
Screw, ph truss head, 6-32(T) x 0.500, thread WCI 08037849 Contact Us For Availability
View on Model
104
Light, signal, assy w/bracket
Light, signal, assy w/bracket WCI 216948401 Contact Us For Availability
View on Model
132
Screw, 6-20AB x 3/8
Screw, 6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
144
Shelf-assy, fixed, glass, (2), w/frame & trim
Shelf-assy, fixed, glass, (2), w/frame & trim WCI 216922303 Contact Us For Availability
View on Model
172
Button-handle mtg, dovetail
Button-handle mtg, dovetail WCI 218397000 No Longer Available
