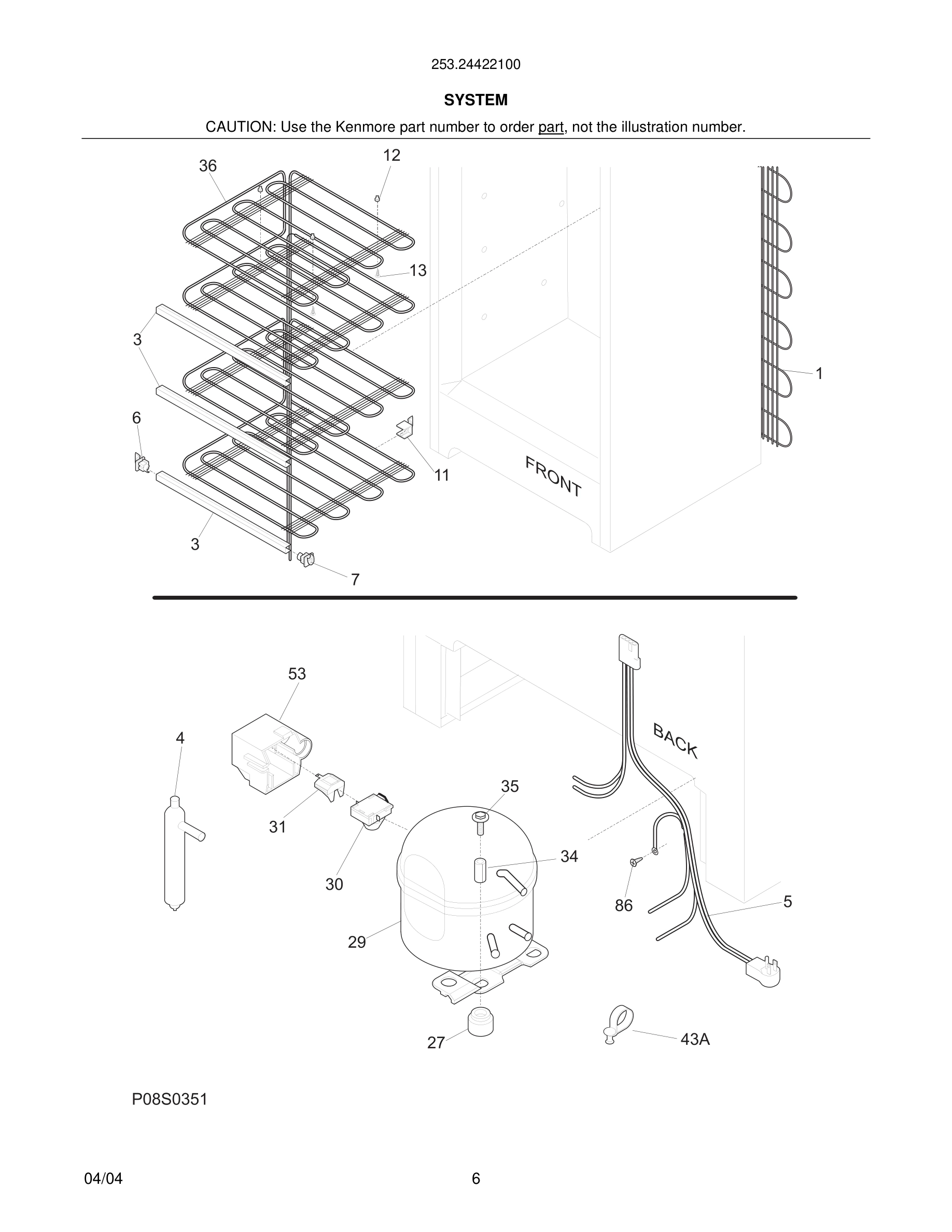

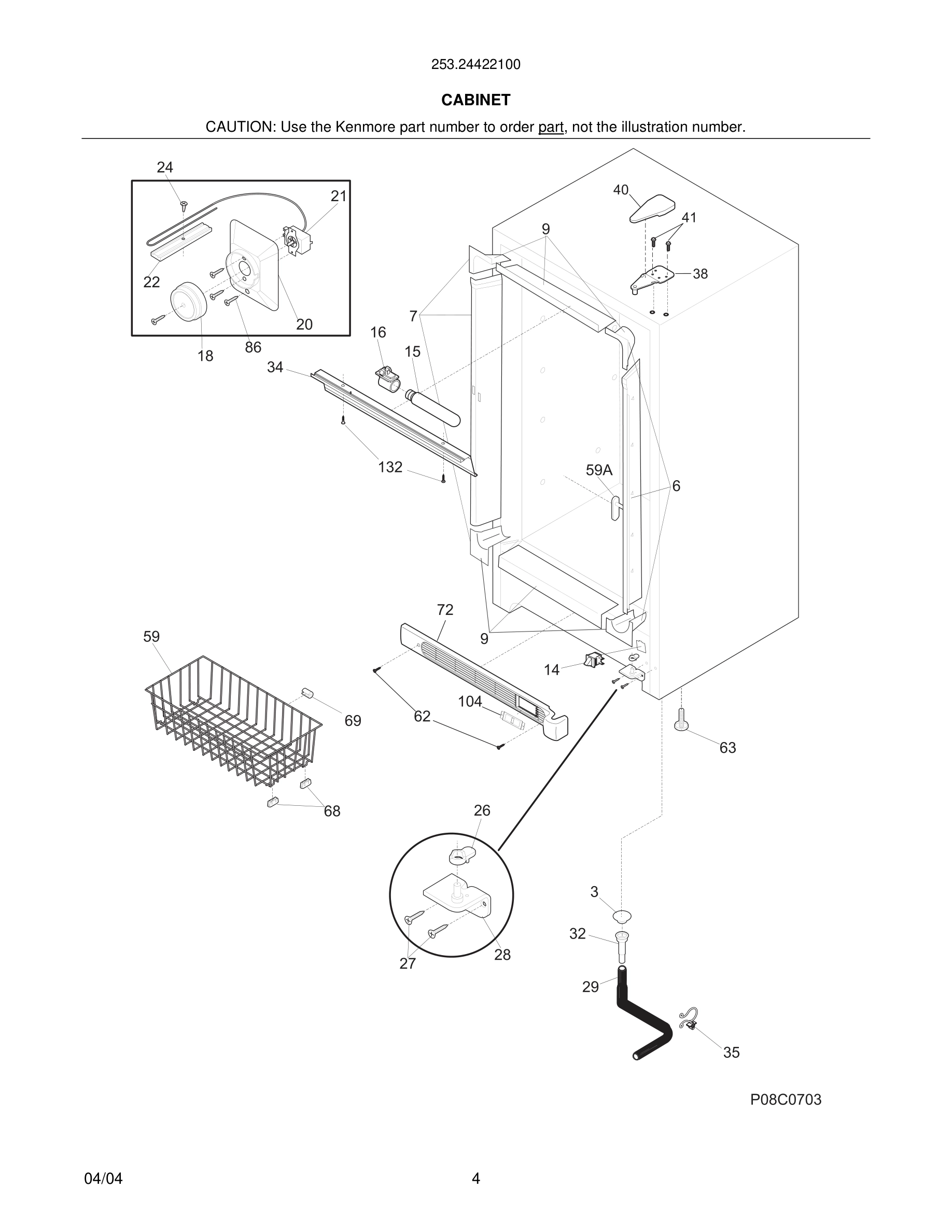

Model Kenmore 253.24422100 FREEZER – Common Parts & Diagrams

*
Insulation, drain tube
Insulation, drain tube WCI 09948773 Contact Us For Availability
View on Model
*
Sleeve, suction line
Sleeve, suction line WCI 216502500 Contact Us For Availability
View on Model
3
Plug, drain, interior
Plug, drain, interior WCI 216502600 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216941200 Contact Us For Availability
View on Model
11
Support-rear shelf
Support-rear shelf WCI 216474600 Contact Us For Availability
View on Model
12
Grommet-spacer
Grommet-spacer WCI 216225700 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 08016354 Contact Us For Availability
View on Model
13
Screw, hex sems, 8-18AB x 1.00, evap
Screw, hex sems, 8-18AB x 1.00, evap WCI 216138900 Contact Us For Availability
View on Model
22
Clamp, cap tube, cold control
Clamp, cap tube, cold control WCI 216823500 Contact Us For Availability
View on Model
26
Ramp, door closer
Ramp, door closer WCI 216503300 Contact Us For Availability
View on Model
32
Valve, breather, door base
Valve, breather, door base WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw, Ind hex sems, 1/4-28 unfx, compressor
Screw, Ind hex sems, 1/4-28 unfx, compressor WCI 5303272328 Contact Us For Availability
View on Model
37A
Trim-handle, 1.34", white
Trim-handle, 1.34", white WCI 218771201 Contact Us For Availability
View on Model
38
Hinge-upper
Hinge-upper WCI 216939100 Contact Us For Availability
View on Model
53
Cover terminal, cover-comp term
Cover terminal, cover-comp term WCI 216347800 Contact Us For Availability
View on Model
59A
Stop-basket
Stop-basket WCI 216486500 Contact Us For Availability
View on Model
64
Plug-button, hole filler, door base
Plug-button, hole filler, door base WCI 216403700 Contact Us For Availability
View on Model
72
Grille/Kickplate, 28"
Grille/Kickplate, 28" WCI 216947000 Contact Us For Availability
View on Model
104
Light, signal, assy w/bracket
Light, signal, assy w/bracket WCI 216948401 Contact Us For Availability
View on Model
132
Screw, 6-20AB x 3/8
Screw, 6-20AB x 3/8 WCI 5303283898 Contact Us For Availability
View on Model
172
Button-handle mtg, dovetail
Button-handle mtg, dovetail WCI 218397000 No Longer Available
View on Model
