Kenmore 253.23429100 FREEZER Parts List

*

216502400 Frigidaire Refrigerator Grommet Uni In Stock WCI 216502400 $10.41

View on Model

*

Insulation,drain tube WCI 09948773 Contact Us For Availability

View on Model

*

Sleeve,suction line WCI 216502500 Contact Us For Availability

View on Model

1

5304507201 Frigidaire Freezer Door Gasket In Stock WCI 5304507201 $108.53

View on Model

1#

5300123788 Frigidaire Freezer Condenser Backorder WCI 5300123788 $459.63

View on Model

2

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

View on Model

3

216503100 Frigidaire Refrigerator Drain Scree Backorder WCI 216503100 $38.53

View on Model

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

View on Model

5#

297147700 Frigidaire Freezer Plastic Door Key In Stock WCI 297147700 $4.73

View on Model

5#

Harness-main,w/elect cntr WCI 216923600 Contact Us For Availability

View on Model

9

216527615 Frigidaire Freezer Inner Door Panel Backorder WCI 216527615 $176.77

View on Model

13

Door Stop WCI 5303271076 Contact Us For Availability

View on Model

14

216822900 Frigidaire Refrigerator Switch In Stock WCI 216822900 $44.37

View on Model

14

5304496687 Frigidaire Freezer Defrost Heater In Stock WCI 5304496687 $61.84

View on Model

15

297414800 Frigidaire Freezer Evaporator Backorder WCI 297414800 $89.39

View on Model

15

5304517886 Frigidaire Refrigerator Light In Stock WCI 5304517886 $43.41

View on Model

15A

297348500 Frigidaire Heat Exchange Assembly Backorder WCI 297348500 $71.24

View on Model

18

216707200 Frigidaire Refrigerator Cold Contro Backorder WCI 216707200 $27.62

View on Model

18

Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability

View on Model

19

Gasket,evap cover WCI 216204900 Contact Us For Availability

View on Model

19

Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability

View on Model

20

297216600 Frigidaire Refrigerator Defrost The In Stock WCI 297216600 $13.53

View on Model

21#

Control-temperature WCI 216844500 Contact Us For Availability

View on Model

27

216498900 Frigidaire Refrigerator Grommet Backorder WCI 216498900 $8.15

View on Model

27

5303212828 Frigidaire Refrigerator Primary Cl In Stock WCI 5303212828 $10.41

View on Model

29

5304512272 Frigidaire Hose Drain In Stock WCI 5304512272 $9.49

View on Model

29#

5304507765 Frigidaire Refrigerator Compressor In Stock WCI 5304507765 $424.82

View on Model

30

5304493950 Frigidaire Start Relay Kit Backorder WCI 5304493950 $65.86

View on Model

31#

216954208 Frigidaire Refrigerator Controller Backorder WCI 216954208 $47.05

View on Model

32

5304511843 Frigidaire Refrigerator Sleeve In Stock WCI 5304511843 $8.62

View on Model

32

Valve,breather ,door base WCI 5309950074 Contact Us For Availability

View on Model

34

Sleeve-compressor WCI 5306594529 Contact Us For Availability

View on Model

35

Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability

View on Model

37A

Trim-handle,1.34" ,white WCI 218771201 Contact Us For Availability

View on Model

38

Hinge,plate ,top WCI 216808900 Contact Us For Availability

View on Model

43A

297315800 Frigidaire Refrigerator Clip Backorder WCI 297315800 $6.34

View on Model

47

297192903 Frigidaire Refrigerator Baffle Backorder WCI 297192903 $15.85

View on Model

50

Bracket,fan motor mount WCI 216394000 Contact Us For Availability

View on Model

53

Cover terminal,cover-comp term WCI 216347800 Contact Us For Availability

View on Model

54#

Electronics,high voltage WCI 216923500 Contact Us For Availability

View on Model

59

Basket WCI 216826400 Contact Us For Availability

View on Model

59A

Stop-basket WCI 216486500 Contact Us For Availability

View on Model

62

131420300 Frigidaire Screw Backorder WCI 131420300 $8.60

View on Model

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.92

View on Model

64

Plug-button,hole filler ,door base WCI 216403700 Contact Us For Availability

View on Model

68

08009560 Frigidaire 0 Basket Glide Backorder WCI 08009560 $22.52

View on Model

69

5305878546 Frigidaire Refrigerator Basket Bum Backorder WCI 5305878546 $4.51

View on Model

71A

134178901 Frigidaire Screw Backorder WCI 134178901 $9.50

View on Model

72

Grille/Kickplate,assy WCI 216866600 Contact Us For Availability

View on Model

73

216513900 Frigidaire Refrigerator End Cap Backorder WCI 216513900 $31.21

View on Model

74

216514000 Frigidaire Refrigerator End Cap Backorder WCI 216514000 $30.71

View on Model

77

Bezel,door alarm WCI 216878700 Contact Us For Availability

View on Model

79#

Control Board,electronic WCI 216885100 Contact Us For Availability

View on Model

86

216036601 Frigidaire Refrigerator Screw Backorder WCI 216036601 $8.14

View on Model

93

216858001 Frigidaire Refrigerator Screw In Stock WCI 216858001 $6.80

View on Model

93A

216912401 Frigidaire Refrigerator Screw Backorder WCI 216912401 $8.14

View on Model

101

Top Hinge Kit WCI 216835200 Contact Us For Availability

View on Model

105

216999900 Frigidaire Freezer Drain Cup Backorder WCI 216999900 $104.22

View on Model

130

297244700 Frigidaire Refrigerator Support Backorder WCI 297244700 $2.72

View on Model

132

Screw,6-20AB x 3/8 WCI 5303283898 Contact Us For Availability

View on Model

144

Shelf-assy,fixed,glass ,(2) ,w/frame & trim WCI 216922303 Contact Us For Availability

View on Model

172

Button-handle mtg,dovetail WCI 218397000 No Longer Available

View on Model

173

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $28.99

View on Model

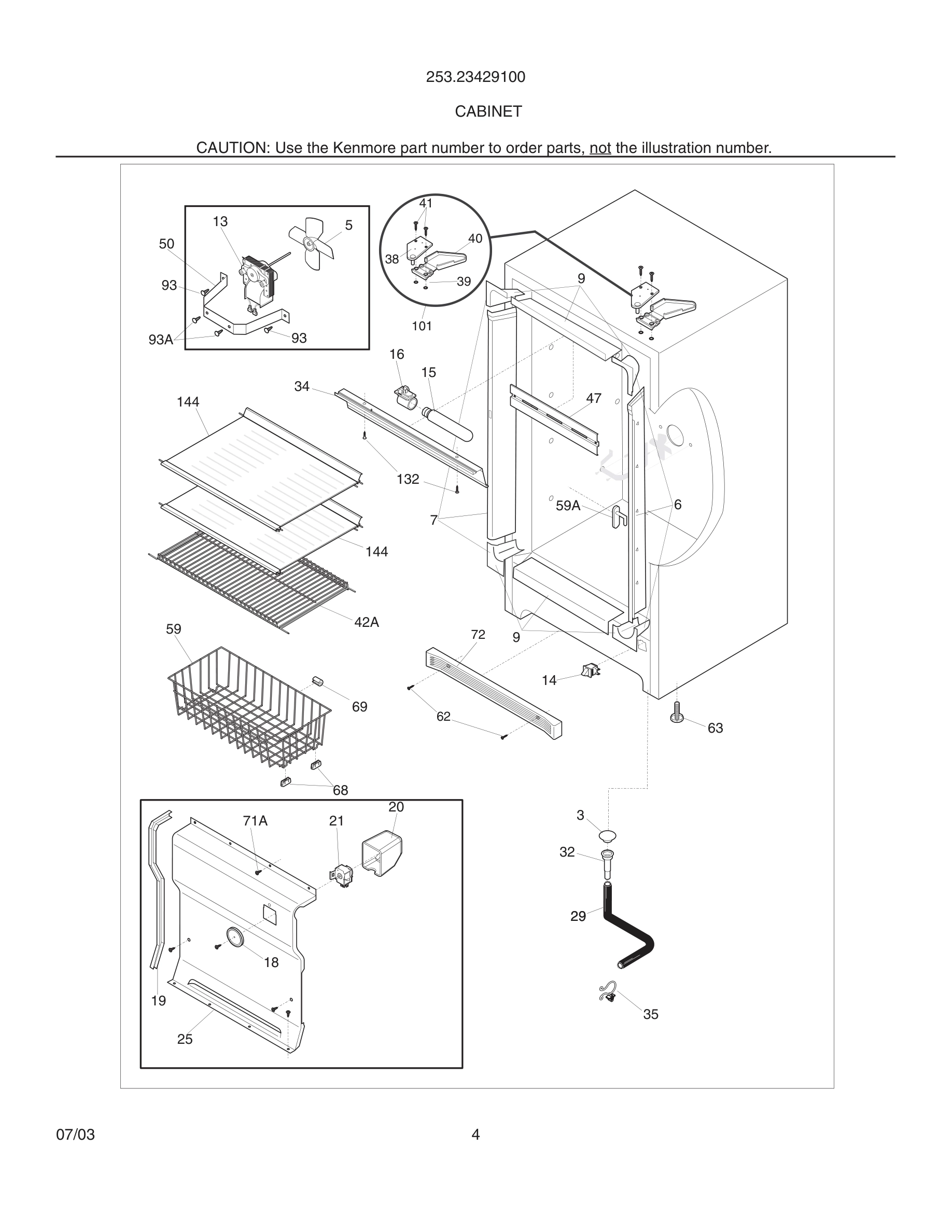

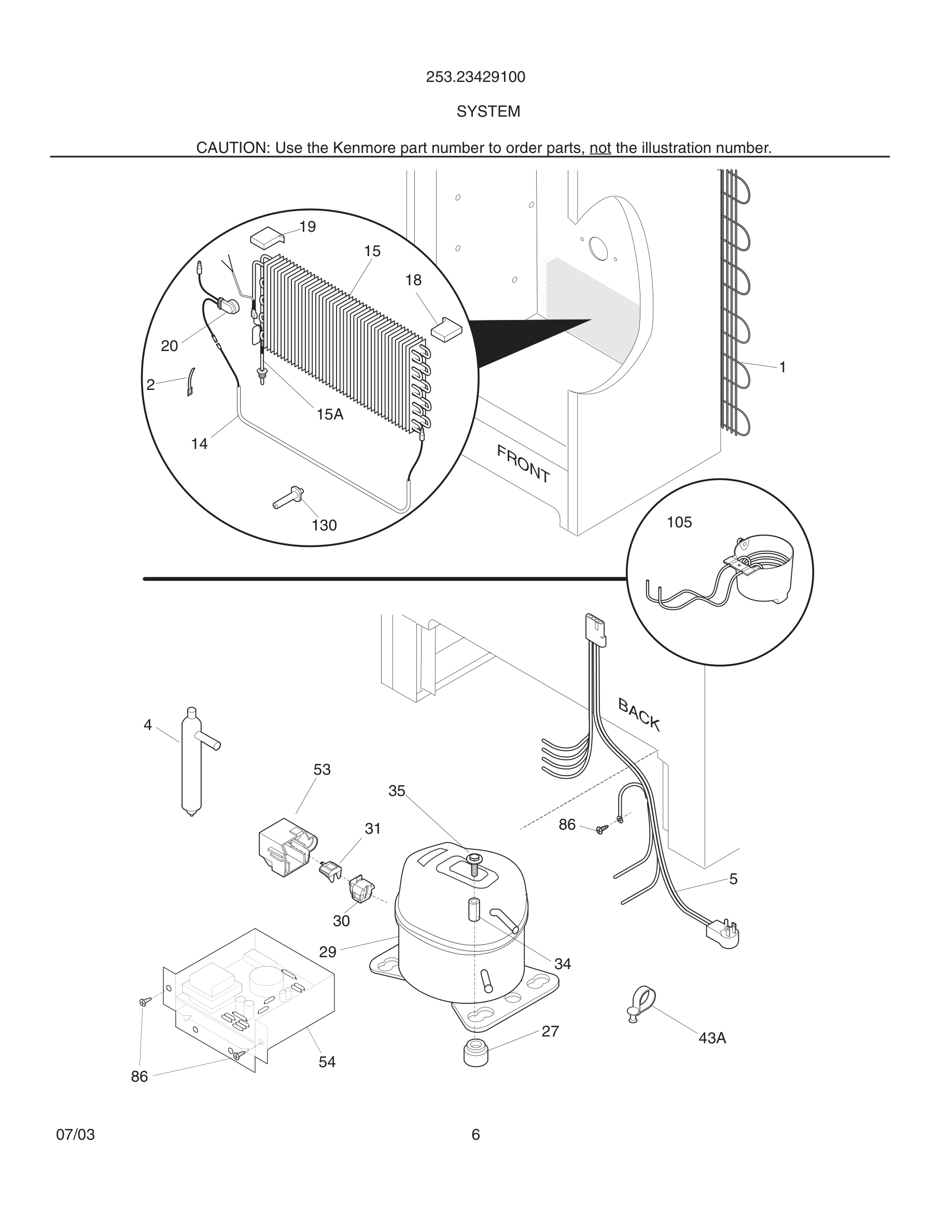

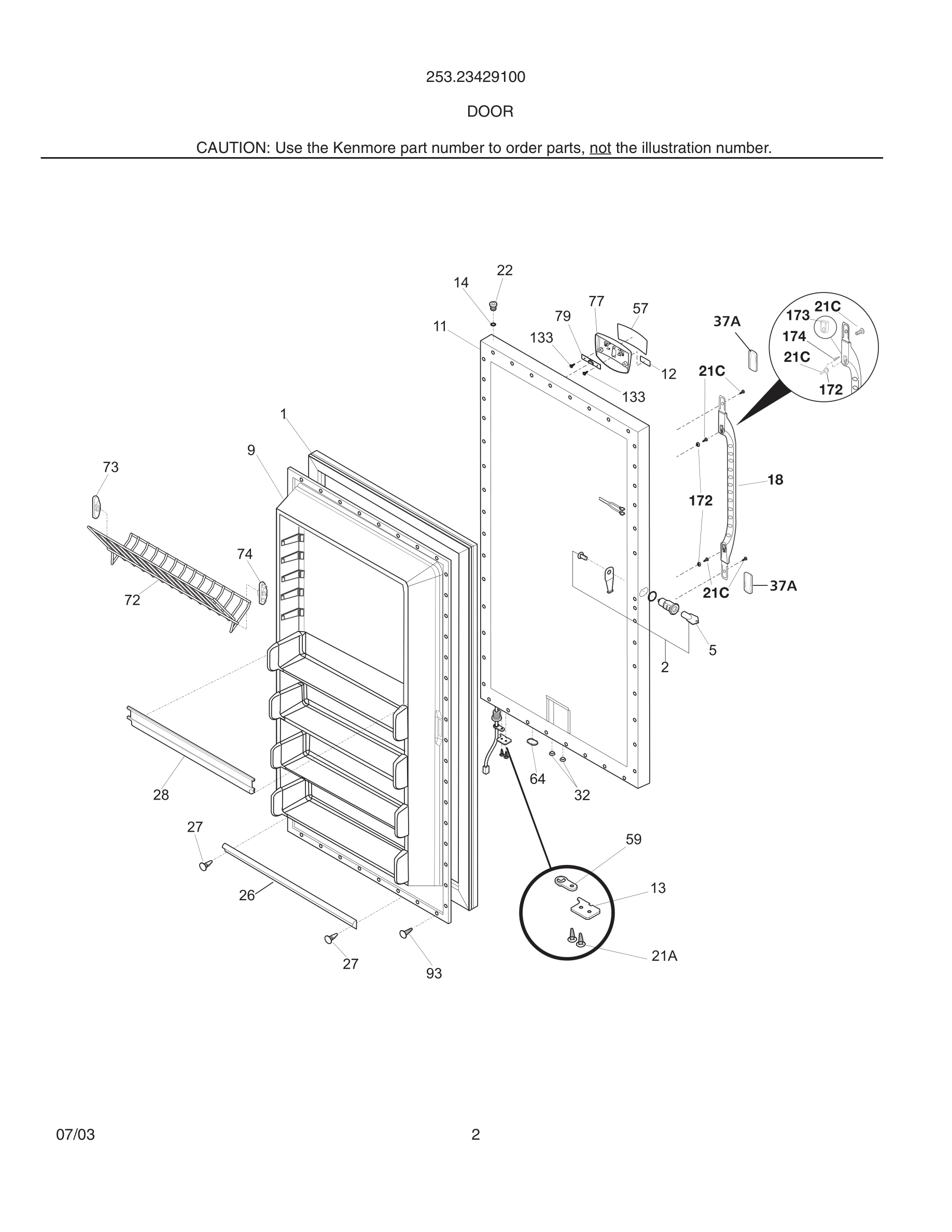

Model Kenmore 253.23429100 FREEZER – Common Parts & Diagrams
