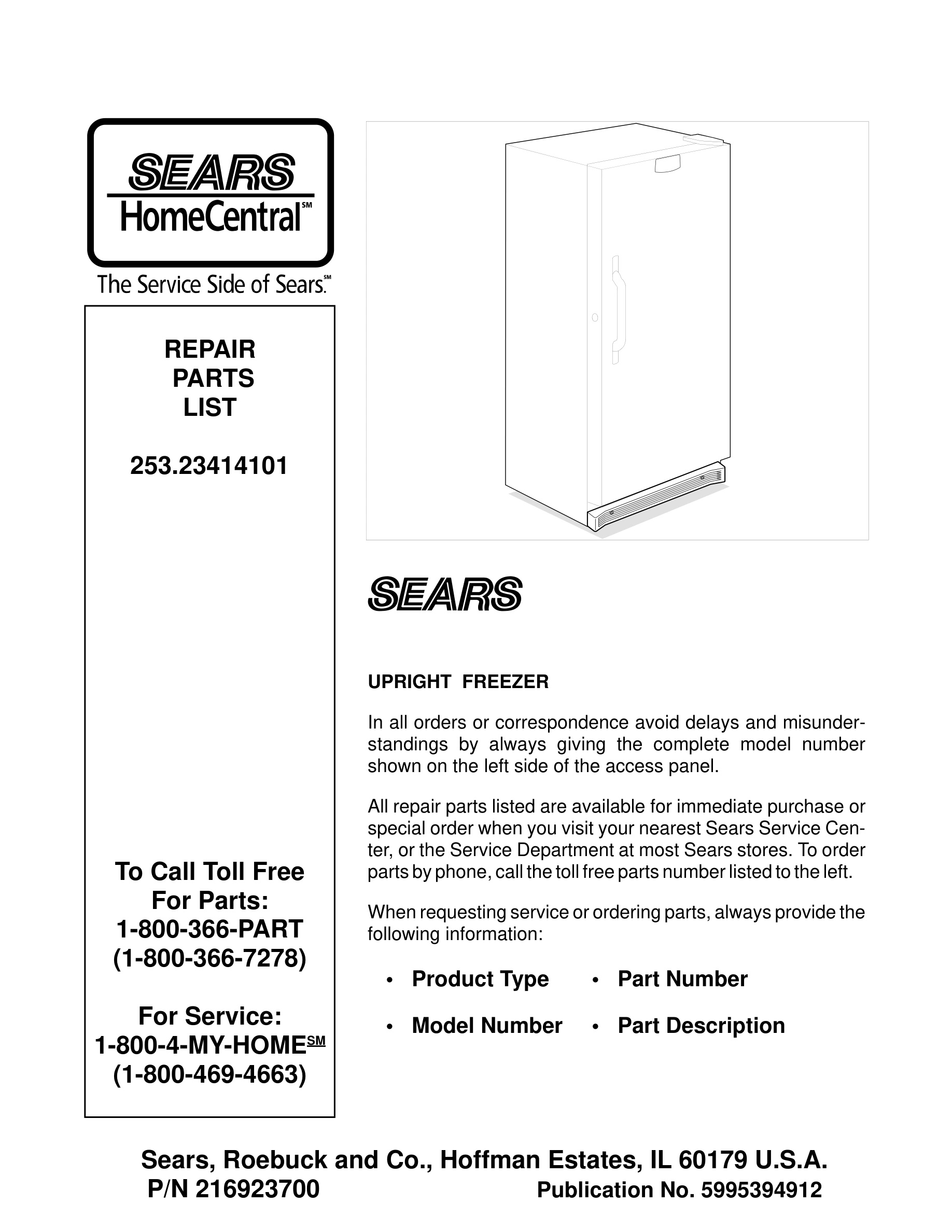

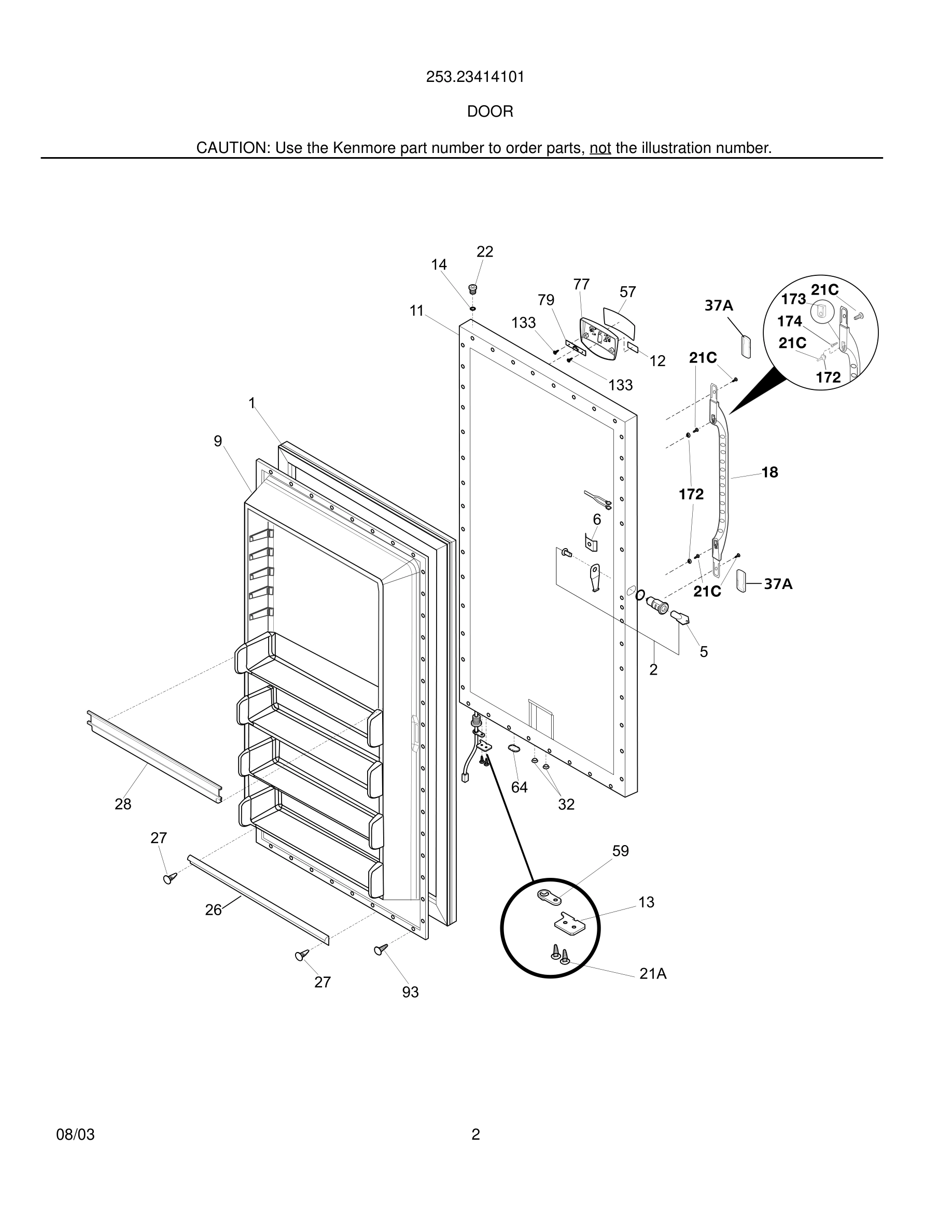

Model Kenmore 253.23414101 FREEZER – Common Parts & Diagrams

*
Insulation,drain tube
Insulation,drain tube WCI 09948773 Contact Us For Availability
View on Model
*
Sleeve,suction line
Sleeve,suction line WCI 216502500 Contact Us For Availability
View on Model
*
Clip-cable
Clip-cable WCI 5303311565 Contact Us For Availability
View on Model
3
Plug,drain ,interior
Plug,drain ,interior WCI 216502600 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216899300 Contact Us For Availability
View on Model
11
Support-rear shelf
Support-rear shelf WCI 216474600 Contact Us For Availability
View on Model
12
Grommet-spacer
Grommet-spacer WCI 216225700 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 5303271076 Contact Us For Availability
View on Model
13
Screw,hex sems ,8-18AB x 1.00 ,evap
Screw,hex sems ,8-18AB x 1.00 ,evap WCI 216138900 Contact Us For Availability
View on Model
15A
Heat Exchanger
Heat Exchanger WCI 216404900 Contact Us For Availability
View on Model
21#
Control-temperature
Control-temperature WCI 216844500 Contact Us For Availability
View on Model
32
Valve,breather ,door base
Valve,breather ,door base WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
View on Model
37A
Trim-handle,1.34" ,white
Trim-handle,1.34" ,white WCI 218771201 Contact Us For Availability
View on Model
38
Hinge,plate ,top
Hinge,plate ,top WCI 216808900 Contact Us For Availability
View on Model
40#
Shelf-bottom evaporator
Shelf-bottom evaporator WCI 216070400 Contact Us For Availability
View on Model
53
Cover terminal,cover-comp term
Cover terminal,cover-comp term WCI 216347800 Contact Us For Availability
View on Model
54#
Electronics,high voltage
Electronics,high voltage WCI 216883900 Contact Us For Availability
View on Model
57
Overlay
Overlay WCI 216885701 Contact Us For Availability
View on Model
64
Plug-button,hole filler ,door base
Plug-button,hole filler ,door base WCI 216403700 Contact Us For Availability
View on Model
72
Grille/Kickplate,assy
Grille/Kickplate,assy WCI 216866600 Contact Us For Availability
View on Model
77
Bezel,door alarm
Bezel,door alarm WCI 216878700 Contact Us For Availability
View on Model
79#
Control Board,electronic
Control Board,electronic WCI 216885100 Contact Us For Availability
View on Model
101
Top Hinge Kit
Top Hinge Kit WCI 216835200 Contact Us For Availability
View on Model
172
Button-handle mtg,dovetail
Button-handle mtg,dovetail WCI 218397000 No Longer Available
View on Model
