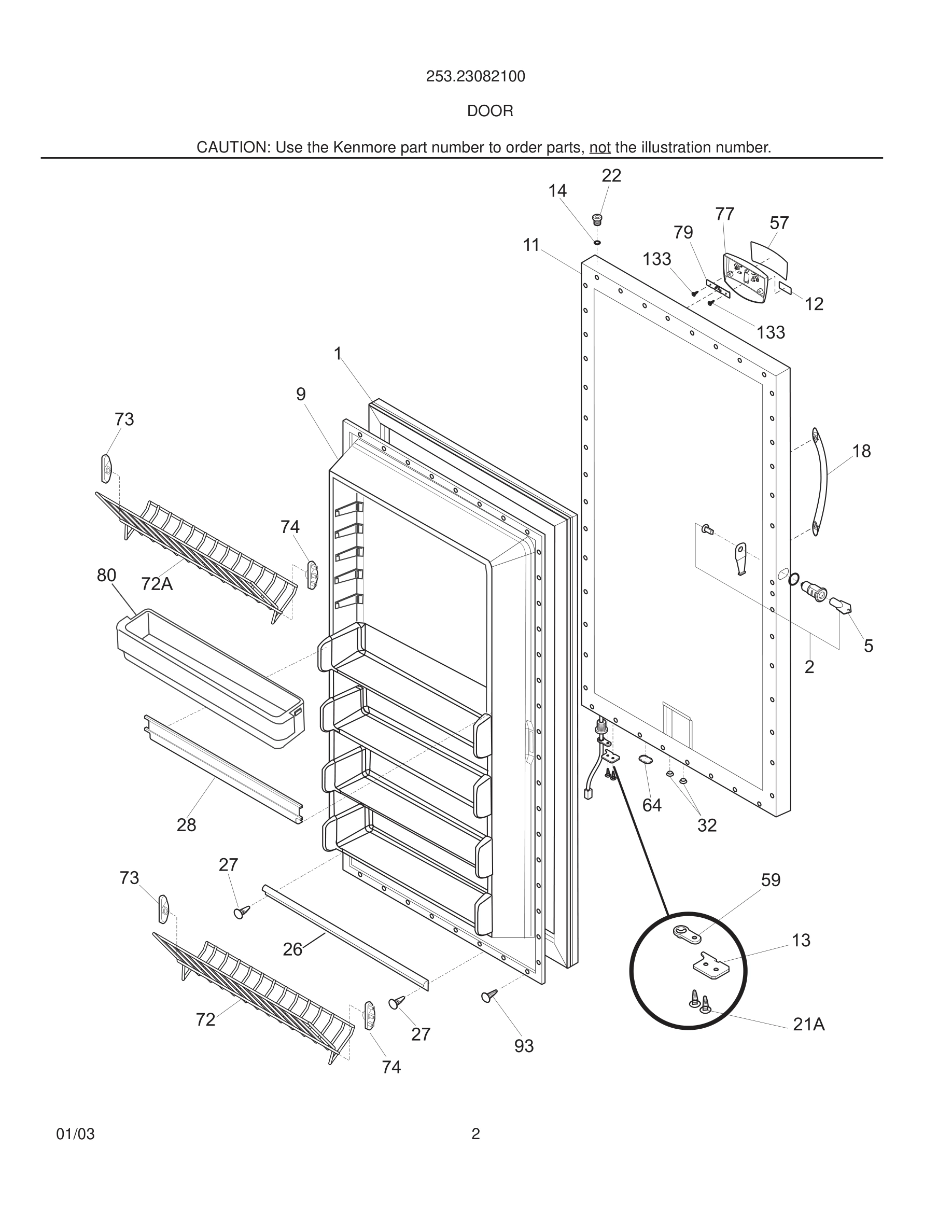

Model Kenmore 253.23082100 FREEZER – Common Parts & Diagrams

*
Sleeve,suction line
Sleeve,suction line WCI 216502500 Contact Us For Availability
View on Model
*
Clip-cable
Clip-cable WCI 5303311565 Contact Us For Availability
View on Model
*
Spacer-tube,0.237" ID
Spacer-tube,0.237" ID WCI 5303298960 Contact Us For Availability
View on Model
5#
Harness-main
Harness-main WCI 216888700 Contact Us For Availability
View on Model
13
Door Stop
Door Stop WCI 5303271076 Contact Us For Availability
View on Model
18
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability
View on Model
19
Gasket-cover evap
Gasket-cover evap WCI 216204901 Contact Us For Availability
View on Model
19
Insulator-evap,styrofoam
Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability
View on Model
21#
Control-temperature
Control-temperature WCI 216844500 Contact Us For Availability
View on Model
28
Rack-door,contour ,(5)
Rack-door,contour ,(5) WCI 216806100 Contact Us For Availability
View on Model
30#
Controller
Controller WCI 216649303 Contact Us For Availability
View on Model
32
Valve,breather ,door base
Valve,breather ,door base WCI 5309950074 Contact Us For Availability
View on Model
32
Clamp,elec cont mtg ,compressor
Clamp,elec cont mtg ,compressor WCI 216649100 Contact Us For Availability
View on Model
34
Sleeve-compressor
Sleeve-compressor WCI 5306594529 Contact Us For Availability
View on Model
35
Screw,Ind hex sems ,1/4-28 unfx ,compressor
Screw,Ind hex sems ,1/4-28 unfx ,compressor WCI 5303272328 Contact Us For Availability
View on Model
38
Hinge,plate ,top
Hinge,plate ,top WCI 216808900 Contact Us For Availability
View on Model
49
Screw,channel door
Screw,channel door WCI 5303212704 Contact Us For Availability
View on Model
50
Bracket,fan motor mount
Bracket,fan motor mount WCI 216394000 Contact Us For Availability
View on Model
54#
Electronics,high voltage ,w/o battery
Electronics,high voltage ,w/o battery WCI 216833800 Contact Us For Availability
View on Model
59
Basket
Basket WCI 216139400 Contact Us For Availability
View on Model
64
Plug-button,hole filler ,door base
Plug-button,hole filler ,door base WCI 216403700 Contact Us For Availability
View on Model
72
Shelf,tilt out ,wire
Shelf,tilt out ,wire WCI 216514100 Contact Us For Availability
View on Model
72
Grille/Kickplate,assy
Grille/Kickplate,assy WCI 216866601 Contact Us For Availability
View on Model
75
Housing,internal ,ice maker
Housing,internal ,ice maker WCI 216893700 Contact Us For Availability
View on Model
76
Plug,ice maker
Plug,ice maker WCI 216893600 Contact Us For Availability
View on Model
77
Bezel,door alarm
Bezel,door alarm WCI 216878700 Contact Us For Availability
View on Model
79#
Control Board,electronic
Control Board,electronic WCI 216885100 Contact Us For Availability
View on Model
86
Screw,8-18 X 1/2
Screw,8-18 X 1/2 WCI 216707700 Contact Us For Availability
View on Model
93A
Screw,round head sems ,10-32 x 0.375
Screw,round head sems ,10-32 x 0.375 WCI 5303302760 Contact Us For Availability
View on Model
101
Top Hinge Kit
Top Hinge Kit WCI 216835200 Contact Us For Availability
View on Model
131
Channel-shelf mtg,back
Channel-shelf mtg,back WCI 216484900 Contact Us For Availability
View on Model
137A
Frame-fixed shelf
Frame-fixed shelf WCI 216485200 Contact Us For Availability
View on Model
138A
Trim-shelf,fixed/cantil ,24.21" ,glass ,front
Trim-shelf,fixed/cantil ,24.21" ,glass ,front WCI 216492200 Contact Us For Availability
View on Model
143
Shelf,cantilever ,complete assy
Shelf,cantilever ,complete assy WCI 216904500 Contact Us For Availability
View on Model
144
Shelf,fixed ,complete assy
Shelf,fixed ,complete assy WCI 216679200 Contact Us For Availability
View on Model
253A
Trim-shelf,fixed/cantil ,24.21" ,rear
Trim-shelf,fixed/cantil ,24.21" ,rear WCI 216492300 Contact Us For Availability
View on Model
