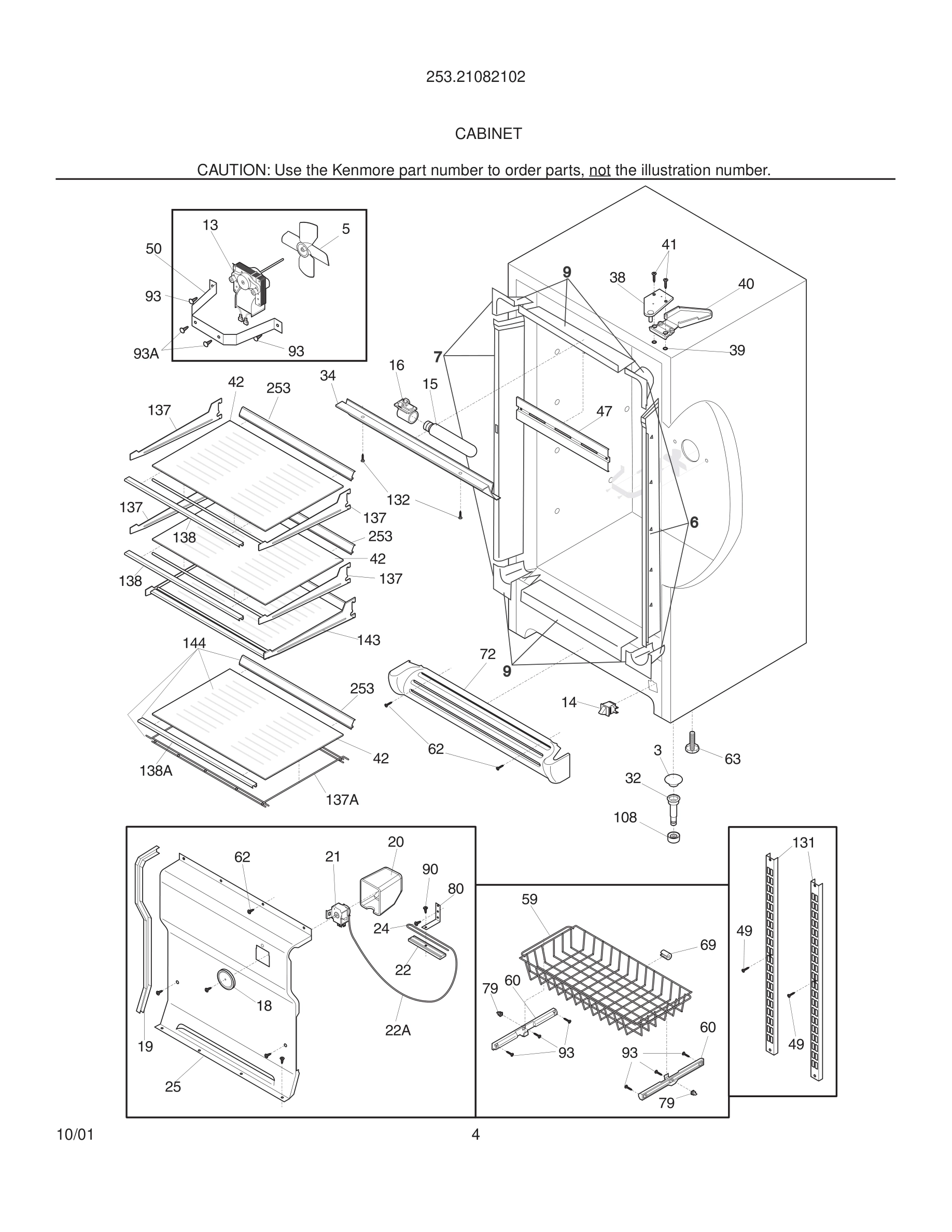

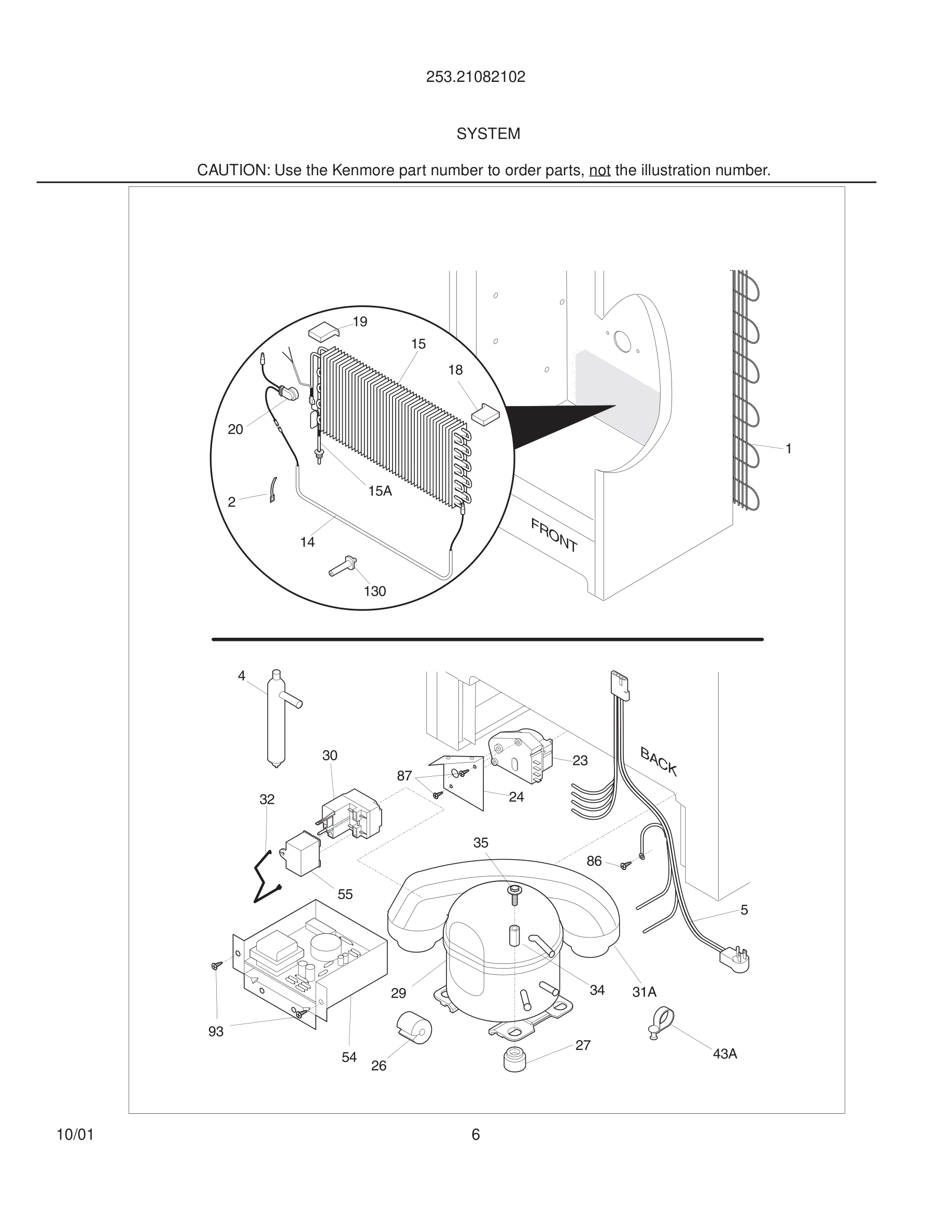

Model Kenmore 253.21082102 FREEZER – Common Parts & Diagrams
Common parts from model Kenmore 253.21082102 FREEZER
*
Insulation,drain tube WCI 09948773 Contact Us For Availability
*
Sleeve-tube insert WCI 216502500 Contact Us For Availability
*
Clip,cord WCI 09950610 Contact Us For Availability
5#
Harness-main WCI 216792100 Contact Us For Availability
13
Door Stop WCI 5303271076 Contact Us For Availability
18
Insulator-evap,styrofoam WCI 216727600 Contact Us For Availability
19
Gasket-cover evap WCI 216204901 Contact Us For Availability
19
Insulator-evap,styrofoam WCI 216727700 Contact Us For Availability
21#
Control-temperature WCI 216715400 Contact Us For Availability
22
Clamp,cap tube ,cold control WCI 05878562 Contact Us For Availability
24
Screw-clamp,truss hd cr ,control WCI 5300052943 Contact Us For Availability
24
Bracket WCI 08016580 Contact Us For Availability
25
Cover-evaporator WCI 216737200 Contact Us For Availability
26
Spacer tube,(3) WCI 216511900 Contact Us For Availability
28
Rack-door,Contour ,(3) WCI 216806100 Contact Us For Availability
30#
Controller WCI 216649303 Contact Us For Availability
32
Valve-breather WCI 5309950074 Contact Us For Availability
34
Sleeve-compressor WCI 5306594529 Contact Us For Availability
34
Shield-light WCI 216679600 Contact Us For Availability
35
Screw,Ind hex sems ,1/4-28 unfx , compressor WCI 5303272328 Contact Us For Availability
38
Hinge-upper WCI 5303925086 Contact Us For Availability
39
Nut-insert,hinge WCI 5303294372 Contact Us For Availability
40
Cover-hinge WCI 5303212912 Contact Us For Availability
41
Screw-top hinge WCI 5303212937 Contact Us For Availability
42
Glass-shelf,24.88" x 14.57" WCI 216679400 Contact Us For Availability
49
Screw,channel door WCI 5303212704 Contact Us For Availability
50
Bracket-motor mtg fan WCI 216394000 Contact Us For Availability
54#
Electronics,high voltage WCI 216695700 Contact Us For Availability
59
Basket WCI 216139400 Contact Us For Availability
72
Shelf,tilt out ,wire WCI 216514100 Contact Us For Availability
72
Grille/Kickplate,white WCI 216174000 Contact Us For Availability
80
Bracket,control WCI 06594601 Contact Us For Availability
87
Screw WCI 08037849 Contact Us For Availability
90
Screw,th ,8-32 x 2-1/2 WCI 5303297123 Contact Us For Availability
93A
Screw WCI 5303302760 Contact Us For Availability
108
Trap-drain WCI 216388600 Contact Us For Availability
130
Support-evaporator WCI 216730400 Contact Us For Availability
131
Channel-shelf mtg,back WCI 216484900 Contact Us For Availability
137
Frame-full shelf,cantilever WCI 215919161 Contact Us For Availability
137A
Frame-fixed shelf WCI 216485200 Contact Us For Availability
138
Trim-cantilever shelf,24.21" ,glass , WCI 216492201 Contact Us For Availability
138A
Trim-cantilever/fixed shelf,24.21” glass WCI 216492200 Contact Us For Availability
143
Shelf-complete,cantilever WCI 216679300 Contact Us For Availability
144
Shelf-complete,fixed WCI 216679200 Contact Us For Availability
253
Trim-cantilever/fixed shelf,24.21" , WCI 216492300 Contact Us For Availability
× ![]()
