Model Electrolux 24KEMAWAD3 RANGE – Common Parts & Diagrams

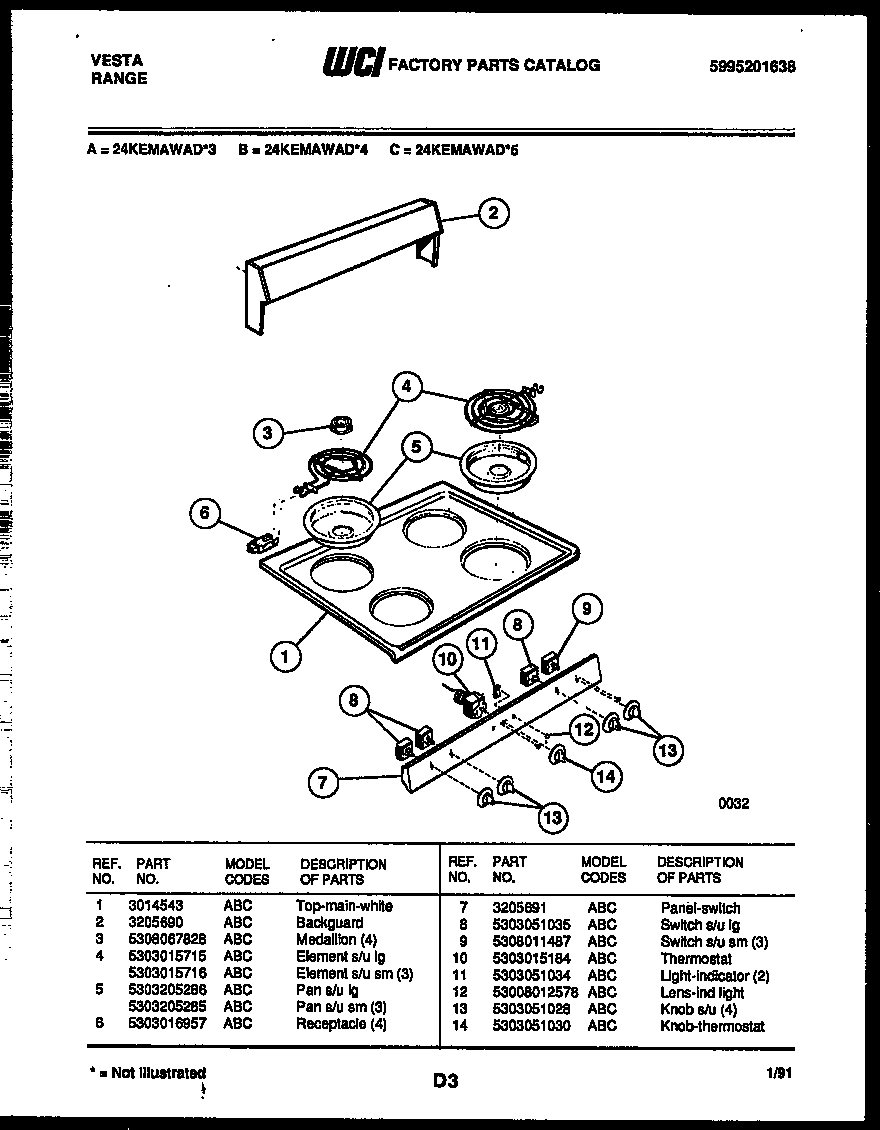

02 - BACKGUARD AND COOKTOP PARTS

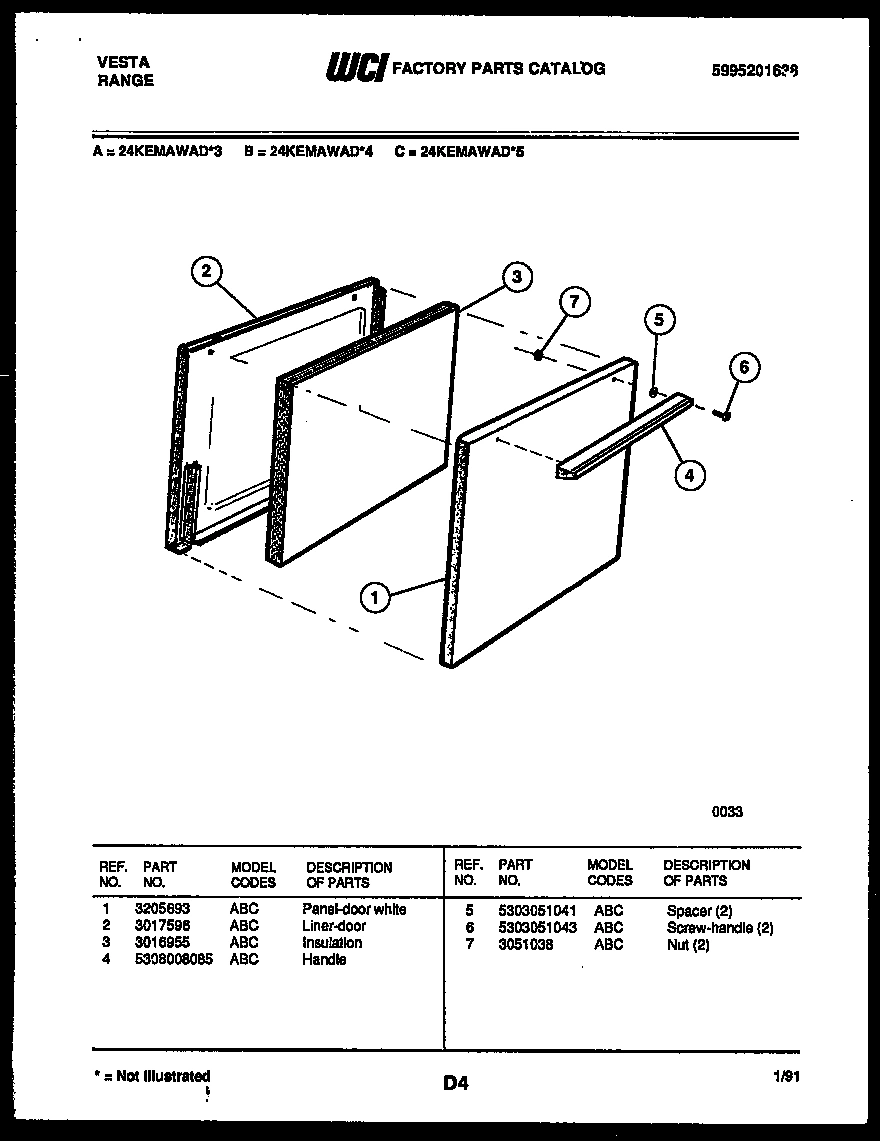

03 - DOOR PARTS

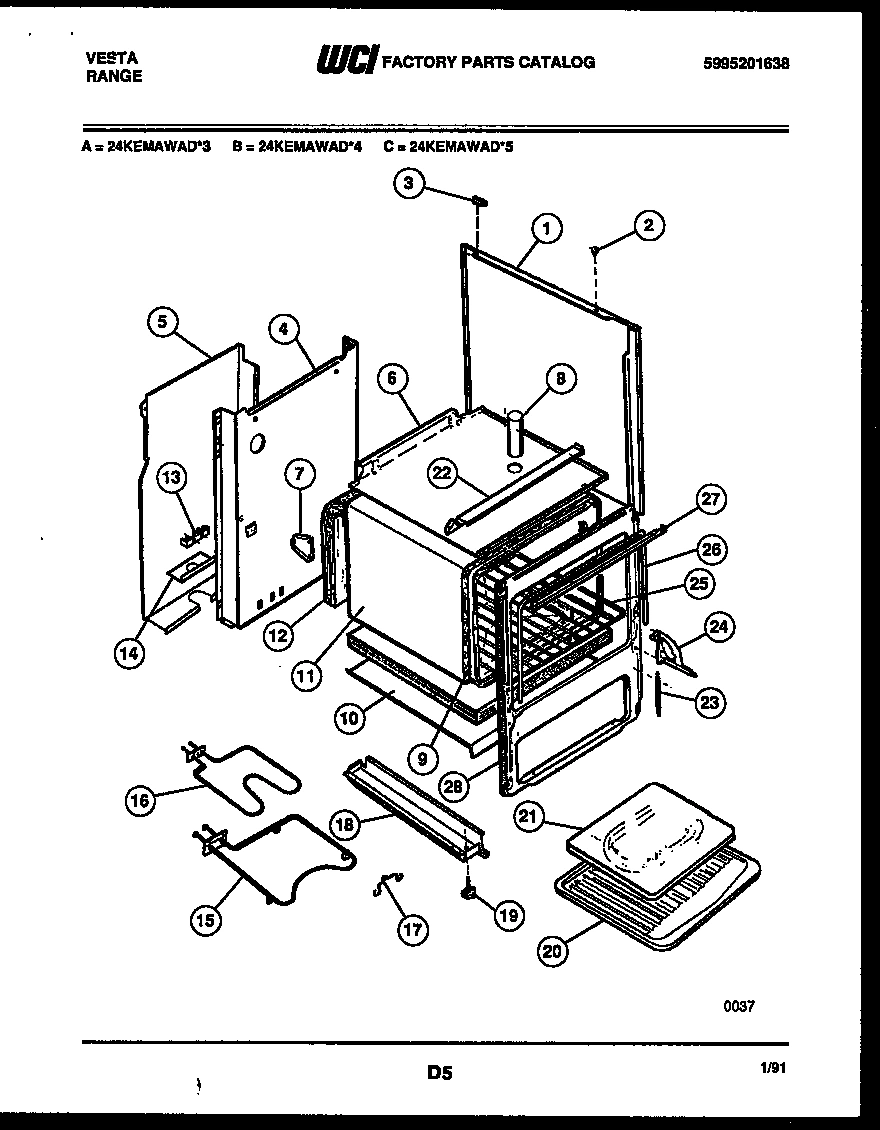

04 - BODY PARTS

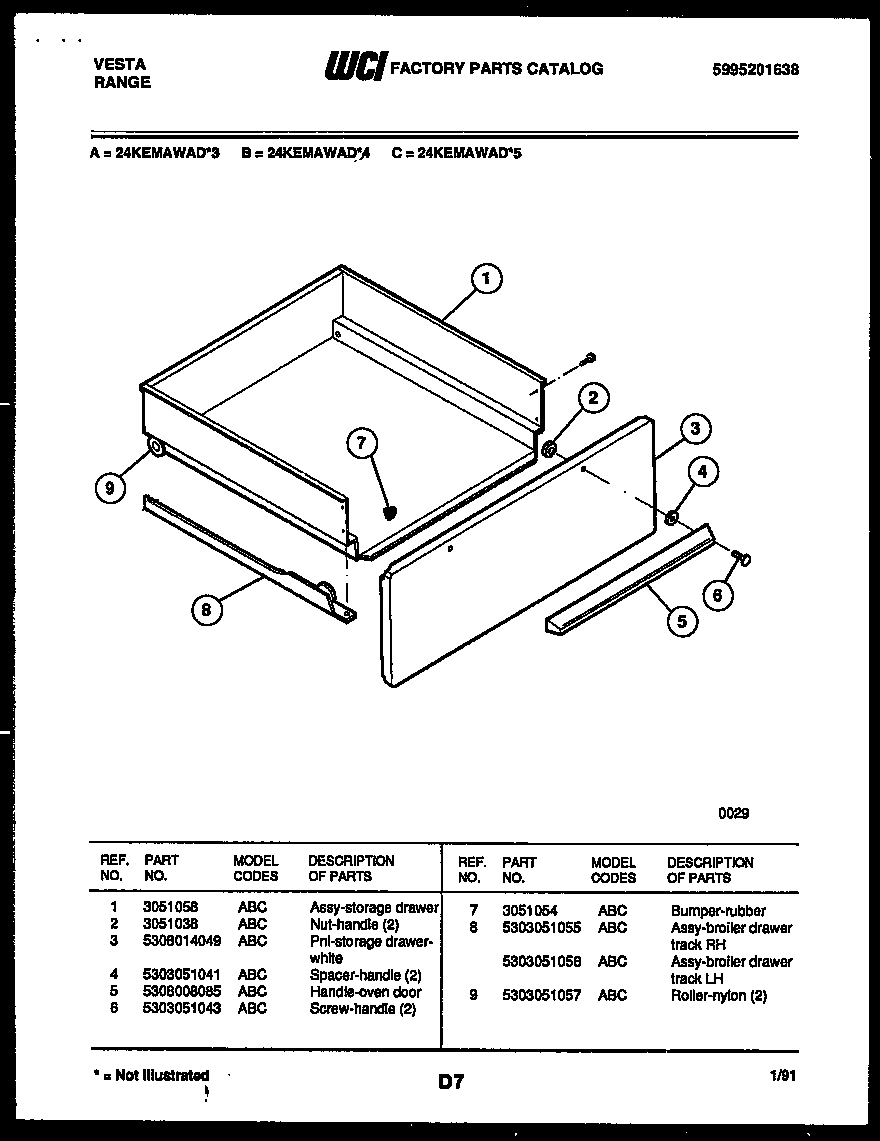

05 - DRAWER PARTS
Common parts from model Electrolux 24KEMAWAD3 RANGE
*28769
WCI 19100210113 WCI 19100210113 Contact Us For Availability
1
WCI 3205693 WCI 3205693 Contact Us For Availability
1
WCI 303051061 WCI 303051061 Contact Us For Availability
1
ASSY-STORAGE DRAWER WCI 3051058 Contact Us For Availability
2
WCI 3205690 WCI 3205690 Contact Us For Availability
2
LINER-DOOR WCI 3017596 Contact Us For Availability
2
WCI 3051063 WCI 3051063 Contact Us For Availability
3
WCI 5308067828 WCI 5308067828 Contact Us For Availability
3
INSULATION WCI 3016955 Contact Us For Availability
3
GROMMET (4) WCI 3205587 Contact Us For Availability
3
WCI 5308014049 WCI 5308014049 Contact Us For Availability
4
WCI 5303051041 WCI 5303051041 Contact Us For Availability
4
WCI 3203613 WCI 3203613 Contact Us For Availability
5
HANDLE-OVEN DOOR WCI 5308008085 Contact Us For Availability
5
COVER-WIRE WCI 3203615 Contact Us For Availability
6
WCI 3205692 WCI 3205692 Contact Us For Availability
7
WCI 3205691 WCI 3205691 Contact Us For Availability
7
Support,oven rear WCI 3051096 Contact Us For Availability
7
WCI 3051054 WCI 3051054 Contact Us For Availability
8
TUBE OVEN VENT WCI 3051064 Contact Us For Availability
8
ASSY-BROILER DRAWER TRACK RH WCI 5303051055 Contact Us For Availability
8A
ASSY-BROILER DRAWER TRACK LH WCI 5303051056 Contact Us For Availability
9
WCI 3016533 WCI 3016533 Contact Us For Availability
9
ROLLER-NYLON (2) WCI 5303051057 Contact Us For Availability
9A
WCI 3017599 WCI 3017599 Contact Us For Availability
9B
WCI 3017600 WCI 3017600 Contact Us For Availability
9C
WCI 3017597 WCI 3017597 Contact Us For Availability
9D
WCI 3017598 WCI 3017598 Contact Us For Availability
10
WCI 5303015184 WCI 5303015184 Contact Us For Availability
10
WCI 3016945 WCI 3016945 Contact Us For Availability
11
WCI 5303051034 WCI 5303051034 Contact Us For Availability
11
WCI 3016946 WCI 3016946 Contact Us For Availability
12
WCI 53008012578 WCI 53008012578 Contact Us For Availability
12
WCI 3016947 WCI 3016947 Contact Us For Availability
13
KNOB S/U (4) WCI 5303051028 Contact Us For Availability
14
WCI 5303051030 WCI 5303051030 Contact Us For Availability
14
SUPPORT-CONDUIT WCI 3205588 Contact Us For Availability
15
WCI 5303009292 WCI 5303009292 Contact Us For Availability
16
WCI 5303009293 WCI 5303009293 Contact Us For Availability
17
WCI 5303009445 WCI 5303009445 Contact Us For Availability
18
WCI 08068047 WCI 08068047 Contact Us For Availability
19
LEG LEVELING (4) WCI 3051080 Contact Us For Availability
20
WCI 5303016973 WCI 5303016973 Contact Us For Availability
21
INSERT-BROILER WCI 5303017712 Contact Us For Availability
22
WCI 3016951 WCI 3016951 Contact Us For Availability
23
SPRING-DOOR (2) WCI 5303051079 Contact Us For Availability
24
HINGE ASSY-RH WCI 5303204670 Contact Us For Availability
25
WCI 5303016128 WCI 5303016128 Contact Us For Availability
26
WCI 5308013916 WCI 5308013916 Contact Us For Availability
27
SUPPORT-CONTROL PANEL WCI 3016950 Contact Us For Availability
28
FRAME-FRONT WCI 3203612 Contact Us For Availability
× ![]()
