Model Whirlpool 2492L1A ELECTRIC RANGE – Common Parts & Diagrams
02 - MAIN TOP
04 - DOOR LOCK

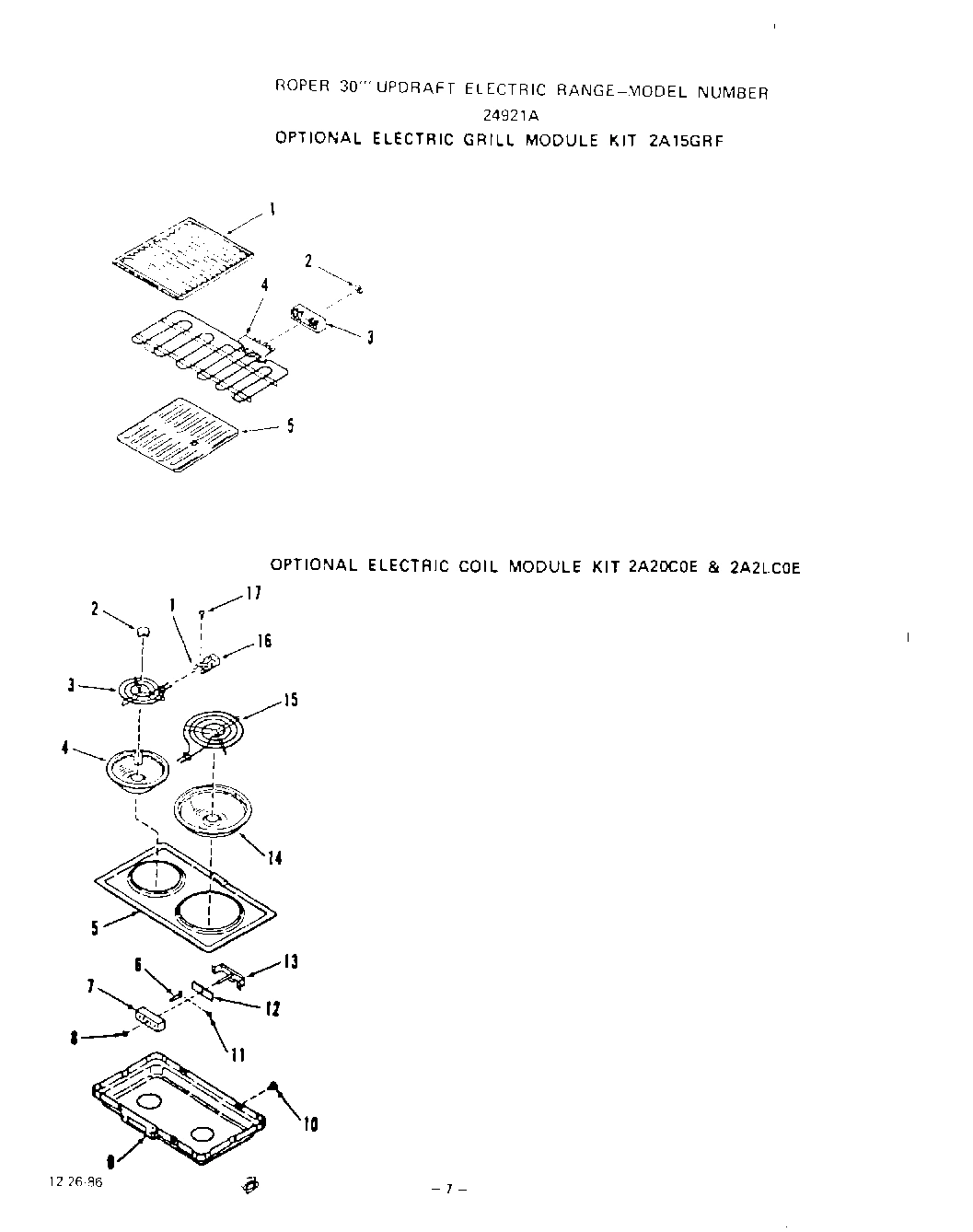

06 - ELECTRIC GRILL MODULE KIT

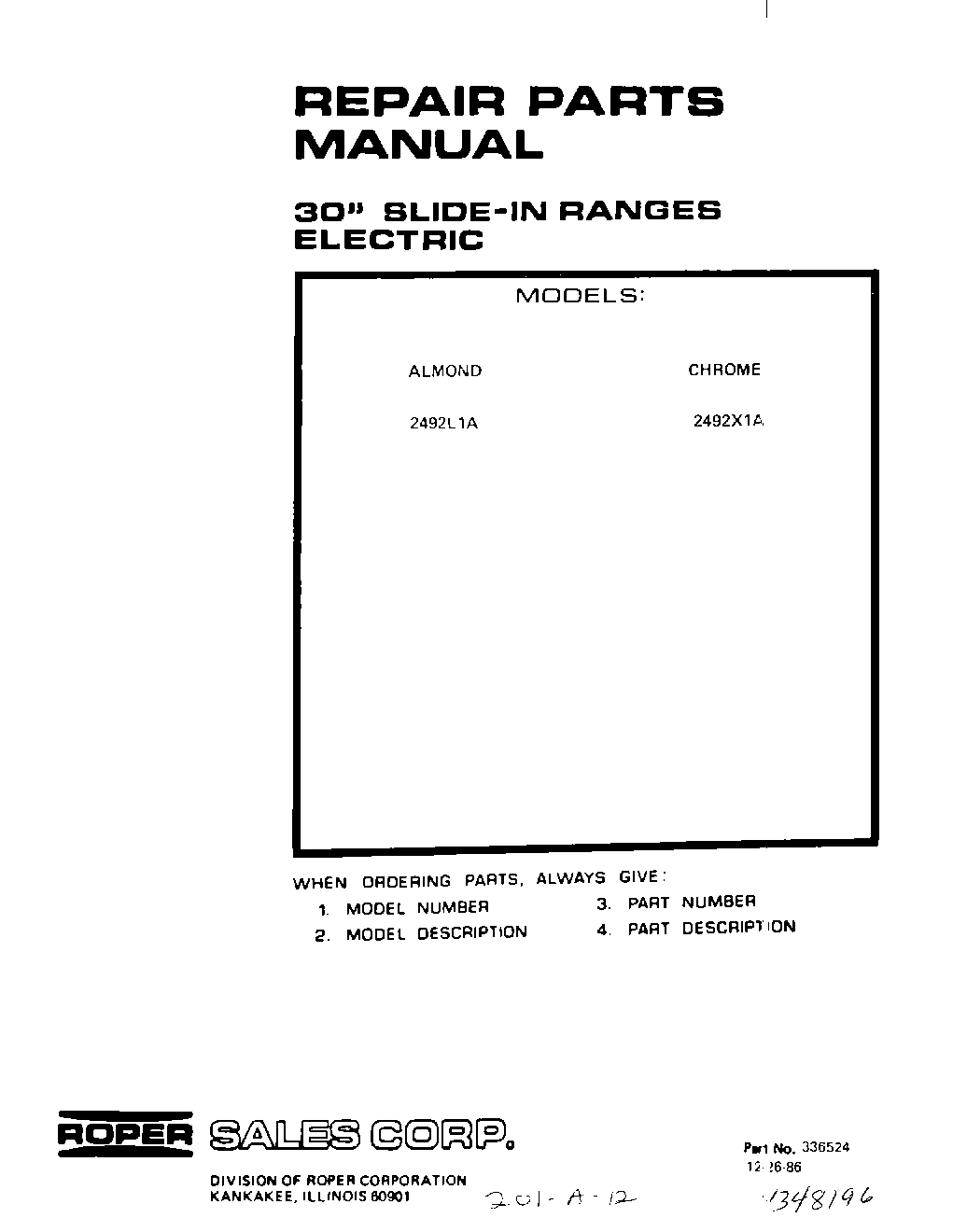

01 - FRONT COVER

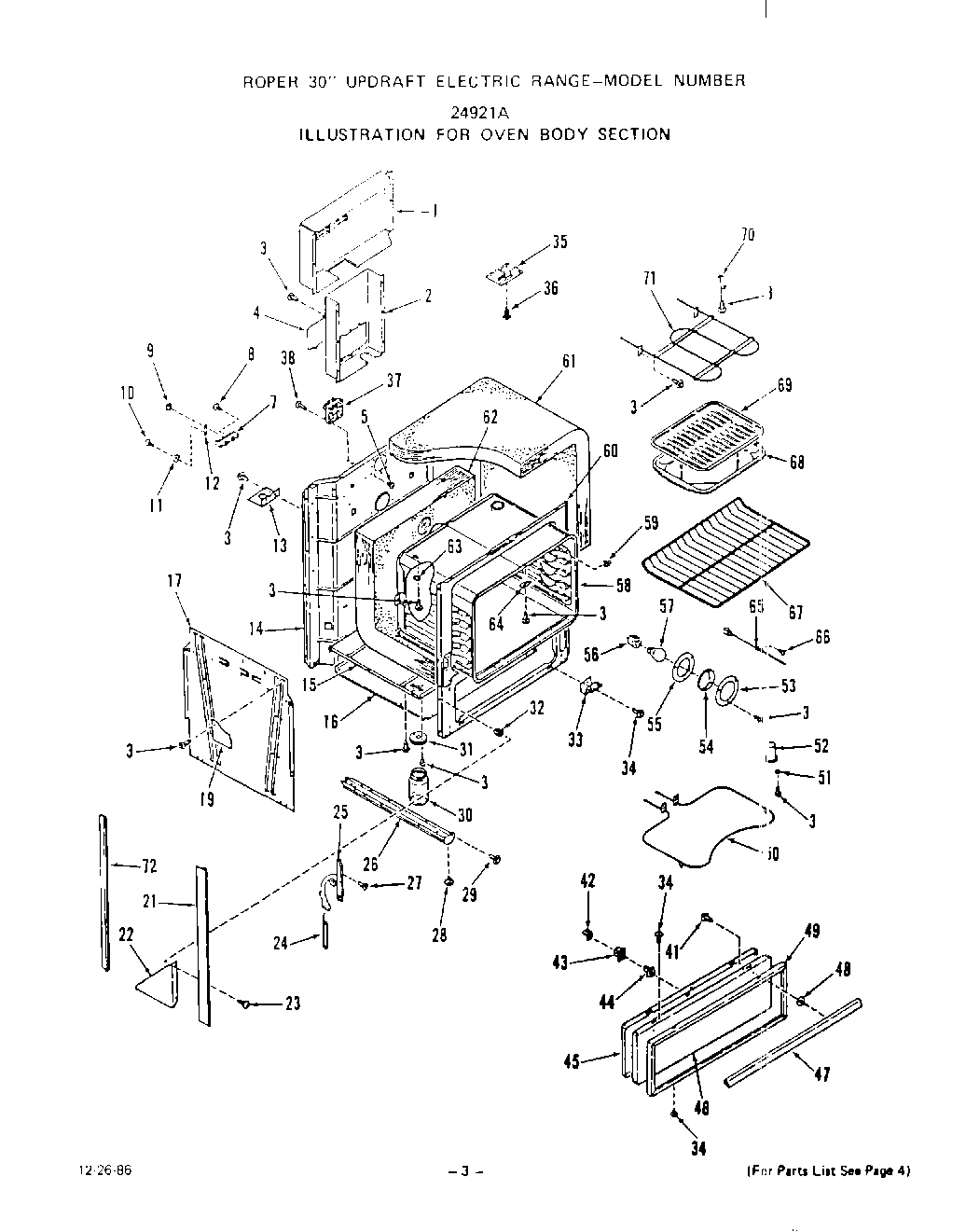

03 - OVEN BODY

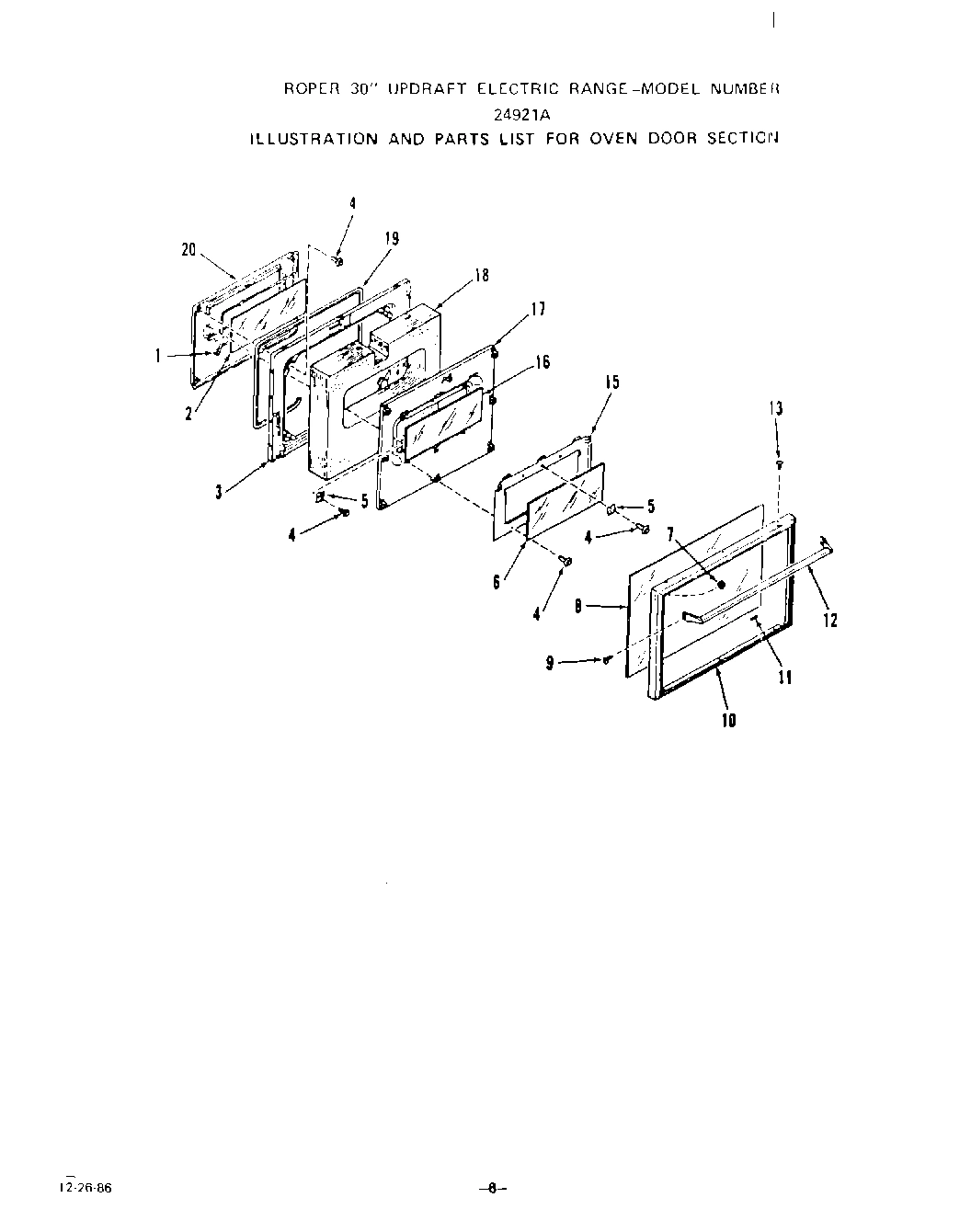

05 - OVEN DOOR

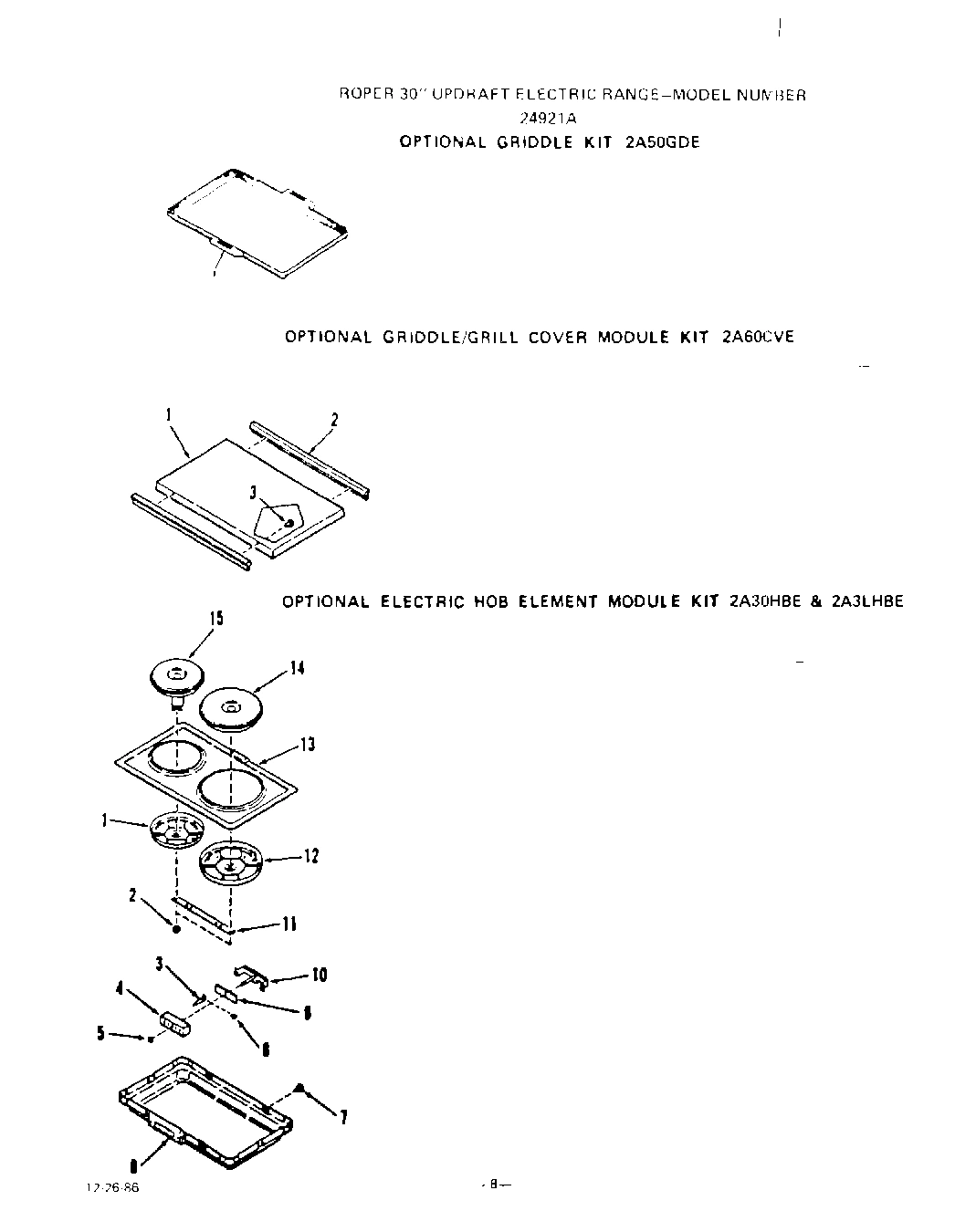

07 - GRIDDLE KIT
09 - WIRING DIAGRAM
Common parts from model Whirlpool 2492L1A ELECTRIC RANGE
xFunctional Parts WPL ARI11350A8 Contact Us For Availability
1
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
1
Grate-Grill (2 Req) WPL 329027 Contact Us For Availability
1
Wire Cover-Rear Upper WPL 334616 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
1
Griddle WPL 330928 Contact Us For Availability
2
240 Volt WPL 330311 Contact Us For Availability
2
208 Volt WPL 330312 Contact Us For Availability
2
xElement-Grill WPL ARI11338A9 Contact Us For Availability
2
Spring WPL 313075 Contact Us For Availability
2
Clip-Push On WPL 330332 Contact Us For Availability
2
Wire Cover-Rear Lower WPL 332449 Contact Us For Availability
2
Inner Glass WPL 312428 Contact Us For Availability
3
Latch Mounting Box WPL 331956 Contact Us For Availability
3
xTerminal Block WPL 330310 Contact Us For Availability
3
Lining WPL 331948 Contact Us For Availability
4
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
4
240 Volt WPL 333177 Contact Us For Availability
4
208 Volt (Optional) WPL 333178 Contact Us For Availability
4
xElement-Grill WPL ARI11349A6 Contact Us For Availability
4
Access Plate WPL 332450 Contact Us For Availability
5
Almond WPL 333514 Contact Us For Availability
5
Chrome WPL 333515 Contact Us For Availability
5
Main Top WPL ARI11339A6 Contact Us For Availability
5
Reflector-Grill Support (2 Req) WPL 332382 Contact Us For Availability
5
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
5
Glass Retainer WPL 326009 Contact Us For Availability
6
Eyelet WPL 334615 Contact Us For Availability
6
Washer WPL 21067 Contact Us For Availability
6
Intermediate Glass WPL 326088 Contact Us For Availability
7
xLock Asm (Inc`s. Key 2) WPL 335333 Contact Us For Availability
7
xJunction Block WPL 290105 Contact Us For Availability
7
Keps Nut 8-32 WPL 239764 Contact Us For Availability
8
Lock Handle WPL 332430 Contact Us For Availability
8
Screw 10-32x1`` WPL 313190 Contact Us For Availability
8
Outer Glass WPL 332664 Contact Us For Availability
9
Left WPL 333613 Contact Us For Availability
9
Right WPL 333616 Contact Us For Availability
9
Grease Well WPL ARI11340A1 Contact Us For Availability
9
Clip-Knob WPL 328474 Contact Us For Availability
9
Hex Nut 10-32 WPL 97816 Contact Us For Availability
9
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
10
xTerminal WPL 333733 Contact Us For Availability
10
Knob WPL 328475 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
10
Frame WPL 332433 Contact Us For Availability
11
Washer WPL 299425 Contact Us For Availability
11
Cushion WPL 112370 Contact Us For Availability
12
xTerminal Block WPL 333732 Contact Us For Availability
12
Ground Strap WPL 327255 Contact Us For Availability
12
Handle WPL 303342 Contact Us For Availability
13
Terminal Block Clamp WPL 330309 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
13
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
14
Main Back WPL 333519 Contact Us For Availability
15
Insulation Retainer-Bottom WPL 335765 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
16
Right WPL 333312 Contact Us For Availability
16
Left WPL 333313 Contact Us For Availability
16
Rear Filler WPL ARI11341A6 Contact Us For Availability
16
Bottom-Compartment WPL 334676 Contact Us For Availability
16
Center Glass WPL 326632 Contact Us For Availability
17
Insulation Retainer-Top WPL 331958 Contact Us For Availability
17
Insulation Retainer-Sides WPL 334627 Contact Us For Availability
17
Insulation Retainer WPL 331935 Contact Us For Availability
18
Grease Tube WPL 332447 Contact Us For Availability
18
Insulation WPL 334913 Contact Us For Availability
19
Latch Cover WPL 333891 Contact Us For Availability
19
Wire Cover-End WPL 334440 Contact Us For Availability
19
xGasket WPL 292244 Contact Us For Availability
20
Flue Duct WPL 332648 Contact Us For Availability
20
Plug Door Lining WPL 333951 Contact Us For Availability
21
Vent Extension WPL 334628 Contact Us For Availability
21
Right WPL 332440 Contact Us For Availability
21
Left WPL 332441 Contact Us For Availability
21
Side Trim WPL ARI11344A2 Contact Us For Availability
22
xLimit Switch-Thermostat WPL 334374 Contact Us For Availability
22
Left WPL 332289 Contact Us For Availability
22
Right WPL 332291 Contact Us For Availability
22
Corner Filler WPL ARI11345A9 Contact Us For Availability
23
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
23
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
24
Spring-Oven Door (2 Req) WPL 326963 Contact Us For Availability
25
Right WPL 326012 Contact Us For Availability
25
Left WPL 326013 Contact Us For Availability
25
xHinge-Door WPL ARI11346A3 Contact Us For Availability
26
Right WPL 332438 Contact Us For Availability
26
Left WPL 332439 Contact Us For Availability
26
End Cap WPL ARI11342A4 Contact Us For Availability
26
Base w/Levelers (2 Req) WPL 333975 Contact Us For Availability
27
Screw 10ABx5/8`` WPL 334286 Contact Us For Availability
27
Screw WPL 331704 Contact Us For Availability
28
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
29
Grease Tube Fitting WPL 332448 Contact Us For Availability
29
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
30
Speed Clip WPL 335596 Contact Us For Availability
30
Grease Jar (2 Req) WPL 329034 Contact Us For Availability
31
Infinite Knob WPL 330556 Contact Us For Availability
31
Jar Lid (2 Req) WPL 329010 Contact Us For Availability
32
Left Rear WPL 331540 Contact Us For Availability
32
Right Rear WPL 331541 Contact Us For Availability
32
Left Front WPL 331542 Contact Us For Availability
32
Right Front WPL 331543 Contact Us For Availability
32
Knob Cup WPL ARI11343A4 Contact Us For Availability
33
Speed Nut WPL 78593 Contact Us For Availability
33
Hinge WPL 335058 Contact Us For Availability
34
Switch Mounting Tray WPL 336460 Contact Us For Availability
35
Control Seal WPL 280157 Contact Us For Availability
35
xCircuit Board w/Relay & Transformers WPL 335448 Contact Us For Availability
36
xInfinite Control WPL 335957 Contact Us For Availability
36
Circuit Board Spacer WPL 331469 Contact Us For Availability
37
xMicro Switch WPL 334932 Contact Us For Availability
37
xFan WPL 335558 Contact Us For Availability
38
Indicator Light WPL 330278 Contact Us For Availability
38
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
39
Control Panel WPL 334414 Contact Us For Availability
40
Indicator Light Lens WPL 329465 Contact Us For Availability
41
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
41
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
42
xSwitch-Oven Light WPL 331038 Contact Us For Availability
42
Bracket-Catch WPL 335059 Contact Us For Availability
43
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
43
Catch WPL 335060 Contact Us For Availability
44
Strike WPL 335061 Contact Us For Availability
45
Control Back WPL 335176 Contact Us For Availability
45
Lower Door Lining WPL 335063 Contact Us For Availability
46
Insulation WPL 329171 Contact Us For Availability
46
Lower Door Panel WPL 330485 Contact Us For Availability
47
Bezel-Clock/Oven Control WPL 332437 Contact Us For Availability
47
Handle WPL 318969 Contact Us For Availability
48
Plate-Clock/Oven Control WPL 333220 Contact Us For Availability
48
Spacer, Door Handle WPL 107158 Contact Us For Availability
49
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
49
Lower Door Panel Frame WPL 330120 Contact Us For Availability
50
Knob-Clock/Oven Control WPL 334373 Contact Us For Availability
50
240 Volt WPL 326365 Contact Us For Availability
50
208 Volt (Optional) WPL 326366 Contact Us For Availability
50
Bake Element WPL ARI11347A6 Contact Us For Availability
51
Hex Nut WPL 334258 Contact Us For Availability
51
Washer WPL 335178 Contact Us For Availability
52
Lens-Clock/Oven Control WPL 334403 Contact Us For Availability
52
Vent Tube WPL 334761 Contact Us For Availability
53
xClock/Oven Control WPL 333007 Contact Us For Availability
53
Retainer-Light Lens WPL 229372 Contact Us For Availability
54
Screw 6-32x5/16`` WPL 335803 Contact Us For Availability
54
Light Lens WPL 114989 Contact Us For Availability
55
Faceplate-Clock/Oven Control WPL 333871 Contact Us For Availability
55
Lens Gasket WPL 229371 Contact Us For Availability
56
Clip WPL 24710 Contact Us For Availability
56
Light Bulb Holder WPL 87883 Contact Us For Availability
57
Name Plate WPL 329016 Contact Us For Availability
57
xLight Bulb WPL 111257 Contact Us For Availability
58
Oven Body WPL 331458 Contact Us For Availability
59
Thermostat Bulb Clip WPL 291123 Contact Us For Availability
60
Front Frame WPL 335160 Contact Us For Availability
61
Insulation-Top & Sides WPL 333472 Contact Us For Availability
62
Insulation-Bottom & Back WPL 308861 Contact Us For Availability
63
Thermostat WPL 237762 Contact Us For Availability
64
WPL 304835 WPL 304835 Contact Us For Availability
65
WPL 334300 WPL 334300 Contact Us For Availability
66
WPL 327621 WPL 327621 Contact Us For Availability
67
WPL 326069 WPL 326069 Contact Us For Availability
68
WPL 331592 WPL 331592 Contact Us For Availability
69
WPL 326297 WPL 326297 Contact Us For Availability
70
WPL 324808 WPL 324808 Contact Us For Availability
71
WPL 326362 WPL 326362 Contact Us For Availability
71
WPL 326363 WPL 326363 Contact Us For Availability
71
WPL ARI11348A6 WPL ARI11348A6 Contact Us For Availability
72
WPL 334429 WPL 334429 Contact Us For Availability
A1
Bracket-Terminal Block (2 Req) WPL 318872 Contact Us For Availability
A1
Cover WPL 329281 Contact Us For Availability
A2
Medallion (2 Req) WPL 318586 Contact Us For Availability
A2
Handle-Rt. or Lt. WPL 329282 Contact Us For Availability
A3
6`` Surface Element WPL 325510 Contact Us For Availability
A3
Screw 6ABx1/4`` WPL 330244 Contact Us For Availability
A4
6`` Burner Bowl WPL 296481 Contact Us For Availability
A5
Chrome WPL 329211 Contact Us For Availability
A5
Almond WPL 330955 Contact Us For Availability
A5
Main Top WPL ARI11351A1 Contact Us For Availability
A9
Pan-Module WPL 331609 Contact Us For Availability
A14
8`` Burner Bowl WPL 304969 Contact Us For Availability
A15
8`` Surface Element WPL 325506 Contact Us For Availability
A16
xTerminal Block w/Wire Leads (2 Req) WPL 318960 Contact Us For Availability
A17
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
B1
Clamp-Hob Element (Small) WPL 329109 Contact Us For Availability
B2
Mounting Nut (2 Req) WPL 329326 Contact Us For Availability
B3
xTerminal Pin (4 Req) WPL 310709 Contact Us For Availability
B4
xTerminal Block WPL 329024 Contact Us For Availability
B5
Speed Nut WPL 69831 Contact Us For Availability
B6
Pan-Module WPL 331607 Contact Us For Availability
B7
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
B8
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
B9
Insulator WPL 310705 Contact Us For Availability
B10
Bracket-Terminal Block WPL 329112 Contact Us For Availability
B11
Strap-Hob Element WPL 329240 Contact Us For Availability
B12
Clamp-Hob Element (Large) WPL 329108 Contact Us For Availability
B13
Chrome WPL 329105 Contact Us For Availability
B13
Almond WPL 330952 Contact Us For Availability
B13
Main Top WPL ARI11352A2 Contact Us For Availability
× ![]()
