Model Whirlpool 2374W0A ELECTRIC RANGE – Common Parts & Diagrams

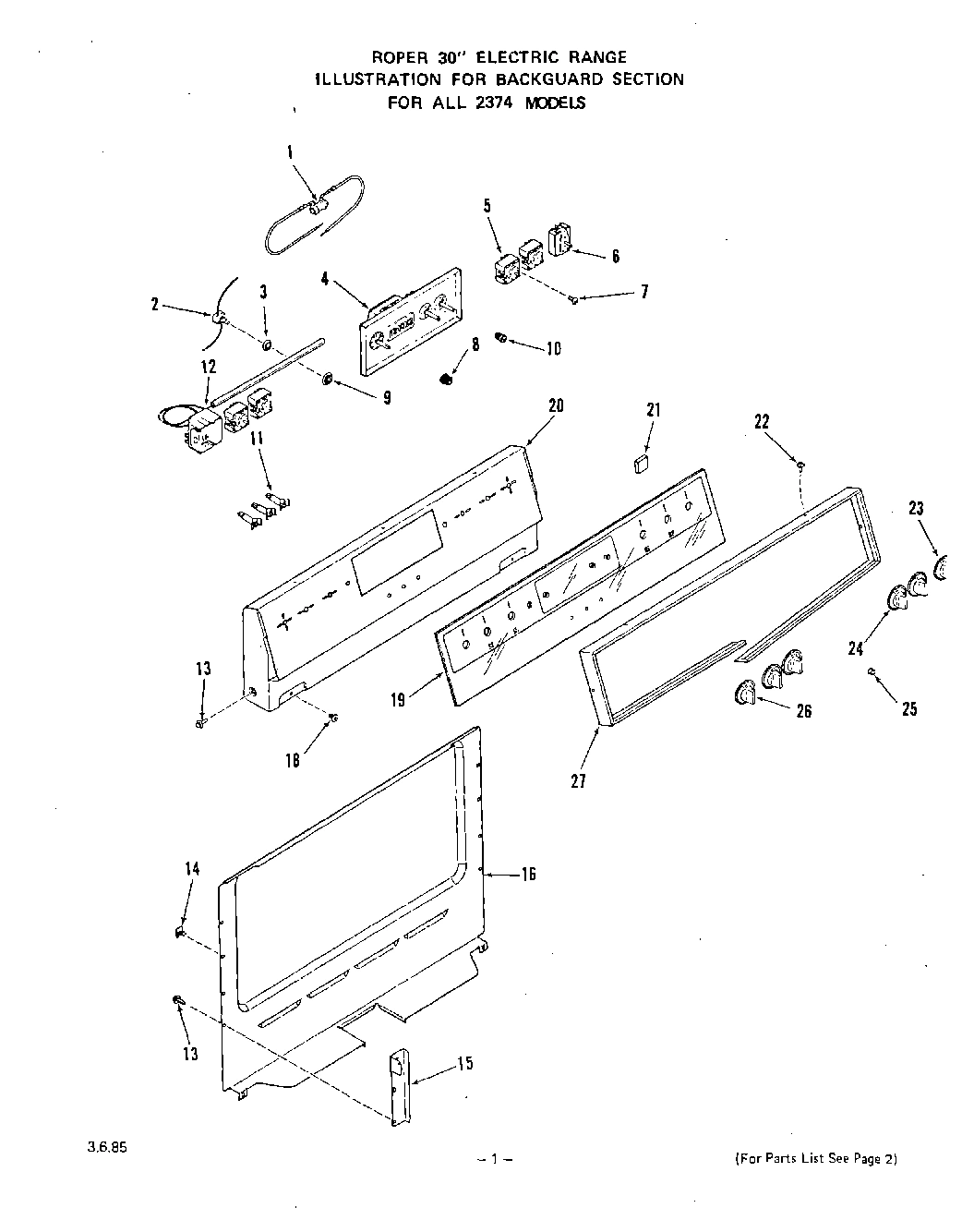

02 - BACKGUARD

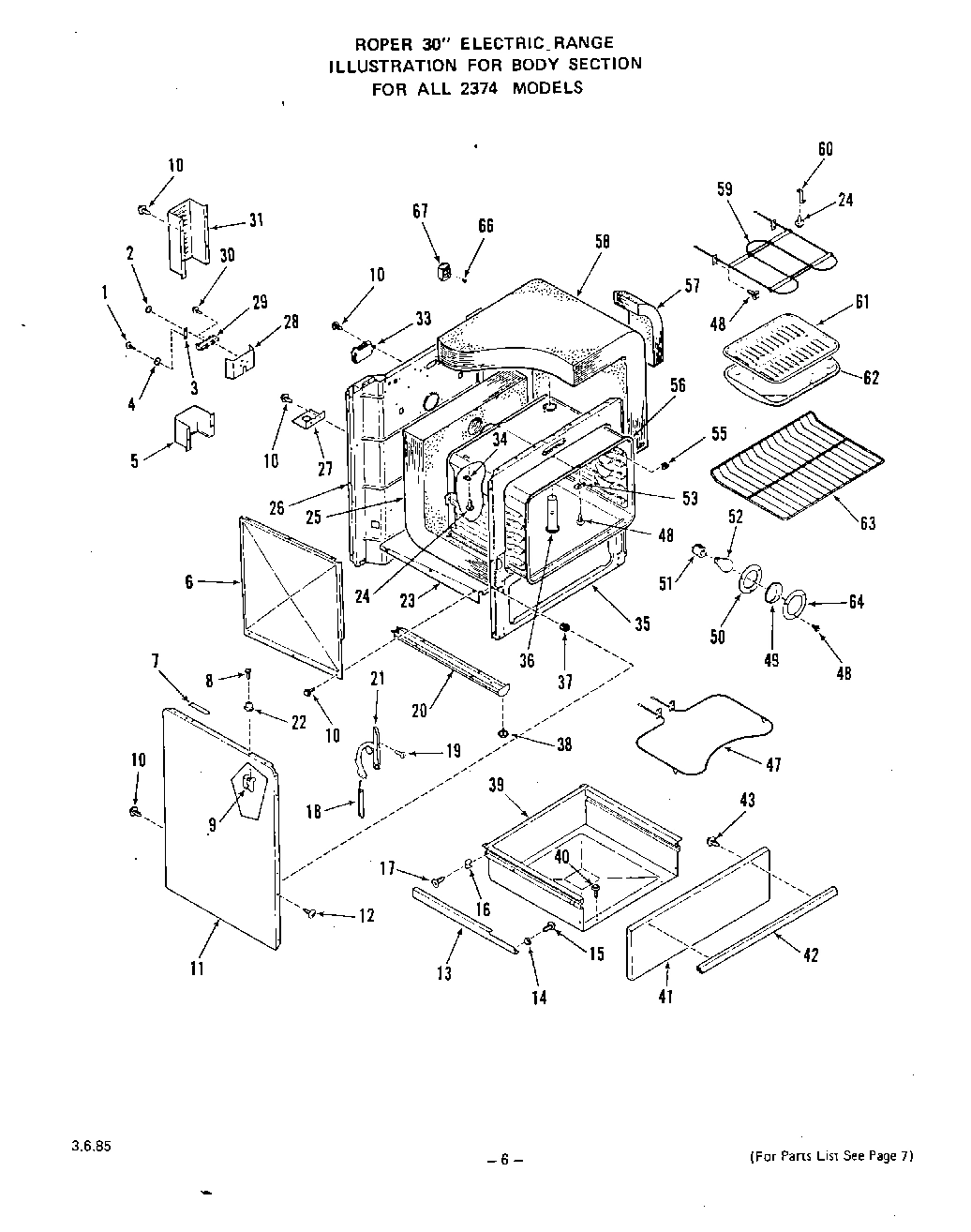

06 - BODY
08 - SECTION
03 - MAIN TOP
05 - POWER LOCK
04 - OPTIONAL EQUIPMENT
07 - OVEN DOOR
09 - WIRING DIAGRAM
Common parts from model Whirlpool 2374W0A ELECTRIC RANGE
xWire Harness WPL ARI10593A4 Contact Us For Availability
1
Wire Lead w/Resistor WPL 327623 Contact Us For Availability
1
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Stud WPL 326412 Contact Us For Availability
1
Thermometer WPL 87996 Contact Us For Availability
1
Screw 10ABx1 WPL 105799 Contact Us For Availability
2
Push Switch - Oven Light WPL 307573 Contact Us For Availability
2
Hex Nut 10-32 WPL 97816 Contact Us For Availability
2
6`` Surface Unit (Lt. Front & Rt. Rear) WPL 325510 Contact Us For Availability
2
Spring-Solenoid WPL 326413 Contact Us For Availability
2
Washer WPL 21067 Contact Us For Availability
2
Set-On Griddle WPL 236766 Contact Us For Availability
3
Pal Nut 3/8-27 (2 Req) WPL 236129 Contact Us For Availability
3
Ground Strap WPL 327255 Contact Us For Availability
3
All 23741A Models WPL 328723 Contact Us For Availability
3
All 23742A Models WPL 331582 Contact Us For Availability
3
Lining-Oven Door WPL ARI10591A4 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Solenoid Only WPL 327003 Contact Us For Availability
3
Seal WPL 303156 Contact Us For Availability
4
Clock w/1 Hr. Timer WPL 322307 Contact Us For Availability
4
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
4
Washer WPL 299425 Contact Us For Availability
4
Inner Glass-Oven Door WPL 312426 Contact Us For Availability
5
4 Req. All 23740A Models WPL 320944 Contact Us For Availability
5
Lt.Frt. & Rt. Rear Except 23740A WPL 324608 Contact Us For Availability
5
Rt.Frt. & Lt. Rear Except 23740A WPL 324609 Contact Us For Availability
5
Infinite Control WPL ARI10579A1 Contact Us For Availability
5
Wire Shield-Lower WPL 327258 Contact Us For Availability
5
Mounting Screw WPL 319433 Contact Us For Availability
5
Lining-Oven Door WPL 325951 Contact Us For Availability
6
Selector Switch WPL 327163 Contact Us For Availability
6
Retainer-Insulation (Lt. or Rt.) WPL 313284 Contact Us For Availability
6
Retainer-Door Glass (4 Req) WPL 326009 Contact Us For Availability
6
Bracket w/Switch WPL 327034 Contact Us For Availability
7
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
7
Spacer-Main Top (Lt. or Rt.) WPL 326914 Contact Us For Availability
7
Oven Door Lock Assm. (Inc. Key 9) WPL 326877 Contact Us For Availability
8
Knob-Clock (1 Req) WPL 294810 Contact Us For Availability
8
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
8
Rod-Oven Door Lock WPL 308829 Contact Us For Availability
8
Spacer-Oven Door Glass (Lt. or Rt.) WPL 326228 Contact Us For Availability
9
Nut-Trim 3/8-27 WPL 109883 Contact Us For Availability
9
Bracket-Body Side (Lt. or Rt.) WPL 326516 Contact Us For Availability
9
Bracket-Main Top Hinge (2 Req) WPL 320931 Contact Us For Availability
9
Spring-Lock Handle WPL 299599 Contact Us For Availability
10
Knob-Clock (Start & Stop Time) (2) WPL 109225 Contact Us For Availability
10
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
10
Right WPL 320921 Contact Us For Availability
10
Left WPL 320922 Contact Us For Availability
10
Hinge-Main Top WPL ARI10582A7 Contact Us For Availability
10
Knob-Oven Door Lock Handle WPL 323363 Contact Us For Availability
11
Light-Indicator (3 Req) WPL 323228 Contact Us For Availability
11
White WPL 326055 Contact Us For Availability
11
Golden Wheat WPL 326058 Contact Us For Availability
11
Almond WPL 326059 Contact Us For Availability
11
Body Side (Lt. or Rt.) WPL ARI10585A4 Contact Us For Availability
11
outer glass-oven door WPL 326367 Contact Us For Availability
11
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
12
Thermostat WPL 324686 Contact Us For Availability
12
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
12
Frame-Oven Door WPL 326001 Contact Us For Availability
12
All 23740A & 23741A Models WPL 326064 Contact Us For Availability
12
All 23742A Models WPL 331589 Contact Us For Availability
12
Bottom-Burner Box WPL ARI10583A5 Contact Us For Availability
13
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
13
Keps Nut 8-32 WPL 239764 Contact Us For Availability
13
Cover-Door Lock WPL 308830 Contact Us For Availability
14
Clip-TRim WPL 70588 Contact Us For Availability
14
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
14
Cushion-Door Glass (3 Req) WPL 112370 Contact Us For Availability
15
Right WPL 327106 Contact Us For Availability
15
Left WPL 327107 Contact Us For Availability
15
Support-Backguard WPL ARI10580A6 Contact Us For Availability
15
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
15
Handle-Oven Door WPL 303342 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
15
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
16
Wire Cover-Backguard WPL 326122 Contact Us For Availability
16
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
16
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
16
Support Rod-Main Top WPL 320725 Contact Us For Availability
17
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
17
Clip WPL 285945 Contact Us For Availability
17
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
18
Spring-Oven Door (Lt. or Rt.) WPL 326965 Contact Us For Availability
18
White WPL 326530 Contact Us For Availability
18
Almond WPL 326531 Contact Us For Availability
18
Golden Wheat WPL 326534 Contact Us For Availability
18
Main Top WPL ARI10584A7 Contact Us For Availability
18
Baffle-Insulation Retainer WPL 326649 Contact Us For Availability
19
Top Lamp Glass WPL 327183 Contact Us For Availability
19
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
19
Intermediate Glass-Oven Door WPL 326088 Contact Us For Availability
19
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL 304969 Contact Us For Availability
20
White WPL 326709 Contact Us For Availability
20
Golden Wheat WPL 326710 Contact Us For Availability
20
Almond WPL 326711 Contact Us For Availability
20
Crosstie-Backguard WPL ARI10581A6 Contact Us For Availability
20
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
20
Controls WPL 326698 Contact Us For Availability
20
Selector Switch WPL 326699 Contact Us For Availability
20
All 23741A Models WPL 329920 Contact Us For Availability
20
Main Top WPL 331376 Contact Us For Availability
20
All 23742A Models WPL 331559 Contact Us For Availability
20
Plug-Oven Door Lining WPL ARI10592A2 Contact Us For Availability
20
8`` Surface Unit (Rt. Front & Lt. Rear) WPL 325506 Contact Us For Availability
20
Retainer-Oven Door Insulation WPL 325989 Contact Us For Availability
21
Spacer-Top Lamp Glass (2 Req) WPL 322302 Contact Us For Availability
21
Right WPL 326012 Contact Us For Availability
21
Left WPL 326013 Contact Us For Availability
21
Hinge-Oven Door WPL ARI10586A2 Contact Us For Availability
21
Center Glass-Oven Door WPL 326632 Contact Us For Availability
21
Terminal Block w/Wire Lead (4 Req) WPL 318960 Contact Us For Availability
22
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
22
Strike-Main Top (Lt. or Rt.) WPL 326513 Contact Us For Availability
22
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
22
Retainer-Oven Door Glass WPL 324006 Contact Us For Availability
23
Knob-Selector WPL 327185 Contact Us For Availability
23
Insulation Retainer-Bottom WPL 313281 Contact Us For Availability
23
Insulation-Oven Door WPL 326000 Contact Us For Availability
23
Bracket-Terminal Block (4 Req) WPL 318872 Contact Us For Availability
24
Knob-Infinite Control (4 Req) WPL 326944 Contact Us For Availability
24
Gasket WPL 292244 Contact Us For Availability
25
Lens-Indicator Light (3 Req) WPL 325677 Contact Us For Availability
25
Insulation-Oven Bottom & Back (1 Piece) WPL 308861 Contact Us For Availability
25
Plug-Oven Door Lining WPL 326184 Contact Us For Availability
26
Knob-Thermostat WPL 326957 Contact Us For Availability
26
Main Back WPL 325879 Contact Us For Availability
26
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
27
Bezel-Backguard WPL 308007 Contact Us For Availability
27
Range Service Mounting Plate WPL 327259 Contact Us For Availability
28
Insulator-Service Cord WPL 327242 Contact Us For Availability
29
Junction Block WPL 290105 Contact Us For Availability
30
Screw 10-32x1`` WPL 313190 Contact Us For Availability
31
Shield-Upper Wire WPL 327235 Contact Us For Availability
33
Relay-Oven WPL 239802 Contact Us For Availability
34
Plate-Thermostat Bulb Cover WPL 237762 Contact Us For Availability
35
All 23740A & 23741A Models WPL 326030 Contact Us For Availability
35
All 23742A Models WPL 331587 Contact Us For Availability
35
Front Frame WPL ARI10587A9 Contact Us For Availability
36
Tube-Vent WPL 308822 Contact Us For Availability
38
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
39
Drawer-Storage WPL 296150 Contact Us For Availability
41
White WPL 326073 Contact Us For Availability
41
Golden Wheat WPL 326076 Contact Us For Availability
41
Almond WPL 326077 Contact Us For Availability
41
Panel-Storage Drawer WPL ARI10588A2 Contact Us For Availability
42
Handle WPL 292240 Contact Us For Availability
43
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
47
Element-Bake WPL 325883 Contact Us For Availability
49
WPL 114989 WPL 114989 Contact Us For Availability
50
WPL 229371 WPL 229371 Contact Us For Availability
51
WPL 87883 WPL 87883 Contact Us For Availability
52
WPL 111257 WPL 111257 Contact Us For Availability
53
WPL 304835 WPL 304835 Contact Us For Availability
55
WPL 238052 WPL 238052 Contact Us For Availability
56
WPL 325766 WPL 325766 Contact Us For Availability
56
WPL 331578 WPL 331578 Contact Us For Availability
56
WPL ARI10589A2 WPL ARI10589A2 Contact Us For Availability
57
WPL 316951 WPL 316951 Contact Us For Availability
58
WPL 308860 WPL 308860 Contact Us For Availability
59
WPL 326360 WPL 326360 Contact Us For Availability
60
WPL 324808 WPL 324808 Contact Us For Availability
61
WPL 326297 WPL 326297 Contact Us For Availability
62
WPL 326300 WPL 326300 Contact Us For Availability
62
WPL 331592 WPL 331592 Contact Us For Availability
62
WPL ARI10590A2 WPL ARI10590A2 Contact Us For Availability
63
WPL 326069 WPL 326069 Contact Us For Availability
64
WPL 229372 WPL 229372 Contact Us For Availability
66
WPL 78565 WPL 78565 Contact Us For Availability
67
WPL 293428 WPL 293428 Contact Us For Availability
× ![]()
