Model Whirlpool 2356W0A ELECTRIC RANGE – Common Parts & Diagrams

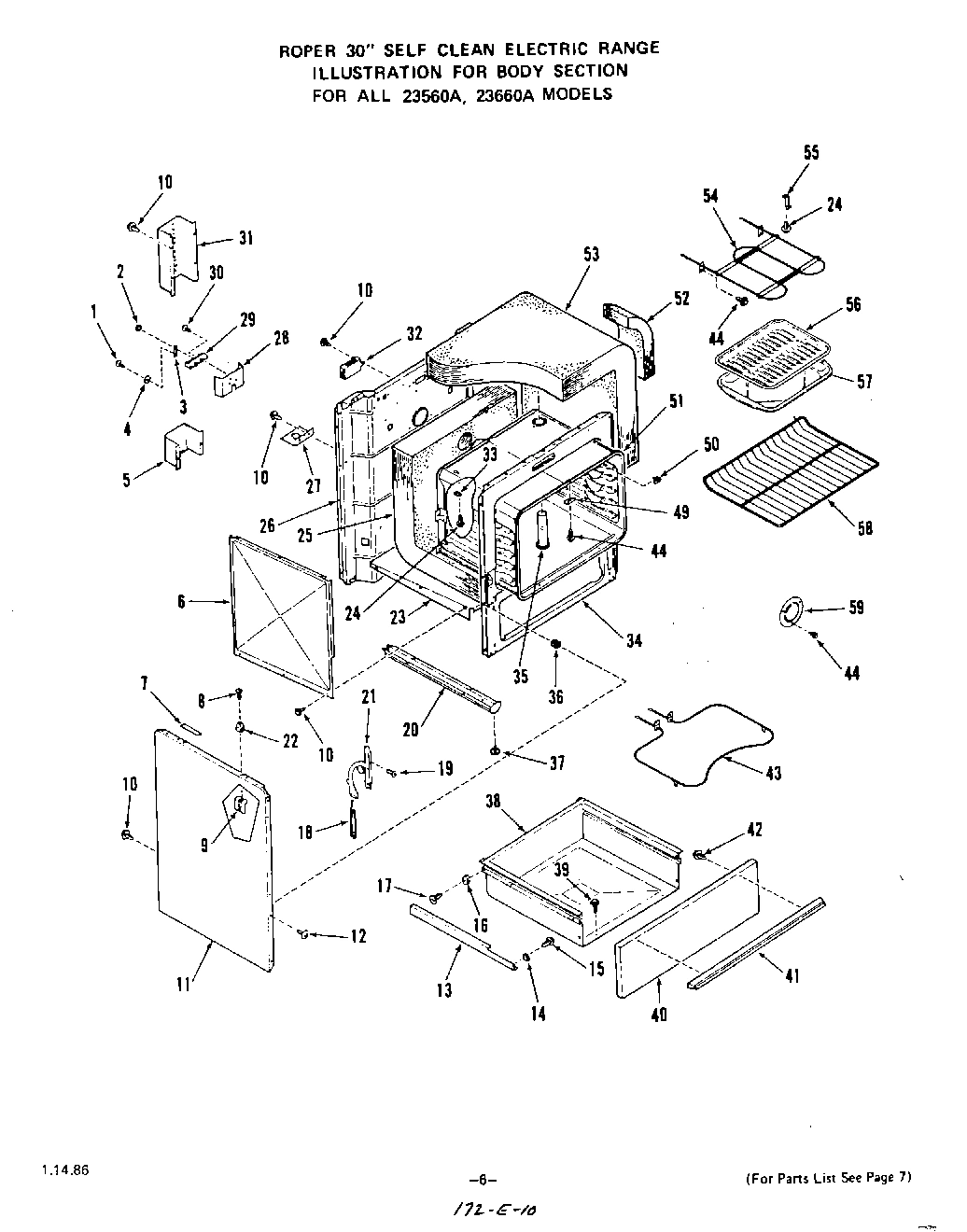

05 - BODY
07 - SECTION

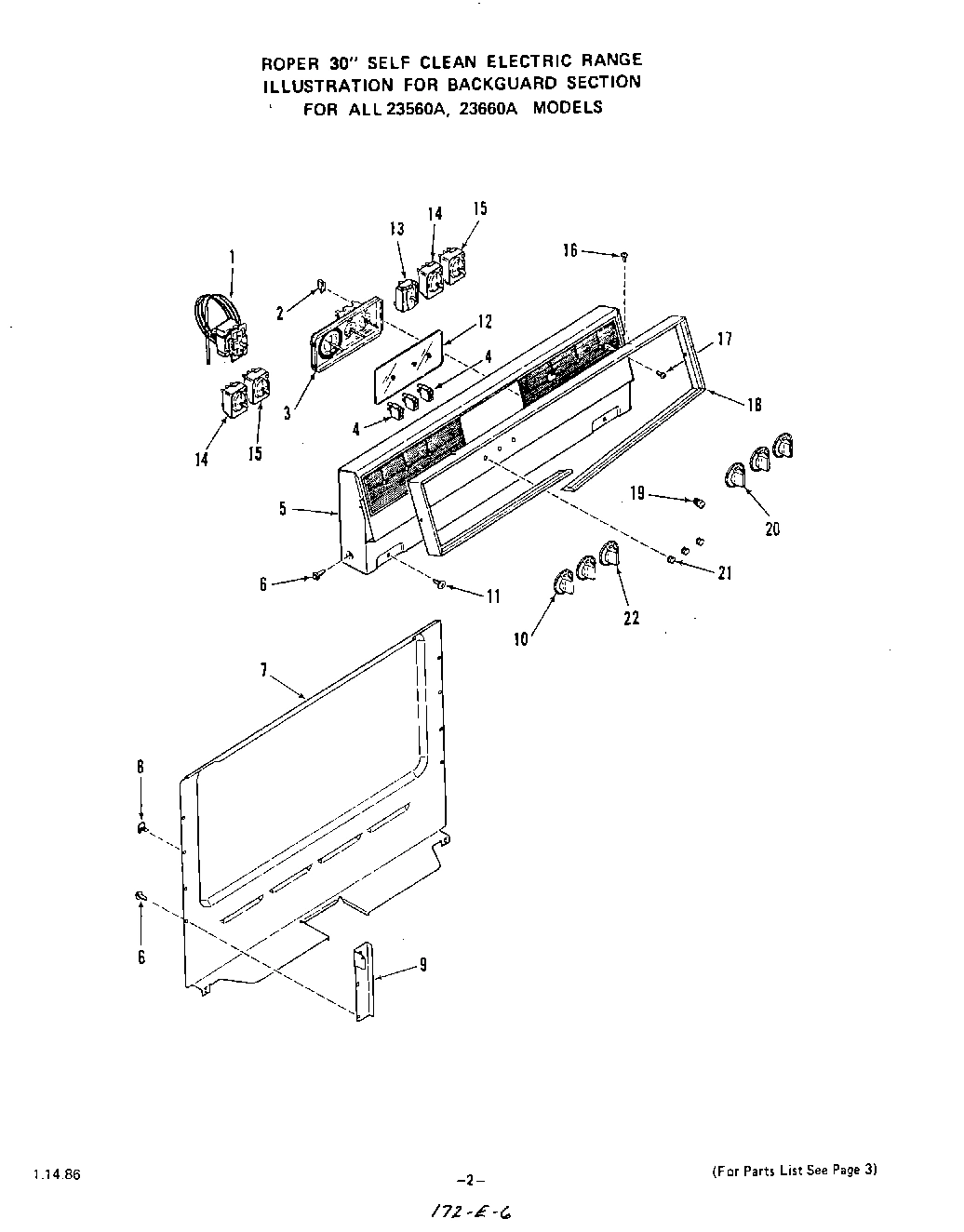

02 - BACKGUARD
09 - SECTION
04 - OPTIONAL GRIDDLE
06 - OVEN DOOR

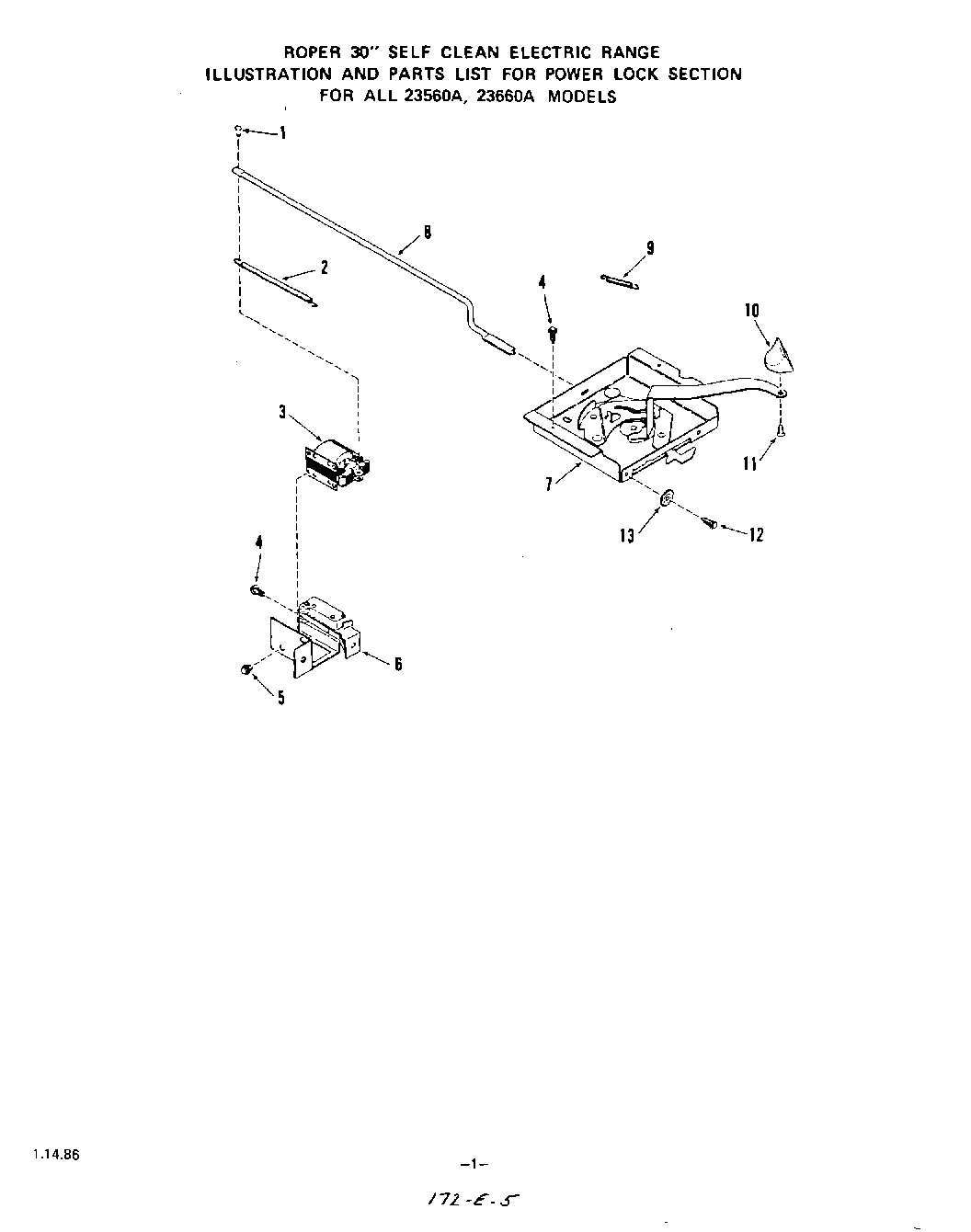

01 - POWER LOCK
03 - MAIN TOP
Common parts from model Whirlpool 2356W0A ELECTRIC RANGE
1
Set-On Griddle WPL 309844 Contact Us For Availability
1
Plug-Oven Door Lining WPL 331561 Contact Us For Availability
1
Stud WPL 326412 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
1
Thermostat WPL 329907 Contact Us For Availability
2
Spring-Solenoid WPL 326413 Contact Us For Availability
2
6`` Surface Unit (Lt. Front & Rt. Rear) WPL 325507 Contact Us For Availability
2
Hex Nut 10-32 WPL 97816 Contact Us For Availability
2
Clip-Clock (4 Req) WPL 326329 Contact Us For Availability
3
Insulation-Oven Door WPL 326000 Contact Us For Availability
3
Solenoid Only WPL 327003 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Ground Strap WPL 327255 Contact Us For Availability
3
Clock w/1 Hr. Timer WPL 333049 Contact Us For Availability
4
Retainer-Insulation WPL 326623 Contact Us For Availability
4
Washer WPL 299425 Contact Us For Availability
4
Surface & Lock WPL 323228 Contact Us For Availability
4
Oven WPL 330278 Contact Us For Availability
4
Indicator Light WPL ARI10368A8 Contact Us For Availability
5
White WPL 325974 Contact Us For Availability
5
Almond WPL 325976 Contact Us For Availability
5
Panel-Oven Door WPL ARI10377A9 Contact Us For Availability
5
Mounting Screw WPL 319433 Contact Us For Availability
5
Wire Shield-Lower WPL 327258 Contact Us For Availability
5
White WPL 333896 Contact Us For Availability
5
Almond WPL 333897 Contact Us For Availability
5
Toast WPL 333898 Contact Us For Availability
5
Platinum WPL 333899 Contact Us For Availability
5
Black WPL 333900 Contact Us For Availability
5
Panel-Backguard WPL ARI10369A9 Contact Us For Availability
6
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
6
Bracket w/Switch WPL 327034 Contact Us For Availability
6
Retainer-Insulation (Lt. or Rt.) WPL 313284 Contact Us For Availability
7
Spacer WPL 302343 Contact Us For Availability
7
Oven Door Lock Assm. (Inc. Key 9) WPL 326877 Contact Us For Availability
7
Spacer-Main Top (Lt. or Rt.) WPL 326914 Contact Us For Availability
7
Cover-Backguard WPL 326122 Contact Us For Availability
8
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
8
Rod-Oven Door Lock WPL 308829 Contact Us For Availability
8
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
8
Trim Clip WPL 70588 Contact Us For Availability
9
Lining-Oven Door WPL 331624 Contact Us For Availability
9
Spring-Lock Handle WPL 299599 Contact Us For Availability
9
Bracket-Main Top Hinge (2 Req) WPL 320931 Contact Us For Availability
9
Bracket-Body Side (Lt. or Rt.) WPL 326516 Contact Us For Availability
9
Right WPL 327106 Contact Us For Availability
9
Left WPL 327107 Contact Us For Availability
9
Support-Backguard WPL ARI10370A4 Contact Us For Availability
10
Gasket-Oven Door WPL 292244 Contact Us For Availability
10
Knob-Oven Door Lock Handle WPL 323363 Contact Us For Availability
10
Right WPL 320921 Contact Us For Availability
10
Left WPL 320922 Contact Us For Availability
10
Hinge-Main Top WPL ARI10371A9 Contact Us For Availability
10
Knob-Infinite Control (4 Req) WPL 322966 Contact Us For Availability
11
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
11
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
11
White WPL 326055 Contact Us For Availability
11
Almond WPL 326059 Contact Us For Availability
11
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
11
Platinum WPL 327939 Contact Us For Availability
11
Toast WPL 327940 Contact Us For Availability
11
Body Side (Lt. or Rt.) WPL ARI10373A1 Contact Us For Availability
12
Bottom-Burner Box WPL 331589 Contact Us For Availability
12
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
12
Clock Glass WPL 323174 Contact Us For Availability
13
Washer WPL 21067 Contact Us For Availability
13
Cover-Lock Rod WPL 308830 Contact Us For Availability
13
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
13
Selector Switch WPL 329905 Contact Us For Availability
14
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
14
Infinite Control (Lt. Frt. & Rt. Rear) WPL 320945 Contact Us For Availability
15
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
15
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
15
Infinite Control (Rt. Frt. & Lt. Rear) WPL 320946 Contact Us For Availability
16
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
16
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
17
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
17
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
18
White WPL 326530 Contact Us For Availability
18
Almond WPL 326531 Contact Us For Availability
18
Chrome WPL 327356 Contact Us For Availability
18
Toast WPL 328353 Contact Us For Availability
18
Platinum WPL 328354 Contact Us For Availability
18
Main Top WPL ARI10372A8 Contact Us For Availability
18
All 2354 Models WPL 326963 Contact Us For Availability
18
All 2364 Models WPL 326964 Contact Us For Availability
18
Spring-Oven Door (Lt. or Rt.) WPL ARI10374A5 Contact Us For Availability
18
Bezel-Backguard WPL 310603 Contact Us For Availability
19
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL 304969 Contact Us For Availability
19
Screw WPL 331704 Contact Us For Availability
19
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
20
8`` Surface Unit (Rt. Front & Lt. Rear) WPL 325503 Contact Us For Availability
20
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
20
Knob-Selector WPL 329934 Contact Us For Availability
21
Terminal Block w/Wire Lead (4 Req) WPL 318960 Contact Us For Availability
21
Right WPL 326012 Contact Us For Availability
21
Left WPL 326013 Contact Us For Availability
21
Hinge-Oven Door WPL ARI10375A3 Contact Us For Availability
21
Lens-Indicator WPL 325677 Contact Us For Availability
22
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
22
Strike-Main Top (Lt. or Rt.) WPL 326513 Contact Us For Availability
22
Knob-Thermostat WPL 329932 Contact Us For Availability
23
Bracket-Terminal Block (4 Req) WPL 318872 Contact Us For Availability
23
Insulation Retainer-Bottom WPL 313281 Contact Us For Availability
25
Insulation-Oven Bottom & Back (1 Piece) WPL 308861 Contact Us For Availability
26
Main Back WPL 325879 Contact Us For Availability
27
Plate-Range Service Mounting WPL 327259 Contact Us For Availability
28
Insulator-Service Cord WPL 327242 Contact Us For Availability
29
Junction Block WPL 290105 Contact Us For Availability
30
Screw 10-32x1`` WPL 313190 Contact Us For Availability
31
Shield-Upper Wire WPL 327235 Contact Us For Availability
32
Relay-Oven WPL 239802 Contact Us For Availability
33
Plate-Thermostat Bulb Cover WPL 237762 Contact Us For Availability
34
Front Frame WPL 331587 Contact Us For Availability
35
Tube-Vent WPL 331723 Contact Us For Availability
37
Leveler-Leg (4 Req) WPL 326052 Contact Us For Availability
38
Drawer-Storage WPL 296150 Contact Us For Availability
39
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
40
White WPL 326073 Contact Us For Availability
40
Almond WPL 326077 Contact Us For Availability
40
Panel-Storage Drawer (Black) WPL 326078 Contact Us For Availability
40
Toast WPL 328347 Contact Us For Availability
40
Platinum WPL 328355 Contact Us For Availability
40
Panel-Front Storage Drawer WPL ARI10376A2 Contact Us For Availability
41
Handle WPL 292240 Contact Us For Availability
42
Scr WPL 295850 Contact Us For Availability
43
WPL 325883 WPL 325883 Contact Us For Availability
49
WPL 304835 WPL 304835 Contact Us For Availability
50
WPL 321539 WPL 321539 Contact Us For Availability
51
WPL 331578 WPL 331578 Contact Us For Availability
52
WPL 303097 WPL 303097 Contact Us For Availability
53
WPL 308860 WPL 308860 Contact Us For Availability
54
WPL 326360 WPL 326360 Contact Us For Availability
55
WPL 324808 WPL 324808 Contact Us For Availability
56
WPL 326297 WPL 326297 Contact Us For Availability
57
WPL 331592 WPL 331592 Contact Us For Availability
58
WPL 326069 WPL 326069 Contact Us For Availability
59
WPL 326935 WPL 326935 Contact Us For Availability
× ![]()
