Model Whirlpool 2300 ELECTRIC COOK-TOP – Common Parts & Diagrams
03 - CONTROLS
05 - ELEMENTS & GRILL COMPONENTS
04 - COUNTER TOP GRILL RANGE

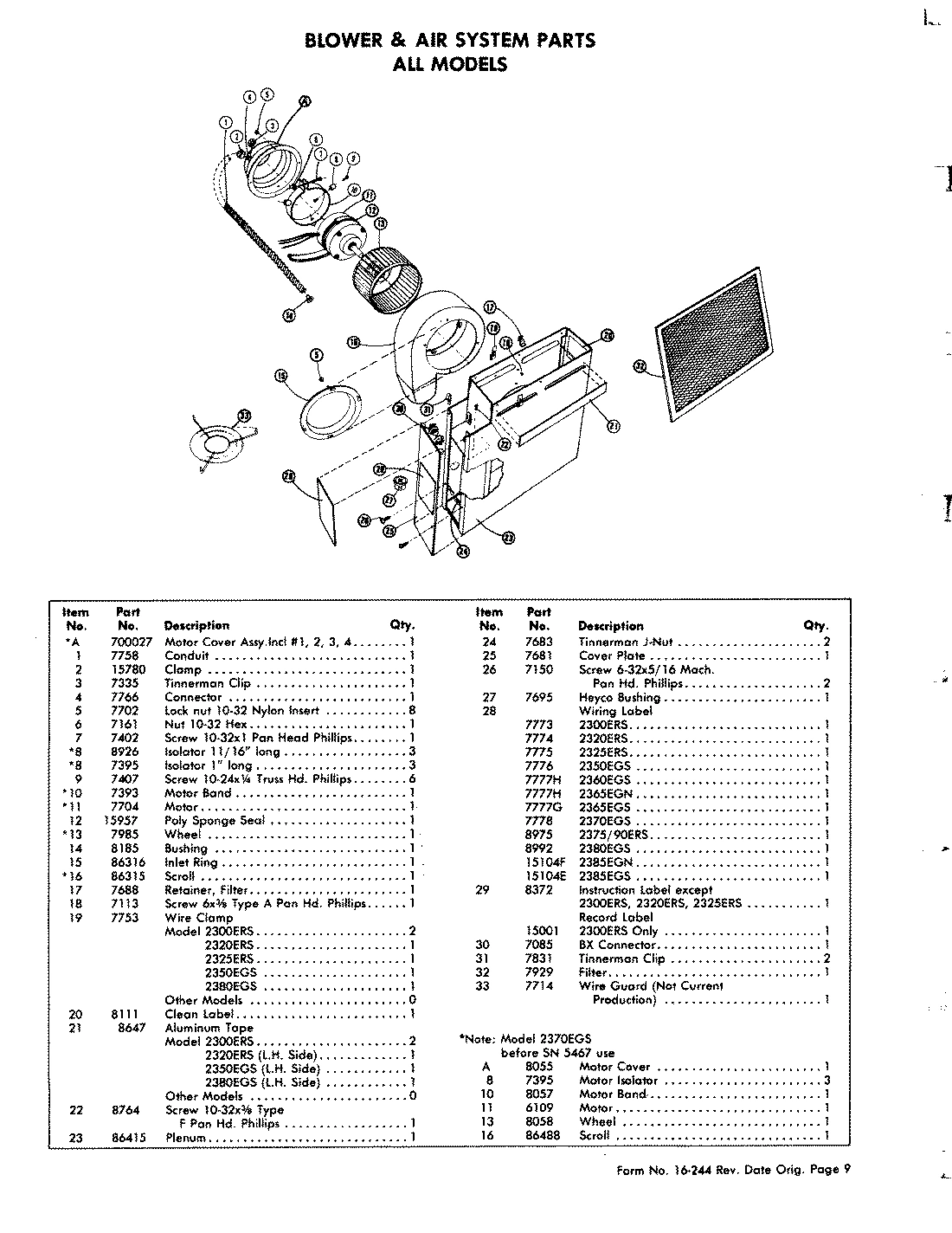

01 - BLOWER & AIR SYSTEM PARTS

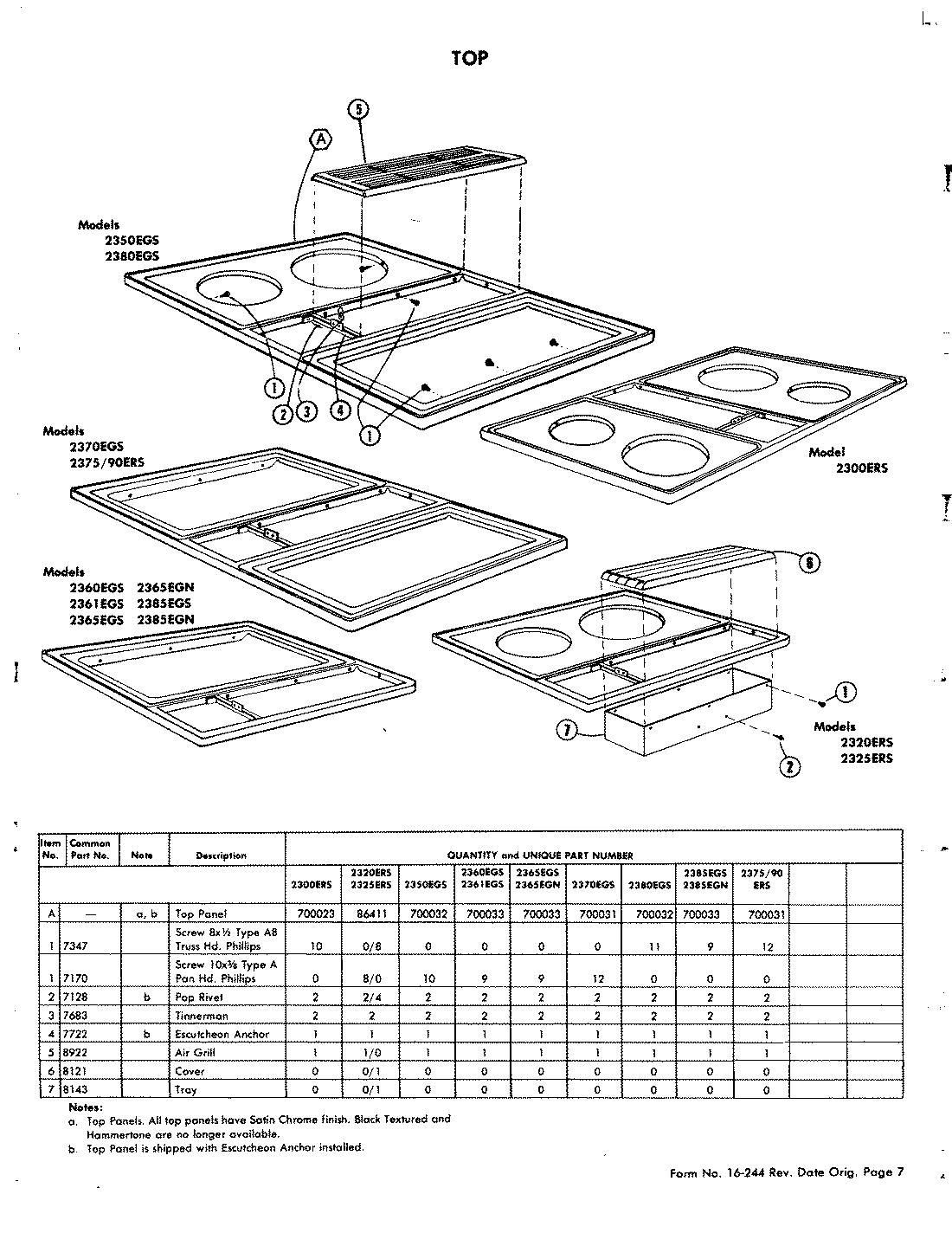

06 - TOP

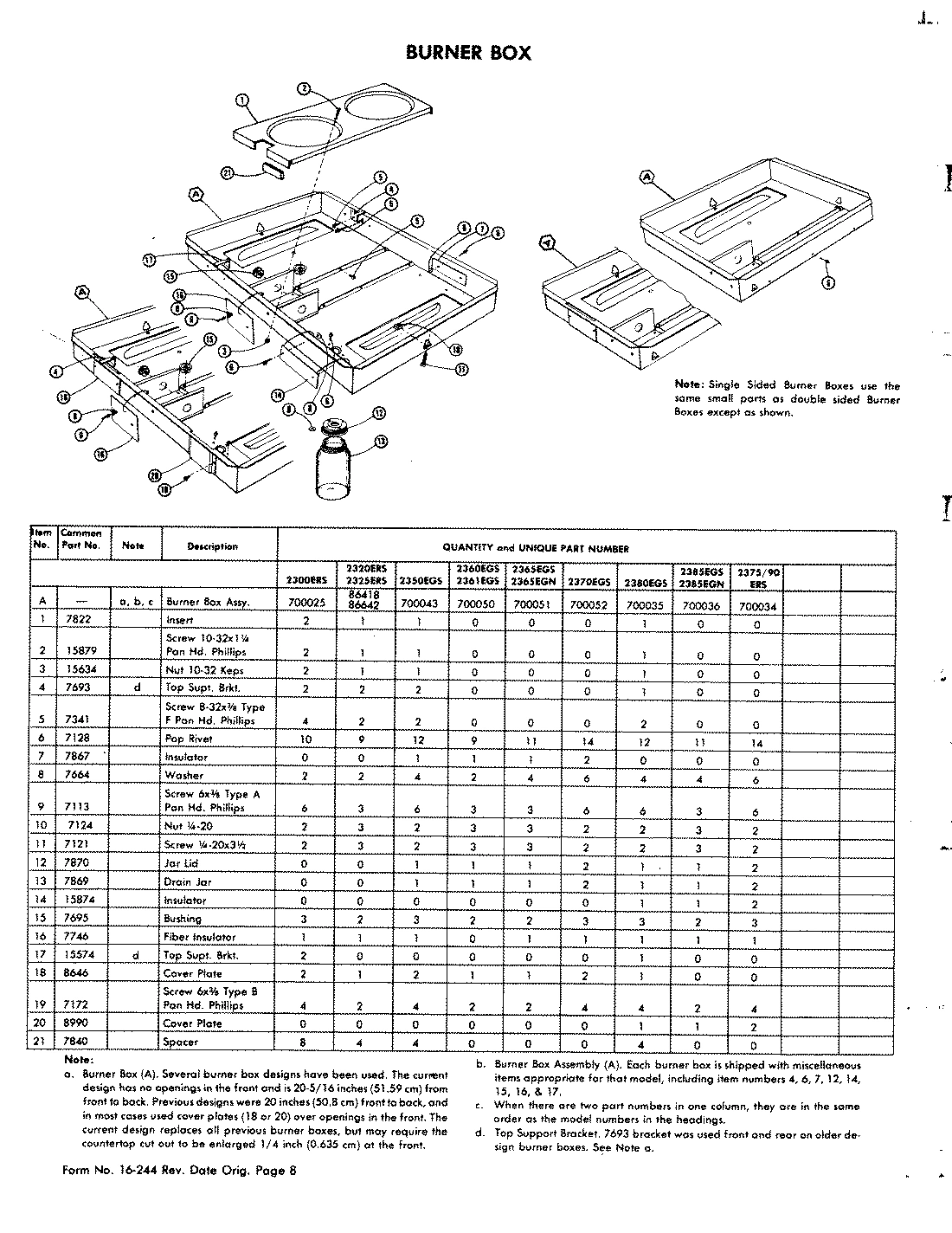

02 - BURNER BOX
Common parts from model Whirlpool 2300 ELECTRIC COOK-TOP
1
WIRE KIT WPL 700024 Contact Us For Availability
1
LEFT HAND ASSEMBLY WPL 700029 Contact Us For Availability
1
INF SWITCH WPL Y700026 Contact Us For Availability
1
WIRES, BURNER WPL 700037 Contact Us For Availability
1
BURNER ELEMENT 240V WPL 707728 Contact Us For Availability
1
ELEMENT, CONV. 208V WPL 708097 Contact Us For Availability
1
BURNER (6``) WPL Y707727 Contact Us For Availability
1
ELEMENT, CONV. 208V WPL Y708098 Contact Us For Availability
1
ELEM 6 208V WPL 715929 Contact Us For Availability
1
MOTOR COVER ASSEMBLY WPL 700027 Contact Us For Availability
1
CONDUIT WPL Y707758 Contact Us For Availability
1
RANGE TOP WPL 700023 Contact Us For Availability
1
BURNER BOX WPL 700025 Contact Us For Availability
1
INSERT, BURNER BOX WPL Y707822 Contact Us For Availability
2
SWITCH, PUSH WPL Y707698 Contact Us For Availability
2
MEDALLION WPL 770200 Contact Us For Availability
2
ELEMENT, CONVENTIONAL WPL Y715930 Contact Us For Availability
2
CLAMP, CABLE WPL 715780 Contact Us For Availability
2
10-32 SCREW WPL 715879 Contact Us For Availability
3
INSERT, LOGO----NA WPL 707686 Contact Us For Availability
3
CRMC BLOCK WPL 715805 Contact Us For Availability
3
CLIP WPL Y707335 Contact Us For Availability
3
NUT WPL 707683 Contact Us For Availability
4
PALNUT WPL 707138 Contact Us For Availability
4
CONNECTOR WPL 707766 Contact Us For Availability
4
ANCHOR WPL 707722 Contact Us For Availability
4
BRACKET, TOP SUPPORT WPL 707693 Contact Us For Availability
5
CONTACT ASSEMBLY WPL Y700004 Contact Us For Availability
5
MEDALLION WPL Y700132 Contact Us For Availability
5
VENT GRILL WPL Y708922 Contact Us For Availability
6
LIGHT, PILOT WPL Y707699 Contact Us For Availability
6
PAN, ALUMINUM WPL Y715028 Contact Us For Availability
6
NUT WPL 707161 Contact Us For Availability
7
PAN, ALUMINUM WPL 715029 Contact Us For Availability
7
SCREW WPL Y707402 Contact Us For Availability
8
ISOLATOR MOTOR WPL Y707395 Contact Us For Availability
8
WASHER WPL Y707664 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
11
SCREW WPL Y707121 Contact Us For Availability
12
SPRING, ESCUTCHEON WPL 707687 Contact Us For Availability
12
ESC BRKT WPL 715255 Contact Us For Availability
12
FOAM, URETHANE WPL Y715957 Contact Us For Availability
13
NUT, WIRE WPL 707086 Contact Us For Availability
13
NUT, WIRE WPL 707146 Contact Us For Availability
14
BUSHING WPL 708185 Contact Us For Availability
15
RING, INLET (WITH STUDS) WPL 786316 Contact Us For Availability
15
BUSHING WPL Y707695 Contact Us For Availability
16
SCROLL WPL Y786315 Contact Us For Availability
16
INSULATOR WPL 707746 Contact Us For Availability
17
RETAINER, FILTER WPL Y707688 Contact Us For Availability
17
TOP SUPPORT BRACKET WPL 715574 Contact Us For Availability
18
COVER PLATE WPL 708646 Contact Us For Availability
19
CLAMP,CABLE WPL 707753 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
20
CLEANING LABEL WPL 708111 Contact Us For Availability
21
TAPE, ALUMINUM WPL 708647 Contact Us For Availability
21
SPACER WPL 707840 Contact Us For Availability
23
PLENUM WPL Y786415 Contact Us For Availability
25
PLATE, COVER WPL Y707681 Contact Us For Availability
26
SCREW WPL Y707150 Contact Us For Availability
28
WIRING LABEL WPL 707773 Contact Us For Availability
29
INSTRUCTION LABEL WPL 708372 Contact Us For Availability
30
CONNECTOR, CONDUIT WPL 707085 Contact Us For Availability
31
CLIP WPL Y707831 Contact Us For Availability
33
AIR GRILL WPL 707714 Contact Us For Availability
× ![]()
