Model Whirlpool 2276W1A ELECTRIC RANGE – Common Parts & Diagrams
08 - WIRING DIAGRAM
02 - POWER LOCK

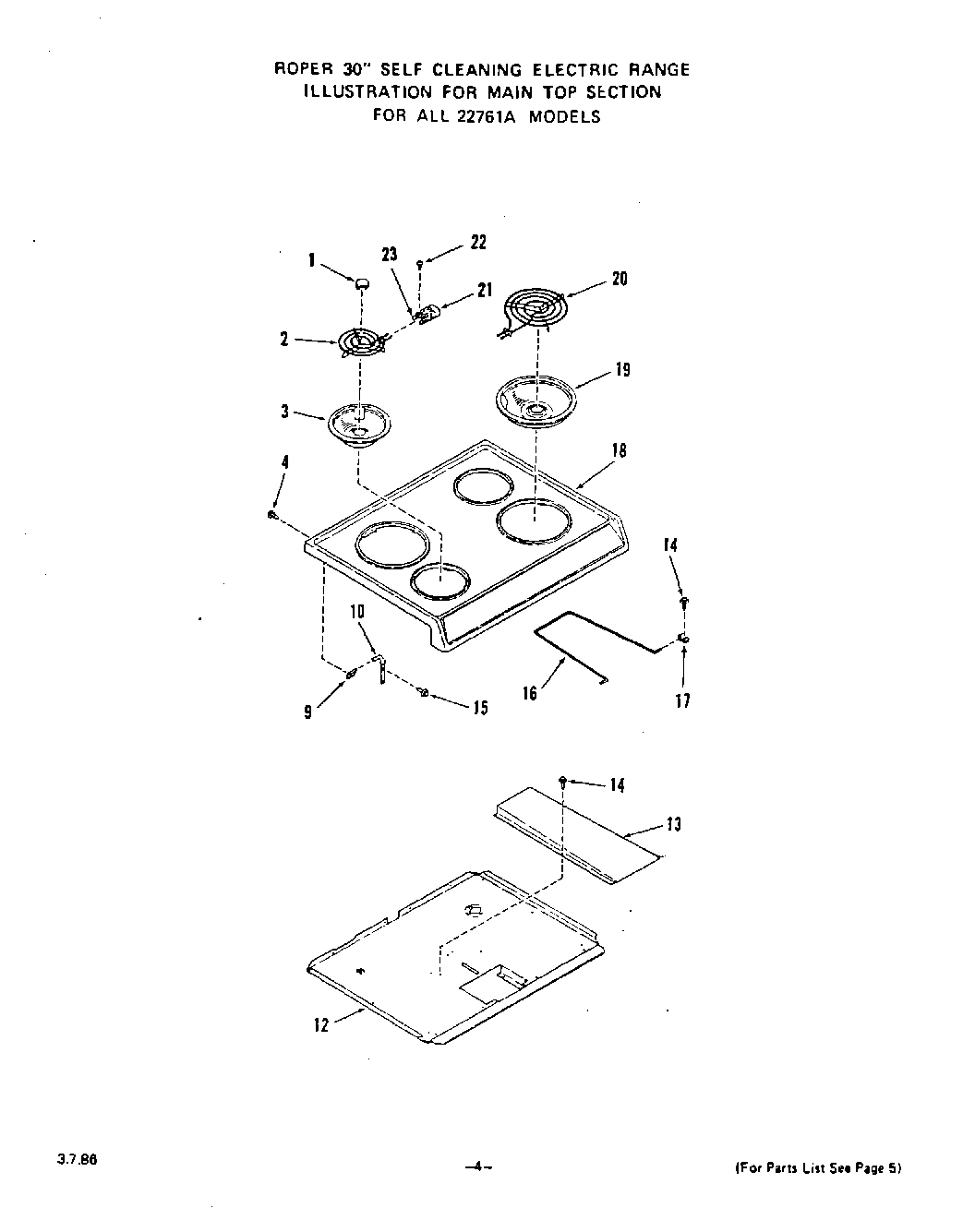

04 - MAIN TOP

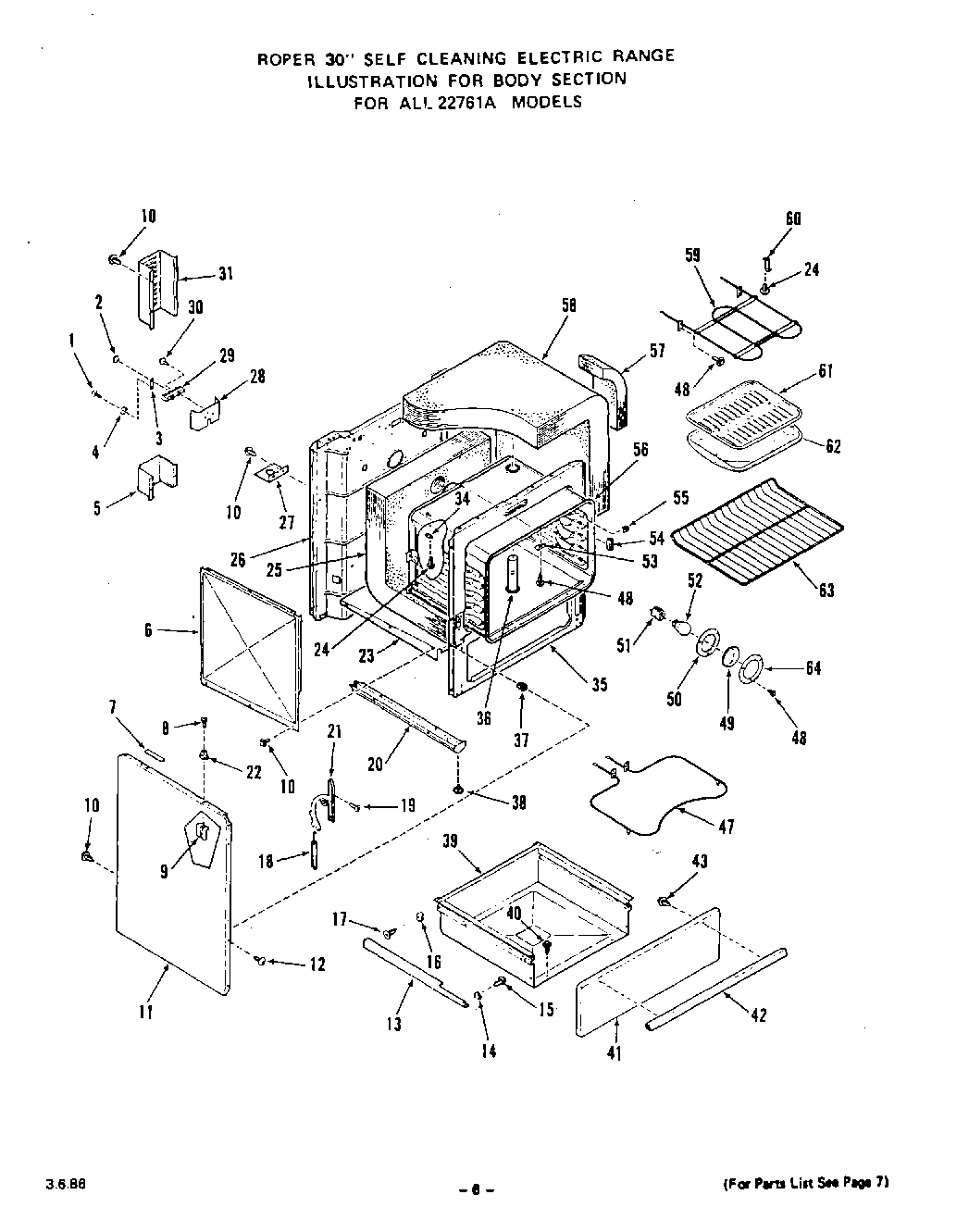

06 - BODY

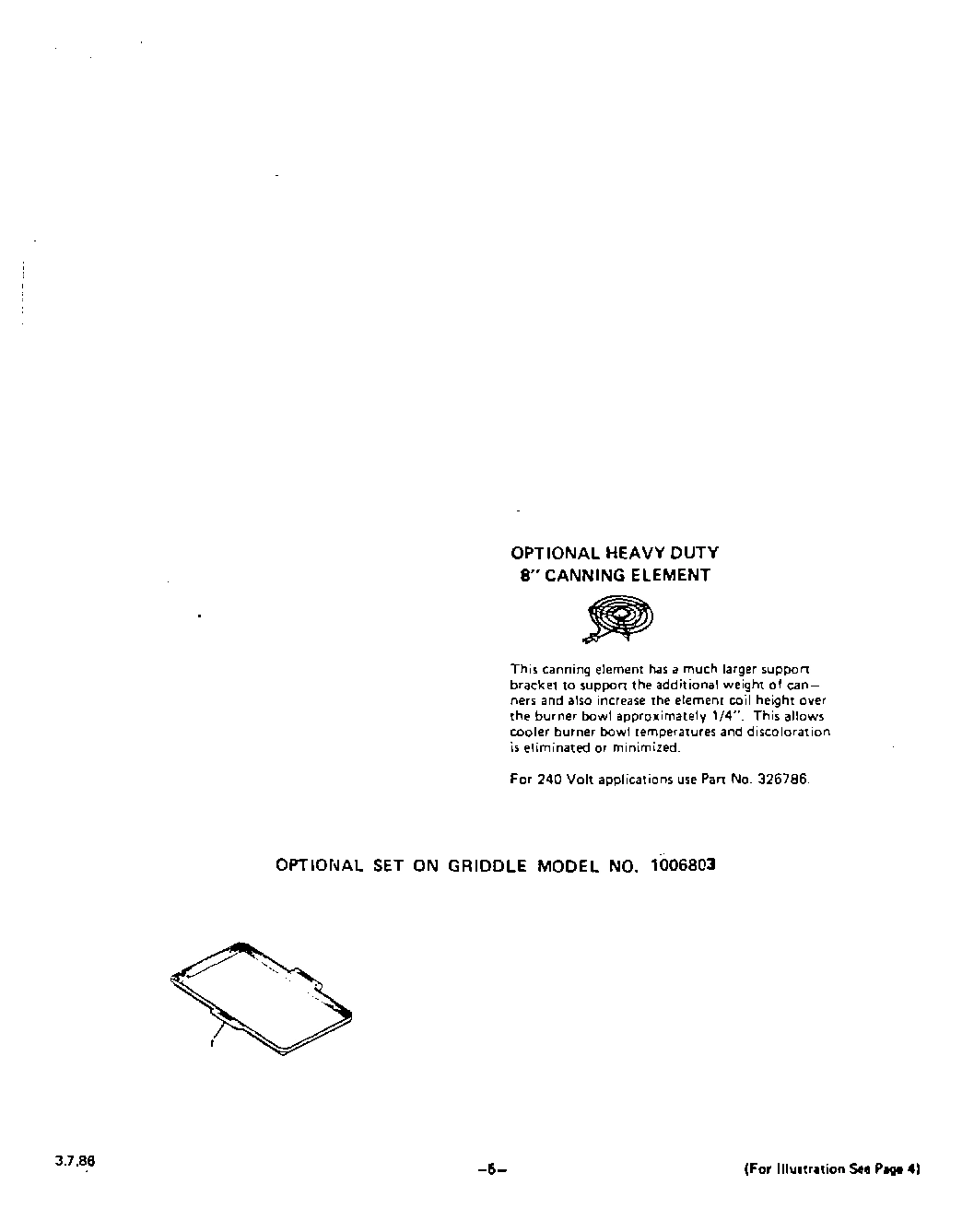

05 - CANNING ELEMENT , GRIDDLE

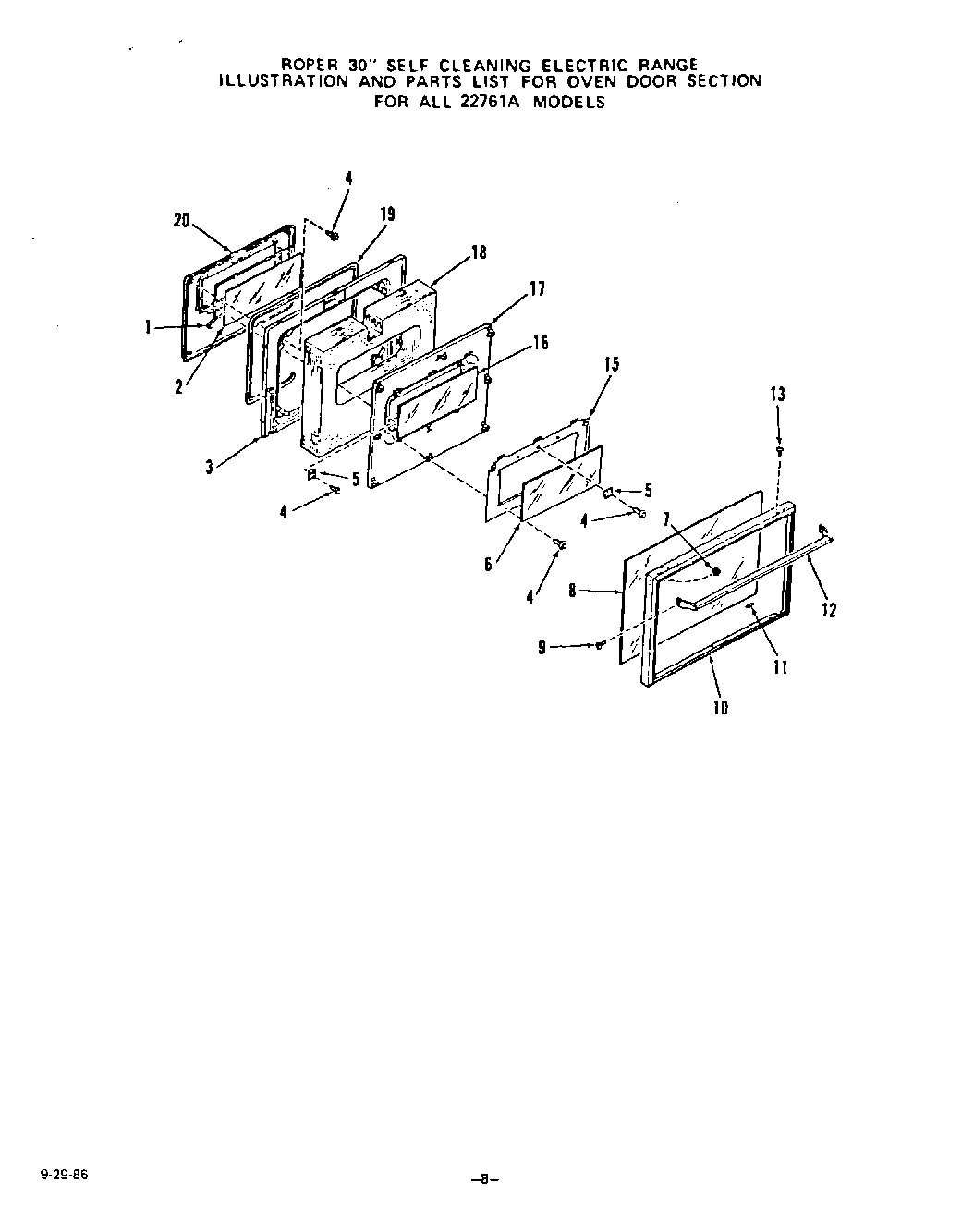

07 - OVEN DOOR

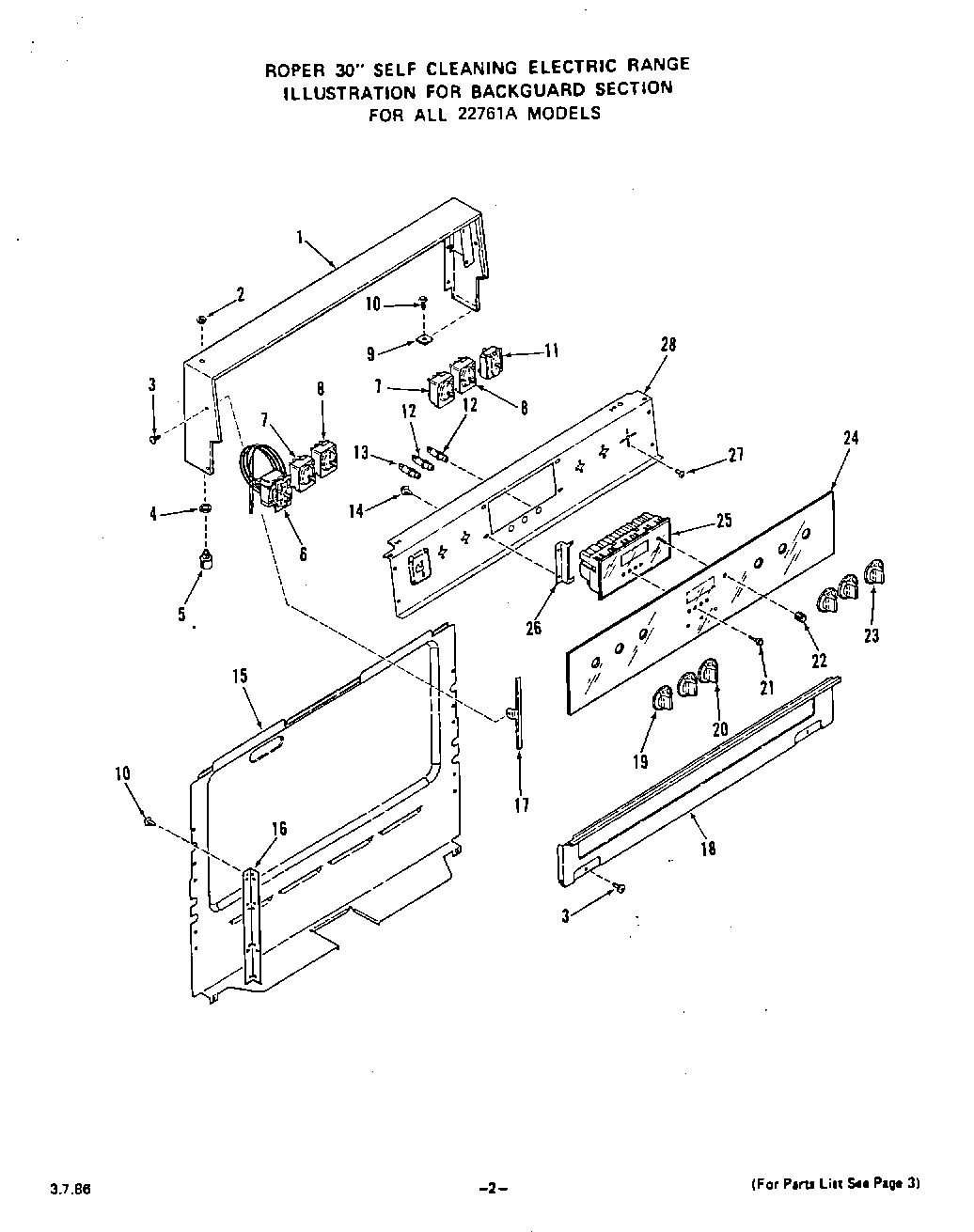

03 - BACKGUARD
Common parts from model Whirlpool 2276W1A ELECTRIC RANGE
xWire Harness WPL ARI10198A5 Contact Us For Availability
1
Stud WPL 326412 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
1
Set-On Griddle WPL 309844 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
1
Frame-Backguard WPL 333245 Contact Us For Availability
2
Spring-Solenoid WPL 326413 Contact Us For Availability
2
6`` Surface Unit (Lt. Front & Rt. Rear) WPL 325510 Contact Us For Availability
2
Nut-Hex 10-32 WPL 97816 Contact Us For Availability
2
Glass-Inner Oven Door WPL 312426 Contact Us For Availability
2
Knurled Nut (2 Req) WPL 87403 Contact Us For Availability
3
Solenoid Only WPL 327003 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Ground Strap WPL 327255 Contact Us For Availability
3
Lining-Oven Door WPL 331624 Contact Us For Availability
3
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
4
Washer WPL 299425 Contact Us For Availability
4
Pal Nut 3/8-27 (2 Req) WPL 236129 Contact Us For Availability
5
Mounting Screw WPL 319433 Contact Us For Availability
5
Wire Shield-Lower WPL 327258 Contact Us For Availability
5
Retainer-Door Glass WPL 326009 Contact Us For Availability
5
Push Switch-Oven Light WPL 283523 Contact Us For Availability
6
Bracket w/Switch WPL 327034 Contact Us For Availability
6
Retainer-Insulation (Lt. or Rt.) WPL 313284 Contact Us For Availability
6
Glass-Intermediate Oven Door WPL 326088 Contact Us For Availability
6
Oven Thermostat WPL 329907 Contact Us For Availability
7
Oven Door Lock Assm. (Inc. Key 9) WPL 326877 Contact Us For Availability
7
Spacer-Main Top (Lt. or Rt.) WPL 326914 Contact Us For Availability
7
Nut-Keps 8-32 WPL 239764 Contact Us For Availability
7
Infinite Switch-Rt. Rear or Lt Front WPL 324608 Contact Us For Availability
8
Rod-Oven Door Lock WPL 308829 Contact Us For Availability
8
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
8
Glass-Outer Oven Door WPL 326367 Contact Us For Availability
8
Infinite Switch-Rt. Front or Lt. Rear WPL 324609 Contact Us For Availability
9
Spring-Lock Handle WPL 299599 Contact Us For Availability
9
Bracket-Main Top Hinge (2 Req) WPL 320931 Contact Us For Availability
9
Bracket-Body Side (Lt. or Rt.) WPL 326516 Contact Us For Availability
9
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
9
Plate (Rt. or Lt.) WPL 323523 Contact Us For Availability
10
Knob-Oven Door Lock Handle WPL 323363 Contact Us For Availability
10
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
10
Right WPL 320921 Contact Us For Availability
10
Left WPL 320922 Contact Us For Availability
10
Hinge-Main Top WPL ARI10193A2 Contact Us For Availability
10
Frame-Oven Door WPL 331172 Contact Us For Availability
11
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
11
White WPL 326055 Contact Us For Availability
11
Golden Wheat WPL 326058 Contact Us For Availability
11
Almond WPL 326059 Contact Us For Availability
11
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
11
Side-Body (Lt. or Rt.) WPL ARI10195A7 Contact Us For Availability
11
Cushion (3 Req) WPL 112370 Contact Us For Availability
11
Selector Switch WPL 329905 Contact Us For Availability
12
Bottom-Burner Box WPL 331589 Contact Us For Availability
12
SCrew 8ABx3/8`` WPL 314124 Contact Us For Availability
12
Handle WPL 303342 Contact Us For Availability
12
Indicator Light-Surface or Lock WPL 296317 Contact Us For Availability
13
Washer WPL 21067 Contact Us For Availability
13
Cover-Lock Rod WPL 308830 Contact Us For Availability
13
Support-Storage Drawer WPL 311441 Contact Us For Availability
13
Screw WPL 331704 Contact Us For Availability
13
Indicator Light-Oven WPL 329931 Contact Us For Availability
14
Screw 10AB WPL 326974 Contact Us For Availability
14
Block-Slide Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
15
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
15
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
15
Plate-Glass Mounting WPL 328615 Contact Us For Availability
15
Wire Cover-Backguard WPL 326085 Contact Us For Availability
16
Support Rod-Main Top WPL 320725 Contact Us For Availability
16
Block-Rear Slide (Lt. or Rt.) WPL 281913 Contact Us For Availability
16
Glass-Center Oven Door WPL 326632 Contact Us For Availability
16
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
17
Clip WPL 285945 Contact Us For Availability
17
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
17
End Trim-Top Lamp Glass (Lt. or Rt.) WPL 316351 Contact Us For Availability
18
White WPL 326530 Contact Us For Availability
18
Almond WPL 326531 Contact Us For Availability
18
Golden Wheat WPL 326534 Contact Us For Availability
18
Chrome WPL 327356 Contact Us For Availability
18
Main Top WPL ARI10194A3 Contact Us For Availability
18
Spring-Oven Door WPL 326965 Contact Us For Availability
18
Insulation-Oven Door WPL 326000 Contact Us For Availability
18
Backguard Front-Bottom WPL 296585 Contact Us For Availability
19
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL 304969 Contact Us For Availability
19
Gasket-Oven Door WPL 292244 Contact Us For Availability
19
Knob-Thermostat WPL 329933 Contact Us For Availability
20
8`` Surface Unit (Rt. Front & Lt. Rear) WPL 325506 Contact Us For Availability
20
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
20
Main Top WPL 331377 Contact Us For Availability
20
Thermostat WPL 334672 Contact Us For Availability
20
Main WPL 334673 Contact Us For Availability
20
Plug-Oven Door Lining WPL 335165 Contact Us For Availability
20
Knob-Infinite Switch (4 Req) WPL 325472 Contact Us For Availability
21
Terminal Block w/Wire Lead (4 Req) WPL 318960 Contact Us For Availability
21
Right WPL 326012 Contact Us For Availability
21
Left WPL 326013 Contact Us For Availability
21
Hinge-Oven Door WPL ARI10196A7 Contact Us For Availability
21
Clock Knob (4 Req) WPL 331236 Contact Us For Availability
22
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
22
Strike-Main Top (Lt. or Rt.) WPL 326513 Contact Us For Availability
23
Bracket-Terminal Block (4 Req) WPL 318872 Contact Us For Availability
23
Retainer-Bottom Insulation WPL 313281 Contact Us For Availability
23
Knob-Selector Switch WPL 329935 Contact Us For Availability
24
Backguard Glass WPL 332595 Contact Us For Availability
25
Insulation-Oven Bottom & Back WPL 308861 Contact Us For Availability
25
Clock Electronic WPL 331181 Contact Us For Availability
26
Back-main WPL 325879 Contact Us For Availability
26
Bracket-Clock WPL 331180 Contact Us For Availability
27
Plate-Range Service Mounting WPL 327259 Contact Us For Availability
27
Screw 8-3/16`` WPL 78565 Contact Us For Availability
28
Insulator-Service Cord WPL 327242 Contact Us For Availability
28
Mounting Panel-Controls WPL 331451 Contact Us For Availability
29
Junction Block WPL 290105 Contact Us For Availability
30
Screw 10-32x1`` WPL 313190 Contact Us For Availability
31
Shield-Upper Wire WPL 327235 Contact Us For Availability
34
Plate-Thermostat Bulb Cover WPL 237762 Contact Us For Availability
35
Front Frame WPL 331587 Contact Us For Availability
36
Tube-Vent WPL 331723 Contact Us For Availability
38
Leveler-Leg (4 Req) WPL 326052 Contact Us For Availability
39
Drawer-Storage WPL 296150 Contact Us For Availability
41
White WPL 326073 Contact Us For Availability
41
Wheat WPL 326076 Contact Us For Availability
41
Almond WPL 326077 Contact Us For Availability
41
Panel-Storage Drawer (Black) WPL 326078 Contact Us For Availability
41
Panel-Storage Drawer WPL ARI10197A8 Contact Us For Availability
42
Handle WPL 292240 Contact Us For Availability
43
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
47
Element-Bake WPL 325883 Contact Us For Availability
49
Lens-Oven Lamp WPL 114989 Contact Us For Availability
50
Gasket-Lens WPL 229371 Contact Us For Availability
51
Holder-Oven Lamp WPL 87883 Contact Us For Availability
52
WPL 111257 WPL 111257 Contact Us For Availability
53
WPL 304835 WPL 304835 Contact Us For Availability
55
WPL 321539 WPL 321539 Contact Us For Availability
56
WPL 331578 WPL 331578 Contact Us For Availability
57
WPL 316951 WPL 316951 Contact Us For Availability
58
WPL 308860 WPL 308860 Contact Us For Availability
59
WPL 326360 WPL 326360 Contact Us For Availability
60
WPL 324808 WPL 324808 Contact Us For Availability
61
WPL 326297 WPL 326297 Contact Us For Availability
62
WPL 331592 WPL 331592 Contact Us For Availability
63
WPL 326069 WPL 326069 Contact Us For Availability
64
WPL 229372 WPL 229372 Contact Us For Availability
× ![]()
