Model Whirlpool 1SF034PEN1 GAS RANGE – Common Parts & Diagrams
04 - OVEN DOOR AND BROILER
06 - INTERNAL OVEN

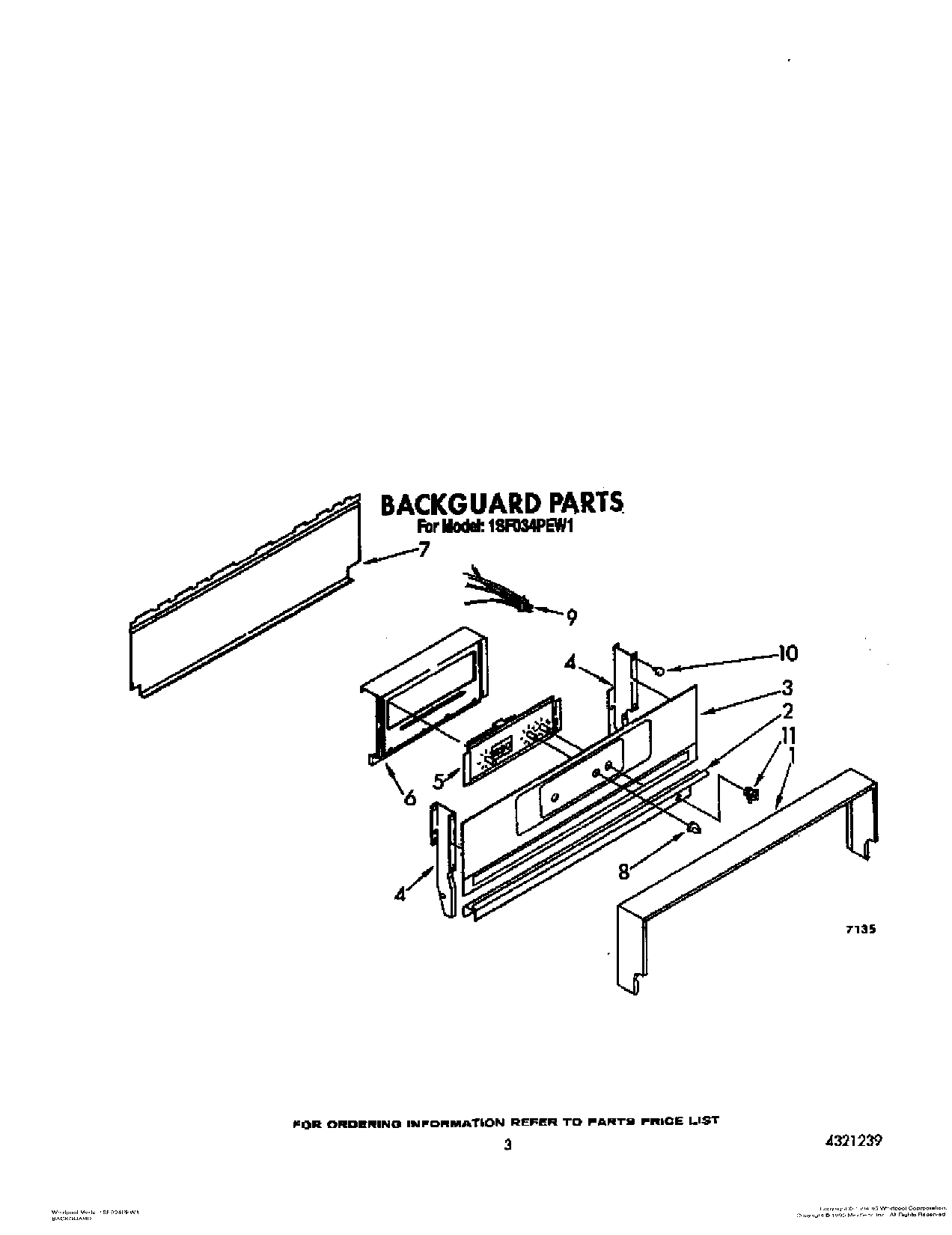

03 - BACKGUARD

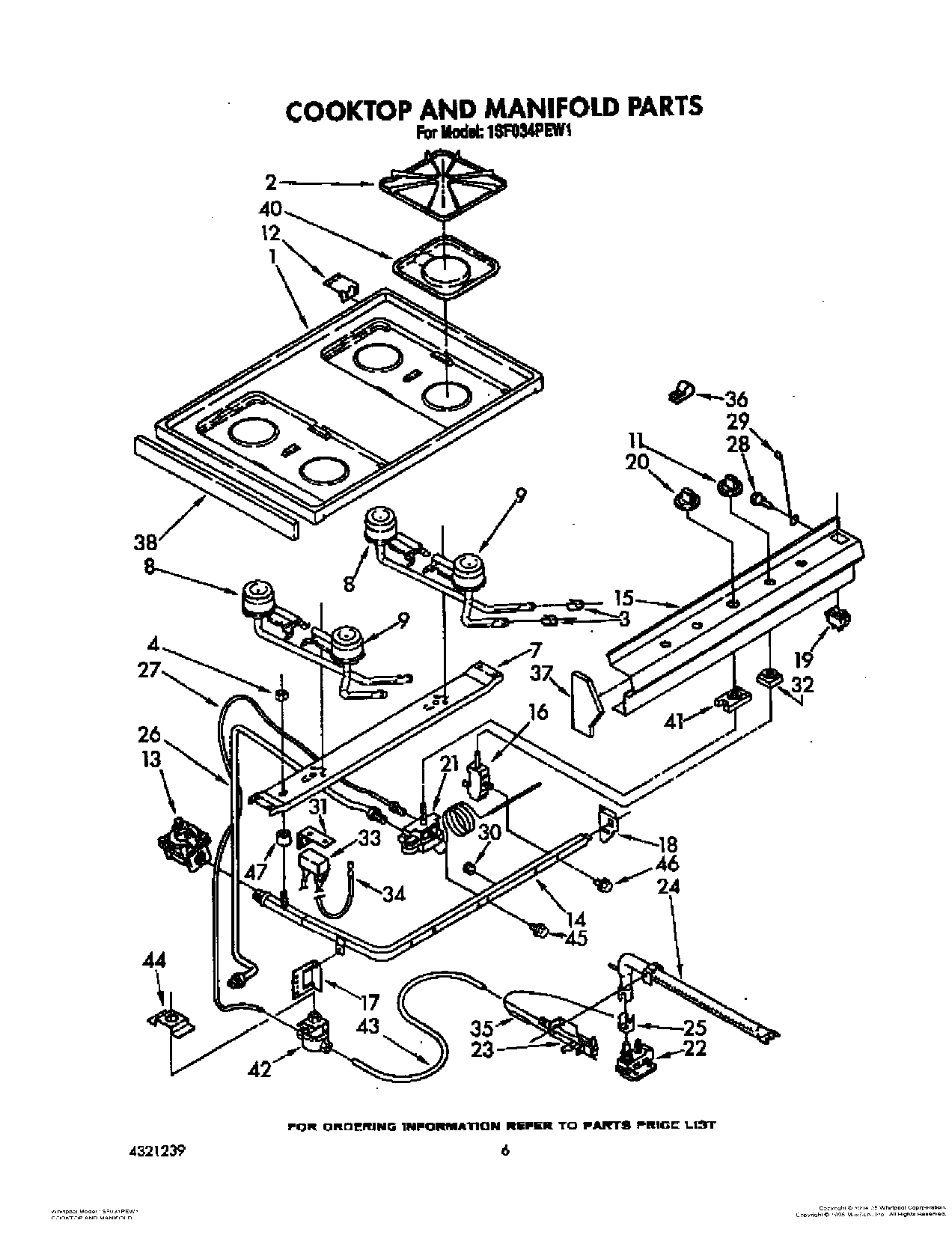

05 - COOKTOP AND MANIFOLD, LIT/OPTIONAL

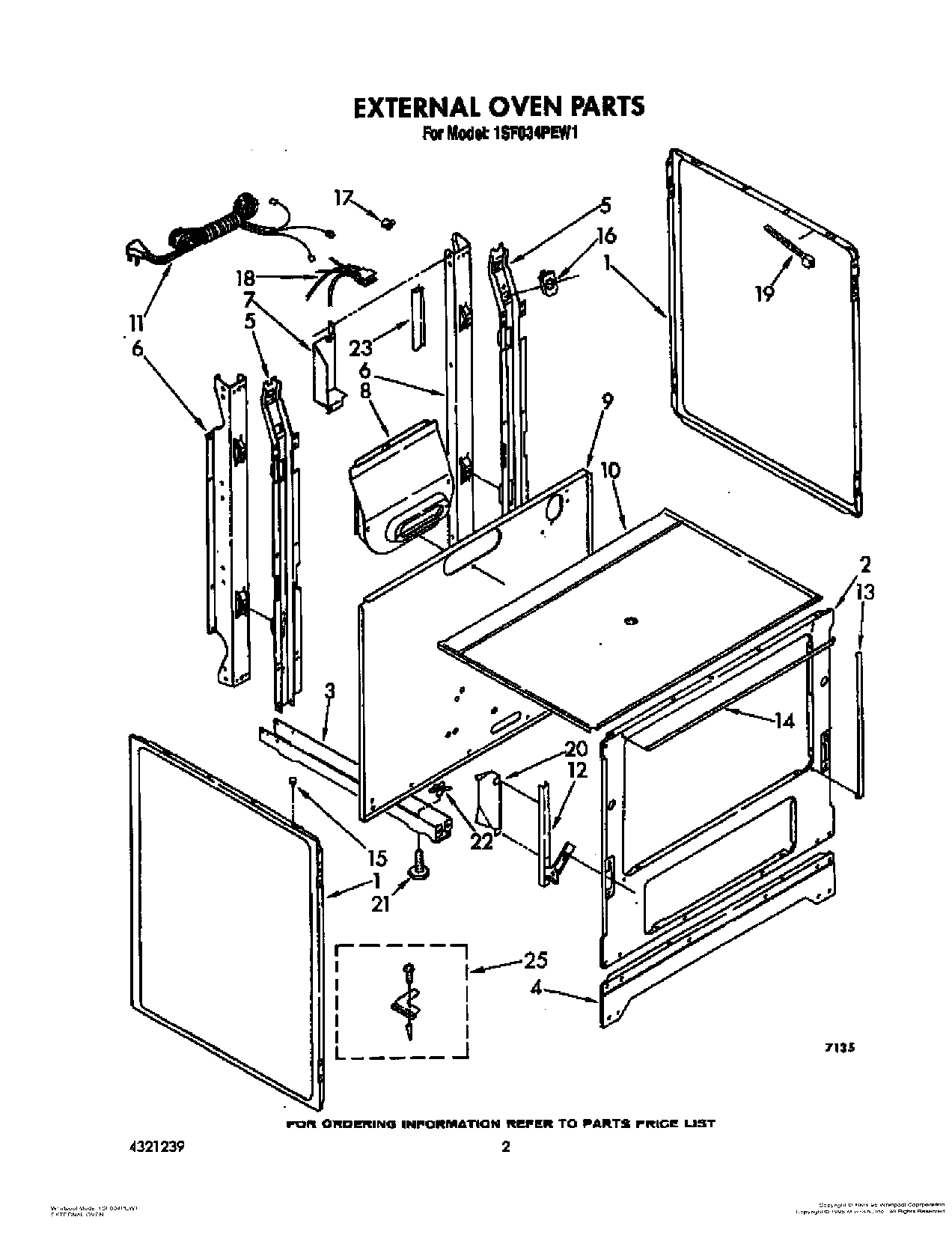

02 - EXTERNAL OVEN
Common parts from model Whirlpool 1SF034PEN1 GAS RANGE
WPL LIT4315633 WPL LIT4315633 Contact Us For Availability
WPL LIT4315636 WPL LIT4315636 Contact Us For Availability
WPL LIT4315637 WPL LIT4315637 Contact Us For Availability
WPL LIT4321239 WPL LIT4321239 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Frame WPL 4315728 Contact Us For Availability
1
Cooktop (White) WPL 4315731 Contact Us For Availability
1
Cooktop (Almond) WPL 4315732 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4320372 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4320373 Contact Us For Availability
2
Liner, Oven Top WPL 4315050 Contact Us For Availability
2
Bottom, Backguard WPL 4315484 Contact Us For Availability
2
Grate (4) WPL 4157196 Contact Us For Availability
2
Frame, Front WPL 4315752 Contact Us For Availability
3
Frame, Door WPL 4179008 Contact Us For Availability
3
Baffle, Bottom WPL 4315727 Contact Us For Availability
3
Glass, Backguard WPL 4315751 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Rail, Base (2) WPL 4157005 Contact Us For Availability
4
Glass WPL 4157038 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157165 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157166 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Base, Front WPL 4179023 Contact Us For Availability
5
Ring, Hold Down WPL 4157031 Contact Us For Availability
5
Roller (2) WPL 4315388 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Clock WPL 4315369 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Window WPL 4157032 Contact Us For Availability
6
Pin, Roller (2) WPL 4315381 Contact Us For Availability
6
Bracket, Clock WPL 4179246 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Liner, Oven Back WPL 4315057 Contact Us For Availability
7
Screw, 10-12 X 3/8 (2) WPL 4157121 Contact Us For Availability
7
Panel, Rear WPL 4315347 Contact Us For Availability
7
Support, Burner WPL 4315733 Contact Us For Availability
7
Cover, Wire WPL 4157013 Contact Us For Availability
8
Support, Glass WPL 4157034 Contact Us For Availability
8
Knob, Clock WPL 786434 Contact Us For Availability
8
Burner, Rear (2) WPL 4157206 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
9
Liner, Door WPL 4315066 Contact Us For Availability
9
Receptacle, Light WPL 4157020 Contact Us For Availability
9
Block, Disconnect WPL 4157112 Contact Us For Availability
9
Burner, Front (2) WPL 4157205 Contact Us For Availability
9
Panel, Rear WPL 4315737 Contact Us For Availability
10
Support, Glass (2) WPL 4157037 Contact Us For Availability
10
Bumper (4) WPL 4157128 Contact Us For Availability
10
Burner Box WPL 4315736 Contact Us For Availability
11
Plate (2) WPL 4157131 Contact Us For Availability
11
Bottom, Oven WPL 4315075 Contact Us For Availability
11
Strain Relief WPL 4157133 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Panel, Broiler (White) WPL 4315742 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4315743 Contact Us For Availability
12
Rack, Oven (2) WPL 4315754 Contact Us For Availability
12
Hinge, Maintop (2) WPL 4157083 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
13
Handle, Broiler Door WPL 4157040 Contact Us For Availability
13
Screw, 10-12 X 5/8 (2) WPL 4157118 Contact Us For Availability
13
Washer (2) WPL 4157119 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
14
Spacer (2) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4315734 Contact Us For Availability
14
Seal, Door (Top) WPL 4315332 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Panel, Manifold WPL 4315735 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
16
Shield, Radiation WPL 4157331 Contact Us For Availability
16
Valve, 180~ (4) (Includes Ill. No. 46) WPL 4179356 Contact Us For Availability
16
Bracket, Receptable WPL 4157129 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
17
Support, Manifold (L.H.) WPL 4157088 Contact Us For Availability
17
Strain Relief WPL 4157143 Contact Us For Availability
18
Liner, Broiler WPL 4157172 Contact Us For Availability
18
Support, Manifold (R.H.) WPL 4179357 Contact Us For Availability
18
Block, Disconnect WPL 4157149 Contact Us For Availability
19
Switch, Oven Light WPL 4315435 Contact Us For Availability
19
Clip, Wire WPL 4157127 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
21
Thermostat (Includes Ill. No. 45) WPL 4179354 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Bumper, Nylon (4) WPL 4315387 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Screw, 10-24 X 1/4 (1) WPL 4157126 Contact Us For Availability
23
Pilot WPL 4157179 Contact Us For Availability
23
Safe Edge WPL 4157132 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
25
Plate (2) WPL 4157053 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
25
Anti Tip Kit WPL 4315756 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
26
Tubing, (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Tubing, (Thermostat To Solenoid) WPL 4179104 Contact Us For Availability
28
Screw WPL 4157018 Contact Us For Availability
29
Rod, Support WPL 4157010 Contact Us For Availability
31
Plate, Module WPL 4157171 Contact Us For Availability
33
Module, Spark WPL 4179297 Contact Us For Availability
34
Ignitor (R.H.) WPL 4179200 Contact Us For Availability
34
Ignitor (L.H.) WPL 4179201 Contact Us For Availability
35
Ignitor, Oven WPL 4315316 Contact Us For Availability
36
Strain Relief WPL 4157185 Contact Us For Availability
37
Endcap (L.H.) WPL 4157186 Contact Us For Availability
37
Endcap (R.H.) WPL 4157187 Contact Us For Availability
38
Trim, Cooktop (2) WPL 4314888 Contact Us For Availability
42
Valve, Solenoid WPL 4179103 Contact Us For Availability
43
Tubing, (Solenoid to Burner Pilot) WPL 4179105 Contact Us For Availability
44
Bracket, Solenoid WPL 4179110 Contact Us For Availability
45
Bolt, Thermostat WPL 4314816 Contact Us For Availability
46
WPL 4314817 WPL 4314817 Contact Us For Availability
47
WPL 241430 WPL 241430 Contact Us For Availability
47
WPL 4315207 WPL 4315207 Contact Us For Availability
× ![]()
