Model Whirlpool 1893W0A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams

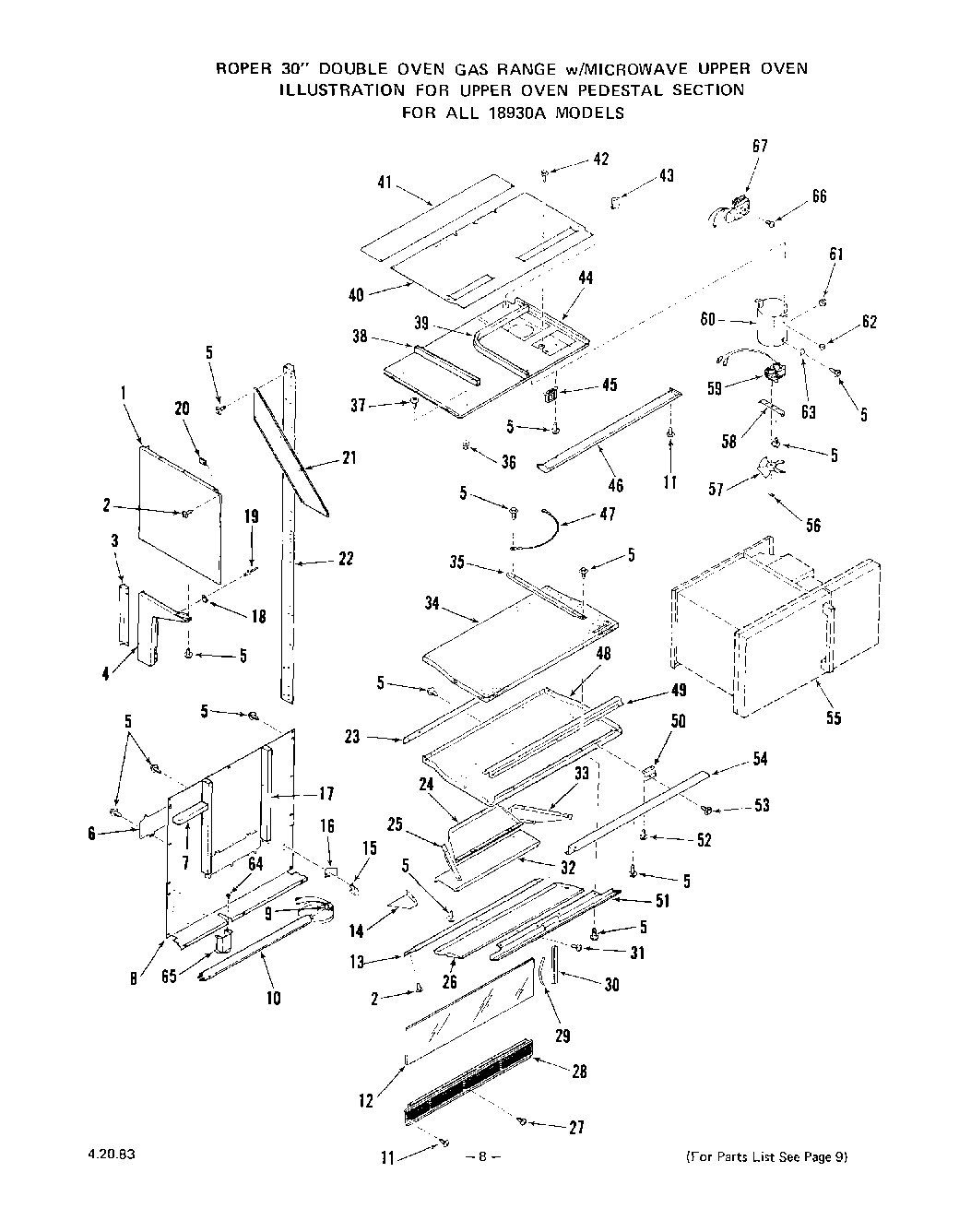

06 - UPPER OVEN PEDESTAL

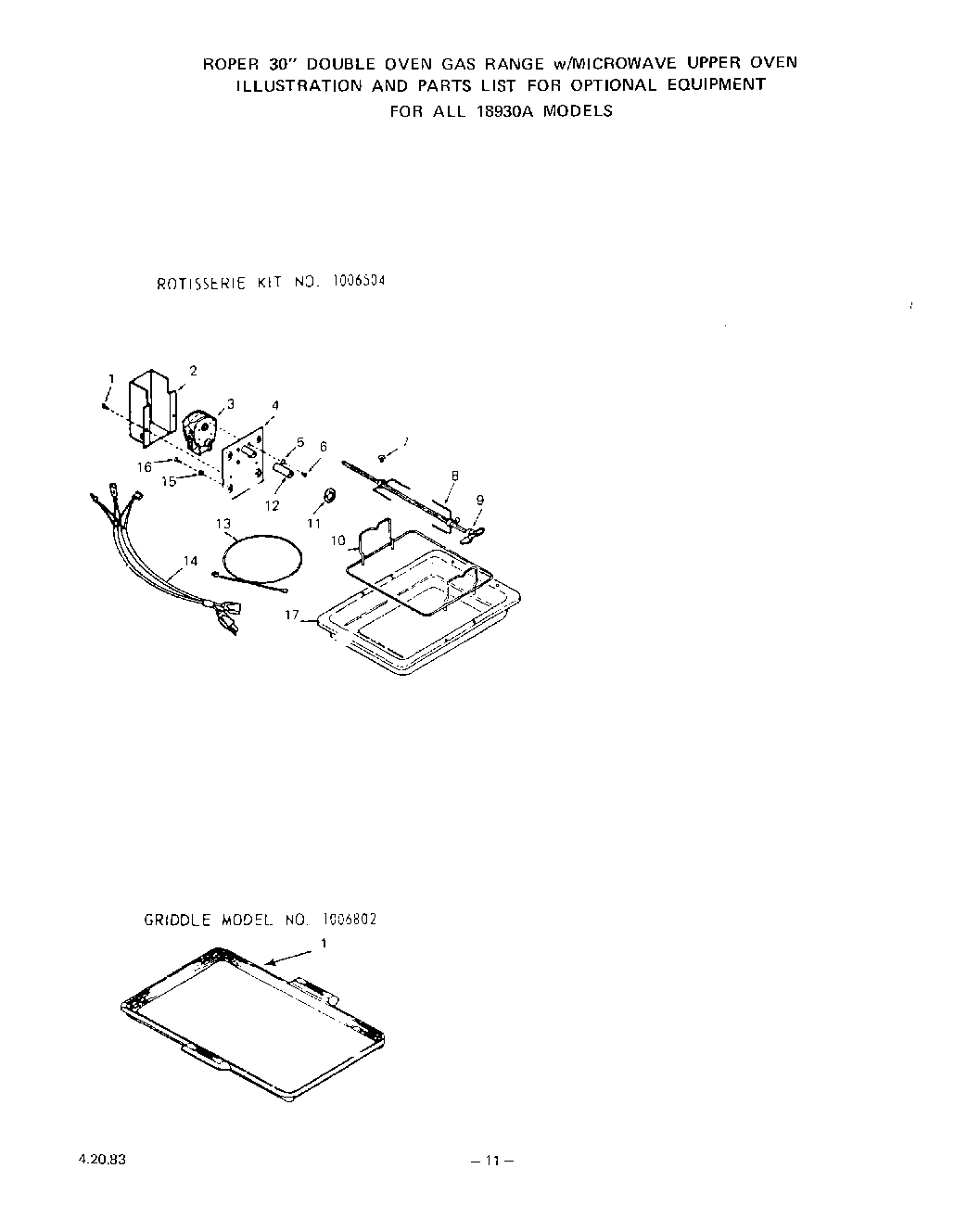

08 - LIT/OPTIONAL
02 - POWER LOCK
09 - LIT/OPTIONAL

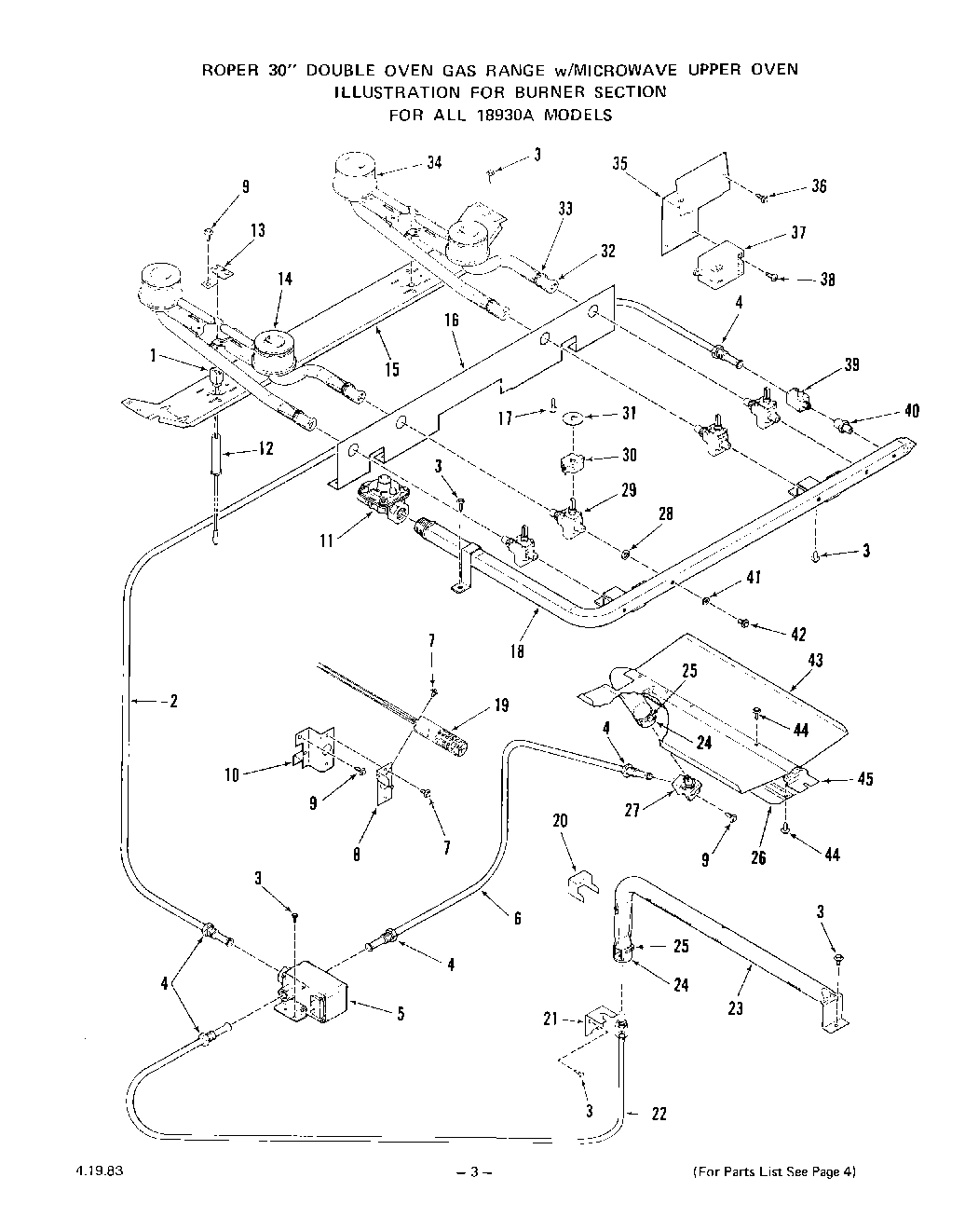

04 - LOWER BODY

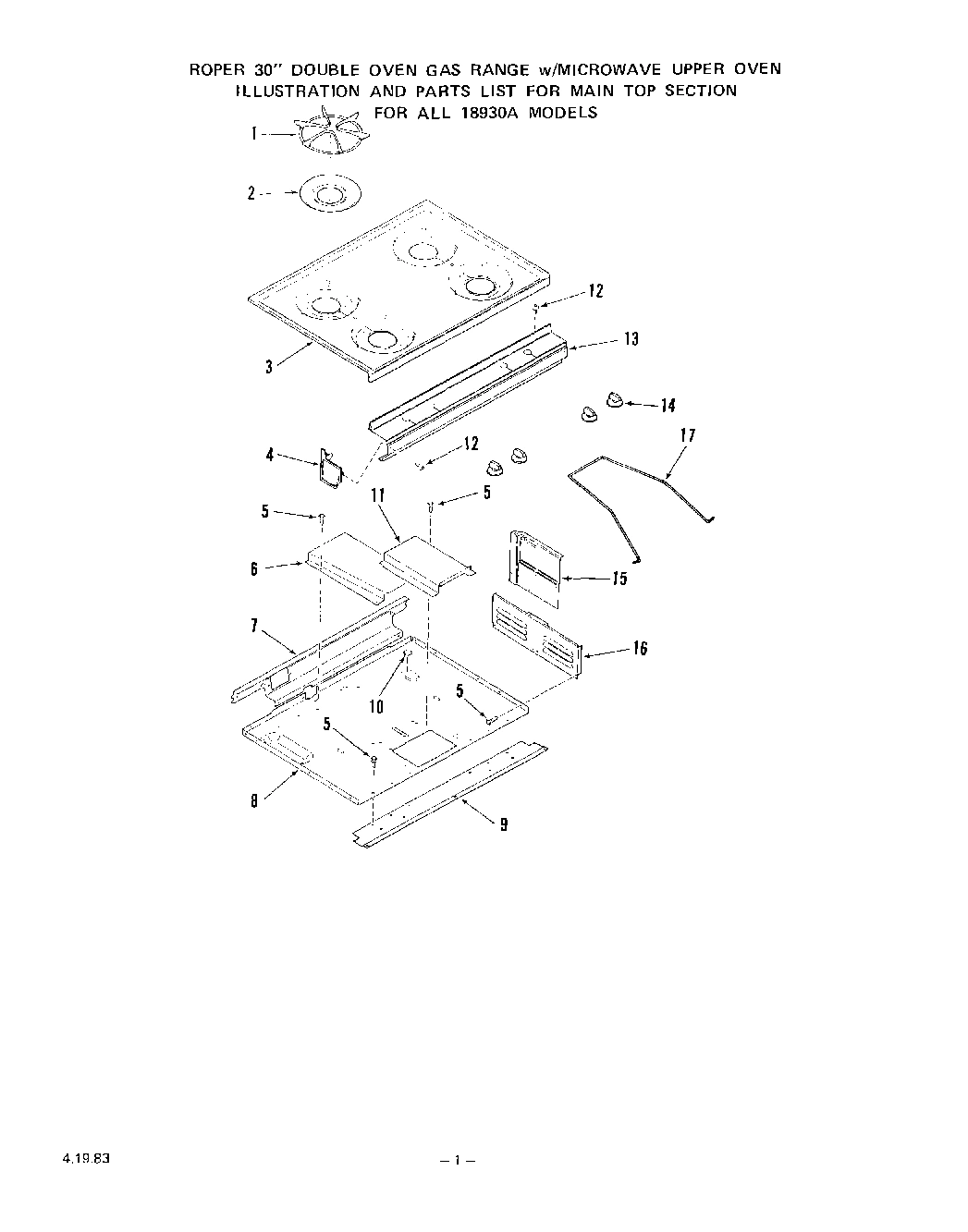

01 - MAIN TOP

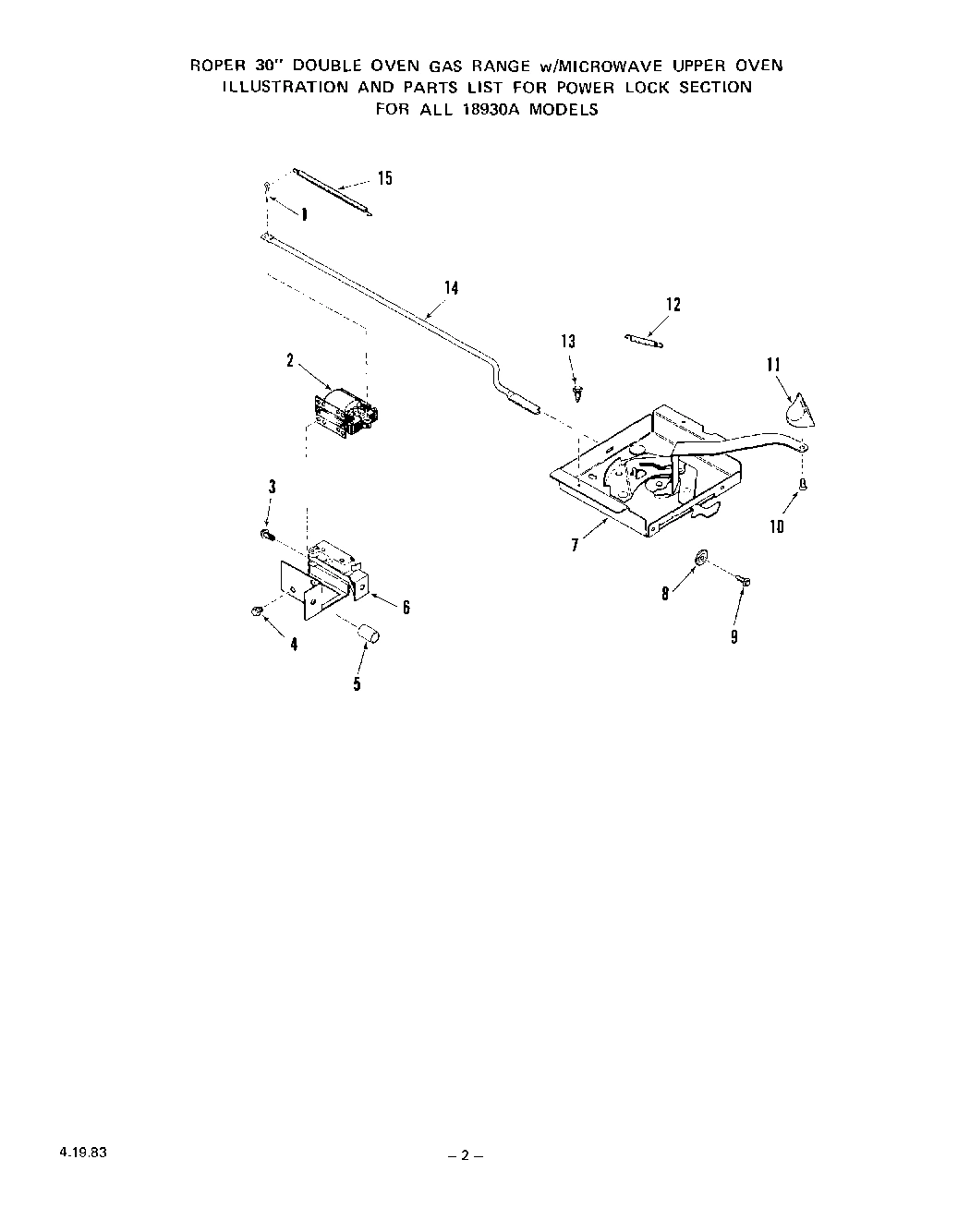

03 - BURNER

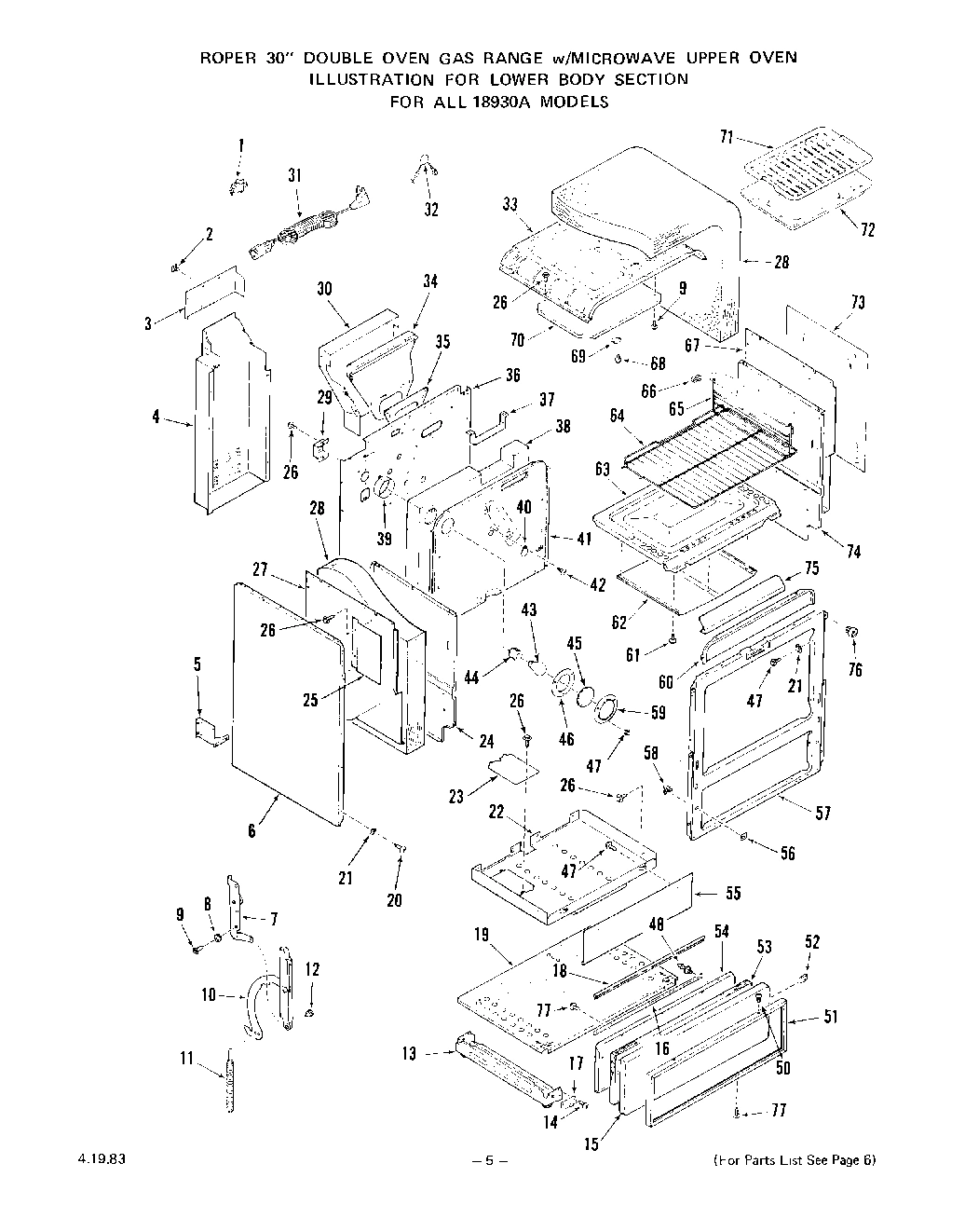

05 - LOWER OVEN DOOR
07 - LOWER OVEN CONTROL

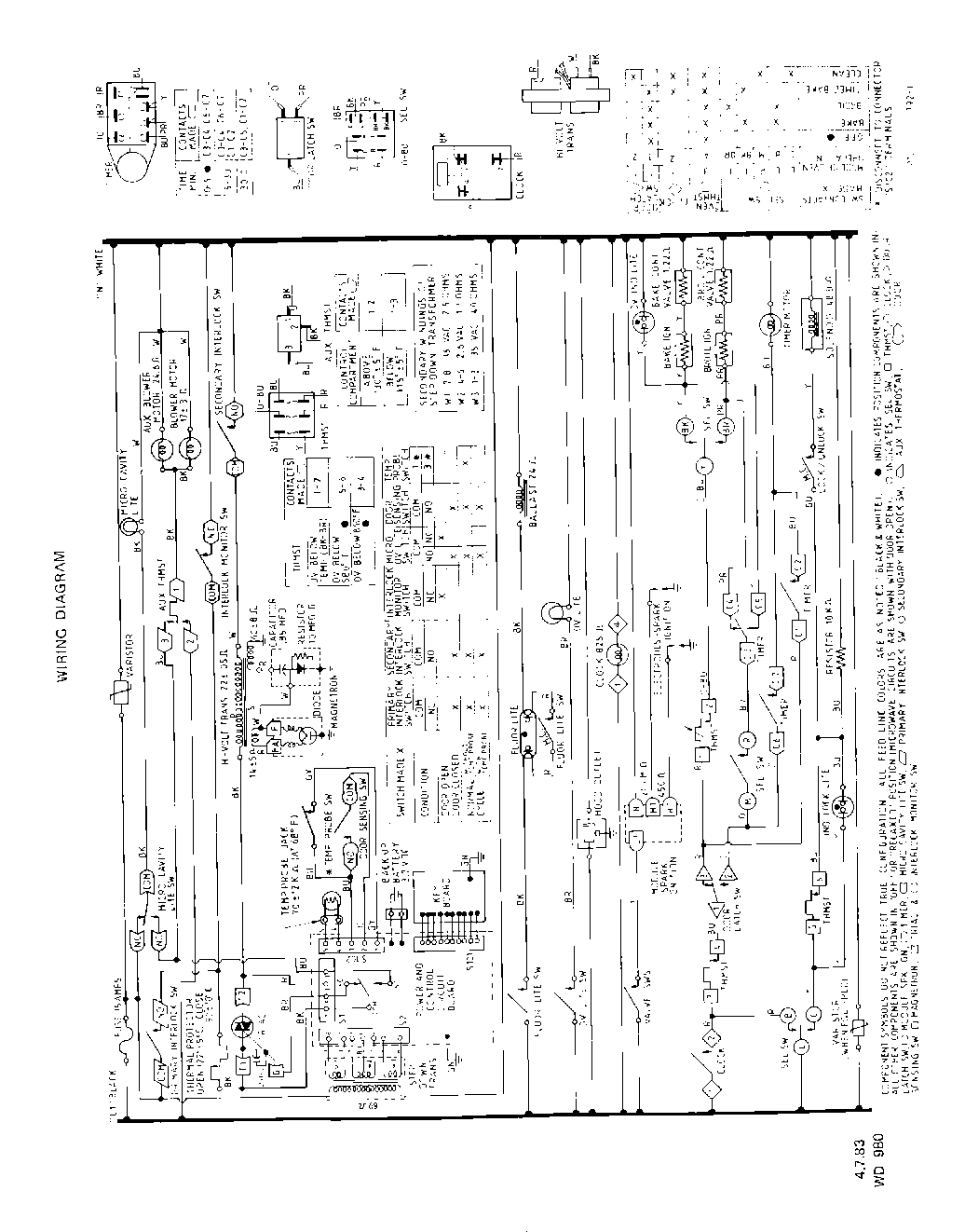

10 - SECTION
Common parts from model Whirlpool 1893W0A DOUBLE OVEN GAS RANGE
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI9019A22 Contact Us For Availability
1
Screw 10ABx1 WPL 105799 Contact Us For Availability
1
Screw 8-32x3/8`` WPL 315627 Contact Us For Availability
1
Top Grate (4 Required) WPL 316786 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006802 Contact Us For Availability
1
Electrode-Spark Ignition (Right) WPL 312454 Contact Us For Availability
1
Electrode-Spark Ignition (Left) WPL 313629 Contact Us For Availability
1
Cotter Pin WPL 318089 Contact Us For Availability
1
Disconnect WPL 232150 Contact Us For Availability
1
Upper Oven Body Side (White-Left) WPL 324022 Contact Us For Availability
1
Upper Oven Body Side (Coffee-Left) WPL 324023 Contact Us For Availability
1
Upper Oven Body Side (Avocado-Left) WPL 324024 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat-Left) WPL 324025 Contact Us For Availability
1
Upper Oven Body Side (Almond-Left) WPL 324026 Contact Us For Availability
1
Upper Oven Body Side (White-Right) WPL 324028 Contact Us For Availability
1
Upper Oven Body Side (Coffee-Right) WPL 324029 Contact Us For Availability
1
Upper Oven Body Side (Avocado-Right) WPL 324030 Contact Us For Availability
1
Upper Oven Body Side (Golden Wheat-Right) WPL 324031 Contact Us For Availability
1
Upper Oven Body Side (Almond-Right) WPL 324032 Contact Us For Availability
2
Washer WPL 21067 Contact Us For Availability
2
Auxiliary Thermostat WPL 321016 Contact Us For Availability
2
Spill Bowl (4 Required) WPL 310385 Contact Us For Availability
2
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Tubing 3/8``-Shut Off Valve to Control Valve WPL 323400 Contact Us For Availability
2
Solenoid Only WPL 319431 Contact Us For Availability
3
Seal-Fiberglass WPL 302935 Contact Us For Availability
3
Selector Switch WPL 324793 Contact Us For Availability
3
Main Top (White) WPL 316788 Contact Us For Availability
3
Main Top (Almond) WPL 316789 Contact Us For Availability
3
Main Top (Golden Wheat) WPL 316790 Contact Us For Availability
3
Main Top (Avocado) WPL 316791 Contact Us For Availability
3
Main Top (Coffee) WPL 316792 Contact Us For Availability
3
Main Top (Chrome) WPL 324787 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
3
Extension-Wire Cover WPL 323289 Contact Us For Availability
3
Support-Pedestal (Lt. or Rt.) WPL 320119 Contact Us For Availability
4
Mounting Bracket-Controls WPL 322953 Contact Us For Availability
4
End Cap (Left) WPL 302660 Contact Us For Availability
4
End Cap (Right) WPL 302661 Contact Us For Availability
4
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
4
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
4
Mounting Screw WPL 319433 Contact Us For Availability
4
Wire Cover WPL 324830 Contact Us For Availability
4
Pedestal-Upper Oven (White-Left) WPL 320024 Contact Us For Availability
4
Pedestal-Upper Oven (Coffee-Left) WPL 320025 Contact Us For Availability
4
Pedestal-Upper Oven (Avocado-Left) WPL 320026 Contact Us For Availability
4
Pedestal-Upper Oven (Golden Wheat-Left) WPL 320027 Contact Us For Availability
4
Pedestal-Upper Oven (Almond-Left) WPL 320028 Contact Us For Availability
4
Pedestal-Upper Oven (White-Right) WPL 320030 Contact Us For Availability
4
Pedestal-Upper Oven (Coffee-Right) WPL 320031 Contact Us For Availability
4
Pedestal-Upper Oven (Avocado-Right) WPL 320032 Contact Us For Availability
4
Pedestal-Upper Oven (Golden Wheat-Right) WPL 320033 Contact Us For Availability
4
Pedestal-Upper Oven (Almond-Right) WPL 320034 Contact Us For Availability
5
Insulation Oven Door Plug WPL 310962 Contact Us For Availability
5
Push Switch (Fluorescent Light) WPL 288557 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Dual Control Valve WPL 306267 Contact Us For Availability
5
Spacer (2 Required) WPL 310419 Contact Us For Availability
5
Support (Left) WPL 320121 Contact Us For Availability
5
Support (Right) WPL 320123 Contact Us For Availability
6
Gasket-Oven Door WPL 282441 Contact Us For Availability
6
Push Switch (Lock-Unlock) WPL 305928 Contact Us For Availability
6
Cover-Lock Rod WPL 321301 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
6
Tubing 3/8``-Control Valve to Broiler Burner WPL 293898 Contact Us For Availability
6
Bracket w/Switch WPL 319432 Contact Us For Availability
6
Body Side-Lt. or Rt. (Inc. Key 73) (White) WPL 321920 Contact Us For Availability
6
Body Side-Lt. or Rt. (Inc. Key 73) (Coffee) WPL 321921 Contact Us For Availability
6
Body Side-Lt. or Rt. (Inc. Key 73) (Avocado) WPL 321922 Contact Us For Availability
6
Body Side-Lt. or Rt. (Inc. Key 73) (Golden Wh WPL 321923 Contact Us For Availability
6
Body Side-Lt. or Rt. (Inc. Key 73) (Almond) WPL 321924 Contact Us For Availability
6
Cover Plate WPL 322992 Contact Us For Availability
7
Insulation-Oven Door Lining WPL 320718 Contact Us For Availability
7
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
7
Indicator Light (Oven On & Lock) WPL 323228 Contact Us For Availability
7
Rear Support-Main Top WPL 310575 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Oven Door Lock Asem. (Inc. Key 12) WPL 324815 Contact Us For Availability
7
Hinge Bracket w/Roller (Inc. Key 12) (Left) WPL 325651 Contact Us For Availability
7
Hinge Bracket w/Roller (Inc. Key 12) (Right) WPL 325652 Contact Us For Availability
7
Foam Strip WPL 323860 Contact Us For Availability
8
Side Insulation-Lt. or Rt. WPL 320720 Contact Us For Availability
8
Push Switch (Oven Lamp) WPL 306333 Contact Us For Availability
8
Burner Box Bottom WPL 323979 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Bracket-Igniter (Oven or Broiler Burner) WPL 311689 Contact Us For Availability
8
Lockwasher WPL 69648 Contact Us For Availability
8
Wire Cover WPL 320215 Contact Us For Availability
9
Retainer-Side Insulation (Left) WPL 324849 Contact Us For Availability
9
Retainer-Side Insulation (Right) WPL 324850 Contact Us For Availability
9
Pal Nut 3/8-27 (2 Ea. For Key`s 5,6,8) WPL 236129 Contact Us For Availability
9
Front Extension-Burner Box Bottom WPL 320841 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
9
Holder-Fluorescent Lamp (Left) WPL 323866 Contact Us For Availability
9
Holder-Fluorescent Lamp (Right) WPL 323867 Contact Us For Availability
10
Knurled Nut (3 Req) WPL 87403 Contact Us For Availability
10
Plug Button WPL 239831 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Bracket-Igniter (Oven Burner) WPL 310497 Contact Us For Availability
10
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
10
Oven Door Hinge-Lt. or Rt. (Inc. Key 12) WPL 293971 Contact Us For Availability
10
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
11
Lens-Indicator Light WPL 325677 Contact Us For Availability
11
Cover-Latch WPL 310418 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Pressure Regulator WPL 311106 Contact Us For Availability
11
Knob-Oven Door Lock Handle WPL 323363 Contact Us For Availability
11
Spring-Oven Door (Lt. or Rt.) WPL 310993 Contact Us For Availability
11
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
12
Knob-Selector Switch WPL 321535 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Spacer-Lt. or Rt. WPL 320844 Contact Us For Availability
12
Spring-Lock Handle WPL 299599 Contact Us For Availability
12
Shoulder rivet WPL 293224 Contact Us For Availability
12
Lamp Glass WPL 324747 Contact Us For Availability
13
Knob-Thermostat WPL 321534 Contact Us For Availability
13
Manifold Panel WPL 321502 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 291284 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
13
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
13
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Base w/Levelers-(Lt. or Rt.) WPL 322941 Contact Us For Availability
13
Upper Retainer-Lamp Glass (White) WPL 320127 Contact Us For Availability
13
Upper Retainer-Lamp Glass (Coffee) WPL 320128 Contact Us For Availability
13
Upper R WPL 320129 Contact Us For Availability
13
WPL 320130 WPL 320130 Contact Us For Availability
13
WPL 320131 WPL 320131 Contact Us For Availability
14
Front Panel-Oven Door WPL 321848 Contact Us For Availability
14
Bushing-Knob WPL 324880 Contact Us For Availability
14
Knob-Gas Valve (4 Required) WPL 321065 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Front Top Burner-Lt. or Rt.(Inc`s. 32 & 33) WPL 310198 Contact Us For Availability
14
Rod-Oven Door Lock WPL 310555 Contact Us For Availability
14
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
14
WPL 322933 WPL 322933 Contact Us For Availability
14
WPL 322935 WPL 322935 Contact Us For Availability
15
Outer Door Glass WPL 319296 Contact Us For Availability
15
Wire Lead w/Resistor (10K,4-5 Watt) WPL 300326 Contact Us For Availability
15
Extension-Burner Box Bottom (Left) WPL 320837 Contact Us For Availability
15
Extension-Burner Box Bottom (Right) WPL 320839 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Support-Top Burner WPL 312452 Contact Us For Availability
15
Spring-Solenoid WPL 299704 Contact Us For Availability
15
Front-Snap On Panel WPL 319860 Contact Us For Availability
15
WPL 324746 WPL 324746 Contact Us For Availability
16
Frame-Oven Door Glass WPL 321849 Contact Us For Availability
16
Baffle-Burner Box Bottom (Rt. or Lt.) WPL 324265 Contact Us For Availability
16
Wire Shield-Gas Valve WPL 320744 Contact Us For Availability
16
Retainer - Seal WPL 295277 Contact Us For Availability
16
WPL 321107 WPL 321107 Contact Us For Availability
17
Cushion (6 Req) WPL 112370 Contact Us For Availability
17
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
17
Support Rod-Main Top WPL 307443 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
17
WPL 320696 WPL 320696 Contact Us For Availability
18
Handle-Oven Door WPL 282093 Contact Us For Availability
18
Thermostat WPL 323985 Contact Us For Availability
18
Manifold Pipe WPL 323398 Contact Us For Availability
18
Seal WPL 295278 Contact Us For Availability
18
WPL 285523 WPL 285523 Contact Us For Availability
19
Shield-Oven Door Lining WPL 314912 Contact Us For Availability
19
Speed Nut 8-32 WPL 230530 Contact Us For Availability
19
Igniter-Oven or Broiler Burner WPL 319887 Contact Us For Availability
19
Main Bottom WPL 324818 Contact Us For Availability
19
WPL 101523 WPL 101523 Contact Us For Availability
20
Intermediate Door Glass WPL 308239 Contact Us For Availability
20
Clock w/1 Hr. Timer WPL 324719 Contact Us For Availability
20
Support-Oven Burner WPL 282122 Contact Us For Availability
20
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
20
WPL 320196 WPL 320196 Contact Us For Availability
21
Center Door Glass WPL 296214 Contact Us For Availability
21
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
21
Main WPL 324794 Contact Us For Availability
21
Gas Valve Switches WPL 325882 Contact Us For Availability
21
Bracket-Orifice Fitting WPL 282112 Contact Us For Availability
21
Washer WPL 106462 Contact Us For Availability
21
WPL 324791 WPL 324791 Contact Us For Availability
22
Insulation Retainer WPL 324846 Contact Us For Availability
22
Tubing 3/8`` w/Orifice WPL 312076 Contact Us For Availability
22
Bottom-Oven Burner WPL 321272 Contact Us For Availability
22
WPL 319987 WPL 319987 Contact Us For Availability
23
Retainer-Oven Door Glass Insulation WPL 324853 Contact Us For Availability
23
Oven Burner (Inc`s 24 & 25) WPL 318449 Contact Us For Availability
23
Access Plate WPL 321274 Contact Us For Availability
23
WPL 320117 WPL 320117 Contact Us For Availability
24
Lining-Oven Door WPL 310912 Contact Us For Availability
24
Air Shutter WPL 312988 Contact Us For Availability
24
Oven Side-Left WPL 285482 Contact Us For Availability
24
WPL 322937 WPL 322937 Contact Us For Availability
25
Stiffener-Oven Door Lining WPL 310911 Contact Us For Availability
25
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
25
Baffel-Side Panel (Lt or Rt) WPL 311029 Contact Us For Availability
25
WPL 322951 WPL 322951 Contact Us For Availability
26
Inner Door Glass WPL 312426 Contact Us For Availability
26
Lower Baffle - Broiler Burner WPL 302904 Contact Us For Availability
26
WPL 321660 WPL 321660 Contact Us For Availability
26
WPL 321661 WPL 321661 Contact Us For Availability
26
WPL 321662 WPL 321662 Contact Us For Availability
26
WPL 321663 WPL 321663 Contact Us For Availability
26
WPL 321664 WPL 321664 Contact Us For Availability
27
Plug-Oven Door Lining WPL 320677 Contact Us For Availability
27
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
27
Upper Insulation Retainer-Lt. WPL 322075 Contact Us For Availability
27
WPL 108788 WPL 108788 Contact Us For Availability
28
Screw 10-24x3/8`` WPL 303003 Contact Us For Availability
28
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
28
Insulation-Oven Top & Sides (1 Piece) WPL 282953 Contact Us For Availability
28
WPL 319839 WPL 319839 Contact Us For Availability
29
Gas Valve-4 Required (Inc`s. 28) WPL 324961 Contact Us For Availability
29
Bracket-Oven Lamp Holder WPL 229369 Contact Us For Availability
29
WPL 286327 WPL 286327 Contact Us For Availability
30
Switch-Gas Valve (4 Required) WPL 310253 Contact Us For Availability
30
Cover-Flue Deflector WPL 324827 Contact Us For Availability
30
WPL 299979 WPL 299979 Contact Us For Availability
31
Shield-Gas Valve (4 Required) WPL 306589 Contact Us For Availability
31
Range Service Cord WPL 312353 Contact Us For Availability
31
WPL 299766 WPL 299766 Contact Us For Availability
32
Air Shutter WPL 301910 Contact Us For Availability
32
Varistor WPL 324385 Contact Us For Availability
32
WPL 320263 WPL 320263 Contact Us For Availability
33
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
33
Oven Top WPL 282102 Contact Us For Availability
33
WPL 320259 WPL 320259 Contact Us For Availability
34
Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33) WPL 310199 Contact Us For Availability
34
Flue Deflector WPL 294197 Contact Us For Availability
34
WPL 320211 WPL 320211 Contact Us For Availability
35
Bracket-Module WPL 310527 Contact Us For Availability
35
Gasket-Flue Deflector WPL 282157 Contact Us For Availability
35
WPL 320202 WPL 320202 Contact Us For Availability
36
Screw 10-32x1/2`` WPL 239114 Contact Us For Availability
36
Main Back WPL 324820 Contact Us For Availability
36
WPL 324728 WPL 324728 Contact Us For Availability
37
Module-Spark Igniter WPL 320990 Contact Us For Availability
37
Insulation Retainer - Flue WPL 282156 Contact Us For Availability
37
WPL 316849 WPL 316849 Contact Us For Availability
38
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
38
Insulation-Oven Back WPL 282535 Contact Us For Availability
38
WPL 325030 WPL 325030 Contact Us For Availability
39
Shut Off Valve WPL 292894 Contact Us For Availability
39
Retaine WPL 229370 Contact Us For Availability
39
WPL 325029 WPL 325029 Contact Us For Availability
40
Fi WPL 312833 Contact Us For Availability
40
WPL 229607 WPL 229607 Contact Us For Availability
40
WPL 320240 WPL 320240 Contact Us For Availability
40
WPL 321673 WPL 321673 Contact Us For Availability
40
WPL 321674 WPL 321674 Contact Us For Availability
40
WPL 321675 WPL 321675 Contact Us For Availability
40
WPL 321676 WPL 321676 Contact Us For Availability
41
WPL 304241 WPL 304241 Contact Us For Availability
41
WPL 312013 WPL 312013 Contact Us For Availability
41
WPL 320476 WPL 320476 Contact Us For Availability
41
WPL 321669 WPL 321669 Contact Us For Availability
41
WPL 321670 WPL 321670 Contact Us For Availability
41
WPL 321671 WPL 321671 Contact Us For Availability
41
WPL 321672 WPL 321672 Contact Us For Availability
42
WPL 316365 WPL 316365 Contact Us For Availability
42
WPL 311455 WPL 311455 Contact Us For Availability
42
WPL 289730 WPL 289730 Contact Us For Availability
43
WPL 325271 WPL 325271 Contact Us For Availability
43
WPL 111257 WPL 111257 Contact Us For Availability
43
WPL 109180 WPL 109180 Contact Us For Availability
44
WPL 97217 WPL 97217 Contact Us For Availability
44
WPL 87883 WPL 87883 Contact Us For Availability
44
WPL 320243 WPL 320243 Contact Us For Availability
45
WPL 325649 WPL 325649 Contact Us For Availability
45
WPL 114989 WPL 114989 Contact Us For Availability
45
WPL 98186 WPL 98186 Contact Us For Availability
46
WPL 229371 WPL 229371 Contact Us For Availability
46
WPL 320213 WPL 320213 Contact Us For Availability
47
WPL 321044 WPL 321044 Contact Us For Availability
48
WPL 313671 WPL 313671 Contact Us For Availability
48
WPL 320210 WPL 320210 Contact Us For Availability
49
WPL 321410 WPL 321410 Contact Us For Availability
50
WPL 324709 WPL 324709 Contact Us For Availability
51
WPL 310977 WPL 310977 Contact Us For Availability
51
WPL 323820 WPL 323820 Contact Us For Availability
51
WPL 323821 WPL 323821 Contact Us For Availability
51
WPL 323822 WPL 323822 Contact Us For Availability
51
WPL 323823 WPL 323823 Contact Us For Availability
51
WPL 323824 WPL 323824 Contact Us For Availability
52
WPL 102376 WPL 102376 Contact Us For Availability
52
WPL 310500 WPL 310500 Contact Us For Availability
53
WPL 282952 WPL 282952 Contact Us For Availability
53
WPL 104520 WPL 104520 Contact Us For Availability
54
WPL 320399 WPL 320399 Contact Us For Availability
55
WPL 304125 WPL 304125 Contact Us For Availability
55
WPL ARI9018A68 WPL ARI9018A68 Contact Us For Availability
56
WPL 310218 WPL 310218 Contact Us For Availability
56
WPL 320703 WPL 320703 Contact Us For Availability
57
WPL 321919 WPL 321919 Contact Us For Availability
57
WPL 311173 WPL 311173 Contact Us For Availability
58
WPL 71003 WPL 71003 Contact Us For Availability
58
WPL 320374 WPL 320374 Contact Us For Availability
59
WPL 229372 WPL 229372 Contact Us For Availability
59
WPL 320397 WPL 320397 Contact Us For Availability
60
WPL 282118 WPL 282118 Contact Us For Availability
60
WPL 320412 WPL 320412 Contact Us For Availability
61
WPL 97220 WPL 97220 Contact Us For Availability
61
WPL 285726 WPL 285726 Contact Us For Availability
62
WPL 282127 WPL 282127 Contact Us For Availability
62
WPL 232365 WPL 232365 Contact Us For Availability
63
WPL 283457 WPL 283457 Contact Us For Availability
63
WPL 283763 WPL 283763 Contact Us For Availability
64
WPL 70588 WPL 70588 Contact Us For Availability
64
WPL 305361 WPL 305361 Contact Us For Availability
65
WPL 306149 WPL 306149 Contact Us For Availability
65
WPL 306150 WPL 306150 Contact Us For Availability
65
WPL 286889 WPL 286889 Contact Us For Availability
66
WPL 78565 WPL 78565 Contact Us For Availability
66
WPL 321539 WPL 321539 Contact Us For Availability
67
WPL 322073 WPL 322073 Contact Us For Availability
67
WPL 281698 WPL 281698 Contact Us For Availability
69
WPL 237762 WPL 237762 Contact Us For Availability
70
WPL 285860 WPL 285860 Contact Us For Availability
71
WPL 282273 WPL 282273 Contact Us For Availability
72
WPL 282278 WPL 282278 Contact Us For Availability
73
WPL 239603 WPL 239603 Contact Us For Availability
74
WPL 294195 WPL 294195 Contact Us For Availability
75
WPL 281574 WPL 281574 Contact Us For Availability
76
WPL 100576 WPL 100576 Contact Us For Availability
× ![]()
