Model Whirlpool 1885W3A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams

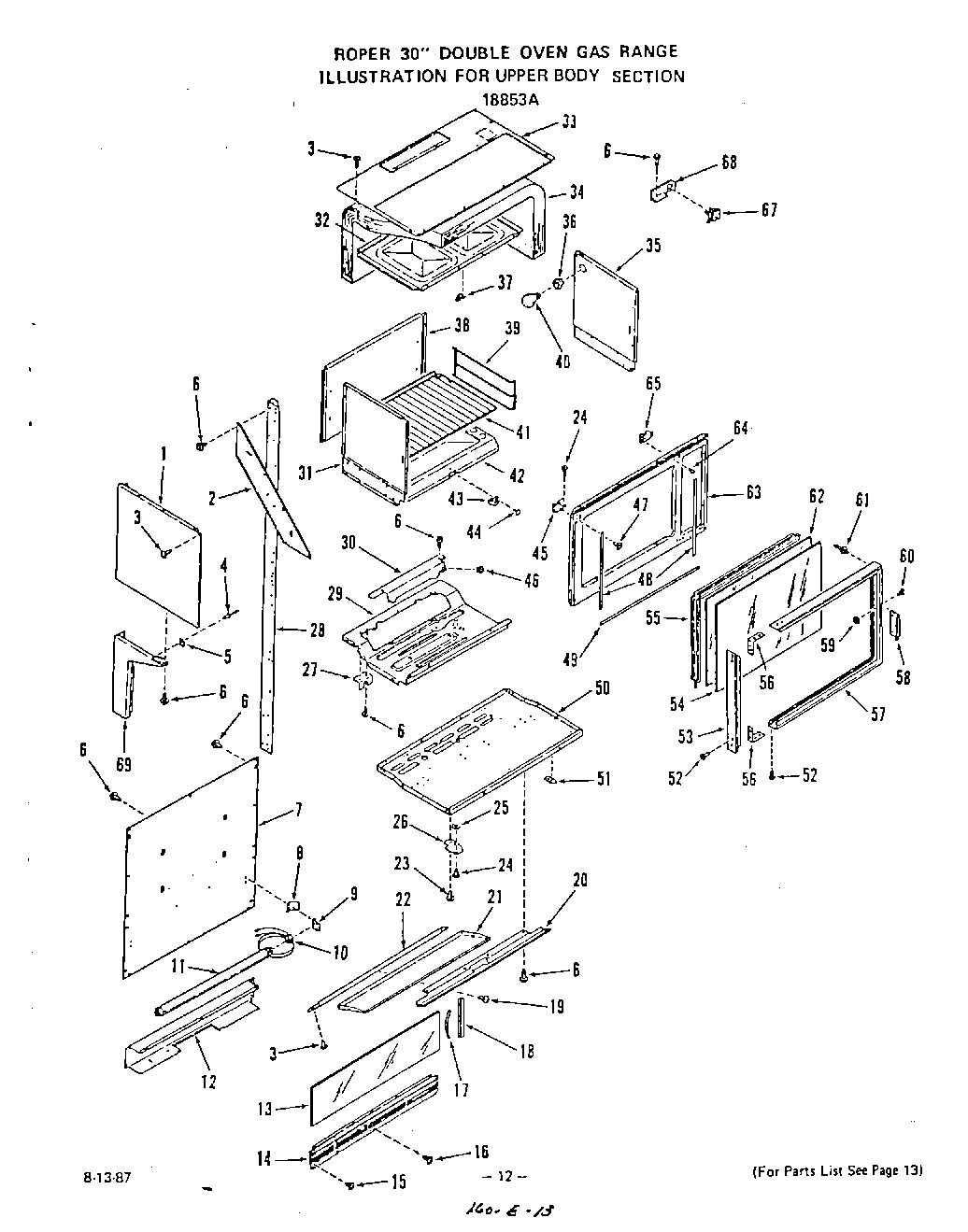

10 - UPPER BODY

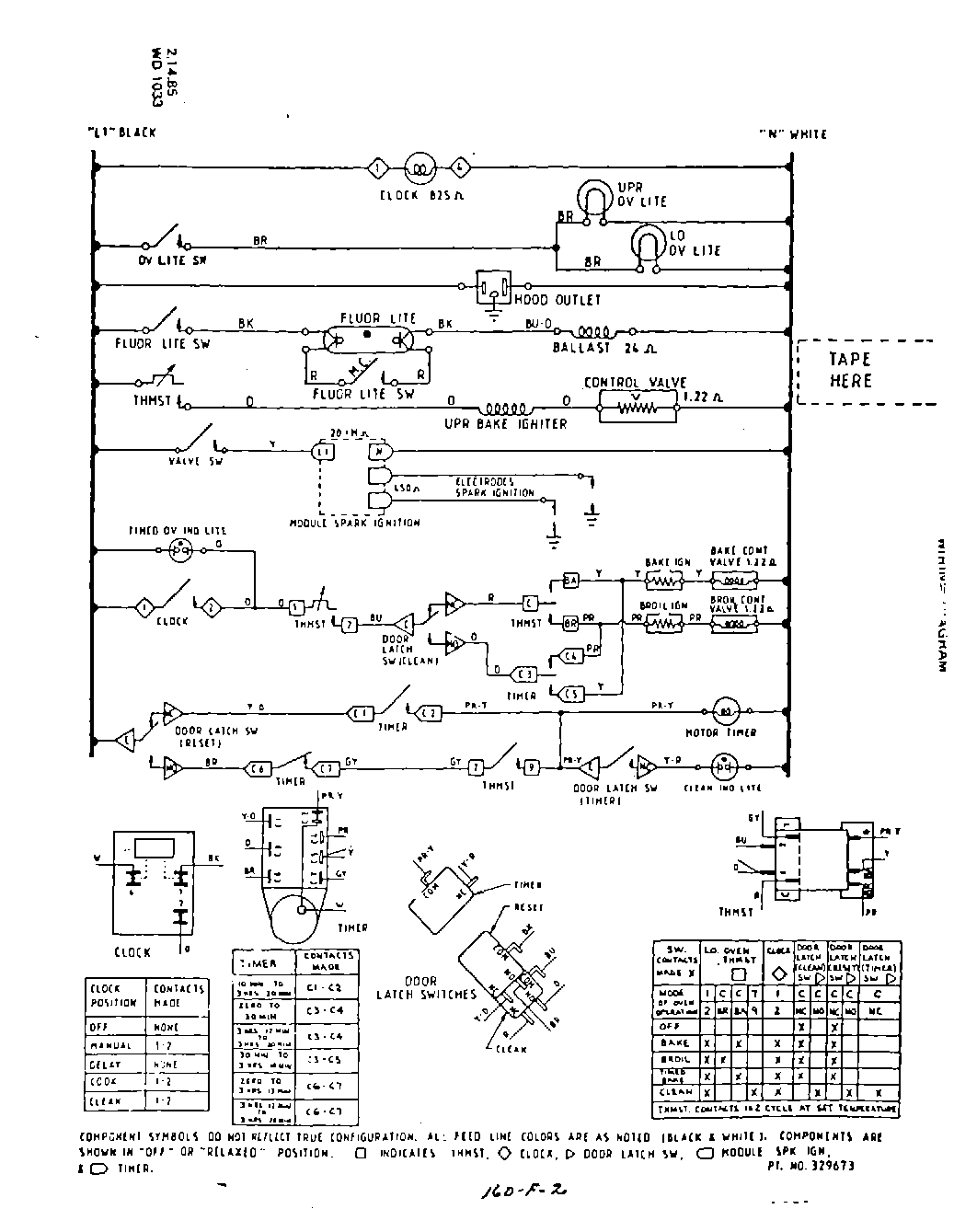

12 - WIRING DIAGRAM

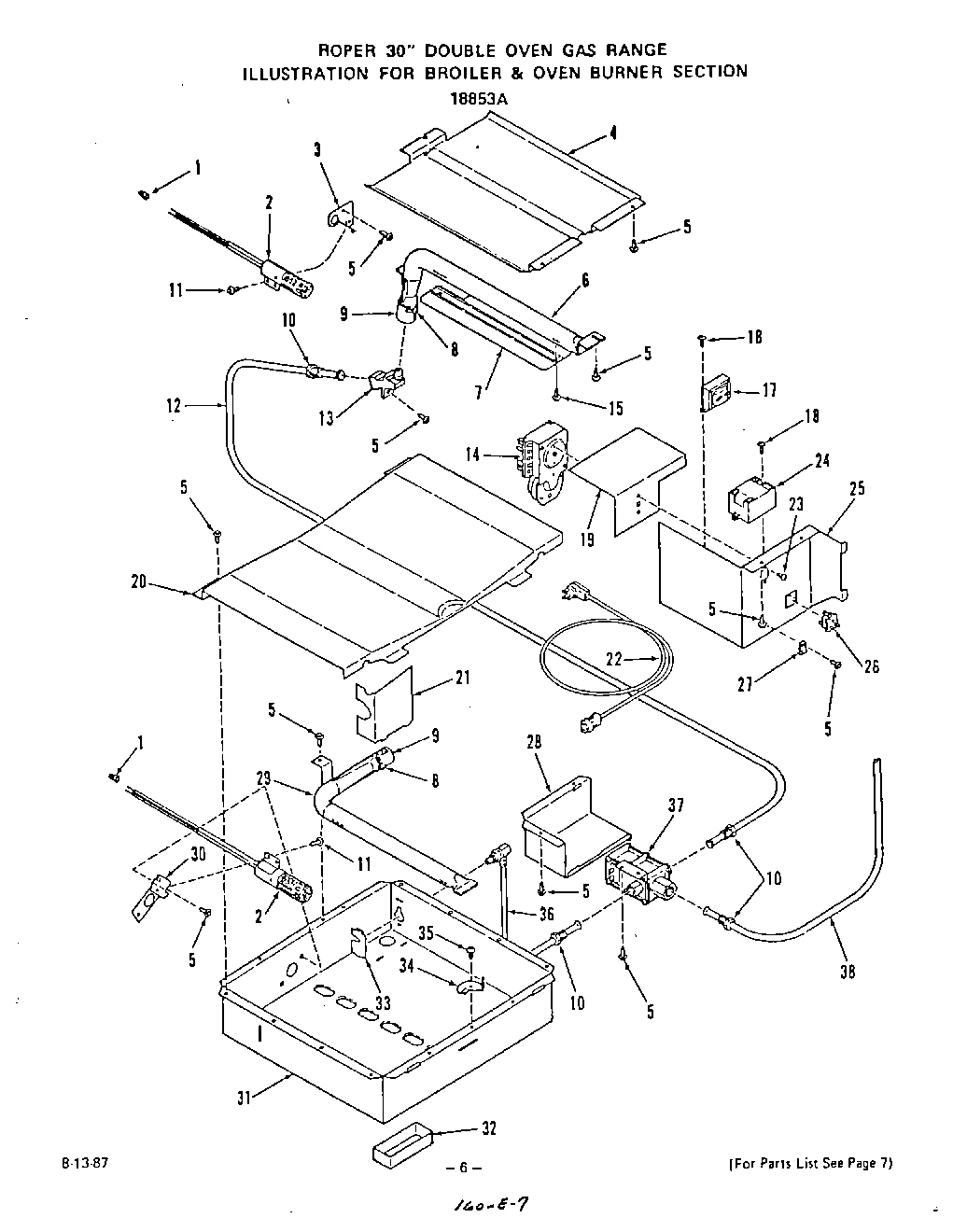

06 - BROILER AND OVEN BURNER

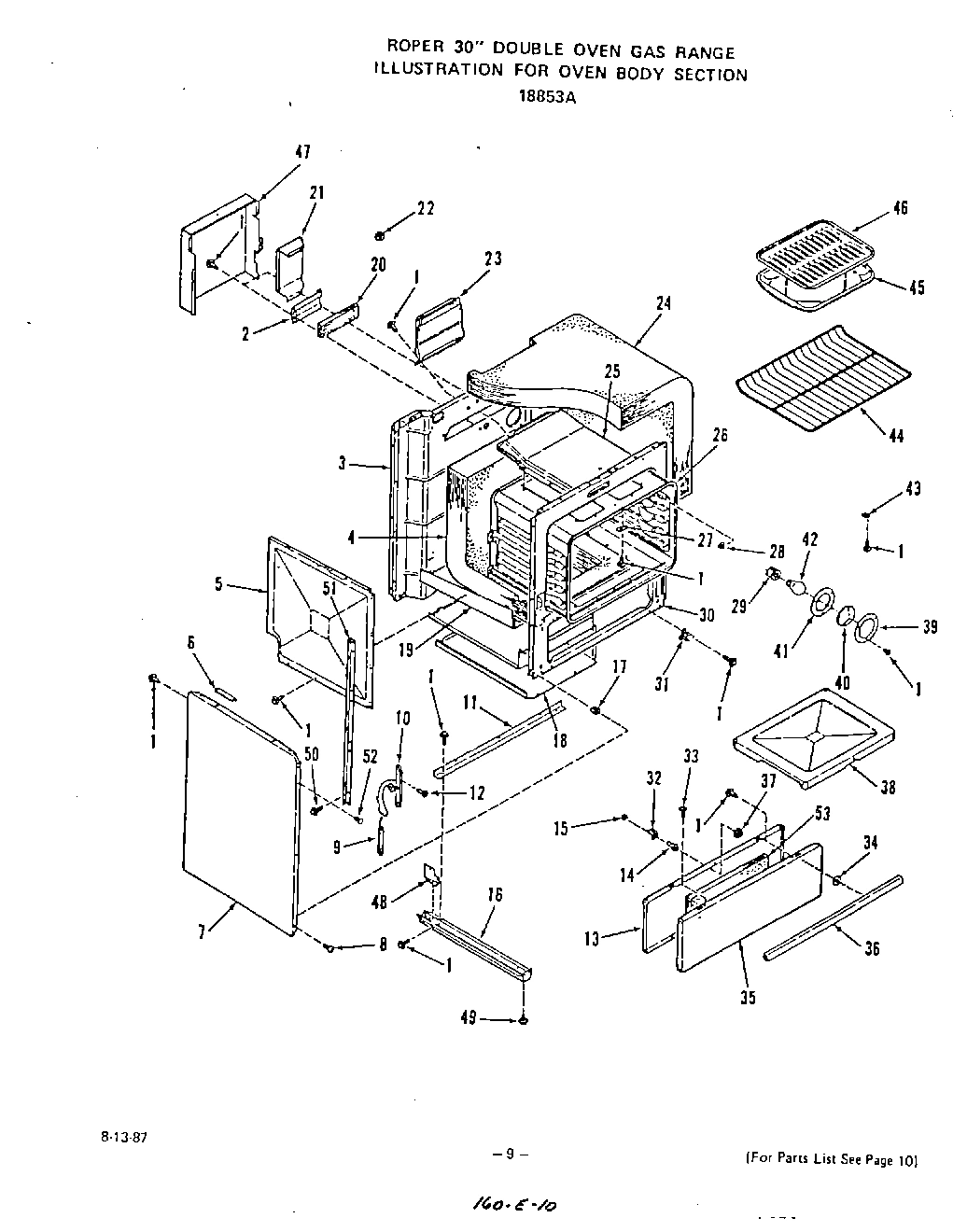

08 - OVEN BODY

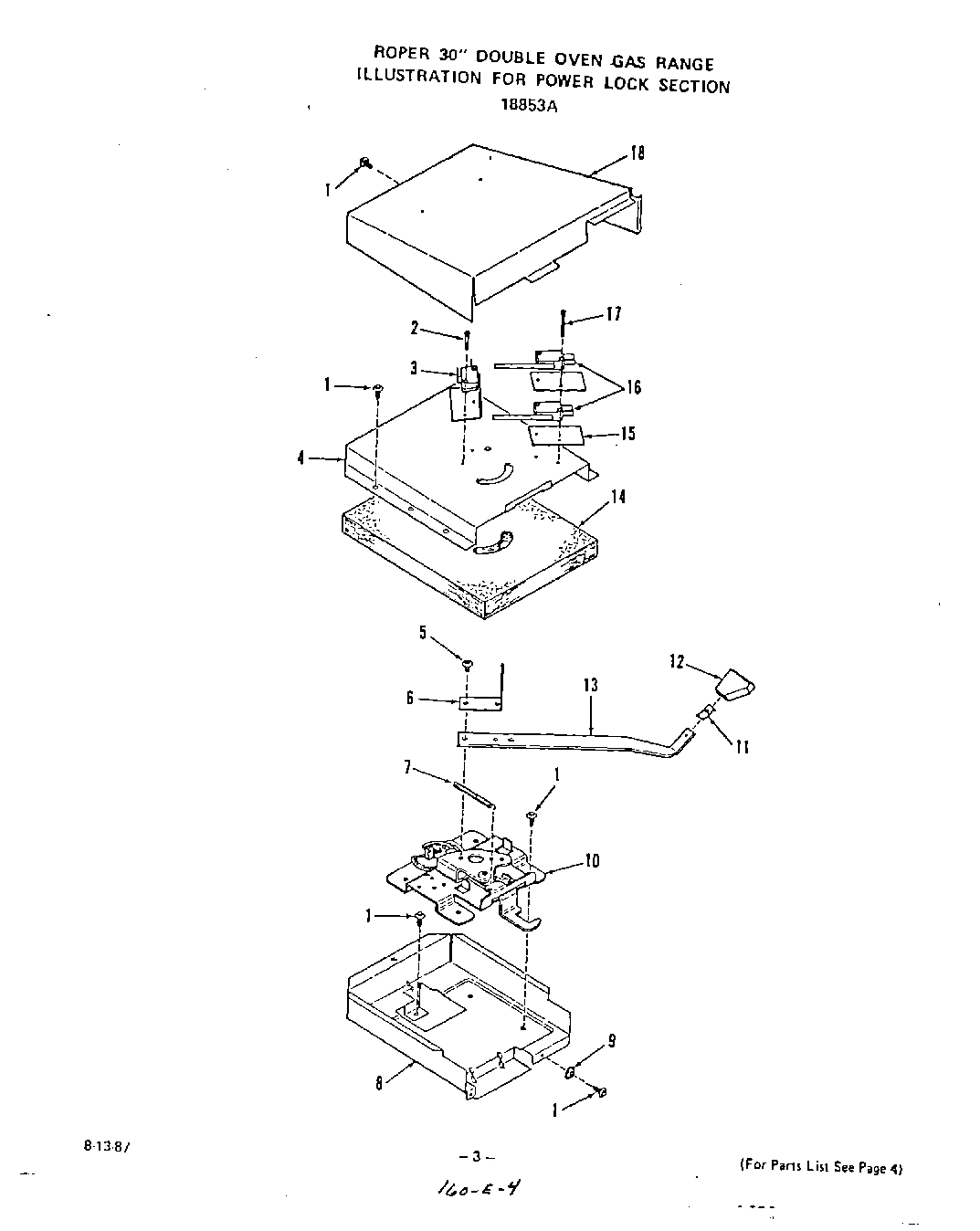

04 - POWER LOCK

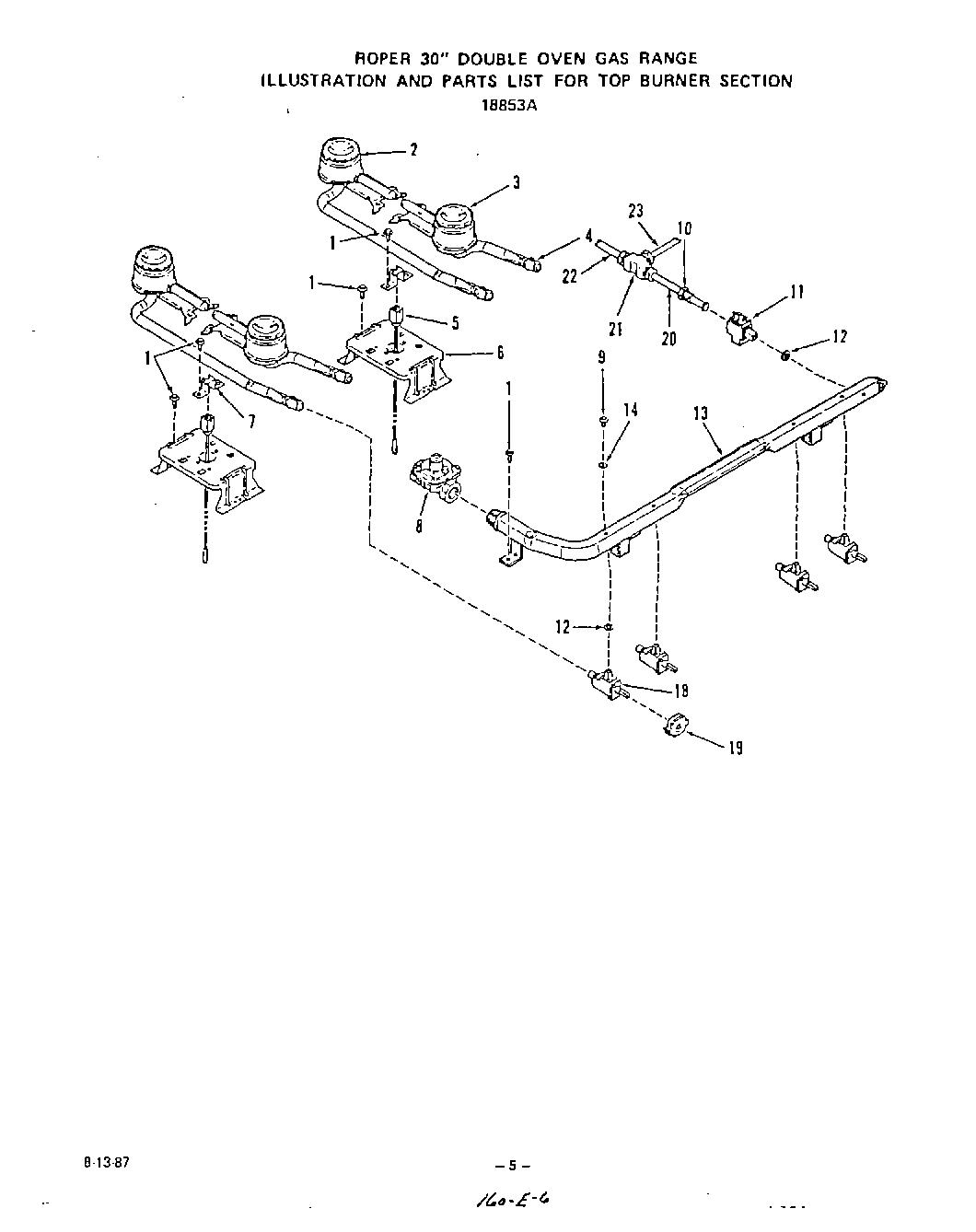

05 - TOP BURNER

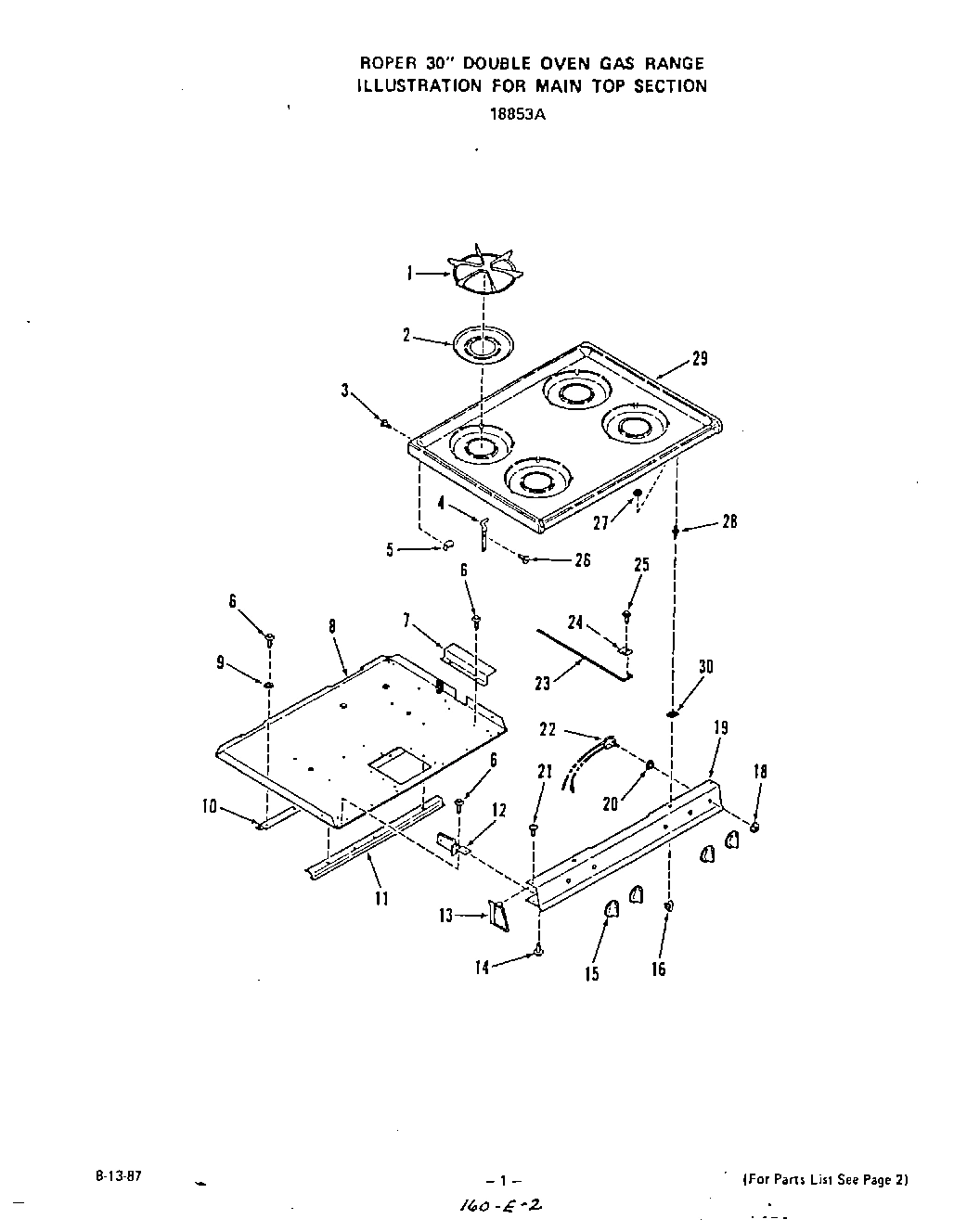

02 - MAIN TOP

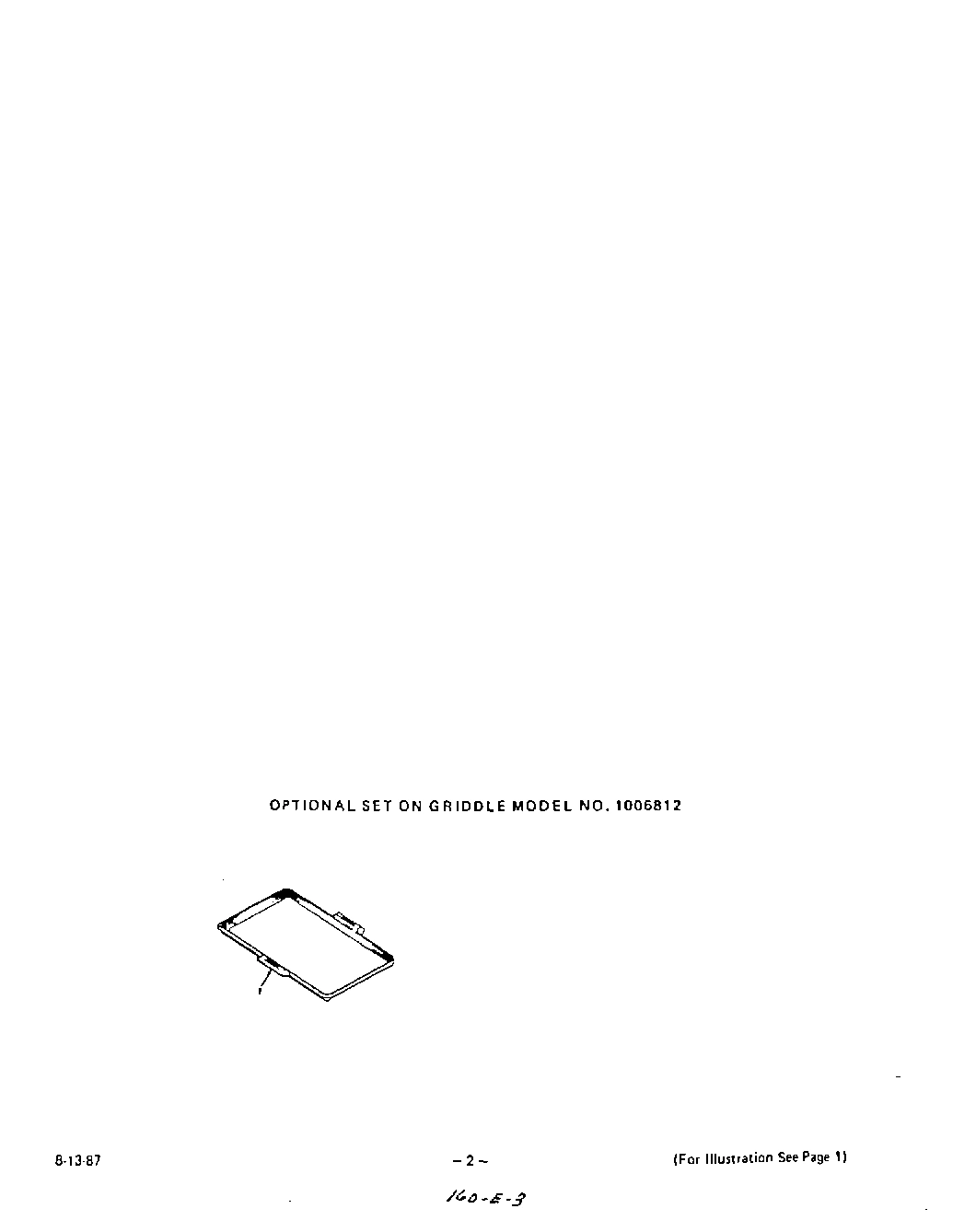

03 - GRIDDLE

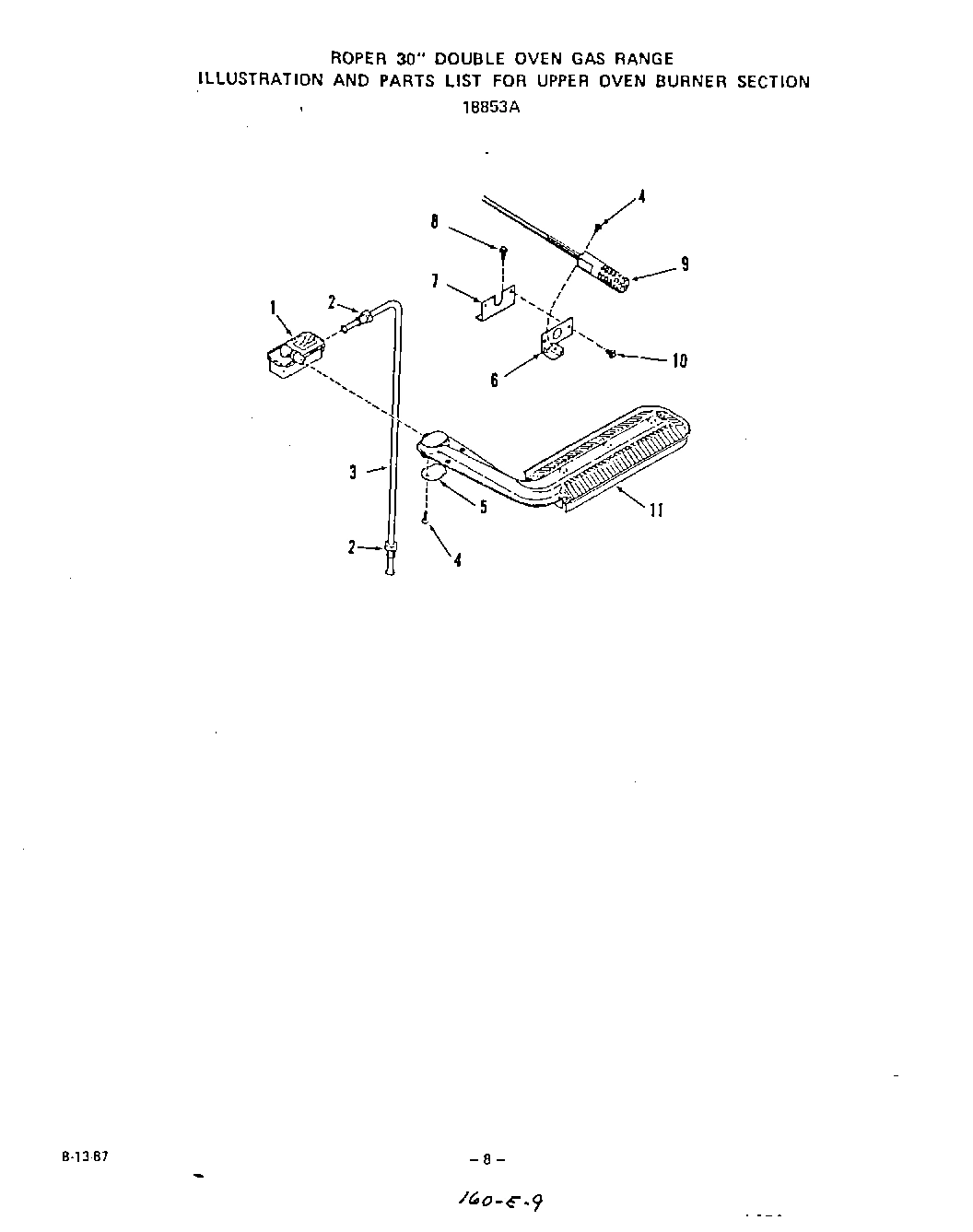

07 - UPPER OVEN BURNER

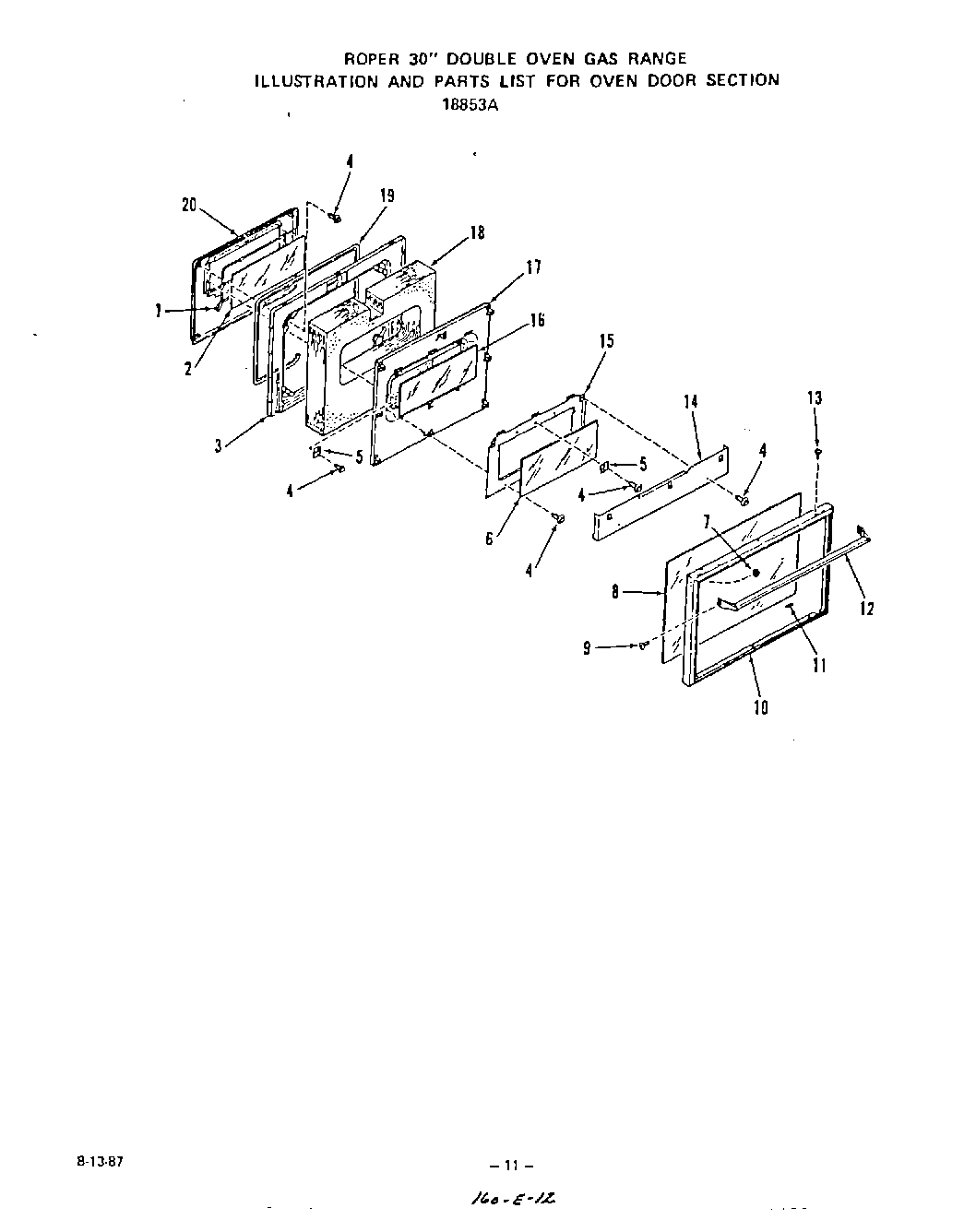

09 - OVEN DOOR

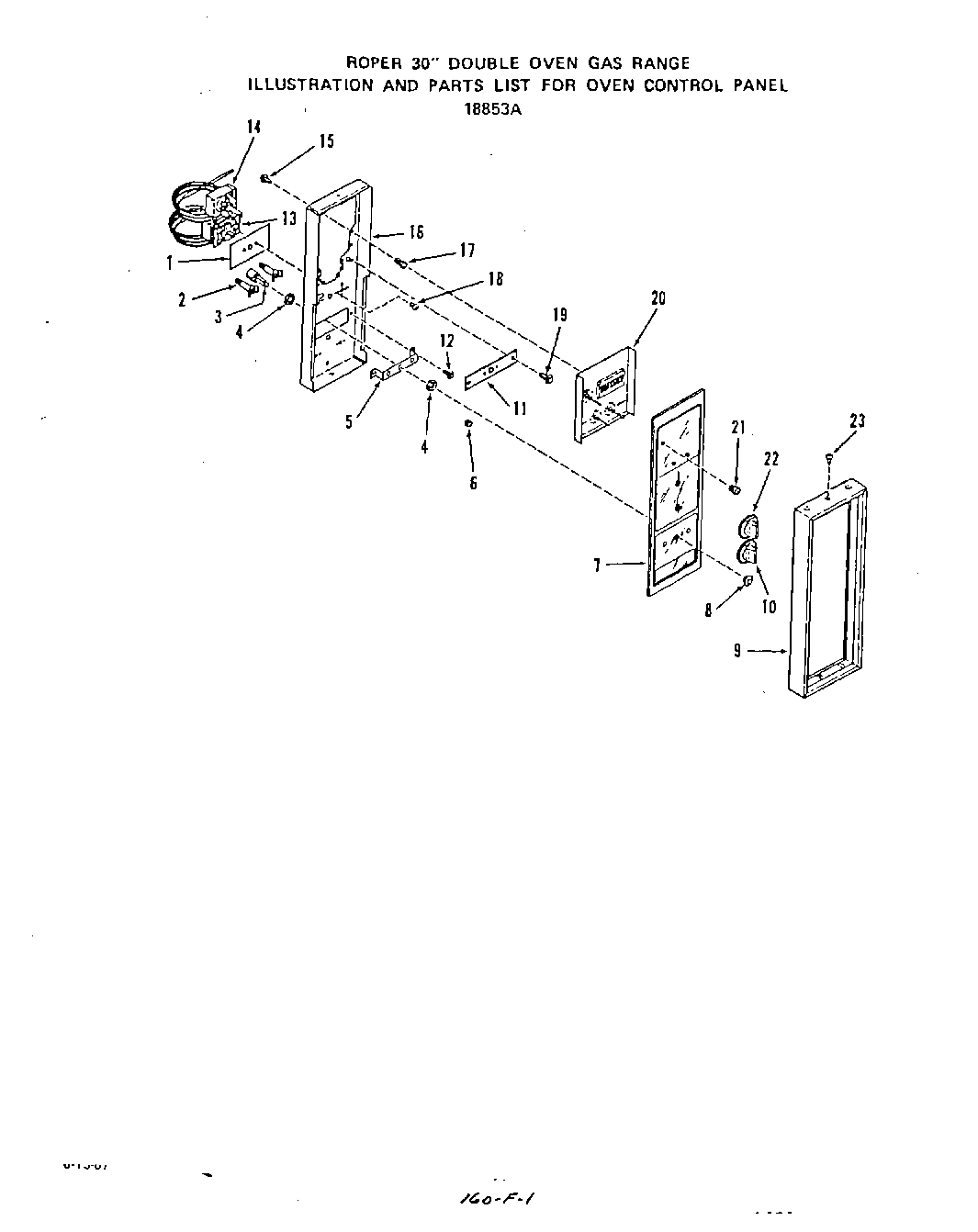

11 - OVEN CONTROL PANEL
Common parts from model Whirlpool 1885W3A DOUBLE OVEN GAS RANGE
xWire Harness WPL ARI9015A32 Contact Us For Availability
1
White - Right WPL 323875 Contact Us For Availability
1
Golden Wheat-Right WPL 323878 Contact Us For Availability
1
Almond - Right WPL 323879 Contact Us For Availability
1
White - Left WPL 323881 Contact Us For Availability
1
Golden Wheat-Left WPL 323884 Contact Us For Availability
1
Almond-Left WPL 323885 Contact Us For Availability
1
Toast - Right WPL 328133 Contact Us For Availability
1
Toast - Left WPL 328134 Contact Us For Availability
1
Platinum - Right WPL 328199 Contact Us For Availability
1
Platinum WPL 328200 Contact Us For Availability
1
Upper Oven Body Side WPL ARI9007A95 Contact Us For Availability
1
Wire Connector WPL 103595 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Griddle WPL 289671 Contact Us For Availability
1
Control Valve WPL 332005 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
1
Barrier-Thermostat WPL 330287 Contact Us For Availability
2
brace-cabinet side (lt. or rt.) WPL 325388 Contact Us For Availability
2
Inverted Nut 3/8`` (Tee to Upper Control WPL 113384 Contact Us For Availability
2
Wire Shield WPL 327809 Contact Us For Availability
2
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
2
Rear Top Burner-Rt. or Lt. (Inc`s. Key 4) WPL 327075 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 322888 Contact Us For Availability
2
Inner Glass-Oven Door WPL 312426 Contact Us For Availability
2
Indicator Light (Oven & Clean) WPL 288247 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
3
Main Back WPL 327294 Contact Us For Availability
3
Micro Switch WPL 329170 Contact Us For Availability
3
Front Top Burner-Rt. or Lt. (Inc`s.Key 4) WPL 327074 Contact Us For Availability
3
Tubing 3/8`` (Tee to Upper Control Valve) WPL 331724 Contact Us For Availability
3
Lining-Oven Door WPL 331624 Contact Us For Availability
3
Push Switch (Fluorescent Light) WPL 288557 Contact Us For Availability
4
Pop Rivet WPL 101523 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
4
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Insulation-Oven Back & Bottom (1 Piece) WPL 329146 Contact Us For Availability
4
Cover-Lock Rod WPL 328486 Contact Us For Availability
4
Air Shutter WPL 327198 Contact Us For Availability
4
Right WPL 320921 Contact Us For Availability
4
Left WPL 320922 Contact Us For Availability
4
Hinge-Main Top WPL ARI8998A91 Contact Us For Availability
4
Pal Nut WPL 236129 Contact Us For Availability
4
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
5
Retainer WPL 285523 Contact Us For Availability
5
Retainer-Insulation (Lt. or Rt.) WPL 331447 Contact Us For Availability
5
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
5
Right WPL 329462 Contact Us For Availability
5
Left WPL 329464 Contact Us For Availability
5
Electrode-Spark Igniter WPL ARI9002A44 Contact Us For Availability
5
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
5
Air Shutter WPL 323455 Contact Us For Availability
5
Retainer-Door Glass WPL 326009 Contact Us For Availability
5
Bracket-Switch WPL 330249 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
6
Bracket-Igniter WPL 311689 Contact Us For Availability
6
Spacer-Main Top (2 Req) WPL 326914 Contact Us For Availability
6
Extension-Handle WPL 328470 Contact Us For Availability
6
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
6
Intermediate Glass-Oven Door WPL 326088 Contact Us For Availability
6
Lens-Indicator Light (2 Req) WPL 233161 Contact Us For Availability
7
Wire Cover WPL 329684 Contact Us For Availability
7
Keps Nut 8-32 WPL 239764 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
7
White WPL 326055 Contact Us For Availability
7
Golden Wheat WPL 326058 Contact Us For Availability
7
Almond WPL 326059 Contact Us For Availability
7
Platinum WPL 327939 Contact Us For Availability
7
Toast WPL 327940 Contact Us For Availability
7
Body Side (Lt. or Rt.) WPL ARI9003A36 Contact Us For Availability
7
Spring WPL 313075 Contact Us For Availability
7
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
7
Raceway WPL 329841 Contact Us For Availability
7
Bracket-Igniter WPL 325484 Contact Us For Availability
7
Glass-Control Panel WPL 329683 Contact Us For Availability
8
Shield-Wire WPL 321107 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
8
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
8
Lock Box WPL 328489 Contact Us For Availability
8
Pressure Regulator WPL 324528 Contact Us For Availability
8
Burner Box Bottom WPL 331574 Contact Us For Availability
8
outer glass-oven door WPL 326367 Contact Us For Availability
8
Trim Nut WPL 321667 Contact Us For Availability
9
Bracket-Flourescent Lamp (Rt. or Lt.) WPL 324746 Contact Us For Availability
9
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
9
Igniter WPL 319887 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Spring-Oven Door (Lt. or Rt.) WPL 326965 Contact Us For Availability
9
Washer WPL 21067 Contact Us For Availability
9
Mounting Screw 1/4-20 WPL 311455 Contact Us For Availability
9
Washer WPL 106462 Contact Us For Availability
9
Frame-Control Panel WPL 282279 Contact Us For Availability
10
Right WPL 329166 Contact Us For Availability
10
Left WPL 329547 Contact Us For Availability
10
Holder-Fluorescent Lamp WPL ARI9008A76 Contact Us For Availability
10
Right WPL 326012 Contact Us For Availability
10
Left WPL 326013 Contact Us For Availability
10
Hinge-Oven Door WPL ARI9004A65 Contact Us For Availability
10
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
10
Rear Stiffener-Burner Box Bottom WPL 329158 Contact Us For Availability
10
Screw 10ABx3/8`` WPL 69605 Contact Us For Availability
10
Frame-Oven Door WPL 331172 Contact Us For Availability
10
Knob-Lower Thermostat WPL 329685 Contact Us For Availability
11
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
11
Strap-Main Back & Base WPL 327026 Contact Us For Availability
11
Clip-Knob WPL 328474 Contact Us For Availability
11
Shut Off Valve WPL 326830 Contact Us For Availability
11
Front Stiffener-Burner Box Bottom WPL 327705 Contact Us For Availability
11
Oven Burner Complete WPL 331854 Contact Us For Availability
11
Cushion (3 Req) WPL 112370 Contact Us For Availability
11
Bracket-Thermostat WPL 330248 Contact Us For Availability
12
Wire Cover-Fluorescent Lamp WPL 329491 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286823 Contact Us For Availability
12
Knob-Lock WPL 328475 Contact Us For Availability
12
Rubber Gasket WPL 313563 Contact Us For Availability
12
Left WPL 328808 Contact Us For Availability
12
Right WPL 328924 Contact Us For Availability
12
Bracket-Manifold Panel WPL ARI8999A99 Contact Us For Availability
12
Handle WPL 303342 Contact Us For Availability
12
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
13
Fluorescent Lamp Glass WPL 324747 Contact Us For Availability
13
Screw WPL 331704 Contact Us For Availability
13
Broiler Orifice Fitting WPL 331992 Contact Us For Availability
13
Lining-Storage Drawer WPL 335065 Contact Us For Availability
13
Handle-Latch WPL 333710 Contact Us For Availability
13
Manifold Pipe WPL 328488 Contact Us For Availability
13
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
13
Right WPL 328498 Contact Us For Availability
13
Left WPL 328499 Contact Us For Availability
13
End Cap-Manifold Panel WPL ARI9000A63 Contact Us For Availability
13
Thermostat-Lower WPL 329680 Contact Us For Availability
14
Lower Retainer-Fluorescent Lamp Glass WPL 329492 Contact Us For Availability
14
Timer WPL 328350 Contact Us For Availability
14
Insulation-Latch WPL 328472 Contact Us For Availability
14
Rubber Gasket WPL 311692 Contact Us For Availability
14
Baffle-Oven Door WPL 328719 Contact Us For Availability
14
Thermostat-Upper WPL 324372 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
15
Catch-Strike WPL 335061 Contact Us For Availability
15
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
15
Insulator-Switch (3 Req) WPL 329171 Contact Us For Availability
15
Knob-Gas Valve (4 Reg) WPL 328805 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
16
Screw 6-32 x 1/2`` WPL 108788 Contact Us For Availability
16
Base w/Leg Levelers (Lt. or Rt.) WPL 327020 Contact Us For Availability
16
Micro Switch WPL 329169 Contact Us For Availability
16
Catch-Main Top Strike (2 Req) WPL 24667 Contact Us For Availability
16
Center Glass-Oven Door WPL 326632 Contact Us For Availability
16
Mounting Panel-Control WPL 330251 Contact Us For Availability
17
Spring - Lamp Glass End Trim (Lt or Rt) WPL 286327 Contact Us For Availability
17
Ballast WPL 98186 Contact Us For Availability
17
Screw 4-40 x1 9/16`` WPL 331081 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
17
Tubular Clip (3 Req) WPL 293577 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
18
End Trim - Lamp Glass (Lt or Rt) WPL 299979 Contact Us For Availability
18
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
18
Storage Compartment WPL 328491 Contact Us For Availability
18
Wire Cover-Latch Switches WPL 328490 Contact Us For Availability
18
Gas Valve (4 Req) WPL 331996 Contact Us For Availability
18
Knurled Nut WPL 87403 Contact Us For Availability
18
Insulation-Oven Door WPL 326000 Contact Us For Availability
19
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
19
Shield WPL 329903 Contact Us For Availability
19
Lower Insulation Retainer WPL 331144 Contact Us For Availability
19
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
19
Manifold Panel WPL 328497 Contact Us For Availability
19
Gasket-Oven Door WPL 292244 Contact Us For Availability
20
White WPL 323820 Contact Us For Availability
20
Golden Wheat WPL 323823 Contact Us For Availability
20
Almond WPL 323824 Contact Us For Availability
20
Toast WPL 328130 Contact Us For Availability
20
Platinum WPL 328216 Contact Us For Availability
20
trim-filter WPL ARI9009A87 Contact Us For Availability
20
Baffle-Oven Burner WPL 328480 Contact Us For Availability
20
Insulation WPL 330166 Contact Us For Availability
20
Tubing 3/8`` (Shut-Off Valve to Tee) WPL 277368 Contact Us For Availability
20
Plug-Oven Door Lining WPL 328669 Contact Us For Availability
20
Clock w/1 Hr. Timer WPL 329681 Contact Us For Availability
21
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
21
White WPL 327578 Contact Us For Availability
21
Golden Wheat WPL 327581 Contact Us For Availability
21
Almond WPL 327582 Contact Us For Availability
21
Toast WPL 328321 Contact Us For Availability
21
Platinum WPL 328322 Contact Us For Availability
21
Cover-Vent WPL ARI9010A98 Contact Us For Availability
21
Shield-Orifice Fitting WPL 331864 Contact Us For Availability
21
Wire Shield WPL 327808 Contact Us For Availability
21
Tee 3/8`` WPL 237347 Contact Us For Availability
21
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
22
White WPL 320127 Contact Us For Availability
22
Golden Wheat WPL 320130 Contact Us For Availability
22
Almond WPL 320131 Contact Us For Availability
22
Platinum WPL 328219 Contact Us For Availability
22
Toast WPL 328222 Contact Us For Availability
22
upper retainer-lamp glass WPL ARI9011A35 Contact Us For Availability
22
Range Service Cord WPL 329488 Contact Us For Availability
22
Tubing 3/8`` (Tee To Lower Control Valve) WPL 331399 Contact Us For Availability
22
Bushing WPL 324257 Contact Us For Availability
22
Push Switch-Oven Light WPL 330080 Contact Us For Availability
22
Knob-Upper Thermostat WPL 329686 Contact Us For Availability
23
Flue Deflector WPL 331564 Contact Us For Availability
23
Support Rod-Main Top WPL 326066 Contact Us For Availability
23
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
23
Igniter WPL 329162 Contact Us For Availability
23
Gas Valve Switches WPL 329364 Contact Us For Availability
23
Upper WPL 329674 Contact Us For Availability
23
Main WPL 329675 Contact Us For Availability
24
Hinge Pin WPL 281724 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
24
Insulation-Oven Top & Sides (1 Piece) WPL 329147 Contact Us For Availability
24
Clamp WPL 326348 Contact Us For Availability
25
Washer WPL 326204 Contact Us For Availability
25
Mounting Bracket-Components WPL 329442 Contact Us For Availability
25
Flue Box WPL 327781 Contact Us For Availability
26
lower hinge-oven door WPL 323886 Contact Us For Availability
26
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
Oven Body WPL 331568 Contact Us For Availability
27
Bracket-Oven Orifice WPL 109289 Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
27
Cover WPL 304835 Contact Us For Availability
28
Support-Upper Oven (Lt. or Rt.) WPL 331445 Contact Us For Availability
28
Cover-Control Valve WPL 328481 Contact Us For Availability
28
Strike (2 Req) WPL 299784 Contact Us For Availability
28
Clip-Thermostat Bulb (2 Req) WPL 321539 Contact Us For Availability
29
baffle-oven burner WPL 302869 Contact Us For Availability
29
Oven Burner WPL 333746 Contact Us For Availability
29
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
29
White WPL 328907 Contact Us For Availability
29
Golden Wheat WPL 328910 Contact Us For Availability
29
Almond WPL 328911 Contact Us For Availability
29
Platinum WPL 328913 Contact Us For Availability
29
Toast WPL 328914 Contact Us For Availability
29
Main Top WPL ARI9001A37 Contact Us For Availability
30
Access Plate WPL 302870 Contact Us For Availability
30
Front Frame WPL 335072 Contact Us For Availability
30
Washer (2 Req) WPL 310218 Contact Us For Availability
31
Oven Side-Left WPL 323953 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
31
Hinge WPL 335058 Contact Us For Availability
32
Oven Top WPL 294296 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
32
Bracket-Catch WPL 335059 Contact Us For Availability
33
White WPL 323888 Contact Us For Availability
33
Golden Wheat WPL 323891 Contact Us For Availability
33
Almond WPL 323892 Contact Us For Availability
33
Toast WPL 328132 Contact Us For Availability
33
Platinum WPL 328218 Contact Us For Availability
33
Oven Cabinet Top WPL ARI9012A56 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
34
Insulation-Sides, Top & Back (1 Piece) WPL 324318 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
34
Spacer WPL 302343 Contact Us For Availability
35
oven WPL 323951 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
35
White WPL 326287 Contact Us For Availability
35
Golden Wheat WPL 326290 Contact Us For Availability
35
Almond WPL 326291 Contact Us For Availability
35
Platinum WPL 327941 Contact Us For Availability
35
Toast WPL 327942 Contact Us For Availability
35
Front Panel-Storage Door WPL ARI9005A71 Contact Us For Availability
36
WPL 295974 WPL 295974 Contact Us For Availability
36
Tubing 3/8``w/Orifice Fitting (Con. Valve) to WPL 331994 Contact Us For Availability
36
Handle-Storage Door WPL 292240 Contact Us For Availability
37
WPL 115533 WPL 115533 Contact Us For Availability
37
Control Valve WPL 306267 Contact Us For Availability
38
WPL 305541 WPL 305541 Contact Us For Availability
38
Oven Bottom WPL 331563 Contact Us For Availability
39
WPL 305628 WPL 305628 Contact Us For Availability
39
Retainer-Oven Light Lens WPL 229372 Contact Us For Availability
40
Lens-Oven Light WPL 114989 Contact Us For Availability
41
WPL 305629 WPL 305629 Contact Us For Availability
41
Gasket-Lens WPL 229371 Contact Us For Availability
42
Oven Light Bulb WPL 111257 Contact Us For Availability
42
WPL 288655 WPL 288655 Contact Us For Availability
43
WPL 325485 WPL 325485 Contact Us For Availability
43
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
44
WPL 99139 WPL 99139 Contact Us For Availability
44
Oven Rack (2 Req) WPL 326069 Contact Us For Availability
45
WPL 281781 WPL 281781 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
WPL 98761 WPL 98761 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Shield-Flue Deflector WPL 328487 Contact Us For Availability
48
WPL 292912 WPL 292912 Contact Us For Availability
48
Left WPL 327022 Contact Us For Availability
48
Right WPL 327024 Contact Us For Availability
48
bracket-support & base WPL ARI9006A84 Contact Us For Availability
49
WPL 292913 WPL 292913 Contact Us For Availability
49
Leg Leveler (4 Req) WPL 326125 Contact Us For Availability
50
WPL 323869 WPL 323869 Contact Us For Availability
51
WPL 324159 WPL 324159 Contact Us For Availability
51
s WPL 327035 Contact Us For Availability
52
WPL 102559 WPL 102559 Contact Us For Availability
52
WPL 281160 WPL 281160 Contact Us For Availability
53
WPL 281846 WPL 281846 Contact Us For Availability
53
WPL 303097 WPL 303097 Contact Us For Availability
54
WPL 308010 WPL 308010 Contact Us For Availability
55
WPL 281992 WPL 281992 Contact Us For Availability
56
WPL 292907 WPL 292907 Contact Us For Availability
57
WPL 281845 WPL 281845 Contact Us For Availability
58
WPL 293051 WPL 293051 Contact Us For Availability
61
WPL 299263 WPL 299263 Contact Us For Availability
62
WPL 293049 WPL 293049 Contact Us For Availability
63
WPL 331876 WPL 331876 Contact Us For Availability
64
WPL 97411 WPL 97411 Contact Us For Availability
64
WPL ARI9013A74 WPL ARI9013A74 Contact Us For Availability
65
WPL 97003 WPL 97003 Contact Us For Availability
67
WPL 109180 WPL 109180 Contact Us For Availability
68
WPL 293747 WPL 293747 Contact Us For Availability
69
WPL 325283 WPL 325283 Contact Us For Availability
69
WPL 325286 WPL 325286 Contact Us For Availability
69
WPL 325287 WPL 325287 Contact Us For Availability
69
WPL 325289 WPL 325289 Contact Us For Availability
69
WPL 325292 WPL 325292 Contact Us For Availability
69
WPL 325293 WPL 325293 Contact Us For Availability
69
WPL 328127 WPL 328127 Contact Us For Availability
69
WPL 328128 WPL 328128 Contact Us For Availability
69
WPL 328213 WPL 328213 Contact Us For Availability
69
WPL 328214 WPL 328214 Contact Us For Availability
69
WPL ARI9014A84 WPL ARI9014A84 Contact Us For Availability
× ![]()
