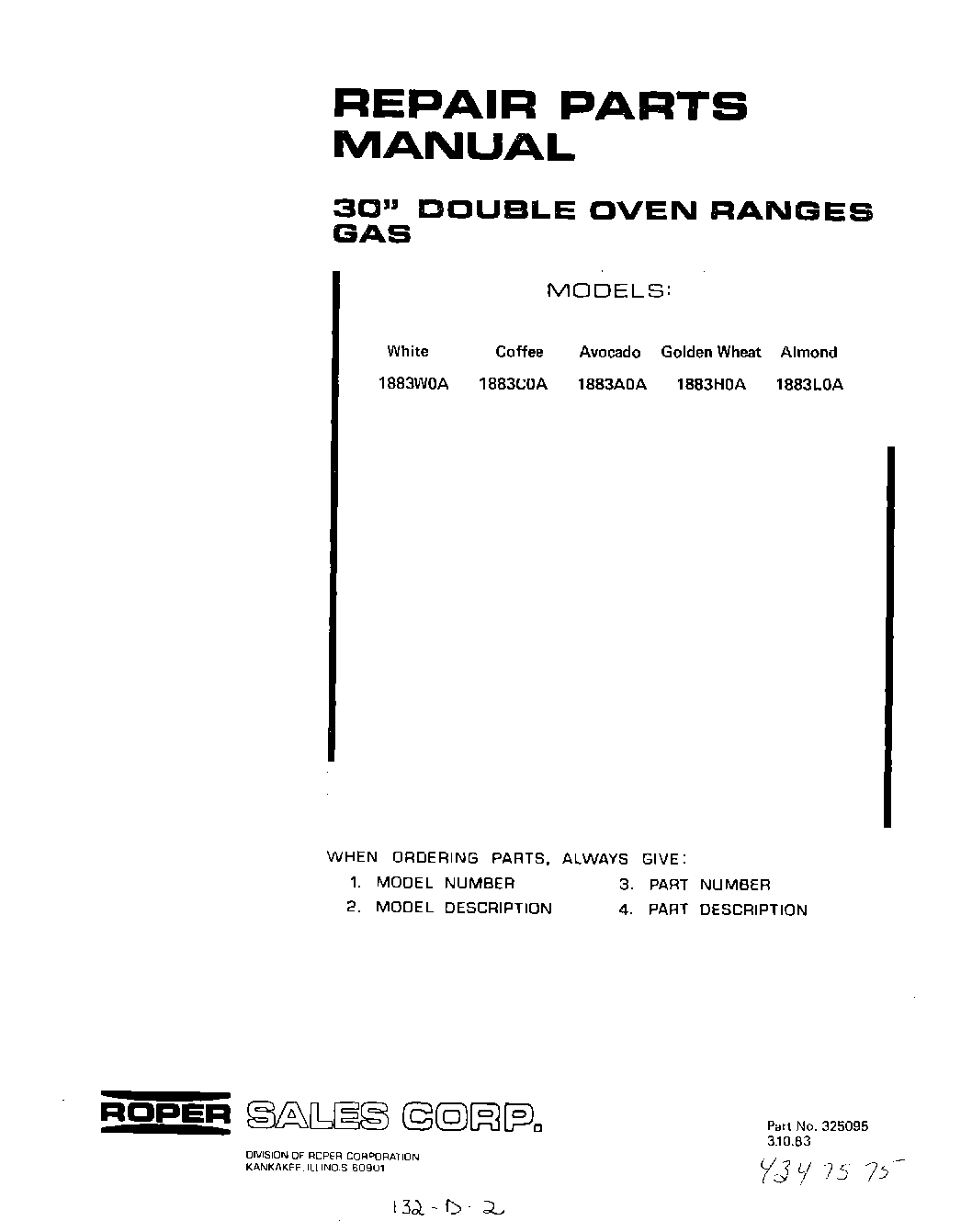

Model Whirlpool 1883^0A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams
01 - MAIN TOP
03 - BURNER
05 - LOWER OVEN DOOR
07 - UPPER BODY
06 - UPPER OVEN BURNER
08 - OVEN CONTROL PANEL
11 - SECTION
09 - LIT/OPTIONAL EQUIPMENT

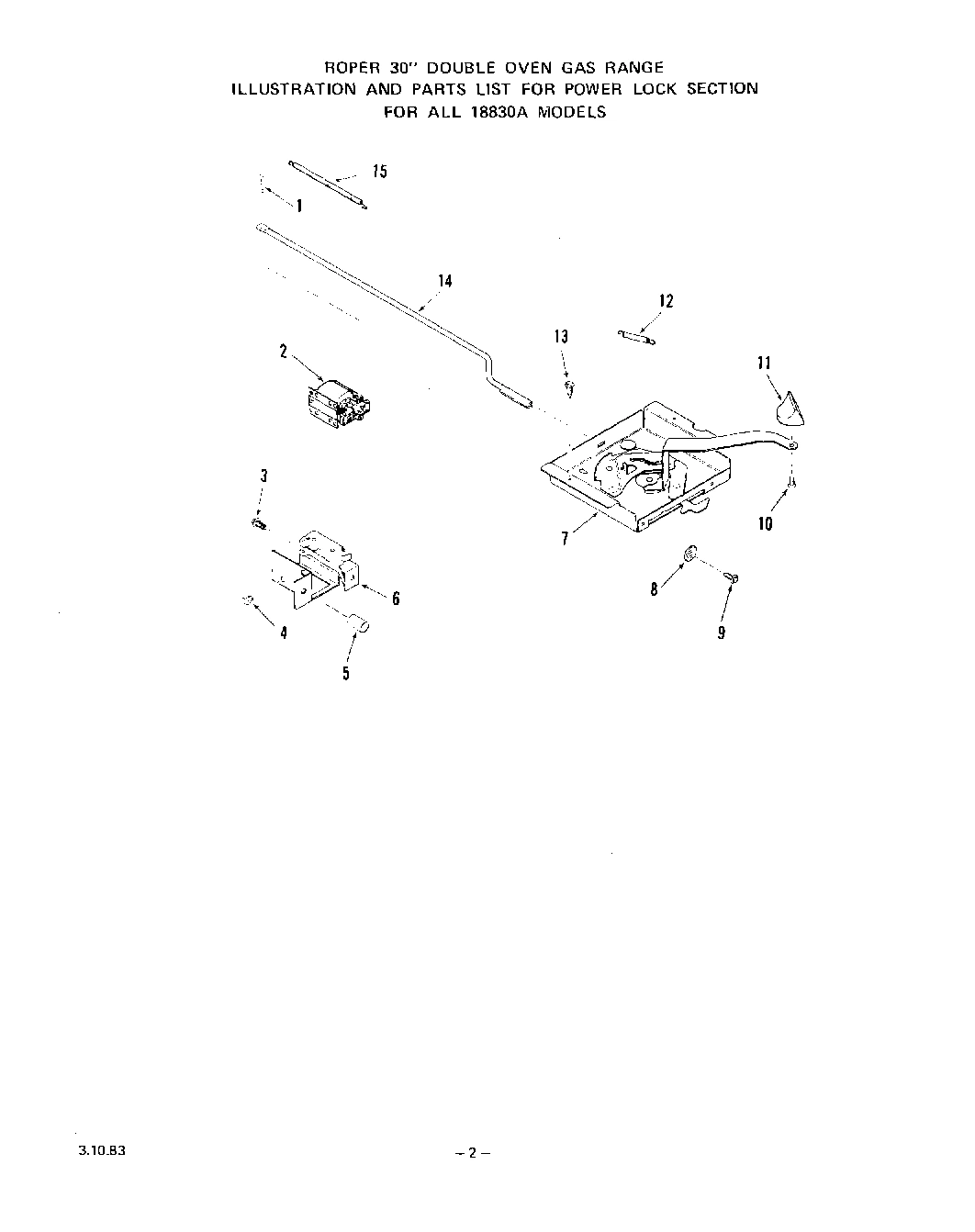

02 - POWER LOCK
04 - LOWER BODY
Common parts from model Whirlpool 1883^0A DOUBLE OVEN GAS RANGE
xWire Harness WPL ARI8789A89 Contact Us For Availability
1
Cotter Pin WPL 318089 Contact Us For Availability
1
Disconnect WPL 232150 Contact Us For Availability
1
Control Valve WPL 306251 Contact Us For Availability
1
Screw 10ABx1 WPL 105799 Contact Us For Availability
1
White - Right WPL 323875 Contact Us For Availability
1
Coffee-Right WPL 323876 Contact Us For Availability
1
Avocado-Right WPL 323877 Contact Us For Availability
1
Golden Wheat-Right WPL 323878 Contact Us For Availability
1
Almond - Right WPL 323879 Contact Us For Availability
1
White - Left WPL 323881 Contact Us For Availability
1
Coffee-Left WPL 323882 Contact Us For Availability
1
Avocado-Left WPL 323883 Contact Us For Availability
1
Golden Wheat-Left WPL 323884 Contact Us For Availability
1
Almond-Left WPL 323885 Contact Us For Availability
1
Upper Oven Body Side WPL ARI8781A20 Contact Us For Availability
1
Thermostat-Lo. Oven WPL 324157 Contact Us For Availability
1
Top Grate (4 Required) WPL 316786 Contact Us For Availability
1
Right WPL 312454 Contact Us For Availability
1
Left WPL 313629 Contact Us For Availability
1
Electrode-Spark Igniter WPL ARI8775A32 Contact Us For Availability
2
Solenoid Only WPL 319431 Contact Us For Availability
2
Washer WPL 21067 Contact Us For Availability
2
Brace - Cabinet Side (Lt or Rt) WPL 324791 Contact Us For Availability
2
Push Switch (Fluorescent Light) WPL 288557 Contact Us For Availability
2
Spill Bowl (4 Required) WPL 310385 Contact Us For Availability
2
Tubing 3/8``-Tee To Lo. Control Valve WPL 311863 Contact Us For Availability
3
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
3
Extension-Wire Cover WPL 323289 Contact Us For Availability
3
Seal-Fiberglass WPL 302935 Contact Us For Availability
3
Push Switch (Lock-Unlock) WPL 307574 Contact Us For Availability
3
White WPL 316788 Contact Us For Availability
3
Almond WPL 316789 Contact Us For Availability
3
Golden Wheat WPL 316790 Contact Us For Availability
3
Avocado WPL 316791 Contact Us For Availability
3
Coffee WPL 316792 Contact Us For Availability
3
Main Top WPL ARI8772A34 Contact Us For Availability
4
Mounting Screw WPL 319433 Contact Us For Availability
4
Wire Cover WPL 324830 Contact Us For Availability
4
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
4
Pop Rivet WPL 101523 Contact Us For Availability
4
Push Switch (Oven Lamp) WPL 306333 Contact Us For Availability
4
Left WPL 302660 Contact Us For Availability
4
Right WPL 302661 Contact Us For Availability
4
End Cap WPL ARI8773A93 Contact Us For Availability
5
Spacer (2 Required) WPL 310419 Contact Us For Availability
5
Right WPL 320121 Contact Us For Availability
5
Left WPL 320123 Contact Us For Availability
5
Support WPL ARI8776A15 Contact Us For Availability
5
Air Shutter WPL 323455 Contact Us For Availability
5
Insulation Oven Door Plug WPL 310962 Contact Us For Availability
5
Retainer WPL 285523 Contact Us For Availability
5
Pal Nut (6 Req) WPL 236129 Contact Us For Availability
5
Dual Control Valve WPL 306267 Contact Us For Availability
6
Bracket w/Switch WPL 319432 Contact Us For Availability
6
White WPL 321920 Contact Us For Availability
6
Coffee WPL 321921 Contact Us For Availability
6
Avocado WPL 321922 Contact Us For Availability
6
Golden Wheat WPL 321923 Contact Us For Availability
6
Almond WPL 321924 Contact Us For Availability
6
Body Side-Lt. or Rt. (Inc. Key 73) WPL ARI8777A16 Contact Us For Availability
6
Gasket-Oven Door WPL 282441 Contact Us For Availability
6
Mounting Bracket-Switches WPL 305729 Contact Us For Availability
6
Cover-Lock Rod WPL 321301 Contact Us For Availability
6
Tubing 3/8``-Control Valve to Broiler Burner WPL 293898 Contact Us For Availability
7
Oven Door Lock Asem. (Inc. Key 12) WPL 324815 Contact Us For Availability
7
Left WPL 325651 Contact Us For Availability
7
Right WPL 325652 Contact Us For Availability
7
Hinge Bracket w/Roller (Inc. Key 12) WPL ARI8778A25 Contact Us For Availability
7
Bracket-Igniter WPL 302535 Contact Us For Availability
7
Insulation-Oven Door Lining WPL 320718 Contact Us For Availability
7
Wire Cover WPL 325061 Contact Us For Availability
7
Glass-Control Panel WPL 325031 Contact Us For Availability
7
Rear Support-Main Top WPL 310575 Contact Us For Availability
8
Lockwasher WPL 69648 Contact Us For Availability
8
Bracket-Igniter (Oven or Broiler Burner) WPL 311689 Contact Us For Availability
8
Side Insulation-Lt. or Rt. WPL 320720 Contact Us For Availability
8
Shield-Wire WPL 321107 Contact Us For Availability
8
Knob-Lower Thermostat WPL 321534 Contact Us For Availability
8
Burner Box Bottom WPL 323979 Contact Us For Availability
9
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
9
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
9
Left WPL 324849 Contact Us For Availability
9
Right WPL 324850 Contact Us For Availability
9
Retainer-Side Insulation WPL ARI8780A98 Contact Us For Availability
9
Bracket-Fluorescent Lamp (Rt. or Lt.) WPL 324746 Contact Us For Availability
9
Trim Nut (3 Req) WPL 321667 Contact Us For Availability
9
Front Extension-Burner Box Bottom WPL 320841 Contact Us For Availability
10
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
10
Oven Door Hinge-Lt. or Rt. (Inc. Key 12) WPL 293971 Contact Us For Availability
10
Screw 10ABx3/8`` WPL 69605 Contact Us For Availability
10
Right WPL 325103 Contact Us For Availability
10
Left WPL 325104 Contact Us For Availability
10
Holder-Fluorescent Lamp WPL ARI8782A27 Contact Us For Availability
10
Frame-Control Panel WPL 282279 Contact Us For Availability
10
Plug Button WPL 239831 Contact Us For Availability
10
Bracket-Igniter (Oven Burner) WPL 310497 Contact Us For Availability
11
Knob-Oven Door Lock Handle WPL 323363 Contact Us For Availability
11
Spring-Oven Door (Lt. or Rt.) WPL 310993 Contact Us For Availability
11
Oven Burner Complete WPL 311323 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
11
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
11
Knob-Lower Selector Switch WPL 321535 Contact Us For Availability
11
Cover-Lock WPL 310418 Contact Us For Availability
11
Pressure Regulator WPL 311106 Contact Us For Availability
12
Spring-Lock Handle WPL 299599 Contact Us For Availability
12
Shoulder rivet WPL 293224 Contact Us For Availability
12
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
12
Wire Cover WPL 286889 Contact Us For Availability
12
Knob-Upper Thermostat WPL 321100 Contact Us For Availability
12
Spacer-Lt. or Rt. WPL 320844 Contact Us For Availability
13
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Base w/Levelers-(Lt. or Rt.) WPL 322941 Contact Us For Availability
13
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
13
Fluorescent Lamp Glass WPL 324747 Contact Us For Availability
13
Manifold Panel WPL 321502 Contact Us For Availability
13
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
14
Rod-Oven Door Lock WPL 310555 Contact Us For Availability
14
Front Panel-Oven Door WPL 321848 Contact Us For Availability
14
Lower Retainer-Fluorescent Lamp Glass WPL 319839 Contact Us For Availability
14
Indicator Light WPL 296317 Contact Us For Availability
14
Knob-Gas Valve (4 Required) WPL 321065 Contact Us For Availability
14
Front Top Burner-Lt. or Rt.(Inc`s. 32 & 33) WPL 310198 Contact Us For Availability
15
Spring-Solenoid WPL 299704 Contact Us For Availability
15
Front-Snap On Panel WPL 319860 Contact Us For Availability
15
Outer Door Glass WPL 319296 Contact Us For Availability
15
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
15
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
15
Left WPL 320837 Contact Us For Availability
15
Right WPL 320839 Contact Us For Availability
15
Extension-Burner Box Bottom WPL ARI8774A27 Contact Us For Availability
15
Support-Top Burner WPL 312452 Contact Us For Availability
16
Retainer - Seal WPL 295277 Contact Us For Availability
16
Frame-Oven Door Glass WPL 321849 Contact Us For Availability
16
Screw 6-32 x 1/2`` WPL 108788 Contact Us For Availability
16
Selector Switch-Lower WPL 321248 Contact Us For Availability
16
Baffle-Burner Box Bottom (Rt. or Lt.) WPL 324265 Contact Us For Availability
16
Wire Shield-Gas Valve WPL 320744 Contact Us For Availability
17
Cushion (6 Req) WPL 112370 Contact Us For Availability
17
Spring - Lamp Glass End Trim (Lt or Rt) WPL 286327 Contact Us For Availability
17
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
17
Thermostat-Upper Oven WPL 321022 Contact Us For Availability
17
Support Rod-Main Top WPL 307443 Contact Us For Availability
18
Seal WPL 295278 Contact Us For Availability
18
Handle-Oven Door WPL 282093 Contact Us For Availability
18
End Trim - Lamp Glass (Lt or Rt) WPL 299979 Contact Us For Availability
18
Selector Switch-Upper WPL 321517 Contact Us For Availability
18
Manifold Pipe WPL 323398 Contact Us For Availability
19
Main Bottom WPL 324818 Contact Us For Availability
19
Igniter-Oven or Broiler Burner WPL 319887 Contact Us For Availability
19
Shield-Oven Door Lining WPL 314912 Contact Us For Availability
19
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
19
Mounting Panel-Controls WPL 305727 Contact Us For Availability
20
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
20
Intermediate Door Glass WPL 308239 Contact Us For Availability
20
White WPL 323820 Contact Us For Availability
20
Coffee WPL 323821 Contact Us For Availability
20
Avocado WPL 323822 Contact Us For Availability
20
Golden Wheat WPL 323823 Contact Us For Availability
20
Almond WPL 323824 Contact Us For Availability
20
trim-filter WPL ARI8783A14 Contact Us For Availability
20
Tubular Clip (3 Req) WPL 293577 Contact Us For Availability
20
Support-Oven Burner WPL 282122 Contact Us For Availability
21
Washer WPL 106462 Contact Us For Availability
21
Center Door Glass WPL 296214 Contact Us For Availability
21
White WPL 321660 Contact Us For Availability
21
Coffee WPL 321661 Contact Us For Availability
21
Avocado WPL 321662 Contact Us For Availability
21
Golden Wheat WPL 321663 Contact Us For Availability
21
Almond WPL 321664 Contact Us For Availability
21
Cover-Vent WPL ARI8784A35 Contact Us For Availability
21
Clock w/1 Hr. Timer WPL 303005 Contact Us For Availability
21
Bracket-Orifice Fitting WPL 282112 Contact Us For Availability
22
Bottom-Oven Burner WPL 321272 Contact Us For Availability
22
Insulation Retainer WPL 324846 Contact Us For Availability
22
White WPL 320127 Contact Us For Availability
22
Coffee WPL 320128 Contact Us For Availability
22
Avocado WPL 320129 Contact Us For Availability
22
Golden Wheat WPL 320130 Contact Us For Availability
22
Almond WPL 320131 Contact Us For Availability
22
upper retainer-lamp glass WPL ARI8785A28 Contact Us For Availability
22
Wire Lead w/Resistor WPL 300326 Contact Us For Availability
22
Tubing 3/8`` w/Orifice WPL 312076 Contact Us For Availability
23
Access Plate WPL 321274 Contact Us For Availability
23
Retainer-Oven Door Glass Insulation WPL 324853 Contact Us For Availability
23
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
23
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
23
Oven Burner (Inc`s 24 & 25) WPL 318449 Contact Us For Availability
24
Oven Side-Left WPL 285482 Contact Us For Availability
24
Lining-Oven Door WPL 310912 Contact Us For Availability
24
Hinge Pin WPL 292906 Contact Us For Availability
24
Knob-Upper Selector Switch WPL 321519 Contact Us For Availability
24
Air Shutter WPL 312988 Contact Us For Availability
25
Baffel-Side Panel (Lt or Rt) WPL 311029 Contact Us For Availability
25
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
25
Stiffener-Oven Door Lining WPL 310911 Contact Us For Availability
25
Washer WPL 67710 Contact Us For Availability
25
Gas Valve Switches WPL 311529 Contact Us For Availability
25
Main WPL 324978 Contact Us For Availability
25
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
26
Inner Door Glass WPL 312426 Contact Us For Availability
26
lower hinge-oven door WPL 323886 Contact Us For Availability
26
Lower Baffle - Broiler Burner WPL 302904 Contact Us For Availability
27
Upper Insulation Retainer-Lt. WPL 322075 Contact Us For Availability
27
Plug-Oven Door Lining WPL 320677 Contact Us For Availability
27
Bracket-Oven Orifice WPL 109289 Contact Us For Availability
27
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
28
Insulation-Oven Top & Sides (1 Piece) WPL 282953 Contact Us For Availability
28
Screw 10-24x3/8`` WPL 303003 Contact Us For Availability
28
Support-Upper Oven (Lt. or Rt.) WPL 319987 Contact Us For Availability
28
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
29
Bracket-Oven Lamp Holder WPL 229369 Contact Us For Availability
29
baffle-oven burner WPL 302869 Contact Us For Availability
29
Gas Valve-4 Required (Inc`s. 28) WPL 324961 Contact Us For Availability
30
Cover-Flue Deflector WPL 324827 Contact Us For Availability
30
Access Plate WPL 302870 Contact Us For Availability
30
Switch-Gas Valve (4 Required) WPL 310253 Contact Us For Availability
31
Range Service Cord WPL 281381 Contact Us For Availability
31
Oven Side-Left WPL 323953 Contact Us For Availability
31
Shield-Gas Valve (4 Required) WPL 306589 Contact Us For Availability
32
Oven Top WPL 294296 Contact Us For Availability
32
Air Shutter WPL 301910 Contact Us For Availability
33
Oven Top WPL 282102 Contact Us For Availability
33
White WPL 323888 Contact Us For Availability
33
Coffee WPL 323889 Contact Us For Availability
33
Avocado WPL 323890 Contact Us For Availability
33
Golden Wheat WPL 323891 Contact Us For Availability
33
Almond WPL 323892 Contact Us For Availability
33
Oven Cabinet Top WPL ARI8786A94 Contact Us For Availability
33
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
34
Flue Deflector WPL 294197 Contact Us For Availability
34
Insulation-Sides, Top & Back (1 Piece) WPL 324318 Contact Us For Availability
34
Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33) WPL 310199 Contact Us For Availability
35
Gasket-Flue Deflector WPL 282157 Contact Us For Availability
35
oven si WPL 323951 Contact Us For Availability
35
Bracket-Module WPL 310527 Contact Us For Availability
36
Main Back WPL 323972 Contact Us For Availability
36
WPL 295974 WPL 295974 Contact Us For Availability
36
Screw 10-32x1/2`` WPL 239114 Contact Us For Availability
37
Insulation Retainer - Flue WPL 282156 Contact Us For Availability
37
WPL 115533 WPL 115533 Contact Us For Availability
37
Module-Spark Igniter WPL 320990 Contact Us For Availability
38
Insulation-Oven Back WPL 282535 Contact Us For Availability
38
WPL 305541 WPL 305541 Contact Us For Availability
38
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
39
Retainer-Oven Light Insulation WPL 229370 Contact Us For Availability
39
WPL 305628 WPL 305628 Contact Us For Availability
39
Shut Off Valve WPL 292894 Contact Us For Availability
40
Cover Plate, Rotisserie WPL 229607 Contact Us For Availability
40
WPL 111257 WPL 111257 Contact Us For Availability
40
Fitting WPL 312833 Contact Us For Availability
41
Oven Back WPL 312013 Contact Us For Availability
41
WPL 305629 WPL 305629 Contact Us For Availability
41
Silicone Rubber Gasket WPL 304241 Contact Us For Availability
42
Shoulder Bolt WPL 289730 Contact Us For Availability
42
WPL 288655 WPL 288655 Contact Us For Availability
42
Mounting Sc WPL 311455 Contact Us For Availability
43
WPL 325485 WPL 325485 Contact Us For Availability
43
WPL 325271 WPL 325271 Contact Us For Availability
44
Holder-Oven Lamp Bulb WPL 87883 Contact Us For Availability
44
WPL 99139 WPL 99139 Contact Us For Availability
44
WPL 97217 WPL 97217 Contact Us For Availability
45
Lens-Oven Light WPL 114989 Contact Us For Availability
45
WPL 281781 WPL 281781 Contact Us For Availability
45
WPL 318758 WPL 318758 Contact Us For Availability
46
Gasket-Oven Light Lens WPL 229371 Contact Us For Availability
46
WPL 295035 WPL 295035 Contact Us For Availability
46
WPL 98761 WPL 98761 Contact Us For Availability
47
WPL 321162 WPL 321162 Contact Us For Availability
47
WPL 237347 WPL 237347 Contact Us For Availability
48
Strike (2 Req) WPL 313671 Contact Us For Availability
48
WPL 292912 WPL 292912 Contact Us For Availability
48
WPL 324968 WPL 324968 Contact Us For Availability
49
WPL 292913 WPL 292913 Contact Us For Availability
50
WPL 324745 WPL 324745 Contact Us For Availability
51
Frame-Snap On WPL 310977 Contact Us For Availability
51
WPL 324159 WPL 324159 Contact Us For Availability
52
WPL 310500 WPL 310500 Contact Us For Availability
52
WPL 102559 WPL 102559 Contact Us For Availability
53
WPL 282952 WPL 282952 Contact Us For Availability
53
WPL 281846 WPL 281846 Contact Us For Availability
54
WPL 308010 WPL 308010 Contact Us For Availability
55
WPL 304125 WPL 304125 Contact Us For Availability
55
WPL 281992 WPL 281992 Contact Us For Availability
56
WPL 310218 WPL 310218 Contact Us For Availability
56
WPL 292907 WPL 292907 Contact Us For Availability
57
WPL 321919 WPL 321919 Contact Us For Availability
57
WPL 281845 WPL 281845 Contact Us For Availability
58
WPL 71003 WPL 71003 Contact Us For Availability
58
WPL 293051 WPL 293051 Contact Us For Availability
59
WPL 229372 WPL 229372 Contact Us For Availability
59
WPL 239764 WPL 239764 Contact Us For Availability
60
WPL 282118 WPL 282118 Contact Us For Availability
60
WPL 235134 WPL 235134 Contact Us For Availability
61
WPL 92770 WPL 92770 Contact Us For Availability
61
WPL 299263 WPL 299263 Contact Us For Availability
62
WPL 282127 WPL 282127 Contact Us For Availability
62
WPL 293049 WPL 293049 Contact Us For Availability
63
WPL 283457 WPL 283457 Contact Us For Availability
63
WPL 323873 WPL 323873 Contact Us For Availability
64
WPL 305361 WPL 305361 Contact Us For Availability
64
WPL 97411 WPL 97411 Contact Us For Availability
64
WPL ARI8787A98 WPL ARI8787A98 Contact Us For Availability
65
WPL 306149 WPL 306149 Contact Us For Availability
65
WPL 306150 WPL 306150 Contact Us For Availability
65
WPL ARI8779A99 WPL ARI8779A99 Contact Us For Availability
65
WPL 97003 WPL 97003 Contact Us For Availability
66
WPL 321539 WPL 321539 Contact Us For Availability
66
WPL 98186 WPL 98186 Contact Us For Availability
67
WPL 322073 WPL 322073 Contact Us For Availability
67
WPL 109180 WPL 109180 Contact Us For Availability
68
WPL 293747 WPL 293747 Contact Us For Availability
69
WPL 237762 WPL 237762 Contact Us For Availability
69
WPL 320024 WPL 320024 Contact Us For Availability
69
WPL 320025 WPL 320025 Contact Us For Availability
69
WPL 320026 WPL 320026 Contact Us For Availability
69
WPL 320027 WPL 320027 Contact Us For Availability
69
WPL 320028 WPL 320028 Contact Us For Availability
69
WPL 320030 WPL 320030 Contact Us For Availability
69
WPL 320031 WPL 320031 Contact Us For Availability
69
WPL 320032 WPL 320032 Contact Us For Availability
69
WPL 320033 WPL 320033 Contact Us For Availability
69
WPL 320034 WPL 320034 Contact Us For Availability
69
WPL ARI8788A26 WPL ARI8788A26 Contact Us For Availability
70
WPL 285860 WPL 285860 Contact Us For Availability
70
WPL 320119 WPL 320119 Contact Us For Availability
71
WPL 70588 WPL 70588 Contact Us For Availability
71
WPL 282273 WPL 282273 Contact Us For Availability
72
WPL 282278 WPL 282278 Contact Us For Availability
72
WPL 313418 WPL 313418 Contact Us For Availability
73
WPL 239603 WPL 239603 Contact Us For Availability
74
WPL 294195 WPL 294195 Contact Us For Availability
74
WPL 281698 WPL 281698 Contact Us For Availability
75
WPL 281574 WPL 281574 Contact Us For Availability
76
WPL 100576 WPL 100576 Contact Us For Availability
× ![]()
