Model Whirlpool 1765^0A DOUBLE OVEN GAS RANGE – Common Parts & Diagrams
06 - BODY
08 - UPPER OVEN PEDESTAL
03 - POWER LOCK
10 - BLOWER
01 - MAIN TOP
09 - CONTROL PANEL
12 - SECTION

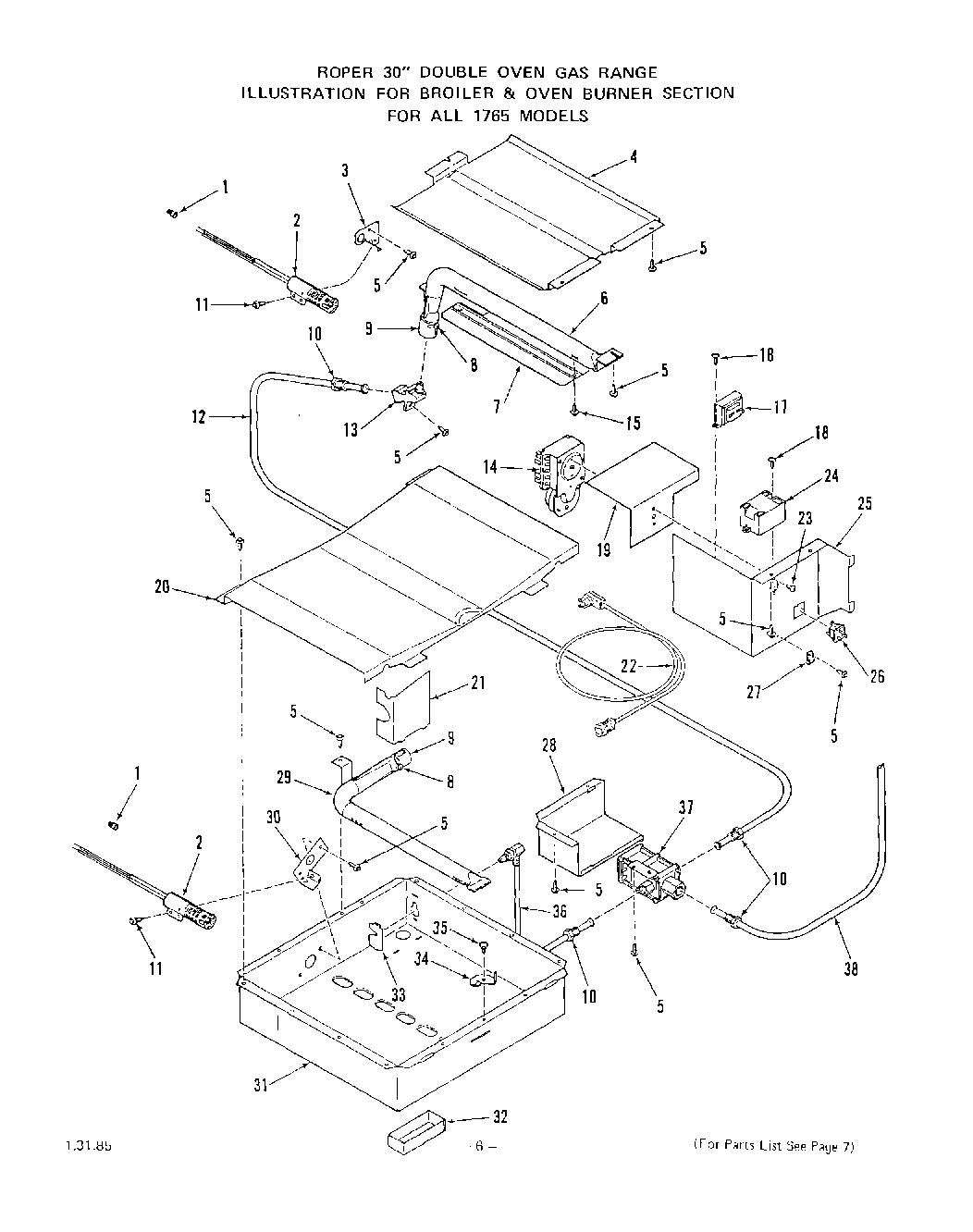

05 - BROILER AND OVEN BURNER

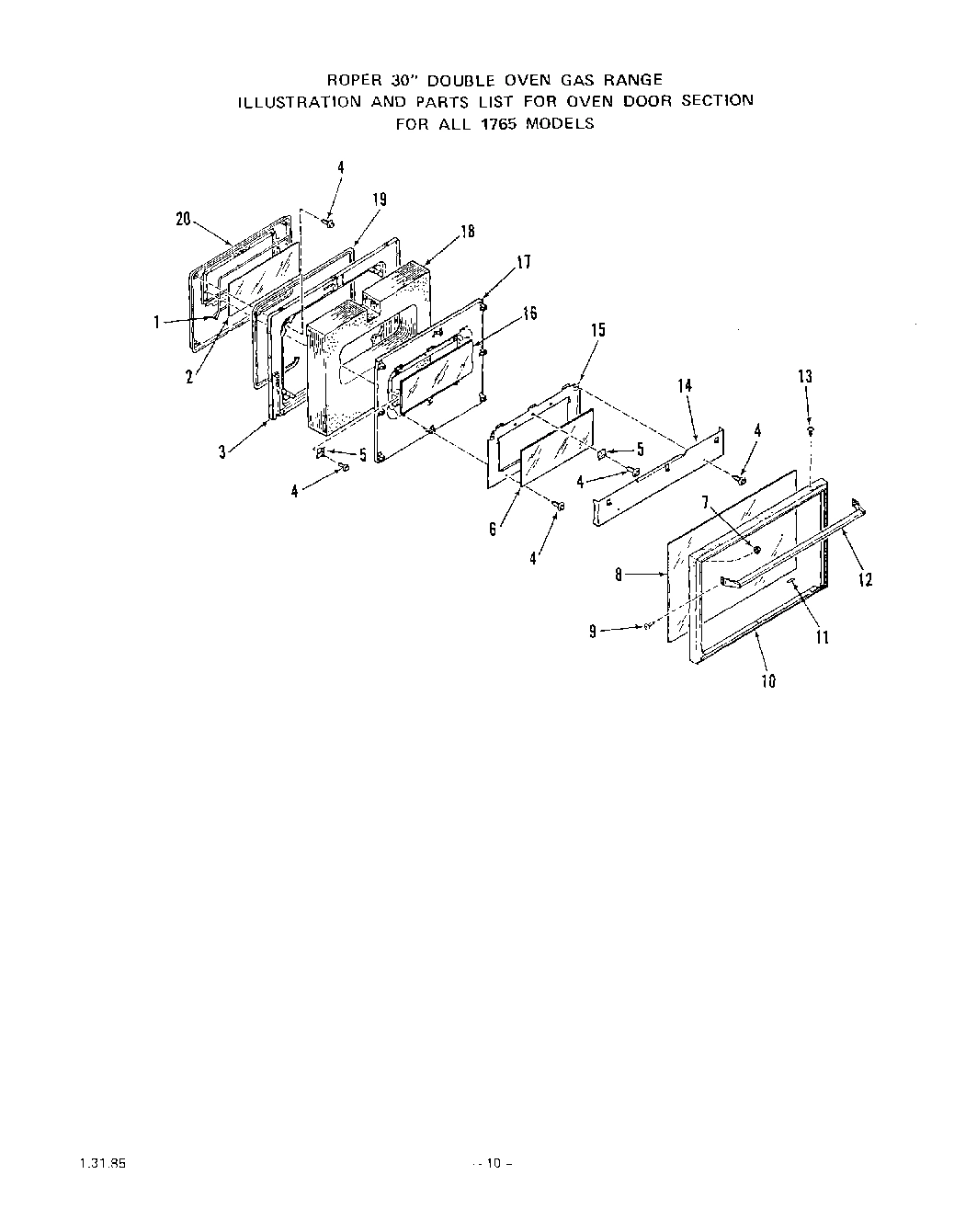

07 - OVEN DOOR
02 - OPTIONAL GRIDDLE
04 - TOP BURNER
Common parts from model Whirlpool 1765^0A DOUBLE OVEN GAS RANGE
1
Wire Connector WPL 103595 Contact Us For Availability
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Seal-Inner Glass WPL 302935 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Push Switch-Fluorescent Lamp WPL 288508 Contact Us For Availability
1
Box - Auxiliary Thermostat WPL 326303 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
2
Igniter-Broiler & Oven Burner WPL 319887 Contact Us For Availability
2
Inner Glass-Oven Door WPL 312426 Contact Us For Availability
2
Spacer (4 Req) WPL 325308 Contact Us For Availability
2
Rear Top Burner-Rt. or Lt. (Inc`s. Key 4) WPL 327075 Contact Us For Availability
2
Wire Shield WPL 327809 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 322888 Contact Us For Availability
2
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
3
Bracket-Broiler Burner Igniter WPL 327804 Contact Us For Availability
3
Lining-Oven Door WPL 328723 Contact Us For Availability
3
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
3
Screw 4-24x1/4`` WPL 315617 Contact Us For Availability
3
Screw 10-32x1`` WPL 313190 Contact Us For Availability
3
Front Top Burner-Rt. or Lt. (Inc`s.Key 4) WPL 327074 Contact Us For Availability
3
Main Back WPL 327294 Contact Us For Availability
3
Micro Switch WPL 329170 Contact Us For Availability
4
Baffle-Broiler Burner WPL 327807 Contact Us For Availability
4
Mounting Panel - Controls WPL 325268 Contact Us For Availability
4
Upper Oven Body Side (White - Left) WPL 325310 Contact Us For Availability
4
Upper Oven Body Side (Golden Wheat - Left) WPL 325313 Contact Us For Availability
4
Upper Oven Body Side (Almond - Left) WPL 325314 Contact Us For Availability
4
Upper Oven Body Side (White - Right) WPL 325316 Contact Us For Availability
4
Upper Oven Body Side (Golden Wheat - Right) WPL 325319 Contact Us For Availability
4
Upper Oven Body Side (Almond - Right) WPL 325320 Contact Us For Availability
4
Upper Oven Body Side (Black - Left) WPL 327643 Contact Us For Availability
4
Upper Oven Body Side (Black - Right) WPL 327644 Contact Us For Availability
4
Upper Oven Body Side (Toast - Left) WPL 328209 Contact Us For Availability
4
Upper Oven Body Side (Toast - Right) WPL 328210 Contact Us For Availability
4
Upper Oven Body Side (Platinum - Left) WPL 328211 Contact Us For Availability
4
Upper Oven Body Side (Platinum - Right) WPL 328212 Contact Us For Availability
4
Air Shutter (4 Req) WPL 327198 Contact Us For Availability
4
Insulation-Oven Back & Bottom (1 Piece) WPL 329146 Contact Us For Availability
4
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
4
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
4
Cover-Lock Rod WPL 328486 Contact Us For Availability
5
Retainer-Door Glass WPL 326009 Contact Us For Availability
5
Indicator Light (2 Req) WPL 325875 Contact Us For Availability
5
Pedestal-Upper Oven (White - Right) WPL 325283 Contact Us For Availability
5
Pedestal-Upper Oven (Golden Wheat - Right) WPL 325286 Contact Us For Availability
5
Pedestal-Upper Oven (Almond - Right) WPL 325287 Contact Us For Availability
5
Pedestal-Upper Oven (White - Left) WPL 325289 Contact Us For Availability
5
Pedestal-Upper Oven (Golden Wheat - Left) WPL 325292 Contact Us For Availability
5
Pedestal-Upper Oven (Almond - Left) WPL 325293 Contact Us For Availability
5
Pedestal-Upper Oven (Black - Left) WPL 327641 Contact Us For Availability
5
Pedestal-Upper Oven (Black - Right) WPL 327642 Contact Us For Availability
5
Pedestal-Upper Oven (Toast - Left) WPL 328127 Contact Us For Availability
5
Pedestal-Upper Oven (Toast - Right) WPL 328128 Contact Us For Availability
5
Pedestal-Upper Oven (Platinum - Left) WPL 328213 Contact Us For Availability
5
Pedestal-Upper Oven (Platinum - Right) WPL 328214 Contact Us For Availability
5
Electrode-Spark Igniter (Right) WPL 329462 Contact Us For Availability
5
Electrode-Spark Igniter (Left) WPL 329464 Contact Us For Availability
5
Retainer-Insulation (Lt. or Rt.) WPL 328959 Contact Us For Availability
5
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
5
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
6
Broiler Burner (Inc`s. Keys 7, 8, 9, 15) WPL 330163 Contact Us For Availability
6
Intermediate Glass-Oven Door WPL 326088 Contact Us For Availability
6
Trim Nut WPL 321667 Contact Us For Availability
6
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
6
Spacer-Main Top (2 Req) WPL 326914 Contact Us For Availability
6
Extension-Handle WPL 328470 Contact Us For Availability
7
Baffle WPL 328660 Contact Us For Availability
7
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
7
Side Tr WPL 325330 Contact Us For Availability
7
WPL 325492 WPL 325492 Contact Us For Availability
7
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
7
Body Side (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Golden Wheat) WPL 326058 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Platinum) WPL 327939 Contact Us For Availability
7
Body Side (Lt. or Rt.) (Toast) WPL 327940 Contact Us For Availability
7
Raceway WPL 329841 Contact Us For Availability
7
Spring WPL 313075 Contact Us For Availability
8
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
8
outer glass-oven door WPL 326367 Contact Us For Availability
8
Control Curtain w/Trim WPL 330400 Contact Us For Availability
8
WPL 101523 WPL 101523 Contact Us For Availability
8
Pressure Regulator WPL 311106 Contact Us For Availability
8
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
8
Burner Box Bottom WPL 327849 Contact Us For Availability
8
Lock Box WPL 328489 Contact Us For Availability
9
Air Shutter WPL 312988 Contact Us For Availability
9
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
9
Lens-Clock WPL 325365 Contact Us For Availability
9
WPL 285523 WPL 285523 Contact Us For Availability
9
Mounting Screw 1/4-20 WPL 311455 Contact Us For Availability
9
Spring-Oven Door (Lt. or Rt.) WPL 326965 Contact Us For Availability
9
Washer WPL 106462 Contact Us For Availability
9
Washer WPL 21067 Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
10
Frame-Oven Door WPL 326001 Contact Us For Availability
10
Clock w/1 Hr. Timer (Inc`s. Key 11) WPL 329618 Contact Us For Availability
10
Hinge-Oven Door (Right) WPL 326012 Contact Us For Availability
10
Hinge-Oven Door (Left) WPL 326013 Contact Us For Availability
10
Rear Stiffener-Burner Box Bottom WPL 329158 Contact Us For Availability
10
Latch Assm. (Inc`s. Key 7) WPL 328656 Contact Us For Availability
11
Cushion (3 Req) WPL 112370 Contact Us For Availability
11
Clock Motor WPL 283296 Contact Us For Availability
11
WPL 322992 WPL 322992 Contact Us For Availability
11
Shut Off Valve WPL 326830 Contact Us For Availability
11
Strap-Main Back & Base WPL 327026 Contact Us For Availability
11
Front Stiffener-Burner Box Bottom WPL 327705 Contact Us For Availability
11
Clip-Knob WPL 328474 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 286824 Contact Us For Availability
12
Handle WPL 303342 Contact Us For Availability
12
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
12
WPL 325773 WPL 325773 Contact Us For Availability
12
Rubber Gasket WPL 313563 Contact Us For Availability
12
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
12
Bracket-Manifold Panel (Left) WPL 328808 Contact Us For Availability
12
Bracket-Manifold Panel (Right) WPL 328924 Contact Us For Availability
12
Knob-Lock WPL 328475 Contact Us For Availability
13
Broiler Orifice Fitting WPL 315437 Contact Us For Availability
13
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
13
WPL 326696 WPL 326696 Contact Us For Availability
13
Manifold Pipe WPL 329539 Contact Us For Availability
13
Lining-Storage Door WPL 328428 Contact Us For Availability
13
End Cap-Manifold Panel (Right) WPL 328498 Contact Us For Availability
13
End Cap-Manifold Panel (Left) WPL 328499 Contact Us For Availability
13
Handle-Latch WPL 328477 Contact Us For Availability
14
Timer WPL 328350 Contact Us For Availability
14
Baffle-Oven Door WPL 328719 Contact Us For Availability
14
Barrier Intrusion WPL 326354 Contact Us For Availability
14
WPL 329491 WPL 329491 Contact Us For Availability
14
Rubber Gasket WPL 311692 Contact Us For Availability
14
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
14
Insulation-Latch WPL 328472 Contact Us For Availability
15
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
15
Mounting Plate-Glass WPL 328615 Contact Us For Availability
15
WPL 71734 WPL 71734 Contact Us For Availability
15
Thermostat-Oven WPL 328279 Contact Us For Availability
15
Catch-Strike WPL 71003 Contact Us For Availability
15
Knob-Gas Valve (4 Reg) WPL 328805 Contact Us For Availability
15
Insulator-Switch (3 Req) WPL 329171 Contact Us For Availability
16
Center Glass-Oven Door WPL 326632 Contact Us For Availability
16
WPL 329489 WPL 329489 Contact Us For Availability
16
WPL 329547 WPL 329547 Contact Us For Availability
16
G.M. Screw 8-32x3/16`` WPL 155021 Contact Us For Availability
16
Base w/Leg Levelers (Lt. or Rt.) WPL 327020 Contact Us For Availability
16
Catch-Main Top Strike (2 Req) WPL 24667 Contact Us For Availability
16
Micro Switch WPL 329169 Contact Us For Availability
17
Ballast WPL 98186 Contact Us For Availability
17
Retainer-Oven Door Insulation WPL 328623 Contact Us For Availability
17
WPL 324746 WPL 324746 Contact Us For Availability
17
Shield-Thermostat WPL 329839 Contact Us For Availability
17
Knob-Thermostat WPL 328278 Contact Us For Availability
17
Screw 4-40x1 1/8`` WPL 328957 Contact Us For Availability
18
Insulation-Oven Door WPL 326000 Contact Us For Availability
18
WPL 321107 WPL 321107 Contact Us For Availability
18
Gas Valve (4 Req) WPL 329272 Contact Us For Availability
18
Storage Compartment WPL 328491 Contact Us For Availability
18
Knurled Nut WPL 87403 Contact Us For Availability
18
Wire Cover-Latch Switches WPL 328490 Contact Us For Availability
19
Shield WPL 329903 Contact Us For Availability
19
Gasket-Oven Door WPL 292244 Contact Us For Availability
19
WPL 306543 WPL 306543 Contact Us For Availability
19
WPL 326697 WPL 326697 Contact Us For Availability
19
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
19
Lower Insulation Retainer WPL 327785 Contact Us For Availability
19
Manifold Panel WPL 329468 Contact Us For Availability
20
Baffle-Oven Burner WPL 328480 Contact Us For Availability
20
Tubing 3/8`` (Shut-Off Valve to Control Valve WPL 280437 Contact Us For Availability
20
Plug-Oven Door Lining WPL 328669 Contact Us For Availability
20
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
20
WPL 322933 WPL 322933 Contact Us For Availability
20
WPL 322935 WPL 322935 Contact Us For Availability
20
Insulation WPL 330166 Contact Us For Availability
21
Shield-Orifice Fitting WPL 328471 Contact Us For Availability
21
WPL 325726 WPL 325726 Contact Us For Availability
21
WPL 325728 WPL 325728 Contact Us For Availability
21
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
21
Wire Shield WPL 327808 Contact Us For Availability
22
Range Service Cord WPL 329488 Contact Us For Availability
22
WPL 327028 WPL 327028 Contact Us For Availability
22
WPL 327030 WPL 327030 Contact Us For Availability
22
Bushing WPL 324257 Contact Us For Availability
22
Push Switch-Oven Light WPL 330080 Contact Us For Availability
23
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
23
WPL 325388 WPL 325388 Contact Us For Availability
23
Flue Deflector WPL 327826 Contact Us For Availability
23
Support Rod-Main Top WPL 326066 Contact Us For Availability
24
Module-Spark Igniter WPL 320990 Contact Us For Availability
24
WPL 326417 WPL 326417 Contact Us For Availability
24
Insulation-Oven Top & Sides (1 Piece) WPL 329147 Contact Us For Availability
24
Clamp WPL 326348 Contact Us For Availability
25
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
25
Mounting Bracket-Components WPL 329442 Contact Us For Availability
25
WPL 230710 WPL 230710 Contact Us For Availability
25
Flue Box WPL 327781 Contact Us For Availability
26
Disconnect WPL 232150 Contact Us For Availability
26
WPL 325401 WPL 325401 Contact Us For Availability
26
Oven Body WPL 327779 Contact Us For Availability
26
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
27
Clip WPL 106767 Contact Us For Availability
27
Keps Nut 8-32 WPL 239764 Contact Us For Availability
27
WPL 239114 WPL 239114 Contact Us For Availability
27
Cover WPL 304835 Contact Us For Availability
28
Cover-Control Valve WPL 328481 Contact Us For Availability
28
WPL 324504 WPL 324504 Contact Us For Availability
28
Strike (2 Req) WPL 299784 Contact Us For Availability
28
Clip-Thermostat Bulb (2 Req) WPL 321539 Contact Us For Availability
29
Oven Burner WPL 328482 Contact Us For Availability
29
WPL 328020 WPL 328020 Contact Us For Availability
29
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
29
Main Top (White) WPL 328907 Contact Us For Availability
29
Main Top (Golden Wheat) WPL 328910 Contact Us For Availability
29
Main Top (Almond) WPL 328911 Contact Us For Availability
29
Main Top (Chrome) WPL 328912 Contact Us For Availability
29
Main Top (Platinum) WPL 328913 Contact Us For Availability
29
Main Top (Toast) WPL 328914 Contact Us For Availability
30
Bracket-Igniter WPL 311689 Contact Us For Availability
30
WPL 328492 WPL 328492 Contact Us For Availability
30
Front Frame WPL 329484 Contact Us For Availability
30
Washer (2 Req) WPL 310218 Contact Us For Availability
31
Bottom-Oven Burner Box WPL 327775 Contact Us For Availability
31
Lower Catch-Storage Door (2 Req) WPL 328430 Contact Us For Availability
32
Insulation Retainer-Oven Orifice WPL 329279 Contact Us For Availability
32
WPL 328021 WPL 328021 Contact Us For Availability
32
Bracket-Catch WPL 328429 Contact Us For Availability
33
Plate-Orifice Fitting WPL 328473 Contact Us For Availability
33
WPL 325301 WPL 325301 Contact Us For Availability
34
Latch-Oven Burner Box Bottom WPL 328479 Contact Us For Availability
34
WPL 322937 WPL 322937 Contact Us For Availability
34
Spacer WPL 302343 Contact Us For Availability
35
Shoulder Screw WPL 328584 Contact Us For Availability
35
WPL 322949 WPL 322949 Contact Us For Availability
35
Front Panel-Storage Door (White) WPL 326287 Contact Us For Availability
35
Front Panel-Storage Door (Golden Wheat) WPL 326290 Contact Us For Availability
35
Front Panel-Storage Door (Almond) WPL 326291 Contact Us For Availability
35
Front Panel-Storage Door (Black) WPL 326292 Contact Us For Availability
35
Front Panel-Storage WPL 327941 Contact Us For Availability
35
WPL 327942 WPL 327942 Contact Us For Availability
36
Tubing 3/8`` w/Orifice Fitting (Control Valve WPL 329174 Contact Us For Availability
36
WPL 320261 WPL 320261 Contact Us For Availability
36
WPL 292240 WPL 292240 Contact Us For Availability
37
Control Valve WPL 306267 Contact Us For Availability
37
WPL 325337 WPL 325337 Contact Us For Availability
37
WPL 325338 WPL 325338 Contact Us For Availability
38
WPL 328485 WPL 328485 Contact Us For Availability
39
WPL 229372 WPL 229372 Contact Us For Availability
40
WPL 320127 WPL 320127 Contact Us For Availability
40
WPL 320130 WPL 320130 Contact Us For Availability
40
WPL 320131 WPL 320131 Contact Us For Availability
40
WPL 328219 WPL 328219 Contact Us For Availability
40
WPL 328222 WPL 328222 Contact Us For Availability
40
WPL 329671 WPL 329671 Contact Us For Availability
40
WPL 114989 WPL 114989 Contact Us For Availability
41
WPL 327578 WPL 327578 Contact Us For Availability
41
WPL 327581 WPL 327581 Contact Us For Availability
41
WPL 327582 WPL 327582 Contact Us For Availability
41
WPL 328321 WPL 328321 Contact Us For Availability
41
WPL 328322 WPL 328322 Contact Us For Availability
41
WPL 328426 WPL 328426 Contact Us For Availability
41
WPL 229371 WPL 229371 Contact Us For Availability
42
WPL 329382 WPL 329382 Contact Us For Availability
42
WPL 111257 WPL 111257 Contact Us For Availability
43
WPL 329852 WPL 329852 Contact Us For Availability
43
WPL 237762 WPL 237762 Contact Us For Availability
44
WPL 329492 WPL 329492 Contact Us For Availability
44
WPL 326069 WPL 326069 Contact Us For Availability
45
WPL 286327 WPL 286327 Contact Us For Availability
45
WPL 326300 WPL 326300 Contact Us For Availability
46
WPL 299979 WPL 299979 Contact Us For Availability
46
WPL 326297 WPL 326297 Contact Us For Availability
47
WPL 323820 WPL 323820 Contact Us For Availability
47
WPL 323823 WPL 323823 Contact Us For Availability
47
WPL 323824 WPL 323824 Contact Us For Availability
47
WPL 327639 WPL 327639 Contact Us For Availability
47
WPL 328130 WPL 328130 Contact Us For Availability
47
WPL 328216 WPL 328216 Contact Us For Availability
47
WPL 328487 WPL 328487 Contact Us For Availability
48
WPL 325336 WPL 325336 Contact Us For Availability
48
WPL 327022 WPL 327022 Contact Us For Availability
48
WPL 327024 WPL 327024 Contact Us For Availability
49
WPL 320257 WPL 320257 Contact Us For Availability
49
WPL 326125 WPL 326125 Contact Us For Availability
50
WPL 288197 WPL 288197 Contact Us For Availability
51
WPL 328608 WPL 328608 Contact Us For Availability
51
WPL 327035 WPL 327035 Contact Us For Availability
52
WPL 327799 WPL 327799 Contact Us For Availability
53
WPL 326031 WPL 326031 Contact Us For Availability
54
WPL 325029 WPL 325029 Contact Us For Availability
55
WPL 320476 WPL 320476 Contact Us For Availability
55
WPL 321671 WPL 321671 Contact Us For Availability
55
WPL 321672 WPL 321672 Contact Us For Availability
55
WPL 327638 WPL 327638 Contact Us For Availability
55
WPL 328205 WPL 328205 Contact Us For Availability
55
WPL 328206 WPL 328206 Contact Us For Availability
56
WPL 325322 WPL 325322 Contact Us For Availability
56
WPL 325325 WPL 325325 Contact Us For Availability
56
WPL 325326 WPL 325326 Contact Us For Availability
56
WPL 327640 WPL 327640 Contact Us For Availability
56
WPL 328207 WPL 328207 Contact Us For Availability
56
WPL 328208 WPL 328208 Contact Us For Availability
57
WPL 325328 WPL 325328 Contact Us For Availability
67
WPL 320196 WPL 320196 Contact Us For Availability
× ![]()
