Model Whirlpool 1525L0A GAS RANGE – Common Parts & Diagrams
06 - OVEN DOOR, LIT/OPTIONAL
02 - CONTROL PANEL

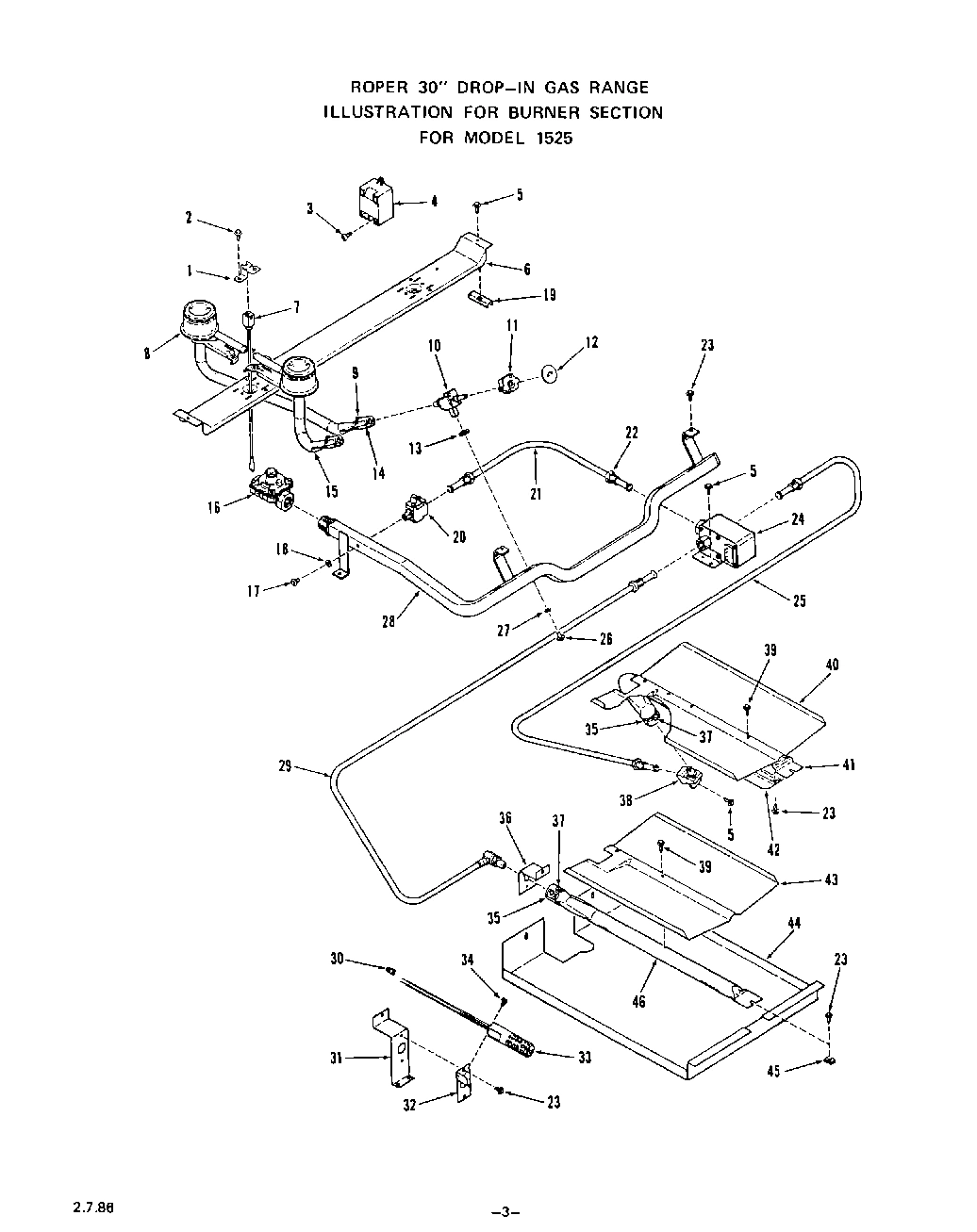

04 - BURNER

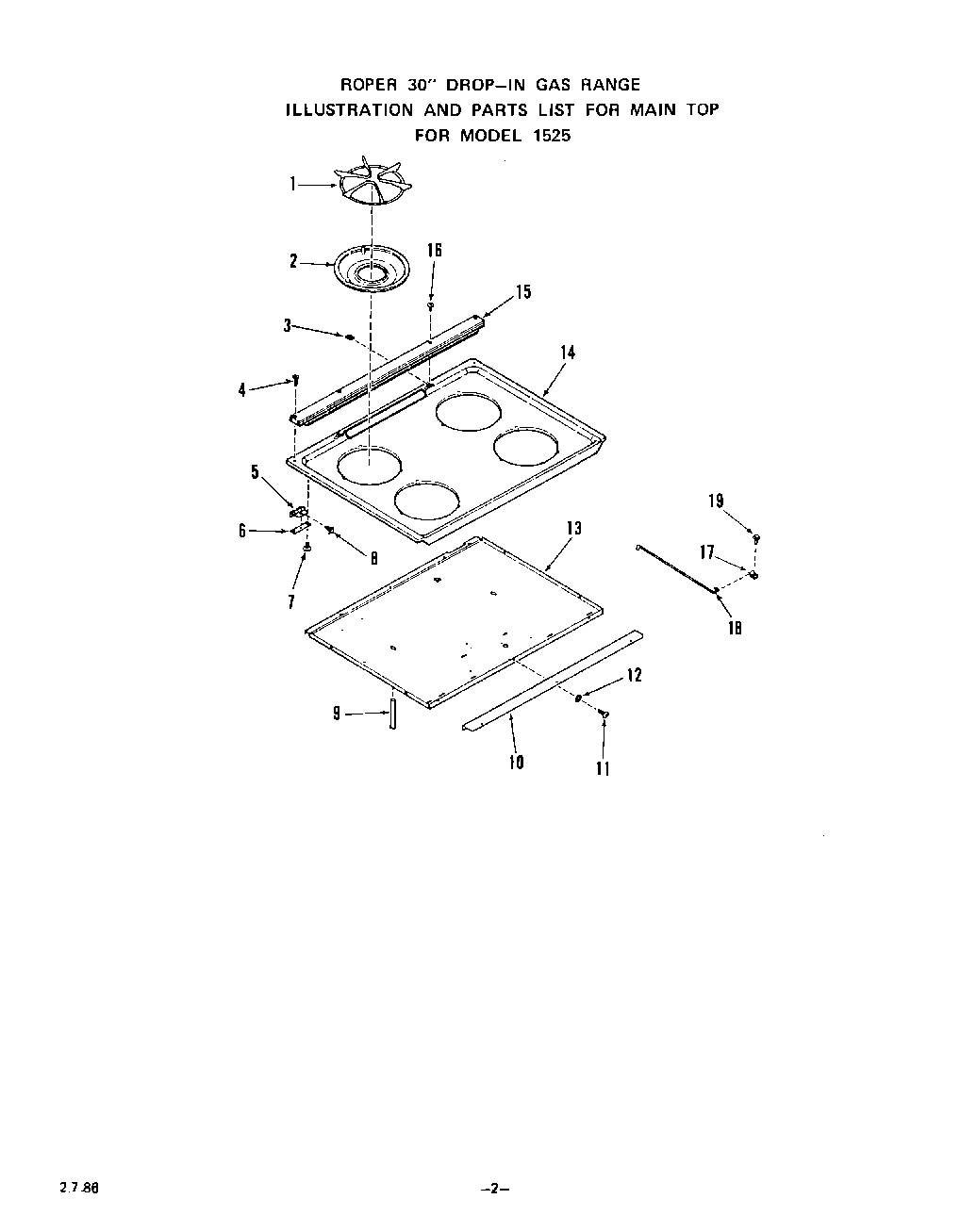

03 - MAINTOP

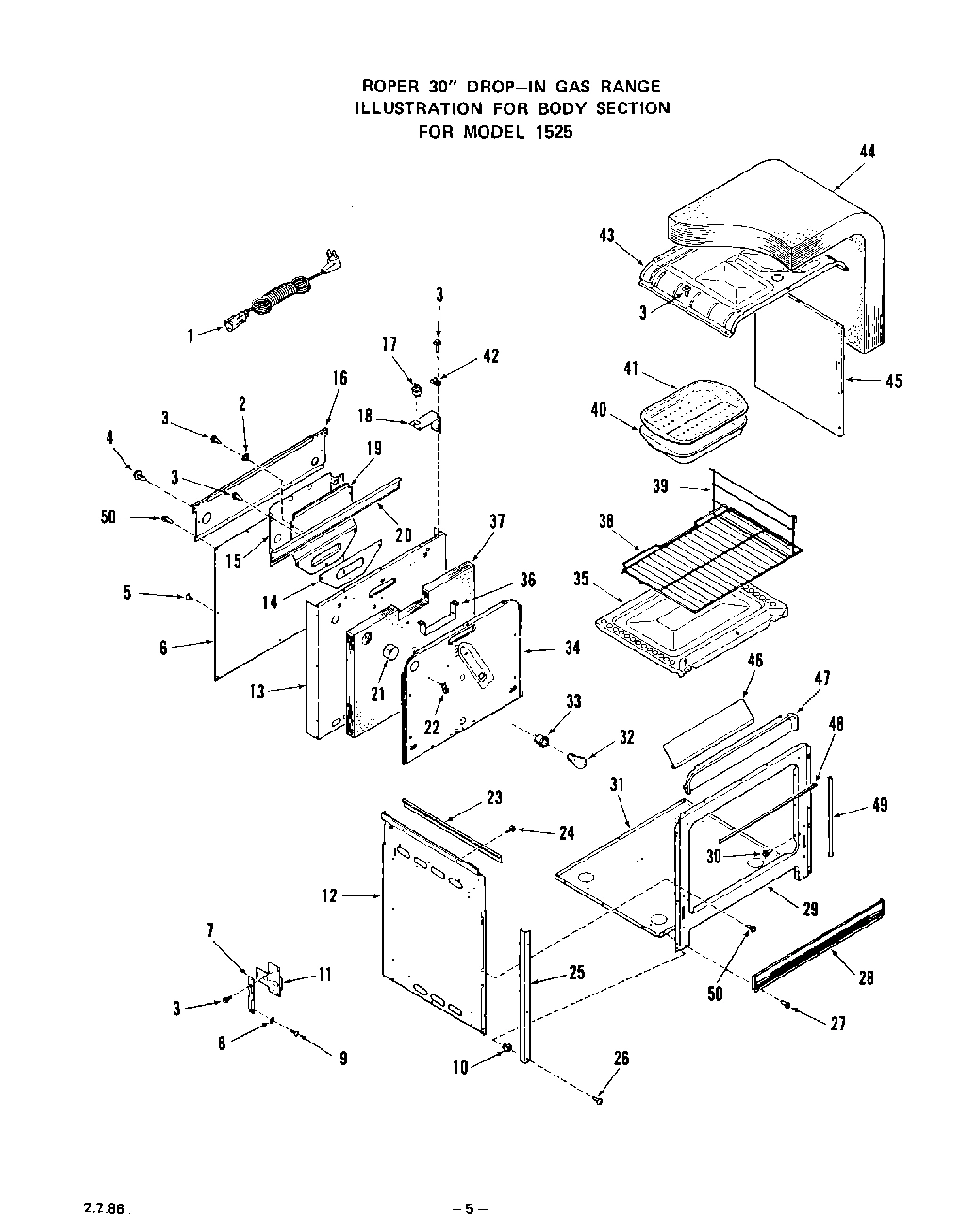

05 - BODY

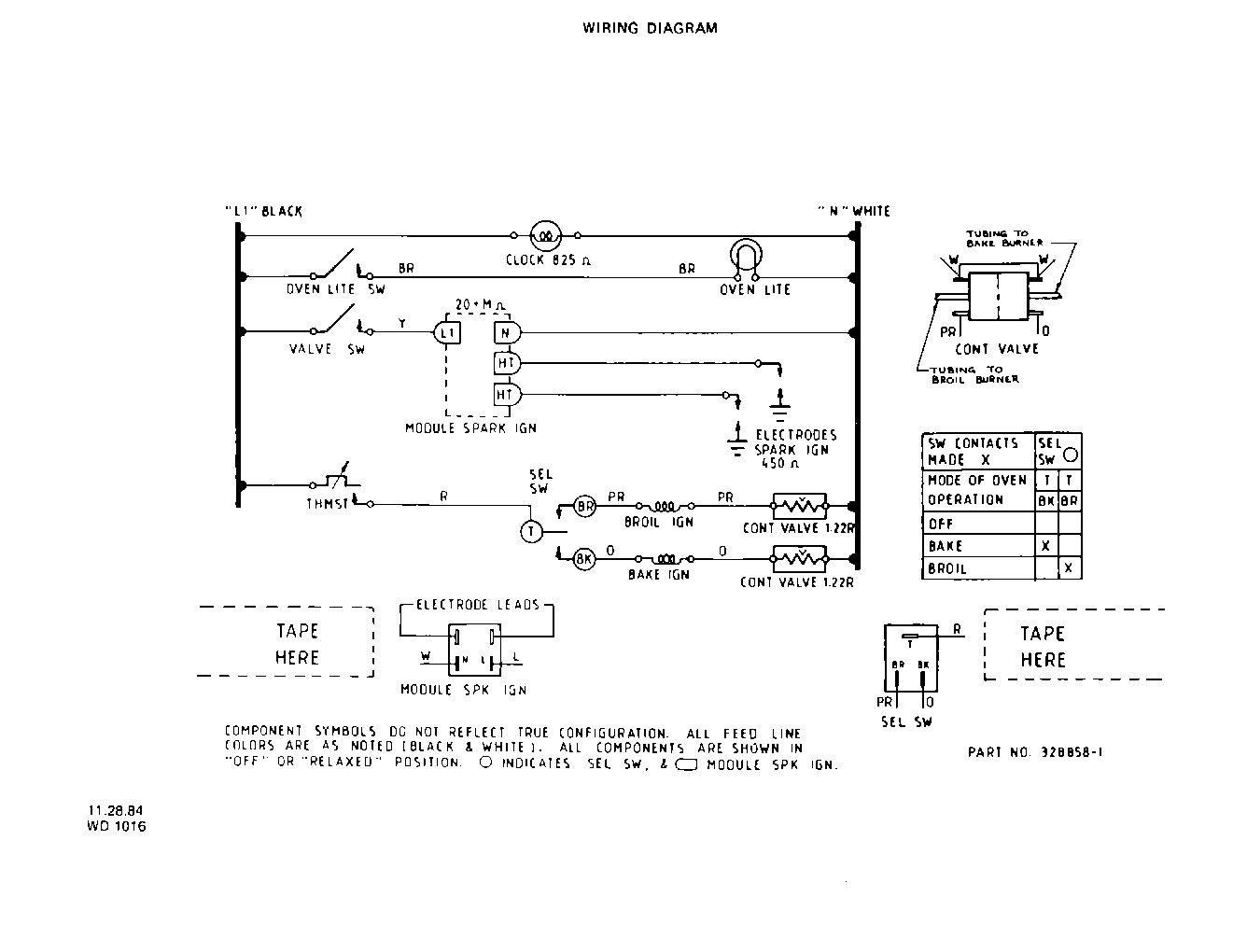

07 - WIRING DIAGRAM
Common parts from model Whirlpool 1525L0A GAS RANGE
Main 15250A, 15251A Models WPL 328859 Contact Us For Availability
1
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
1
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
1
Top Grate (4 Req) (15252A, 15253A Models) WPL 316786 Contact Us For Availability
1
Range Service Cord WPL 235822 Contact Us For Availability
2
Wire Cover - Control WPL 315032 Contact Us For Availability
2
Aeration Pan 15252A, 3A Models WPL 330427 Contact Us For Availability
2
Lockwasher WPL 109156 Contact Us For Availability
3
Screw 10 - 32x3/8`` WPL 104520 Contact Us For Availability
3
Wire Cover - Right WPL 315026 Contact Us For Availability
3
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
3
Speed Nut 6-32 WPL 280035 Contact Us For Availability
4
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
4
Insulation - Control Cover Back WPL 318078 Contact Us For Availability
4
Spark Module WPL 320990 Contact Us For Availability
4
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
4
Screw 6 - 32x7/8`` WPL 316452 Contact Us For Availability
5
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
5
Insulation - Control Cover Sides WPL 318079 Contact Us For Availability
5
Hinge (Lt or Rt) WPL 315568 Contact Us For Availability
5
Clip WPL 70588 Contact Us For Availability
6
Hinge - Oven Door (Lt or Rt) WPL 330925 Contact Us For Availability
6
Shield - Oven Light WPL 318080 Contact Us For Availability
6
Support - Top Burner WPL 318705 Contact Us For Availability
6
Mounting Bracket - Hinge (Lt or Rt) WPL 315782 Contact Us For Availability
6
Rear Wire Cover WPL 324014 Contact Us For Availability
7
Frame - Oven Door WPL 326539 Contact Us For Availability
7
Oven Thermostat WPL 316842 Contact Us For Availability
7
Electrode - Spark Ignitor (Left) WPL 312455 Contact Us For Availability
7
Electrode - Spark Ignitor (Right) WPL 312598 Contact Us For Availability
7
Screw 6-32x3/16`` WPL 315919 Contact Us For Availability
7
Hinge Angle - Lt or Rt WPL 322613 Contact Us For Availability
8
Keps Nut 8-32 WPL 239764 Contact Us For Availability
8
Push Switch-Oven Light WPL 298793 Contact Us For Availability
8
Rear Top Burner (Lt or Rt) WPL 318669 Contact Us For Availability
8
Washer WPL 21067 Contact Us For Availability
9
Handle-Oven Door WPL 318939 Contact Us For Availability
9
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
9
Raceway - Lt or Rt WPL 320844 Contact Us For Availability
10
Screw WPL 331704 Contact Us For Availability
10
Selector Switch (15250A, 15251A Models) WPL 300121 Contact Us For Availability
10
Selector Switch (15252A, 15253A Models) WPL 333353 Contact Us For Availability
10
Gas Valve (4 Req) WPL 324975 Contact Us For Availability
10
Extension - Burner Box Bottom (15250A Models) WPL 315071 Contact Us For Availability
10
Extension - Burner Box Bottom (15251A, 15252A WPL 332371 Contact Us For Availability
11
Oven Door Glass WPL 328831 Contact Us For Availability
11
Wire Cover - Left WPL 315028 Contact Us For Availability
11
Switch-Gas Valve (4 Req) WPL 310253 Contact Us For Availability
11
Hinge Box Asm. Lt or Rt WPL 322609 Contact Us For Availability
12
Washer WPL 106462 Contact Us For Availability
12
Insulation WPL 301888 Contact Us For Availability
12
End Cap - Control Panel (Left) WPL 315578 Contact Us For Availability
12
End Cap - Control Panel (Right) WPL 315579 Contact Us For Availability
12
Shield - Gas Value (4 Req) WPL 306589 Contact Us For Availability
12
Insulation Retainer (Right 15250A, 15251A Mod WPL 315048 Contact Us For Availability
12
Insulation Retainer (Left 15250A, 15251A Mode WPL 315050 Contact Us For Availability
12
Insulation Retainer (Right 152521, 15253A Mod WPL 330834 Contact Us For Availability
12
Insulation Retainer (Left 15252A, 15253A Mode WPL 330836 Contact Us For Availability
13
Lining - Oven Door (15250A Models) WPL 328830 Contact Us For Availability
13
Lining - Oven Door (15251A, 15252A, 15253A Mo WPL 332372 Contact Us For Availability
13
Mounting Bracket - End Cap (Right) WPL 315398 Contact Us For Availability
13
Mounting Bracket - End Cap (Left) WPL 315400 Contact Us For Availability
13
Silicone Rubber Gasket (1 ea for Keys 10 & 20 WPL 313563 Contact Us For Availability
13
Bottom Burner Box (15250A Models) WPL 315053 Contact Us For Availability
13
Bottom Burner Box (15251A, 15252A, 15253A Mod WPL 332369 Contact Us For Availability
13
Main Back WPL 324010 Contact Us For Availability
14
Switches - Gas Valve WPL 320281 Contact Us For Availability
14
Insulation Retainer WPL 321358 Contact Us For Availability
14
Installation Guide WPL 328860 Contact Us For Availability
14
Operating Guide WPL 328861 Contact Us For Availability
14
Gas Use & Care Guide WPL 330223 Contact Us For Availability
14
Main 15252A, 15253A Models WPL 332534 Contact Us For Availability
14
Repair Parts List WPL 333235 Contact Us For Availability
14
xWire Harness WPL ARI8554A77 Contact Us For Availability
14
Wire Cover Extension WPL 315395 Contact Us For Availability
14
Air Shutter WPL 301910 Contact Us For Availability
14
Top - Main (White 15250A, 15251A Models) WPL 314702 Contact Us For Availability
14
Top - Main (Almond 15250A, 15251A Models) WPL 314706 Contact Us For Availability
14
Top - Main (White 15252A, 15253A Models) WPL 330829 Contact Us For Availability
14
Top - Main (Almond 15252A, 15253A Models) WPL 330831 Contact Us For Availability
14
Gasket - Flue Deflector WPL 315008 Contact Us For Availability
15
Front Top Burner WPL 318668 Contact Us For Availability
15
Flue Trim Asm. WPL 324217 Contact Us For Availability
15
Shield - Flue Deflector WPL 324020 Contact Us For Availability
16
Lock Nut WPL 236129 Contact Us For Availability
16
Pressure Regulator WPL 324529 Contact Us For Availability
16
Screw 6-32x1/2`` WPL 99931 Contact Us For Availability
16
Upper Wire Cover w/Flue Insulation Asm. WPL 324162 Contact Us For Availability
17
Control Panel (15252A, 15253A Models) WPL 328150 Contact Us For Availability
17
Control Panel (15250A, 15251A Models) WPL 328823 Contact Us For Availability
17
Clip WPL 285945 Contact Us For Availability
17
Disconnect WPL 232150 Contact Us For Availability
18
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
18
Support - Main Top WPL 322837 Contact Us For Availability
18
Bracket - Module WPL 315059 Contact Us For Availability
19
Knob - Thermostat WPL 328826 Contact Us For Availability
19
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
19
Spacer - Burner Support WPL 333268 Contact Us For Availability
19
Flue Deflector WPL 324012 Contact Us For Availability
20
Clock Glass WPL 284183 Contact Us For Availability
20
Shut Off Valve WPL 326830 Contact Us For Availability
20
Support - Flue WPL 315054 Contact Us For Availability
21
Clock w/4 Hr Timer (15250A, 15251A Models) WPL 315261 Contact Us For Availability
21
Clock w/4 Hr Timer (15252A, 15253A Models) WPL 333887 Contact Us For Availability
21
Tubing 3/8`` (Control Valve to Broiler Orific WPL 315075 Contact Us For Availability
21
Insulation Retainer - Oven Light WPL 113500 Contact Us For Availability
22
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
22
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
22
Clip-Thermostat Bulb WPL 115533 Contact Us For Availability
23
Side Trim - Burner Box Bottom (Lt or Rt) WPL 316928 Contact Us For Availability
24
Knurled Nut WPL 87403 Contact Us For Availability
24
Control Valve WPL 306267 Contact Us For Availability
24
Screw 10ABx1 WPL 105799 Contact Us For Availability
25
Tubing 3/8`` (Control Valve to Broiler Burner WPL 315073 Contact Us For Availability
25
Side Trim (Right) WPL 306842 Contact Us For Availability
25
Side Trim (Left) WPL 306844 Contact Us For Availability
26
Knob - Gas Valve (4 Req) WPL 328824 Contact Us For Availability
26
Mounting Screw (1 ea for Keys 10 & 20) WPL 311455 Contact Us For Availability
26
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
27
Knob - Selector Switch WPL 328825 Contact Us For Availability
27
Silicone Rubber Gasket (For Key 26) WPL 311692 Contact Us For Availability
27
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
28
Manifold Pipe WPL 323399 Contact Us For Availability
28
Bottom Trim WPL 314707 Contact Us For Availability
29
Tubing 3/8`` w/Orifice (Control Valve to Oven WPL 314709 Contact Us For Availability
29
Front Frame (15250A Models) WPL 315013 Contact Us For Availability
29
Front Frame (15251A, 15252A, 15253A Models) WPL 332367 Contact Us For Availability
30
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
30
Wire Connector (4 Req) WPL 103595 Contact Us For Availability
31
Mounting Bracket WPL 315058 Contact Us For Availability
31
Main Bottom WPL 324008 Contact Us For Availability
32
Bracket-Igniter WPL 311689 Contact Us For Availability
32
Oven Lamp Bulb WPL 111257 Contact Us For Availability
33
Igniter - Bake or Broil WPL 319887 Contact Us For Availability
33
Holder-Oven Lamp Bulb WPL 295974 Contact Us For Availability
34
Oven Back (15250A Models) WPL 328850 Contact Us For Availability
34
Oven Back (15251A, 15252A, 15253A Models) WPL 332363 Contact Us For Availability
35
Air Shutter WPL 312988 Contact Us For Availability
35
Oven Bottom (15250A Models) WPL 295047 Contact Us For Availability
35
Oven Bottom (15251A, 15252A, 15253A Model WPL 332370 Contact Us For Availability
36
Bracket - Orifice Fitting (Oven Burner) WPL 315057 Contact Us For Availability
36
WPL 282156 WPL 282156 Contact Us For Availability
37
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
37
WPL 315435 WPL 315435 Contact Us For Availability
38
Orifice Fitting - Broiler Burner WPL 315437 Contact Us For Availability
38
WPL 305362 WPL 305362 Contact Us For Availability
39
Screw 8 - 32x3/8`` WPL 97217 Contact Us For Availability
39
WPL 305568 WPL 305568 Contact Us For Availability
39
WPL 305569 WPL 305569 Contact Us For Availability
40
Upper Baffle - Broil WPL 325271 Contact Us For Availability
40
WPL 293098 WPL 293098 Contact Us For Availability
40
WPL 331592 WPL 331592 Contact Us For Availability
41
WPL 318758 WPL 318758 Contact Us For Availability
41
WPL 293099 WPL 293099 Contact Us For Availability
41
WPL 326297 WPL 326297 Contact Us For Availability
42
WPL 302904 WPL 302904 Contact Us For Availability
42
WPL 106767 WPL 106767 Contact Us For Availability
43
WPL 316344 WPL 316344 Contact Us For Availability
43
WPL 328853 WPL 328853 Contact Us For Availability
43
WPL 332366 WPL 332366 Contact Us For Availability
44
WPL 313999 WPL 313999 Contact Us For Availability
44
WPL 282636 WPL 282636 Contact Us For Availability
45
WPL 108069 WPL 108069 Contact Us For Availability
45
WPL 328851 WPL 328851 Contact Us For Availability
45
WPL 328852 WPL 328852 Contact Us For Availability
45
WPL 332364 WPL 332364 Contact Us For Availability
45
WPL 332365 WPL 332365 Contact Us For Availability
46
WPL 316824 WPL 316824 Contact Us For Availability
46
WPL 281574 WPL 281574 Contact Us For Availability
47
WPL 288762 WPL 288762 Contact Us For Availability
47
WPL 332368 WPL 332368 Contact Us For Availability
48
WPL 305065 WPL 305065 Contact Us For Availability
49
WPL 292912 WPL 292912 Contact Us For Availability
× ![]()
