Model Whirlpool 1455X0A GAS RANGE – Common Parts & Diagrams

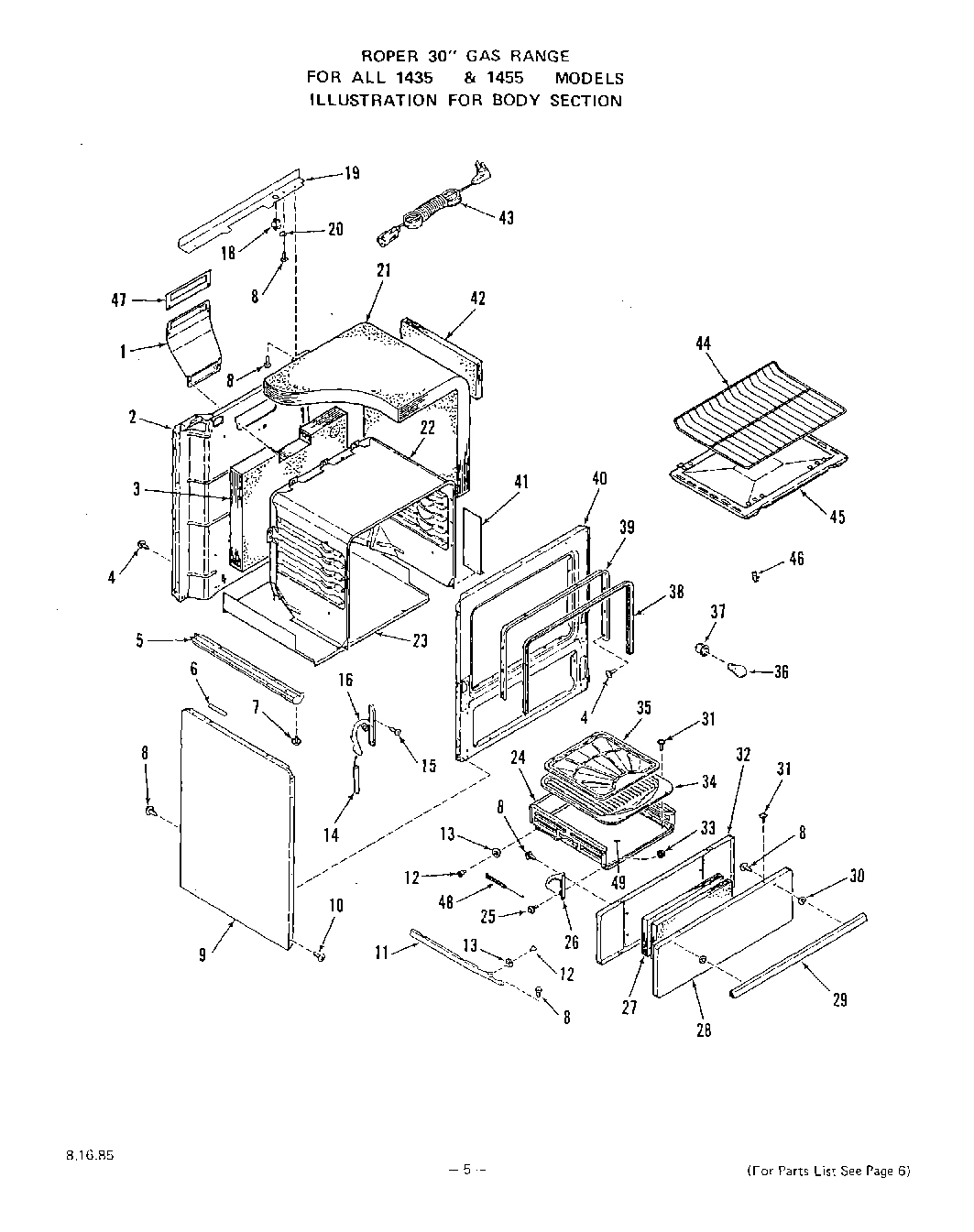

04 - BODY

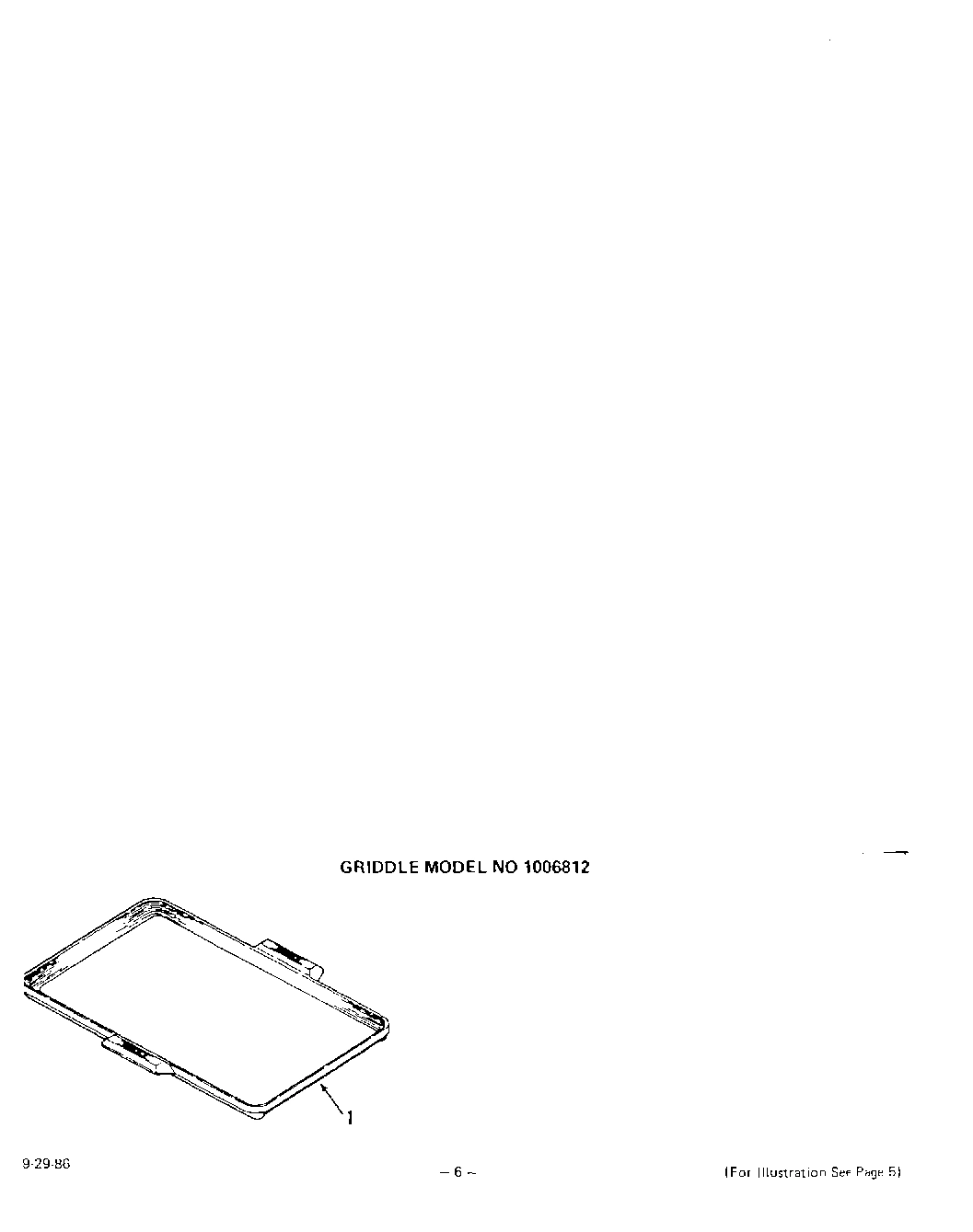

06 - GRIDDLE
05 - GRIDDLE

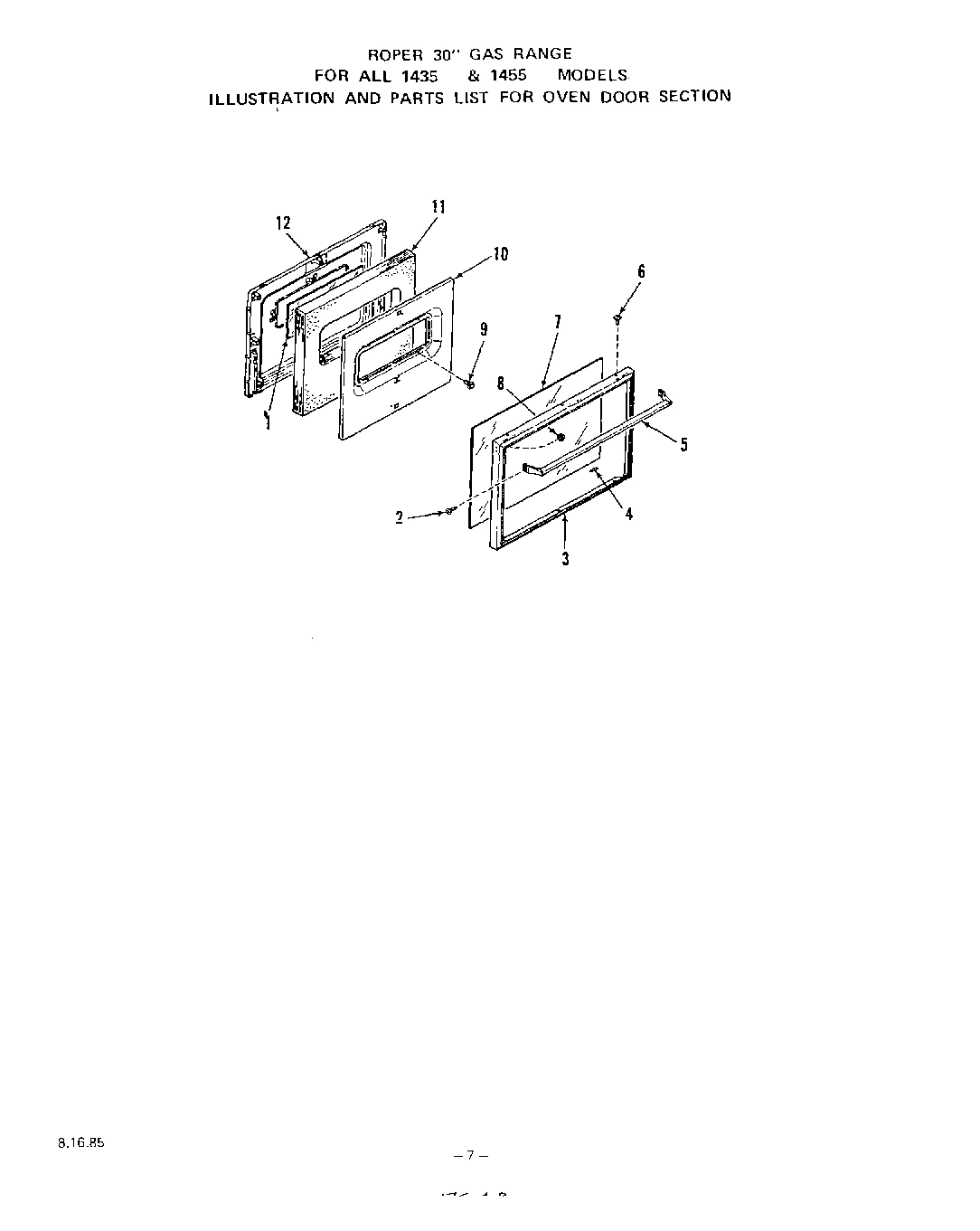

07 - SECTION

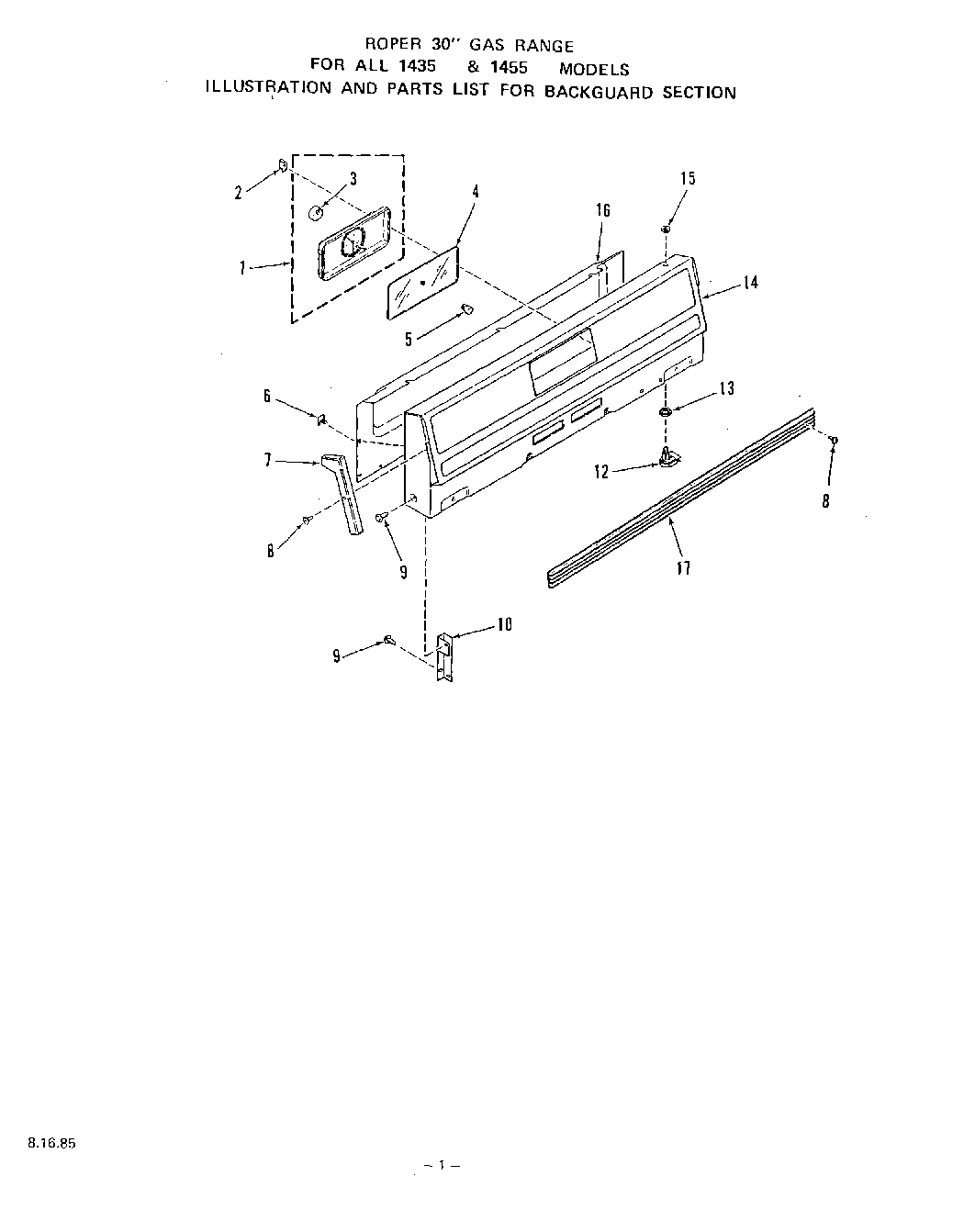

01 - BACKGUARD

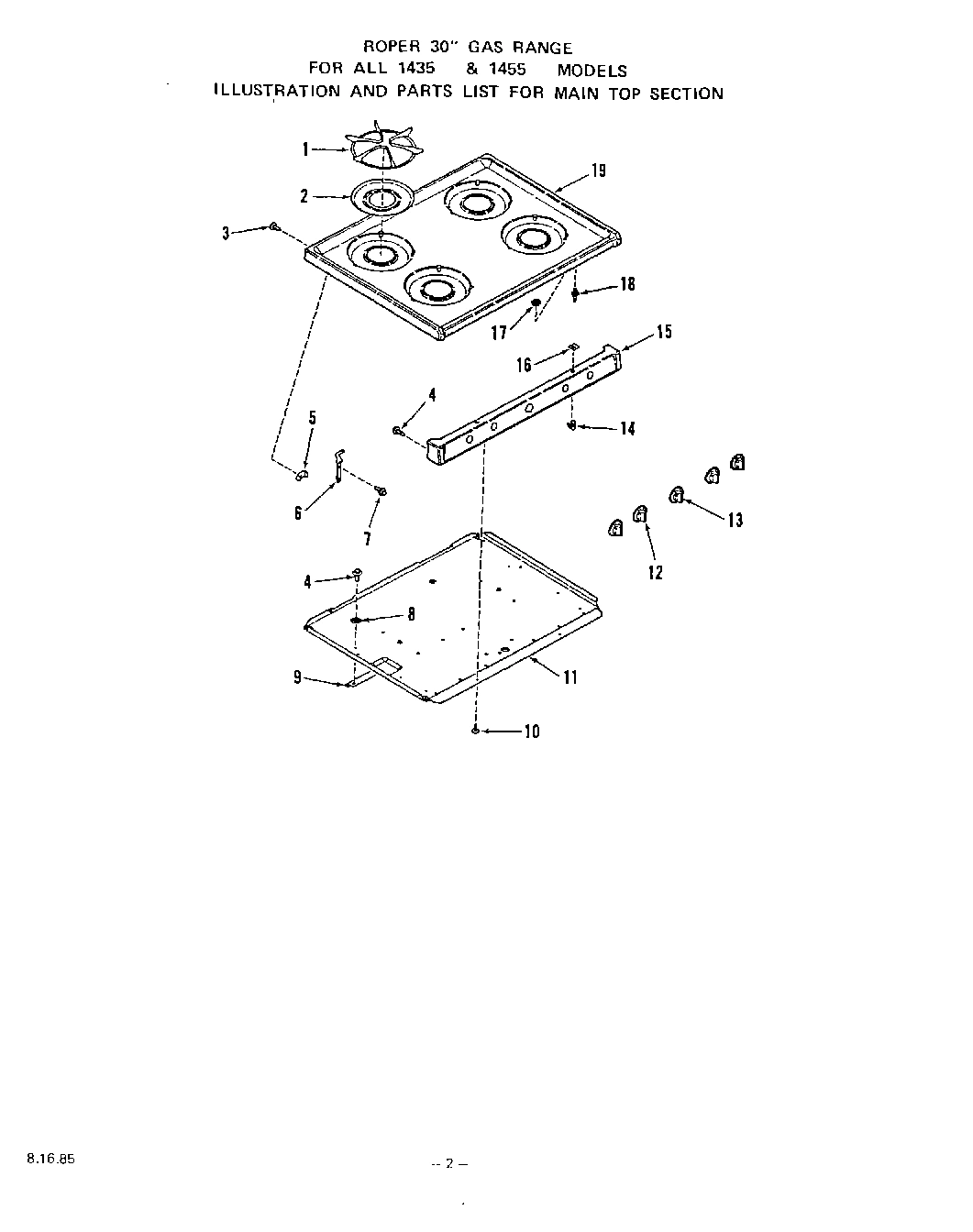

02 - MAIN TOP

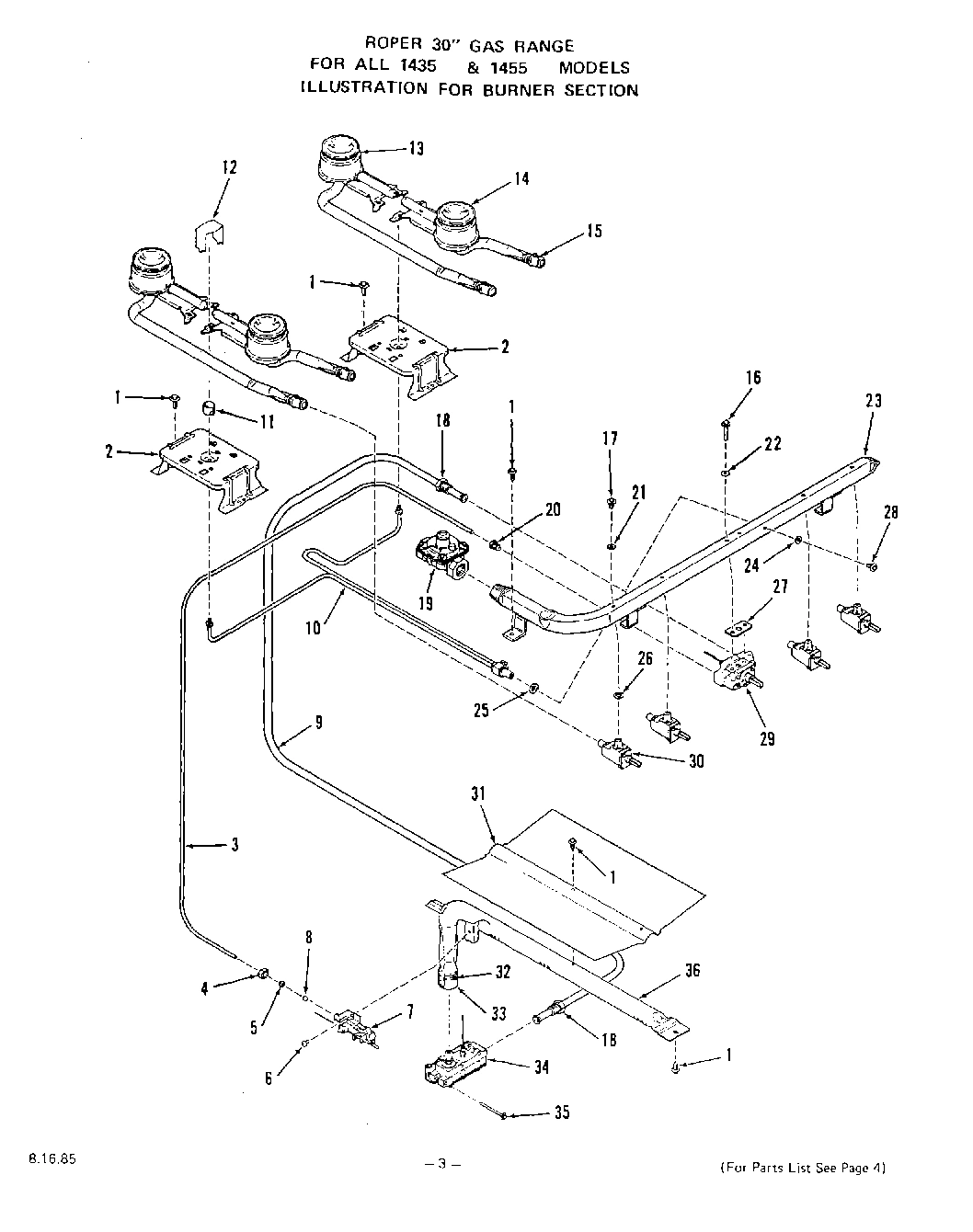

03 - BURNER
Common parts from model Whirlpool 1455X0A GAS RANGE
xWire Harness-Main WPL 327221 Contact Us For Availability
xInstallation Guide WPL 327427 Contact Us For Availability

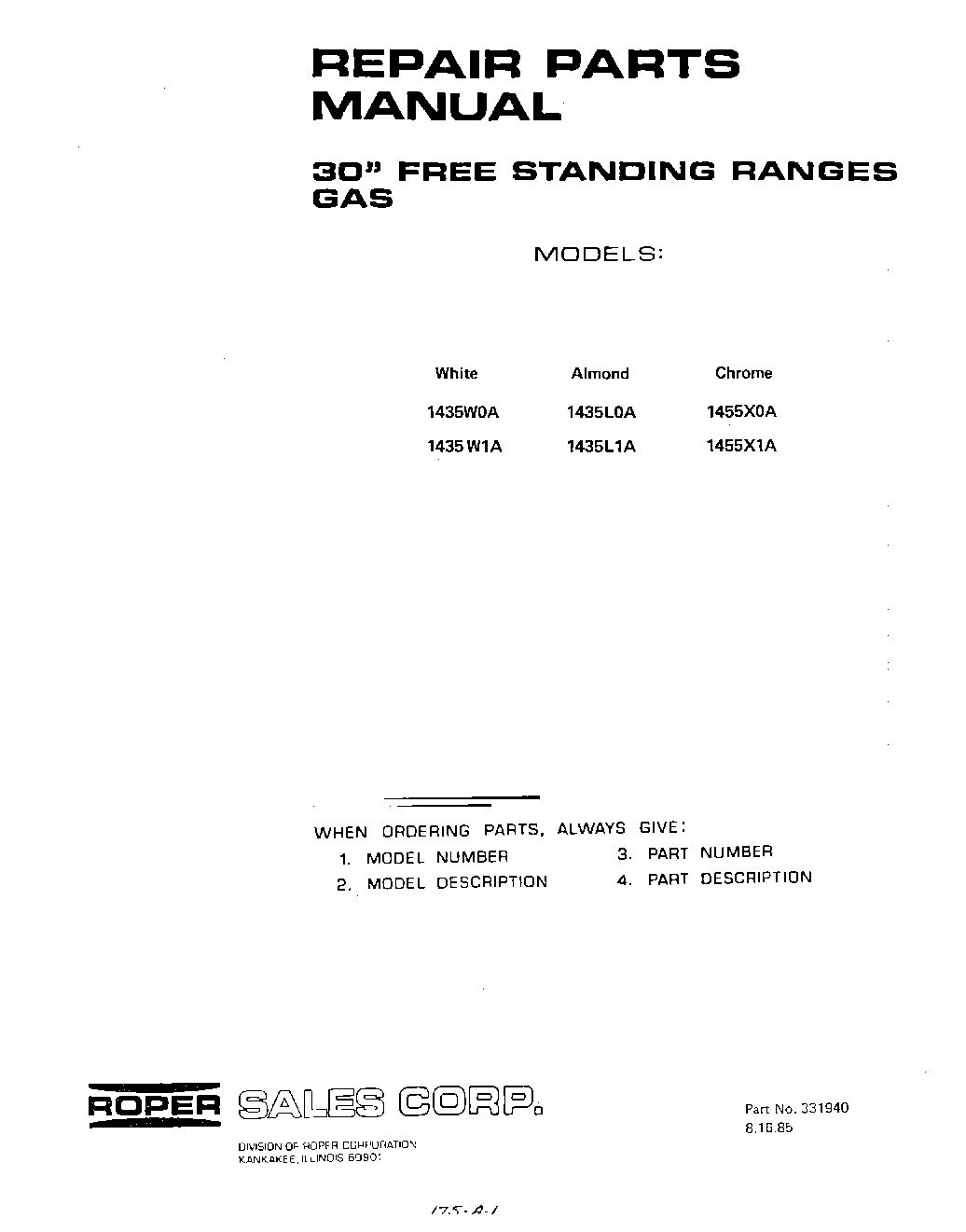

xRepair Parts List WPL 331940 Contact Us For Availability
xOperating Guide WPL ARI8482A90 Contact Us For Availability
1
Set-On Griddle WPL 289671 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
Glass-Inner Oven Door WPL 326010 Contact Us For Availability
1
Clock w/4 Hr. Timer (Inc`s. Key 3) WPL 327536 Contact Us For Availability
1
Grate-Top (4 Req) WPL 316786 Contact Us For Availability
2
Support-Top Burner WPL 327071 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
2
Clip-Clock (4 Req) WPL 326329 Contact Us For Availability
2
Pan-Insert (1455 Models Only) WPL 322888 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
3
Clock Motor WPL 283296 Contact Us For Availability
4
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
4
Clock Glass WPL 323176 Contact Us For Availability
5
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
5
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
5
Bracket-Hinge (Lt. or Rt.) WPL 327403 Contact Us For Availability
6
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
6
Clip WPL 70588 Contact Us For Availability
6
Right WPL 320921 Contact Us For Availability
6
Left WPL 320922 Contact Us For Availability
6
Hinge-Main Top WPL ARI8463A55 Contact Us For Availability
7
Pilot Only (Inc`s. 8) WPL 318486 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
7
Glass-Outer Oven Door WPL 326367 Contact Us For Availability
7
Right WPL 326282 Contact Us For Availability
7
Left WPL 326283 Contact Us For Availability
7
End Cap WPL ARI8460A25 Contact Us For Availability
7
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
8
Orifice Cup Only (For 7) WPL 318485 Contact Us For Availability
8
Screw 6-32x3/8`` WPL 327621 Contact Us For Availability
8
Washer WPL 106462 Contact Us For Availability
9
Tubing 3/8`` WPL 295037 Contact Us For Availability
9
White WPL 326055 Contact Us For Availability
9
Almond WPL 326059 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
9
Body Side (Lt. or Rt.) WPL ARI8468A91 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
9
Front WPL 327705 Contact Us For Availability
9
Rear WPL 329158 Contact Us For Availability
9
Stiffener-Burner Box Bottom WPL ARI8464A16 Contact Us For Availability
10
Pilot w/Filter WPL 323912 Contact Us For Availability
10
Retainer-Oven Door Insulation WPL 325996 Contact Us For Availability
10
Right WPL 327106 Contact Us For Availability
10
Left WPL 327107 Contact Us For Availability
10
Support-Backguard WPL ARI8461A73 Contact Us For Availability
10
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
11
Cup-Pilot (Lt. or Rt.) WPL 308292 Contact Us For Availability
11
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
11
Right WPL 296327 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) WPL ARI8469A73 Contact Us For Availability
11
Insulation WPL 325999 Contact Us For Availability
11
14350A & 14550A Models WPL 327069 Contact Us For Availability
11
14351A & 14551A Models WPL 331740 Contact Us For Availability
11
Bottom-Burner Box WPL ARI8465A41 Contact Us For Availability
12
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
12
1455 Models WPL 325946 Contact Us For Availability
12
14350A Models WPL 327254 Contact Us For Availability
12
1435 Models WPL 327439 Contact Us For Availability
12
1455 Models WPL 327440 Contact Us For Availability
12
14351A Models WPL 331581 Contact Us For Availability
12
Lining-Oven Door WPL ARI8481A83 Contact Us For Availability
12
Push Switch WPL 298793 Contact Us For Availability
12
Knob-Gas Valve (4 Req) WPL 327484 Contact Us For Availability
13
Rear Top Burner (Rt. or Lt.) WPL 327075 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
13
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
13
Knob-Thermostat WPL 322981 Contact Us For Availability
14
Front Top Burner (Rt. or Lt) WPL 327074 Contact Us For Availability
14
spring-oven door (lt. or rt.) WPL 326962 Contact Us For Availability
14
14350A Models WPL 329312 Contact Us For Availability
14
14550A Models WPL 329313 Contact Us For Availability
14
Crosstie-Backguard WPL ARI8462A40 Contact Us For Availability
14
Catch (2 Req) WPL 24667 Contact Us For Availability
15
Air Shutter (4 Req) WPL 327198 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Knurled Nut WPL 87403 Contact Us For Availability
15
White WPL 327451 Contact Us For Availability
15
Almond WPL 327457 Contact Us For Availability
15
Manifold Panel (Black) WPL 327458 Contact Us For Availability
15
Panel-Manifold WPL ARI8466A36 Contact Us For Availability
16
Mounting Screw (Inc`s. 22) WPL 318478 Contact Us For Availability
16
Right WPL 329653 Contact Us For Availability
16
Left WPL 329654 Contact Us For Availability
16
Hinge-Oven Door WPL ARI8470A79 Contact Us For Availability
16
Wire Cover-Backguard WPL 320767 Contact Us For Availability
16
Washer WPL 310218 Contact Us For Availability
17
Mounting Screw (Inc`s. 21) WPL 311455 Contact Us For Availability
17
Nut-Keps 8-32 WPL 239764 Contact Us For Availability
17
Trim-Crosstie WPL 329236 Contact Us For Availability
18
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
18
Strike (2 Req) WPL 299784 Contact Us For Availability
19
Pressure Regulator WPL 324528 Contact Us For Availability
19
Cover-Backguard Bottom Wire WPL 327251 Contact Us For Availability
19
White WPL 328907 Contact Us For Availability
19
Almond WPL 328911 Contact Us For Availability
19
Chrome WPL 328912 Contact Us For Availability
19
Top-Main WPL ARI8467A58 Contact Us For Availability
20
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
21
Gasket WPL 304241 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Gasket WPL 318658 Contact Us For Availability
22
1455 Models WPL 324957 Contact Us For Availability
22
14350A Models WPL 324958 Contact Us For Availability
22
14351A Models WPL 331586 Contact Us For Availability
22
Oven Body WPL ARI8471A71 Contact Us For Availability
23
Manifold Pipe WPL 327088 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Gasket WPL 323915 Contact Us For Availability
24
14350A & 14550A Models WPL 330100 Contact Us For Availability
24
14351A & 14551A Models WPL 331566 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12, 13) WPL ARI8472A67 Contact Us For Availability
25
Gasket WPL 323913 Contact Us For Availability
25
Bolt-Shoulder WPL 329271 Contact Us For Availability
26
Silicone Rubber Gasket (For 30) WPL 313563 Contact Us For Availability
26
Right WPL 327482 Contact Us For Availability
26
Left WPL 327483 Contact Us For Availability
26
Hinge-Broiler Drawer WPL ARI8473A29 Contact Us For Availability
27
Silicone Rubber Gasket (For 29) WPL 318657 Contact Us For Availability
28
Mounting Screw (Inc`s. 24) WPL 323914 Contact Us For Availability
28
White WPL 326287 Contact Us For Availability
28
Almond WPL 326291 Contact Us For Availability
28
Front Panel-Storage Door (Black) WPL 326292 Contact Us For Availability
28
Panel-Broiler Door WPL ARI8474A96 Contact Us For Availability
29
Oven Thermostat (Inc`s. 27) WPL 323467 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
30
Gas Valve-4 Req. (Inc`s. 17, 21, 26) WPL 324482 Contact Us For Availability
30
Spacer WPL 302343 Contact Us For Availability
31
Baffle - Oven Burner WPL 329316 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
14350A & 14550A Models WPL 327060 Contact Us For Availability
32
14351A & 14551A Models WPL 331567 Contact Us For Availability
32
Lining-Broiler Door WPL ARI8475A15 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
Nut-Keps 10-24 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 7,8) WPL 323680 Contact Us For Availability
34
14350A & 14550A Models WPL 290171 Contact Us For Availability
34
14351A & 14551A Models WPL 331593 Contact Us For Availability
34
Pan-Broiler WPL ARI8476A49 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
14350A & 14550A Models WPL 313071 Contact Us For Availability
35
14351A & 14551A Models WPL 331588 Contact Us For Availability
35
Grid-Broiler Pan WPL ARI8477A68 Contact Us For Availability
36
Oven Burner (Inc`s. 31, 32,33) WPL 319255 Contact Us For Availability
36
Bulb-Oven Lamp WPL 111257 Contact Us For Availability
37
Holder-Oven Lamp Bulb WPL 295974 Contact Us For Availability
38
seal-oven door WPL 326047 Contact Us For Availability
39
Retaine WPL 327875 Contact Us For Availability
40
WPL 326042 WPL 326042 Contact Us For Availability
40
WPL 331584 WPL 331584 Contact Us For Availability
40
WPL ARI8478A25 WPL ARI8478A25 Contact Us For Availability
41
WPL 328984 WPL 328984 Contact Us For Availability
43
WPL 235822 WPL 235822 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 327083 WPL 327083 Contact Us For Availability
45
WPL 327084 WPL 327084 Contact Us For Availability
45
WPL 331539 WPL 331539 Contact Us For Availability
45
WPL ARI8479A10 WPL ARI8479A10 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 329862 WPL 329862 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
49
WPL ARI8480A74 WPL ARI8480A74 Contact Us For Availability
× ![]()
