Model Whirlpool 1445W1A GAS RANGE – Common Parts & Diagrams

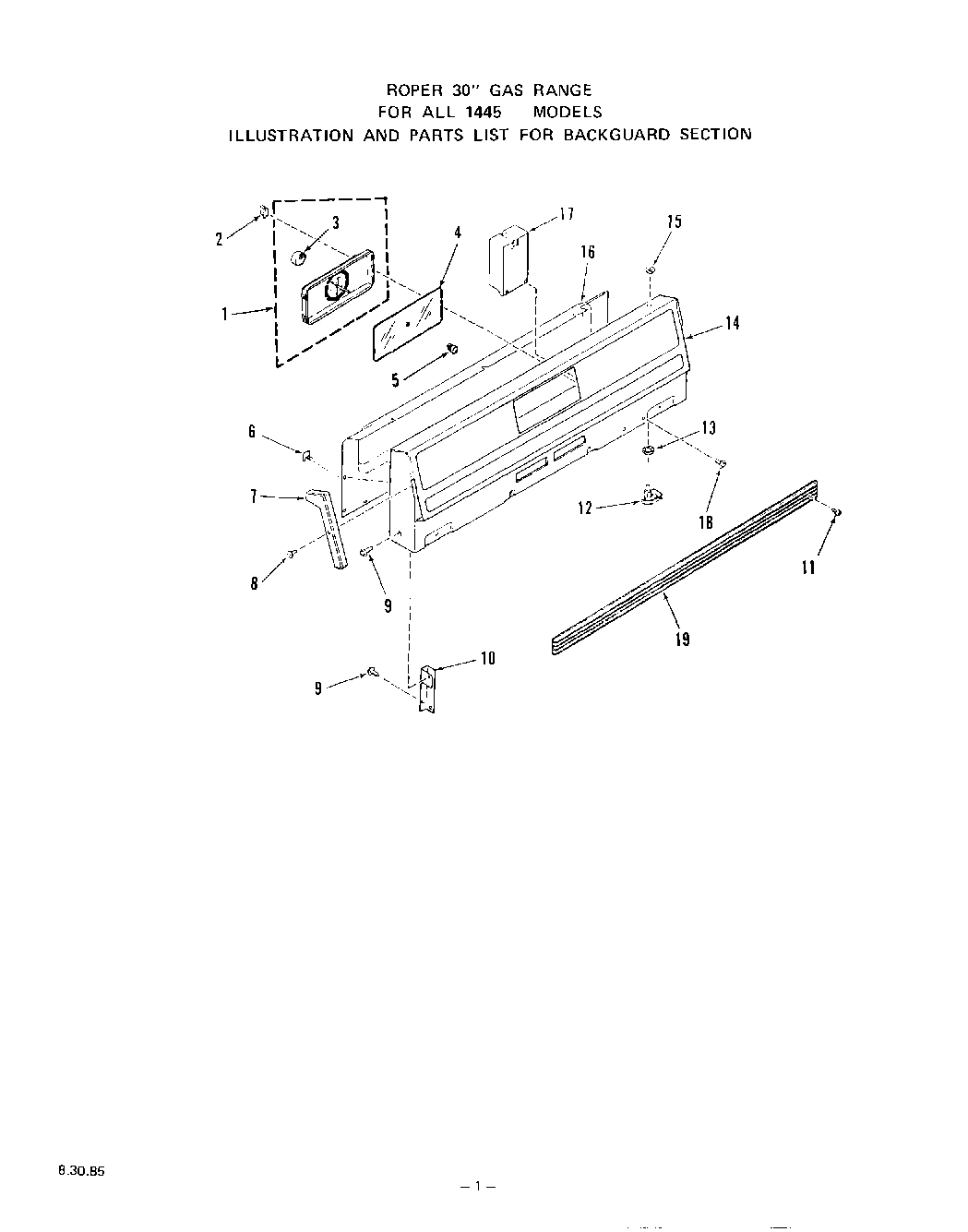

04 - BODY
06 - OVEN DOOR

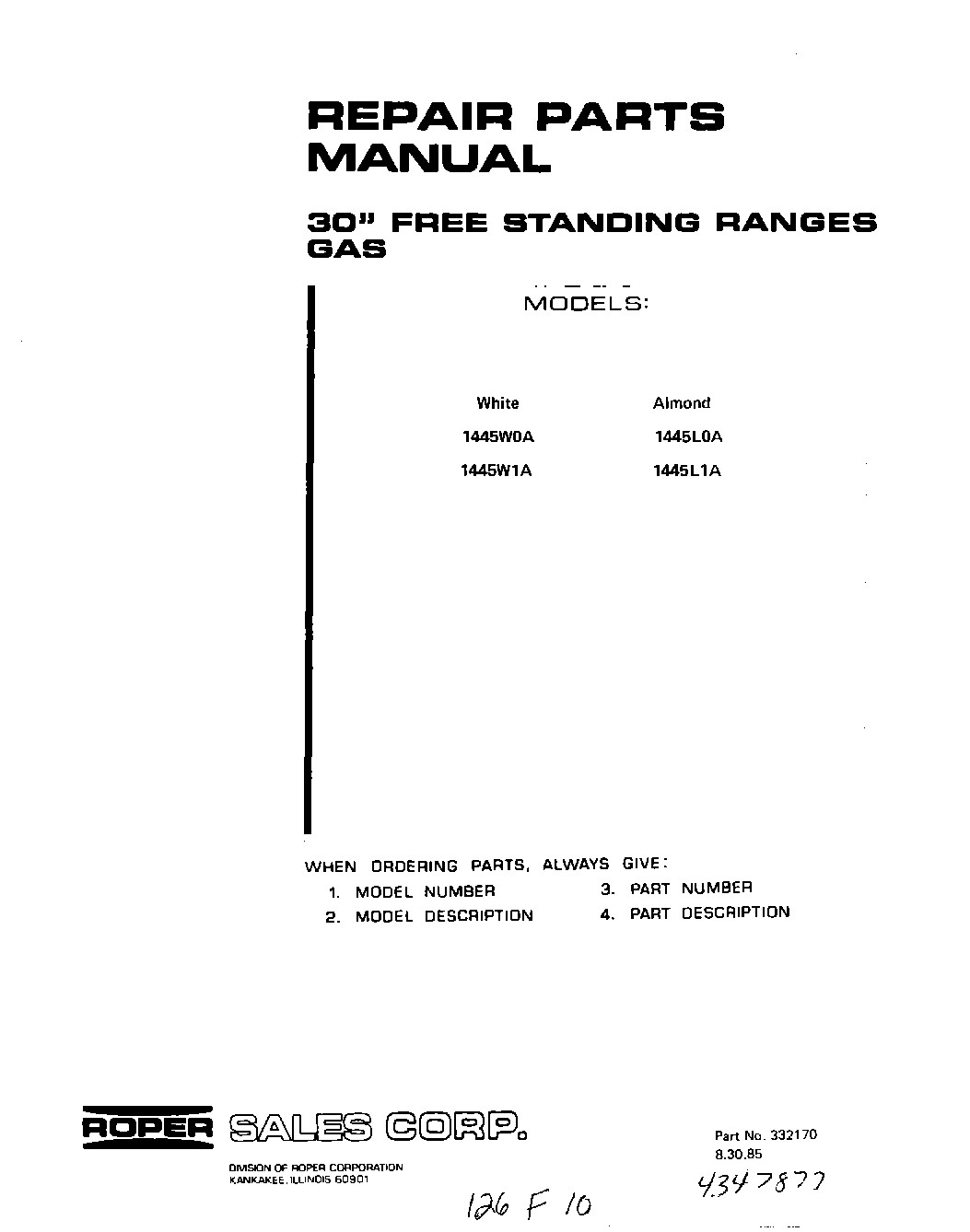

01 - BACKGUARD

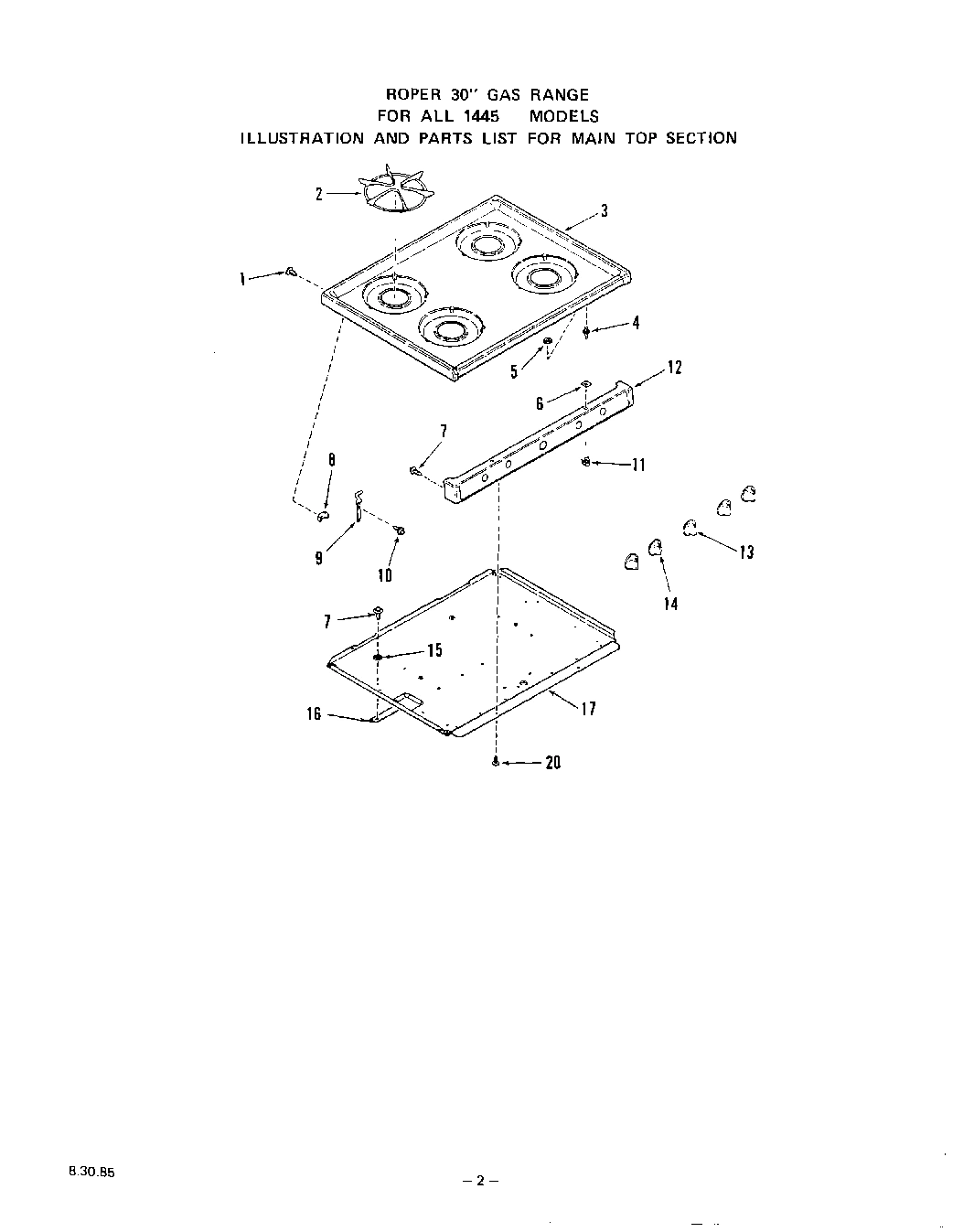

02 - MAIN TOP
03 - BURNER

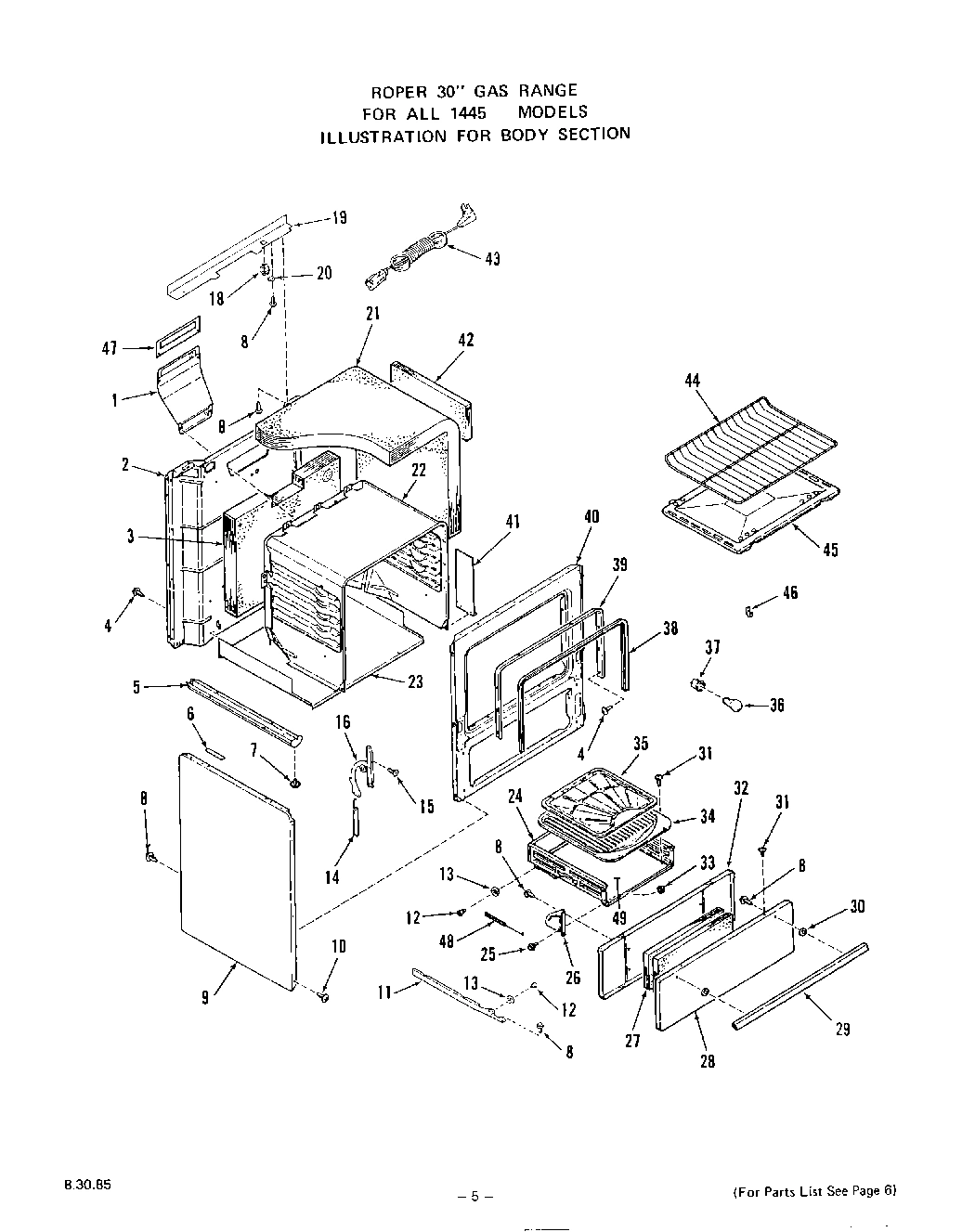

08 - SECTION
05 - OPTIONAL GRIDDLE

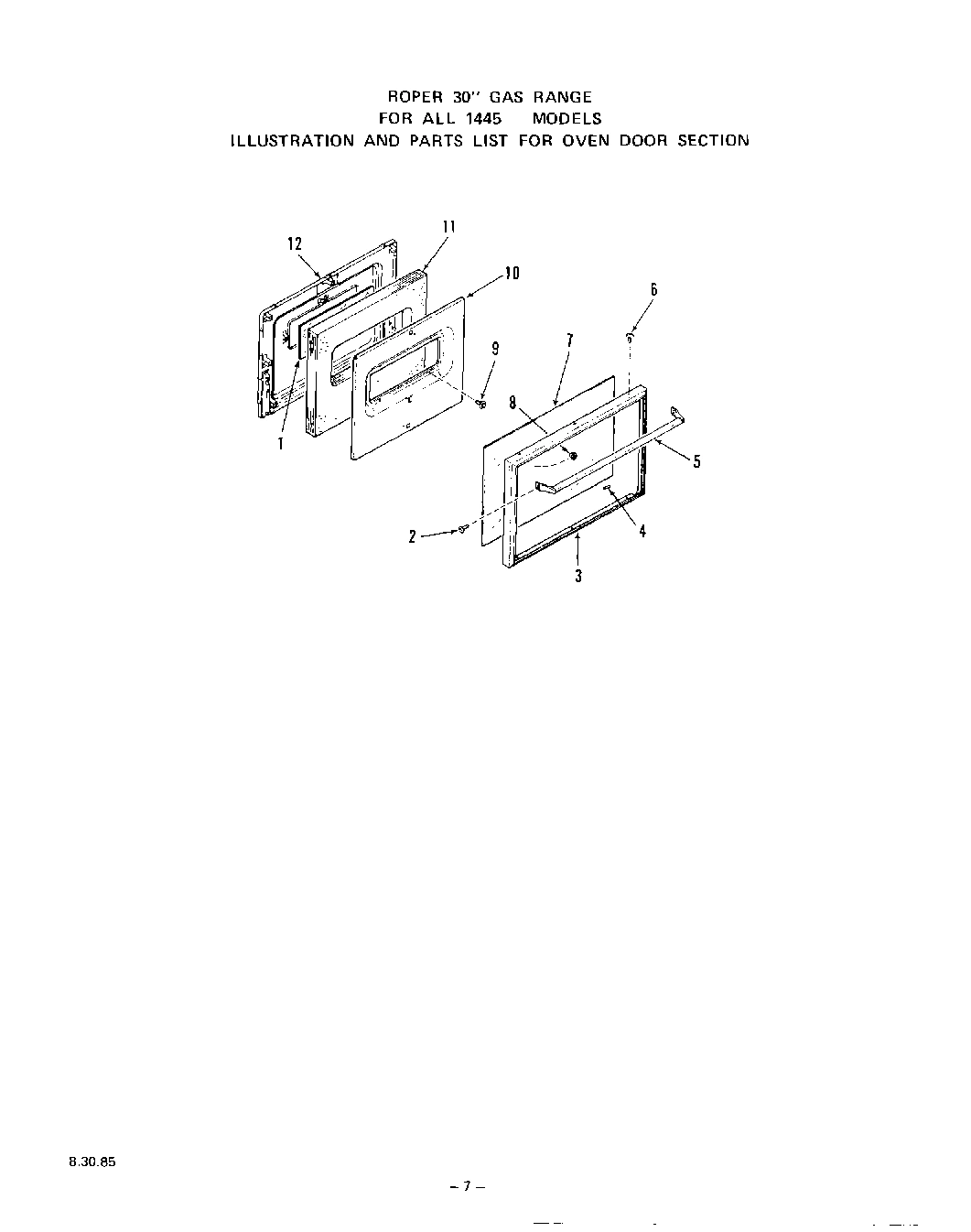

07 - OVEN DOOR
Common parts from model Whirlpool 1445W1A GAS RANGE
1
Clock w/4 Hr. Timer (Inc`s. Key 3) WPL 327536 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
Glass-Inner Oven Door WPL 326010 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
2
Clip-Clock (4 Req) WPL 326329 Contact Us For Availability
2
Grate-Top (4 Req) WPL 316786 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Clock Motor WPL 283296 Contact Us For Availability
3
Top-Main (White) WPL 328907 Contact Us For Availability
3
Top-Main (Almond) WPL 328911 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
4
Clock Glass WPL 323176 Contact Us For Availability
4
Strike (Lt. or Rt.) WPL 299784 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
5
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
6
Clip WPL 70588 Contact Us For Availability
6
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
6
Washer WPL 310218 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
7
Electrode-Spark Igniter (Right) WPL 312455 Contact Us For Availability
7
Electrode-Spark Igniter (Left) WPL 327216 Contact Us For Availability
7
End Cap (Right) WPL 326282 Contact Us For Availability
7
End Cap (Left) WPL 326283 Contact Us For Availability
7
Leveler-Leg (4 Req) WPL 326052 Contact Us For Availability
7
Glass-Outer Oven Door WPL 326367 Contact Us For Availability
8
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
8
Screw 6-32x3/8`` WPL 327621 Contact Us For Availability
8
Nut-Keps 8-32 WPL 239764 Contact Us For Availability
8
bracket-main top hinge (lt. or rt.) WPL 327403 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
9
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
9
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
10
Support-Backguard (Right) WPL 327106 Contact Us For Availability
10
Support-Backguard (Left) WPL 327107 Contact Us For Availability
10
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
10
Retainer-Oven Door Insulation WPL 325996 Contact Us For Availability
11
Manifold Pipe WPL 327089 Contact Us For Availability
11
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
11
Catch (2 Req) WPL 24667 Contact Us For Availability
11
Guide-Broiler Drawer (Inc`s. 12,13) (Right) WPL 296327 Contact Us For Availability
11
Insulation WPL 325999 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
12
Push Switch WPL 298793 Contact Us For Availability
12
Panel-Manifold (White) WPL 327451 Contact Us For Availability
12
Manifold Panel (Almond) WPL 327457 Contact Us For Availability
12
Rivet-Shoulder WPL 70275 Contact Us For Availability
12
Lining-Oven Door (14450A Models) WPL 327254 Contact Us For Availability
12
Lining-Oven Door (14451A Models) WPL 331581 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
13
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
13
Knob-Thermostat WPL 322981 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
14
Crosstie-Backguard WPL 329312 Contact Us For Availability
14
Knob-Gas Valve (4 Req) WPL 327484 Contact Us For Availability
14
spring-oven door (lt. or rt.) WPL 326962 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
15
Knurled Nut WPL 87403 Contact Us For Availability
15
Washer WPL 106462 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
16
Tubing 3/8`` WPL 295037 Contact Us For Availability
16
Wire Cover-Backguard WPL 320767 Contact Us For Availability
16
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
16
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 329653 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 329654 Contact Us For Availability
17
Module - Spark Igniter WPL 326136 Contact Us For Availability
17
Bottom-Burner Box (14450A Models) WPL 327250 Contact Us For Availability
17
Bottom-Burner Box (14451A Models) WPL 331741 Contact Us For Availability
18
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
18
Screw 13-16 x 1/2`` WPL 329676 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
19
Trim-Crosstie WPL 329236 Contact Us For Availability
19
Cover-Backguard Bottom Wire WPL 327251 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
20
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
22
Oven Body (14450A Models) WPL 324958 Contact Us For Availability
22
Oven Body (14451A Models) WPL 331586 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Gas Valve (4 Req) (Inc`s. 20) WPL 324482 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12,13) (14450A Models) WPL 330100 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12,13) (14451A Models) WPL 331566 Contact Us For Availability
25
Switch-Gas Valve (4 Req) WPL 312457 Contact Us For Availability
25
Bolt-Shoulder WPL 329271 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
26
Hinge-Broiler Drawer (Lt. or Rt.) (Right) WPL 327482 Contact Us For Availability
26
Hinge-Broiler Drawer (Lt. or Rt.) (Left) WPL 327483 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
28
Panel-Front Broiler Door (White) WPL 326287 Contact Us For Availability
28
Panel-Front Broiler Door (Almond) WPL 326291 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
30
Spacer WPL 302343 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
Lining-Broiler Door (14450A Models) WPL 327060 Contact Us For Availability
32
Lining-Broiler Door (14451A Models) WPL 331567 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
Nut-Keps 10-24 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 321755 Contact Us For Availability
34
Pan-Broiler (14450A Models) WPL 290171 Contact Us For Availability
34
Pan-Broiler (14451A M WPL 331593 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
WPL 313071 WPL 313071 Contact Us For Availability
35
WPL 331588 WPL 331588 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 33) WPL 319255 Contact Us For Availability
36
WPL 111257 WPL 111257 Contact Us For Availability
37
WPL 295974 WPL 295974 Contact Us For Availability
38
WPL 326047 WPL 326047 Contact Us For Availability
39
WPL 327875 WPL 327875 Contact Us For Availability
40
WPL 326042 WPL 326042 Contact Us For Availability
40
WPL 331584 WPL 331584 Contact Us For Availability
41
WPL 328984 WPL 328984 Contact Us For Availability
43
WPL 235822 WPL 235822 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 327083 WPL 327083 Contact Us For Availability
45
WPL 331539 WPL 331539 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 329862 WPL 329862 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
× ![]()
