Model Whirlpool 1416W0A GAS RANGE – Common Parts & Diagrams

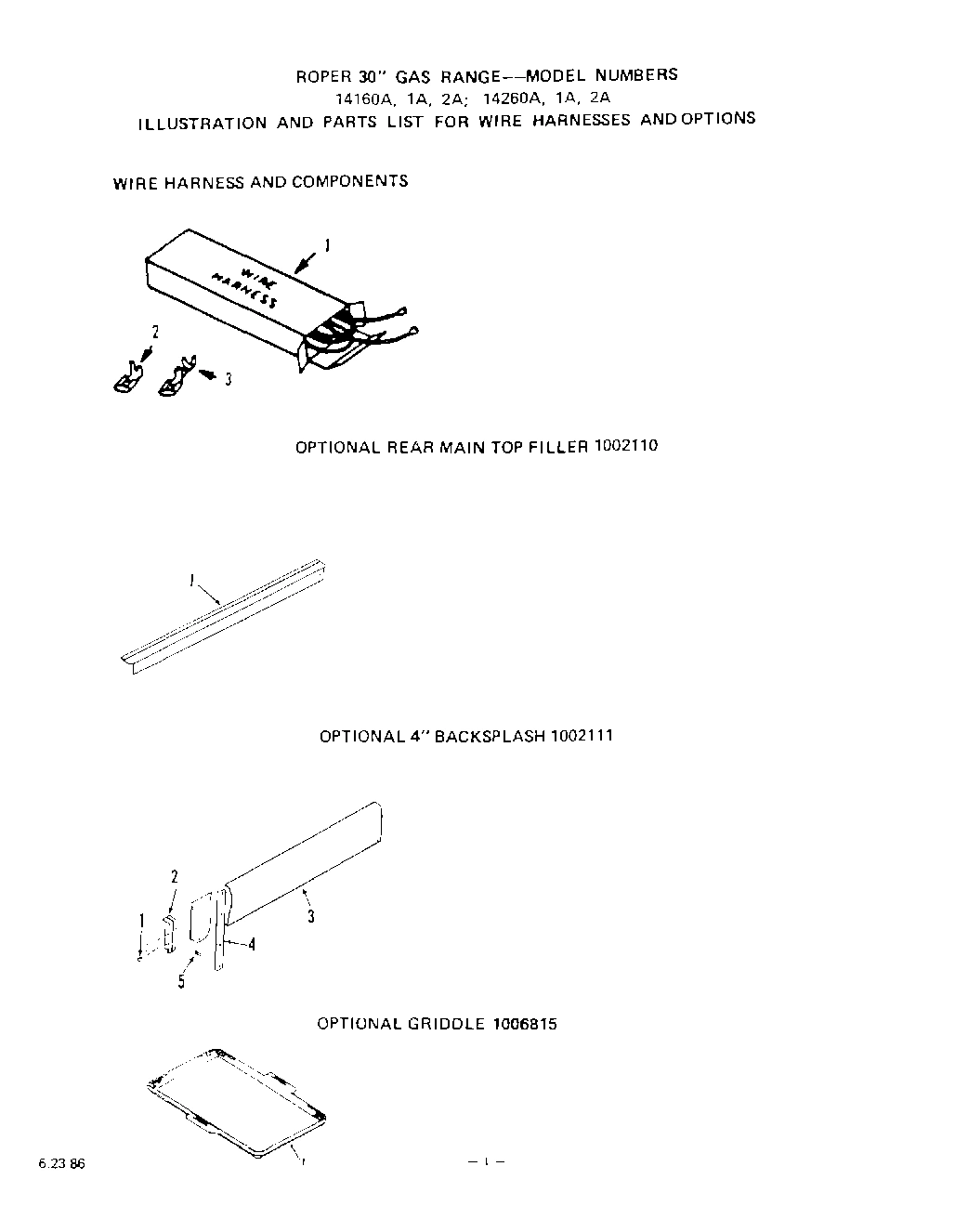

01 - WIRE HARNESS AND OPTIONS

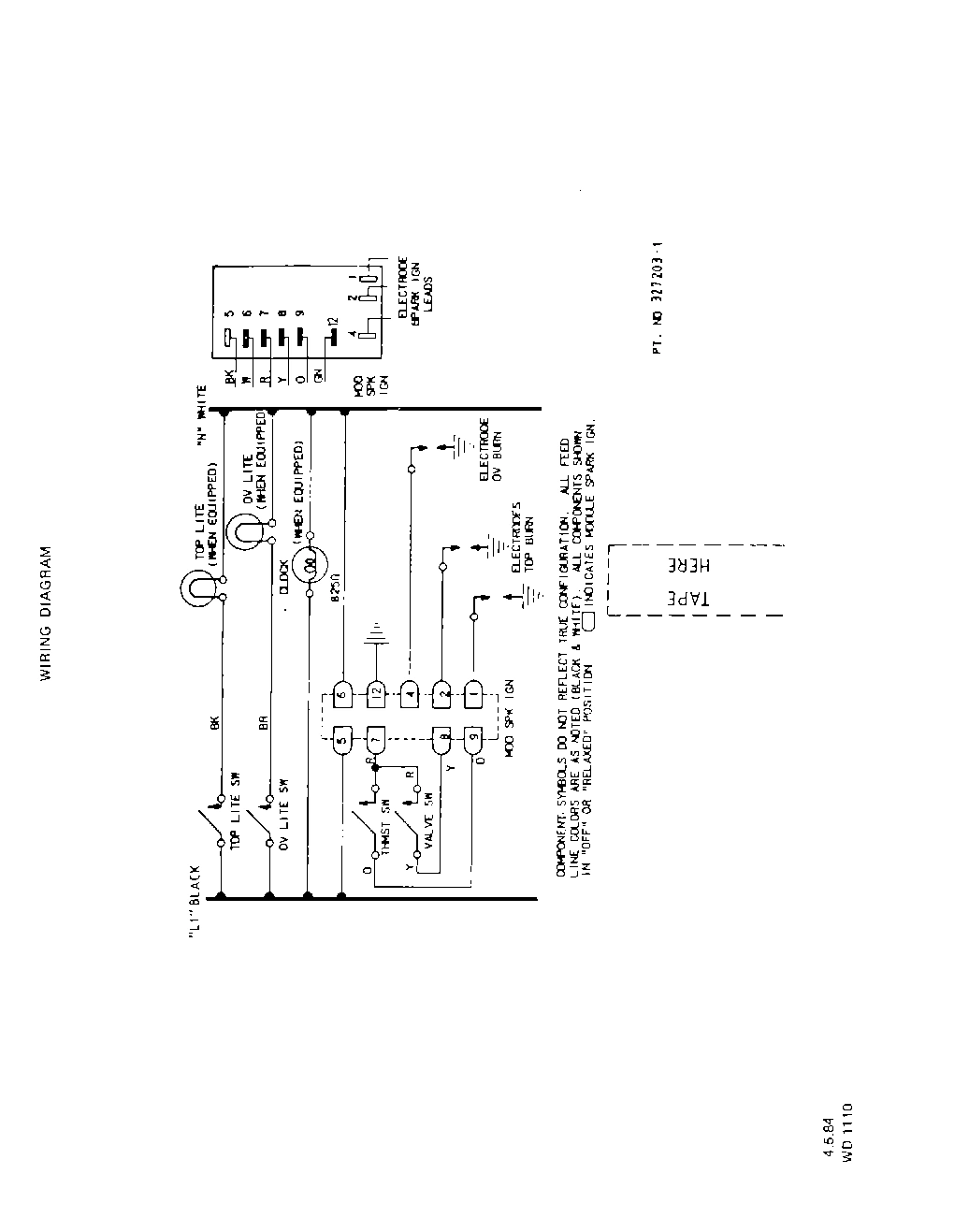

08 - SECTION

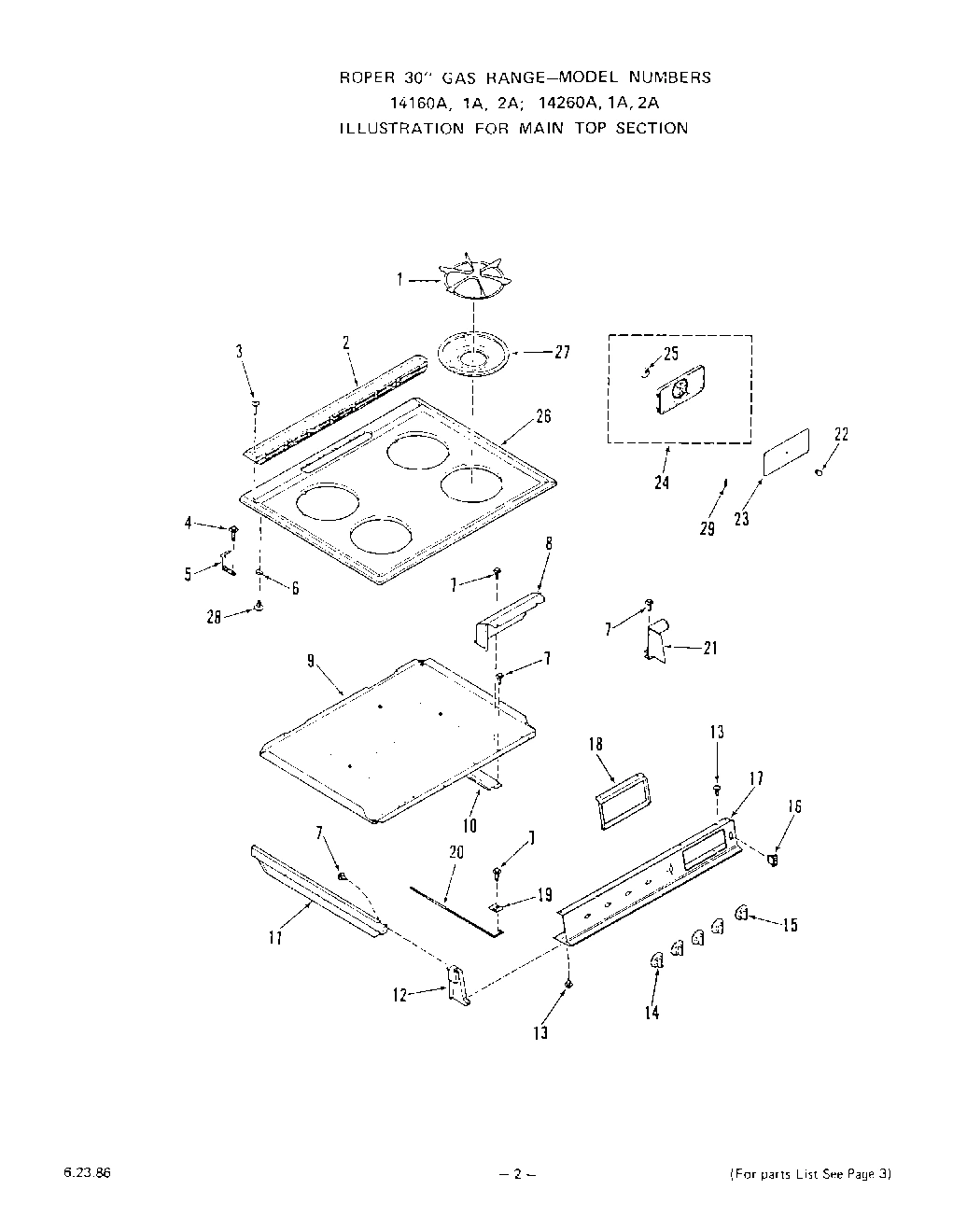

02 - MAIN TOP

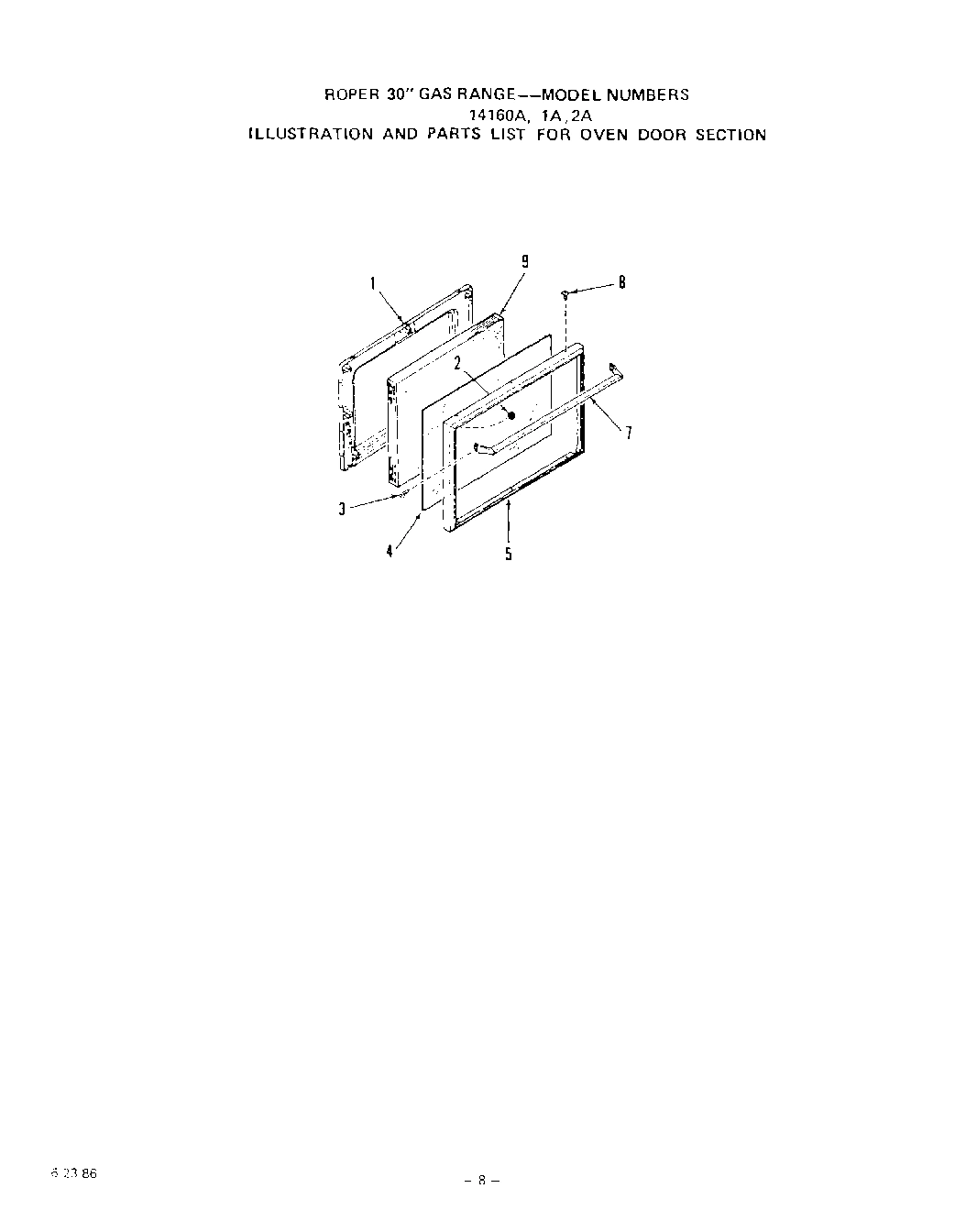

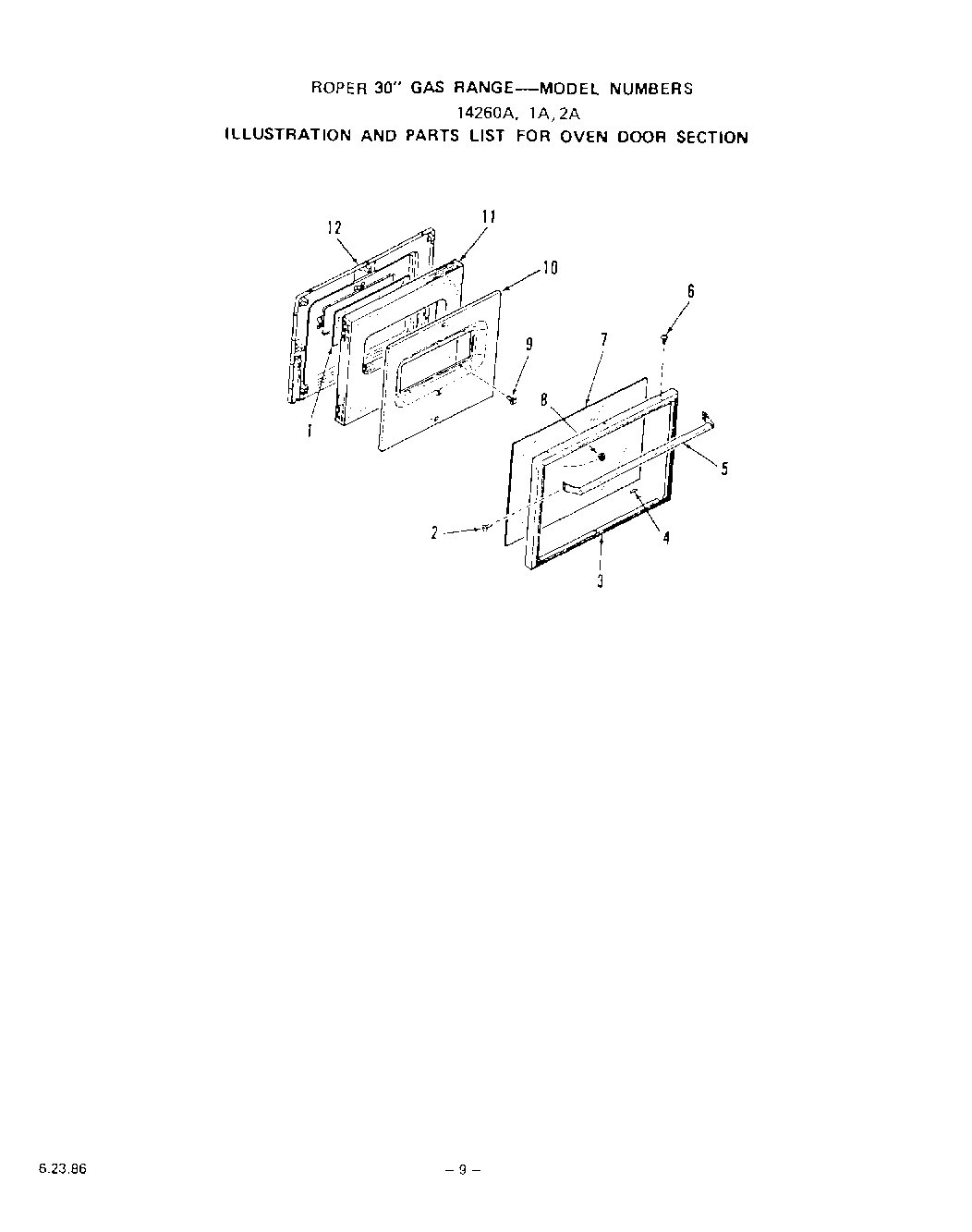

07 - DOOR

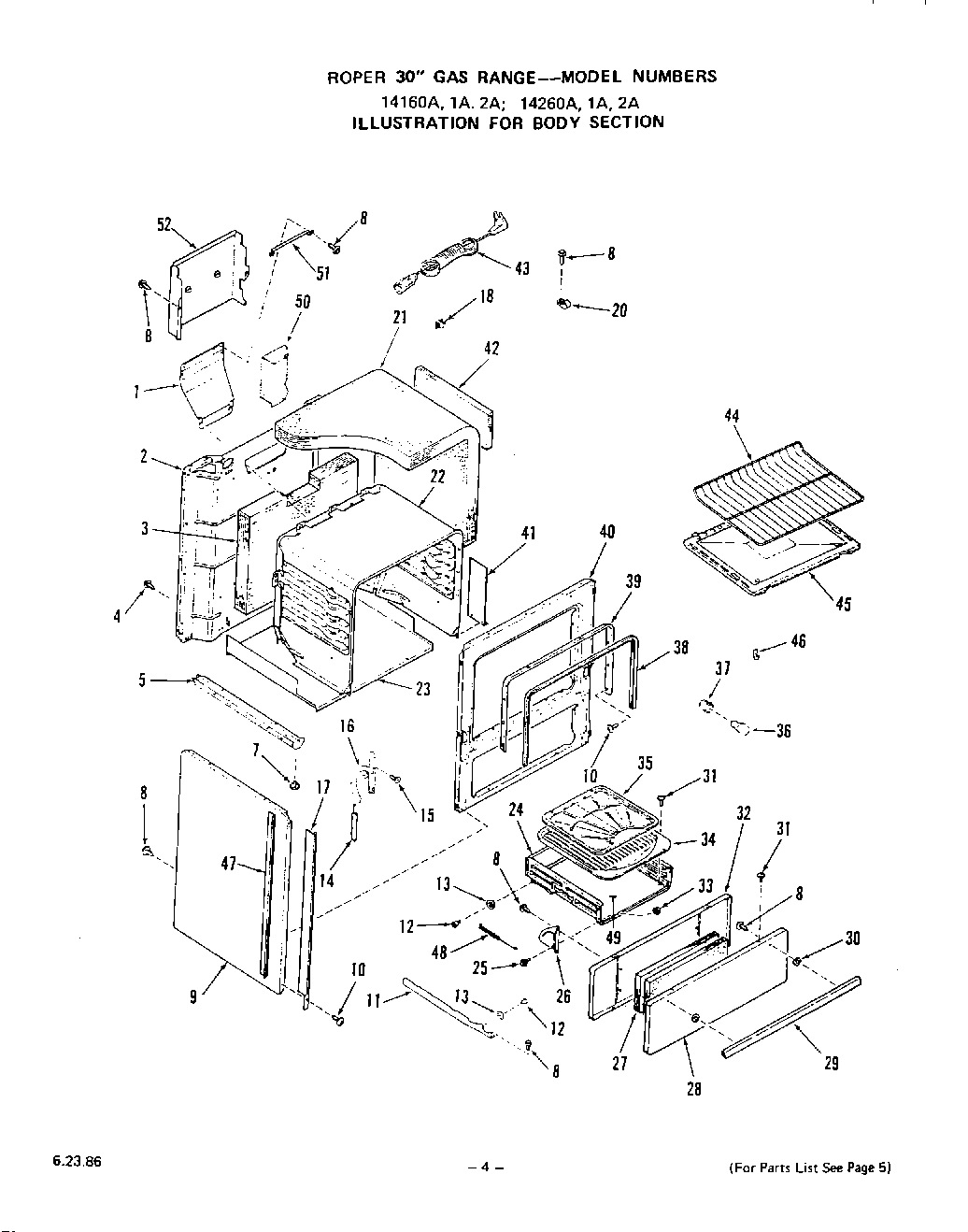

03 - BODY
06 - SECTION

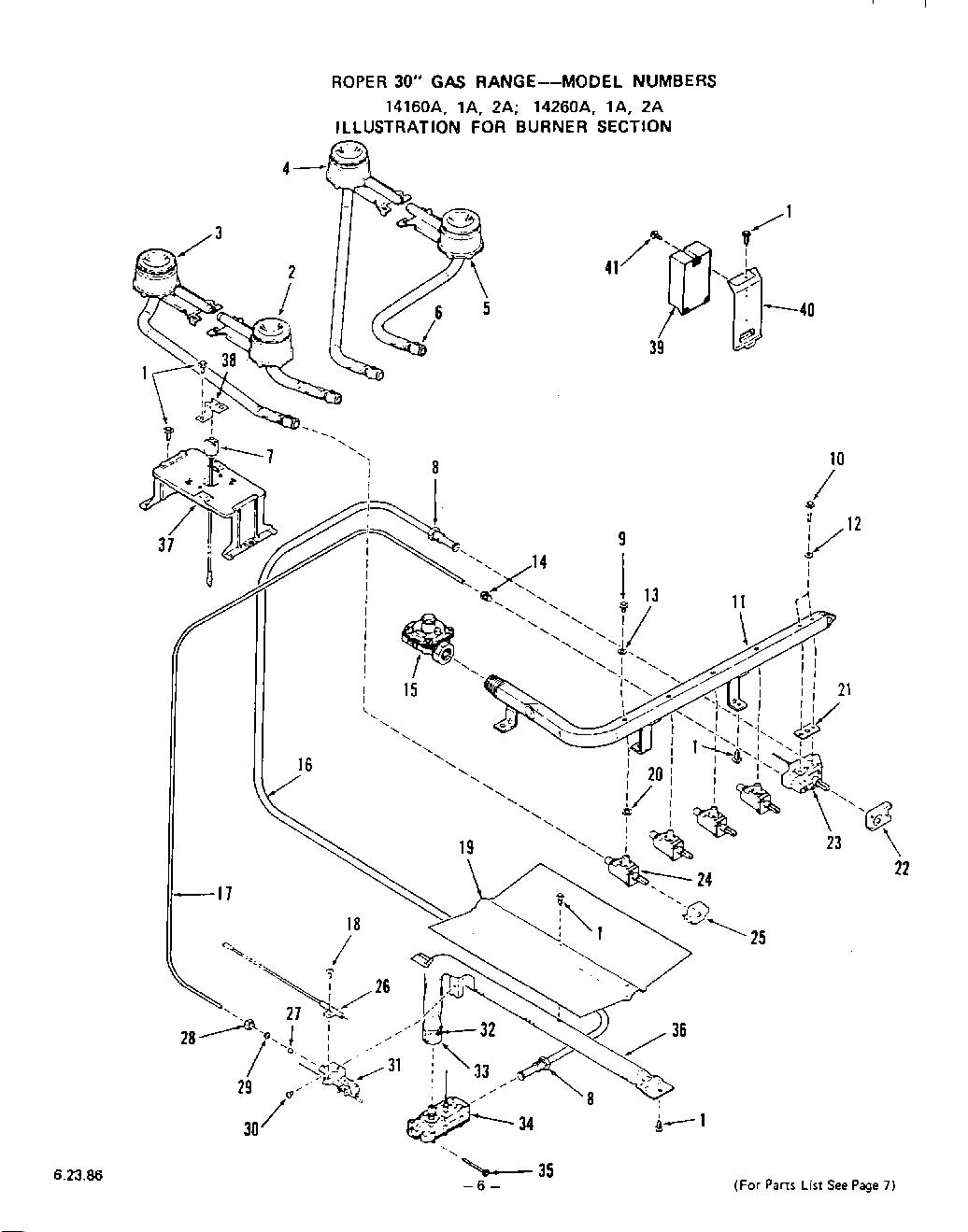

04 - BURNER
05 - DOOR
Common parts from model Whirlpool 1416W0A GAS RANGE
xInstructions Installation WPL 331267 Contact Us For Availability
xSheet Instruction WPL 331389 Contact Us For Availability
Seal, Ring Access Valve (20-Pack) WPL 978865BULK Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8280A99 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8281A37 Contact Us For Availability
WPL 335188 WPL 335188 Contact Us For Availability
1
Wire Harness (Switch-Gas Valve) WPL 331174 Contact Us For Availability
1
Wire Harness (Oven Light) WPL 331261 Contact Us For Availability
1
Wire Harness (Module) WPL 331275 Contact Us For Availability
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
inner glass-oven door WPL 326010 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Lining-Oven Door WPL 331580 Contact Us For Availability
1
Flue Deflector WPL 330398 Contact Us For Availability
2
Flag Terminal 1/4`` WPL STD374251 Contact Us For Availability
2
Keps Nut 8-32 WPL 239764 Contact Us For Availability
2
Cover-Vent WPL 330738 Contact Us For Availability
2
Main Back WPL 330677 Contact Us For Availability
2
Burner-Top (Left Front) WPL 330350 Contact Us For Availability
3
Faston Terminal (.110-.020 (Switch Lead)) WPL STD374120 Contact Us For Availability
3
Faston Terminal (.110-.032 (Igniter Lead)) WPL STD374132 Contact Us For Availability
3
Faston Terminal (3/16``) WPL STD374180 Contact Us For Availability
3
Faston Terminal (1/4``) WPL STD374250 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
3
Screw 6-32 WPL 332285 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
Burner-Top (Left Rear) WPL 330488 Contact Us For Availability
4
Cushion - Door Glass (5 Req) WPL 112370 Contact Us For Availability
4
Glass-Oven Door WPL 320736 Contact Us For Availability
4
Burner-Top (Right Rear) WPL 330489 Contact Us For Availability
5
Hinge-Main Top (Right 14160A Models) WPL 331513 Contact Us For Availability
5
Hinge-Main Top (Left 14160A Models) WPL 331514 Contact Us For Availability
5
Hinge-Main Top (Right 14161A, 2A, 14261 A,2A) WPL 334843 Contact Us For Availability
5
Hinge-Main Top (Left 14161A, 2A, 14261 A,2A) WPL 334844 Contact Us For Availability
5
Frame-Oven Door WPL 326141 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) (14160A, 1A, 142 WPL 334811 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) (14162A, 14262A WPL 336546 Contact Us For Availability
5
Burner-Top (Right Front) WPL 330351 Contact Us For Availability
6
Bracket-Hinge WPL 335161 Contact Us For Availability
6
Spacer-Main Top WPL 303513 Contact Us For Availability
6
Shutter-Air (4 Req.) WPL 327198 Contact Us For Availability
7
Handle WPL 303342 Contact Us For Availability
7
outer glass-oven door WPL 326367 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
7
Electrode-Spark Igniter (Left) WPL 312454 Contact Us For Availability
7
Electrode-Spark Igniter (Right) WPL 327216 Contact Us For Availability
8
Cover-Wire WPL 330975 Contact Us For Availability
8
Nut-Inverted WPL 142433 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
9
Burner Box Bottom WPL 330386 Contact Us For Availability
9
Insulation WPL 327625 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
9
Screw 1/4``-20 WPL 311455 Contact Us For Availability
10
Retainer-Oven Door Insulation WPL 325996 Contact Us For Availability
10
Stiffener-Burner Box Bottom WPL 330558 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
10
Screw 10-24 WPL 318478 Contact Us For Availability
11
Insulation-Oven Door WPL 325999 Contact Us For Availability
11
Extension-Burner Box Side (14160A, 14260A Mod WPL 330343 Contact Us For Availability
11
Extension-Burner Box Side (14161A, 2A, 14261A WPL 334877 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) (Right) WPL 296327 Contact Us For Availability
11
Pipe-Manifold WPL 330349 Contact Us For Availability
12
Lining-Oven Door WPL 325946 Contact Us For Availability
12
End Cap-Manifold Panel (Left) WPL 330344 Contact Us For Availability
12
End Cap-Manifold Panel (Right) WPL 330345 Contact Us For Availability
12
Shoulder Rovet WPL 70275 Contact Us For Availability
12
Gasket WPL 318658 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
13
Gasket WPL 304241 Contact Us For Availability
14
Knob-Gas Valve (4 Req) WPL 327484 Contact Us For Availability
14
Spring-Oven Door (Lt. or Rt.) WPL 326961 Contact Us For Availability
14
Nut Loxit 3/16`` WPL 79673 Contact Us For Availability
15
Knob-Thermostat WPL 322981 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Regulator WPL 324528 Contact Us For Availability
16
Switch-Oven Light (14160A, 14260A Models) WPL 334564 Contact Us For Availability
16
Switch-Oven Light (14161A, 2A, 14261A, 2A Mod WPL 334649 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 329653 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 329654 Contact Us For Availability
16
Tubing-3/8``-Thermostat/Valve WPL 295037 Contact Us For Availability
17
Manifold Panel WPL 331371 Contact Us For Availability
17
Trim-Side (Left) WPL 330340 Contact Us For Availability
17
Trim-Side (Rgiht) WPL 330341 Contact Us For Availability
18
Bracket-Clock WPL 330337 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
18
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
19
Clamp-Support Rod WPL 326348 Contact Us For Availability
19
Wire Cover Bottom-Backguard WPL 327377 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
20
Support Rod-Main Top WPL 326066 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
20
Gasket-Valve WPL 313563 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
21
Gasket-control WPL 318657 Contact Us For Availability
22
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
22
Oven Body (1426 Models) WPL 324957 Contact Us For Availability
22
Oven Body (1416 Models) WPL 331586 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
23
Glass-Clock WPL 323176 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
23
Thermostat WPL 321983 Contact Us For Availability
24
Clock WPL 330839 Contact Us For Availability
24
Broiler Drawer (Inc`s. 12, 13) WPL 331566 Contact Us For Availability
24
Valve-Top Burner WPL 324482 Contact Us For Availability
25
Motor-Clock WPL 283296 Contact Us For Availability
25
Shoulder Bolt WPL 329271 Contact Us For Availability
25
Switch-Valve WPL 312457 Contact Us For Availability
26
Top-Main (Chrome 1426X0A Models) WPL 330378 Contact Us For Availability
26
Top-Main (White 1416W0A Models) WPL 331366 Contact Us For Availability
26
Top-Main (Almond 1416L0A Models) WPL 331367 Contact Us For Availability
26
Top-Main (Chrome 1426X1A,2A Models) WPL 334858 Contact Us For Availability
26
Top-Main (White 1416W1A, 2A Models) WPL 334861 Contact Us For Availability
26
Top-Main (Almond 1416L1A, 2A Models) WPL 334862 Contact Us For Availability
26
Hinge-Broiler Drawer (Right) WPL 327482 Contact Us For Availability
26
Hinge-Broiler Drawer (Left) WPL 327483 Contact Us For Availability
26
Igniter-Oven Burner WPL 327217 Contact Us For Availability
27
Aeration Pan (4 Req) WPL 330427 Contact Us For Availability
27
Cup-Orifice WPL 318485 Contact Us For Availability
28
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
28
Front Panel-Broiler Door WPL 326292 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
29
14160A, 1A, 14260 WPL 331327 Contact Us For Availability
29
WPL 335073 WPL 335073 Contact Us For Availability
29
WPL 335204 WPL 335204 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
29
Sleeve-Compression 3/16`` WPL 65711 Contact Us For Availability
30
Spacer WPL 302343 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
31
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
31
Pilot WPL 318486 Contact Us For Availability
32
Lining-Broiler Door WPL 331567 Contact Us For Availability
33
Keps Nut 10-24 WPL 074056 Contact Us For Availability
33
Shutter-Air WPL 312988 Contact Us For Availability
34
Broiler Pan WPL 331593 Contact Us For Availability
34
Valve-Safety WPL 322814 Contact Us For Availability
35
Broiler Pan Grid WPL 331588 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
36
Oven Lamp Bulb WPL 111257 Contact Us For Availability
36
Burner-Oven (Inc. 19, 32, 33) WPL 329651 Contact Us For Availability
37
Holder-Oven Lamp Bulb WPL 295974 Contact Us For Availability
37
Support-Top Burner WPL 330358 Contact Us For Availability
38
seal-oven door WPL 326047 Contact Us For Availability
38
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
39
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
39
Module WPL 326136 Contact Us For Availability
40
Front Frame WPL 332687 Contact Us For Availability
40
Support-Module WPL 330326 Contact Us For Availability
41
Retainer-Insulation (R WPL 328984 Contact Us For Availability
41
Screw 13-16 x 1/2`` WPL 329676 Contact Us For Availability
43
WPL 235822 WPL 235822 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 327084 WPL 327084 Contact Us For Availability
45
WPL 331539 WPL 331539 Contact Us For Availability
46
WPL 335535 WPL 335535 Contact Us For Availability
47
WPL 331512 WPL 331512 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
50
WPL 333657 WPL 333657 Contact Us For Availability
51
WPL 331815 WPL 331815 Contact Us For Availability
52
WPL 330338 WPL 330338 Contact Us For Availability
A1
Filler-Main Top Rear WPL 331228 Contact Us For Availability
B1
Screw TC 6-32x3/8`` WPL 295268 Contact Us For Availability
B2
End Cap WPL 330339 Contact Us For Availability
B3
Backsplash WPL 331387 Contact Us For Availability
B4
Backplash Support WPL 330331 Contact Us For Availability
C1
Set-On Griddle WPL 330394 Contact Us For Availability
× ![]()
