Model Whirlpool 1415W0A GAS RANGE – Common Parts & Diagrams

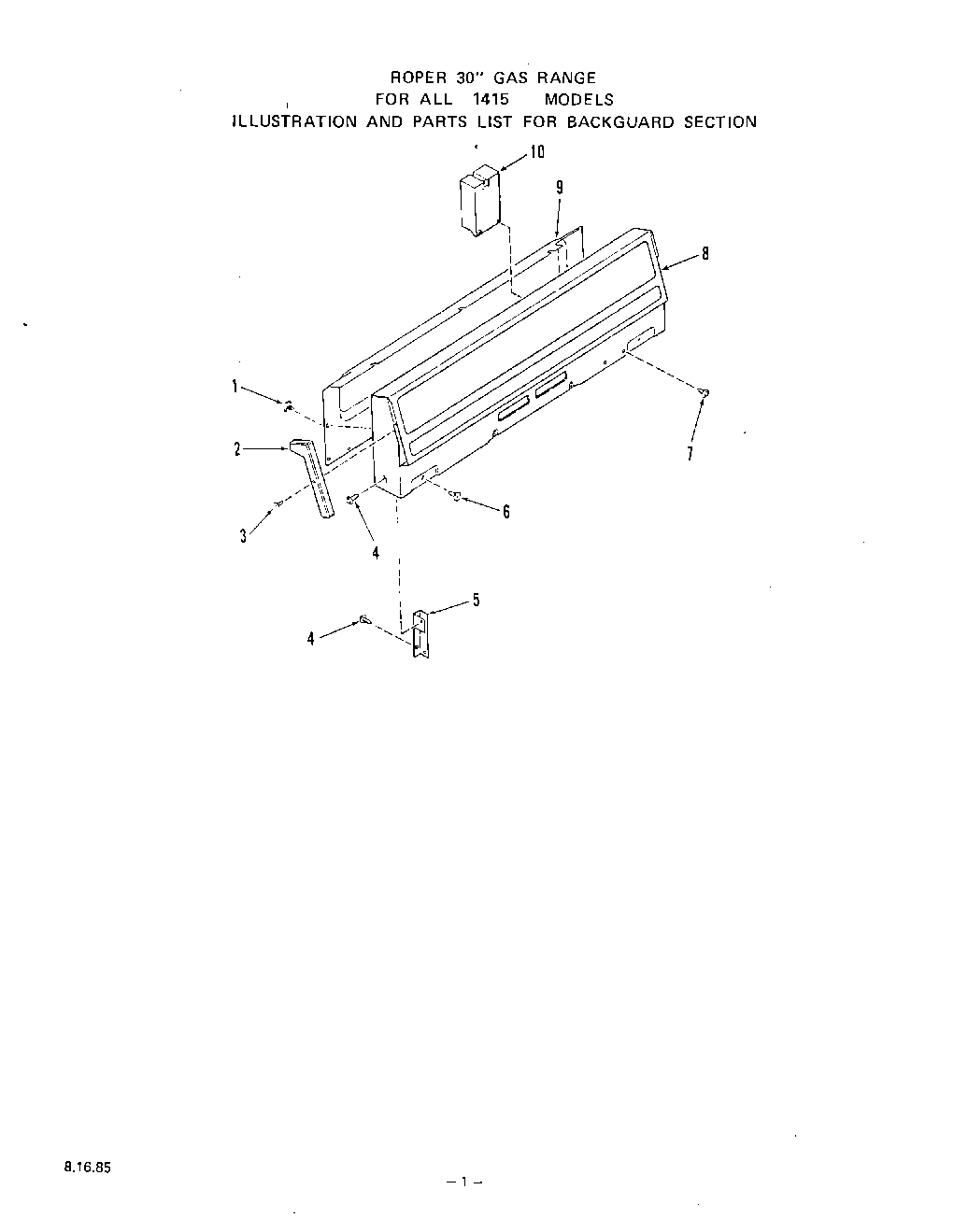

02 - BACKGUARD

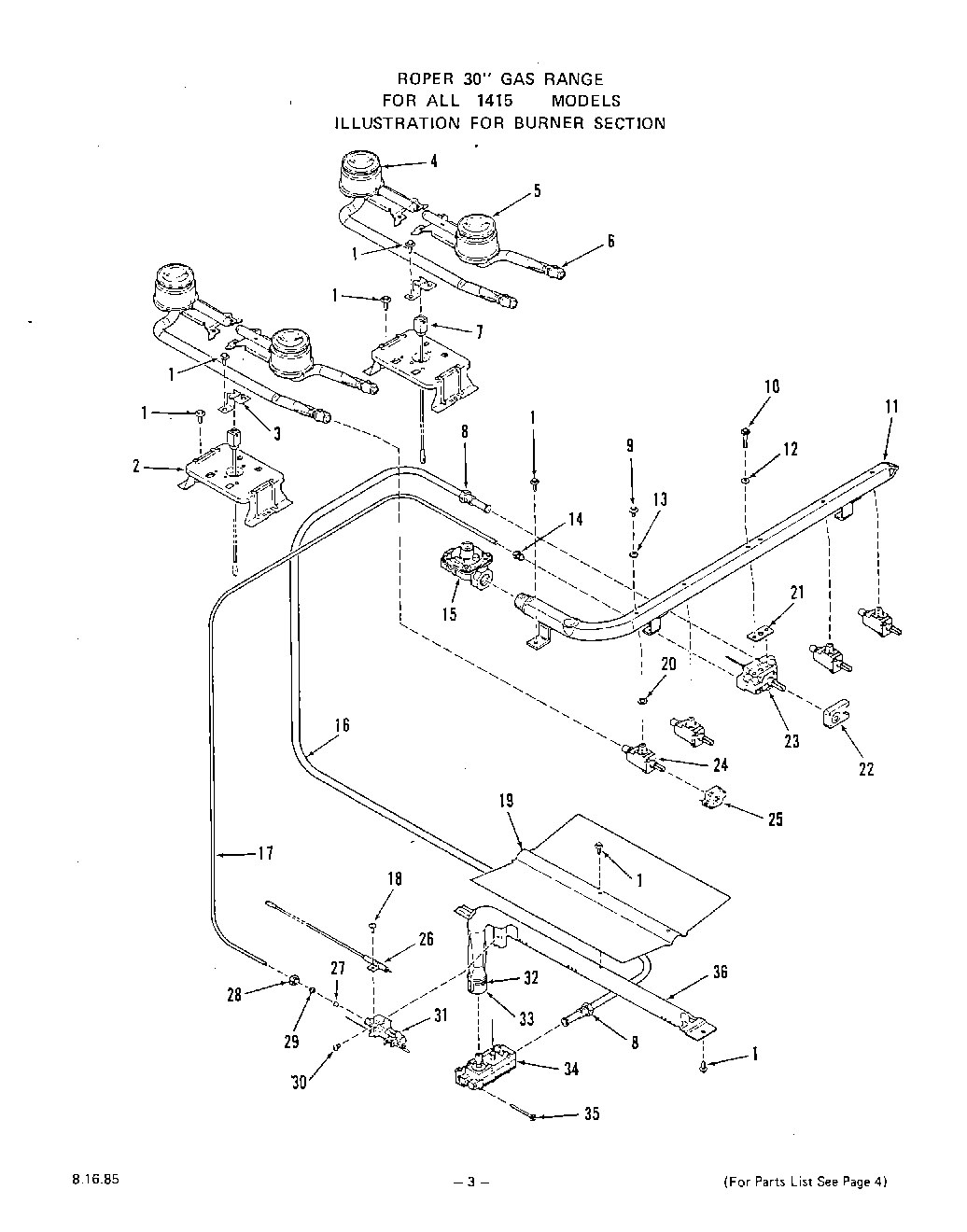

04 - BURNER

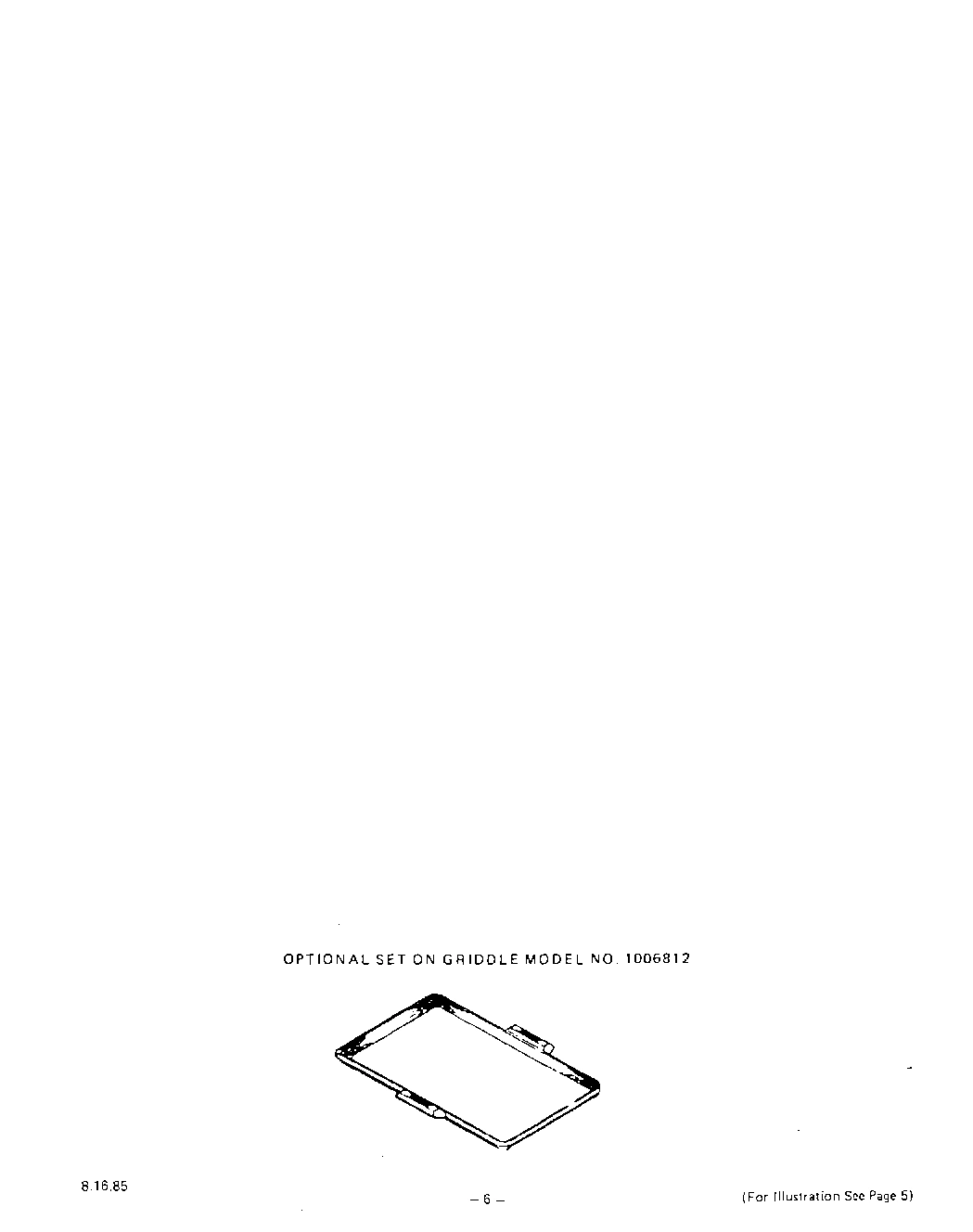

06 - GRIDDLE

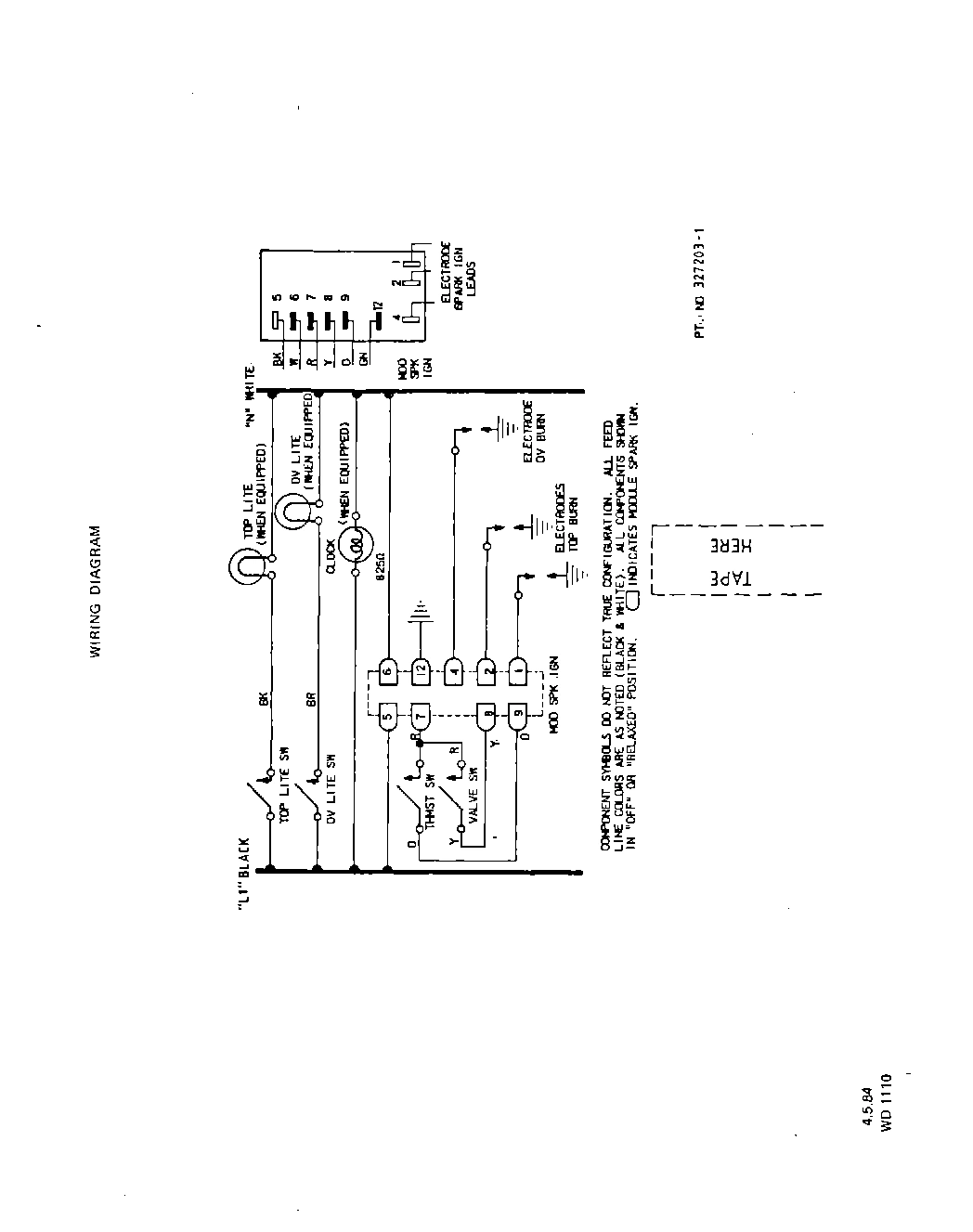

08 - WIRING DIAGRAM

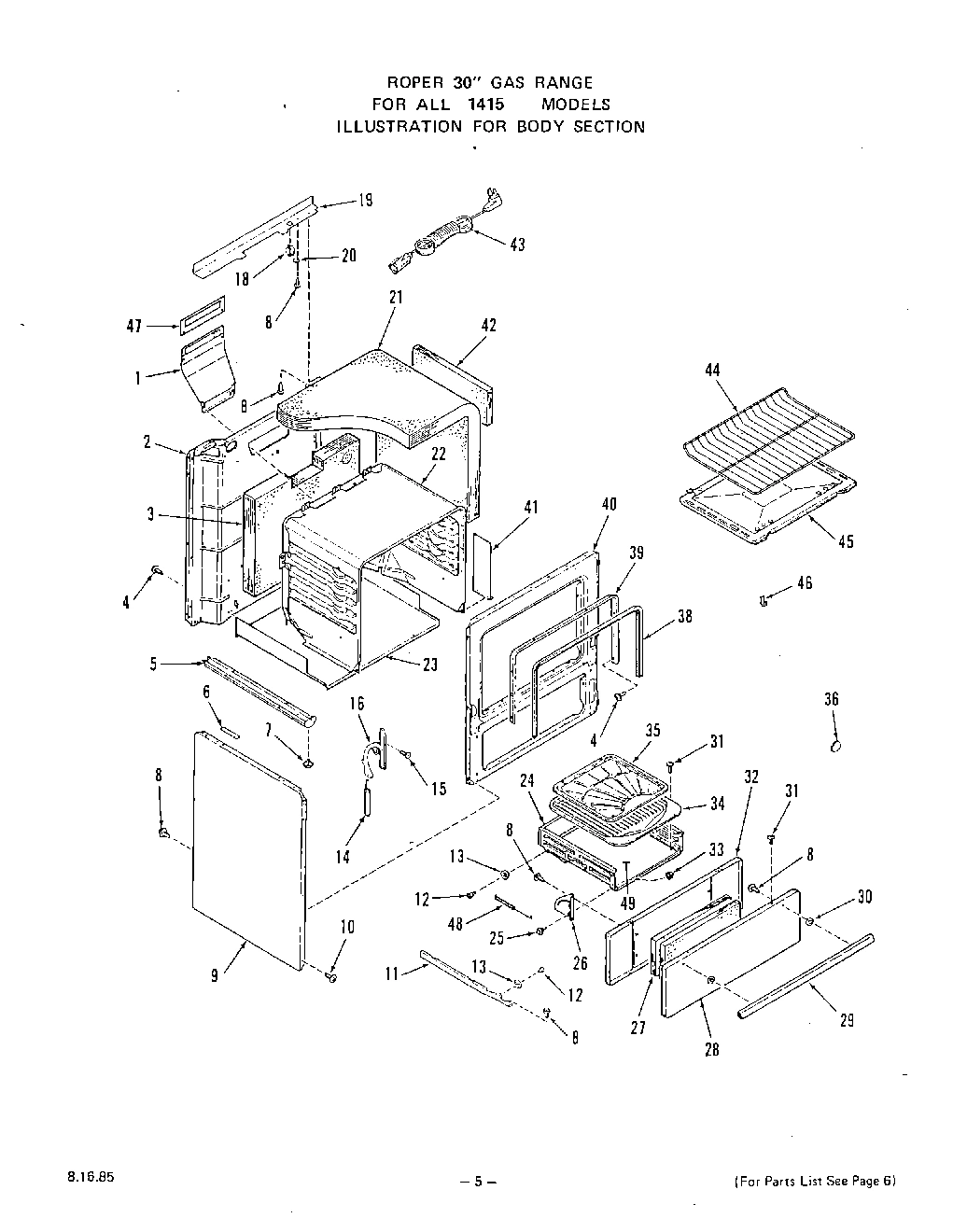

05 - BODY

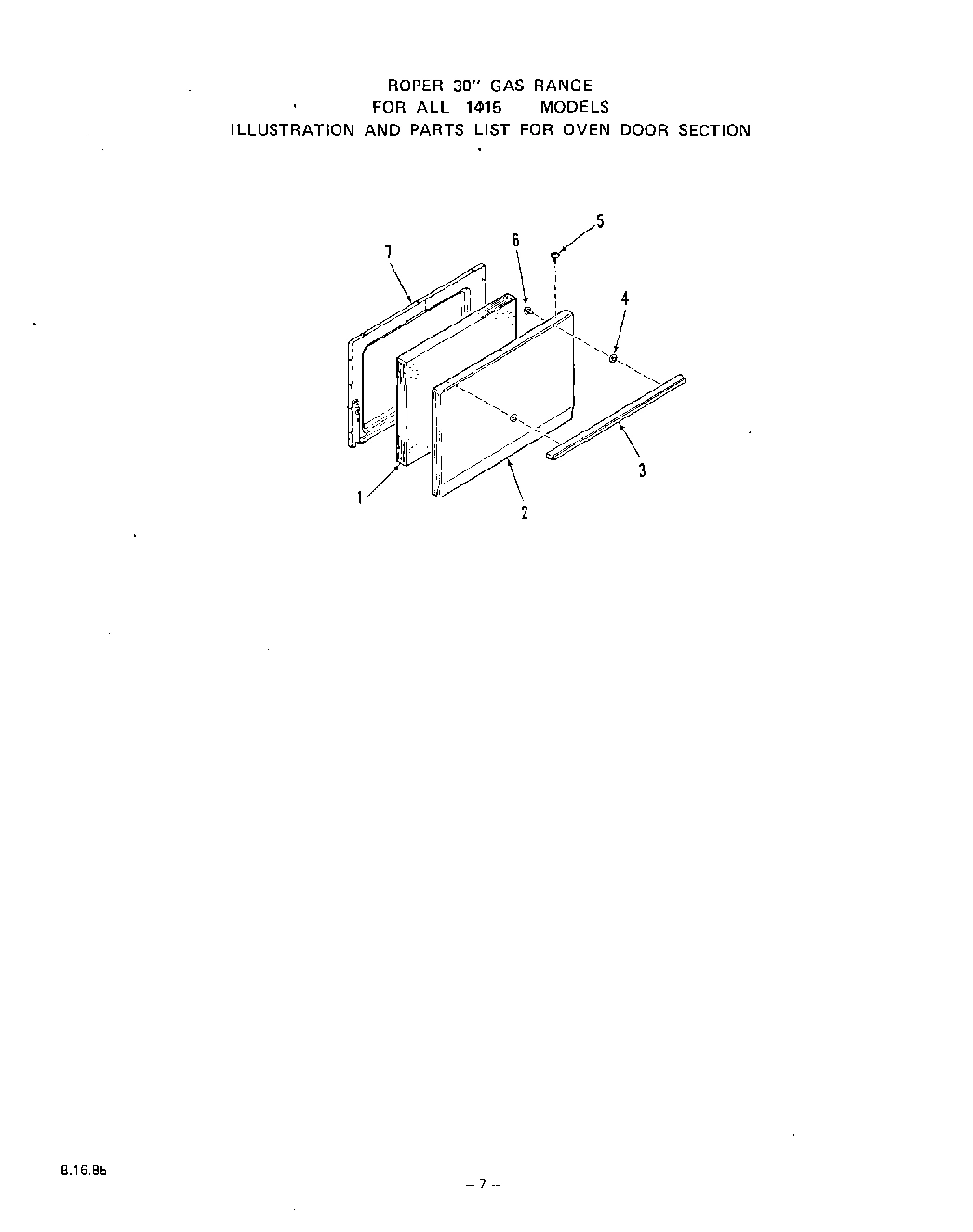

07 - OVEN DOOR

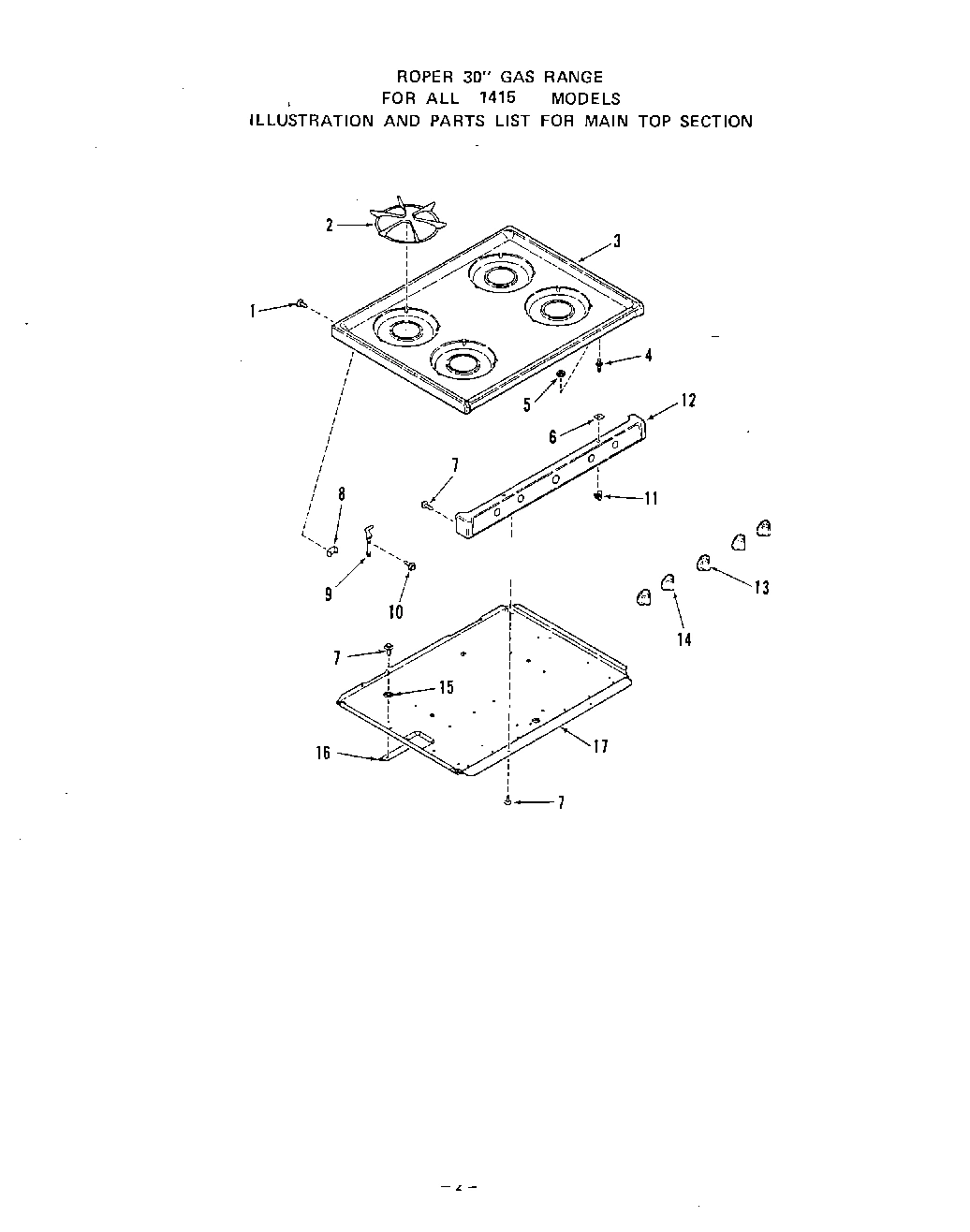

03 - MAIN TOP
Common parts from model Whirlpool 1415W0A GAS RANGE
1
Clip WPL 70588 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
1
Insulation WPL 327625 Contact Us For Availability
2
Right WPL 326284 Contact Us For Availability
2
Left WPL 326285 Contact Us For Availability
2
End Cap WPL ARI8226A91 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
White WPL 325961 Contact Us For Availability
2
Almond WPL 325963 Contact Us For Availability
2
Panel-Front WPL ARI8247A65 Contact Us For Availability
2
Grate-Top (4 Req) WPL 316786 Contact Us For Availability
3
Screw 6-32x3/8`` WPL 329382 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
Handle WPL 292240 Contact Us For Availability
3
White WPL 328907 Contact Us For Availability
3
Almond WPL 328911 Contact Us For Availability
3
Top-Main WPL ARI8228A63 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
4
Spacer WPL 302343 Contact Us For Availability
4
Strike (Lt. or Rt.) WPL 299784 Contact Us For Availability
5
Right WPL 327106 Contact Us For Availability
5
Left WPL 327107 Contact Us For Availability
5
Support-Backguard WPL ARI8227A47 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Nut-Keps WPL 239764 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
6
Washer WPL 310218 Contact Us For Availability
7
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
7
Screw 13-16 x 1/2`` WPL 329676 Contact Us For Availability
7
Right WPL 312455 Contact Us For Availability
7
Left WPL 327216 Contact Us For Availability
7
Electrode-Spark Igniter WPL ARI8233A57 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
7
gas valve switches WPL 326870 Contact Us For Availability
7
14150A Models WPL 327150 Contact Us For Availability
7
Main WPL 327204 Contact Us For Availability
7
xInstallation Guide WPL 327428 Contact Us For Availability
7
xOperating Guide WPL 327437 Contact Us For Availability
7
xUse & Care Guide WPL 330223 Contact Us For Availability
7
14151A Models WPL 331579 Contact Us For Availability
7
xRepair Parts List WPL 332168 Contact Us For Availability
7
Lining-Oven Door WPL ARI8248A59 Contact Us For Availability
7
xWire Harness WPL ARI8249A24 Contact Us For Availability
8
Crosstie WPL 327519 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
8
Bracket-Main Top Hinge WPL 327403 Contact Us For Availability
9
Wire Cover-Backguard WPL 320767 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
9
White WPL 326055 Contact Us For Availability
9
Almond WPL 326059 Contact Us For Availability
9
Body Side (Lt. or Rt.) WPL ARI8234A35 Contact Us For Availability
9
Right WPL 320921 Contact Us For Availability
9
Left WPL 320922 Contact Us For Availability
9
Hinge-Main Top WPL ARI8229A60 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
10
Module - Spark Igniter WPL 326136 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
10
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
11
Manifold Pipe WPL 327089 Contact Us For Availability
11
Right WPL 296327 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) WPL ARI8235A71 Contact Us For Availability
11
Catch (2 Req) WPL 24667 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
12
White WPL 327451 Contact Us For Availability
12
Almond WPL 327457 Contact Us For Availability
12
Panel-Manifold WPL ARI8230A11 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
13
Knob-Thermostat WPL 322981 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
14
Spring-Oven Door WPL 326961 Contact Us For Availability
14
Knob-Gas Valve (4 Req) WPL 327484 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Washer WPL 106462 Contact Us For Availability
16
Tubing 3/8`` WPL 295037 Contact Us For Availability
16
Right WPL 329653 Contact Us For Availability
16
Left WPL 329654 Contact Us For Availability
16
Hinge-Oven Door WPL ARI8236A49 Contact Us For Availability
16
Front WPL 327705 Contact Us For Availability
16
Rear WPL 329158 Contact Us For Availability
16
Stiffener-Burner Box Bottom WPL ARI8231A39 Contact Us For Availability
17
14150A Models WPL 327250 Contact Us For Availability
17
14151A Models WPL 331741 Contact Us For Availability
17
Bottom-Burner Box WPL ARI8232A72 Contact Us For Availability
18
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
19
Baffle-Oven Burner WPL 329315 Contact Us For Availability
19
Cover-Backguard Bottom Wire WPL 327251 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
22
14150A Models WPL 324958 Contact Us For Availability
22
14151A Models WPL 331586 Contact Us For Availability
22
Oven Body WPL ARI8237A40 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Gas Valve (4 Req) (Inc`s. 20) WPL 324482 Contact Us For Availability
24
14150A Models WPL 330100 Contact Us For Availability
24
14151A Models WPL 331566 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12, 13) WPL ARI8238A67 Contact Us For Availability
25
Switch-Gas Valve (4 Req) WPL 312457 Contact Us For Availability
25
Bolt-Shoulder WPL 329271 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
26
Right WPL 327482 Contact Us For Availability
26
Left WPL 327483 Contact Us For Availability
26
Hinge-Broiler Drawer WPL ARI8239A60 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
28
White WPL 326287 Contact Us For Availability
28
Almond WPL 326291 Contact Us For Availability
28
Front Panel-Broiler Door WPL ARI8240A28 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
14150A Models WPL 327060 Contact Us For Availability
32
14151A Models WPL 331567 Contact Us For Availability
32
Lining-Broiler Door WPL ARI8241A29 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
Keps Nut 10-24 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 321755 Contact Us For Availability
34
14150A Models WPL 290171 Contact Us For Availability
34
14151A Models WPL 331593 Contact Us For Availability
34
Pan-Broiler WPL ARI8242A44 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
14150A Models WPL 313071 Contact Us For Availability
35
14151A Models WPL 331588 Contact Us For Availability
35
Grid-Broiler Pan WPL ARI8243A41 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 33) WPL 319255 Contact Us For Availability
36
Plug Button WPL 101063 Contact Us For Availability
38
seal-oven door WPL 326047 Contact Us For Availability
39
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
40
14150A Models WPL 326042 Contact Us For Availability
40
14151A Models WPL 331584 Contact Us For Availability
40
Front Frame WPL ARI8244A18 Contact Us For Availability
41
Retainer-Insulation (Lt. or Rt.) WPL 328984 Contact Us For Availability
43
Cord-Range Service WPL 235822 Contact Us For Availability
44
Rack-Oven (2 Req) WPL 326068 Contact Us For Availability
45
14150A Models WPL 327083 Contact Us For Availability
45
14151A Models WPL 331539 Contact Us For Availability
45
Bottom-Oven WPL ARI8245A12 Contact Us For Availability
46
Cl WPL 115533 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 329862 WPL 329862 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
49
WPL ARI8246A28 WPL ARI8246A28 Contact Us For Availability
× ![]()
