Model Whirlpool 1405W1A GAS RANGE – Common Parts & Diagrams
04 - BURNER
06 - BODY

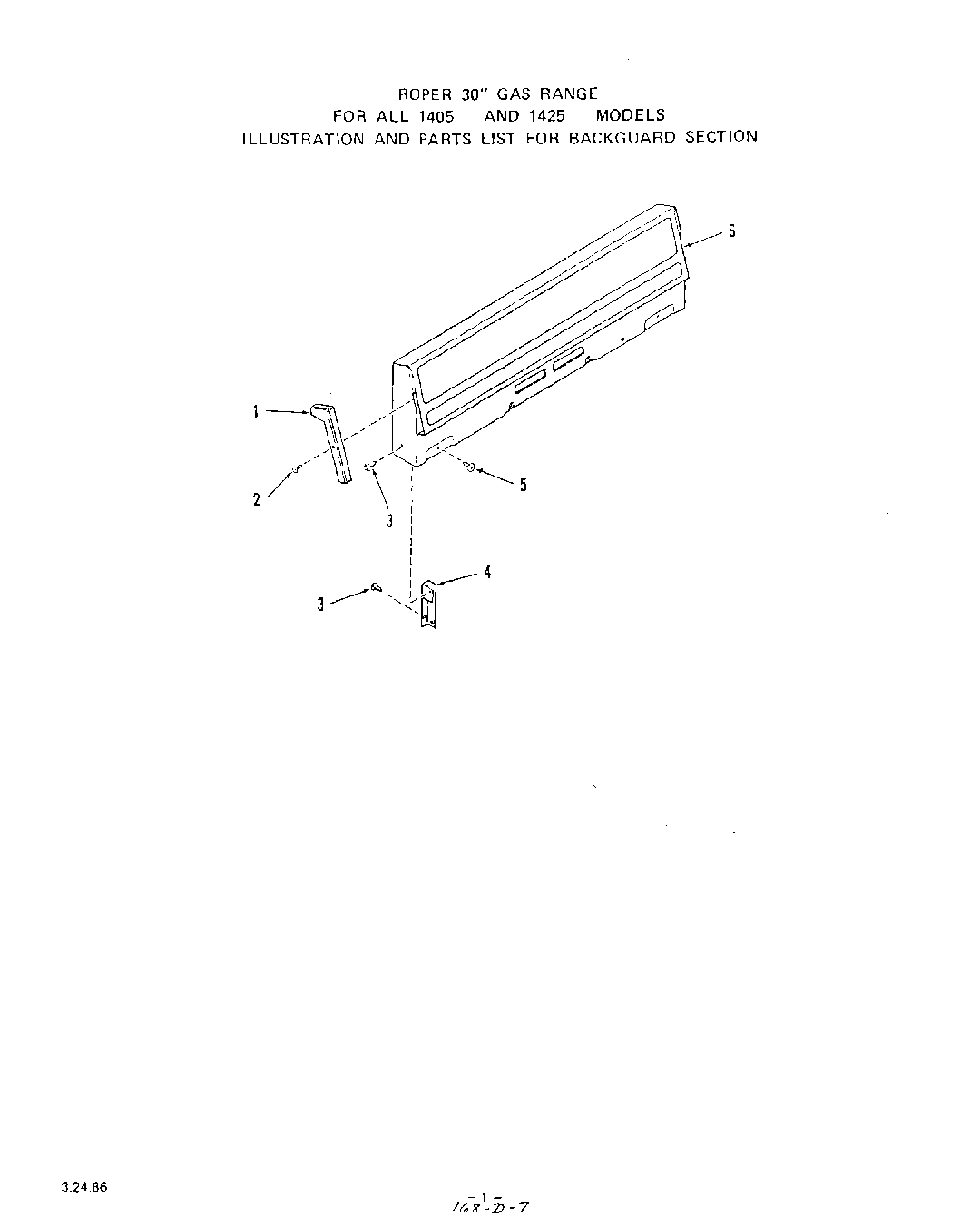

02 - BACKGUARD

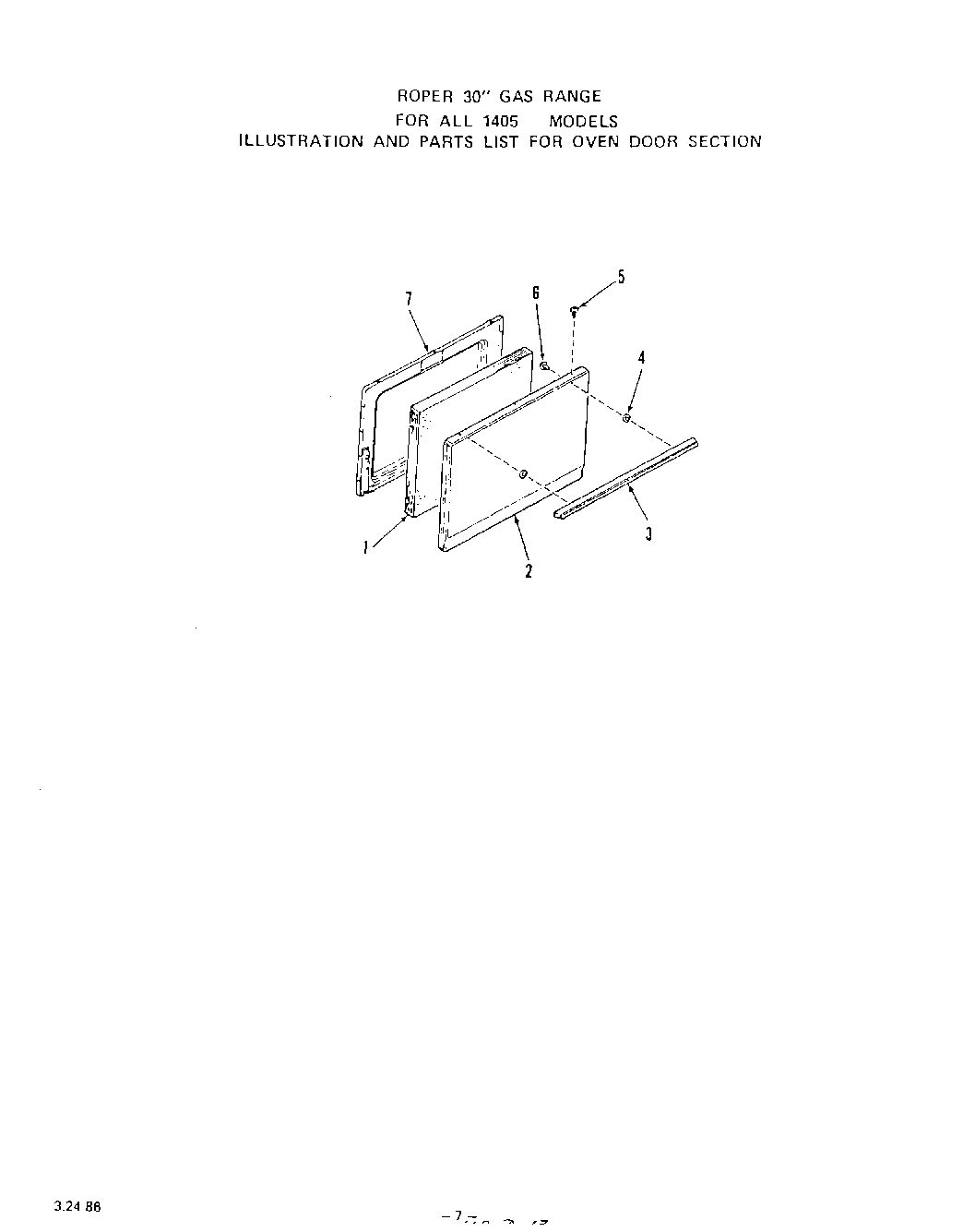

07 - OVEN DOOR

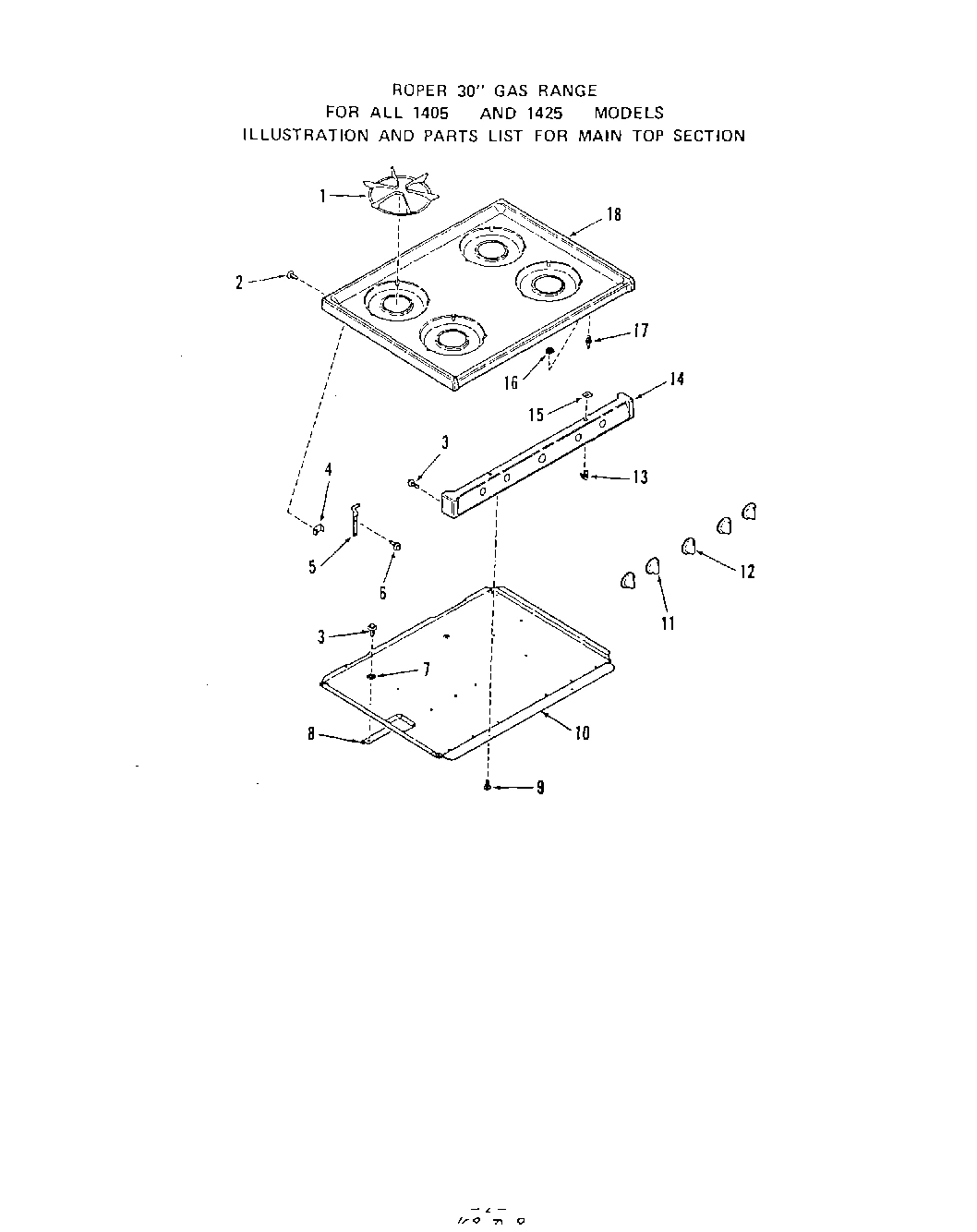

03 - MAIN TOP

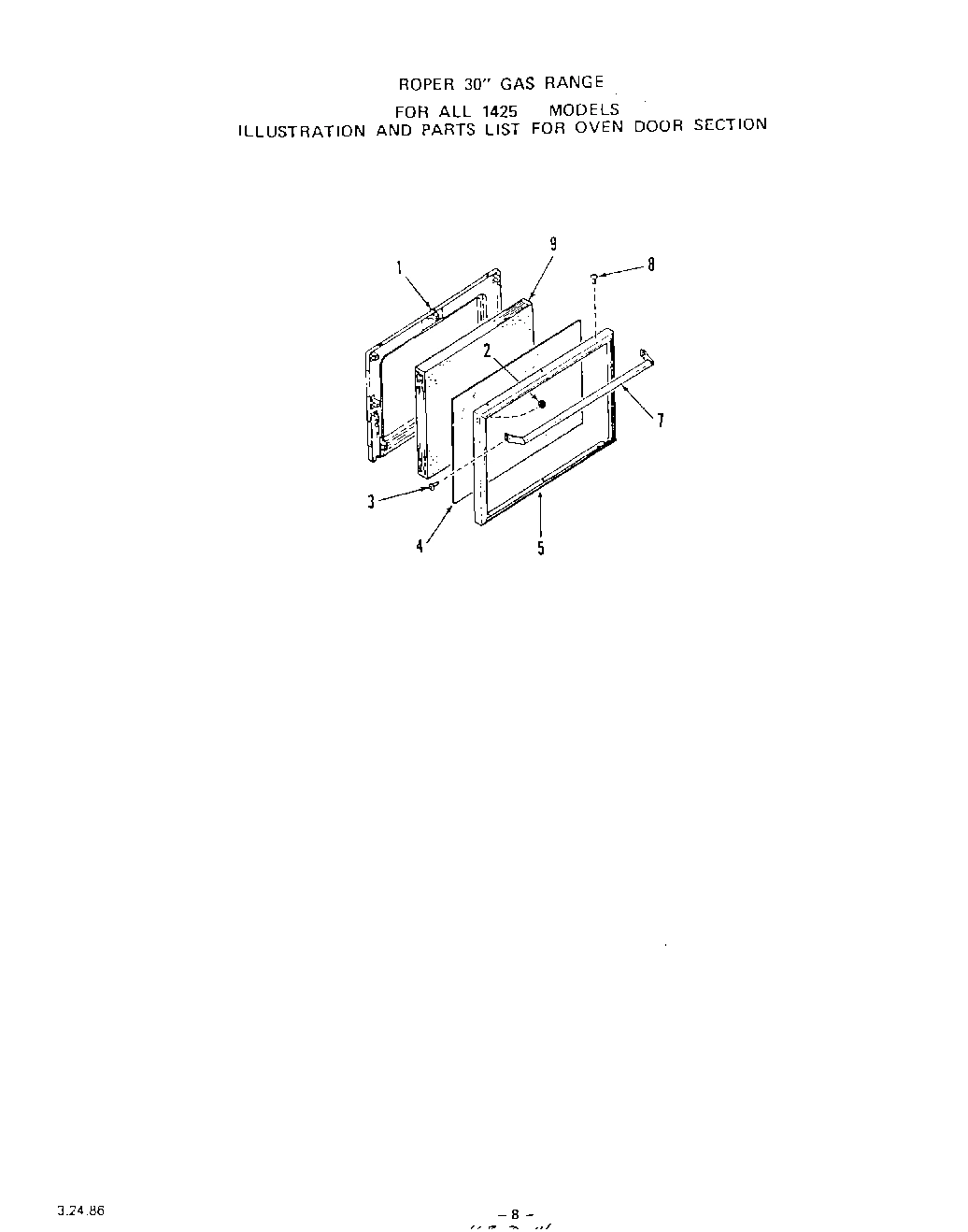

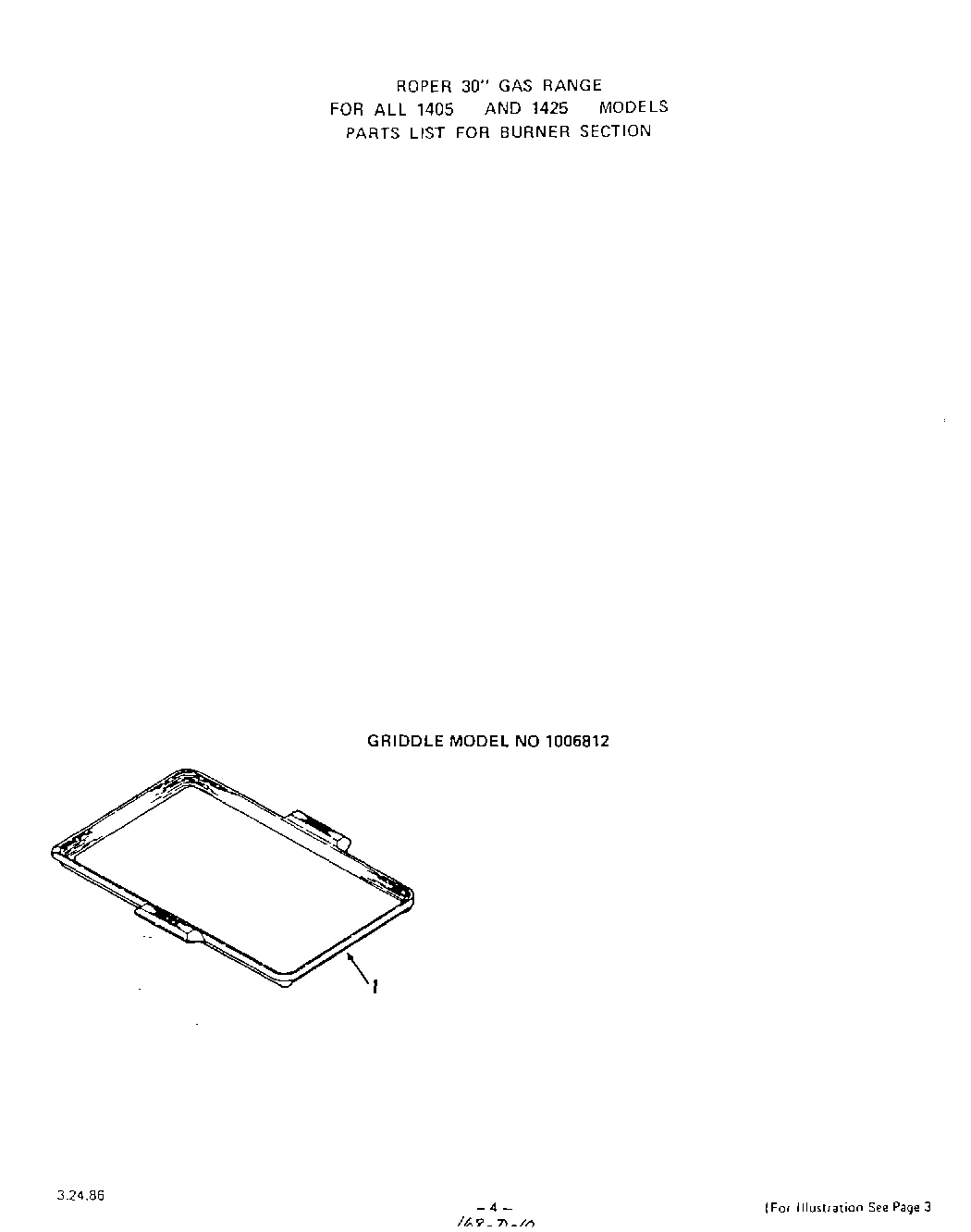

05 - GRIDDLE
08 - SECTION
Common parts from model Whirlpool 1405W1A GAS RANGE
1
Flue Deflector WPL 327079 Contact Us For Availability
1
End Cap-Backguard (Right All 1425 Models) WPL 326282 Contact Us For Availability
1
End Cap-Backguard (Left All 1425 Models) WPL 326283 Contact Us For Availability
1
End Cap-Backguard (Right All 1405 Models) WPL 326284 Contact Us For Availability
1
End Cap-Backguard (Left All 1405 Models) WPL 326285 Contact Us For Availability
1
Grate-Top WPL 316786 Contact Us For Availability
1
Set-On Griddle WPL 289671 Contact Us For Availability
1
Lining-Oven Door (14250A Models) WPL 327257 Contact Us For Availability
1
Lining-Oven Door (14251A Models) WPL 331580 Contact Us For Availability
2
Support-Top Burner WPL 327071 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
Screw 6-32x3/8`` (All 1425 Models) WPL 327621 Contact Us For Availability
2
Screw 6-32x3/8`` (All 1405 Models) WPL 329382 Contact Us For Availability
2
Front Panel (White) WPL 325961 Contact Us For Availability
2
Front Panel (Wheat) WPL 325962 Contact Us For Availability
2
Front Panel (Almond) WPL 325963 Contact Us For Availability
2
Nut-Keps 8-32 WPL 239764 Contact Us For Availability
3
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
Handle WPL 292240 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
4
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
4
Spacer WPL 302343 Contact Us For Availability
4
Support-Backguard (Right) WPL 327106 Contact Us For Availability
4
Support-Backguard (Left) WPL 327107 Contact Us For Availability
4
Bracket-Hinge (Lt. or Rt.) WPL 327403 Contact Us For Availability
4
Glass-Oven Door WPL 320736 Contact Us For Availability
5
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
5
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
5
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
5
Frame-Oven Door WPL 326141 Contact Us For Availability
6
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
6
Crosstie-Backguard WPL 327519 Contact Us For Availability
6
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
7
Pilot Only (Inc`s. 8) WPL 318486 Contact Us For Availability
7
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
7
Lining-Oven Door (All 14050A Models) WPL 327150 Contact Us For Availability
7
Lining-Oven Door (All 14051A & 14052A Models) WPL 331579 Contact Us For Availability
7
Washer WPL 106462 Contact Us For Availability
7
Handle WPL 303342 Contact Us For Availability
8
Orifice Cup Only (For 7) WPL 318485 Contact Us For Availability
8
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
8
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
8
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
9
Tubing 3/8`` WPL 295037 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (White-1405 OA & 1A, 1 WPL 326055 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (Wheat -1405 OA & 1A, WPL 326058 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (Almond-1405 OA & 1A, WPL 326059 Contact Us For Availability
9
Side-Body (Lt. or Rt.) (Almond-1405 2A Models WPL 332566 Contact Us For Availability
9
Insulation WPL 327625 Contact Us For Availability
9
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
10
Pilot w/Filter WPL 323912 Contact Us For Availability
10
Bottom-Burner Box (14050A & 14250A Models) WPL 327069 Contact Us For Availability
10
Bottom-Burner Box (14051A, 14052A, 14251A Mod WPL 331576 Contact Us For Availability
11
Cup-Pilot (Lt. or Rt.) WPL 308292 Contact Us For Availability
11
Guide-Broiler Drawer (Inc`s. 12,13) (Right) WPL 296327 Contact Us For Availability
11
Knob-Gas Valve (4 Req) WPL 327484 Contact Us For Availability
12
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
12
Rivet-Shoulder WPL 70275 Contact Us For Availability
12
Knob-Thermostat WPL 322981 Contact Us For Availability
13
Rear Top Burner (Rt. or Lt.) - Inc`s. 15 WPL 327075 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
13
Catch (2 Req) WPL 24667 Contact Us For Availability
14
Front Top Burner (Rt. or Lt.) - Inc`s. 15 WPL 327074 Contact Us For Availability
14
Spring-Oven Door WPL 326961 Contact Us For Availability
14
Panel-Manifold (White) WPL 327451 Contact Us For Availability
14
Manifold Panel (Golden Wheat) WPL 327456 Contact Us For Availability
14
Manifold Panel (Almond) WPL 327457 Contact Us For Availability
15
Air Shutter (4 Req) WPL 327198 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Washer WPL 310218 Contact Us For Availability
16
Mounting Screw (Inc`s. 22) WPL 318478 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 329653 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 329654 Contact Us For Availability
17
Mounting Screw (Inc`s. 21) WPL 311455 Contact Us For Availability
17
Strike (2 Req) WPL 299784 Contact Us For Availability
18
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
18
Top-Main (White) WPL 328907 Contact Us For Availability
18
Top-Main (Wheat) WPL 328910 Contact Us For Availability
18
Top-Main (Almond) WPL 328911 Contact Us For Availability
19
Pressure Regulator WPL 324528 Contact Us For Availability
20
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
21
Gasket WPL 304241 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Gasket WPL 318658 Contact Us For Availability
22
Oven Body (14050A & 14250A Models) WPL 324958 Contact Us For Availability
22
Oven Body (14051A, 14052A & 14251A Models) WPL 331586 Contact Us For Availability
23
Manifold Pipe WPL 327088 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12, 13) (14050A & 1425 WPL 330100 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12, 13) (14051A, 14052 WPL 331566 Contact Us For Availability
25
Gasket WPL 323913 Contact Us For Availability
25
Bolt-Shoulder WPL 329271 Contact Us For Availability
26
Silicone Rubber Gasket (For 30) WPL 313563 Contact Us For Availability
26
Hinge-Boiler Door (Right) WPL 327482 Contact Us For Availability
26
Hinge-Boiler Door (Left) WPL 327483 Contact Us For Availability
27
Silicone Rubber Gasket (For 29) WPL 318657 Contact Us For Availability
28
Mounting Screw WPL 323914 Contact Us For Availability
28
Panel-Broiler Door (White) WPL 326287 Contact Us For Availability
28
Panel-Broiler Door (Wheat) WPL 326290 Contact Us For Availability
28
Panel-Broiler Door (Almond) WPL 326291 Contact Us For Availability
29
Oven Thermostat (Inc`s. 27) WPL 323467 Contact Us For Availability
30
Gas Valve-4 Req. (Inc`s. 17, 21, 26) WPL 324482 Contact Us For Availability
31
Baffle - Oven Burner WPL 329316 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
WPL 327060 WPL 327060 Contact Us For Availability
32
WPL 331567 WPL 331567 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
WPL 74056 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 7,8) WPL 323680 Contact Us For Availability
34
WPL 290171 WPL 290171 Contact Us For Availability
34
WPL 331593 WPL 331593 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
WPL 313071 WPL 313071 Contact Us For Availability
35
WPL 331588 WPL 331588 Contact Us For Availability
36
Oven Burner (Inc`s. 31, 32,33) WPL 319255 Contact Us For Availability
36
WPL 101063 WPL 101063 Contact Us For Availability
38
WPL 326047 WPL 326047 Contact Us For Availability
39
WPL 327875 WPL 327875 Contact Us For Availability
40
WPL 326042 WPL 326042 Contact Us For Availability
40
WPL 332687 WPL 332687 Contact Us For Availability
41
WPL 328984 WPL 328984 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 327083 WPL 327083 Contact Us For Availability
45
WPL 331539 WPL 331539 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 329862 WPL 329862 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
× ![]()
