Model Whirlpool 1352W06 ELECTRIC RANGE – Common Parts & Diagrams

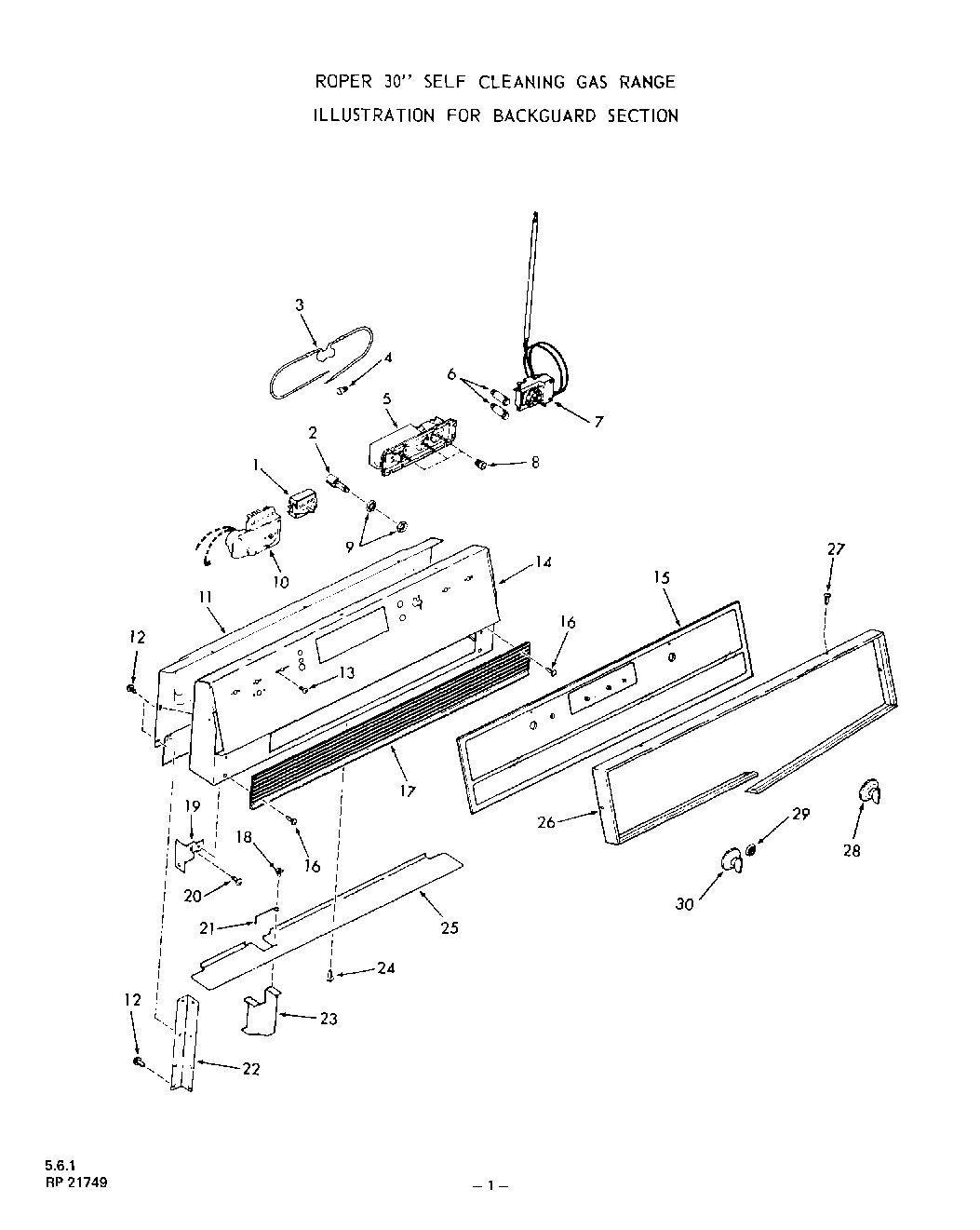

03 - BACKGUARD

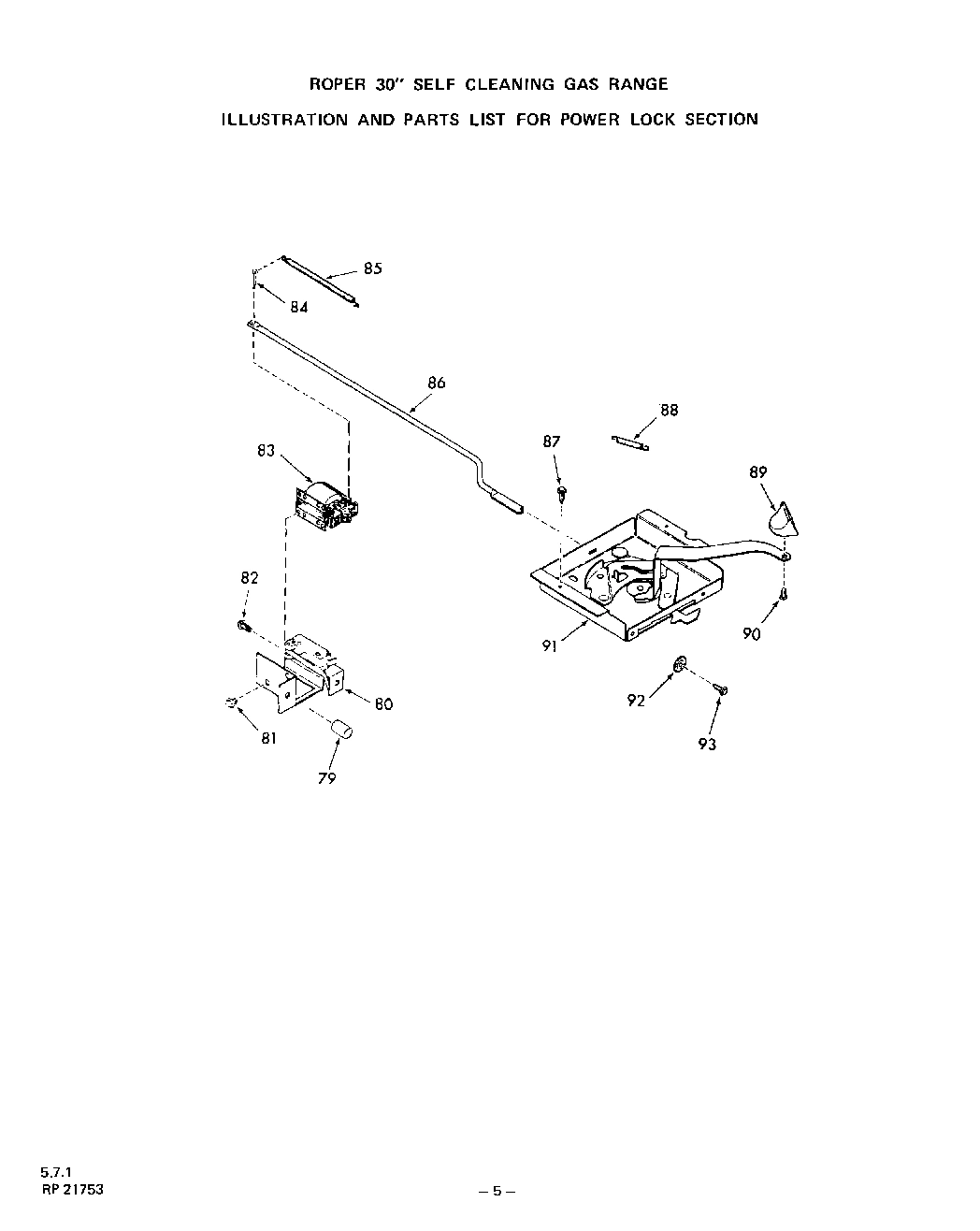

05 - POWER LOCK
08 - OVEN DOOR, LITERATURE
02 - SECTION
04 - MAIN TOP
06 - BURNER
07 - BODY
09 - OPTIONAL
Common parts from model Whirlpool 1352W06 ELECTRIC RANGE
1
Selector Switch WPL 310574 Contact Us For Availability
2
Push Switch (Lock-Unlock) WPL 307574 Contact Us For Availability
3
Wire Lead w/Resister WPL 300326 Contact Us For Availability
4
Wire Connector (2 Required) WPL 66763 Contact Us For Availability
5
Clock w/1Hr Timer WPL 314101 Contact Us For Availability
6
Indicator Light WPL 231665 Contact Us For Availability
7
Oven Thermostat WPL 310985 Contact Us For Availability
8
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
9
Pal Nut WPL 236129 Contact Us For Availability
10
Timer WPL 281698 Contact Us For Availability
11
Wire Cover-Backguard WPL 312055 Contact Us For Availability
13
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
14
Crosstie WPL 311521 Contact Us For Availability
15
Glass-Backguard WPL 311141 Contact Us For Availability
16
Screw 6-32 x 3/8`` WPL 303820 Contact Us For Availability
17
Bottom Trim-Crosstie WPL 311134 Contact Us For Availability
18
Clip WPL 70588 Contact Us For Availability
19
Bracket-Backguard (Left) WPL 293565 Contact Us For Availability
19
Bracket-Backguard (Right) WPL 293566 Contact Us For Availability
22
Support-Backguard (Lt. or Rt.) WPL 299575 Contact Us For Availability
23
Wire Shield-Backguard WPL 286889 Contact Us For Availability
25
Shield-Controls WPL 307599 Contact Us For Availability
26
Bezel-Backguard WPL 308007 Contact Us For Availability
27
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
28
Knob-Oven Thermostat WPL 311101 Contact Us For Availability
29
Nut-Trim 3/8-27 WPL 109883 Contact Us For Availability
30
Knob-Selector Switch WPL 311102 Contact Us For Availability
44
Spill Bowl (4 Required) WPL 310385 Contact Us For Availability
45
Side Trim-Main Top (Left) WPL 306680 Contact Us For Availability
45
Side Trim-Main Top (Right) WPL 306681 Contact Us For Availability
46
Plug Bottom (2 Required) WPL 239815 Contact Us For Availability
47
Top Grate (4 Required) WPL 316786 Contact Us For Availability
48
Main Top (White) WPL 316801 Contact Us For Availability
48
Main Top (Almond) WPL 316802 Contact Us For Availability
48
Main Top (Golden Wheat) WPL 316803 Contact Us For Availability
49
Keps Nut 8-32 WPL 239764 Contact Us For Availability
50
Washer WPL 74417 Contact Us For Availability
51
Strike-Main Top (2 Required) WPL 299784 Contact Us For Availability
52
Catch-Main Top Strike (2 Required) WPL 24667 Contact Us For Availability
54
Support-Top Burner WPL 312585 Contact Us For Availability
56
Cover-Lock Rod WPL 310417 Contact Us For Availability
57
Cover-Lock WPL 310418 Contact Us For Availability
58
End Cap-Side Trim (Left) WPL 239671 Contact Us For Availability
59
Knob-Gas Valve (4 Required) WPL 304425 Contact Us For Availability
60
Manifold Panel WPL 311105 Contact Us For Availability
61
Screw 8-32x1/2`` WPL 112604 Contact Us For Availability
63
Shoulder Bolt WPL 69027 Contact Us For Availability
64
Plug Bottom WPL 239831 Contact Us For Availability
65
Support-Main Top WPL 310575 Contact Us For Availability
66
Burner Box Bottom WPL 310406 Contact Us For Availability
67
Speed Nut WPL 306711 Contact Us For Availability
68
Extention-Burner Box (Left) WPL 310734 Contact Us For Availability
68
Extention-Burner Box (Right) WPL 310735 Contact Us For Availability
69
Support Rod-Main Top WPL 284164 Contact Us For Availability
70
Front Extention-Burner box WPL 310415 Contact Us For Availability
79
Spacer (2 Required) WPL 310419 Contact Us For Availability
80
Bracket w/Switch WPL 319432 Contact Us For Availability
81
Mounting Screw WPL 319433 Contact Us For Availability
82
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
83
Solenoid Only WPL 319431 Contact Us For Availability
84
Cotter Pin WPL 318089 Contact Us For Availability
85
Spring-Solenoid WPL 299704 Contact Us For Availability
86
Rod-Oven Door Lock WPL 310555 Contact Us For Availability
88
Spring-Lock Handle WPL 299599 Contact Us For Availability
89
Knob-Oven Door Lock Handle WPL 299627 Contact Us For Availability
90
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
91
Oven Door Lock Assem (Inc Key 88) WPL 310532 Contact Us For Availability
110
Bracket-Module WPL 310527 Contact Us For Availability
111
Screw 10-32x1/2`` WPL 239114 Contact Us For Availability
112
Rear Tip Burner (Rt or Lt) WPL 310199 Contact Us For Availability
113
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
114
Front Top Burner (Lt or Rt) WPL 310198 Contact Us For Availability
115
Module-Spark Igniter WPL 312267 Contact Us For Availability
116
Pressure Regulator WPL 314056 Contact Us For Availability
117
Bracket-Igniter (Oven Burner) WPL 310497 Contact Us For Availability
120
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
121
Dual Control Valve WPL 306267 Contact Us For Availability
122
Bracket-Igniter (Ov or Broil Burner) WPL 311689 Contact Us For Availability
124
Igniter (Ov or Broil Burner) WPL 311846 Contact Us For Availability
125
Keps Nut 10-24 WPL 74056 Contact Us For Availability
126
Shield-Valve Wires WPL 310416 Contact Us For Availability
127
Spacer-Rt or Lt WPL 310031 Contact Us For Availability
128
Electrode-Spark Igniter (Left) WPL 312454 Contact Us For Availability
128
Electrode-Spark Igniter (Right) WPL 313629 Contact Us For Availability
130
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
131
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
132
Air Shutter WPL 301910 Contact Us For Availability
134
Switch (1 Ea for Key 135) WPL 310253 Contact Us For Availability
135
Gas Valve (4 Required) WPL 313224 Contact Us For Availability
136
Silicone Rubber Gasket (1Ea For Keys 135,154) WPL 304239 Contact Us For Availability
137
Tubing 3/8`` (Cont Valve to Broil Burner) WPL 310905 Contact Us For Availability
138
Support-Oven Burner WPL 282122 Contact Us For Availability
139
Bracket-Orifice Fitting WPL 282112 Contact Us For Availability
140
Tubing 3/8`` w/Orifice WPL 312076 Contact Us For Availability
141
Air Shutter WPL 213988 Contact Us For Availability
142
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
143
Oven Burner WPL 318449 Contact Us For Availability
145
Broil Burn Asm (Inc Keys 141,142,147,149) WPL 318758 Contact Us For Availability
146
Screw 10-32x7/16`` WPL 97217 Contact Us For Availability
147
Lower Baffle - Broiler Burner WPL 302904 Contact Us For Availability
148
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
149
Upper Baffle-Broiler Burner WPL 300263 Contact Us For Availability
150
Mounting Screw (5 Requir WPL 311455 Contact Us For Availability
151
WPL 304241 WPL 304241 Contact Us For Availability
152
WPL 312743 WPL 312743 Contact Us For Availability
154
WPL 312437 WPL 312437 Contact Us For Availability
155
WPL 310903 WPL 310903 Contact Us For Availability
159
WPL 306589 WPL 306589 Contact Us For Availability
165
Stiffener - Body Side (Lt. or Rt.) WPL 309986 Contact Us For Availability
167
Lower Support - Body Side (Right) WPL 293420 Contact Us For Availability
167
Lower Support - Body Side (Left) WPL 293421 Contact Us For Availability
168
Body Side (Inc Key 229) Lt or Rt (White) WPL 312068 Contact Us For Availability
168
Body Side (Inc Key 229) Lt or Rt (Golden Wh WPL 312071 Contact Us For Availability
168
Body Side (Inc Key 229) Lt or Rt (Almond) WPL 312072 Contact Us For Availability
169
Lockwasher WPL 69648 Contact Us For Availability
170
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
171
Oven Door Hinge (Inc Key 173) Lt or Rt WPL 293971 Contact Us For Availability
172
Spring-Oven Door (Lt or Rt) WPL 282683 Contact Us For Availability
173
Shoulder rivet WPL 293224 Contact Us For Availability
174
Oven Door Hinge Bracket (Inc Key 173) (Left) WPL 301389 Contact Us For Availability
174
Oven Door Hinge Bracket (Inc Key 173) (Right WPL 310390 Contact Us For Availability
175
Washer WPL 106462 Contact Us For Availability
177
Baffel-Side Panel (Lt or Rt) WPL 311029 Contact Us For Availability
178
Upper Insulation Retainer-Lt WPL 310515 Contact Us For Availability
179
Insulation-Oven Top & Sides WPL 282953 Contact Us For Availability
180
Main Back WPL 312014 Contact Us For Availability
181
Wire Cover WPL 310579 Contact Us For Availability
182
Disconnect WPL 232150 Contact Us For Availability
183
Range Service Cord WPL 281381 Contact Us For Availability
184
Cover-Flue Deflector WPL 310577 Contact Us For Availability
185
Flue Deflector WPL 294197 Contact Us For Availability
186
Gasket-Flue Deflector WPL 282157 Contact Us For Availability
187
Insulation Retainer - Flue WPL 282156 Contact Us For Availability
188
Insulation-Oven Back WPL 282535 Contact Us For Availability
189
Cover Plate, Rotisserie WPL 229607 Contact Us For Availability
190
Oven Back WPL 312013 Contact Us For Availability
191
Shoulder Bolt WPL 289730 Contact Us For Availability
192
Cover Plate WPL 282245 Contact Us For Availability
194
Oven Side-Left WPL 285482 Contact Us For Availability
196
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
197
Bottom-Over Burner WPL 310541 Contact Us For Availability
198
Main Bottom WPL 319808 Contact Us For Availability
199
Base w/Levelers (Lt. or Rt.) WPL 310964 Contact Us For Availability
211
Retainer - Seal WPL 295277 Contact Us For Availability
212
Seal WPL 295278 Contact Us For Availability
213
Strike (2 Required) WPL 313671 Contact Us For Availability
215
Catch-Lt or Rt WPL 71003 Contact Us For Availability
216
F WPL 282118 Contact Us For Availability
217
WPL 97220 WPL 97220 Contact Us For Availability
218
WPL 28212 WPL 28212 Contact Us For Availability
219
WPL 283457 WPL 283457 Contact Us For Availability
220
WPL 305361 WPL 305361 Contact Us For Availability
221
WPL 306149 WPL 306149 Contact Us For Availability
221
WPL 306150 WPL 306150 Contact Us For Availability
222
WPL 288392 WPL 288392 Contact Us For Availability
223
WPL 310514 WPL 310514 Contact Us For Availability
224
WPL 237762 WPL 237762 Contact Us For Availability
225
WPL 285860 WPL 285860 Contact Us For Availability
226
WPL 282102 WPL 282102 Contact Us For Availability
227
WPL 282273 WPL 282273 Contact Us For Availability
228
WPL 282278 WPL 282278 Contact Us For Availability
229
WPL 239603 WPL 239603 Contact Us For Availability
230
WPL 294195 WPL 294195 Contact Us For Availability
231
WPL 281574 WPL 281574 Contact Us For Availability
232
WPL 100576 WPL 100576 Contact Us For Availability
233
WPL 316365 WPL 316365 Contact Us For Availability
234
WPL 312073 WPL 312073 Contact Us For Availability
235
WPL 304125 WPL 304125 Contact Us For Availability
237
WPL 282952 WPL 282952 Contact Us For Availability
238
WPL 108069 WPL 108069 Contact Us For Availability
239
WPL 211518 WPL 211518 Contact Us For Availability
239
WPL 311514 WPL 311514 Contact Us For Availability
239
WPL 311517 WPL 311517 Contact Us For Availability
239
WPL ARI8108A32 WPL ARI8108A32 Contact Us For Availability
240
WPL 21067 WPL 21067 Contact Us For Availability
241
WPL 310218 WPL 310218 Contact Us For Availability
250
Outer Door Glass WPL 319297 Contact Us For Availability
251
Fastener (7 Required) WPL 300007 Contact Us For Availability
252
Insulation Retainer WPL 304129 Contact Us For Availability
253
Insulation-Oven Door Lining WPL 304128 Contact Us For Availability
255
Lockwasher WPL 109156 Contact Us For Availability
259
Plug-Oven Door Lining WPL 311639 Contact Us For Availability
260
Gasket-Oven Door WPL 282441 Contact Us For Availability
261
Screw 10-32x2-1/2`` WPL 318930 Contact Us For Availability
263
Stiffener-Oven Door Lining WPL 282090 Contact Us For Availability
264
Insulation Oven Door Plug WPL 310962 Contact Us For Availability
265
Lining-Oven Door WPL 304102 Contact Us For Availability
267
Screw 10-32x1`` WPL 313190 Contact Us For Availability
268
Shield-Oven Door Lining WPL 310916 Contact Us For Availability
269
Front Panel-Oven Door (White) WPL 316391 Contact Us For Availability
269
Front Panel-Oven Door (Golden Wheat) WPL 316394 Contact Us For Availability
269
Front Panel-Oven Door (Almond) WPL 316395 Contact Us For Availability
270
Top Frame-Oven Door Glass WPL 319294 Contact Us For Availability
271
Spacer (3 Required) WPL 107158 Contact Us For Availability
272
Cushion (6 Required) WPL 112370 Contact Us For Availability
273
Frame-Oven Door Glass WPL 319292 Contact Us For Availability
274
Wire Harness-Switch WPL 311529 Contact Us For Availability
274
Wire Harness-Main WPL 311576 Contact Us For Availability
274
Gas Use & Care Guide WPL 313302 Contact Us For Availability
274
Handle-Oven Door WPL 316398 Contact Us For Availability
274
Repair Parts Manual WPL 320711 Contact Us For Availability
274
Installation a& Reference Guide WPL 320713 Contact Us For Availability
274
Operating Guide WPL 320714 Contact Us For Availability
350
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
351
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
352
Rotisserie Motor WPL 106575 Contact Us For Availability
352
Switch (For Key No 352) WPL 280199 Contact Us For Availability
354
Lockwasher 3/16`` WPL 282920 Contact Us For Availability
355
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
356
Thumbscrew WPL 70287 Contact Us For Availability
357
Skewer WPL 88433 Contact Us For Availability
358
Rotisserie Spit WPL 100092 Contact Us For Availability
359
Spit Support WPL 232137 Contact Us For Availability
360
Plug Button WPL 100095 Contact Us For Availability
361
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
362
Fixture Wire Lead (White) WPL 284278 Contact Us For Availability
362
Fixture Wire Lead (Black) WPL 291284 Contact Us For Availability
363
Rotisserie Cord WPL 282924 Contact Us For Availability
364
Lockwasher WPL 69603 Contact Us For Availability
365
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
366
Rotisserie Pan WPL 291397 Contact Us For Availability
366
Installation Instructions WPL 300668 Contact Us For Availability
370
Set-On-Griddle (Optional) WPL 1006802 Contact Us For Availability
× ![]()
