Model Whirlpool 1235^1A GAS RANGE – Common Parts & Diagrams

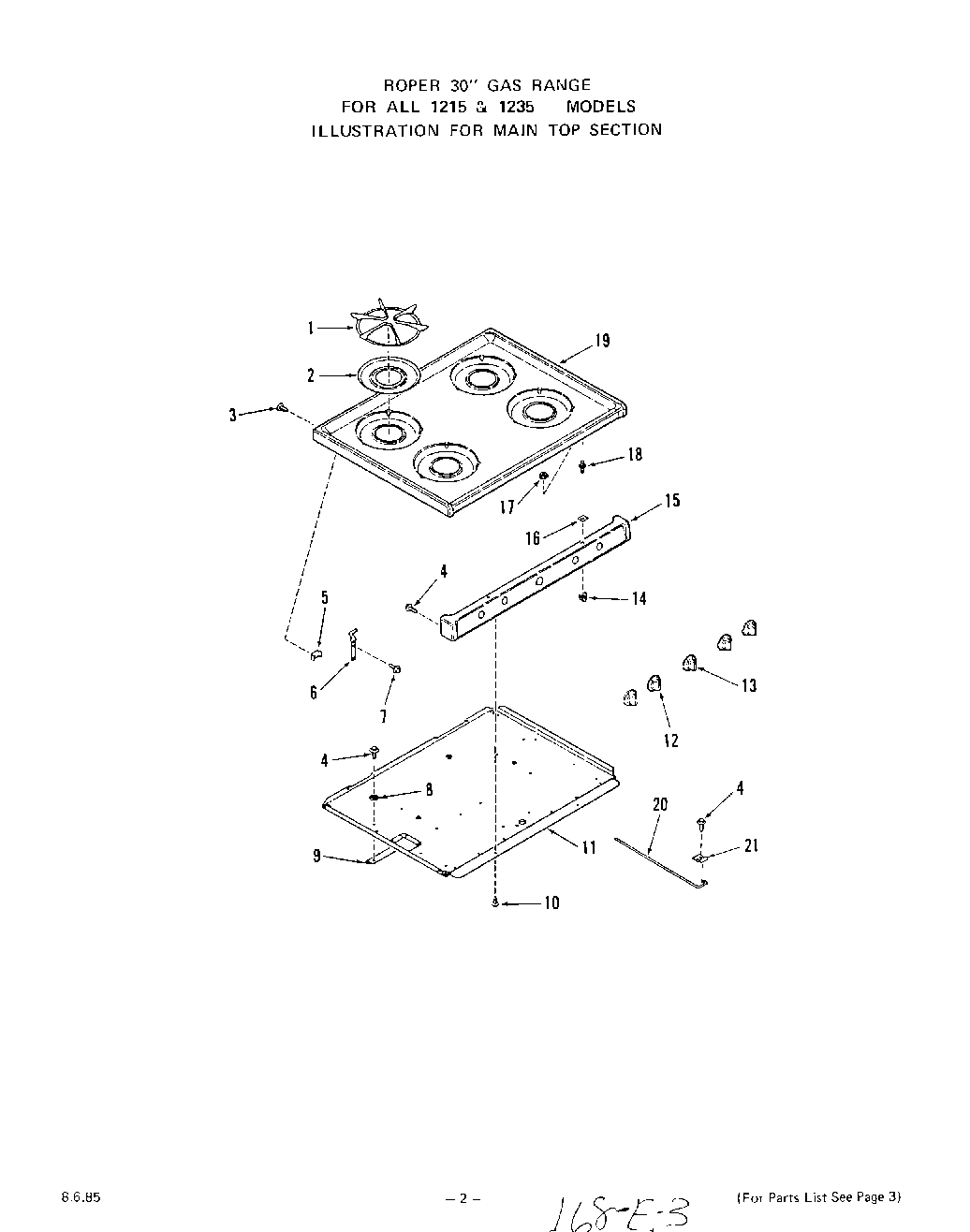

03 - MAIN TOP

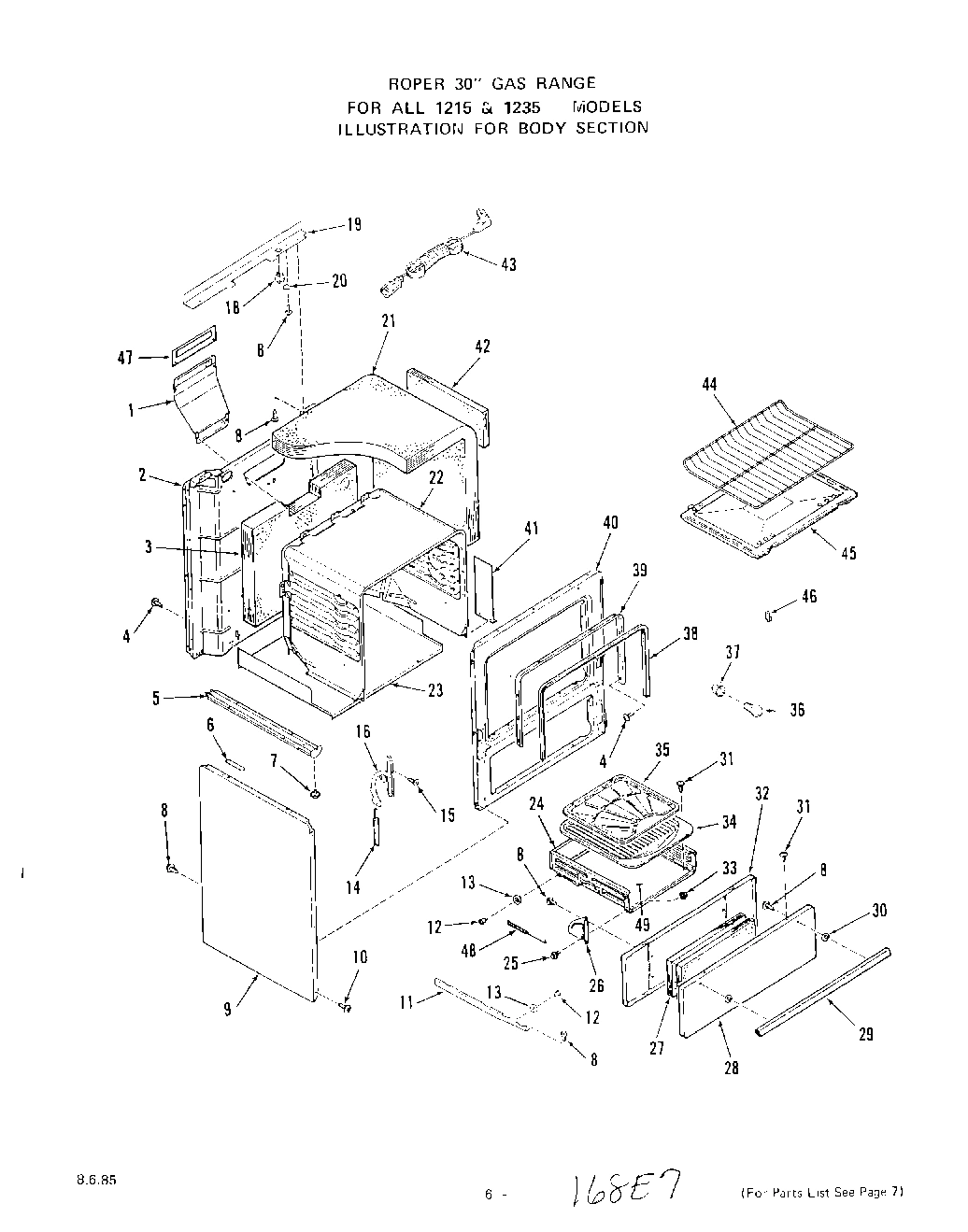

05 - BODY
09 - WIRING DIAGRAM
07 - SECTION
06 - OVEN DOOR
08 - ROTISSERIE KIT , GRIDDLE
02 - BACKGUARD
04 - BURNER
Common parts from model Whirlpool 1235^1A GAS RANGE
xInstallation Guide WPL 327428 Contact Us For Availability
xRepair Parts Manual WPL 332178 Contact Us For Availability
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI7717A24 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
inner glass-oven door WPL 326010 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
1
Clip WPL 70588 Contact Us For Availability
2
Aeration Pan - 1215X WPL 322888 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
2
Spacer WPL 327269 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Module - Spark Igniter WPL 326136 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
3
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Wire Cover WPL 320767 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
4
Retainer-Door Glass (2 Req) WPL 299592 Contact Us For Availability
4
mounting bracket-rotisserie motor WPL 324623 Contact Us For Availability
4
Knurled Nut WPL 87403 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
5
Bracket-Hinge (Lt. or Rt.) WPL 327403 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
5
Front Panel-Oven Door (White) WPL 325968 Contact Us For Availability
5
Front Panel-Oven Door (Golden Wheat) WPL 325969 Contact Us For Availability
5
Front Panel-Oven Door (Almond) WPL 325970 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Clock Motor WPL 283296 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
6
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
6
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
6
Handle-Oven Door WPL 292240 Contact Us For Availability
6
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
6
Knob-Clock WPL 294810 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
7
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
7
Spacer-Door Handle WPL 302343 Contact Us For Availability
7
outer glass-oven door WPL 326367 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
7
Electrode-Spark Igniter (Right) WPL 312455 Contact Us For Availability
7
Electrode-Spark Igniter (Left) WPL 327216 Contact Us For Availability
8
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
8
Washer WPL 106462 Contact Us For Availability
8
Keps Nut 8-32 WPL 239764 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Clock w/4 Hr. Timer-Inc`s. 5 WPL 327882 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
9
stiffener-burner box bottom (front) WPL 327705 Contact Us For Availability
9
Stiffener-Burner Box Bottom (Rear) WPL 329158 Contact Us For Availability
9
Body Side (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Golden Wheat) WPL 326058 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Platinum) WPL 327939 Contact Us For Availability
9
Body Side (Lt. or Rt.) (Toast) WPL 327940 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Crosstie WPL 328654 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
10
Outer Glass-Oven Door WPL 326090 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Spacer (2 Req) WPL 322302 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
11
Bottom-Burner Box (All 12150A & 12350A Models WPL 327250 Contact Us For Availability
11
Bottom-Burner Box (All 12151A & 12351A Models WPL 331741 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) (Right) WPL 296327 Contact Us For Availability
11
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
11
Manifold Pipe WPL 327089 Contact Us For Availability
12
Knob-Gas Valve (4 Req) (All 1215 Models) WPL 327484 Contact Us For Availability
12
Knob-Gas Valve (4 Req) (All 1235 Models) WPL 327485 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
12
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
12
Lining-Oven Door WPL 325946 Contact Us For Availability
12
gas valve switches WPL 326870 Contact Us For Availability
12
main WPL 327218 Contact Us For Availability
12
All 1215 Models WPL 327430 Contact Us For Availability
12
All 1235 Models WPL 327431 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Push Switch-Oven Light WPL 298793 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
13
Knob-Thermostat WPL 322981 Contact Us For Availability
13
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
13
Insulation Retainer-Oven Door WPL 325996 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL 291284 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
14
Catch (2 Req) WPL 24667 Contact Us For Availability
14
Spring-Oven Door WPL 326962 Contact Us For Availability
14
Insulation WPL 325999 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
15
Manifold Panel (White) WPL 327451 Contact Us For Availability
15
Manifold Panel (Golden Wheat) WPL 327456 Contact Us For Availability
15
Manifold Panel (Almond) WPL 327457 Contact Us For Availability
15
Manifold Panel (Black) WPL 327458 Contact Us For Availability
15
Manifold Panel (Platinum) WPL 327843 Contact Us For Availability
15
Manifold Panel (Toast) WPL 327844 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
15
Lining-Oven Door (All 12350A Models) WPL 327189 Contact Us For Availability
15
Lining-Oven Door (All 12351A Models) WPL 331743 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Support-Backguard (Right) WPL 327106 Contact Us For Availability
15
Support-Backguard (Left) WPL 327107 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
16
Washer WPL 310218 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 329653 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 329654 Contact Us For Availability
16
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
16
Backguard Glass (All 1235 Models) WPL 322303 Contact Us For Availability
16
Backguard Glass (All 1215 Models) WPL 322664 Contact Us For Availability
16
Tubing 3/8`` WPL 295037 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Bottom Trim WPL 329236 Contact Us For Availability
18
Strike (2 Req) WPL 299784 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
18
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
19
Main Top (White) WPL 328907 Contact Us For Availability
19
Main Top (Golden Wheat) WPL 328910 Contact Us For Availability
19
Main Top (Almond) WPL 328911 Contact Us For Availability
19
Main Top (Chrome) WPL 328912 Contact Us For Availability
19
Main Top (Platinum) WPL 328913 Contact Us For Availability
19
Main Top (Toast) WPL 328914 Contact Us For Availability
19
Wire Cover Bottom-Backguard WPL 327251 Contact Us For Availability
19
Bezel-Backguard WPL 308007 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
20
Support Rod-Main Top All 1235 Models WPL 326066 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
21
Clamp WPL 326348 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
22
Oven Body (All 1215 Models) WPL 324957 Contact Us For Availability
22
Oven Body (All 12350A Models) WPL 324958 Contact Us For Availability
22
Oven Body (All 12351A Models) WPL 331586 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12. 13) (All 12150A & WPL 330100 Contact Us For Availability
24
Drawer-Broiler (Inc`s. 12. 13) (All 12151A & WPL 331566 Contact Us For Availability
24
Gas Valve (4 Req. - Inc`s. 20) (All 1215 Mode WPL 324482 Contact Us For Availability
24
Gas Valve (4 Req. - Inc`s. 20) (All 1235 Mode WPL 324511 Contact Us For Availability
25
Bolt WPL 329271 Contact Us For Availability
25
Switch-Gas Valve (4 Req) (All 1235 Models) WPL 310253 Contact Us For Availability
25
Switch-Gas Valve (4 Req) (All 1215 Models) WPL 312457 Contact Us For Availability
26
Hinge-Broiler Door (Right) WPL 327482 Contact Us For Availability
26
Hinge-Broiler Door (Left) WPL 327483 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
28
Front Panel-Broiler Door (White) WPL 326287 Contact Us For Availability
28
Front Panel-Broiler Door (Golden Wheat) WPL 326290 Contact Us For Availability
28
Front Panel WPL 326291 Contact Us For Availability
28
WPL 326292 WPL 326292 Contact Us For Availability
28
WPL 327941 WPL 327941 Contact Us For Availability
28
WPL 327942 WPL 327942 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
32
WPL 327060 WPL 327060 Contact Us For Availability
32
WPL 331567 WPL 331567 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
33
WPL 74056 WPL 74056 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
34
WPL 290171 WPL 290171 Contact Us For Availability
34
WPL 331593 WPL 331593 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 322814 Contact Us For Availability
35
WPL 313071 WPL 313071 Contact Us For Availability
35
WPL 331588 WPL 331588 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
36
WPL 111257 WPL 111257 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 3 WPL 319255 Contact Us For Availability
37
WPL 295974 WPL 295974 Contact Us For Availability
38
WPL 326047 WPL 326047 Contact Us For Availability
39
WPL 327875 WPL 327875 Contact Us For Availability
40
WPL 326042 WPL 326042 Contact Us For Availability
40
WPL 331584 WPL 331584 Contact Us For Availability
41
WPL 328984 WPL 328984 Contact Us For Availability
43
WPL 235822 WPL 235822 Contact Us For Availability
44
WPL 326068 WPL 326068 Contact Us For Availability
45
WPL 327083 WPL 327083 Contact Us For Availability
45
WPL 327084 WPL 327084 Contact Us For Availability
45
WPL 331539 WPL 331539 Contact Us For Availability
46
WPL 115533 WPL 115533 Contact Us For Availability
47
WPL 329314 WPL 329314 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 329862 WPL 329862 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
× ![]()
