Model Whirlpool 110.97589400 Gas Dryer (Kenmore 11097589400) – Common Parts & Diagrams

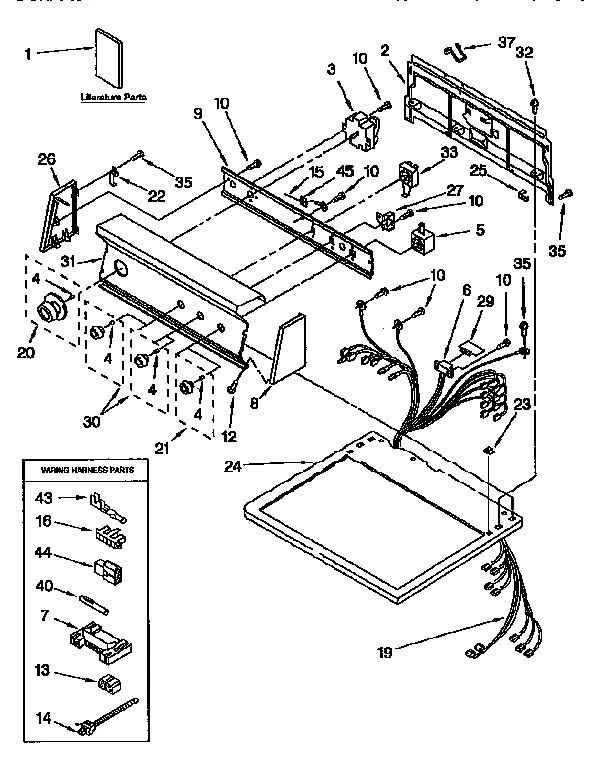

1
Terminal Cover
Terminal Cover WPL 3387680 Contact Us For Availability
View on Model
7

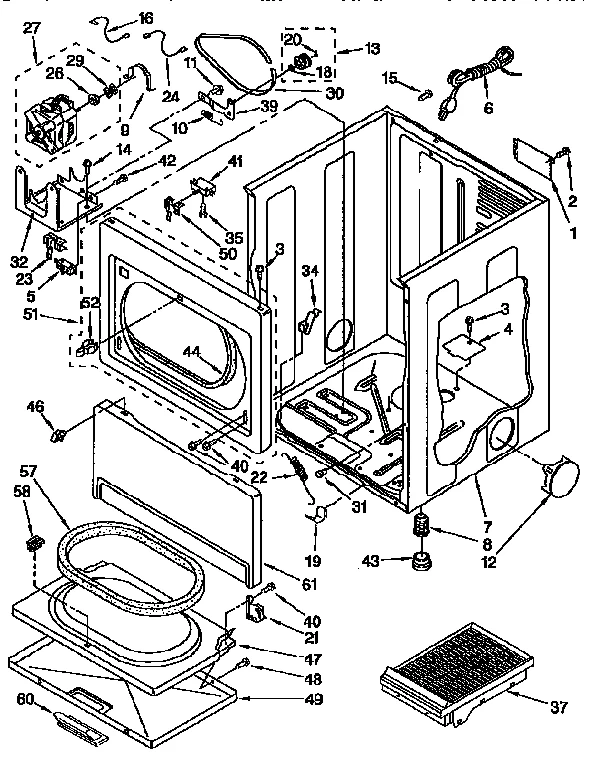

Cabinet
Cabinet WPL 3388456 Contact Us For Availability
View on Model
7A
Cabnt Al
Cabnt Al WPL 3388457 Contact Us For Availability
View on Model
13
Connector
Connector WPL 3347243 Contact Us For Availability
View on Model
15
Wire
Wire WPL 3398893 Contact Us For Availability
View on Model
16
Dryer Timer Wire Harness Connector
Dryer Timer Wire Harness Connector WPL 3397269 Contact Us For Availability
View on Model
19
Wire Harness
Wire Harness WPL 3398959 Contact Us For Availability
View on Model
20
Timer Knob
Timer Knob WPL 3397985 Contact Us For Availability
View on Model
20A
Timer Knob
Timer Knob WPL 3397986 Contact Us For Availability
View on Model
22
Hinge Panel
Hinge Panel WPL 387402 Contact Us For Availability
View on Model
24
Dryer Belt Switch Jumper Wire
Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability
View on Model
24
Top W
Top W WPL 697202 Contact Us For Availability
View on Model
24A
Top Al
Top Al WPL 697203 Contact Us For Availability
View on Model
25
Harness Clip
Harness Clip WPL 3390514 Contact Us For Availability
View on Model
26
Endcap Wht
Endcap Wht WPL 388204 Contact Us For Availability
View on Model
26A
Endcap Alm
Endcap Alm WPL 388206 Contact Us For Availability
View on Model
27
Adjustment Buzzer
Adjustment Buzzer WPL 3394983 Contact Us For Availability
View on Model
30
Control Knob
Control Knob WPL 3398390 Contact Us For Availability
View on Model
30A
Control Knob
Control Knob WPL 3398391 Contact Us For Availability
View on Model
31
Control Panel
Control Panel WPL 3401952 Contact Us For Availability
View on Model
31A
Control Panel
Control Panel WPL 3401953 Contact Us For Availability
View on Model
34
Clip
Clip WPL 3388600 Contact Us For Availability
View on Model

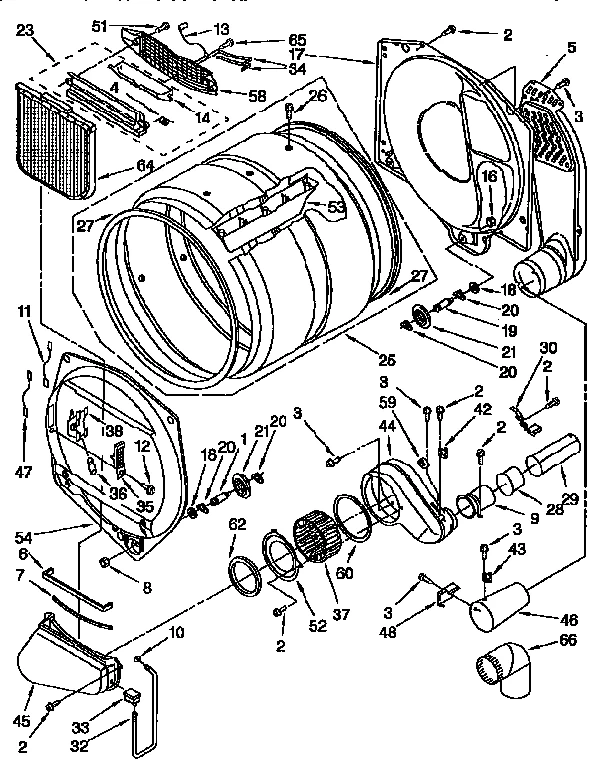

35
Dryer Drum Light Lens
Dryer Drum Light Lens WPL 3395196 Contact Us For Availability
View on Model
37
Harness Clip
Harness Clip WPL 3391881 Contact Us For Availability
View on Model
40
Receptacle
Receptacle WPL 351296 Contact Us For Availability
View on Model
44
Receptacle
Receptacle WPL 691707 Contact Us For Availability
View on Model
47
Door
Door WPL 697655 Contact Us For Availability
View on Model
49
Dryer Door
Dryer Door WPL 697221 Contact Us For Availability
View on Model
49A
Door Al
Door Al WPL 697222 Contact Us For Availability
View on Model
51
Panel
Panel WPL 697227 Contact Us For Availability
View on Model
51A
Panel Al
Panel Al WPL 697228 Contact Us For Availability
View on Model
60A
Handle (Almond)
Handle (Almond) WPL 689457 Contact Us For Availability
View on Model
61A
Toepnl Al
Toepnl Al WPL 697216 Contact Us For Availability
View on Model
NI
Paint (White)
Paint (White) WPL 799344 Contact Us For Availability
View on Model
NI
Paint (Almond)
Paint (Almond) WPL 978883 Contact Us For Availability
View on Model
