Whirlpool 110.86381600 Electric Dryer (Kenmore 11086381600) Parts List

2

Panel WPL 359374 Contact Us For Availability

View on Model

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

View on Model

3

Dryer Timer WPL 693907 Contact Us For Availability

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $6.20

View on Model

5

Buzzer WPL 686864 Contact Us For Availability

View on Model

5

Box WPL 685457 Contact Us For Availability

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

8

Cap (Chestnut) WPL 372134 Contact Us For Availability

View on Model

8A

Cap (Chestnut) WPL 372127 Contact Us For Availability

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

9

Bracket WPL 690864 Contact Us For Availability

View on Model

10

Screw WPL 355326 Contact Us For Availability

View on Model

11

Panel WPL 691973 Contact Us For Availability

View on Model

12

Compression Ring WPL 90015 Contact Us For Availability

View on Model

13

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

View on Model

14

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

View on Model

14

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

View on Model

14

Ground Wire WPL 340025 Contact Us For Availability

View on Model

15

WP346343 Whirlpool Relay Push to Start Backorder WPL WP346343 $124.23

View on Model

15

Wire WPL 279139 Contact Us For Availability

View on Model

17

Screw, Nibbed WPL 339607 Contact Us For Availability

View on Model

17

Bulkhead WPL 685819 Contact Us For Availability

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $34.33

View on Model

19

Dryer Control Knob WPL 349796 Contact Us For Availability

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

View on Model

20

Dryer Timer Knob WPL 688865 Contact Us For Availability

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.16

View on Model

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

View on Model

22

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

22A

WPW10717210 Whirlpool Dryer Lint Screen Filte In Stock WPL WPW10717210 $28.00

View on Model

22B

Screen WPL 689466 Contact Us For Availability

View on Model

22C

Screen WPL 689468 Contact Us For Availability

View on Model

22D

Dryer Lint Filter WPL 689467 Contact Us For Availability

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

View on Model

24A

Top (White) WPL 685958 Contact Us For Availability

View on Model

24B

Top WPL 689474 Contact Us For Availability

View on Model

24C

Top WPL 689476 Contact Us For Availability

View on Model

24D

Top WPL 689475 Contact Us For Availability

View on Model

24E

Top (Almond) WPL 689473 Contact Us For Availability

View on Model

25

Harness WPL 693636 Contact Us For Availability

View on Model

25

Drum WPL 692492 Contact Us For Availability

View on Model

26

Screw WPL 690372 Contact Us For Availability

View on Model

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

View on Model

27

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

View on Model

28

Connector WPL 341141 Contact Us For Availability

View on Model

29

Circuit Board WPL 60150 Contact Us For Availability

View on Model

30

Screw WPL 358225 Contact Us For Availability

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $40.41

View on Model

33

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.06

View on Model

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

View on Model

34

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

View on Model

34

Dryer Operating Thermostat WPL 279052 Contact Us For Availability

View on Model

35

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $75.86

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

View on Model

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

View on Model

40

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

View on Model

40

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

View on Model

42

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $7.98

View on Model

44

Housing WPL 688880 Contact Us For Availability

View on Model

45

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

View on Model

46

279366 Whirlpool Sensor Kit In Stock WPL 279366 $51.72

View on Model

47

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

View on Model

48

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

View on Model

49

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32

View on Model

49B

Door WPL 692320 Contact Us For Availability

View on Model

49C

Door WPL 692321 Contact Us For Availability

View on Model

49D

Door WPL 692322 Contact Us For Availability

View on Model

49E

Door (Almond) WPL 692319 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

View on Model

50

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $29.44

View on Model

51A

279443 Whirlpool Primary Panel Backorder WPL 279443 $195.66

View on Model

51B

Panel WPL 692460 Contact Us For Availability

View on Model

51C

Panel WPL 692461 Contact Us For Availability

View on Model

51D

Panel WPL 692462 Contact Us For Availability

View on Model

51E

Panel (Almond) WPL 692459 Contact Us For Availability

View on Model

52

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $50.42

View on Model

53

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $54.77

View on Model

54

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.13

View on Model

54

Screw WPL 342043 Contact Us For Availability

View on Model

55

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $70.95

View on Model

56

98460 Whirlpool Nut Backorder WPL 98460 $9.59

View on Model

57

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $37.83

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

View on Model

60B

Handle WPL 689458 Contact Us For Availability

View on Model

60D

Handle WPL 689459 Contact Us For Availability

View on Model

60E

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

64

Wire WPL 690236 Contact Us For Availability

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

View on Model

NI

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

View on Model

NI

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

NI

Spray Cf WPL 261886 Contact Us For Availability

View on Model

NI

Paint Cf WPL 261887 Contact Us For Availability

View on Model

NI

Spray (Avocado) WPL 261888 Contact Us For Availability

View on Model

NI

Paint Na WPL 261889 Contact Us For Availability

View on Model

NI

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

View on Model

NI

Natural Gas Paint WPL 261891 Contact Us For Availability

View on Model

NI

Spray Th WPL 350941 Contact Us For Availability

View on Model

NI

Touch-Up WPL 72108 Contact Us For Availability

View on Model

NI

Thinnr 1 Gal WPL 799351 Contact Us For Availability

View on Model

NI

Paint (Almond) WPL 978883 Contact Us For Availability

View on Model

NI

Owner's Manual WPL LIT690811 Contact Us For Availability

View on Model

NI

Label WPL LIT692035 Contact Us For Availability

View on Model

NI

Operating Instructions WPL LIT693475 Contact Us For Availability

View on Model

NI

Parts List WPL LIT693504 Contact Us For Availability

View on Model

NI

Checklist WPL LIT693523 Contact Us For Availability

View on Model

NI

Service Manual WPL LIT828693 Contact Us For Availability

View on Model

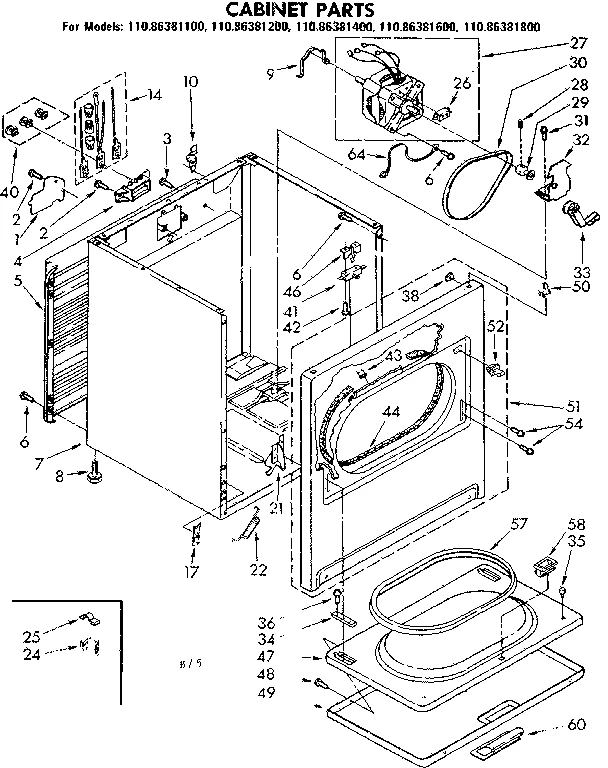

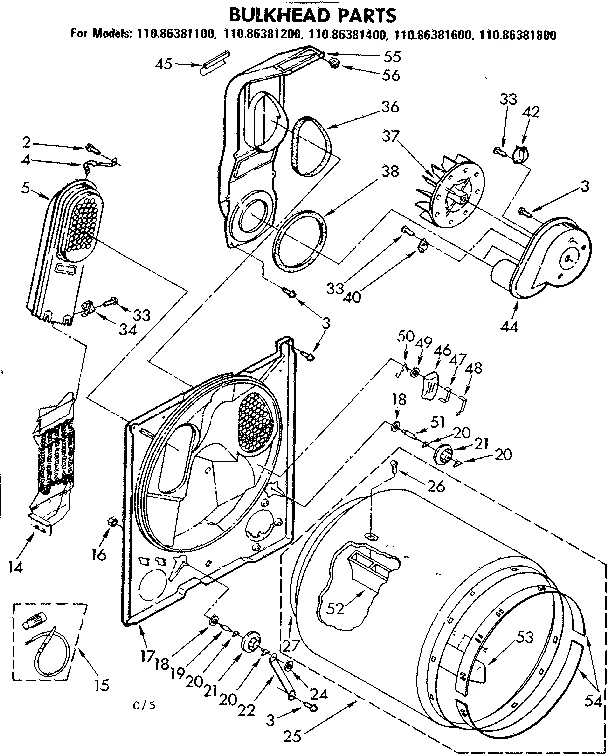

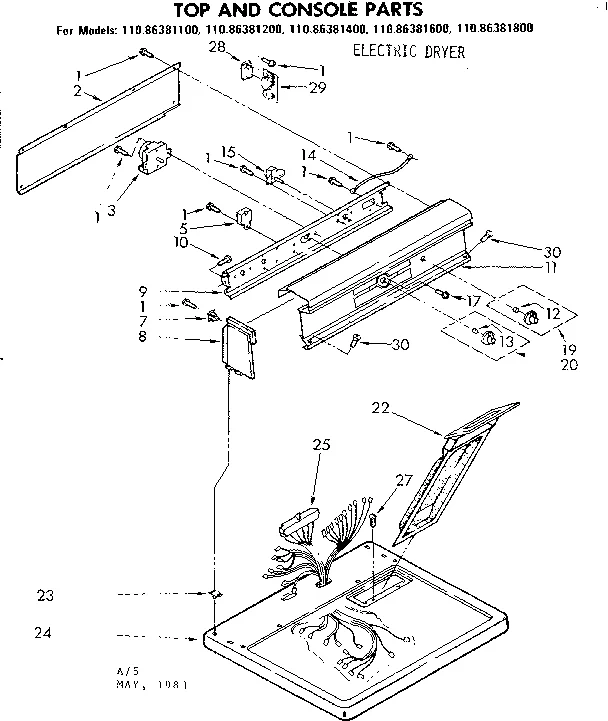

Model Whirlpool 110.86381600 Electric Dryer (Kenmore 11086381600) – Common Parts & Diagrams
