Model Whirlpool 110.49722991 Compact Washer (Kenmore 11049722991) – Common Parts & Diagrams
AGITATOR, BASKET AND TUB
MISCELLANEOUS

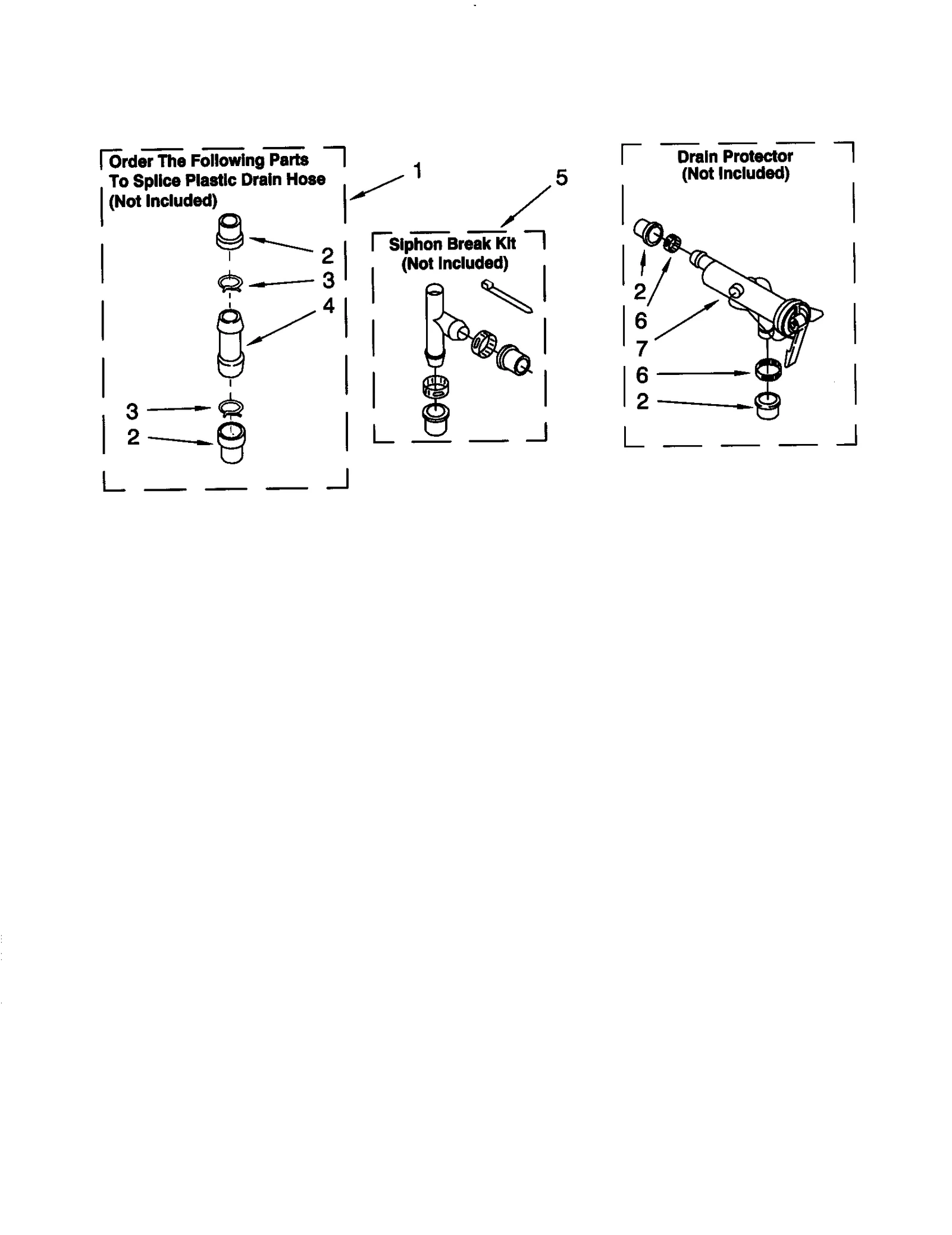

WATER SYSTEM

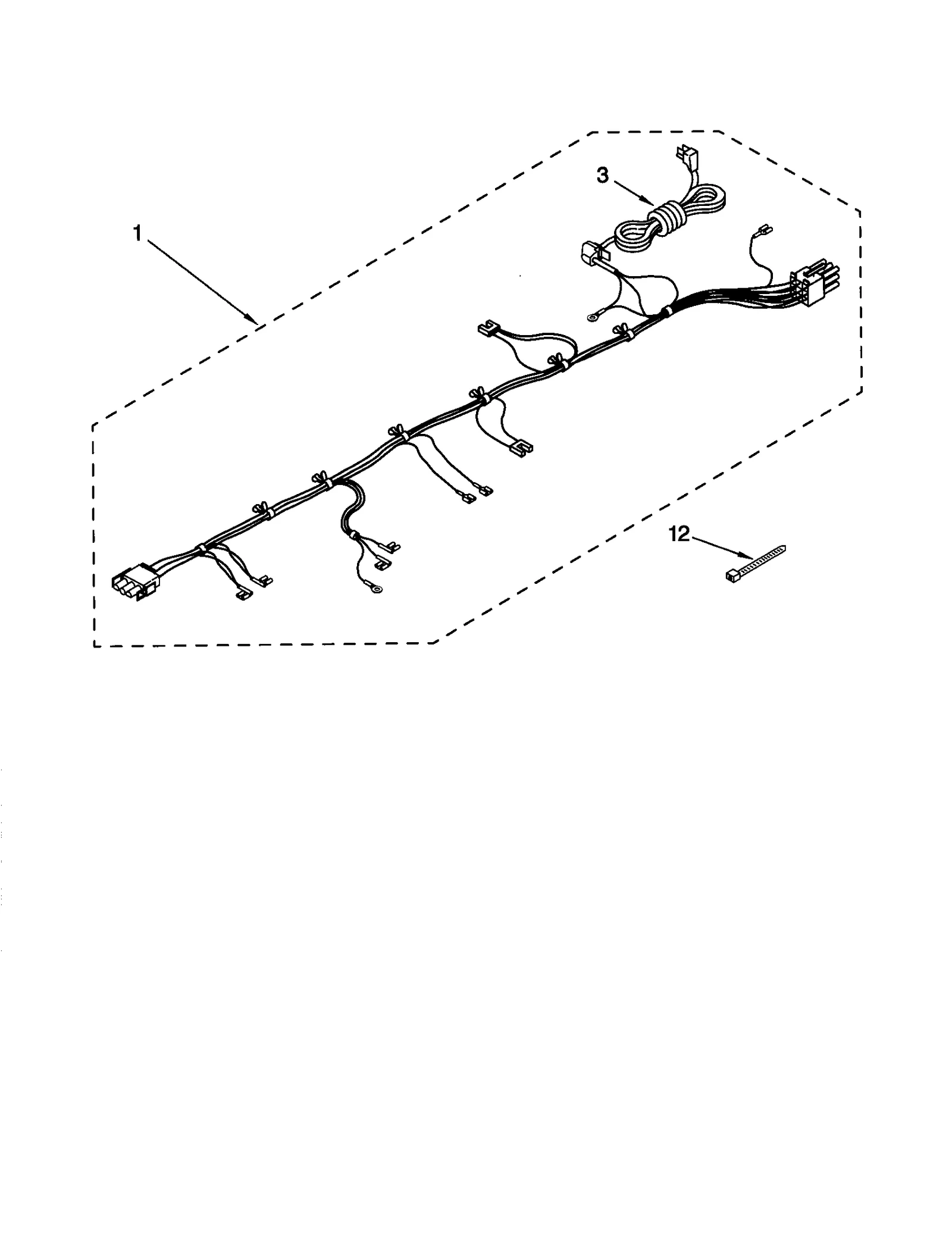

WIRING HARNESS

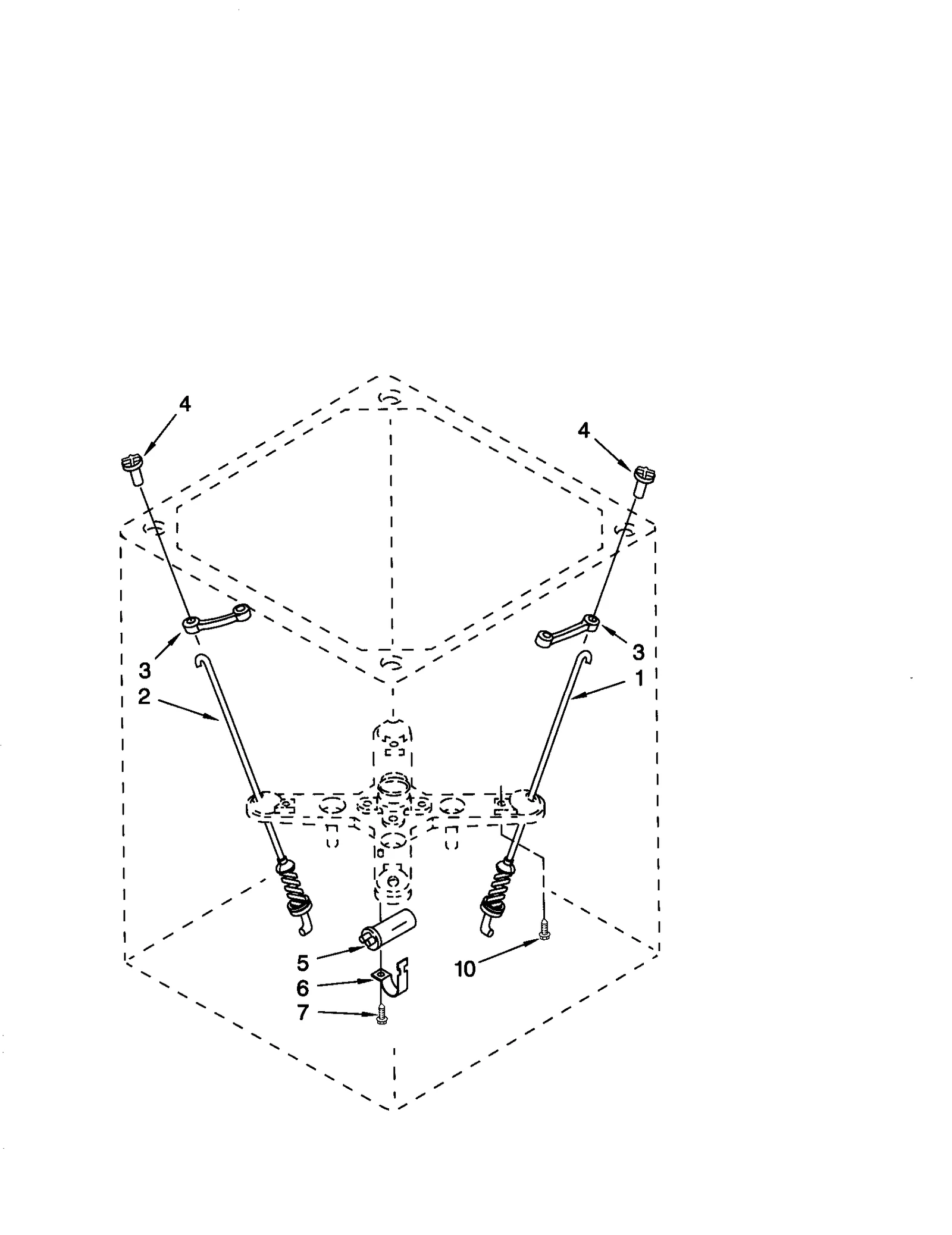

SUSPENSION
All Parts

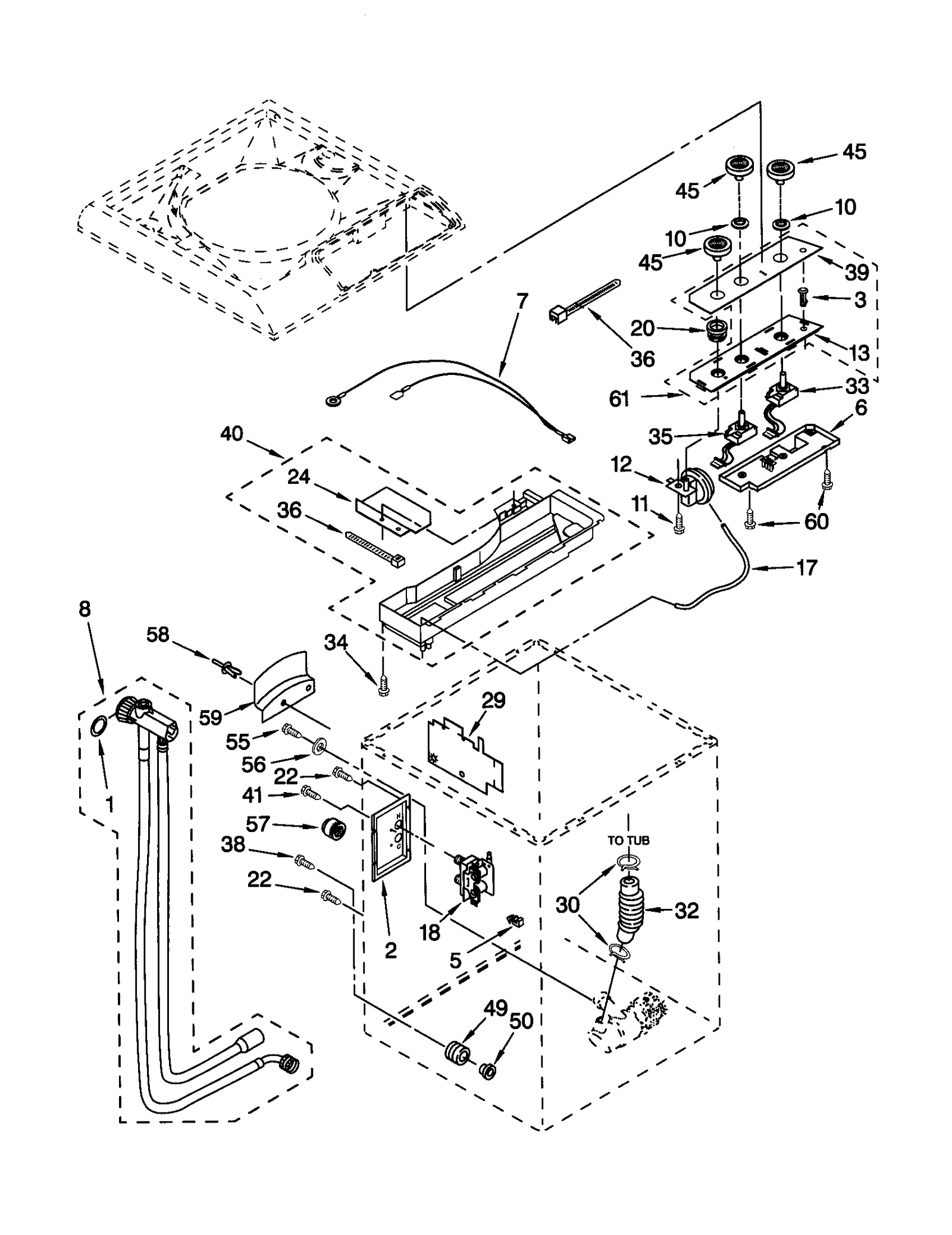

CONTROLS AND REAR PANEL

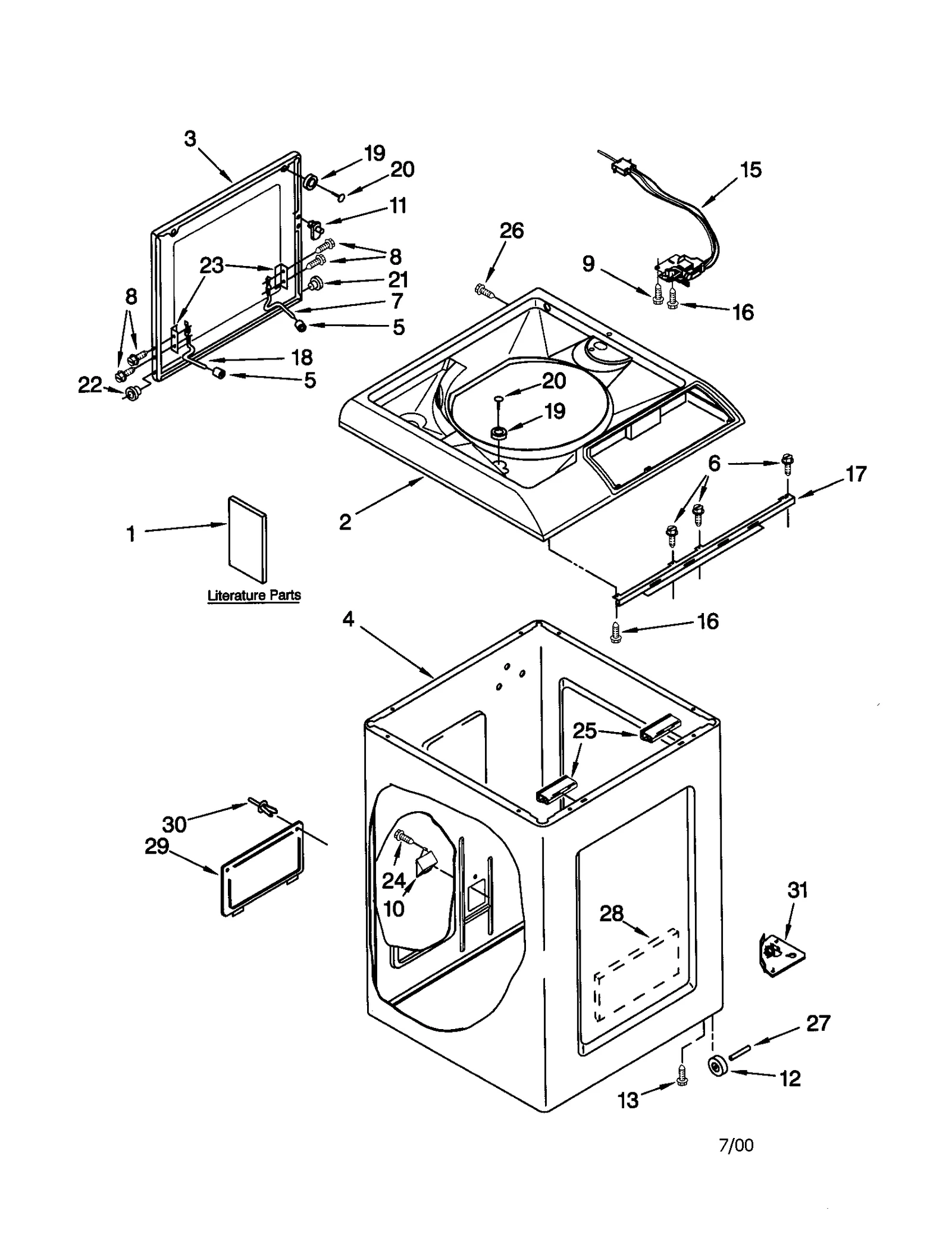

TOP AND CABINET

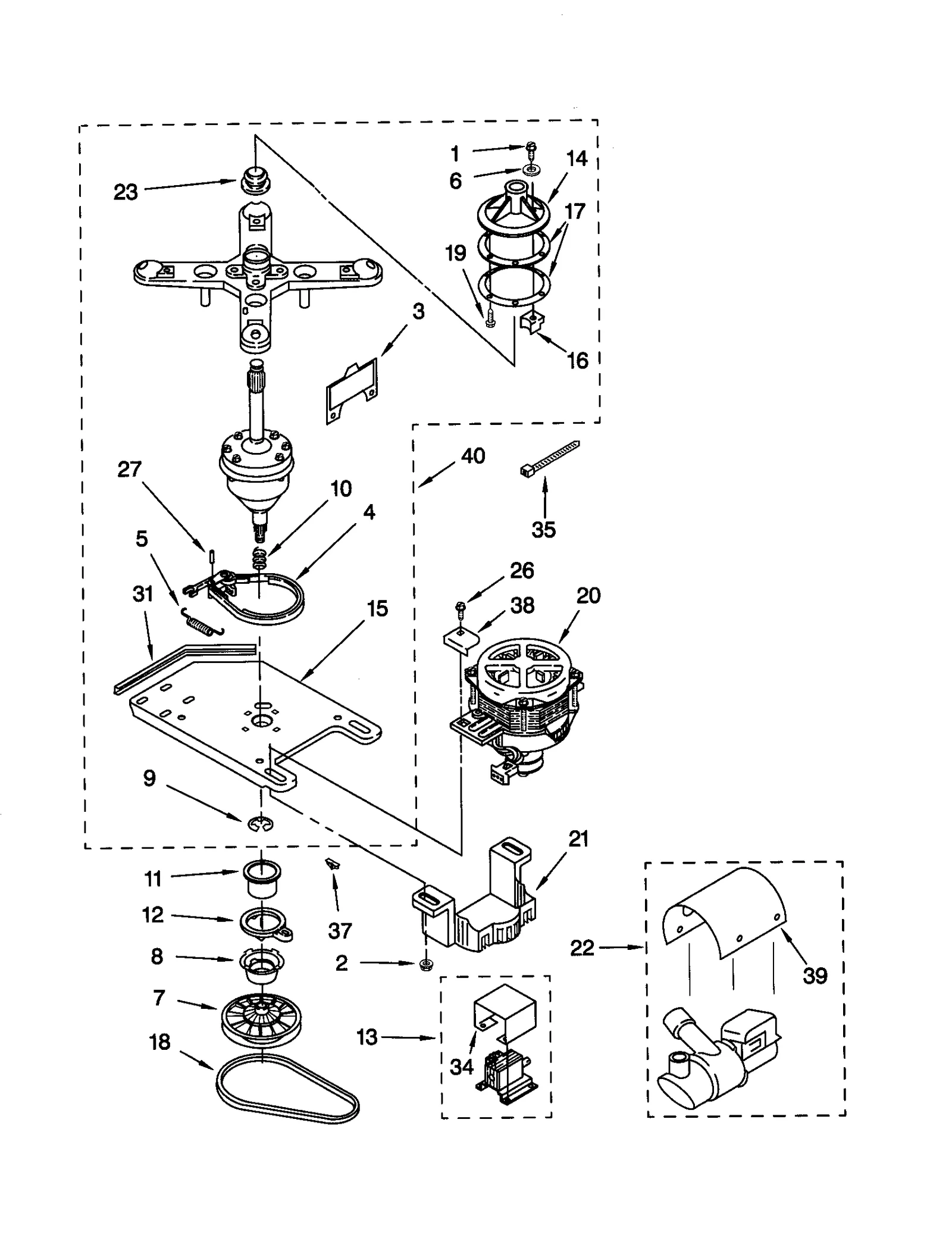

TRANSMISSION/MOTOR/PUMP
Common parts from model Whirlpool 110.49722991 Compact Washer (Kenmore 11049722991)
1
Owner's Manual WPL LIT3967366 Contact Us For Availability
1
Screw WPL 3428430 Contact Us For Availability
1A
Energy Guide WPL LIT3969054 Contact Us For Availability
1B
Wiring Diagram WPL LIT3968702 Contact Us For Availability
1C
Technical Sheet WPL LIT3968470 Contact Us For Availability
1D
Parts List WPL LIT3968455 Contact Us For Availability
2
Bracket WPL 3935155 Contact Us For Availability
2
Top WPL 3968521 Contact Us For Availability
3
Extension WPL 3935357 Contact Us For Availability
3
Lid W WPL 3935594 Contact Us For Availability
3
Motor Shield WPL 3967287 Contact Us For Availability
4
Washer Suspension Rod Socket WPL 3968380 Contact Us For Availability
4
Cabinet WPL 3967826 Contact Us For Availability
4
Brake Board WPL 3428323 Contact Us For Availability
5
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
5
Washer Run Capacitor WPL 3429938 Contact Us For Availability
5
Harness Clip WPL 3935875 Contact Us For Availability
5
Spring WPL 3428342 Contact Us For Availability
6
Control Board WPL 3968305 Contact Us For Availability
6
Lock Washer WPL 3429750 Contact Us For Availability
7
Washer Splutch Pulley WPL 3428359 Contact Us For Availability
7
Jumper Wire WPL 3935929 Contact Us For Availability
7
Washer Lid Hinge WPL 3935351 Contact Us For Availability
8
Clutch Cam WPL 3428378 Contact Us For Availability
8A
Couplr-hse WPL 3967086 Contact Us For Availability
9
Screw WPL 3935634 Contact Us For Availability
10
Seal WPL 3935353 Contact Us For Availability
10
Cover Wh WPL 3428525 Contact Us For Availability
10
Spring WPL 3934212 Contact Us For Availability
11
Slider WPL 3428380 Contact Us For Availability
12
Washer Water-Level Pressure Switch WPL 3966789 Contact Us For Availability
12
Washer Caster Wheel WPL 3934872 Contact Us For Availability
12
Cam Ring WPL 3428379 Contact Us For Availability
13
Washer Screw WPL 3934148 Contact Us For Availability
13
Bracket WPL 3967605 Contact Us For Availability
13
Solenoid WPL 3966774 Contact Us For Availability
14
Drive Hub WPL 3934735 Contact Us For Availability
15
Switch WPL 3935737 Contact Us For Availability
15
Motor Plate WPL 3430205 Contact Us For Availability
16
Screw WPL 3935602 Contact Us For Availability
16
Block WPL 3428429 Contact Us For Availability
17
Hose WPL 3969125 Contact Us For Availability
17
Bracket WPL 3935198 Contact Us For Availability
17
Hub Gasket WPL 3428179 Contact Us For Availability
18
Washer Drive Belt WPL 3934700 Contact Us For Availability
18
Washer Inlet Valve WPL 3967755 Contact Us For Availability
18
Washer Lid Hinge WPL 3935352 Contact Us For Availability
19
Bumper WPL 3935442 Contact Us For Availability
19
Screw (White) WPL 3934714 Contact Us For Availability
20
Seal WPL 3935354 Contact Us For Availability
20
Rivet WPL 3430186 Contact Us For Availability
20
Drive Motor WPL 3934201 Contact Us For Availability
21
Bearing WPL 3935739 Contact Us For Availability
21
Shield WPL 3935999 Contact Us For Availability
22
Bearing WPL 3935889 Contact Us For Availability
22
Water Pump WPL 3967961 Contact Us For Availability
24
Shield WPL 3935672 Contact Us For Availability
24
Screw WPL 3400038 Contact Us For Availability
25
Extrude WPL 3935201 Contact Us For Availability
26
Screw WPL 3429189 Contact Us For Availability
26
Screw WPL 3934663 Contact Us For Availability
27
Wheel Pin WPL 3935130 Contact Us For Availability
27
Brake Pin WPL 3934183 Contact Us For Availability
28
Sound Absorber WPL 3349654 Contact Us For Availability
29
Shield Valve WPL 3967286 Contact Us For Availability
29
Rear Panel WPL 3430058 Contact Us For Availability
30
Rivet WPL 3429823 Contact Us For Availability
31
Gusset WPL 3935128 Contact Us For Availability
31
Protector WPL 3429705 Contact Us For Availability
31A
Gusset WPL 3935129 Contact Us For Availability
32
Washer Tub-to-Pump Hose WPL 3429900 Contact Us For Availability
33
Washer Cycle Selector Switch WPL 3966202 Contact Us For Availability
34
Shield WPL 3967288 Contact Us For Availability
35
Washer Temperature Switch WPL 3966208 Contact Us For Availability
37
Lock WPL 3429416 Contact Us For Availability
38
Screw WPL 3400907 Contact Us For Availability
38
Shield WPL 3430197 Contact Us For Availability
39
Washer Control Panel WPL 3935520 Contact Us For Availability
39
Shield Pump WPL 3967815 Contact Us For Availability
40
Washer Gear Case WPL 3966743 Contact Us For Availability
40
Shield WPL 3935627 Contact Us For Availability
45
Washer Control Knob WPL 3402572 Contact Us For Availability
49
Grommet WPL 3428526 Contact Us For Availability
50
Spacer WPL 3428933 Contact Us For Availability
56
Washer WPL 3429923 Contact Us For Availability
59
Bracket WPL 356499 Contact Us For Availability
60
Screw, Control Board WPL 3934036 Contact Us For Availability
61
Control Panel WPL 3967214 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
× ![]()
