Model Whirlpool 110.48724790 Compact Washer (Kenmore 11048724790) – Common Parts & Diagrams
SUSPENSION
AGITATOR, BASKET AND TUB

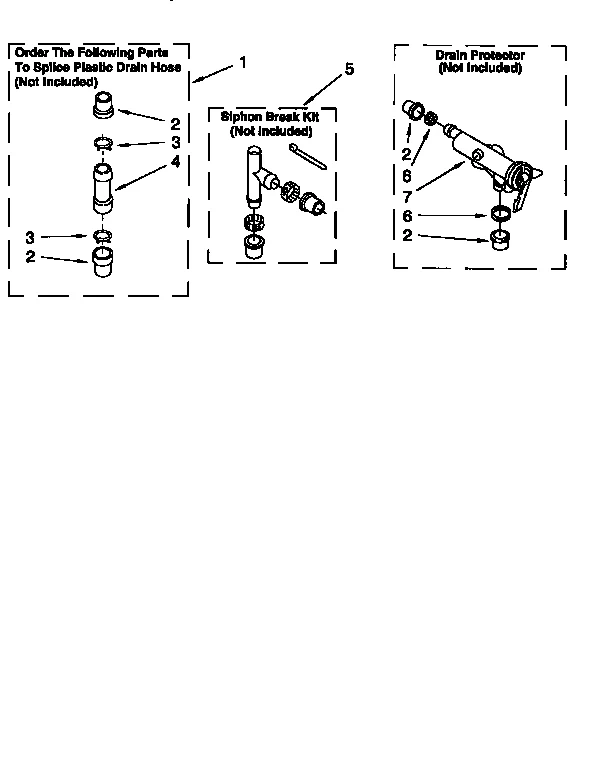

WATER SYSTEM

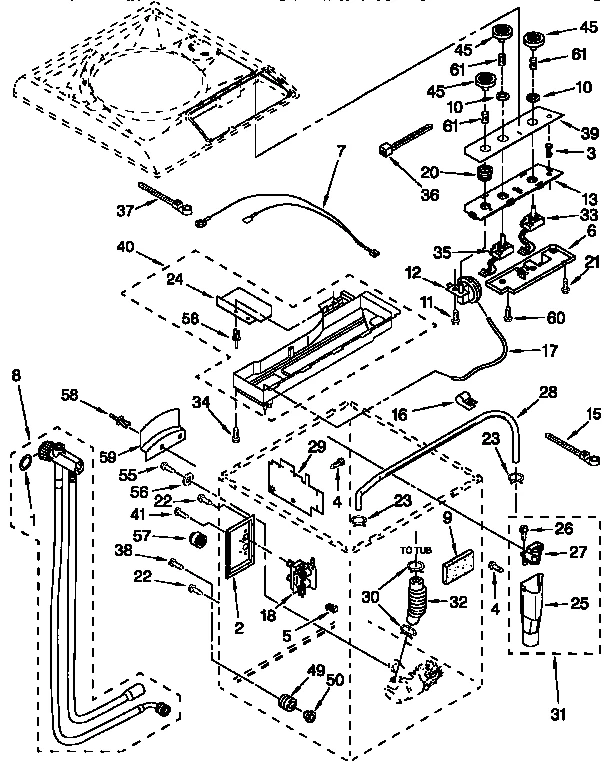

CONTROLS AND REAR PANEL

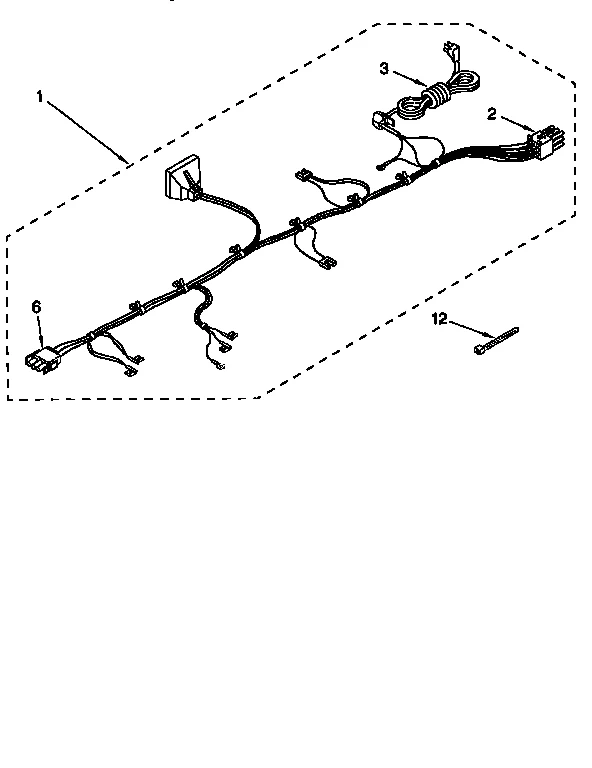

WIRING HARNESS
Common parts from model Whirlpool 110.48724790 Compact Washer (Kenmore 11048724790)
1
Wire Harness WPL 3934172 Contact Us For Availability
2
Bracket WPL 3935155 Contact Us For Availability
2
BLOCK, DISCONNECT (MAIN) WPL 3966385 Contact Us For Availability
3
Extension WPL 3935357 Contact Us For Availability
3
Power Cord WPL 3966718 Contact Us For Availability
4
Screw WPL 3429189 Contact Us For Availability
5
Washer Run Capacitor WPL 3429938 Contact Us For Availability
5
Harness Clip WPL 3935875 Contact Us For Availability
6
Basket WPL 3935943 Contact Us For Availability
6
Microcomputer WPL 3966862 Contact Us For Availability
6
BLACK, DISCONNECT (MOTOR)(USES TERMINAL NO. 3 WPL 311150 Contact Us For Availability
7
Screw WPL 3428430 Contact Us For Availability
7
Washer Drain Protector WPL 367031 Contact Us For Availability
7
Jumper Wire WPL 3935929 Contact Us For Availability
8
Outer Tub WPL 3935537 Contact Us For Availability
9
Pad Protector WPL 3935630 Contact Us For Availability
10
Washer Dispenser Hose WPL 3430339 Contact Us For Availability
10
Seal WPL 3935353 Contact Us For Availability
11
Screw WPL 3935602 Contact Us For Availability
12
Washer Water-Level Pressure Switch WPL 3966789 Contact Us For Availability
13
Block WPL 3428429 Contact Us For Availability
13
Bracket WPL 3966634 Contact Us For Availability
14
Motor Shield WPL 3428814 Contact Us For Availability
15
Drive Hub WPL 3934735 Contact Us For Availability
15
Wire Tie WPL 3429812 Contact Us For Availability
16
Hub Gasket WPL 3428179 Contact Us For Availability
16
Clamp WPL 3935709 Contact Us For Availability
17
Inlet WPL 3935347 Contact Us For Availability
17
Hose-wl WPL 3935344 Contact Us For Availability
18
Balance Ring WPL 3934565 Contact Us For Availability
18
Inlet Valve WPL 3360396 Contact Us For Availability
19
Hose WPL 3966238 Contact Us For Availability
20
Seal WPL 3935354 Contact Us For Availability
21
Screw, Control Board WPL 3935667 Contact Us For Availability
22
Lock Washer WPL 3429750 Contact Us For Availability
24
Protector WPL 3935678 Contact Us For Availability
24
Shield WPL 3935672 Contact Us For Availability
25
Screw (White) WPL 3934714 Contact Us For Availability
25
Funnel WPL 3935325 Contact Us For Availability
26
Seal WPL 3935332 Contact Us For Availability
27
Nut Well WPL 3935431 Contact Us For Availability
27
Funnel WPL 3966222 Contact Us For Availability
28
Screw WPL 3935432 Contact Us For Availability
28
Inlet WPL 3935330 Contact Us For Availability
29
Washer WPL 3935786 Contact Us For Availability
29
Shield Valve WPL 3967286 Contact Us For Availability
30
Nut WPL 3935437 Contact Us For Availability
31
Funnel WPL 3935327 Contact Us For Availability
32
Washer Tub-to-Pump Hose WPL 3429900 Contact Us For Availability
32
Clamp WPL 3935874 Contact Us For Availability
33
Washer Cycle Selector Switch WPL 3966202 Contact Us For Availability
34
Screw WPL 3935634 Contact Us For Availability
35
Washer Temperature Switch WPL 3966208 Contact Us For Availability
37
Wire Tie WPL 3935429 Contact Us For Availability
38
Screw WPL 3400205 Contact Us For Availability
39
Washer Control Panel WPL 3935520 Contact Us For Availability
39A
Control Panel WPL 3935521 Contact Us For Availability
40
Shield WPL 3935627 Contact Us For Availability
41
Washer Screw WPL 3934148 Contact Us For Availability
45
Washer Control Knob WPL 3402572 Contact Us For Availability
45A
Washer Control Knob WPL 3402574 Contact Us For Availability
49
Grommet WPL 3428526 Contact Us For Availability
50
Spacer WPL 3428933 Contact Us For Availability
55
Screw, Balance Ring WPL 3428014 Contact Us For Availability
56
Washer WPL 3429923 Contact Us For Availability
58
Rivet WPL 3430186 Contact Us For Availability
59
Bracket WPL 356499 Contact Us For Availability
60
Screw, Control Board WPL 3934036 Contact Us For Availability
× ![]()
