Model Whirlpool 106.9738321 Sears, Roebuck And Co., U.S.A. Refrigerator C 1993 Sears, Roebuck And Co. – Common Parts & Diagrams
COVER
CABINET PARTS
LINER PARTS

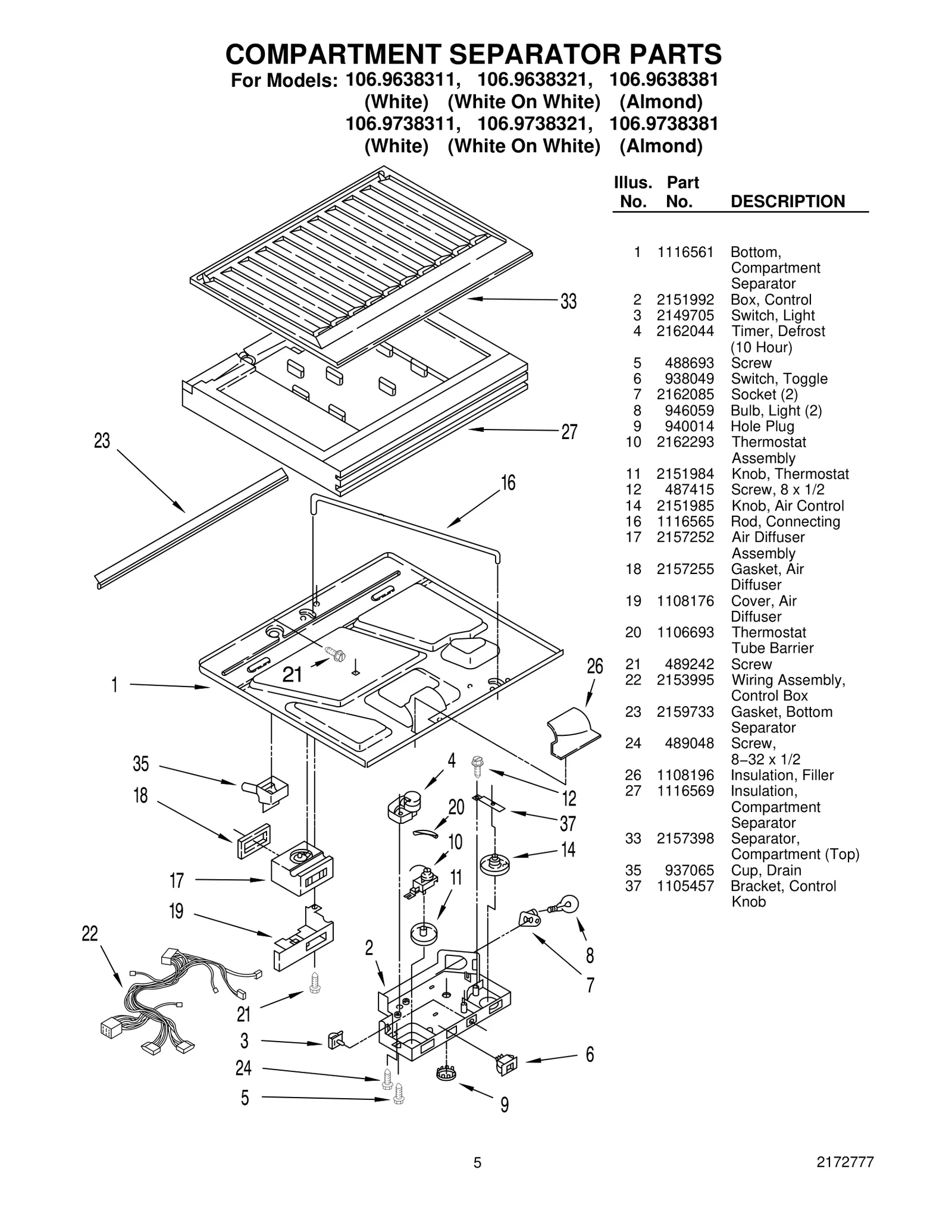

COMPARTMENT SEPARATOR PARTS

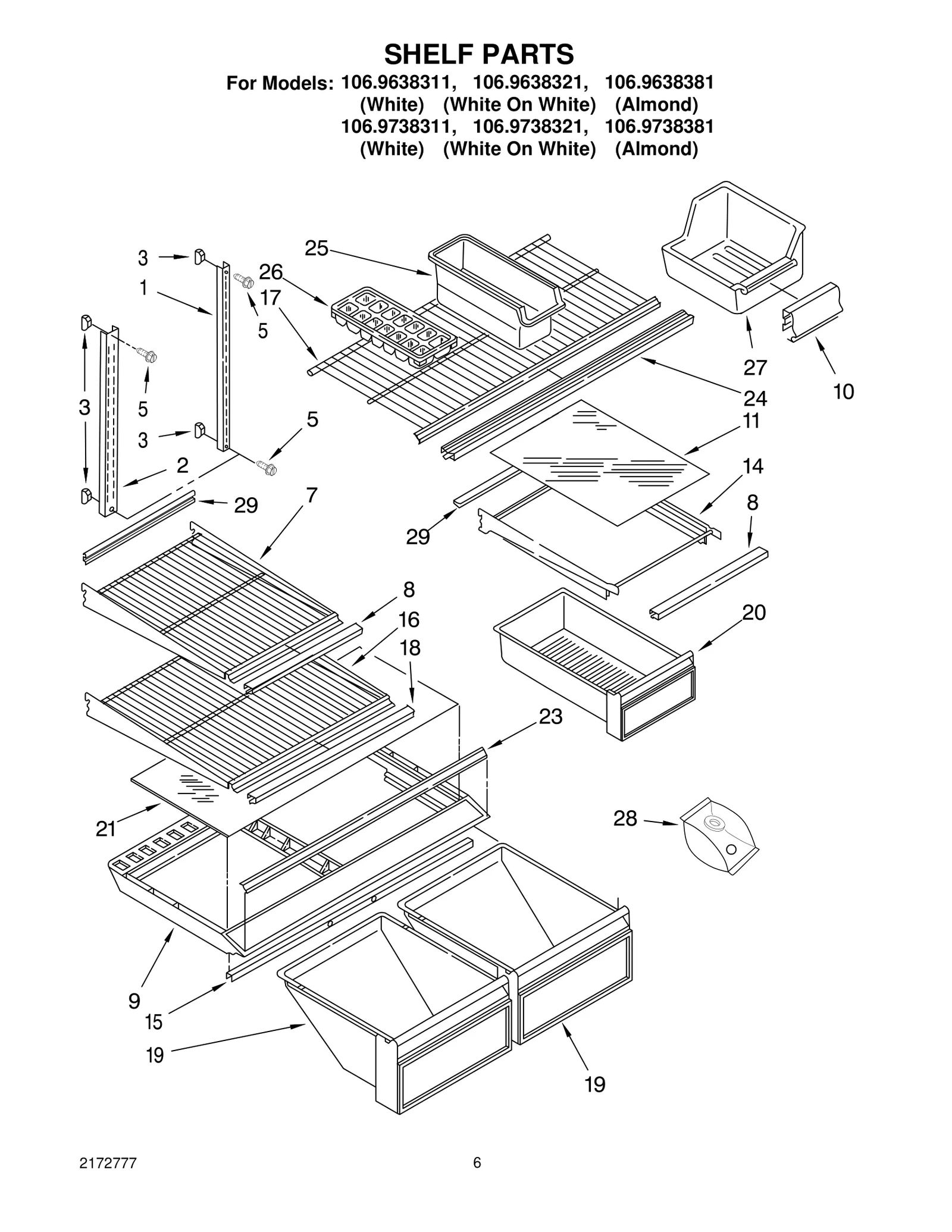

SHELF PARTS

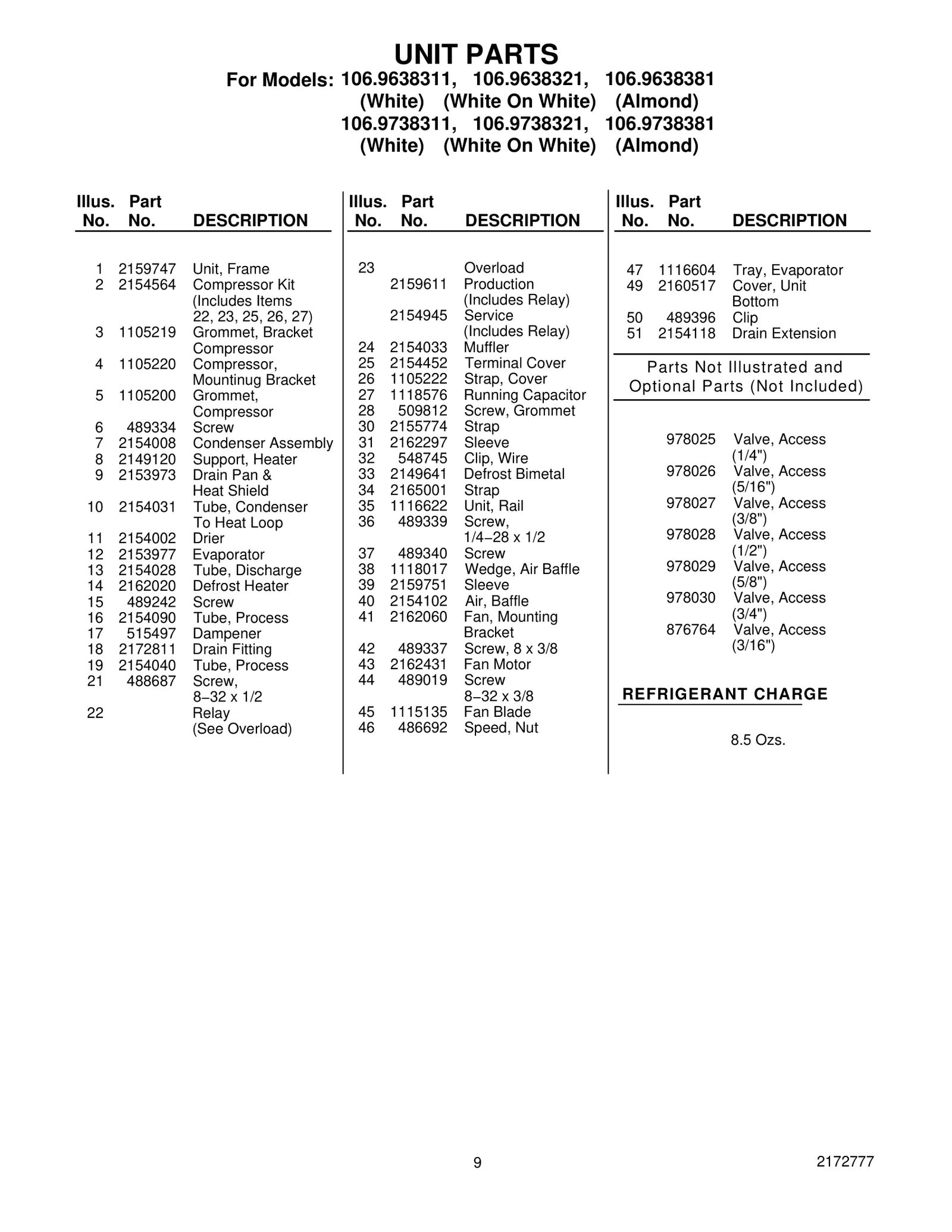

UNIT PARTS

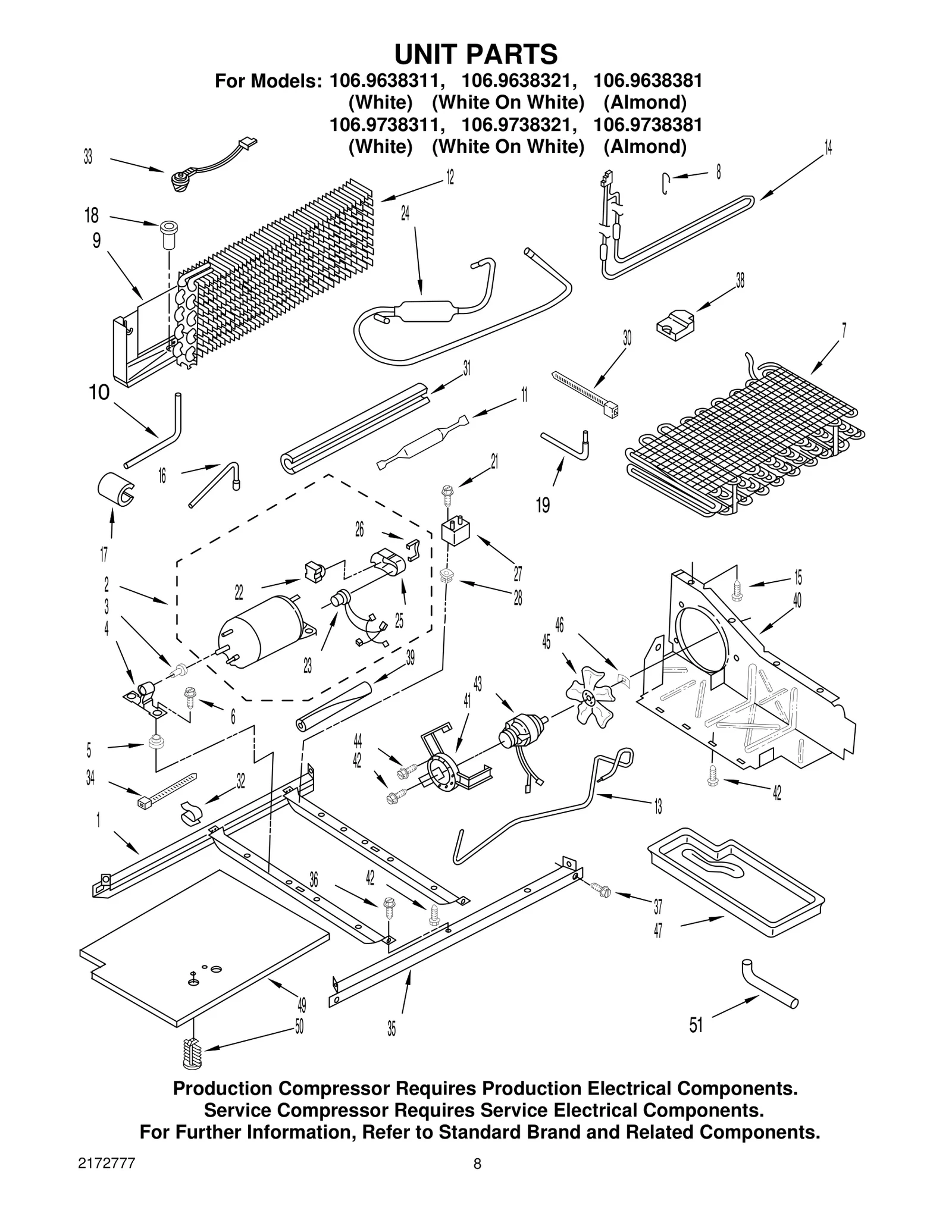

UNIT PARTS

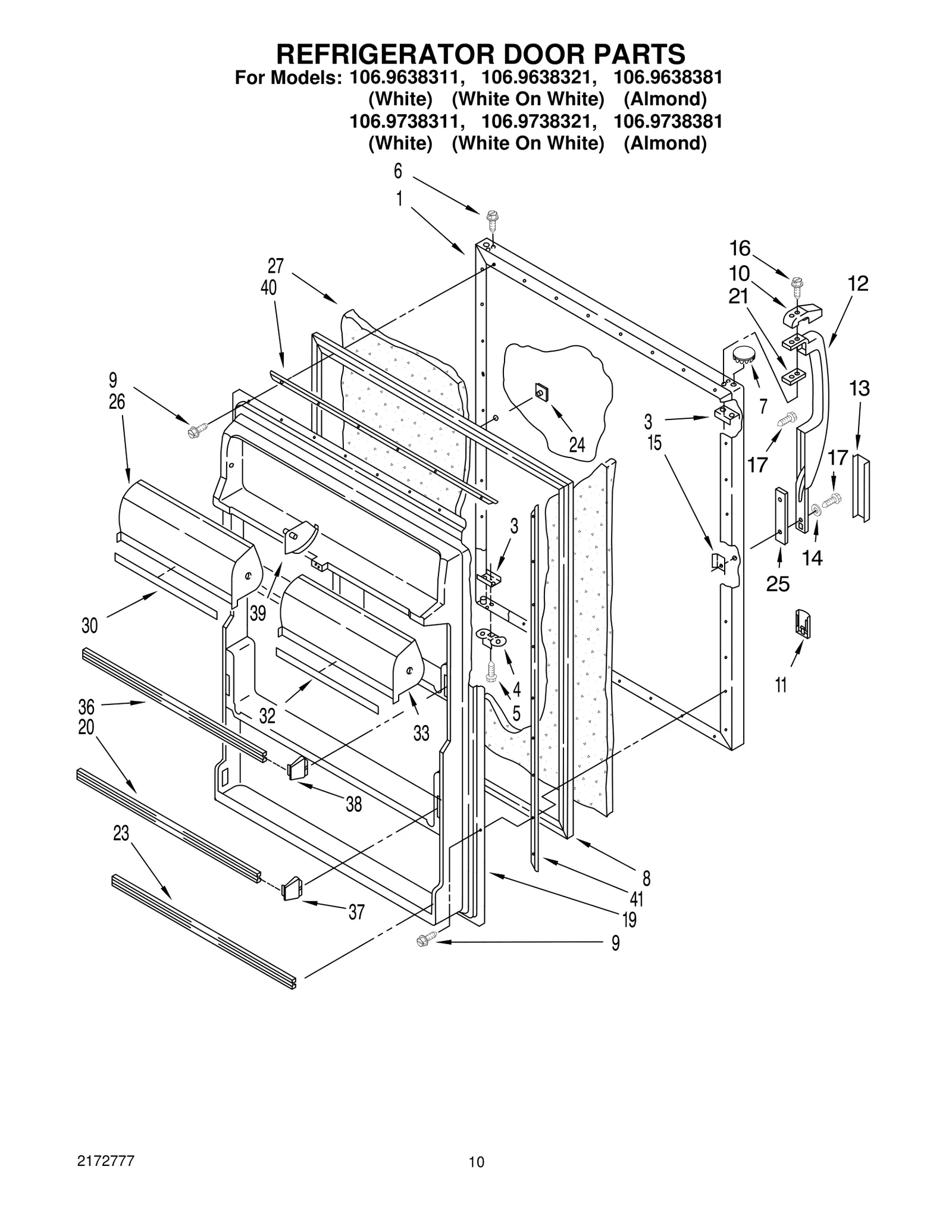

REFRIGERATOR DOOR PARTS

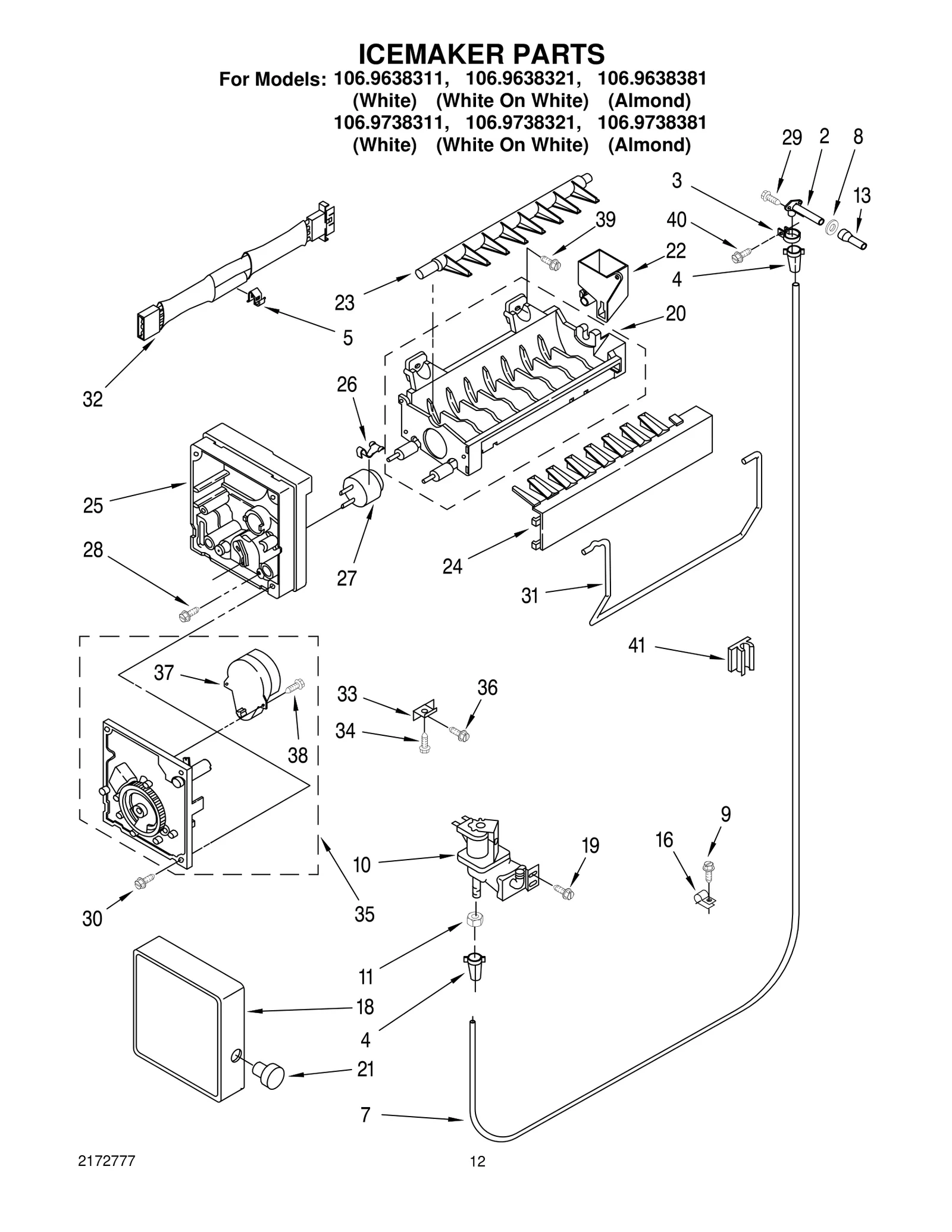

ICEMAKER PARTS

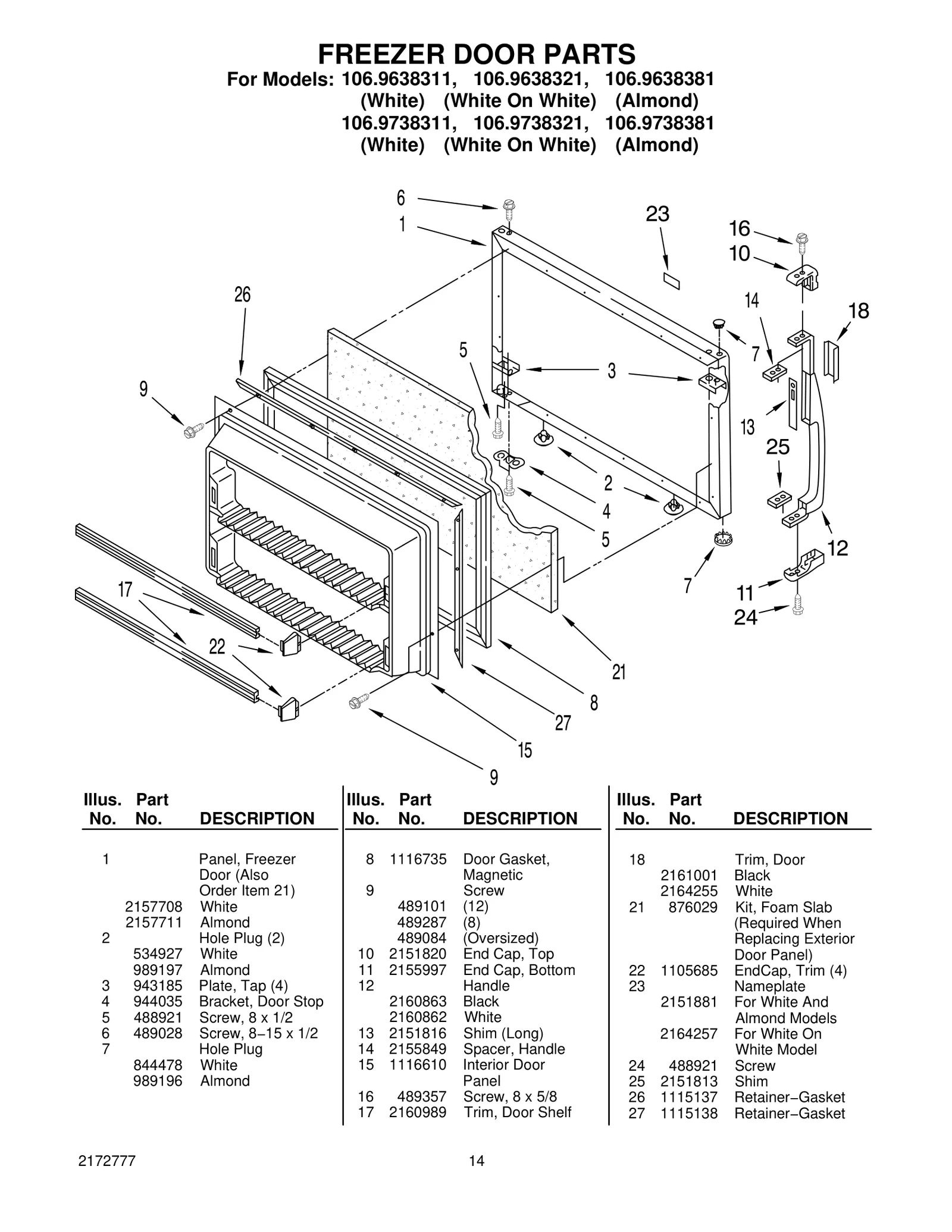

FREEZER DOOR PARTS

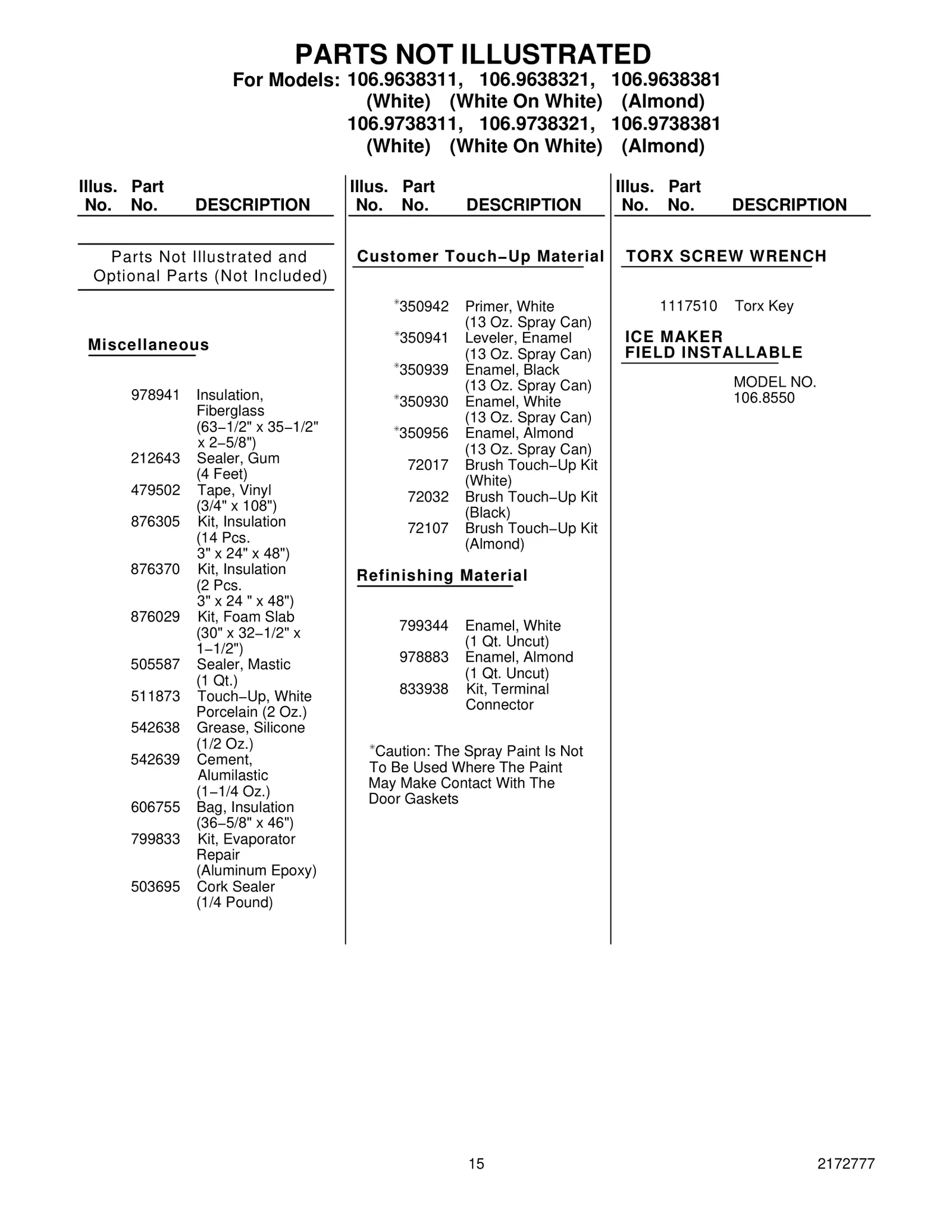

Optional Parts (Not Included)
Common parts from model Whirlpool 106.9738321 Sears, Roebuck And Co., U.S.A. Refrigerator C 1993 Sears, Roebuck And Co.
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
For Field Installable Icemaker Repair Parts L WPL N/S Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) — WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) — WPL 2157711 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Compressor Kit (Includes Items 22, 23, 25, 26 WPL 2154564 Contact Us For Availability
2
Hole Plug (2) — White WPL 534927 Contact Us For Availability
2
Hole Plug (2) — Almond WPL 989197 Contact Us For Availability
3
Grommet, Bracket Compressor WPL 1105219 Contact Us For Availability
4
Compressor, Mountinug Bracket WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop — Black WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop — Chrome WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 8−32 x 1−1/4 WPL 489345 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Shelf, Cantilever WPL 2163920 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Hole Plug — Almond WPL 989196 Contact Us For Availability
8
Trim, Shelf WPL 2163985 Contact Us For Availability
8
Support, Heater WPL 2149120 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116734 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116735 Contact Us For Availability
9
Hole Plug WPL 940014 Contact Us For Availability
9
Crisper Cover WPL 2160973 Contact Us For Availability
9
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
10
Trim, Ice Pan WPL 2161005 Contact Us For Availability
10
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
10
End Cap, Top WPL 2151820 Contact Us For Availability
11
Knob, Thermostat WPL 2151984 Contact Us For Availability
11
Glass, Shelf WPL 2164380 Contact Us For Availability
11
End Cap, Bottom WPL 2151822 Contact Us For Availability
11
End Cap, Bottom WPL 2155997 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Handle — Black WPL 2160987 Contact Us For Availability
12
Handle — White WPL 2164082 Contact Us For Availability
12
Handle — Black WPL 2160863 Contact Us For Availability
12
Handle — White WPL 2160862 Contact Us For Availability
13
Tube, Discharge WPL 2154028 Contact Us For Availability
13
Trim, Handle — Black WPL 2160988 Contact Us For Availability
13
Trim, Handle — White WPL 2164252 Contact Us For Availability
13
Shim (Long) WPL 2151816 Contact Us For Availability
13
Nut Compression WPL 939027 Contact Us For Availability
14
Knob, Air Control WPL 2151985 Contact Us For Availability
14
Shelf, Meat Pan WPL 1116703 Contact Us For Availability
14
Defrost Heater WPL 2162020 Contact Us For Availability
14
Washer, Handle WPL 2154300 Contact Us For Availability
14
Spacer, Handle WPL 2155849 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2160873 Contact Us For Availability
16
Tube, Process WPL 2154090 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
17
Trim, Door Shelf WPL 2160989 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Trim, Shelf Full WPL 2163986 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Trim, Door — Black WPL 2161001 Contact Us For Availability
18
Trim, Door — White WPL 2164255 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 2160975 Contact Us For Availability
19
Tube, Process WPL 2154040 Contact Us For Availability
19
Interior Door Panel WPL 2147691 Contact Us For Availability
20
Meat Pan WPL 2160983 Contact Us For Availability
20
Trim, Door Shelf WPL 2160990 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Glass, Crisper WPL 2164379 Contact Us For Availability
21
Mold & Heater Assembly (Also Order 542638 Sil WPL 1121380 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Trim, Crisper Cover WPL 2172719 Contact Us For Availability
23
Overload — Production WPL 2159611 Contact Us For Availability
23
Overload — Service WPL 2154945 Contact Us For Availability
23
Trim, Door Shelf WPL 2160991 Contact Us For Availability
23
Nameplate — For White And Almond Models WPL 2151881 Contact Us For Availability
23
Nameplate — For White On White Model WPL 2164257 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Trim, Shelf WPL 2163982 Contact Us For Availability
24
Muffler WPL 2154033 Contact Us For Availability
24
Hole Plug, Handle — Almond WPL 1122654 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
25
Shim WPL 2151813 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Compartment Door, Left Side WPL 2160996 Contact Us For Availability
26
Retainer−Gasket WPL 1115137 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Pan, Ice Cube WPL 1122528 Contact Us For Availability
27
Retainer−Gasket WPL 1115138 Contact Us For Availability
28
Accessory Envelope WPL 1102828 Contact Us For Availability
28
Screw, Grommet WPL 509812 Contact Us For Availability
29
Retainer WPL 1118119 Contact Us For Availability
30
Trim, Compartment Door WPL 2160997 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
32
Trim, Compartment Door WPL 2164017 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
33
Compartment Door, Right Side WPL 2160993 Contact Us For Availability
34
Bracket WPL 489365 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
Module Assembly (Includes Items 37, & 38) WPL 486214 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
39
Sleeve WPL 2159751 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
41
Retainer, Gasket WPL 1115136 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
51
Valve, Access WPL 978029 Contact Us For Availability
51
Drain Extension Parts Not Illustrated and WPL 2154118 Contact Us For Availability
51
Valve, Access WPL 978028 Contact Us For Availability
OPT-3
(4 Feet) WPL 479502 Contact Us For Availability
OPT-6
(2 Pcs. WPL 876029 Contact Us For Availability
OPT-10
(1/2 Oz.) WPL 542639 Contact Us For Availability
OPT-12
(36−5/8" x 46") WPL 799833 Contact Us For Availability
OPT-15
(13 Oz. Spray Can) WPL 350941 Contact Us For Availability
OPT-22
Refinishing Material WPL 799344 Contact Us For Availability
OPT-23
(1 Qt. Uncut) WPL 978883 Contact Us For Availability
OPT-25
TORX SCREW WRENCH WPL 1117510 Contact Us For Availability
× ![]()
