Model Whirlpool 106.89583701 Refrigerator – Common Parts & Diagrams

5
Wiring Harness, Complete Unit (Includes Power
Wiring Harness, Complete Unit (Includes Power WPL W10139121 Contact Us For Availability
View on Model
7
Wire Assy−Active Overlay Jumper
Wire Assy−Active Overlay Jumper WPL 2187585 Contact Us For Availability
View on Model
7
Tube, Reservoir Pump
Tube, Reservoir Pump WPL 2313851 Contact Us For Availability
View on Model
9

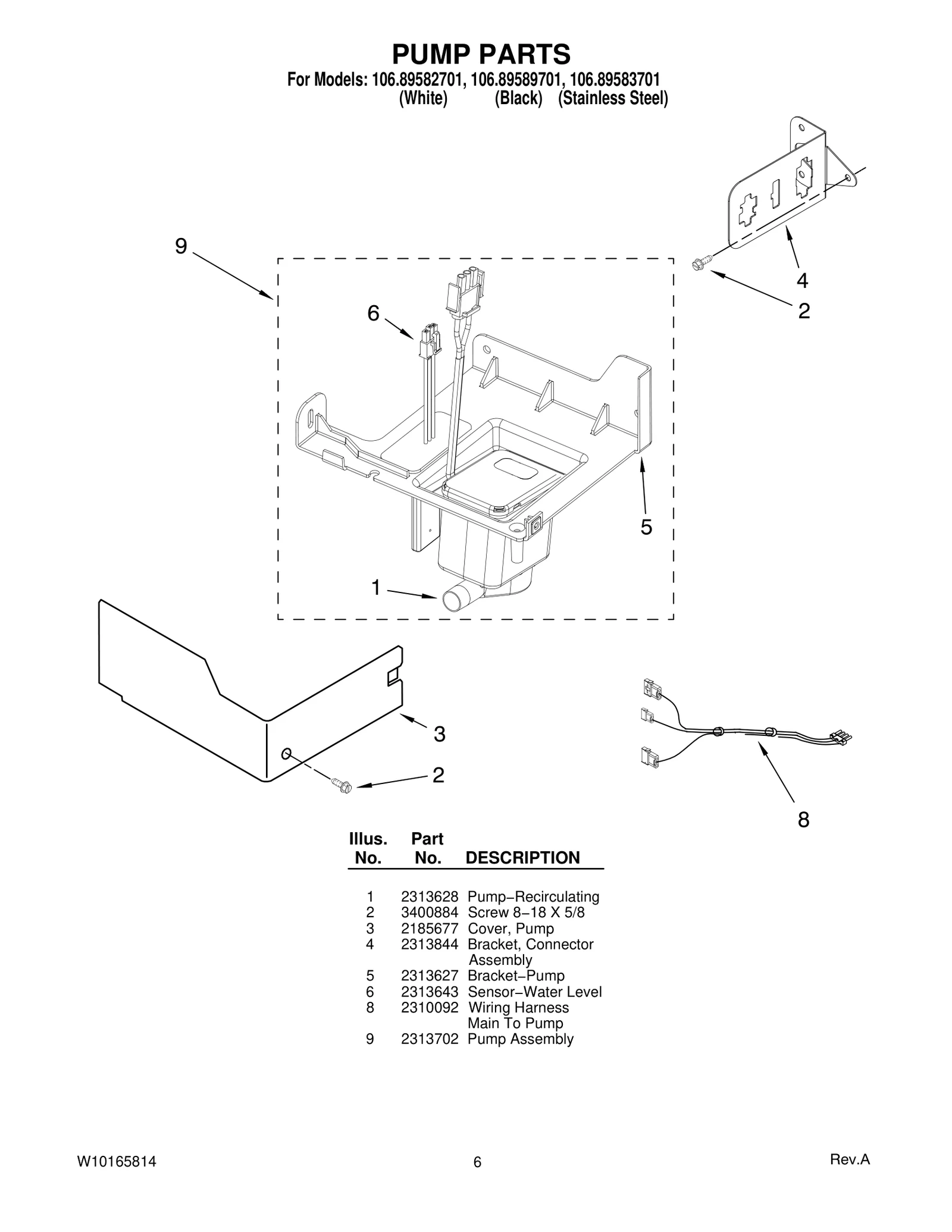

Pump Assembly
Pump Assembly WPL 2313702 Contact Us For Availability
View on Model
10
Clip−Wiring
Clip−Wiring WPL 1115375 Contact Us For Availability
View on Model
14
Screw
Screw WPL 489472 Contact Us For Availability
View on Model
15
Coil, Solenoid
Coil, Solenoid WPL 759112 Contact Us For Availability
View on Model
18

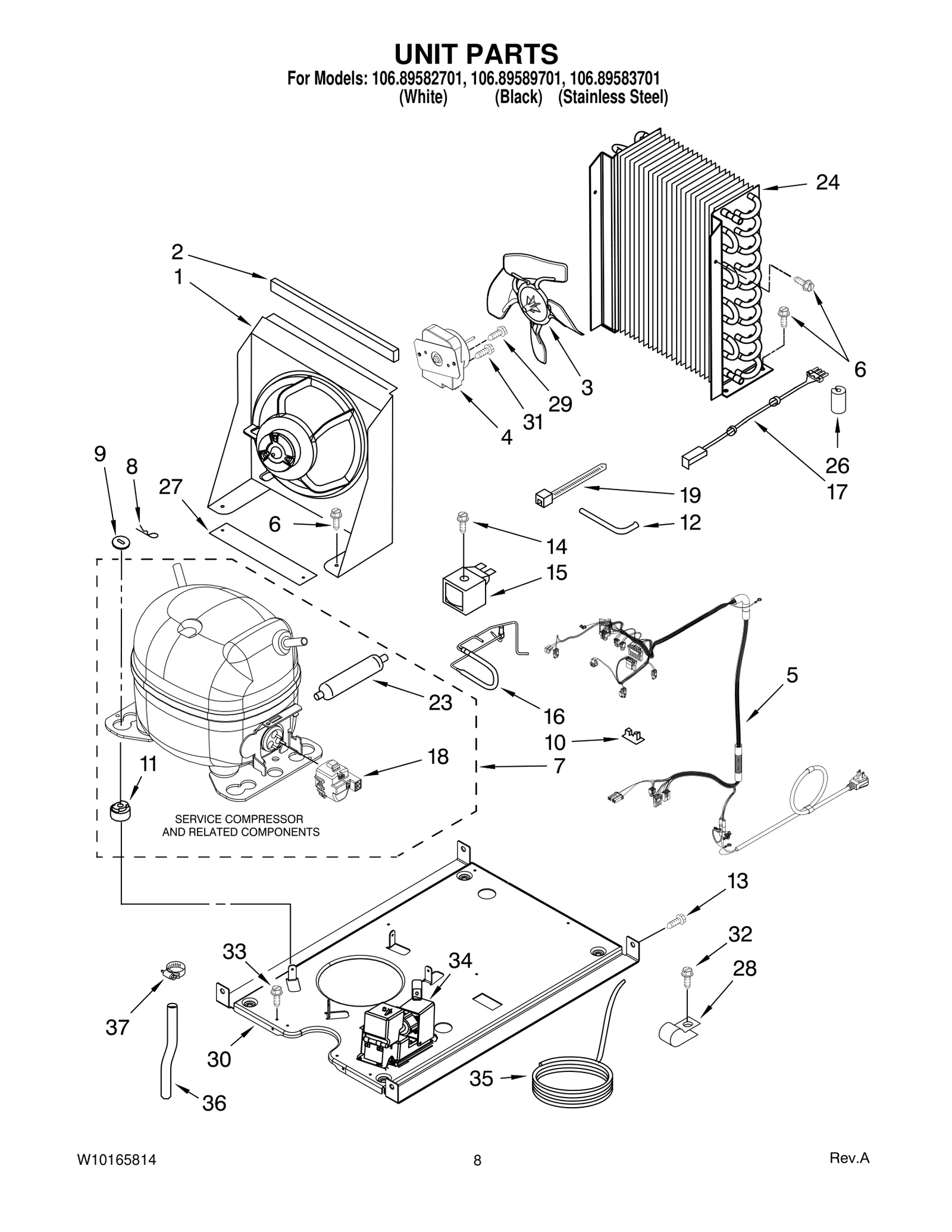

Start Relay & Overload Combo Device
Start Relay & Overload Combo Device WPL W10136197 Contact Us For Availability
View on Model
19
Strap
Strap WPL 851095 Contact Us For Availability
View on Model
20
Handle, Door — Black
Handle, Door — Black WPL 2208494B Contact Us For Availability
View on Model
20
Tube
Tube WPL W10136146 Contact Us For Availability
View on Model
28
Clamp−Power Cord
Clamp−Power Cord WPL 2185960 Contact Us For Availability
View on Model
35
Tube−Outlet
Tube−Outlet WPL 2208432 Contact Us For Availability
View on Model
36
Tube−Drain Pump
Tube−Drain Pump WPL 2185672 Contact Us For Availability
View on Model

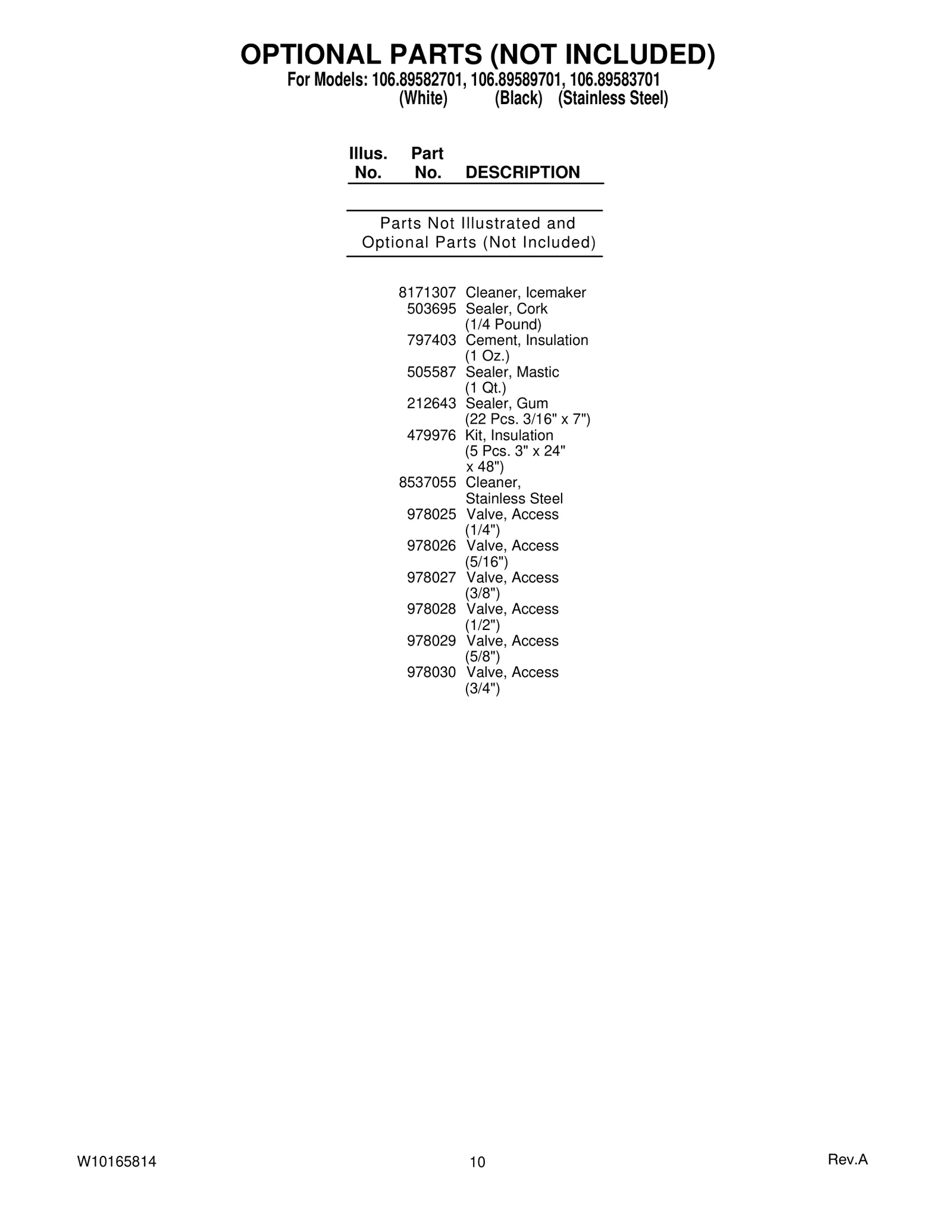

OPT-7
Cleaner,
Cleaner, WPL 8537055 Contact Us For Availability
View on Model
OPT-11
Valve, Access
Valve, Access WPL 978028 Contact Us For Availability
View on Model
OPT-12
Valve, Access
Valve, Access WPL 978029 Contact Us For Availability
View on Model
