Model Bosch WTVC3300CN/09 Dryer – Common Parts & Diagrams

0101
Power cord
Power cord BOS 00436986 Contact Us For Availability
View on Model
0205
Fastening Knob
Fastening Knob BOS 00427416 Contact Us For Availability
View on Model
0212
Panel-base
Panel-base BOS 00684150 Contact Us For Availability
View on Model
0222
Screw
Screw BOS 00615773 No Longer Available
View on Model
0225
Door Latch
Door Latch BOS 00491673 No Longer Available
View on Model
0228
Door-inner
Door-inner BOS 00684437 Contact Us For Availability
View on Model
0229
Door-outer
Door-outer BOS 00684413 Contact Us For Availability
View on Model
0233
Self-Tapping Screw
Self-Tapping Screw BOS 00422240 No Longer Available
View on Model

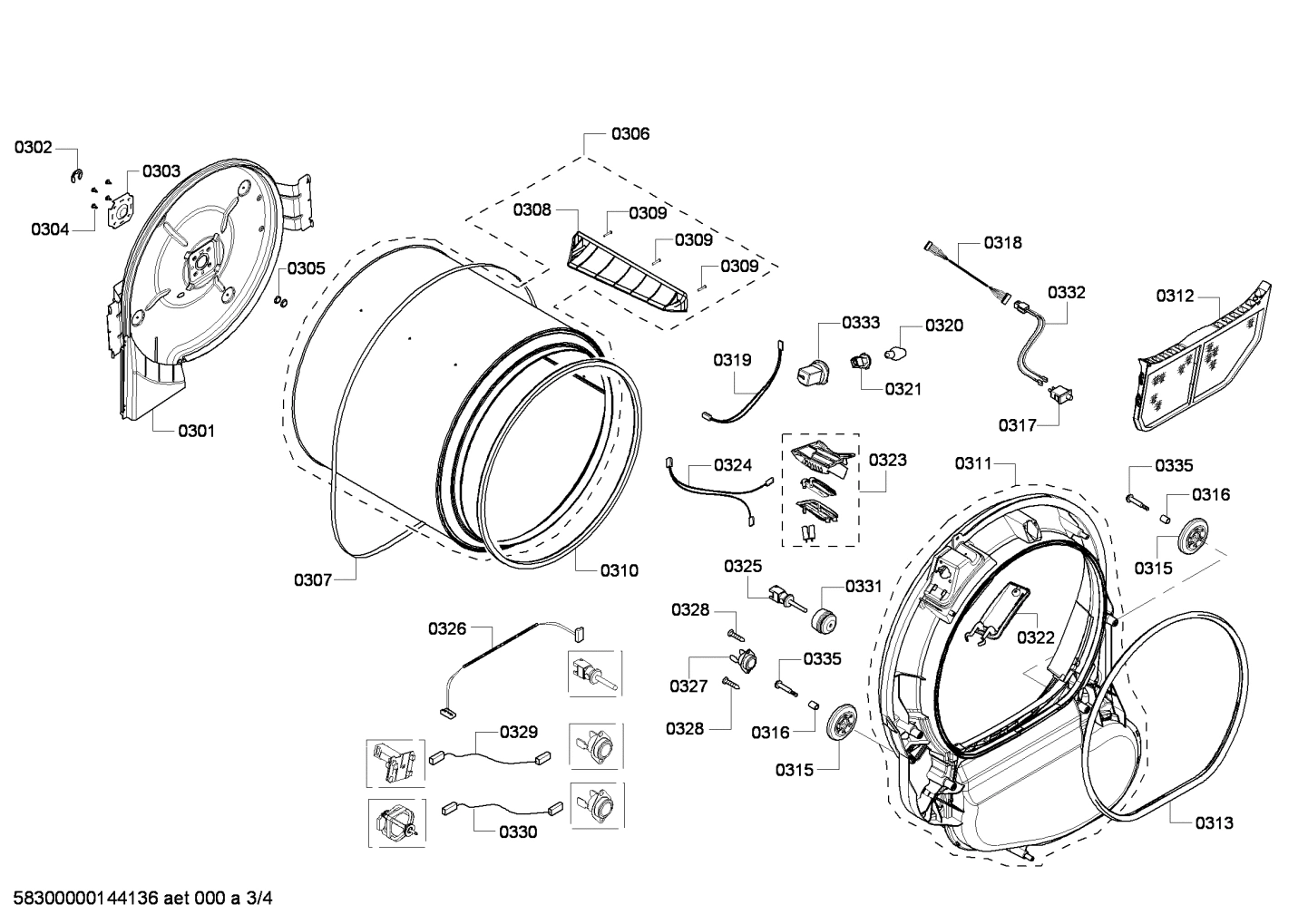

0301
Case-rear part
Case-rear part BOS 00474975 Contact Us For Availability
View on Model
0305
Washer
Washer BOS 00422181 Contact Us For Availability
View on Model
0306
Drum
Drum BOS 00241109 Contact Us For Availability
View on Model
0310
Sealing strip
Sealing strip BOS 00649746 Contact Us For Availability
View on Model
0311
Front
Front BOS 00248964 Contact Us For Availability
View on Model
0313
Seal-door
Seal-door BOS 00649747 No Longer Available
View on Model
0316
Bearing bush
Bearing bush BOS 00618326 Contact Us For Availability
View on Model
0321
Bushing
Bushing BOS 00422210 Contact Us For Availability
View on Model
0323
Sensor
Sensor BOS 00618333 Contact Us For Availability
View on Model
0329
Cable harness
Cable harness BOS 00421685 Contact Us For Availability
View on Model
0332
Cable harness
Cable harness BOS 00618332 Contact Us For Availability
View on Model

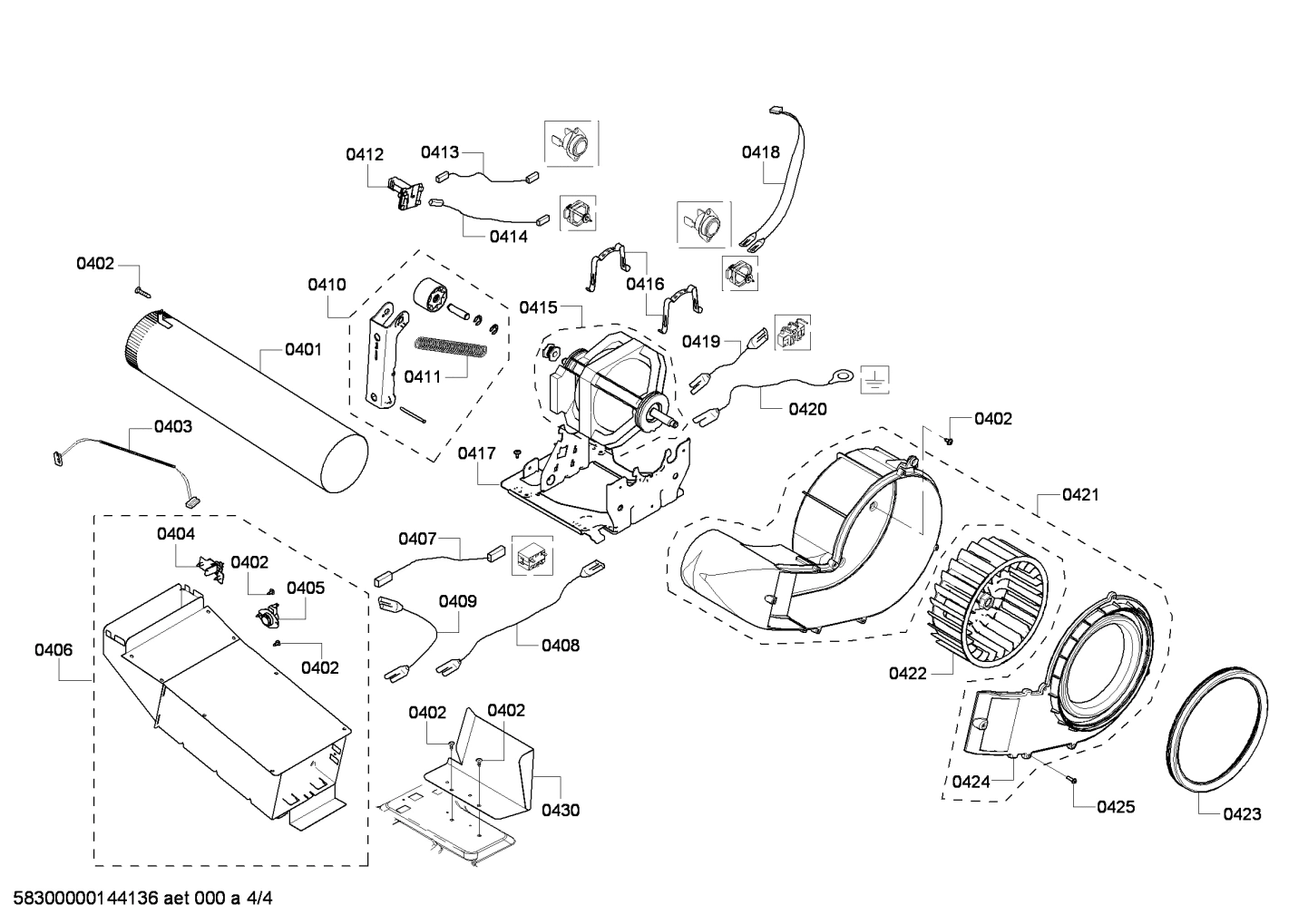

0401
Exhaust baffle
Exhaust baffle BOS 00436457 Contact Us For Availability
View on Model
0403
Cable harness
Cable harness BOS 00618356 Contact Us For Availability
View on Model
0415
Drive Motor
Drive Motor BOS 00436441 No Longer Available
View on Model
0422
Fan wheel
Fan wheel BOS 00491640 Contact Us For Availability
View on Model
0425
Screw
Screw BOS 00422239 Contact Us For Availability
View on Model
