Model Bosch WTMC8530UC/05 Dryer – Common Parts & Diagrams
Diagram 1
Diagram 2

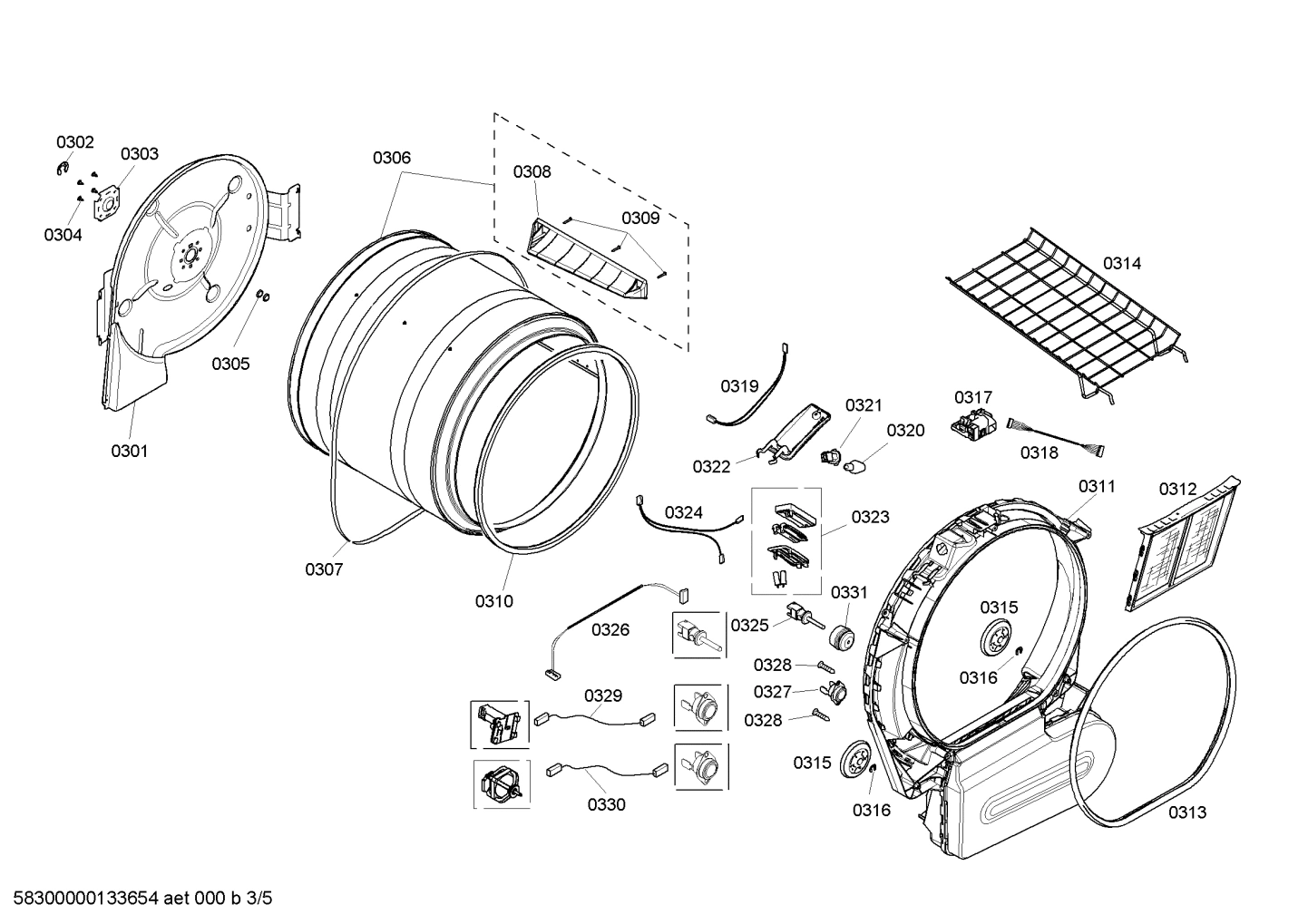

Diagram 3

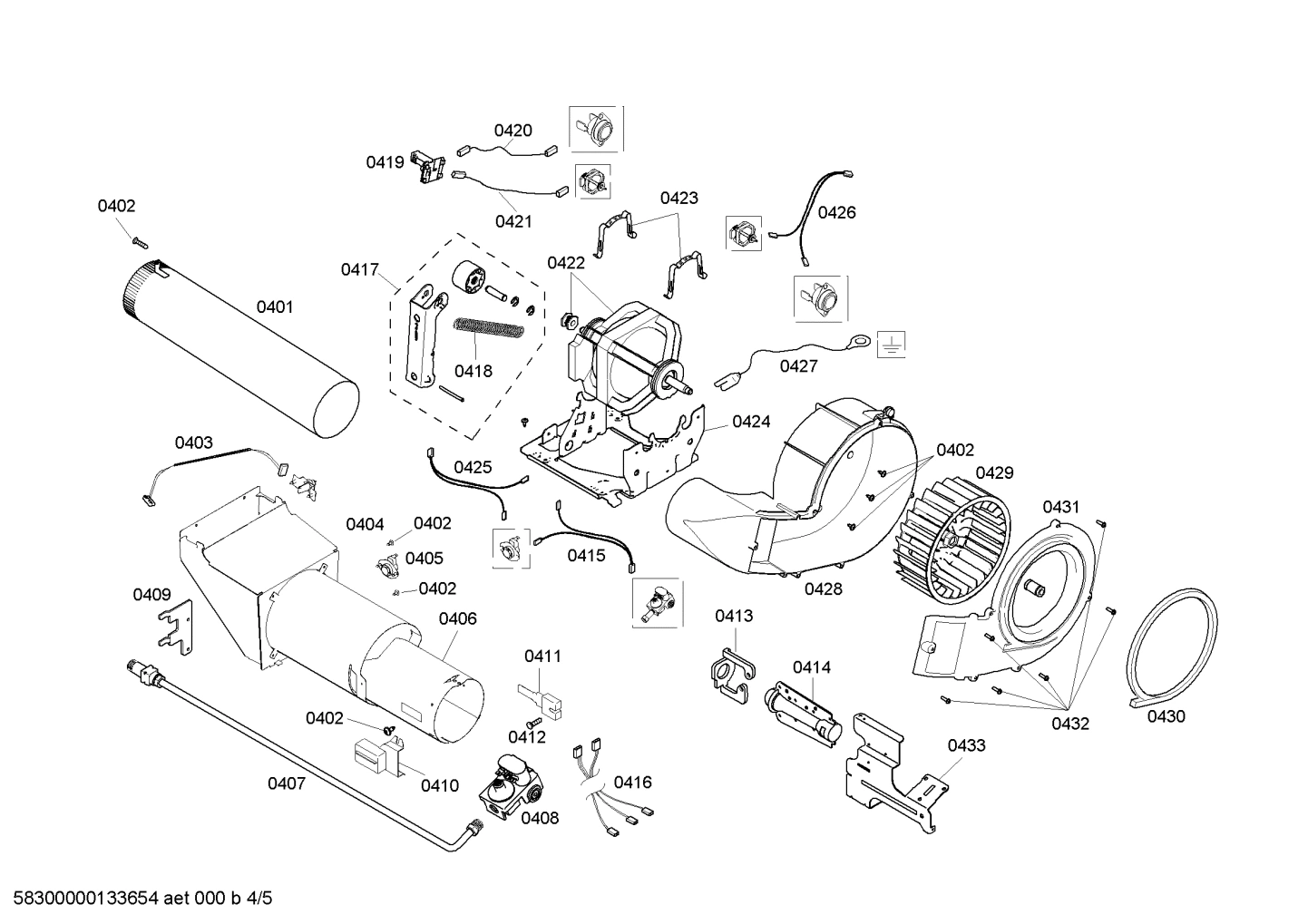

Diagram 4

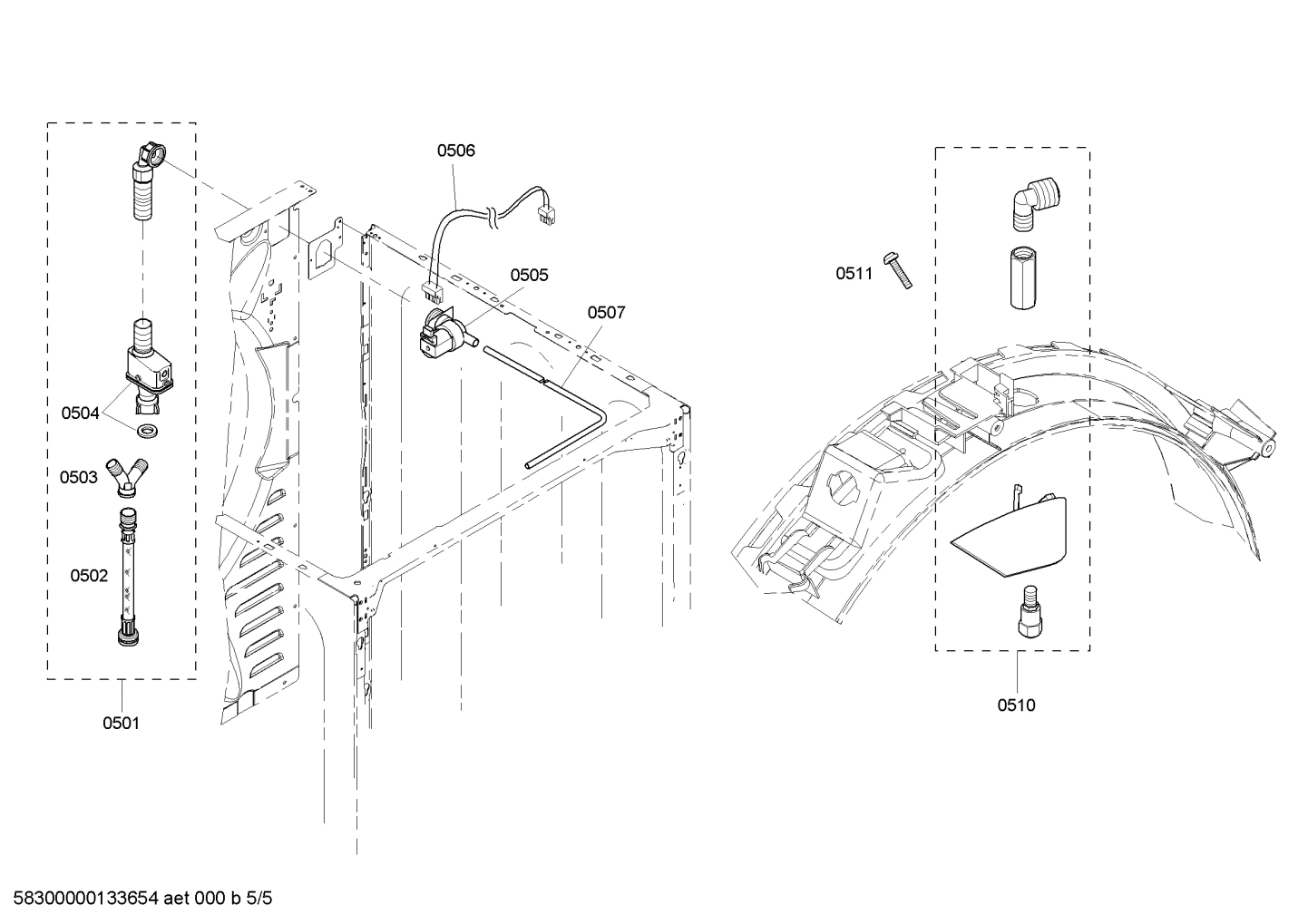

Diagram 5
Common parts from model Bosch WTMC8530UC/05 Dryer
0101
Power cord BOS 00442362 Contact Us For Availability
0104
Bracket BOS 00605033 Contact Us For Availability
0107
Cap, Control Panel Screw BOS 00422175 Contact Us For Availability
0205
Fastening Knob BOS 00427416 Contact Us For Availability
0216
Locking cap BOS 00424035 Contact Us For Availability
0217
Locking cap BOS 00424036 No Longer Available
0222
Cover BOS 00499216 Contact Us For Availability
0223
Screw BOS 00615773 No Longer Available
0225
Door Latch BOS 00491673 No Longer Available
0228
Cover BOS 00644357 Contact Us For Availability
0233
Self-Tapping Screw BOS 00422240 No Longer Available
0301
Case-rear part BOS 00474975 Contact Us For Availability
0305
Washer BOS 00422181 Contact Us For Availability
0310
Sealing strip BOS 00649746 Contact Us For Availability
0312
Lint Screen BOS 00436476 No Longer Available
0313
Door Seal BOS 00491630 No Longer Available
0321
Bushing BOS 00422210 Contact Us For Availability
0323
Moisture Sensor Assembly BOS 00422202 Contact Us For Availability
0401
Exhaust baffle BOS 00436457 Contact Us For Availability
0405
Limiter-temperature BOS 00422273 No Longer Available
0411
Igniter Assembly BOS 00491648 Contact Us For Availability
0420
Cable harness BOS 00421685 Contact Us For Availability
0422
Drive Motor BOS 00436441 No Longer Available
0429
Fan wheel BOS 00491640 Contact Us For Availability
0432
Screw BOS 00422239 Contact Us For Availability
0502
Hose-inlet BOS 00645787 Contact Us For Availability
0504
Aquastop Hose (Cold Water) BOS 00646221 Contact Us For Availability
× ![]()
