Model Bosch WTMC8330US/06 Dryer – Common Parts & Diagrams

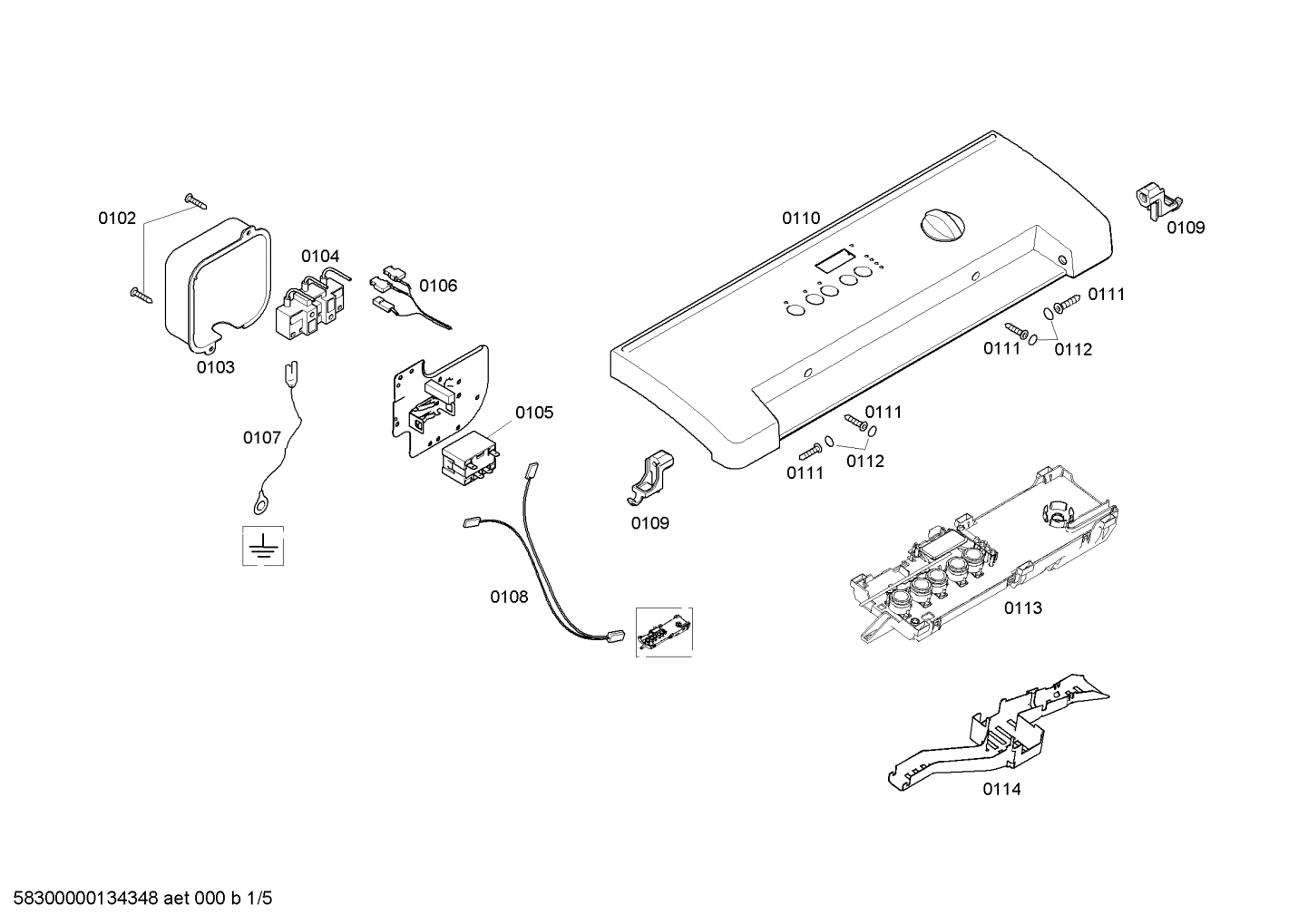

Diagram 1

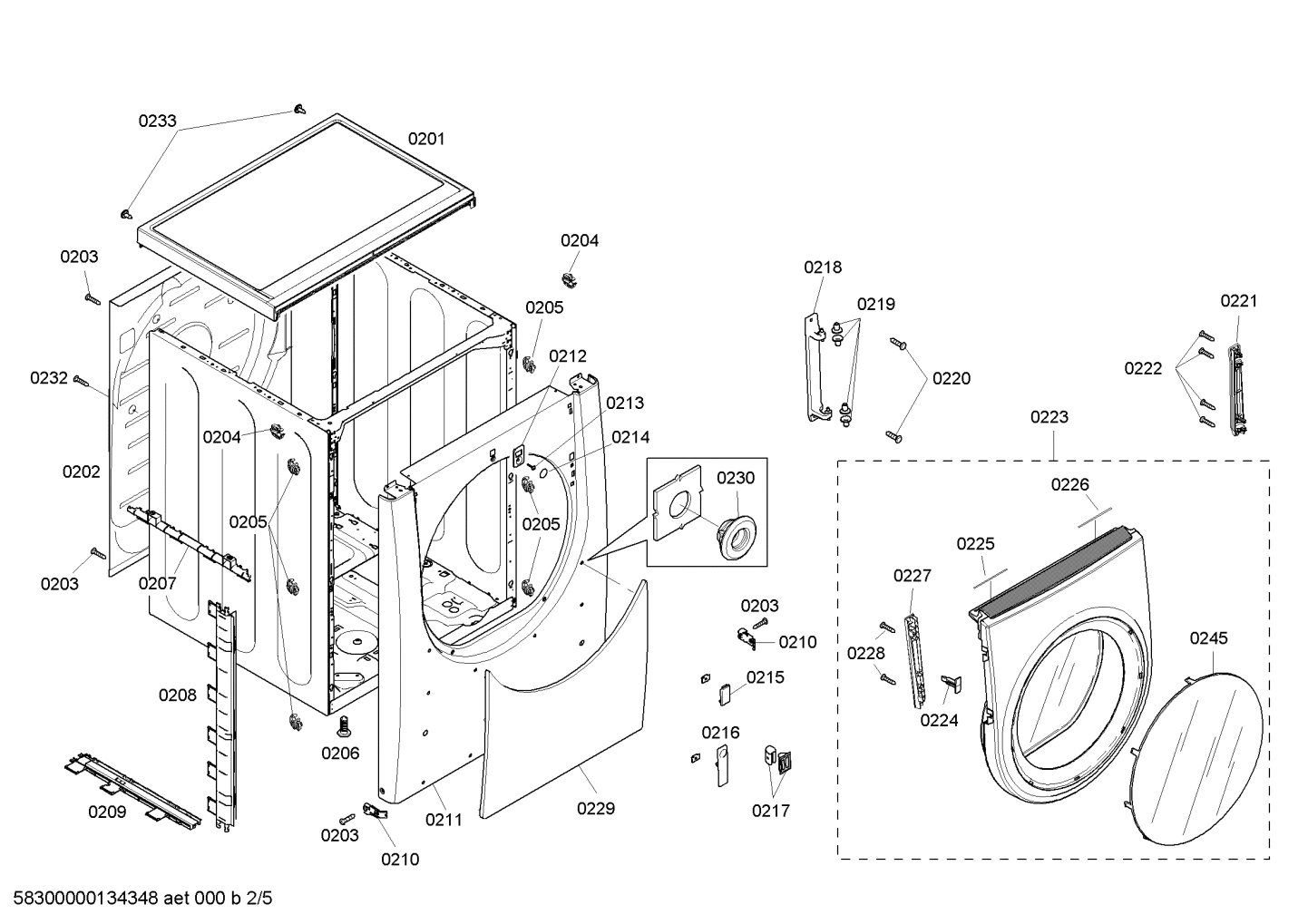

Diagram 2

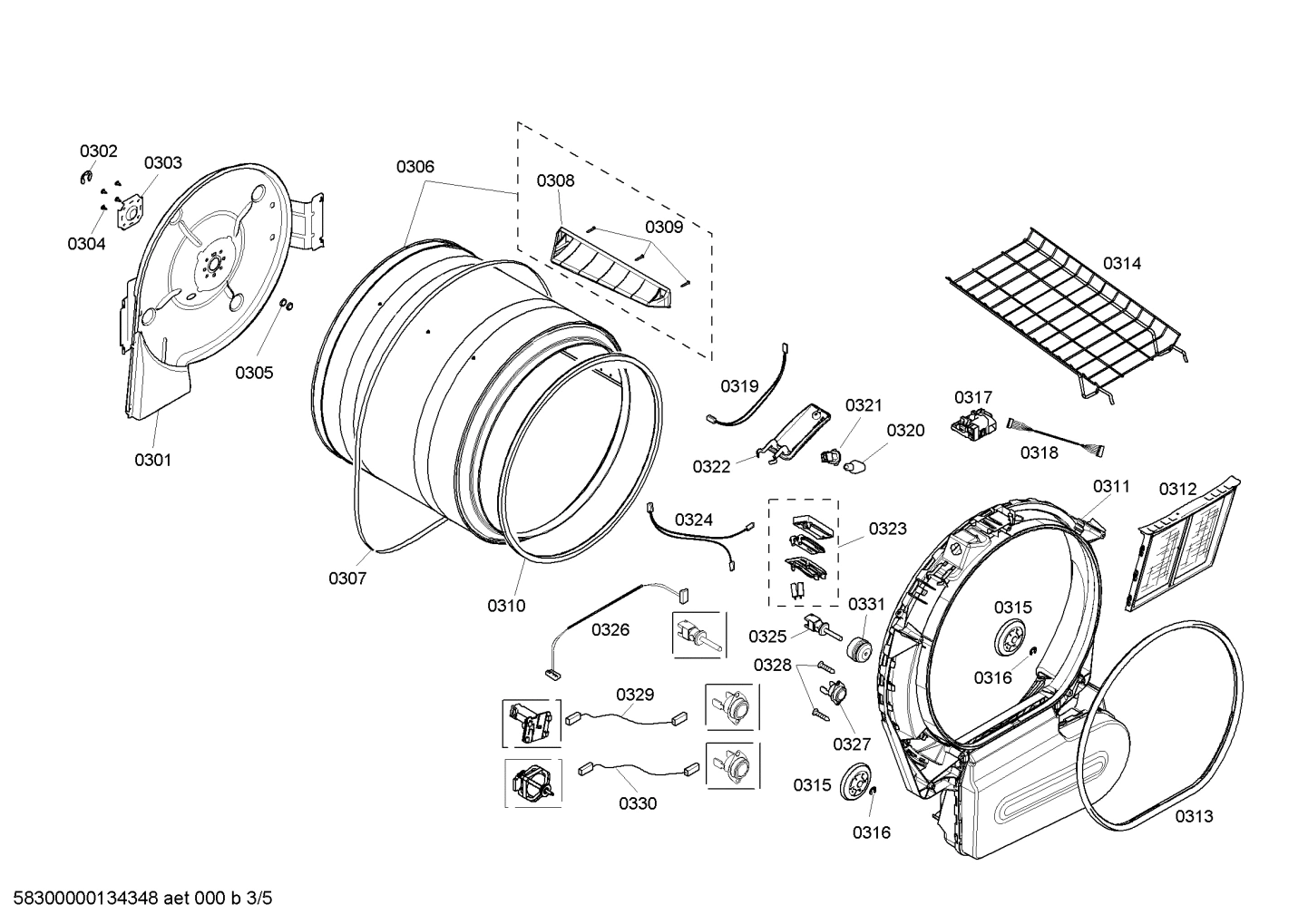

Diagram 3

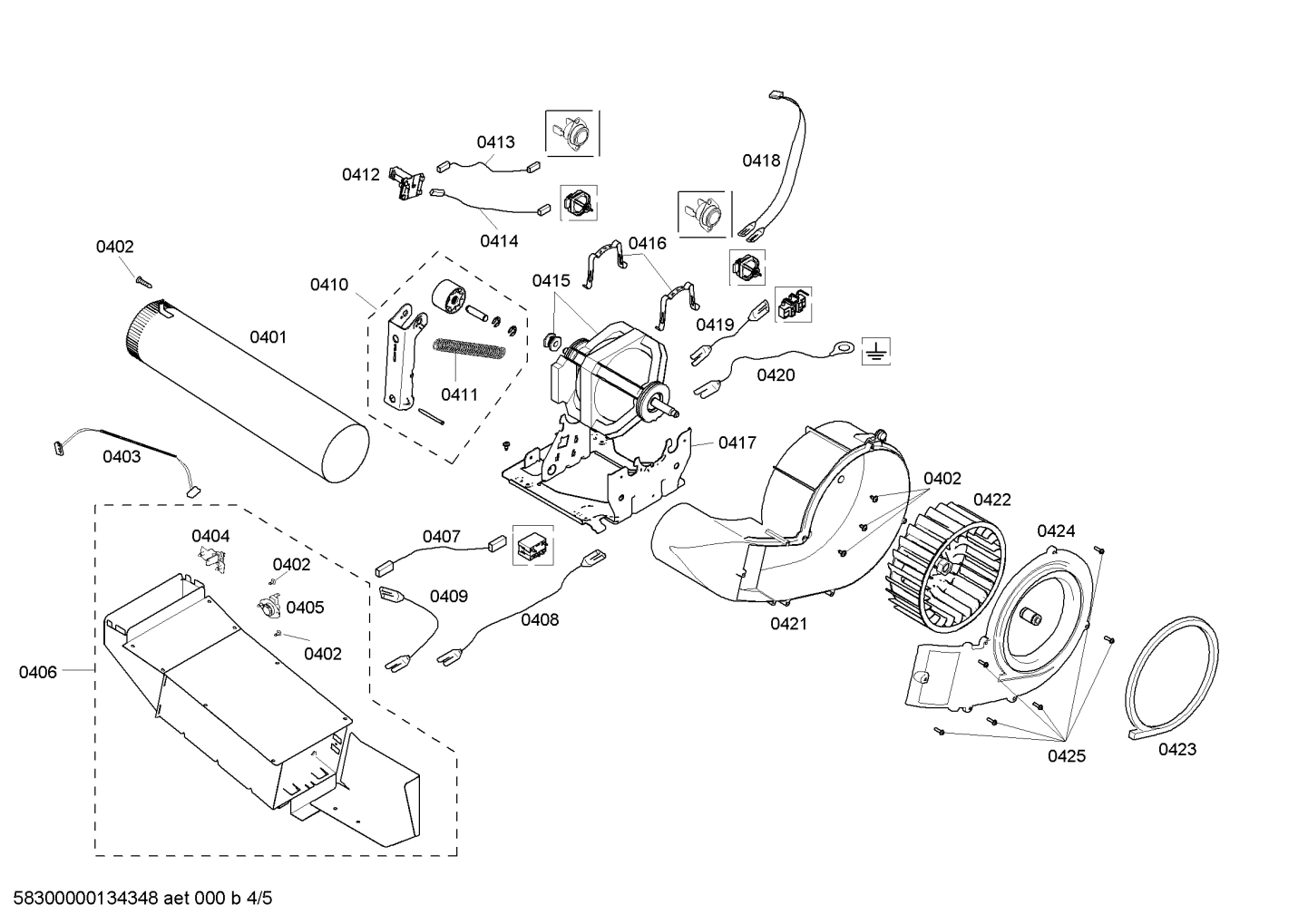

Diagram 4

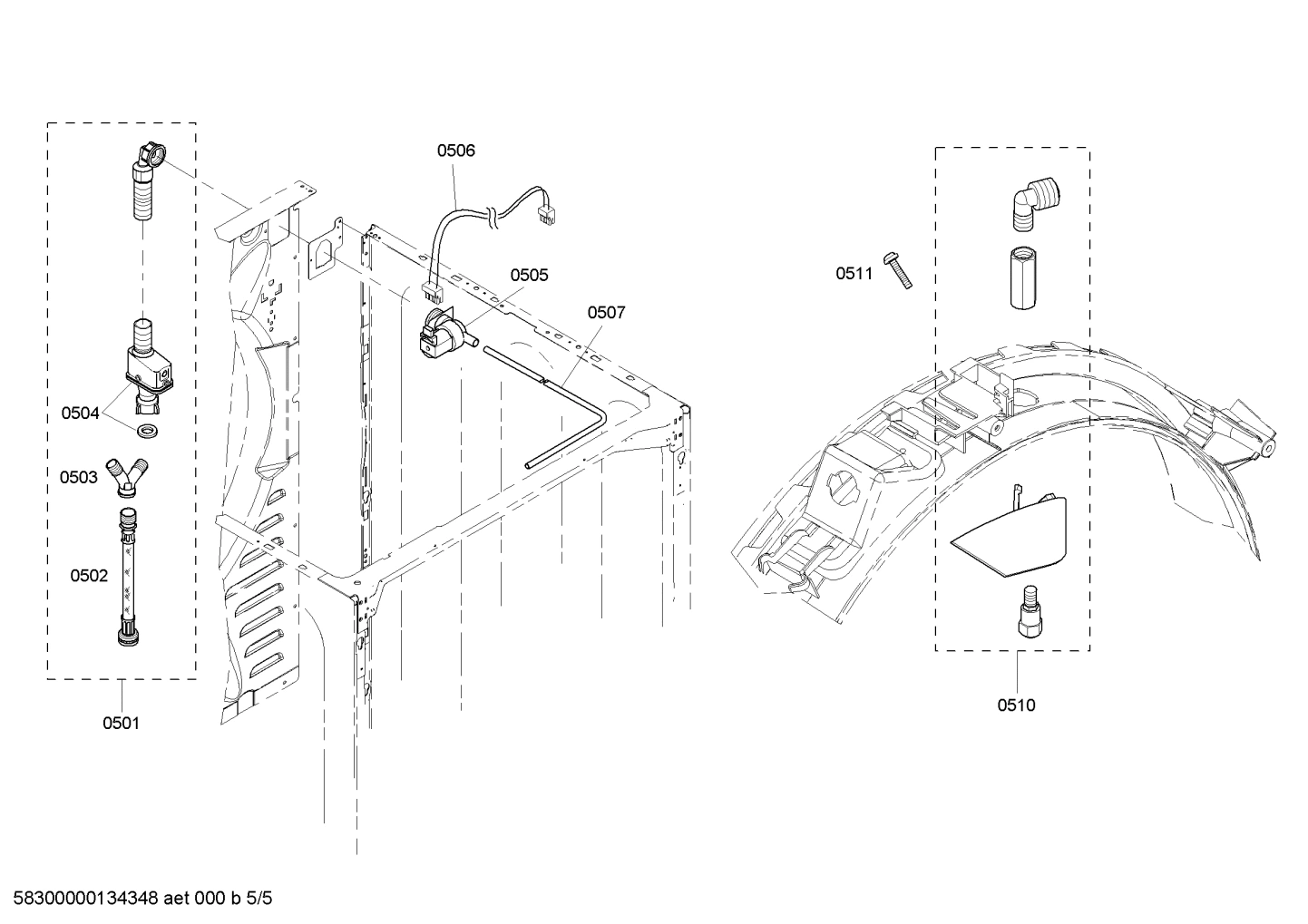

Diagram 5
Common parts from model Bosch WTMC8330US/06 Dryer
0109
Bracket BOS 00605033 Contact Us For Availability
0113
Control module BOS 00670479 Contact Us For Availability
0205
Fastening Knob BOS 00427416 Contact Us For Availability
0214
Cap, Control Panel Screw BOS 00422175 Contact Us For Availability
0215
Locking cap BOS 00424035 Contact Us For Availability
0216
Locking cap BOS 00424036 No Longer Available
0221
Cover BOS 00499216 Contact Us For Availability
0222
Screw BOS 00615773 No Longer Available
0224
Door Latch BOS 00491673 No Longer Available
0227
Cover BOS 00644357 Contact Us For Availability
0233
Self-Tapping Screw BOS 00422240 No Longer Available
0301
Case-rear part BOS 00474975 Contact Us For Availability
0305
Washer BOS 00422181 Contact Us For Availability
0310
Sealing strip BOS 00649746 Contact Us For Availability
0312
Lint Screen BOS 00436476 No Longer Available
0313
Door Seal BOS 00491630 No Longer Available
0321
Bushing BOS 00422210 Contact Us For Availability
0323
Moisture Sensor Assembly BOS 00422202 Contact Us For Availability
0401
Exhaust baffle BOS 00436457 Contact Us For Availability
0413
Cable harness BOS 00421685 Contact Us For Availability
0415
Drive Motor BOS 00436441 No Longer Available
0422
Fan wheel BOS 00491640 Contact Us For Availability
0425
Screw BOS 00422239 Contact Us For Availability
0502
Hose-inlet BOS 00645787 Contact Us For Availability
0504
Aquastop Hose (Cold Water) BOS 00646221 Contact Us For Availability
× ![]()
