Model Bosch WTMC5521UC/05 Dryer – Common Parts & Diagrams

0101
Power cord
Power cord BOS 00442362 Contact Us For Availability
View on Model
0104
Bracket
Bracket BOS 00605033 Contact Us For Availability
View on Model
0106
Screw
Screw BOS 00422223 Contact Us For Availability
View on Model
0205
Fastening Knob
Fastening Knob BOS 00427416 Contact Us For Availability
View on Model
0206
Foot
Foot BOS 00422201 Contact Us For Availability
View on Model
0215
Cap, Control Panel Screw
Cap, Control Panel Screw BOS 00422175 Contact Us For Availability
View on Model
0216
Locking cap
Locking cap BOS 00424035 Contact Us For Availability
View on Model
0217
Locking cap
Locking cap BOS 00424036 Contact Us For Availability
View on Model
0219
Door Hinge
Door Hinge BOS 00491647 Contact Us For Availability
View on Model
0221
Screw
Screw BOS 00422243 Contact Us For Availability
View on Model
0222
Cover
Cover BOS 00491627 Contact Us For Availability
View on Model
0223
Screw
Screw BOS 00615773 Contact Us For Availability
View on Model
0225
Door Latch
Door Latch BOS 00491673 Contact Us For Availability
View on Model
0228
Cover
Cover BOS 00640549 Contact Us For Availability
View on Model
0229
Screw
Screw BOS 00422126 Contact Us For Availability
View on Model
0232
Screw
Screw BOS 00189345 Contact Us For Availability
View on Model
0233
Self-Tapping Screw
Self-Tapping Screw BOS 00422240 Contact Us For Availability
View on Model

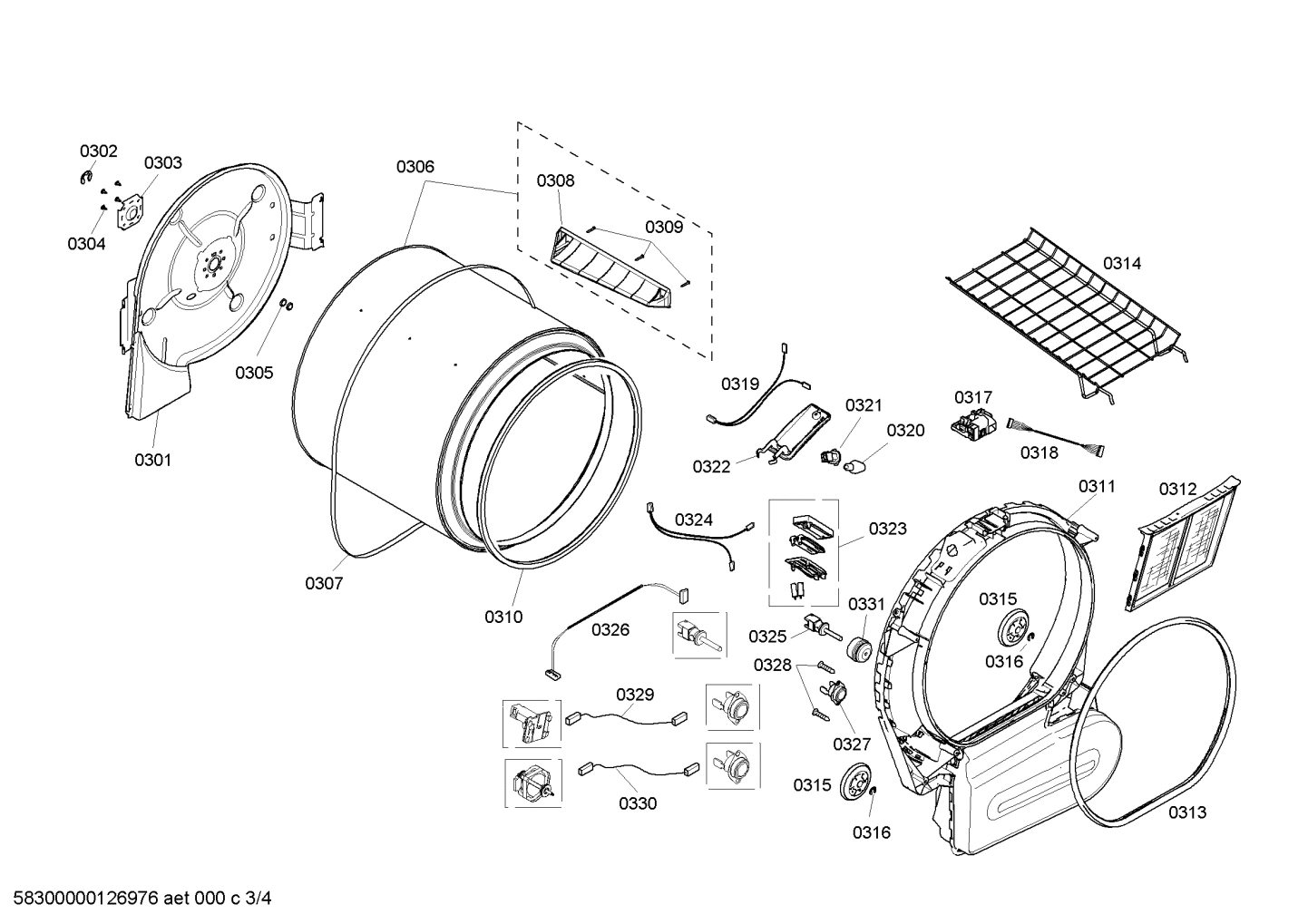

0301
Case-rear part
Case-rear part BOS 00474975 Contact Us For Availability
View on Model
0303
Bearing
Bearing BOS 00618931 Contact Us For Availability
View on Model
0305
Washer
Washer BOS 00422181 Contact Us For Availability
View on Model
0306
Drum
Drum BOS 00241109 Contact Us For Availability
View on Model
0310
Sealing strip
Sealing strip BOS 00649746 Contact Us For Availability
View on Model
0311
Front
Front BOS 00241091 Contact Us For Availability
View on Model
0312
Lint Screen
Lint Screen BOS 00436476 Contact Us For Availability
View on Model
0313
Door Seal
Door Seal BOS 00491630 Contact Us For Availability
View on Model
0315
Drum Roller Wheel
Drum Roller Wheel BOS 00422200 Contact Us For Availability
View on Model
0316
Spring Clip
Spring Clip BOS 00424034 Contact Us For Availability
View on Model
0317
Door Switch
Door Switch BOS 00422183 Contact Us For Availability
View on Model
0319
Cable harness
Cable harness BOS 00421665 Contact Us For Availability
View on Model
0321
Bushing
Bushing BOS 00422210 Contact Us For Availability
View on Model
0323
Moisture Sensor Assembly
Moisture Sensor Assembly BOS 00422202 Contact Us For Availability
View on Model
0325
Repair-set
Repair-set BOS 10010119 Contact Us For Availability
View on Model
0331
Seal
Seal BOS 00154165 Contact Us For Availability
View on Model

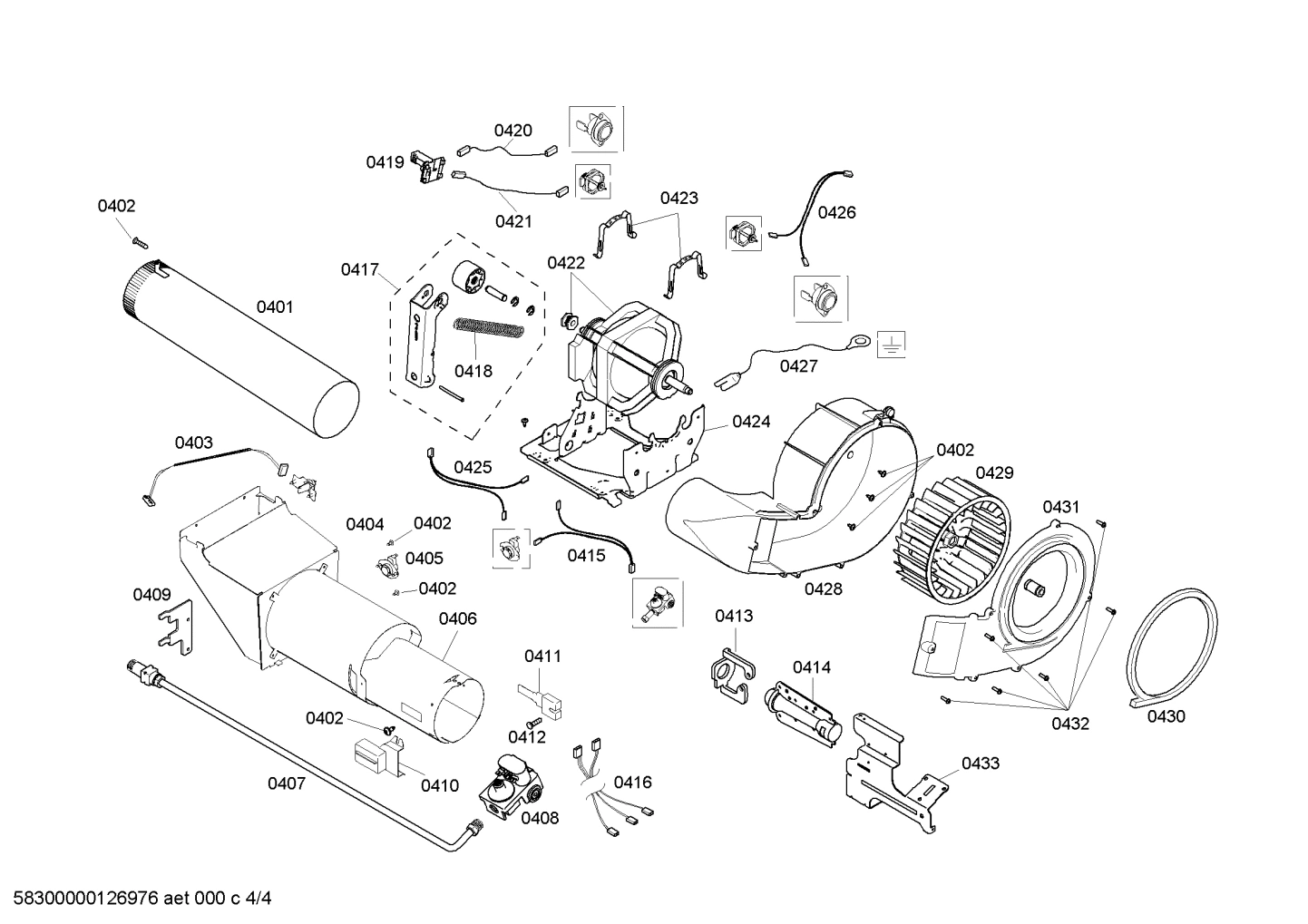

0401
Exhaust baffle
Exhaust baffle BOS 00436457 Contact Us For Availability
View on Model
0402
Screw
Screw BOS 00617527 Contact Us For Availability
View on Model
0405
Limiter-temperature
Limiter-temperature BOS 00422273 Contact Us For Availability
View on Model
0410
Sensor
Sensor BOS 00491609 Contact Us For Availability
View on Model
0411
Igniter Assembly
Igniter Assembly BOS 00491648 Contact Us For Availability
View on Model
0413
Burner ring
Burner ring BOS 00424689 Contact Us For Availability
View on Model
0418
Spring
Spring BOS 00491706 Contact Us For Availability
View on Model
0419
Belt Switch
Belt Switch BOS 00491611 Contact Us For Availability
View on Model
0420
Cable harness
Cable harness BOS 00421685 Contact Us For Availability
View on Model
0422
Drive Motor
Drive Motor BOS 00436441 Contact Us For Availability
View on Model
0429
Fan wheel
Fan wheel BOS 00491640 Contact Us For Availability
View on Model
0430
Sealing
Sealing BOS 00491693 Contact Us For Availability
View on Model
0432
Screw
Screw BOS 00422239 Contact Us For Availability
View on Model
