Model Bosch WTMC1301US/05 Dryer – Common Parts & Diagrams

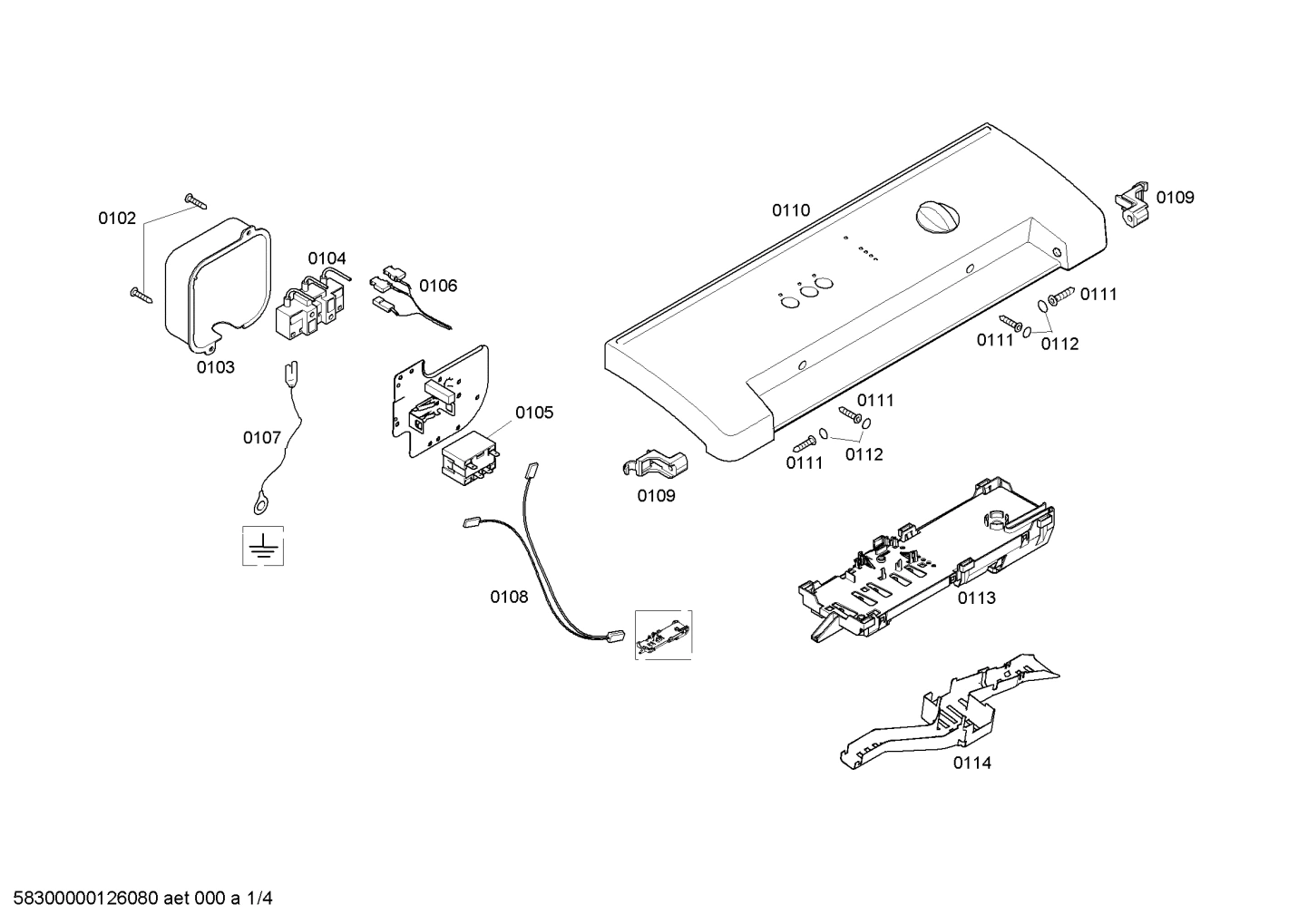

0102
Self-Tapping Screw
Self-Tapping Screw BOS 00422240 No Longer Available
View on Model
0109
Bracket
Bracket BOS 00605033 Contact Us For Availability
View on Model

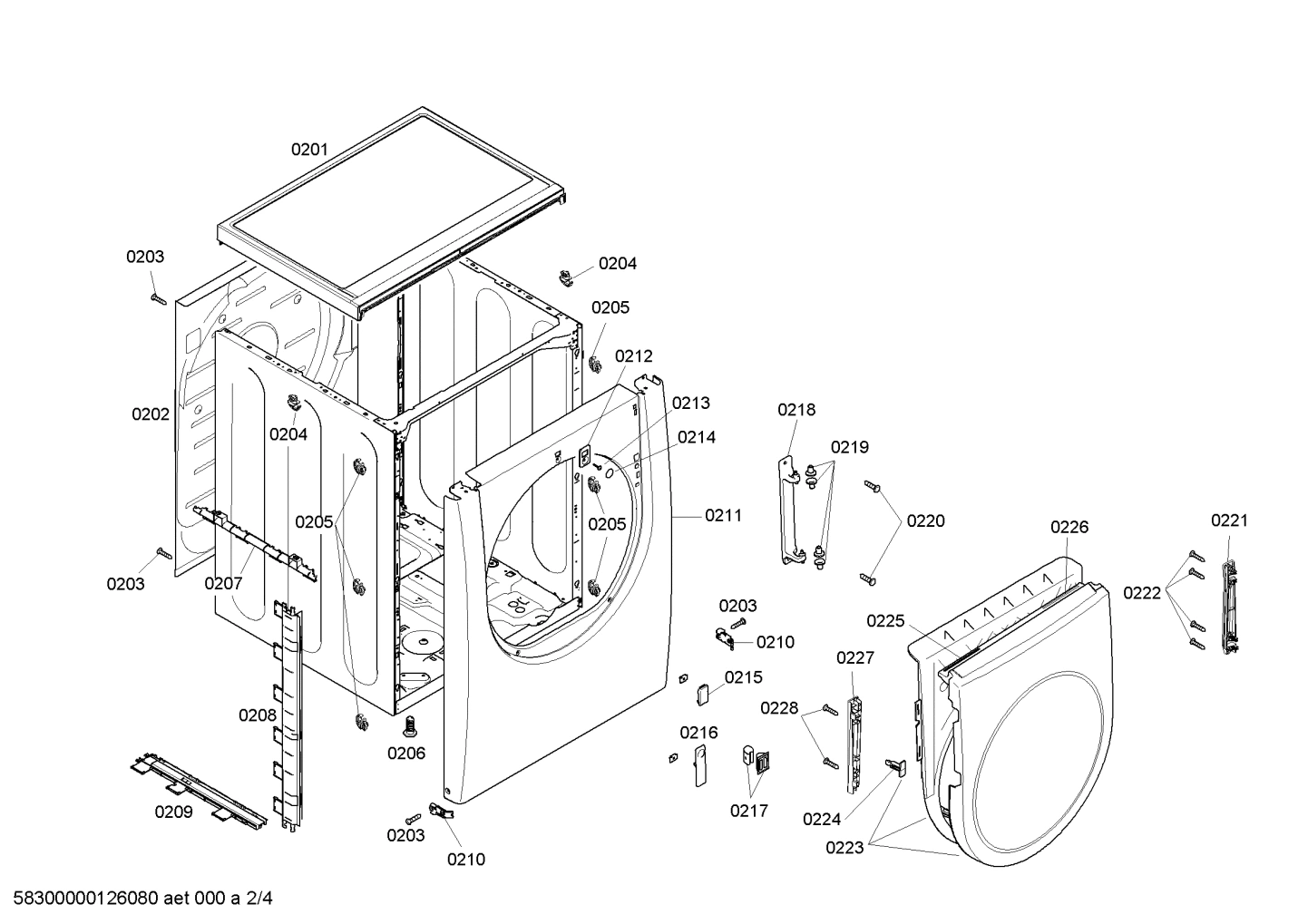

0205
Fastening Knob
Fastening Knob BOS 00427416 Contact Us For Availability
View on Model
0211
Front panel
Front panel BOS 00244010 Contact Us For Availability
View on Model
0214
Cap, Control Panel Screw
Cap, Control Panel Screw BOS 00422175 Contact Us For Availability
View on Model
0215
Locking cap
Locking cap BOS 00424035 Contact Us For Availability
View on Model
0216
Locking cap
Locking cap BOS 00424036 No Longer Available
View on Model
0221
Cover
Cover BOS 00491627 Contact Us For Availability
View on Model
0222
Screw
Screw BOS 00615773 No Longer Available
View on Model
0224
Door Latch
Door Latch BOS 00491673 No Longer Available
View on Model

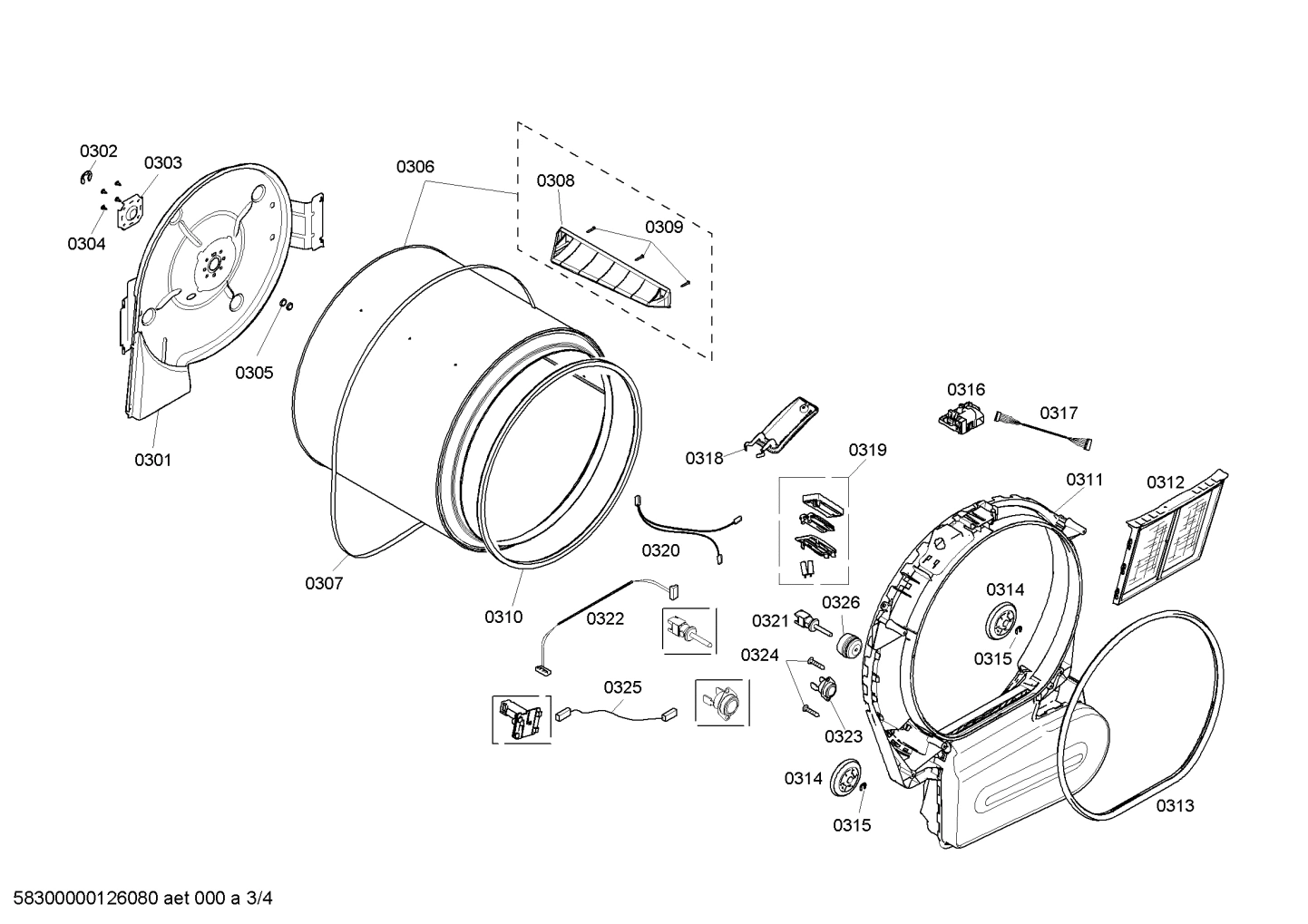

0301
Case-rear part
Case-rear part BOS 00474975 Contact Us For Availability
View on Model
0305
Washer
Washer BOS 00422181 Contact Us For Availability
View on Model
0306
Drum
Drum BOS 00241109 Contact Us For Availability
View on Model
0310
Sealing strip
Sealing strip BOS 00649746 Contact Us For Availability
View on Model
0311
Front
Front BOS 00241091 Contact Us For Availability
View on Model
0312
Lint Screen
Lint Screen BOS 00436476 No Longer Available
View on Model
0313
Door Seal
Door Seal BOS 00491630 No Longer Available
View on Model
0319
Moisture Sensor Assembly
Moisture Sensor Assembly BOS 00422202 Contact Us For Availability
View on Model

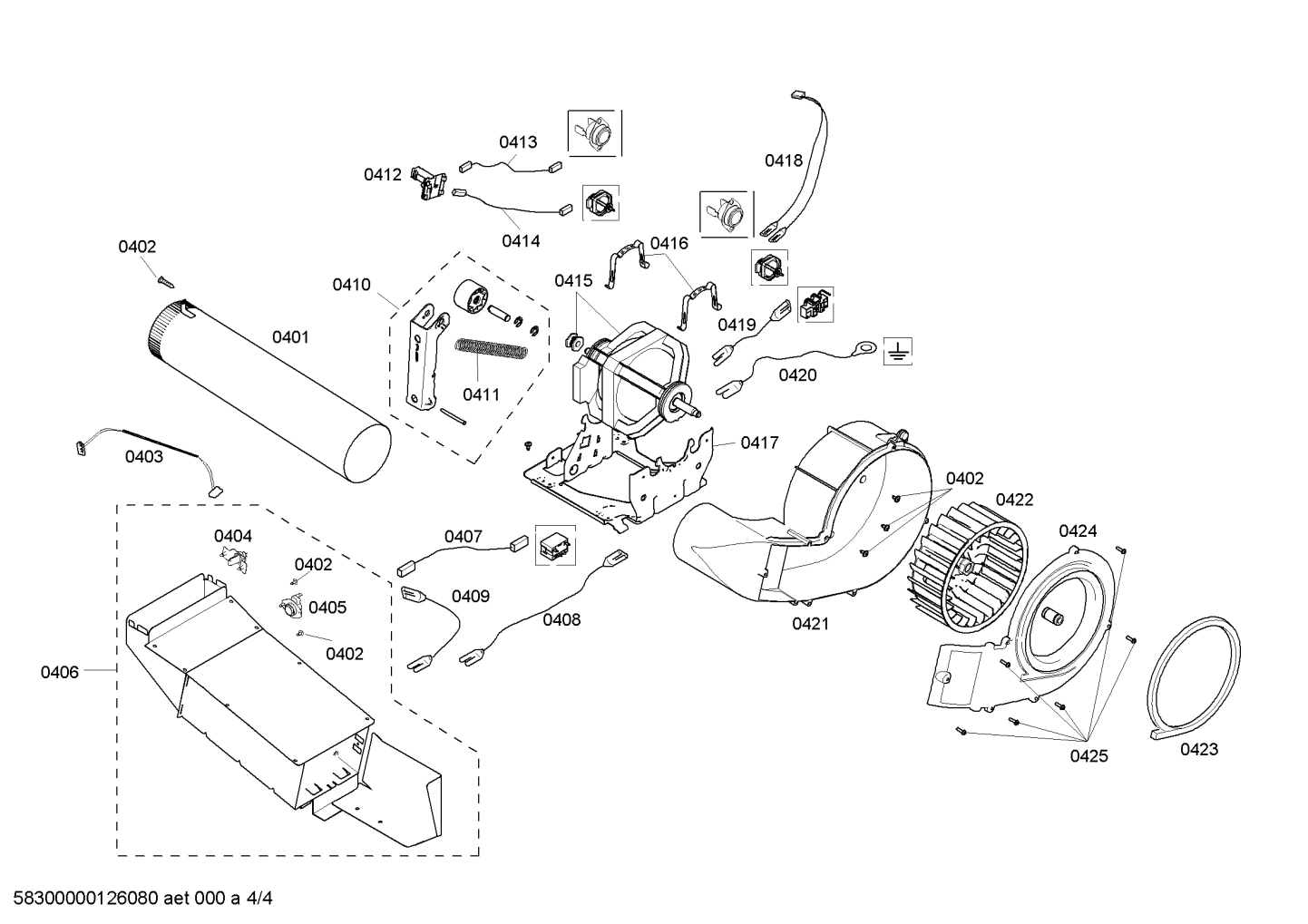

0401
Exhaust baffle
Exhaust baffle BOS 00436457 Contact Us For Availability
View on Model
0413
Cable harness
Cable harness BOS 00421685 Contact Us For Availability
View on Model
0415
Drive Motor
Drive Motor BOS 00436441 No Longer Available
View on Model
0422
Fan wheel
Fan wheel BOS 00491640 Contact Us For Availability
View on Model
0425
Screw
Screw BOS 00422239 Contact Us For Availability
View on Model
