Model Bosch WTMB3520UC/01 Dryer – Common Parts & Diagrams

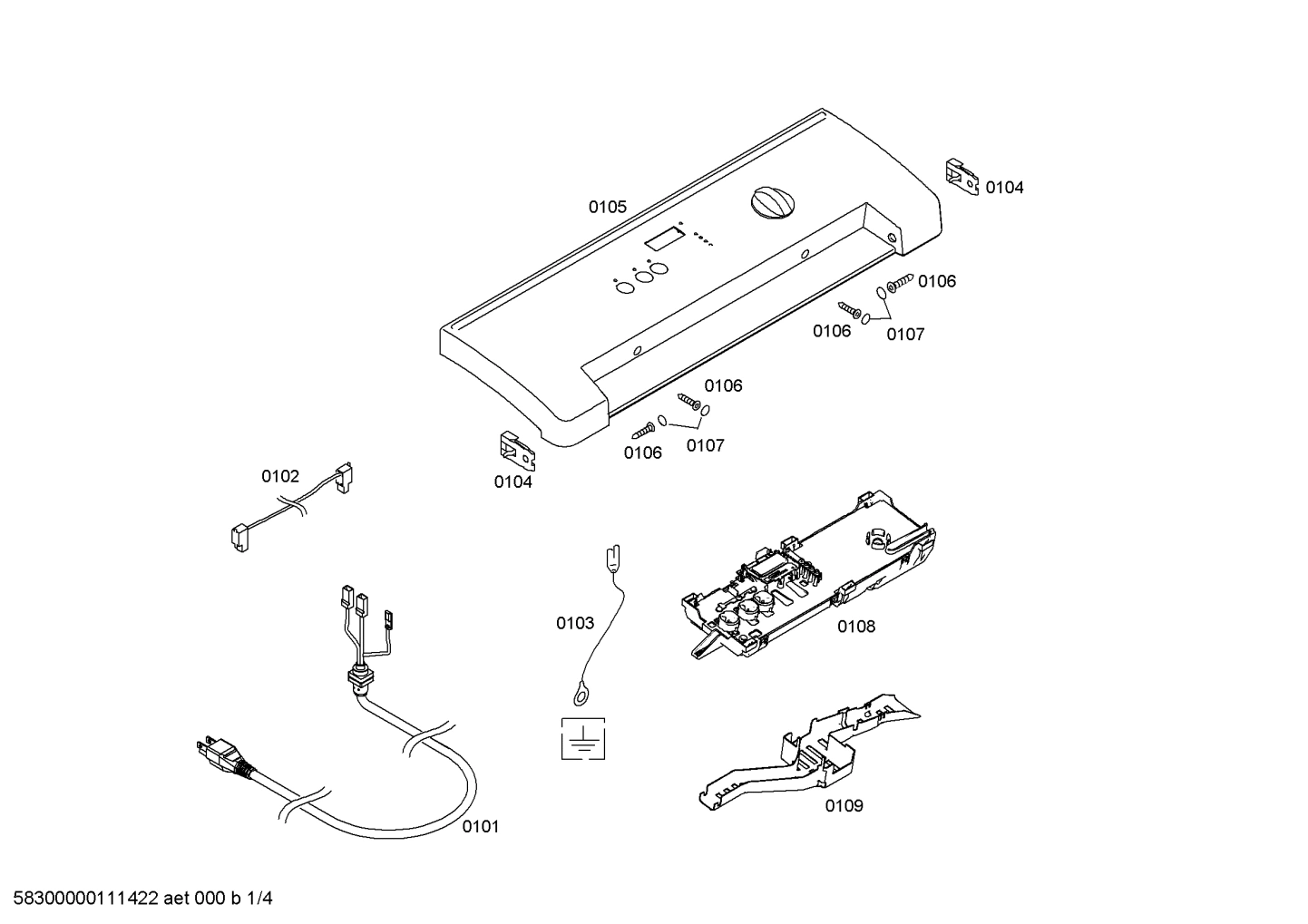

Diagram 1

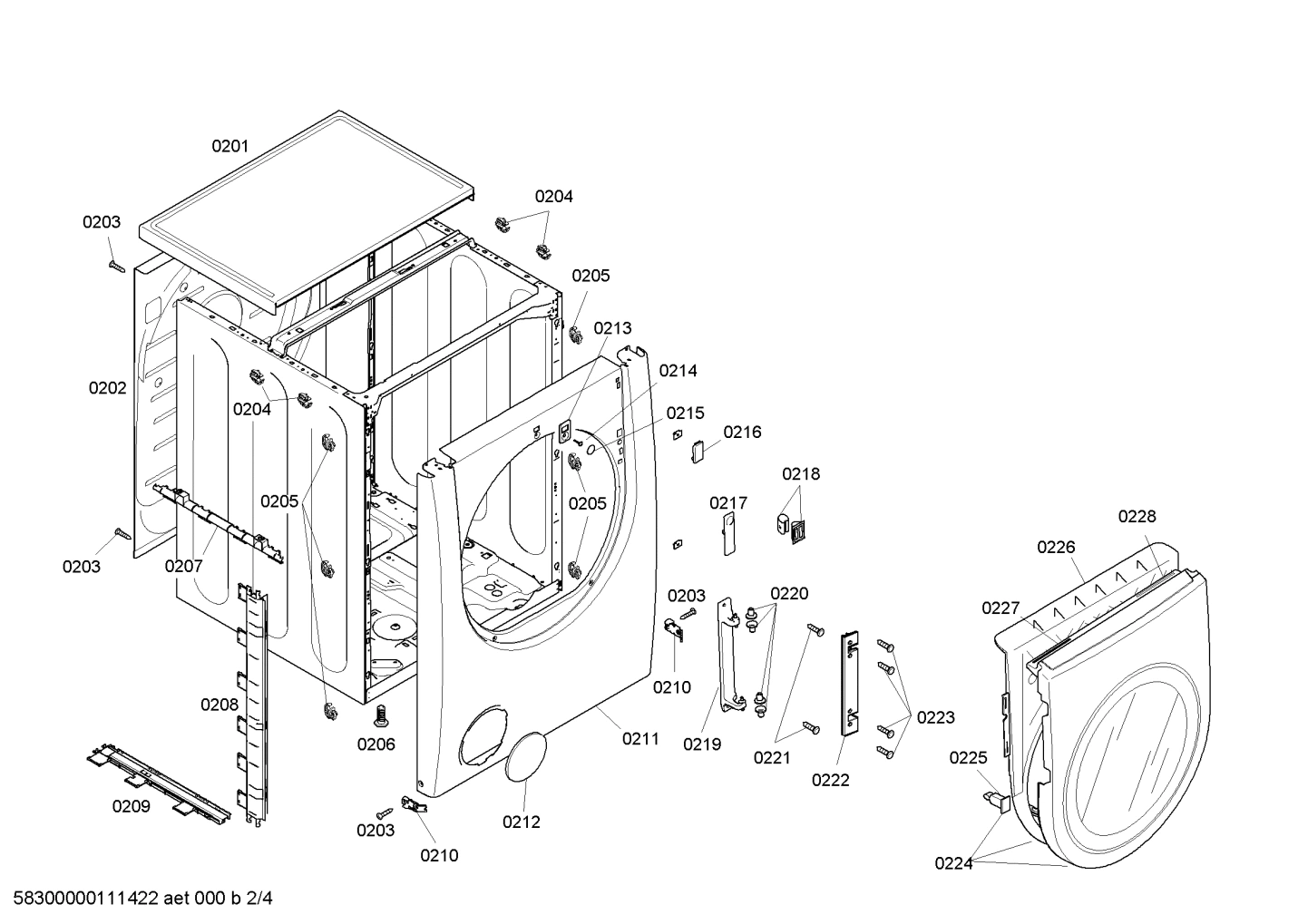

Diagram 2

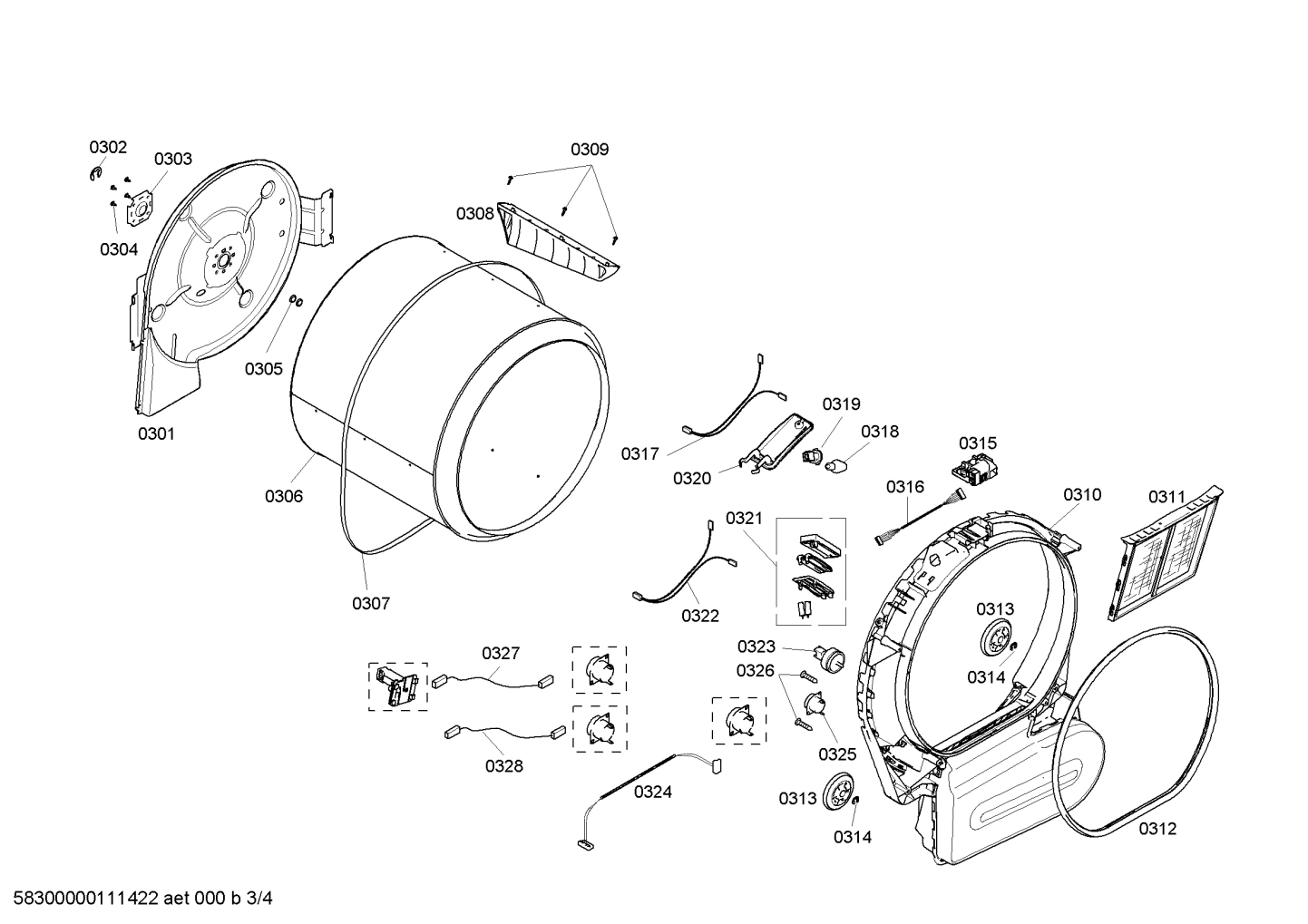

Diagram 3

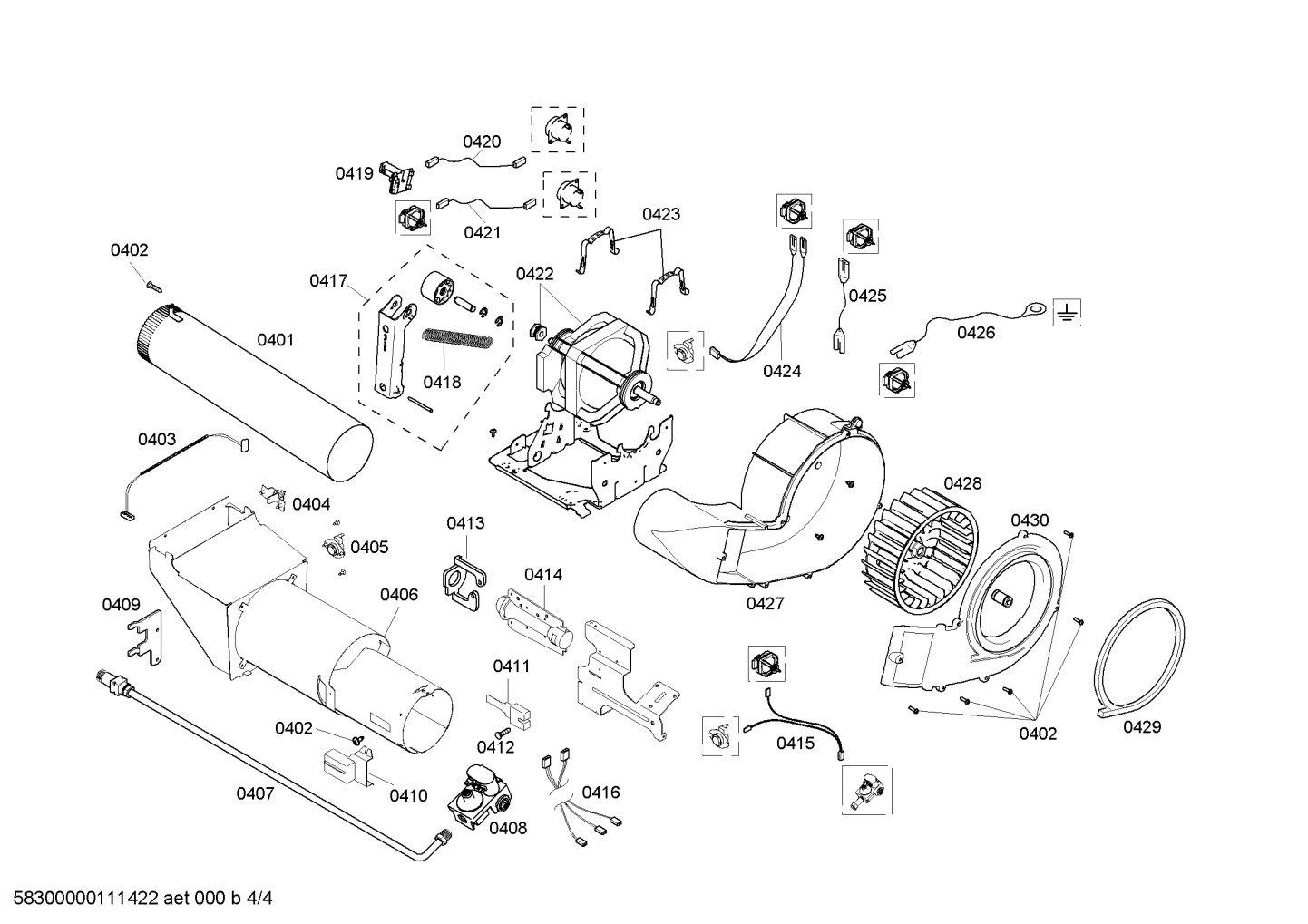

Diagram 4
Common parts from model Bosch WTMB3520UC/01 Dryer
0101
Power cord BOS 00442362 Contact Us For Availability
0104
Bracket BOS 00605033 Contact Us For Availability
0106
Self-Tapping Screw BOS 00422240 No Longer Available
0205
Fastening Knob BOS 00427416 Contact Us For Availability
0213
Locking cap BOS 00424040 Contact Us For Availability
0215
Cap, Control Panel Screw BOS 00422175 Contact Us For Availability
0216
Locking cap BOS 00424035 Contact Us For Availability
0217
Locking cap BOS 00424036 No Longer Available
0222
Cover BOS 00491627 Contact Us For Availability
0223
Screw BOS 00615773 No Longer Available
0225
Door Latch BOS 00491673 No Longer Available
0301
Case-rear part BOS 00474975 Contact Us For Availability
0305
Washer BOS 00422181 Contact Us For Availability
0306
Drum BOS 00241109 Contact Us For Availability
0310
Front BOS 00241091 Contact Us For Availability
0311
Lint Screen BOS 00436476 No Longer Available
0312
Door Seal BOS 00491630 No Longer Available
0315
Door Switch BOS 00422183 No Longer Available
0317
Cable harness BOS 00421665 Contact Us For Availability
0319
Bushing BOS 00422210 Contact Us For Availability
0321
Moisture Sensor Assembly BOS 00422202 Contact Us For Availability
0327
Cable harness BOS 00421685 Contact Us For Availability
0401
Exhaust baffle BOS 00436457 Contact Us For Availability
0405
Limiter-temperature BOS 00422273 No Longer Available
0411
Igniter Assembly BOS 00491648 Contact Us For Availability
0412
Screw BOS 00422242 Contact Us For Availability
0422
Drive Motor BOS 00436441 No Longer Available
0428
Fan wheel BOS 00491640 Contact Us For Availability
× ![]()
