Model Bosch WTMB3320US/01 Dryer – Common Parts & Diagrams

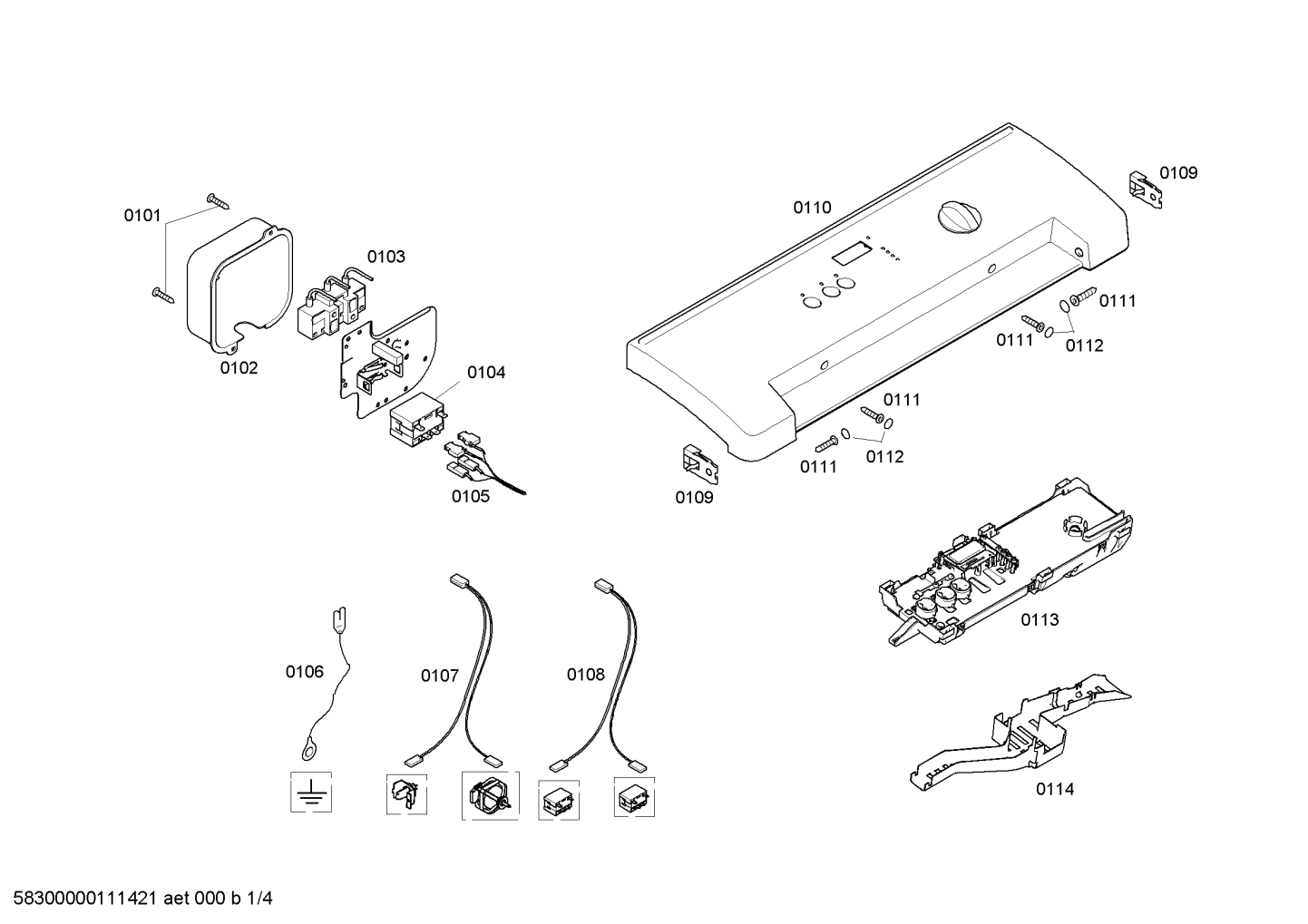

0102
Terminal box
Terminal box BOS 00641153 Contact Us For Availability
View on Model
0103
Terminal
Terminal BOS 00493823 Contact Us For Availability
View on Model
0106
Cable harness
Cable harness BOS 00421597 Contact Us For Availability
View on Model
0109
Bracket
Bracket BOS 00605033 Contact Us For Availability
View on Model
0111
Screw
Screw BOS 00422240 No Longer Available
View on Model
0112
Cover
Cover BOS 00422175 Contact Us For Availability
View on Model
0113
Control module
Control module BOS 00666016 Contact Us For Availability
View on Model

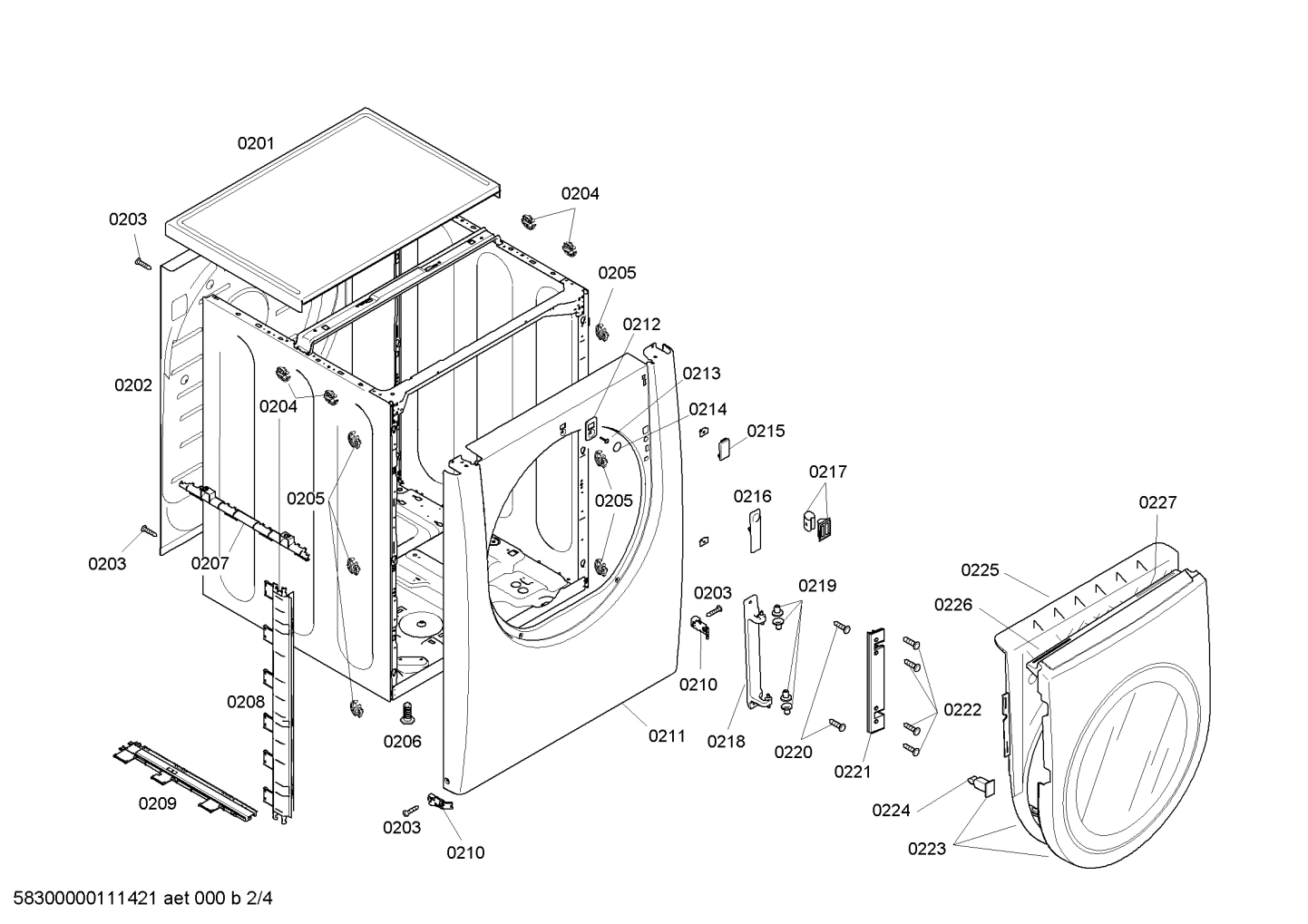

0205
Plug
Plug BOS 00427416 Contact Us For Availability
View on Model
0206
Foot
Foot BOS 00422201 Contact Us For Availability
View on Model
0212
Locking cap
Locking cap BOS 00424040 Contact Us For Availability
View on Model
0213
Screw
Screw BOS 00422180 Contact Us For Availability
View on Model
0215
Locking cap
Locking cap BOS 00424035 Contact Us For Availability
View on Model
0216
Locking cap
Locking cap BOS 00424036 No Longer Available
View on Model
0217
Holder
Holder BOS 00491624 Contact Us For Availability
View on Model
0219
Sleeve
Sleeve BOS 00422204 Contact Us For Availability
View on Model
0221
Cover
Cover BOS 00491627 Contact Us For Availability
View on Model
0222
Screw
Screw BOS 00615773 Contact Us For Availability
View on Model
0224
Door latch
Door latch BOS 00491673 No Longer Available
View on Model

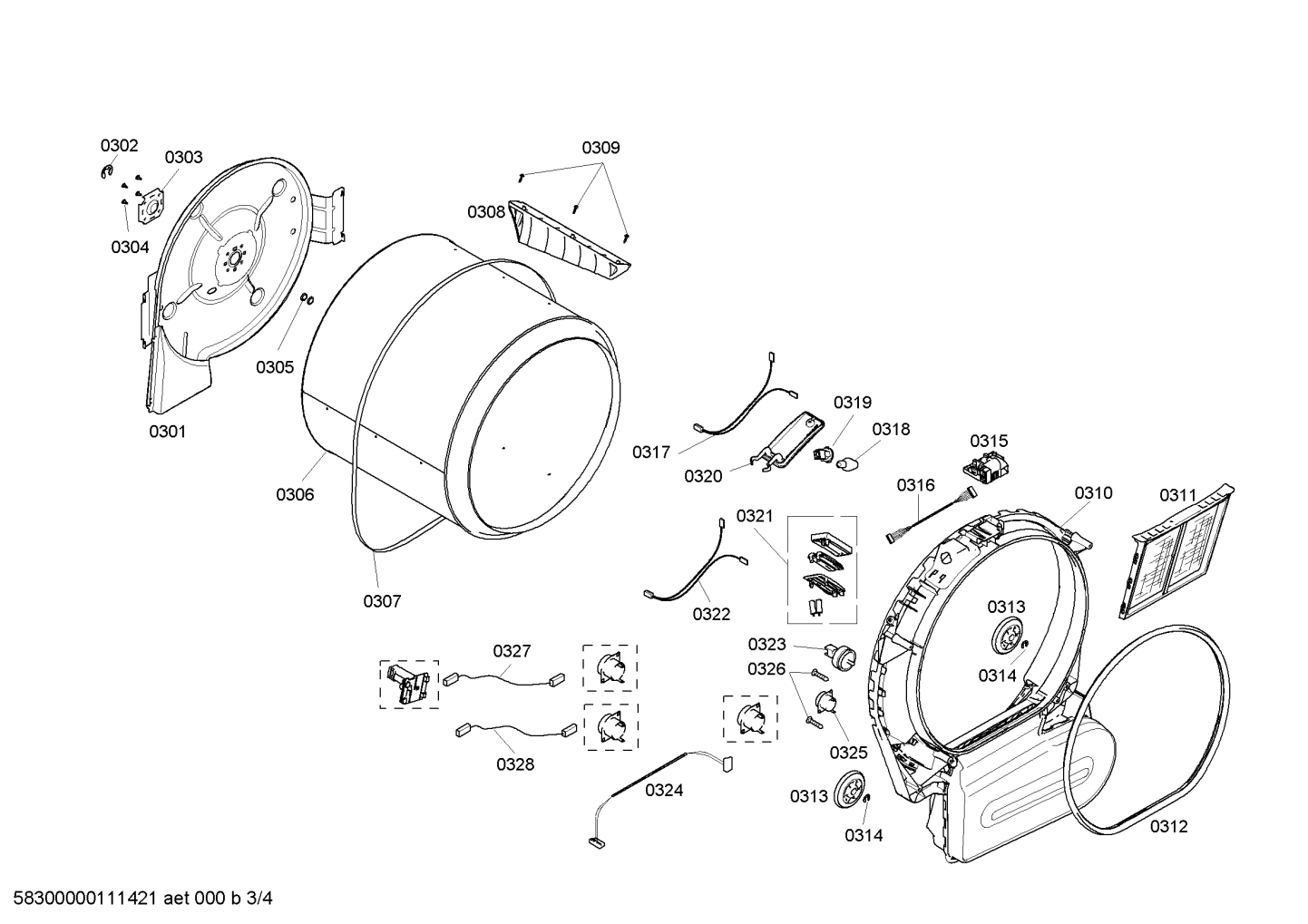

0301
Case-rear part
Case-rear part BOS 00474975 Contact Us For Availability
View on Model
0302
Clip
Clip BOS 00422226 Contact Us For Availability
View on Model
0305
Washer
Washer BOS 00422181 Contact Us For Availability
View on Model
0306
Drum
Drum BOS 00241109 Contact Us For Availability
View on Model
0307
Belt
Belt BOS 00491679 Contact Us For Availability
View on Model
0308
Flap
Flap BOS 00436417 Contact Us For Availability
View on Model
0310
Front
Front BOS 00241091 Contact Us For Availability
View on Model
0311
Filter-fluff
Filter-fluff BOS 00436476 Contact Us For Availability
View on Model
0312
Seal-door
Seal-door BOS 00491630 Contact Us For Availability
View on Model
0315
Switch-door
Switch-door BOS 00422183 No Longer Available
View on Model
0316
Cable harness
Cable harness BOS 00421662 Contact Us For Availability
View on Model
0317
Cable harness
Cable harness BOS 00421665 Contact Us For Availability
View on Model
0318
Lamp
Lamp BOS 00422173 Contact Us For Availability
View on Model
0319
Bushing
Bushing BOS 00422210 Contact Us For Availability
View on Model
0321
Sensor
Sensor BOS 00422202 No Longer Available
View on Model
0324
Cable harness
Cable harness BOS 00421679 Contact Us For Availability
View on Model
0325
Limiter-temperature
Limiter-temperature BOS 00422177 Contact Us For Availability
View on Model

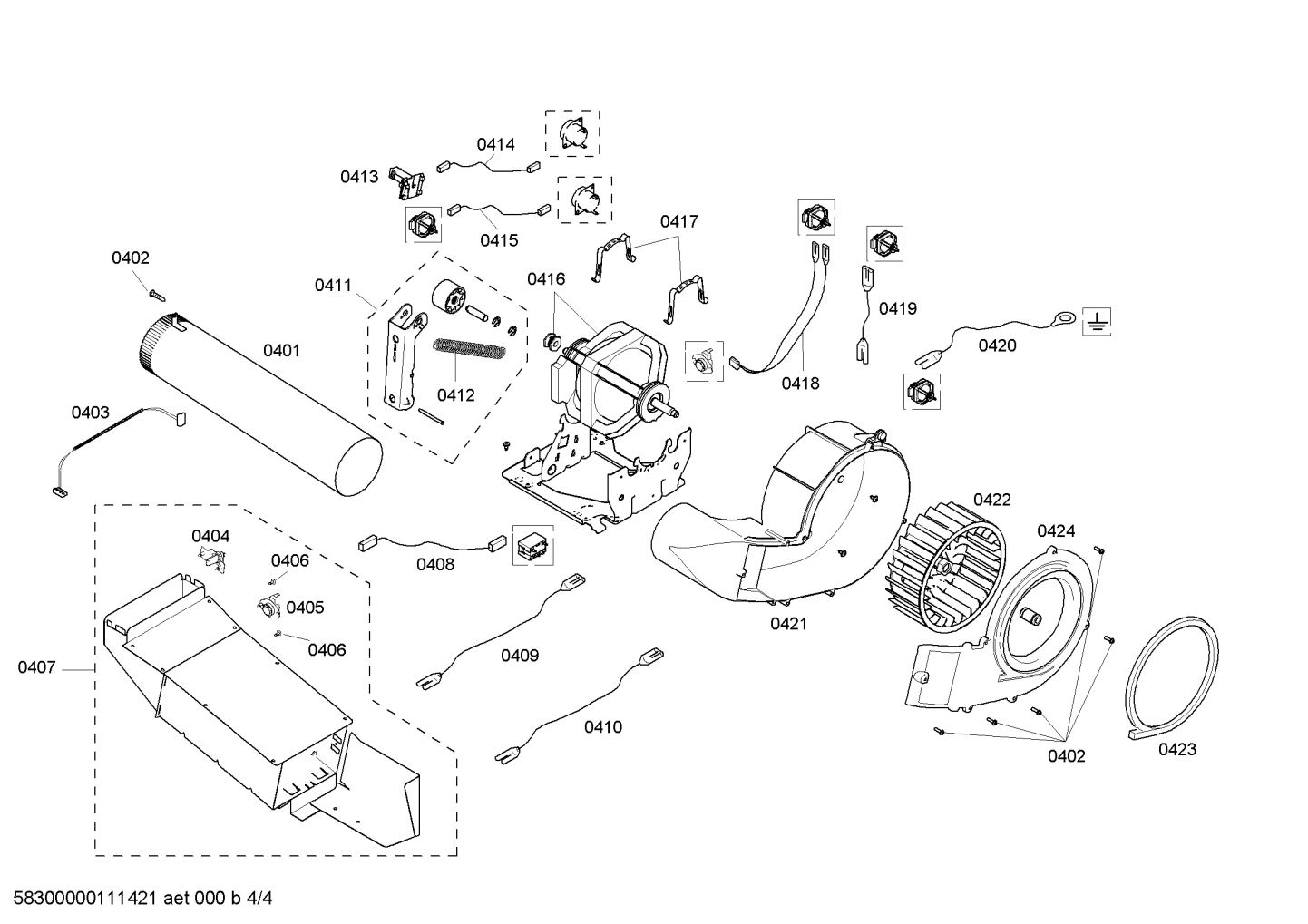

0401
Exhaust baffle
Exhaust baffle BOS 00436457 Contact Us For Availability
View on Model
0403
Cable harness
Cable harness BOS 00421680 Contact Us For Availability
View on Model
0404
Sensor-NTC
Sensor-NTC BOS 00422221 Contact Us For Availability
View on Model
0407
Heater-spiral
Heater-spiral BOS 00436460 Contact Us For Availability
View on Model
0411
Roller-tension
Roller-tension BOS 00491608 Contact Us For Availability
View on Model
0414
Cable harness
Cable harness BOS 00421685 Contact Us For Availability
View on Model
0415
Cable harness
Cable harness BOS 00421596 Contact Us For Availability
View on Model
0416
Motor
Motor BOS 00436441 Contact Us For Availability
View on Model
0418
Cable harness
Cable harness BOS 00421678 Contact Us For Availability
View on Model
0421
Housing part
Housing part BOS 00436458 Contact Us For Availability
View on Model
0422
Fan wheel
Fan wheel BOS 00491640 No Longer Available
View on Model
0423
Sealing
Sealing BOS 00491693 Contact Us For Availability
View on Model
