Bosch WTL5460/01

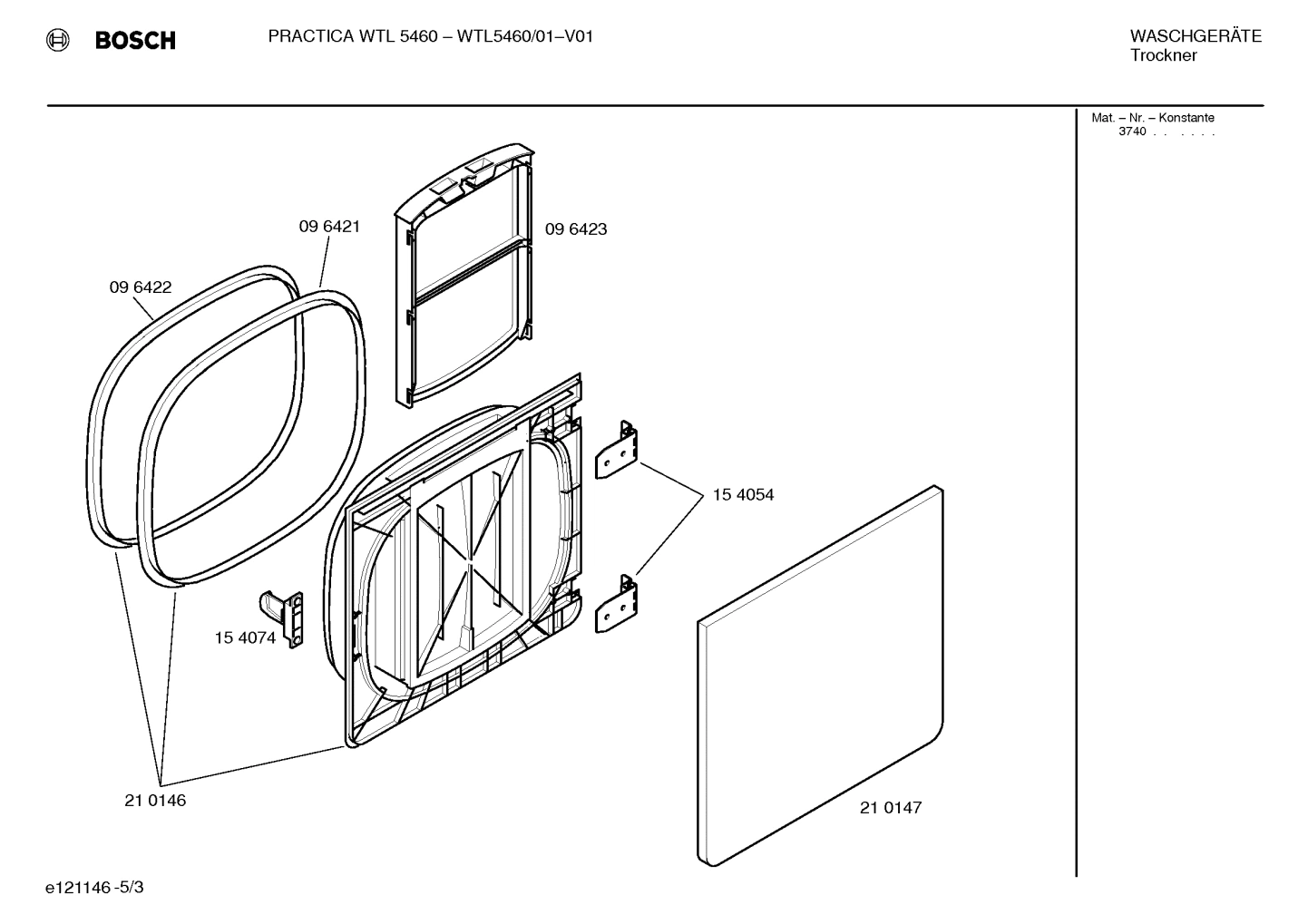

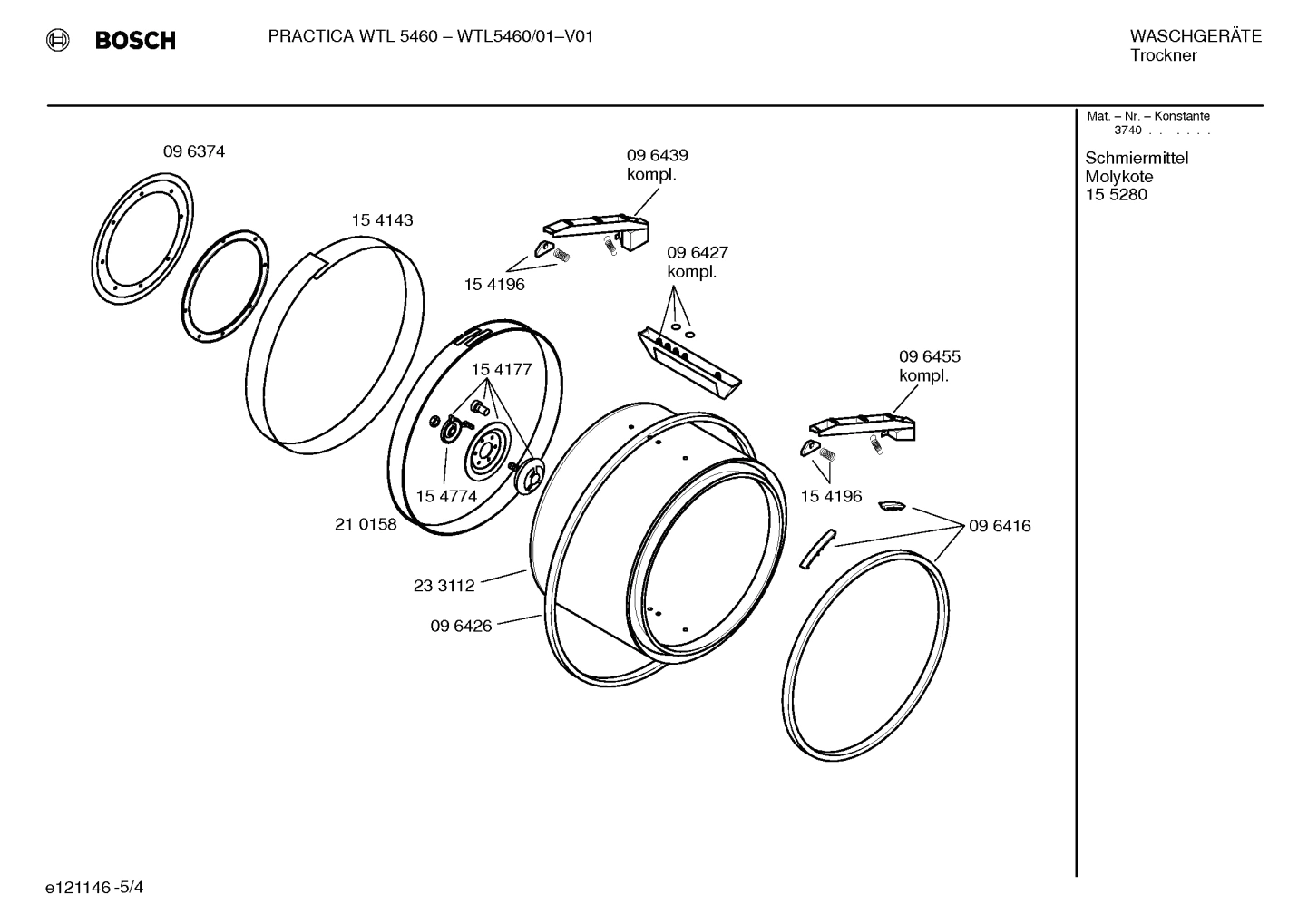

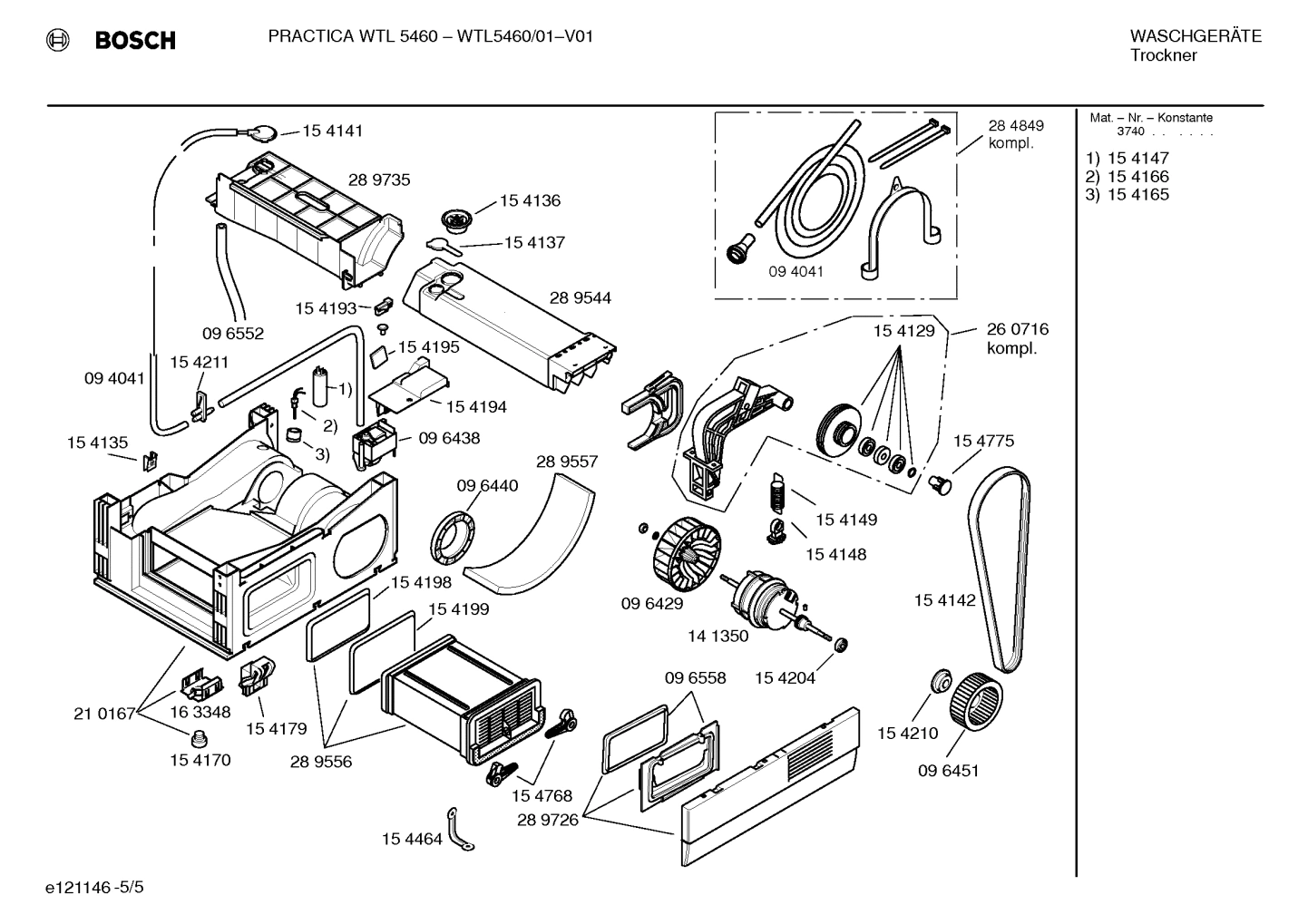

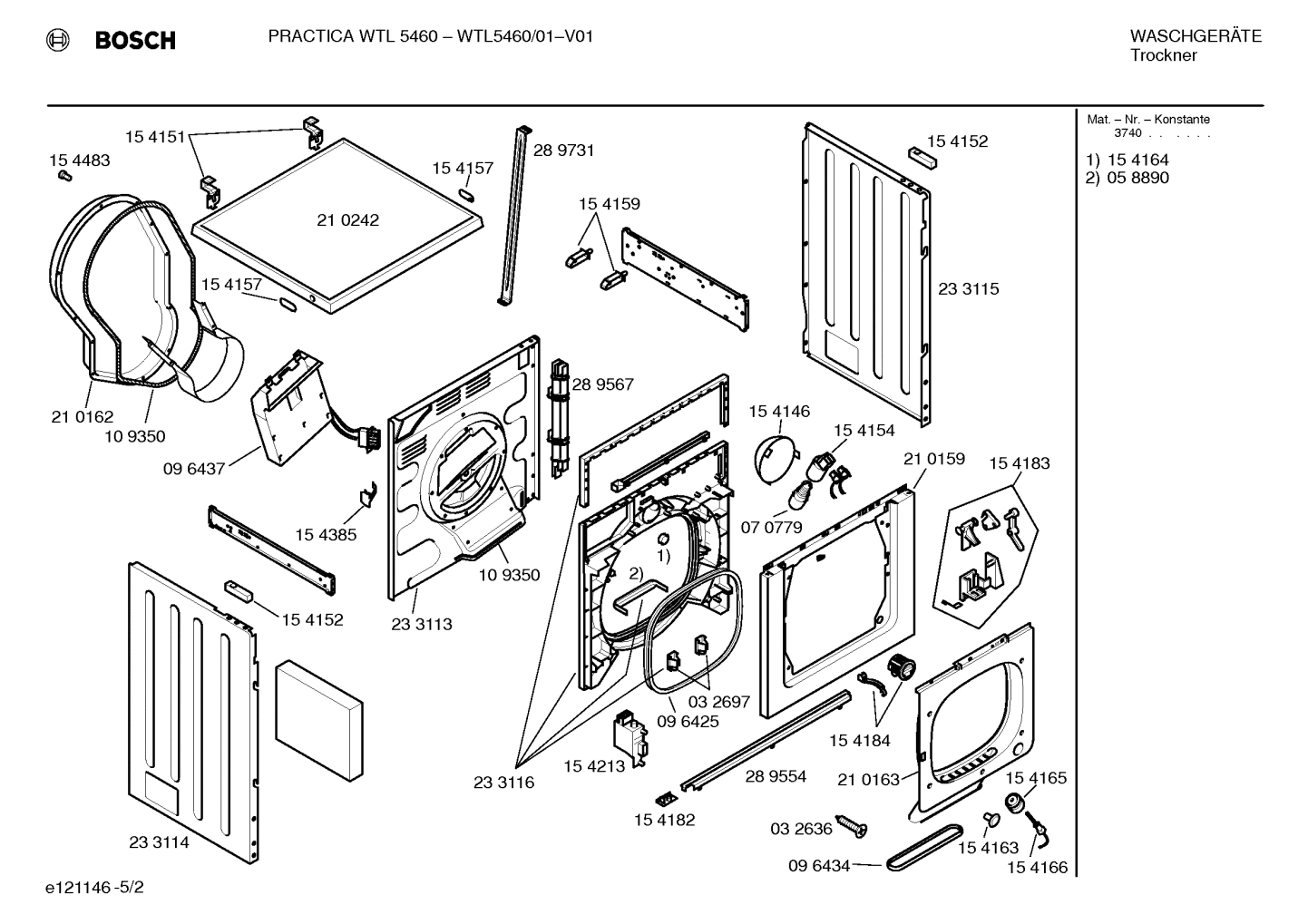

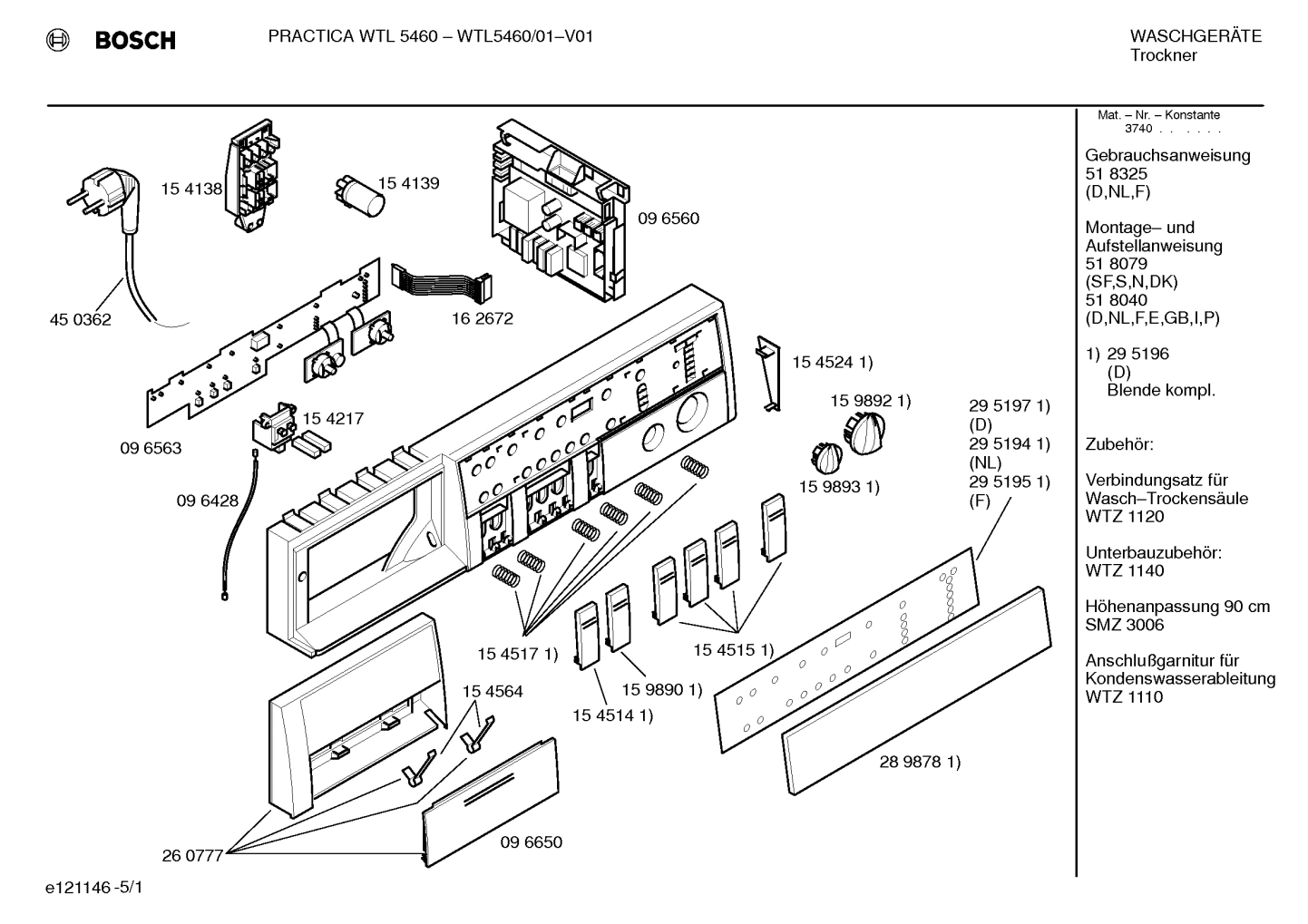

Model Bosch WTL5460/01 Dryer – Common Parts & Diagrams

Common parts from model Bosch WTL5460/01 Dryer

00154514 Bosch Dryer Push Button Cap

00154514 Bosch Dryer Push Button Cap In Stock BOS 00154514 $10.05

00159883 Bosch Laundry Spring

00159883 Bosch Laundry Spring In Stock BOS 00159883 $69.67

00096428 Bosch Laundry Bowden Cable

00096428 Bosch Laundry Bowden Cable Backorder BOS 00096428 $59.71

Electric lock

Electric lock BOS 00171217 Contact Us For Availability

00154146 Bosch Laundry Cover

00154146 Bosch Laundry Cover Backorder BOS 00154146 $8.22

00070779 Bosch Lamp

00070779 Bosch Lamp In Stock BOS 00070779 $14.62

00189410 Bosch Laundry Mechanical Lock

00189410 Bosch Laundry Mechanical Lock In Stock BOS 00189410 $53.05

Key

Key BOS 00154184 Contact Us For Availability

Screw

Screw BOS 00032636 Contact Us For Availability

00154074 Bosch Laundry Hook

00154074 Bosch Laundry Hook In Stock BOS 00154074 $12.79

00183897 Bosch Laundry Bearing Set

00183897 Bosch Laundry Bearing Set Backorder BOS 00183897 $293.02

00096426 Bosch Laundry Drive Belt

00096426 Bosch Laundry Drive Belt In Stock BOS 00096426 $53.97

00094041 Bosch Laundry Outlet Hose

00094041 Bosch Laundry Outlet Hose In Stock BOS 00094041 $23.77

12013784 Bosch Laundry Outlet Hose

12013784 Bosch Laundry Outlet Hose Backorder BOS 12013784 $27.43

00154179 Bosch Laundry Door Hinge

00154179 Bosch Laundry Door Hinge Backorder BOS 00154179 $10.05

00154165 Bosch Laundry Seal

00154165 Bosch Laundry Seal Backorder BOS 00154165 $21.03

10010119 Bosch Laundry Repair Set

10010119 Bosch Laundry Repair Set In Stock BOS 10010119 $28.35

00611942 Bosch Laundry Foot

00611942 Bosch Laundry Foot In Stock BOS 00611942 $10.05

00289556 Bosch Laundry Cooler

00289556 Bosch Laundry Cooler Backorder BOS 00289556 $351.10

Roller-tension

Roller-tension BOS 00154129 Contact Us For Availability

00154148 Bosch Laundry Holder

00154148 Bosch Laundry Holder Backorder BOS 00154148 $4.56

00154142 Bosch Laundry Drive Belt

00154142 Bosch Laundry Drive Belt In Stock BOS 00154142 $22.86

00481698 Bosch Laundry Holder

00481698 Bosch Laundry Holder In Stock BOS 00481698 $291.26

Lock-mechanical

Lock-mechanical BOS 00154768 Contact Us For Availability
