Bosch WTL5400UC/08

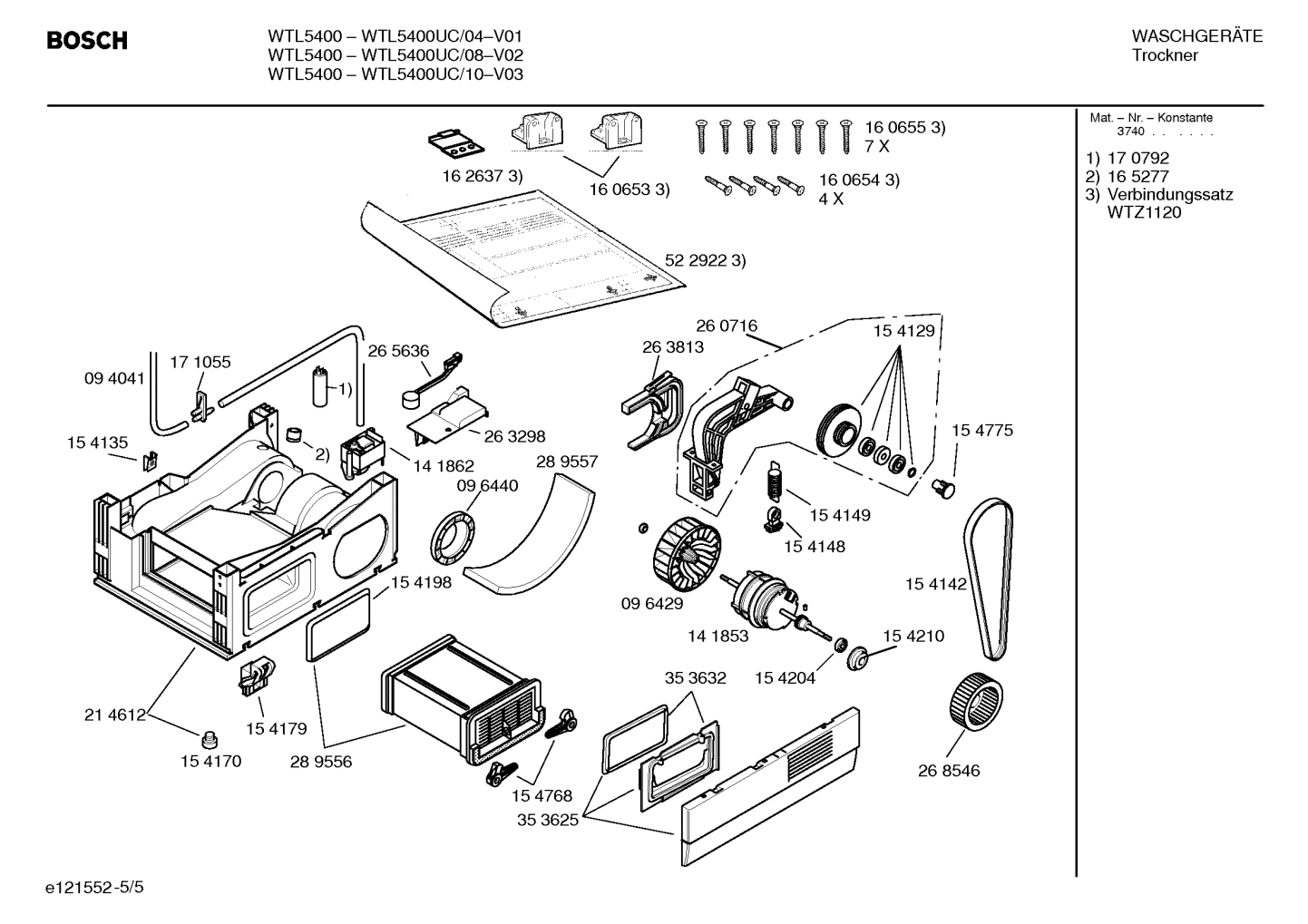

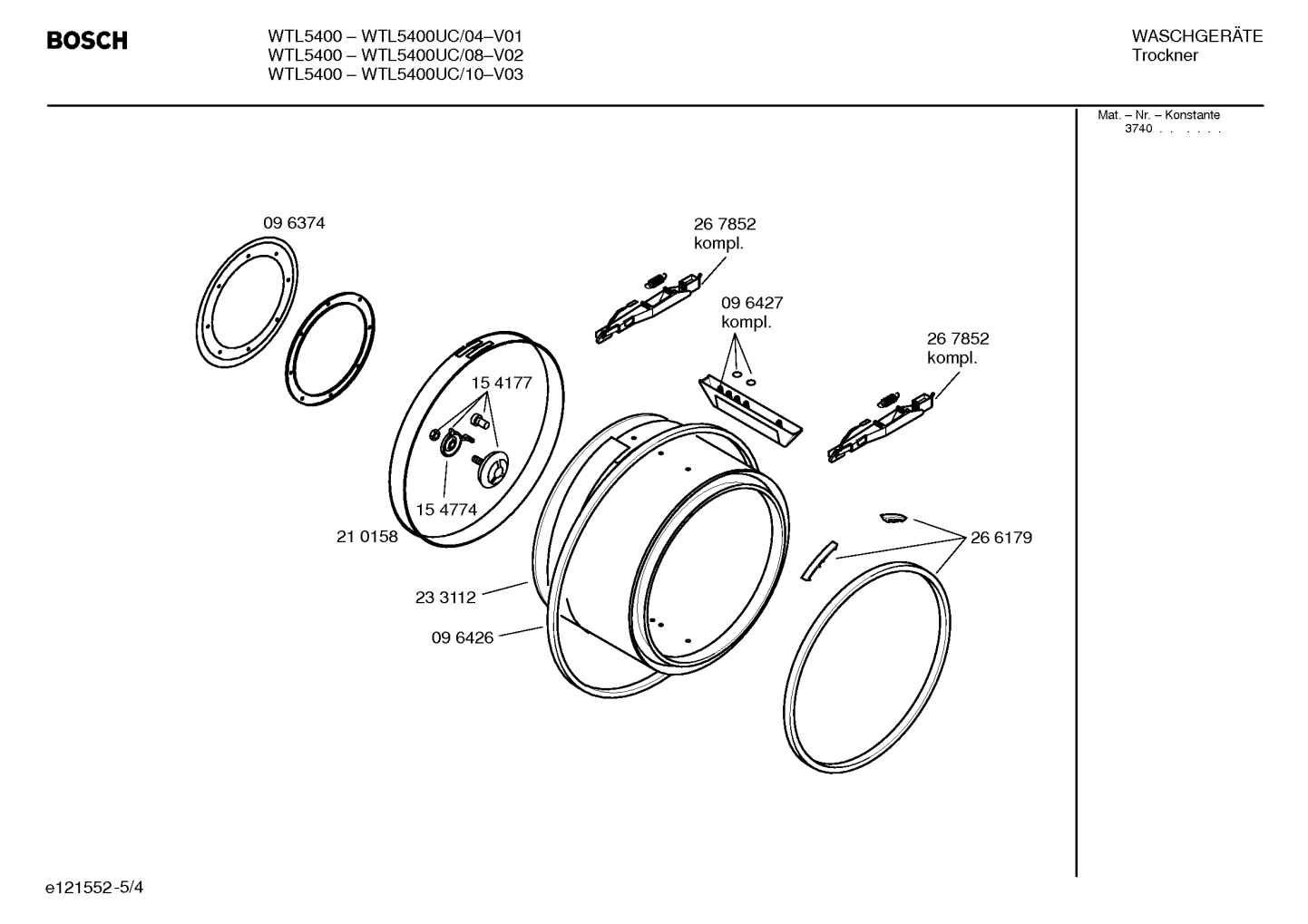

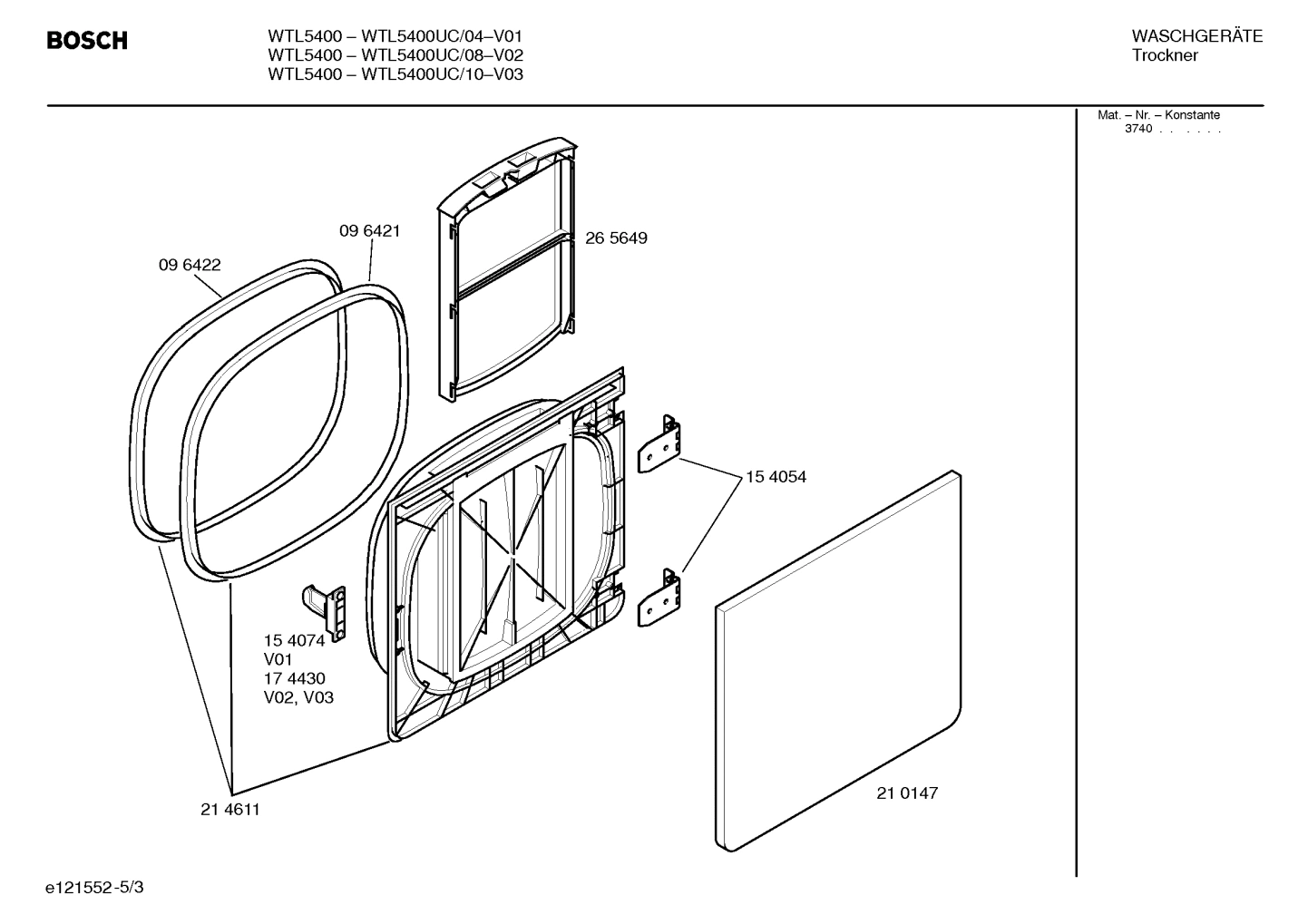

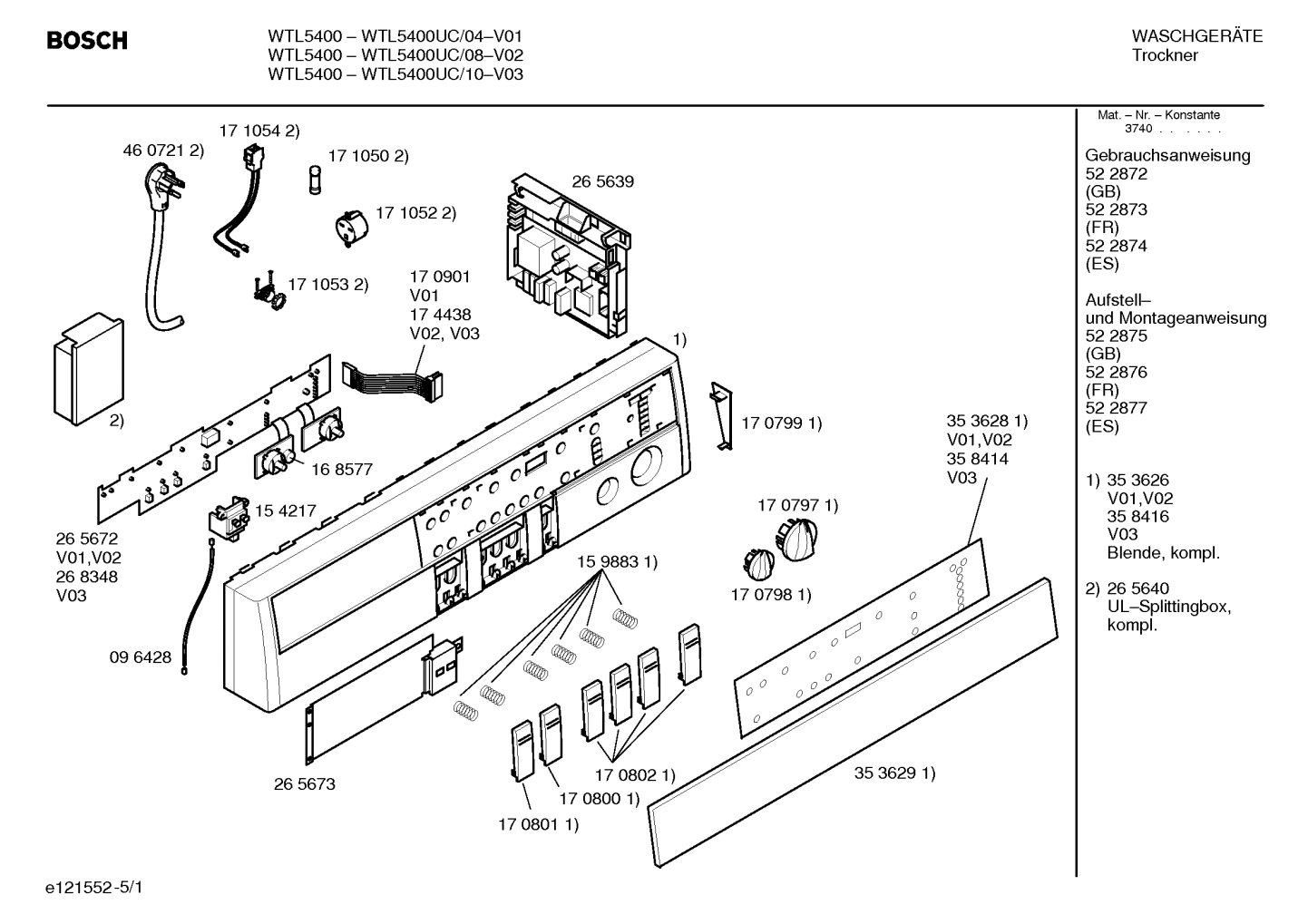

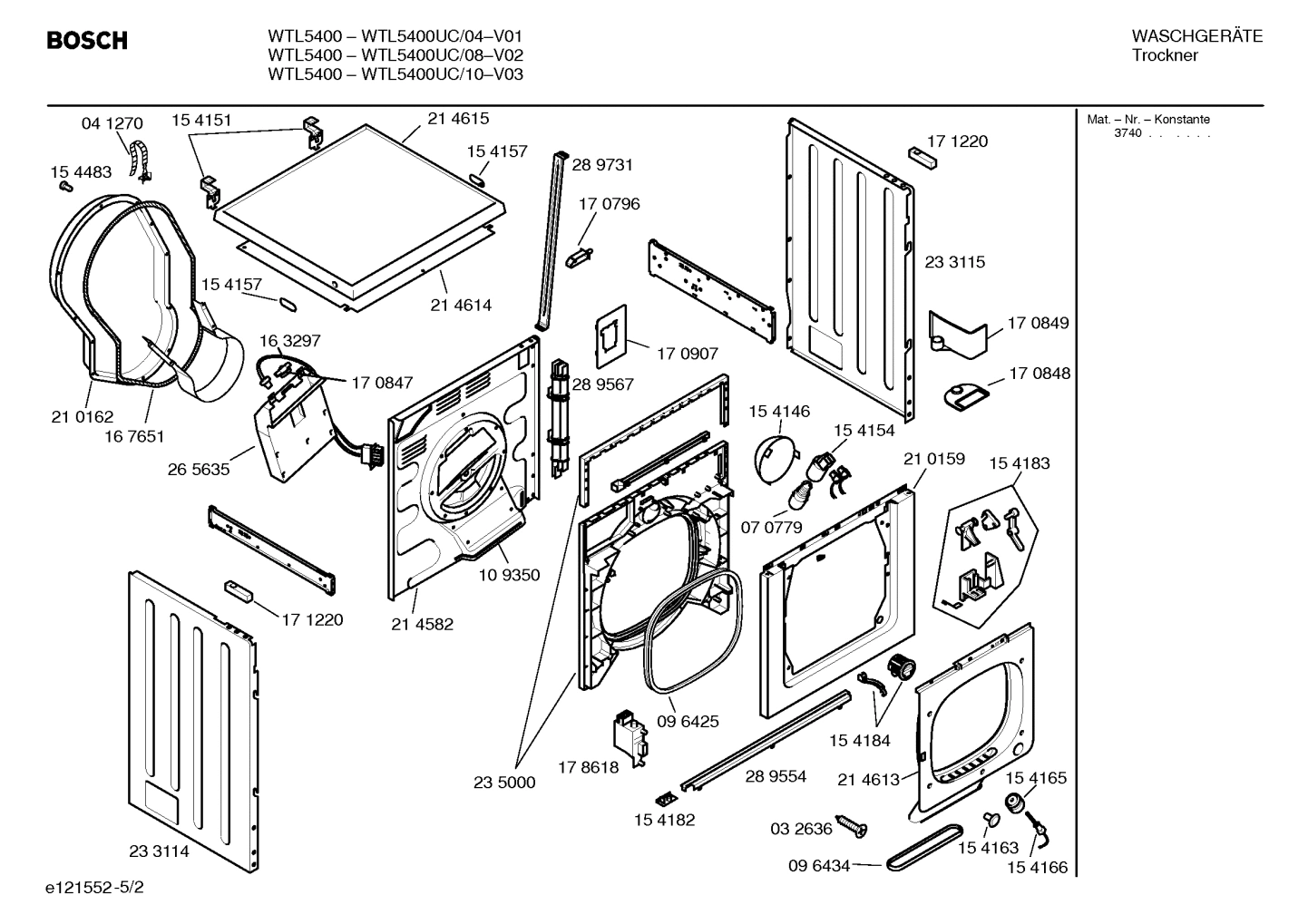

Model Bosch WTL5400UC/08 Dryer – Common Parts & Diagrams

Common parts from model Bosch WTL5400UC/08 Dryer

Knob-time

Knob-time BOS 00170798 Contact Us For Availability

00154514 Bosch Dryer Push Button Cap

00154514 Bosch Dryer Push Button Cap In Stock BOS 00154514 $10.05

00159883 Bosch Laundry Spring

00159883 Bosch Laundry Spring In Stock BOS 00159883 $69.67

00096428 Bosch Laundry Bowden Cable

00096428 Bosch Laundry Bowden Cable Backorder BOS 00096428 $59.71

00167651 Bosch Laundry Sealing

00167651 Bosch Laundry Sealing Backorder BOS 00167651 $22.86

00178618 Bosch Laundry Electric Lock

00178618 Bosch Laundry Electric Lock In Stock BOS 00178618 $166.41

00189410 Bosch Laundry Mechanical Lock

00189410 Bosch Laundry Mechanical Lock In Stock BOS 00189410 $53.05

Key

Key BOS 00154184 Contact Us For Availability

Screw

Screw BOS 00032636 Contact Us For Availability

00154165 Bosch Laundry Seal

00154165 Bosch Laundry Seal Backorder BOS 00154165 $21.03

10010119 Bosch Laundry Repair Set

10010119 Bosch Laundry Repair Set In Stock BOS 10010119 $28.35

00070779 Bosch Lamp

00070779 Bosch Lamp In Stock BOS 00070779 $14.62

Limiter-temperature

Limiter-temperature BOS 00163297 Contact Us For Availability

00154146 Bosch Laundry Cover

00154146 Bosch Laundry Cover Backorder BOS 00154146 $8.22

00154074 Bosch Laundry Hook

00154074 Bosch Laundry Hook In Stock BOS 00154074 $12.79

00265649 Bosch Laundry Fluff Filter

00265649 Bosch Laundry Fluff Filter Backorder BOS 00265649 $42.99

00183897 Bosch Laundry Bearing Set

00183897 Bosch Laundry Bearing Set Backorder BOS 00183897 $293.02

00096426 Bosch Laundry Drive Belt

00096426 Bosch Laundry Drive Belt In Stock BOS 00096426 $53.97

00611942 Bosch Laundry Foot

00611942 Bosch Laundry Foot In Stock BOS 00611942 $10.05

00154179 Bosch Laundry Door Hinge

00154179 Bosch Laundry Door Hinge Backorder BOS 00154179 $10.05

00289556 Bosch Laundry Cooler

00289556 Bosch Laundry Cooler Backorder BOS 00289556 $351.10

Lock-mechanical

Lock-mechanical BOS 00154768 Contact Us For Availability

00141862 Bosch Laundry Pump

00141862 Bosch Laundry Pump Backorder BOS 00141862 $268.38

00265636 Bosch Laundry Float

00265636 Bosch Laundry Float Backorder BOS 00265636 $85.96

00481698 Bosch Laundry Holder

00481698 Bosch Laundry Holder In Stock BOS 00481698 $291.26

Roller-tension

Roller-tension BOS 00154129 Contact Us For Availability

00154148 Bosch Laundry Holder

00154148 Bosch Laundry Holder Backorder BOS 00154148 $4.56

00154142 Bosch Laundry Drive Belt

00154142 Bosch Laundry Drive Belt In Stock BOS 00154142 $22.86

00094041 Bosch Laundry Outlet Hose

00094041 Bosch Laundry Outlet Hose In Stock BOS 00094041 $23.77
